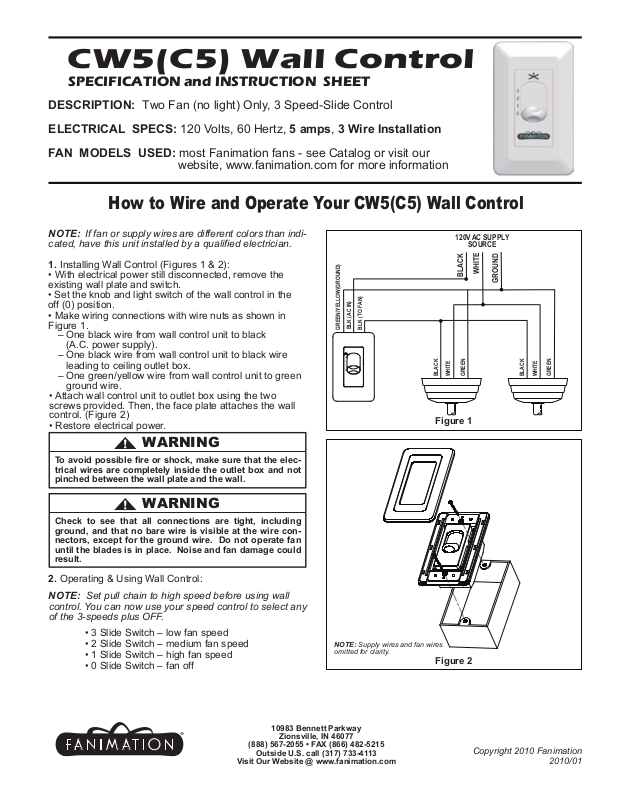

CW5(C5) Wall Control
SPECIFICATION and INSTRUCTION SHEET
DESCRIPTION: Two Fan (no light) Only, 3 Speed-Slide Control
ELECTRICAL SPECS: 120 Volts, 60 Hertz, 5 amps, 3 Wire Installation
FAN MODELS USED: most Fanimation fans - see Catalog or visit our
website, www.fanimation.com for more information

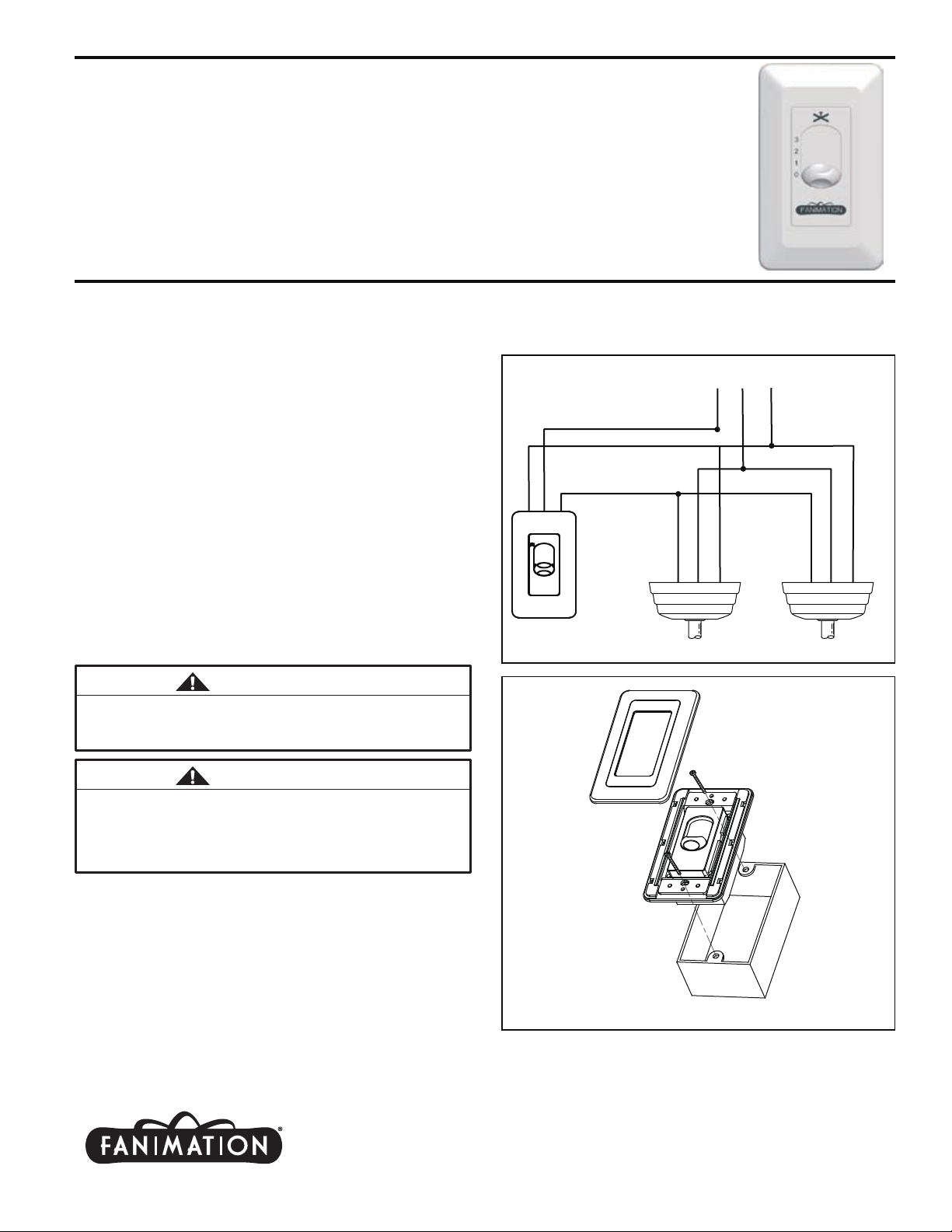

How to Wire and Operate Your CW5(C5) Wall Control
NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualified electrician.
1. Installing Wall Control (Figures 1 & 2):
• With electrical power still disconnected, remove the
existing wall plate and switch.
• Set the knob and light switch of the wall control in the
off (0) position.
• Make wiring connections with wire nuts as shown in
Figure 1.
– One black wire from wall control unit to black
(A.C. power supply).
– One black wire from wall control unit to black wire
leading to ceiling outlet box.
– One green/yellow wire from wall control unit to green
ground wire.
• Attach wall control unit to outlet box using the two
screws provided. Then, the face plate attaches the wall
control. (Figure 2)
• Restore electrical power.
WARNING
To avoid possible fire or shock, make sure that the electrical wires are completely inside the outlet box and not
pinched between the wall plate and the wall.
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire connectors, except for the ground wire. Do not operate fan
until the blades is in place. Noise and fan damage could
result.
BLK (AC IN)
GREEN/YELLOW(GROUND)
BLK (TO FAN)
3
2
1
0
120V AC SUPPLY
BLACK
WHITE
BLACK
Figure 1
SOURCE
WHITE
GREEN
GROUND
BLACK
WHITE
GREEN
2. Operating & Using Wall Control:
NOTE: Set pull chain to high speed before using wall
control. You can now use your speed control to select any
of the 3-speeds plus OFF.
• 3 Slide Switch – low fan speed
• 2 Slide Switch – medium fan speed
• 1 Slide Switch – high fan speed
• 0 Slide Switch – fan off
10983 Bennett Parkway
Zionsville, IN 46077
(888) 567-2055 • FAX (866) 482-5215
Outside U.S. call (317) 733-4113
Visit Our Website @ www.fanimation.com
NOTE: Supply wires and fan wires
omitted for clarity.
Figure 2
Copyright 2010 Fanimation
2010/01
