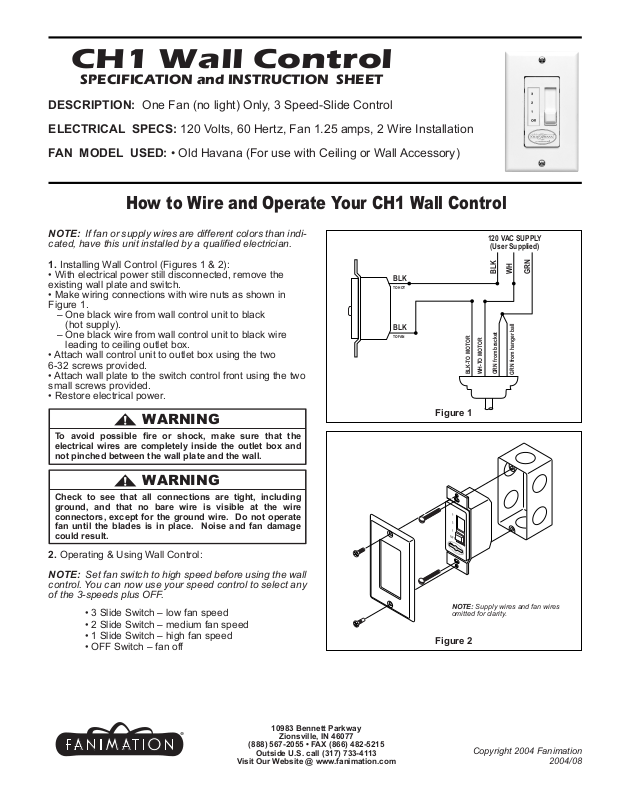

CH1 Wall Control
SPECIFICATION and INSTRUCTION SHEET
DESCRIPTION: One Fan (no light) Only, 3 Speed-Slide Control
ELECTRICAL SPECS: 120 Volts, 60 Hertz, Fan 1.25 amps, 2 Wire Installation
FAN MODEL USED: • Old Havana (For use with Ceiling or Wall Accessory)
How to Wire and Operate Your CH1 Wall Control
NOTE: If fan or supply wires are different colors than indicated, have this unit installed by a qualified electrician.

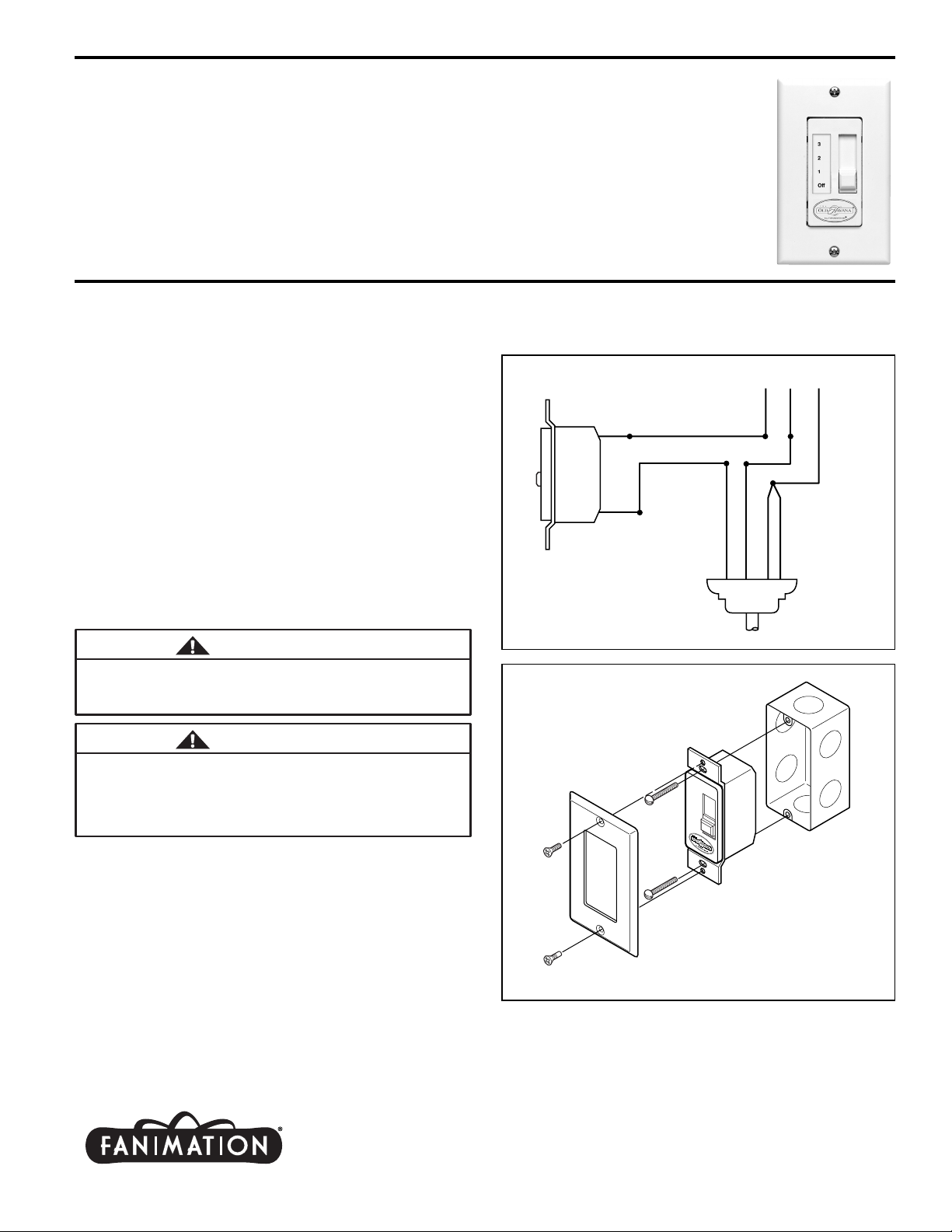

1. Installing Wall Control (Figures 1 & 2):
• With electrical power still disconnected, remove the
existing wall plate and switch.
• Make wiring connections with wire nuts as shown in
Figure 1.
– One black wire from wall control unit to black
(hot supply).
– One black wire from wall control unit to black wire
leading to ceiling outlet box.
• Attach wall control unit to outlet box using the two
6-32 screws provided.
• Attach wall plate to the switch control front using the two
small screws provided.
• Restore electrical power.
WARNING
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box and
not pinched between the wall plate and the wall.
WARNING
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not operate
fan until the blades is in place. Noise and fan damage
could result.
BLK
TO HOT
BLK
TO FAN
Figure 1
3
2
1
O
F
F
120 VAC SUPPLY
(User Supplied)
BLK
GRN from bracket
WH-TO MOTOR
BLK-TO MOTOR
WH
GRN
GRN from hanger ball
2. Operating & Using Wall Control:
NOTE: Set fan switch to high speed before using the wall
control. You can now use your speed control to select any
of the 3-speeds plus OFF.
• 3 Slide Switch – low fan speed
• 2 Slide Switch – medium fan speed
• 1 Slide Switch – high fan speed
• OFF Switch – fan off
10983 Bennett Parkway
Zionsville, IN 46077
(888) 567-2055 • FAX (866) 482-5215
Outside U.S. call (317) 733-4113
Visit Our Website @ www.fanimation.com
NOTE: Supply wires and fan wires
omitted for clarity.
Figure 2
Copyright 2004 Fanimation
