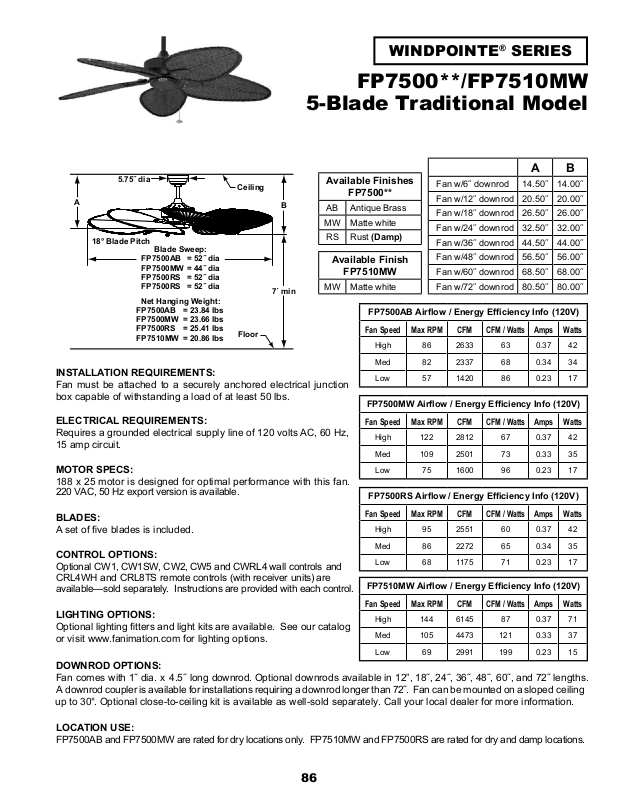

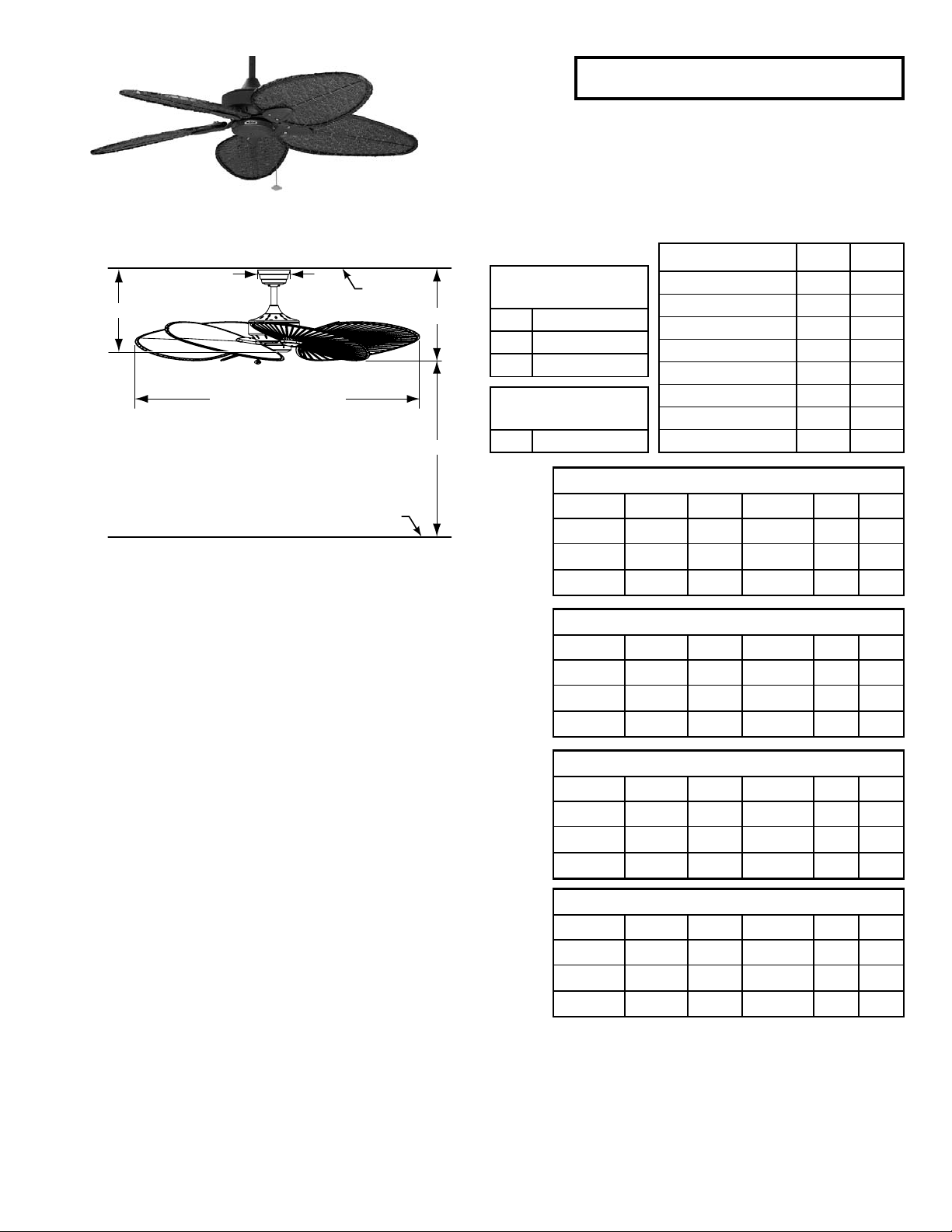

5-Blade Traditional Model
A
18° Blade Pitch
5.75˝ dia
Blade Sweep:
FP7500AB = 52˝ dia
FP7500MW = 44˝ dia
FP7500RS = 52˝ dia
FP7500RS = 52˝ dia
Net Hanging Weight:
FP7500AB = 23.84 lbs
FP7500MW = 23.66 lbs
FP7500RS = 25.41 lbs
FP7510MW = 20.86 lbs
Ceiling
B
7´ min
Floor
INSTALLATION REQUIREMENTS:
Fan must be attached to a securely anchored electrical junction
box capable of withstanding a load of at least 50 lbs.
ELECTRICAL REQUIREMENTS:
Requires a grounded electrical supply line of 120 volts AC, 60 Hz,
15 amp circuit.
MOTOR SPECS:
188 x 25 motor is designed for optimal performance with this fan.
220 VAC, 50 Hz export version is available.
Available Finishes
AB Antique Brass
MW Matte white
RS Rust (Damp)
Available Finish
FP7510MW
MW Matte white
WINDPOINTE® SERIES
FP7500**/FP7510MW
A B
FP7500**
FP7500AB Airflow / Energy Efficiency Info (120V)
Fan Speed Max RPM CFM
High 86 2633 63 0.37 42
Med 82 2337 68 0.34 34
Low 57 1420 86 0.23 17
FP7500MW Airflow / Energy Efficiency Info (120V)
Fan Speed Max RPM CFM
High 122 2812 67 0.37 42
Med 109 2501 73 0.33 35
Low 75 1600 96 0.23 17
FP7500RS Airflow / Energy Efficiency Info (120V)
Fan w/6˝ downrod 14.50˝ 14.00˝
Fan w/12˝ downrod 20.50˝ 20.00˝
Fan w/18˝ downrod 26.50˝ 26.00˝
Fan w/24˝ downrod 32.50˝ 32.00˝
Fan w/36˝ downrod 44.50˝ 44.00˝
Fan w/48˝ downrod 56.50˝ 56.00˝
Fan w/60˝ downrod 68.50˝ 68.00˝
Fan w/72˝ downrod 80.50˝ 80.00˝
CFM / Watts
CFM / Watts
Amps Watts
Amps Watts
BLADES:
A set of five blades is included.
CONTROL OPTIONS:
Optional CW1, CW1SW, CW2, CW5 and CWRL4 wall controls and
Fan Speed Max RPM CFM
High 95 2551 60 0.37 42
Med 86 2272 65 0.34 35
Low 68 1175 71 0.23 17
CFM / Watts
Amps Watts
CRL4WH and CRL8TS remote controls (with receiver units) are
available—sold separately. Instructions are provided with each control.
LIGHTING OPTIONS:
FP7510MW Airflow / Energy Efficiency Info (120V)
Fan Speed Max RPM CFM
High 144 6145 87 0.37 71
CFM / Watts
Amps Watts
Optional lighting fitters and light kits are available. See our catalog
or visit www.fanimation.com for lighting options.
Med 105 4473 121 0.33 37
Low 69 2991 199 0.23 15
DOWNROD OPTIONS:
Fan comes with 1˝ dia. x 4.5˝ long downrod. Optional downrods available in 12”, 18˝, 24˝, 36˝, 48˝, 60˝, and 72˝ lengths.
A downrod coupler is available for installations requiring a downrod longer than 72˝. Fan can be mounted on a sloped ceiling
up to 30°. Optional close-to-ceiling kit is available as well-sold separately. Call your local dealer for more information.
LOCATION USE:
FP7500AB and FP7500MW are rated for dry locations only. FP7510MW and FP7500RS are rated for dry and damp locations.
