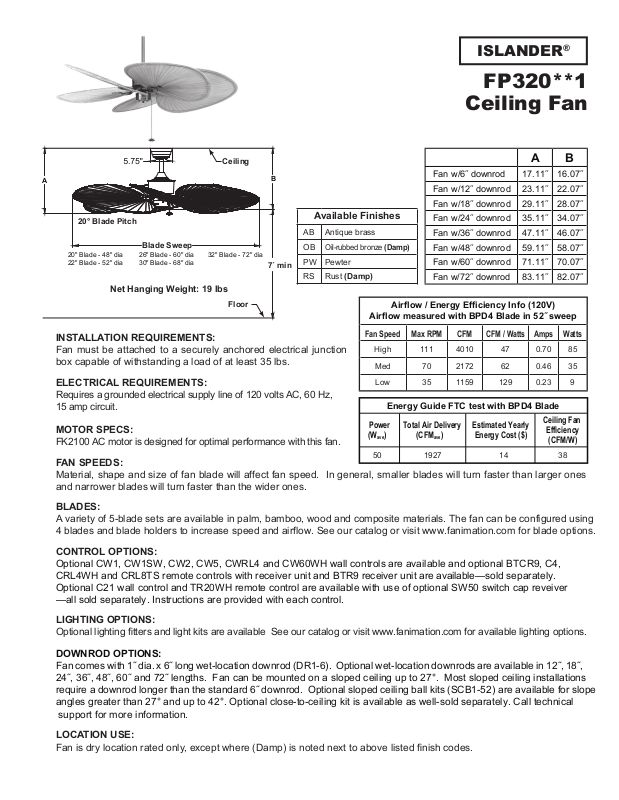

ISLANDER
®
FP320**1
Ceiling Fan

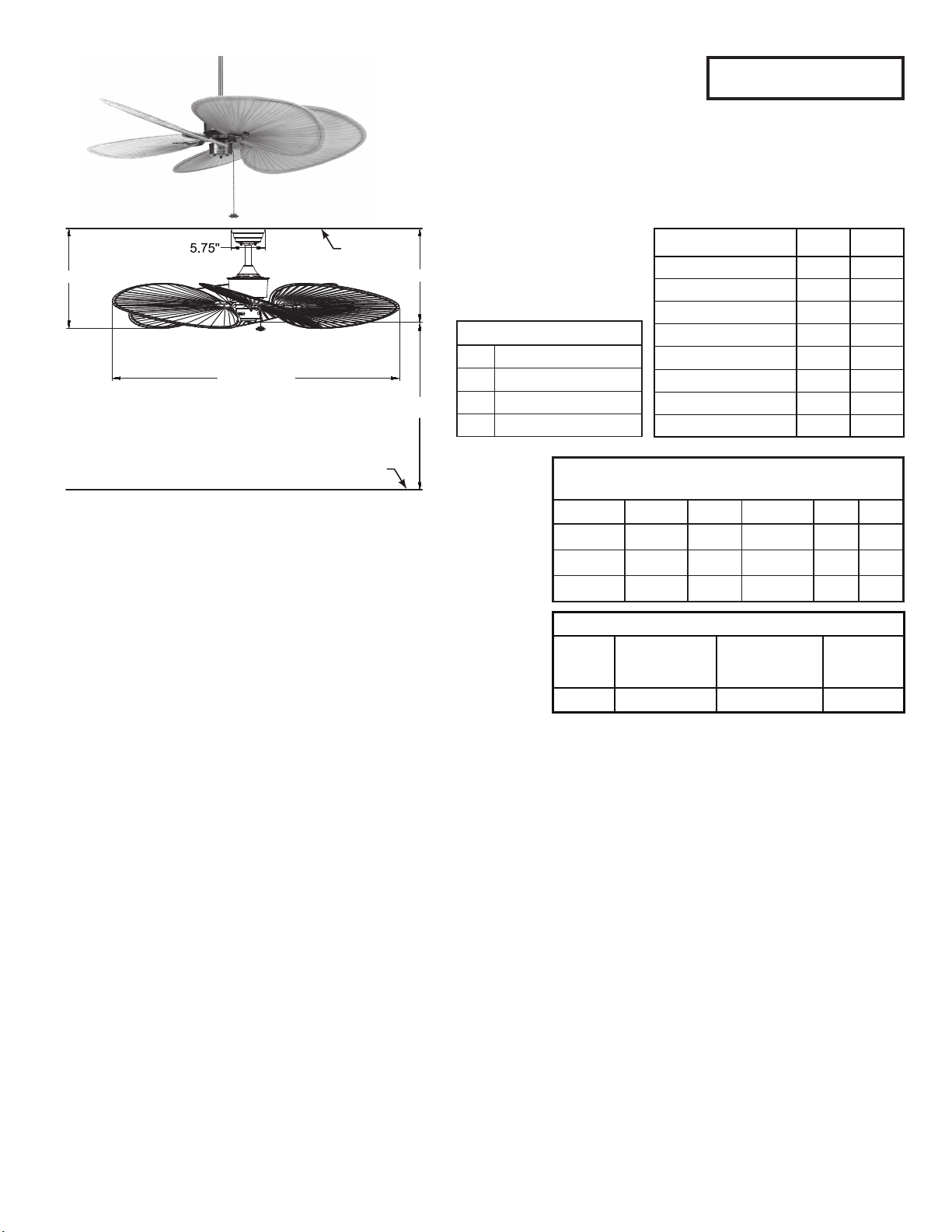

Ceiling
A
20° Blade Pitch
20" Blade - 48" dia
22" Blade - 52" dia
Net Hanging Weight: 19 lbs
Blade Sweep
26" Blade - 60" dia
30" Blade - 68" dia
32" Blade - 72" dia
Floor
B
7´ min
Available Finishes
AB Antique brass
OB
PW Pewter
RS Rust (Damp)
INSTALLATION REQUIREMENTS:
Fan must be attached to a securely anchored electrical junction
box capable of withstanding a load of at least 35 lbs.
ELECTRICAL REQUIREMENTS:
Oil-rubbed bronze (Damp)
Airflow / Energy Efficiency Info (120V)
Airflow measured with BPD4 Blade in 52˝ sweep
Fan Speed Max RPM CFM
High 111 4010 47 0.70 85
Med 70 2172 62 0.46 35
Low 35 1159 129 0.23 9
Fan w/6˝ downrod 17.11˝ 16.07˝
Fan w/12˝ downrod 23.11˝ 22.07˝
Fan w/18˝ downrod 29.11˝ 28.07˝
Fan w/24˝ downrod 35.11˝ 34.07˝
Fan w/36˝ downrod 47.11˝ 46.07˝
Fan w/48˝ downrod 59.11˝ 58.07˝
Fan w/60˝ downrod 71.11˝ 70.07˝
Fan w/72˝ downrod 83.11˝ 82.07˝
CFM / Watts
A B
Amps Watts
Requires a grounded electrical supply line of 120 volts AC, 60 Hz,
15 amp circuit.
MOTOR SPECS:
FK2100 AC motor is designed for optimal performance with this fan.
FAN SPEEDS:
Energy Guide FTC test with BPD4 Blade
Power
(W
Total Air Delivery
)
ave
50 1927 14 38
(CFM
)
ave
Estimated Yearly
Energy Cost ($)
Ceiling Fan
Efficiency
(CFM/W)
Material, shape and size of fan blade will affect fan speed. In general, smaller blades will turn faster than larger ones
and narrower blades will turn faster than the wider ones.
BLADES:
A variety of 5-blade sets are available in palm, bamboo, wood and composite materials. The fan can be configured using
4 blades and blade holders to increase speed and airflow. See our catalog or visit www.fanimation.com for blade options.
CONTROL OPTIONS:
Optional CW1, CW1SW, CW2, CW5, CWRL4 and CW60WH wall controls are available and optional BTCR9, C4,
CRL4WH and CRL8TS remote controls with receiver unit and BTR9 receiver unit are available—sold separately.
Optional C21 wall control and TR20WH remote control are available with use of optional SW50 switch cap reveiver
—all sold separately. Instructions are provided with each control.
LIGHTING OPTIONS:
Optional lighting fitters and light kits are available See our catalog or visit www.fanimation.com for available lighting options.
DOWNROD OPTIONS:
Fan comes with 1˝ dia. x 6˝ long wet-location downrod (DR1-6). Optional wet-location downrods are available in 12˝, 18˝,
24˝, 36˝, 48˝, 60˝ and 72˝ lengths. Fan can be mounted on a sloped ceiling up to 27°. Most sloped ceiling installations
require a downrod longer than the standard 6˝ downrod. Optional sloped ceiling ball kits (SCB1-52) are available for slope
angles greater than 27° and up to 42°. Optional close-to-ceiling kit is available as well-sold separately. Call technical
support for more information.
LOCATION USE:
Fan is dry location rated only, except where (Damp) is noted next to above listed finish codes.
