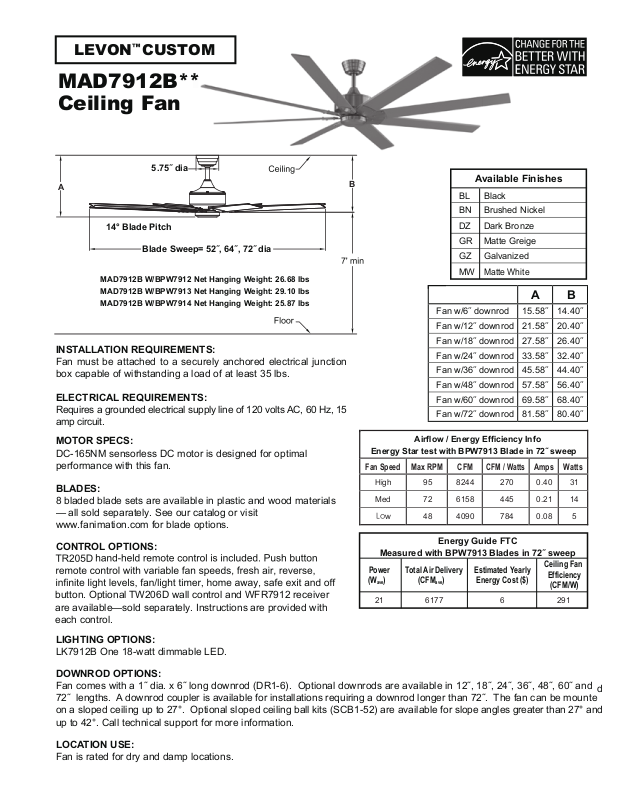

LEVON CUSTOM
™
MAD7912B**
Ceiling Fan
5.75˝ dia
A
14° Blade Pitch
Blade Sweep= 52˝, 64˝, 72˝ dia
MAD7912B W/BPW7912 Net Hanging Weight: 26.68 lbs
MAD7912B W/BPW7913 Net Hanging Weight: 29.10 lbs
MAD7912B W/BPW7914 Net Hanging Weight: 25.87 lbs
INSTALLATION REQUIREMENTS:
Fan must be attached to a securely anchored electrical junction
box capable of withstanding a load of at least 35 lbs.
ELECTRICAL REQUIREMENTS:
Requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15
amp circuit.
MOTOR SPECS:
DC-165NM sensorless DC motor is designed for optimal
performance with this fan.
BLADES:
8 bladed blade sets are available in plastic and wood materials
— all sold separately. See our catalog or visit
www.fanimation.com for blade options.
CONTROL OPTIONS:
button. Optional TW206D wall control and WFR7912 receiver
are available—sold separately. Instructions are provided with
each control.
B
Fan w/6˝ downrod 15.58˝ 14.40˝
Fan w/12˝ downrod 21.58˝ 20.40˝
Fan w/18˝ downrod 27.58˝ 26.40˝
Fan w/24˝ downrod 33.58˝ 32.40˝
Fan w/36˝ downrod 45.58˝ 44.40˝
Fan w/48˝ downrod 57.58˝ 56.40˝
Fan w/60˝ downrod 69.58˝ 68.40˝
Fan w/72˝ downrod 81.58˝ 80.40˝
Airflow / Energy Efficiency Info
Energy Star test with BPW7913 Blade in 72˝ sweep
Fan Speed Max RPM CFM
High 95 8244
Med 72 6158 445
Low 48 4090 784
Energy Guide FTC
Measured with BPW7913 Blades in 72˝ sweep
Power
(W
Total Air Delivery
)
ave
21 6177 6 291
(CFM
)
ave
Available Finishes
BL Black
BN Brushed Nickel
DZ Dark Bronze
GR Matte Greige
GZ Galvanized
Matte White
MW
CFM / Watts
270
Estimated Yearly
Energy Cost ($)
A B
Amps Watts
0.40 31
0.21
0.08
Ceiling Fan
Efficiency
(CFM/W)
14
5
LIGHTING OPTIONS:
LK7912B One 18-watt dimmable LED.
DOWNROD OPTIONS:
Fan comes with a 1˝ dia. x 6˝ long downrod (DR1-6). Optional downrods are available in 12˝, 18˝, 24˝, 36˝, 48˝, 60˝ and
d
72˝ lengths. A downrod coupler is available for installations requiring a downrod longer than 72˝. The fan can be mounte
on a sloped ceiling up to 27°. Optional sloped ceiling ball kits (SCB1-52) are available for slope angles greater than 27° and
up to 42°. Call technical support for more information.
LOCATION USE:
Fan is rated for dry and damp locations.
