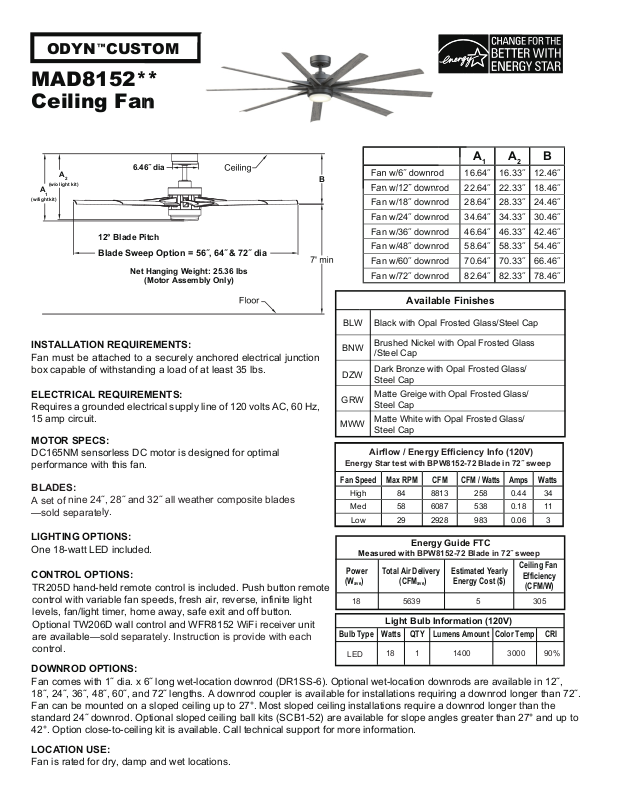

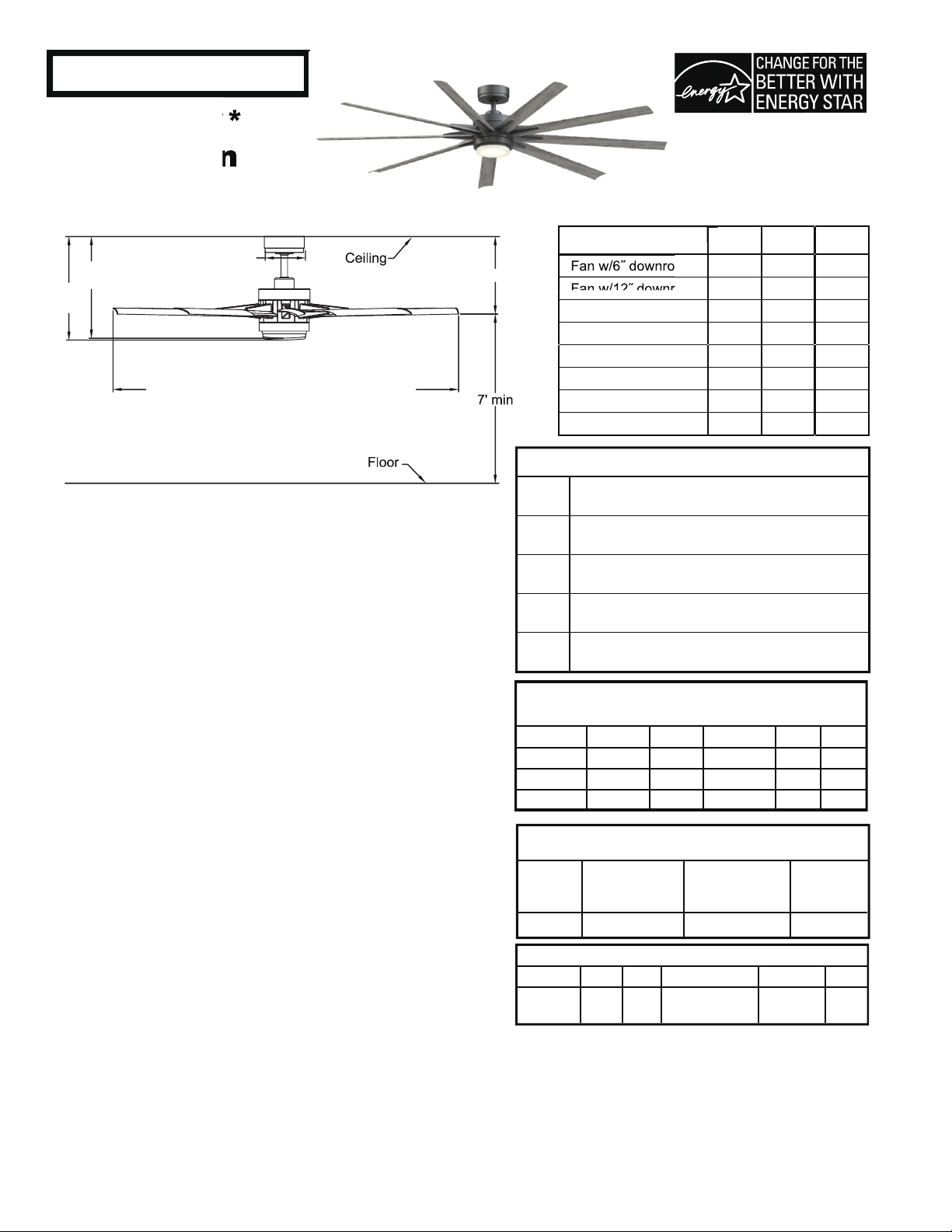

ODYN CUSTOM
™
MAD8152**
Ceiling Fan
6.46˝ dia
Net Hanging Weight: 25.36 lbs
(Motor Assembly Only)
A
1
(w/light kit)
A
2
(w/o light kit)
12° Blade Pitch
Blade Sweep Option = 56˝, 64˝ & 72˝ dia
INSTALLATION REQUIREMENTS:
Fan must be attached to a securely anchored electrical junction
box capable of withstanding a load of at least 35 lbs.
ELECTRICAL REQUIREMENTS:
Requires a grounded electrical supply line of 120 volts AC, 60 Hz,
15 amp circuit.
MOTOR SPECS:
DC165NM sensorless DC motor is designed for optimal
performance with this fan.
BLADES:
A set of nine 24˝, 28˝ and 32˝ all weather composite blades
—sold separately.
A
1
B
Fan w/12˝ downrod 22.64˝
Fan w/18˝ downrod 28.64˝
Fan w/24˝ downrod 34.64˝
Fan w/36˝ downrod 46.64˝
Fan w/48˝ downrod 58.64˝
Fan w/60˝ downrod 70.64˝
Fan w/72˝ downrod 82.64˝
d 16.64˝
Available Finishes
BLW
BNW
DZW
GRW
MWW
Fan Speed Max RPM CFM
Black with Opal Frosted Glass/Steel Cap
Brushed Nickel with Opal Frosted Glass
/Steel Cap
Dark Bronze with Opal Frosted Glass/
Steel Cap
Matte Greige with Opal Frosted Glass/
Steel Cap
Matte White with Opal Frosted Glass/
Steel Cap
Airflow / Energy Efficiency Info (120V)
Energy Star test with BPW8152-72 Blade in 72˝ sweep
CFM / Watts
High 84 8813 258 0.44 34
Med 58 6087 538 0.18 11
Low 29 2928 983 0.06 3
A
16.33˝ 12.46˝
22.33˝ 18.46˝
28.33˝ 24.46˝
34.33˝ 30.46˝
46.33˝ 42.46˝
58.33˝ 54.46˝
70.33˝ 66.46˝
82.33˝ 78.46˝
Amps Watts
B
2
LIGHTING OPTIONS:
One 18-watt LED included.
CONTROL OPTIONS:
TR205D hand-held remote control is included. Push button remote
control with variable fan speeds, fresh air, reverse, infinite light
Measured with BPW8152-72 Blade in 72˝ sweep
(W
) (CFM
ave
18 5639 5 305
Energy Guide FTC
Total Air DeliveryPower
ave
)
Estimated Yearly
Energy Cost ($)
Ceiling Fan
Efficiency
(CFM/W)
levels, fan/light timer, home away, safe exit and off button.
Optional TW206D wall control and WFR8152 WiFi receiver unit
are available—sold separately. Instruction is provide with each
control.
Bulb Type Watts Lumens Amount Color Temp CRI
LED
Light Bulb Information (120V)
QTY
18 1 1400 3000 90%
DOWNROD OPTIONS:
Fan comes with 1˝ dia. x 6˝ long wet-location downrod (DR1SS-6). Optional wet-location downrods are available in 12˝,
18˝, 24˝, 36˝, 48˝, 60˝, and 72˝ lengths. A downrod coupler is available for installations requiring a downrod longer than 72˝.
Fan can be mounted on a sloped ceiling up to 27°. Most sloped ceiling installations require a downrod longer than the
standard 24˝ downrod. Optional sloped ceiling ball kits (SCB1-52) are available for slope angles greater than 27° and up to
42°. Option close-to-ceiling kit is available. Call technical support for more information.
LOCATION USE:
Fan is rated for dry, damp and wet locations.
