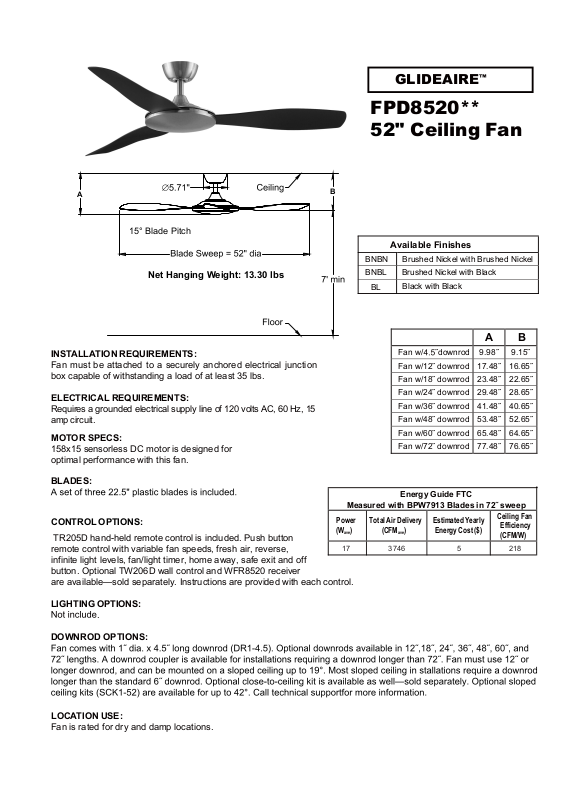

GLIDEAIRE
™
FPD8520**
52" Ceiling Fan
A
15° Blade Pitch
Net Hanging Weight: 13.30 lbs
INSTALLATION REQUIREMENTS:
Fan must be attached to a securely anchored electrical junction
box capable of withstanding a load of at least 35 lbs.
ELECTRICAL REQUIREMENTS:
Requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15
amp circuit.
MOTOR SPECS:
158x15 sensorless DC motor is designed for
optimal performance with this fan.
B
Available Finishes
BNBN
BNBL Brushed Nickel with Black
BL
Brushed Nickel with Brushed Nickel
Black with Black
A B
Fan w/ ˝downrod 9.98˝ 9.15˝
Fan w/12˝ downrod
Fan w/18˝ downrod
Fan w/24˝ downrod 29.48˝ 28.65˝
Fan w/36˝ downrod
Fan w/48˝ downrod
Fan w/60˝ downrod 65.48˝ 64.65˝
Fan w/72˝ downrod 77.48˝ 76.65˝
17.48˝ 16.65˝
23.48˝ 22.65˝
41.48˝ 40.65˝
53.48˝ 52.65˝
BLADES:
CONTROL OPTIONS:
TR205D hand-held remote control is included. Push button
remote control with variable fan speeds, fresh air, reverse,
infinite light levels, fan/light timer, home away, safe exit and off
button. Optional TW206D wall control and WFR8520 receiver
are available—sold
separately. Instructions are provided with each control.
LIGHTING OPTIONS:
.
DOWNROD OPTIONS:
LOCATION USE:
F
an is rated for dry and damp locations.
Energy Guide FTC
Measured with BPW7913 Blades in 72˝ sweep
Power
(W
Total Air Delivery
)
ave
17 3746 5 218
(CFM
)
ave
Estimated Yearly
Energy Cost ($)
Ceiling Fan
Efficiency
(CFM/W)
