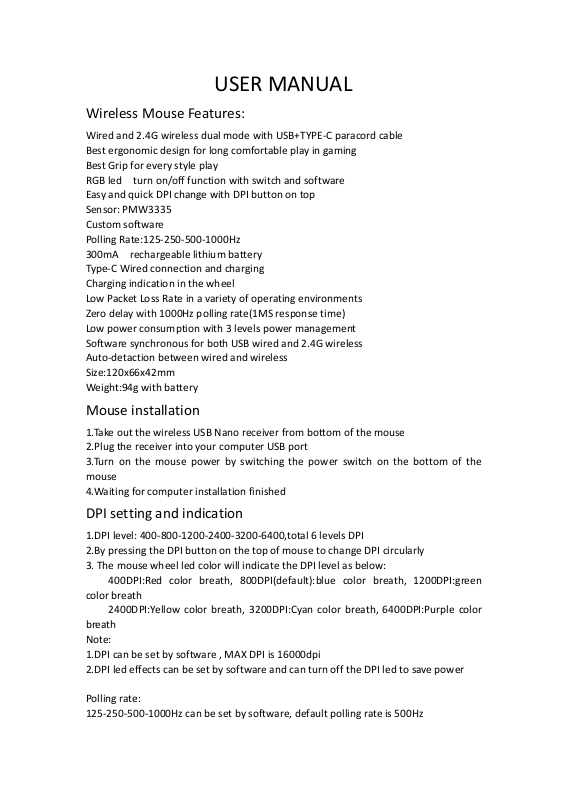

USER MANUAL
Wireless Mouse Features:
Wired and 2.4G wireless dual mode with USB+TYPE-C paracord cable
Best ergonomic design for long comfortable play in gaming
Best Grip for every style play
RGB led turn on/off function with switch and software
Easy and quick DPI change with DPI button on top
Sensor: PMW3335
Custom software
Polling Rate:125-250-500-1000Hz
300mA rechargeable lithium battery
Type-C Wired connection and charging
Charging indication in the wheel
Low Packet Loss Rate in a variety of operating environments
Zero delay with 1000Hz polling rate(1MS response time)
Low power consumption with 3 levels power management
Software synchronous for both USB wired and 2.4G wireless
Auto-detaction between wired and wireless
Size:120x66x42mm
Weight:94g with battery
Mouse installation
1.Take out the wireless USB Nano receiver from bottom of the mouse
2.Plug the receiver into your computer USB port
3.Turn on the mouse power by switching the power switch on the bottom of the
mouse
4.Waiting for computer installation finished
DPI setting and indication
1.DPI level: 400-800-1200-2400-3200-6400,total 6 levels DPI
2.By pressing the DPI button on the top of mouse to change DPI circularly
3. The mouse wheel led color will indicate the DPI level as below:
400DPI:Red color breath, 800DPI(default):blue color breath, 1200DPI:green
color breath
2400DPI:Yellow color breath, 3200DPI:Cyan color breath, 6400DPI:Purple color
breath
Note:
1.DPI can be set by software , MAX DPI is 16000dpi
2.DPI led effects can be set by software and can turn off the DPI led to save power
Polling rate:
125-250-500-1000Hz can be set by software, default polling rate is 500Hz
Power switch instruction
Note:
1.Switch at LED off place: turn on the mouse power, but RGB led is off
2.Switch at power off place: turn off the mouse power
3.Switch at led on place: turn on the mouse power and RGB led
4.If you switch from power on to RGB led on directly, you need stop at power off
place for at least 1 second to make sure the LED can be turned on properly
5.If you want to turn on the LED in wired mode, you need turn on LED in wireless
mode first
Wired and wireless function switch
Wired and wireless mode switch automatically, when you plug the receiver into
computer without cable connection, it will work as wireless mode.
If you connect the cable from computer to the mouse, it will switch to wired mode
automatically and work as wired mode.
Low power and charging indication
1.Low power indication: when mouse battery power is low( less than 3.5V), the
Red color in the wheel will flash, so you need charge when the Red color
flash in the wheel
2.During charging the yellow color led in the wheel will flash, after the battery
charging full, the LED color will become green and charging stop automatically,
and wheel led color will back to DPI indication
Battery:
1. IM07DM(bigger version): Non-detachable rechargeable lithium battery(800mA)
RGB led setting and working
Default RGB effect is RGB flowing effect
You can set different RGB effect by software(total 4 effects) and 16.8 million colors
When you turn on the LED, the RGB led will turn off automatically while using the
mouse, and LED will turn on after stop using the mouse
Note:
1 .as stated before, if switch from power on to LED on directly, in order to turn on
the RGB led properly, it is better to stop at power off place for at least one second
2. If you want to turn on the RGB led in wired mode(with cable connection), you
need turn on the RGB led in wireless mode first. And then plug cable with mouse.
FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.
