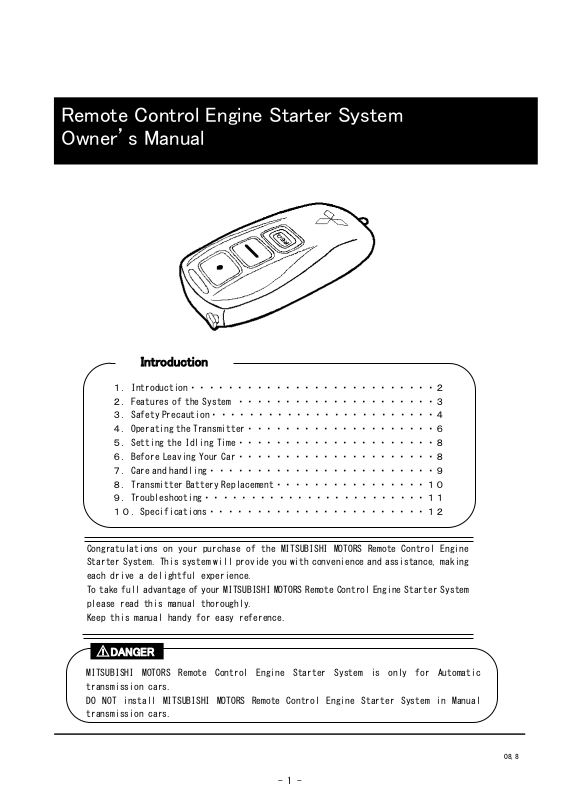

Remote Control Engine Starter System
Owner’s Manual
１．Introduction・・・・・・・・・・・・・・・・・・・・・・・・・・２
２．Features of the System ・・・・・・・・・・・・・・・・・・・・・３
３．Safety Precaution・・・・・・・・・・・・・・・・・・・・・・・・４
４．Operating the Transmitter・・・・・・・・・・・・・・・・・・・・６
５．Setting the Idling Time・・・・・・・・・・・・・・・・・・・・・８
６．Before Leaving Your Car・・・・・・・・・・・・・・・・・・・・・８
７．Care and handling・・・・・・・・・・・・・・・・・・・・・・・・９
８．Transmitter Battery Replacement・・・・・・・・・・・・・・・・１０
９．Troubleshooting・・・・・・・・・・・・・・・・・・・・・・・・１１
１０．Specifications・・・・・・・・・・・・・・・・・・・・・・・１２
Congratulations on your purchase of the MITSUBISHI MOTORS Remote Control Engine
Starter System. This system will provide you with convenience and assistance, making
each drive a delightful experience.
To take full advantage of your MITSUBISHI MOTORS Remote Control Engine Starter System
please read this manual thoroughly.
Keep this manual handy for easy reference.
！
DANGER
MITSUBISHI MOTORS Remote Control Engine Starter System is only for Automatic
transmission cars.
DO NOT install MITSUBISHI MOTORS Remote Control Engine Starter System in Manual
transmission cars.
Introduction
08, 8
- 1 -
１．Introduction
Safety Messages
●The following symbols are used in this manual.
are extremely important. The instructions following these symbols
！
DANGER
must be read thoroughly and followed accordingly.
The instructions following this symbol must be followed for safety.
！
Failure to do so will result in death or serious injury.
The instructions following this symbol must be followed for safety.
Failure to do so can result in injury and/or property damage.
Helpful advice and instructions to be followed in using the product.
●Failure to handle the product according to the instructions given here may not only damage the product
but may also damage your car.
●MITSUBISHI MOTORS is not responsible for damages resulting from handling of the product not complying
with the instructions given here.
DANGER
！
WARNING
ADVICE
！
WARNING
Precautions
●Some communities may have restrictions on the use of remote starters. Before using your remote
control engine starter system, please check all local laws and regulations. Any changes or
modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
●FCC WARNING
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
●This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
●Do not peel off the label on the Transmitter.
●Consult your dealer for the installation of the remote control engine starter system.
- 2 -
２．Features of the System
●The remote control engine starter system consists of a Transmitter that allows you to start and
stop the engine from outside of the vehicle without using the car keys. ← P.6
However, as precaution measures, the Transmitter will not start the engine unless all of the following
conditions are satisfied:
①The gearshift lever is in the “P" (Parking) position.
② All the doors are closed securely.（cars may include tail gates and spare tire carriers,
depending on a model.）
③The engine hood is closed securely.
④The car key is removed from the ignition switch.（Or, the ignition switch has not been operated
in cars with a keyless entry system.）
The engine automatically stops when any one of the above conditions is not satisfied or the gas
pedal is stepped on after the engine starts.
●After the remote control engine starter system starts the engine, the engine may be stopped by remote
control.The engine stops automatically when a fixed time passes. ← P.7
●The engine may not start when the outside temperature is too low or depending on the battery condition.
If the engine does not start on the first try, it will automatically try again a second time. If
the second try fails, the engine will automatically stop.
●If the car is not used for two weeks, functions will stop to save the car batteries. The engine
will not start with the Transmitter, To re activate the Transmitter; turn the ignition switch of the
car to the "ACC" position. The remote control can be used again after two seconds.
●Use only one Transmitter for one vehicle as a safety precaution.
Do not register two Transmitters or more.
- 3 -
３．Safety Precaution
！
DANGER
Do not start your engine in a closed garage or other
area with poor ventilation.
Exhaust fumes can cause poisoning and cause
unconsciousness and even death.
！
DANGER
Electric waves from the transmitter can carry very far
depending on the surrounding circumstances. Do not
operate the switches on the transmitter unnecessarily.
To prevent an accident caused by accidental start of the
engine, be sure to operate the remote control car starter
system in an area where you can check the safety around
the car.
！
DANGER
Do not remotely start the engine when parked on a
hillside. The vibrating engine may start the car
unintentionally and cause an accident.
！
DANGER
Do not remotely start the engine when children and pets
are in the car to prevent accidents from occurring.
Starting the engine with the Transmitter is the same as
switching the ignition in the "ON" position.
！
WARNING
Checking your car immediately after warming up the
engine is dangerous and may cause burns.
！
WARNING
Do not operate the Transmitter when the engine hood is
open. The engine may start and cause an accident if the
switch detecting opening and shutting is pushed by
mistake.
- 4 -
！
WARNING
Do not start the engine near flammable material, such
as grass.
It can cause fire.
！
WARNING
Do not start the engine without removing the body cover
from the car.
It can cause fire.
！
WARNING
To prevent accidents during engine warm up, when parking
make sure that:
- the wiper switch and winkers are turned OFF. Wipers moving
when the engine is started may be dangerous. The motor
may be damaged if the wiper has frozen.
- windows are closed.
- doors are locked.
！
WARNING
Do not disassemble or remodel the Transmitter. Do not
use the Transmitter other than for its intended use.
Such uses are not included in the warranty.
！
WARNING
Store the transmitter in a safe place out of reach of
children. There is danger of batteries being swallowed
or the antenna pricking the eyes.
！
WARNING
Do not wet the Transmitter with water.
It can cause the transmitter to malfunction.
- 5 -
４．Operating the Transmitter
Electric waves from the transmitter can carry very far depending on the surrounding circumstances.
To prevent an accident caused by accidental start of the engine, be sure to operate the remote control
car starter system in an area where you can check the surroundings of your car.
Before you start the engine
・Check your car so that it satisfies all conditions listed on page 8.
When operating the Transmitter:
- Fully extend the antenna,
- Generally, the electric waves reach farther
when the antenna is put up vertically.
- Touching the antenna with hands, etc., may
interfere with the electric wave transmission.
Antenna
Indicator
Start button
Stop button
Request button
Starting the engine.
Operation of the Transmitter
Push the request button.
1
Let go of the request button when the
2
indicator blinks.
Push the start button while the indicator
3
is blinking (about 2 seconds).
The blinking indicator will change to a continuous light
(about 3 seconds), and the engine-starting signal will be
transmitted.
The engine starts.
4
→ If the engine does not start, the
● The engine stops automatically after a
system will automatically go through
the starting process twice.
certain period of time has passed after
starting the engine.
REQ
- 6 -
Operation of the Transmitter
1
2
3
4
Stopping the engine.
Push the request button
REQ
Let go of the request button when the
indicator blinks.
Push the stop button while the indicator
is blinking (about 2 seconds).
The blinking indicator will change to a
continuous light (about 3 seconds), and the
engine-stopping signal will be transmitted
The engine stops.
ADVICE
・ Note that when starting the engine, factors such as cars having noisy fan motors or other wireless
devices may affect the Transmitter and reduce the operation range.
・ Wait for two seconds or more after the indicator lamp goes out before pushing the switch again
for repeated starting or stopping of the engine. Two seconds or more must pass before the next
wireless transmission.
・ The engine will automatically stop within approx. 10 minutes after starting the engine with the
transmitter if the engine is not stopped.
The time for automatically stopping may shorten when the engine is repeatedly started and stopped
by the remote control.
・ The engine cannot be stopped with the Transmitter if the engine has been started with the ignition
switch.
- 7 -
５．Setting the idling time
Consult your dealer for setting the idling time.
The idling time can be set for 5 minutes, 10 minutes, 20 minutes or 30 minutes.
Initial setting (at factory before shipping) is ten minutes.
６．Before Leaving Your Car
Always confirm that the following engine starting conditions 1-4 are satisfied before using the remote
control engine starter. As a precaution measure, the engine will not start if any one of the conditions
1-4 is not satisfied.
1-The gearshift lever is in the “P” (Parking) position.
2-All the doors are closed securely.
（some cars may include tail gates and spare carrier tires, depending on a model.）
3-The engine hood is closed securely.
4-The car key is removed from the ignition switch.（Or, the ignition switch has not been operated
in cars with a keyless entry system.）
！
WARNING
To prevent unexpected accidents from occurring during engine warm-up, before leaving your car,
make sure that:
- the wiper switch and winkers are turned OFF.
- windows are closed
- doors are locked
- 8 -
７．Care and handling
To prevent system breakdown and accidents
！
●Do not leave the Transmitter in places of high temperature (60℃ or more) such as the dashboard etc.
●Do not drop, throw, or step on the Transmitter.
●Do not apply strong tension or stress on the antenna.
●Do not use or store the Transmitter where water will directly wet it.
●Do not disassemble or remodel the Transmitter
wipe it with a dry cloth to clean.(Do not use solvents such as benzene and thinner.)
WARNING
・tore the transmitter out of reach of children If your transmitter is ever lost or malfunctioning,
contact your dealer at once.
・ In case you lend your car and keys to a third party, do not include your Transmitter for preventing
accidents.
It can cause the transmitter to malfunction.
◇Taking care of your Transmitter
Wipe the Transmitter with a soft cloth dampened with neutral detergent and water solution, then
◇Storing the Transmitter
Remove the batteries from the Transmitter.
- 9 -
③ ①
+
③ ①
８．Transmitter Battery Replacement
Replace old batteries for new ones according to the following procedures:
① Remove the screw in the battery cover
1
2
using a plus driver.
② Lift the front side of the cover.
③ Remove the cover. Be careful of the tab.
②
Insert two new batteries (coin type lithium
batteries CR2032×2) with the positive (+)
mark facing upward.
ADVICE
Wipe the batteries well with a dry cloth before use to prevent poor contact of the batteries.
！
WARNING
- Store the batteries out of reach of children especially. If a child accidentally swallows it,
give him/her medical treatment immediately.
- Do not hold batteries with metallic tools, such as tweezers. It can short-circuit the batteries
and may generate heat.
- Do not disassemble, heat or throw the removed batteries in fire. This may cause explosion, etc.
Battery Replacement
Close the battery cover according to steps
3
① to ③.
②
- 10 -
９．Troubleshooting
Check the following symptoms to diagnose problems with the Remote Control Engine Starter System before
consulting your dealer.
Engine does not start by operating the transmitter.
【The indicator of the Transmitter does not light up】
Check Remedy
Is a transmission repeated directly one after
another?
Is the battery correctly set?
Are the batteries discharged? Replace the batteries with the new ones.
The next transmission cannot be made for two
seconds after the indicator goes off. Wait for
two seconds or more before the next operation.
Place batteries in correctly. See 'Transmitter
Battery Replacement'.
【The indicator of the Transmitter lights up】
Are the requirements on page 6 met? Meet all requirements.
Is the antenna of the Transmitter extended
enough?
Is the distance to the car too faraway? Use the Transmitter closer to the car.
Has the car been parked for two weeks or more?
Fully extend the antenna.
Turn the ignition switch to the "ACC"
position. After two second, the remote function
may be used.
The engine does not stop by the Transmitter.
Is the antenna of the Transmitter extended
enough?
Is the distance to the car too faraway? Use the Transmitter closer to the car.
Fully extend the antenna.
The operation distance is short.
Is the antenna of the Transmitter extended
enough?
Are the batteries discharged? Replace the batteries with the new ones.
* The remote control range may change by the neighborhood, surrounding circumstances and the electric
wave noise, etc. such as in TV towers, power plants, railways, and broadcasting stations, etc.
Fully extend the antenna.
If the above remedies do not solve your problems, consult your dealer.
- 11 -
１０．Specifications
Transmitter
Communication
frequency
Communication
method
Application
standard
Transmission time approximately 3 seconds
Transmission rest
time
Transmission
antenna
batteries
Battery life
case sizes 70.0*×35.0*×14.4mm
Weight Approximately 30g
426.0500MHz
uni-directional
(transmission.)
FCC conforming
Two seconds or more
Built-in rod antenna
Coin type lithium battery CR2016
(2 pieces)
One year or more (use during
twice/day)
Main Unit(Receiver)
Communication
frequency
Communication
method
Transmission
antenna
Operation
power-supply
voltage
Current
consumption at
standby
Size of case 130.0*×93.0*×28.0mm
Weight Approximately 200g
426.0500MHz
uni-directional (receiving)
Coaxial cable whip antenna
DC10V～16V
10mA or less
(3mA or less at sleep mode)
Control Unit ※
Communication
frequency
Communication
method
Application
standard
Transmission time approximately. 1.1 seconds
Transmission
antenna
Operation
power-supply
voltage
Current
consumption at
standby
Size of case 63.1×39×29mm
Weight Approximately 35g
※：may not be equipped according to the vehicle.
315MHz
uni-directional communication
FCC conforming
Built-in antenna
DC10V～16V
1mA or less
- 12 -
Loading...
