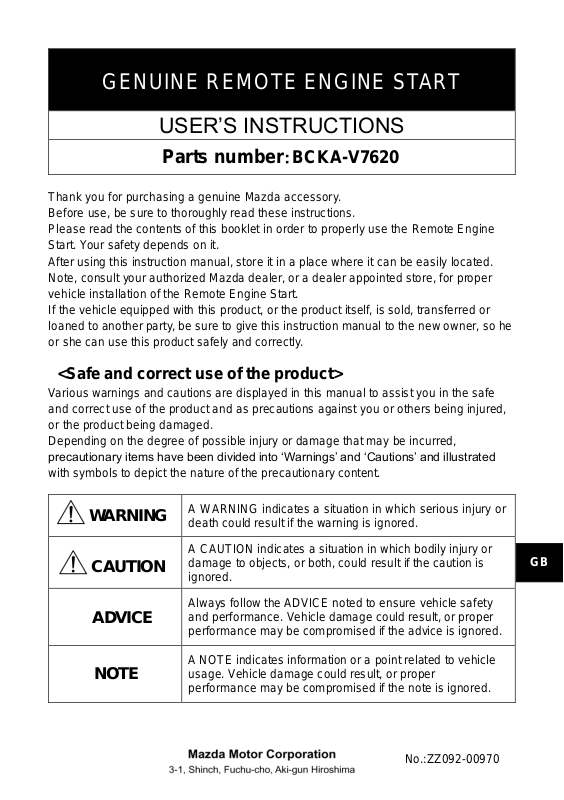

GENUINE REMOTE ENGINE START
USER’S INSTRUCTIONS
Parts number：BCKA-V7620
WARNING
A WARNING indicates a situation in which serious injury or
death could result if the warning is ignored.
A CAUTION indicates a situation in which bodily injury or
damage to objects, or both, could result if the caution is
ignored.
Always follow the ADVICE noted to ensure vehicle safety
and performance. Vehicle damage could result, or proper
performance may be compromised if the advice is ignored.
A NOTE indicates information or a point related to vehicle
usage. Vehicle damage could result, or proper
performance may be compromised if the note is ignored.
ADVICE
GB
CAUTION
NOTE
No.:ZZ092-00970
GB
Thank you for purchasing a genuine Mazda accessory.
Before use, be sure to thoroughly read these instructions.
Please read the contents of this booklet in order to properly use the Remote Engine
Start. Your safety depends on it.
After using this instruction manual, store it in a place where it can be easily located.
Note, consult your authorized Mazda dealer, or a dealer appointed store, for proper
vehicle installation of the Remote Engine Start.
If the vehicle equipped with this product, or the product itself, is sold, transferred or
loaned to another party, be sure to give this instruction manual to the new owner, so he
or she can use this product safely and correctly.
<Safe and correct use of the product>
Various warnings and cautions are displayed in this manual to assist you in the safe
and correct use of the product and as precautions against you or others being injured,
or the product being damaged.
Depending on the degree of possible injury or damage that may be incurred,
precautionary items have been divided into ‘Warnings’ and ‘Cautions’ and illustrated
with symbols to depict the nature of the precautionary content.
CONTENTS
1. Remote Engine Start features .................................................................. 3
2. Safety precautions .................................................................................... 3
3. General information .................................................................................. 6
4. Operating precautions .............................................................................. 7

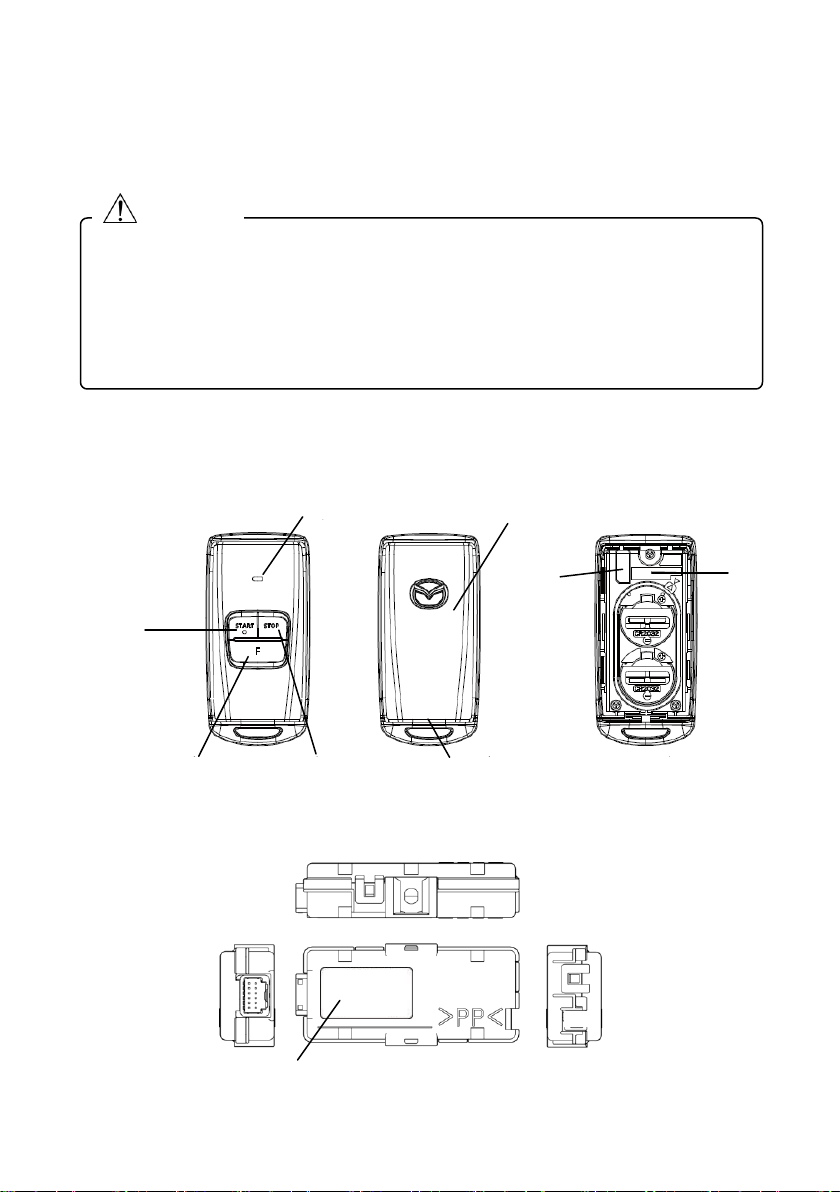

5. Part names ............................................................................................... 9
6. Basic functions for Remote Engine Start ................................................ 10

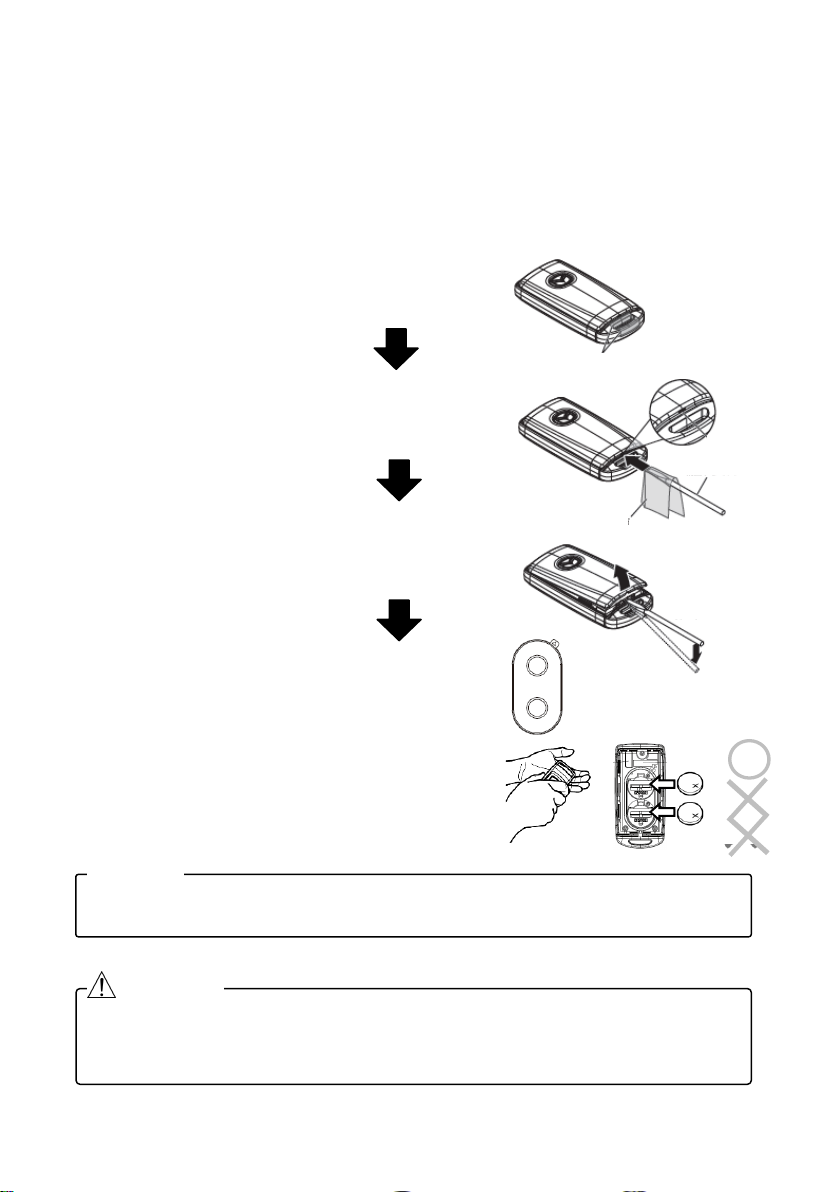

7. Low battery warning & replacement directions ...................................... 12
8. Basic operations ..................................................................................... 13
8-1. Engine start operation .................................................................... 14
8-2. Engine stop operation .................................................................... 15

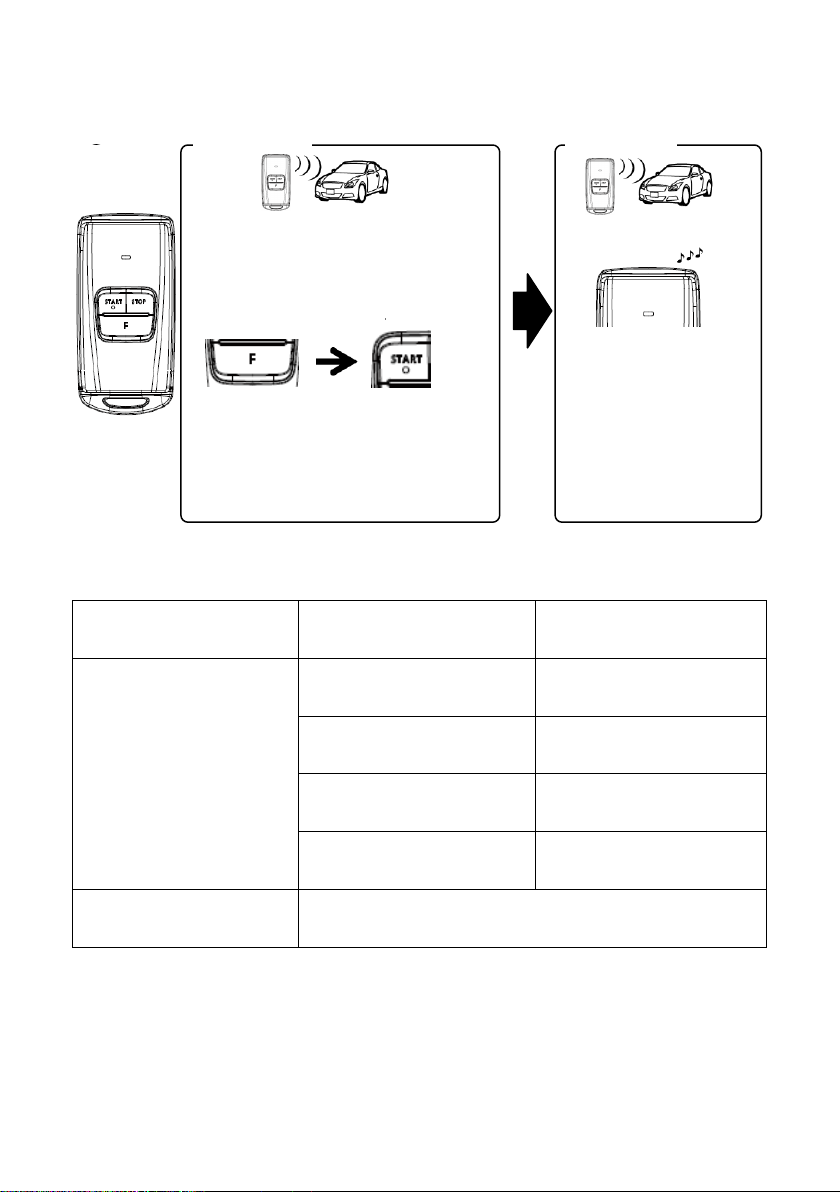

8-3. Warm up time check ....................................................................... 16
8-4. Warm up time settings .................................................................... 17
8-5. Engine start operation with rear defrost start Up ........................... 18
8-6. Car find function ............................................................................. 19
9. Troubleshooting ...................................................................................... 20
10. Servicing ............................................................................................... 24
11. Specifications ........................................................................................ 24
2
1. Remote Engine Start features
WARNING
Do not install this device on a vehicle equipped
with a manual transmission.
Only install this device on designated vehicles
which the harness fits.
This device can only be installed on vehicles
equipped with AT / CVT. Do not install this
product on a vehicle equipped with a manual
transmission because it is hazardous.
Do not start the engine while inside an
enclosed space or garage.
Never start up the engine while inside an
enclosed space where the exhaust fumes can
build up, such as a poorly ventilated garage, an
underground parking garage or a parking tower.
The exhaust fumes are hazardous and can
cause poisoning or intoxication.
Ensure that the periphery of the vehicle is safe.
Use this device only where you can thoroughly
check that the periphery of the vehicle is safe. In
particular, using the device while a child or pet is
close by can result in an unexpected accident.
Do not disassemble or modify this device.
Never disassemble or modify this device, or
install it in a location not specified in this
manual. Otherwise, it may not operate correctly
and/or may result in an accident or breakdown.
In addition, this situation is not covered under
warranty.
The Remote Engine Start allows the user to start the engine of a
vehicle from a remote location using a remote control.
The user can turn on the air conditioner / heater beforehand so the
cabin of the vehicle can be cooled or heated ahead of time.
2. Safety precautions
3
WARNING
Do not start up the engine using the Remote
Engine Start when parked on an incline.
If the vehicle were to move unintentionally due
to the engine vibration, jolt, etc., it could result in
a serious accident.
Performing safe maintenance and inspection.
When performing vehicle inspection and
maintenance, remove the (-) terminal on the
vehicle battery. Never start up the engine with
the remote control during inspection or
maintenance at a gas or service station, etc.
Otherwise, an accident may occur, such as
getting a hand or clothes caught in the rotating
parts. Do not perform inspection or
maintenance in the engine compartment while
the hood switch is pressed.
Keep the remote control in a safe and secure
place.
Keep the remote control out of the reach of
children. Otherwise, they may swallow the
lithium battery accidentally and choke.
Do not operate this device while other people
are inside the vehicle.
In order to prevent an unexpected jump start,
etc., never start the engine while a pet or
someone (especially children) is inside the
vehicle. Stopping the engine automatically using
the Remote Engine Start settings is hazardous
(while someone is inside) because the
temperature inside the vehicle may become too
hot. In addition, there is also a risk of children
accidently pressing the climate control switch
and setting the temperature too high or too low.
4
WARNING
Fire prevention.
Do not start the engine when the vehicle is near
something flammable (oil or dry grass).
Otherwise, the high temperature from the
exhaust fumes or exhaust pipe could cause a
fire.
Do not start the engine while the vehicle is
wrapped with a body cover. Otherwise, the high
temperature from the exhaust fumes or exhaust
pipe could cause a fire.
Do not pour water on the remote control.
The remote control is water resistant for
exposure during daily life, but it may break down
if submerged in water or if water gets inside the
device.
Do not perform standard inspection and
maintenance right after warming up the engine.
Performing inspection or maintenance before
operation and immediately after warming up your
vehicle could result in a burn injury. First, wait 5
minutes once the engine has stopped. Then,
after checking all the parts for heat hazards,
proceed with the inspection and maintenance.

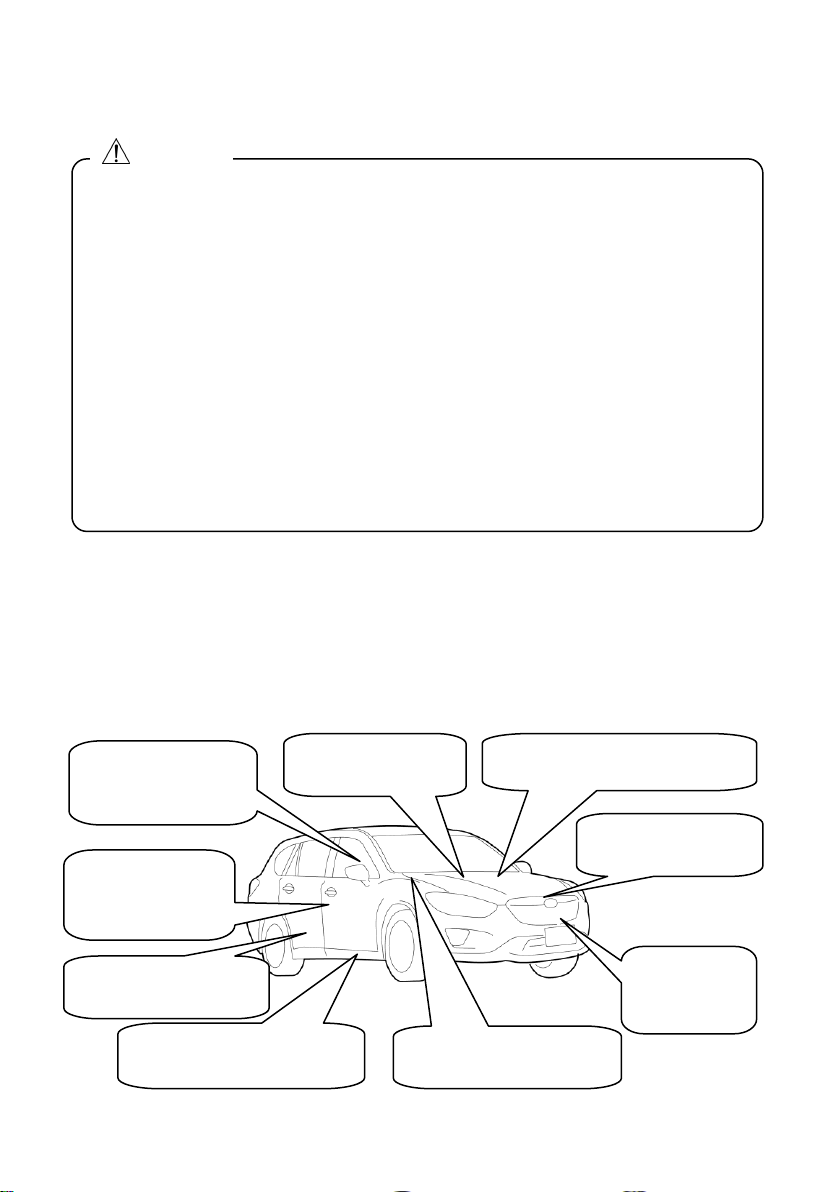

Check points when the vehicle is parked.
Perform the following safety checks thoroughly
when the vehicle is parked to prevent potential
accidents when starting the engine.
Engage the parking brake.
Put the shift lever in the “P” position.
Be sure there is no advanced or smart key inside
the vehicle.
Close all doors and windows.
Lock the doors.
Check that the hood is closed.
Turn off the windshield wipers.
If the vehicle is equipped with automatic lights,
turn off the automatic light settings.
Be sure that the steering lock is engaged.
5
3. General information
-Laws in some communities may restrict the use of remote starters. For
example, some laws may require a person using the remote start to have
the vehicle in view when doing so. Check local regulations for any
requirements on remote starting of vehicles.
-This device complies with part 15 of the FCC Rules and Innovation,
Science and Economic Development Canada’s license-exempt
RSSs. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
-FCC CAUTION
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
-This transmitter must not be co-located or operated in conjunction with
any other antenna or transmitter.
-This equipment complies with FCC and ISED radiation exposure
limits set forth for an uncontrolled environment and meets the FCC
and RSS-102 of the ISED radio frequency (RF) Exposure rules as
this equipment has very low levels of RF energy.
-Consult your authorized Mazda dealer for installation of the remote
control engine starter system.
6
4. Operating precautions
Usage Environment

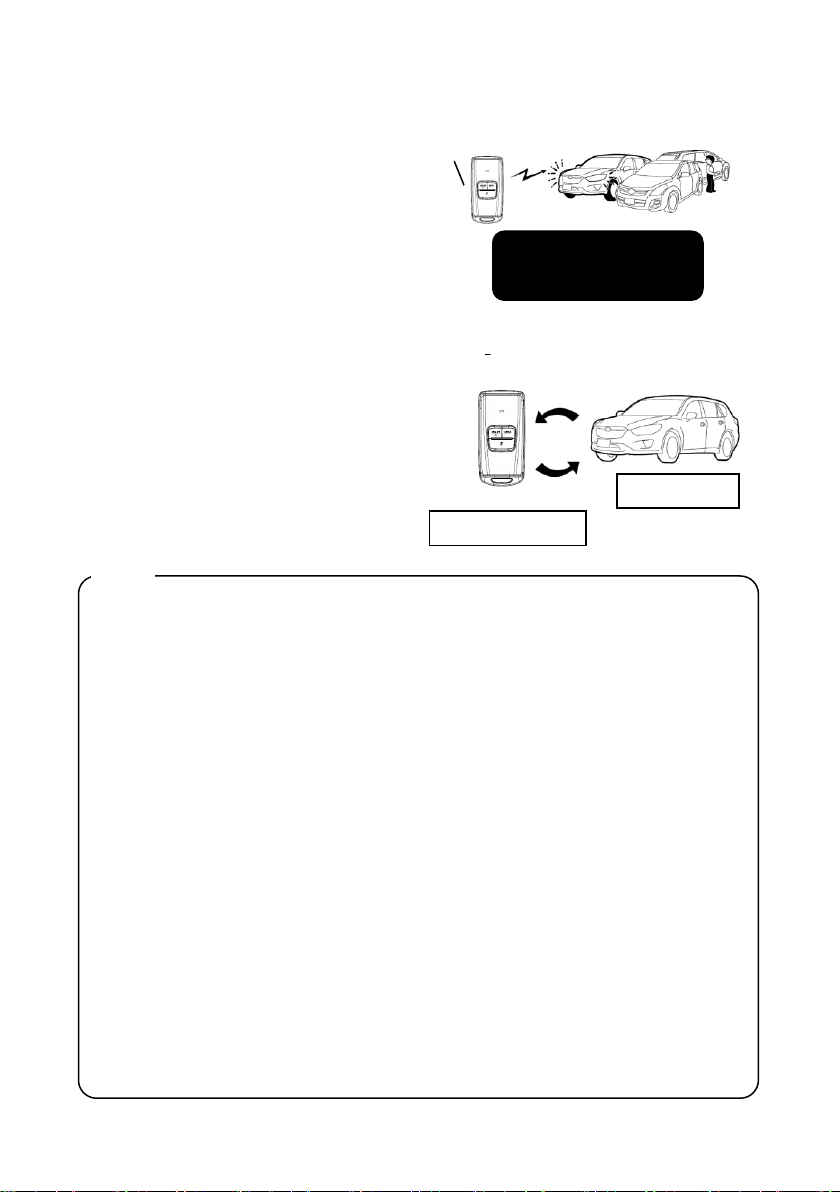

The remote control signal (or the response signal from the controller) may
not reach the controller (or the remote control) if there are strong radio
waves transmitting nearby, or if there are obstacles blocking the signal.
The engine may be slow to start during severe cold weather conditions.
Vehicles with Remote Control Door Lock Function
Door Lock and Door Unlock Function by the remote control keyless entry
or advanced keyless entry system equipped the vehicle can be performed
while the engine is running by the Remote Engine Start. However, if Door
Lock and Door Unlock Function do not work due to interference caused by
engine noise, etc., perform these Door Lock and Door Unlock operations
on the vehicle remote control, etc. after stop the engine.
Vehicles with Genuine Theft-Deterrent System
After setting the vehicle's genuine theft-deterrent system, the
theft-deterrent system continues to operate and the set condition is
maintained even if the engine is started using the remote control. Therefore,
the alarm is activated if any of the warning conditions are met, such as the
door opening. However, the theft-deterrent system cannot be set after the
engine is started using the remote control.
Vehicles with Automatic Lights
When vehicles equipped with automatic lights are set to the “AUTO”
position for the light switch, the lights turn on if the engine is started at
night with the remote control. However, if the engine automatically stops
after warming up, the lights will also turn off at the same time to prevent the
battery from draining. However, to avoid light interference, set the
automatic light switch to the “OFF” position when using the remote control
to turn on the engine at night.
Do Not Perform Unnecessary Idling
To help protect the environment, conserve energy and avoid inconveniencing
others, do not perform idling when it is unnecessary or longer than necessary.
7
Remote Control Handling Instructions
Depending on the surroundings and how the remote control is held, the
minimum distance required for the signal transmission varies. Generally, if the
remote control is directed toward the vehicle when transmitting the signal, it
should successfully transmit from far away.
ADVICE
The remote control is a sensitive electronic device similar to a cellular
telephone. Please follow the handling instructions below to avoid damage to
or breakdown of the remote control.
Avoid storing or using the remote control in places that expose it to direct sunlight,
places that have high humidity, places with extremely high temperatures (on top
of the dashboard, etc.) or places with extremely low temperatures (leaving inside
the vehicle while parked at ski resorts, etc.).
Do not store or use the remote control in places where it comes into direct
contact with water.
Avoid exposure to strong impacts such as dropping it on the floor or hitting it
against something hard.
If the remote control gets very dirty, use a cloth soaked in a watered-down, mild
or neutral detergent, ring out the liquid solution and wipe down the remote control.
(Never use benzene, thinner or chemically treated cloth/wipes.)
Avoid attaching a lot of keys to the key ring on the remote control, or sitting down
while the remote control is in your pocket, as it can cause the remote control to
deform and may result in damage.
While carrying the remote control, if the keys, etc., come into contact with a
vehicle, it can lead to remote control breakdown or malfunction due an
electrostatic discharge. Therefore, be careful of this risk during time periods when
electrostatic discharges occur frequently.
Be sure that the battery cover is securely locked by the screw. Otherwise, if water
accidently gets inside the internal part of the transmitter, it can cause breakdown
Do not use in restricted areas such as on board airplanes or inside hospitals.
The remote control can negatively impact electronic and medical devices.
Be sure to follow the instructions and rules posted inside medical clinics or
facilities regarding the use of electronic devices.
If the remote control is used on board airplanes, where usage is restricted, you
may be subject to punishment due to airline rules and regulations.
8
5. Part names
Rod antenna
START switch
F switch
STOP switch
LED light
FCC/ISED Label
Keep the remote control out of the reach of children. Otherwise, they may
swallow the lithium battery accidentally and choke.
Do not drop the remote control or hit it against something hard. Otherwise, it
can result in breakdown or malfunction.
Do not pour water on the remote control or submerge it. It can result in
breakdown or malfunction.
CAUTION
ISED Label
FCC Label
Battery cover
Hole for battery
cover removal
Remote Control
Controller
9
6. Basic functions for Remote Engine Start
Engine start → P.14
Engine stop → P.15
Directions for rear defrost operation
on remote control → P.18
The rear defrost will automatically stop when the engine stops.
The rear defrost will automatically stop after 15 minutes of operation on some
vehicle models.
When the cabin temperature falls to 5ºC (41ºF) or less after 7 seconds from
the engine start, the rear defrost will not turn on automatically.
The rear defrost cannot be turned off using the remote control.
On some vehicle models, dash light does not turn on when the rear defrost is
turned on with the Remote Engine Start.
ADVICE
Engine Start & Stop Function
The remote control is equipped with
engine start, engine stop and
automatic stop (set with timer)
functions. In addition, the engine start
operation will perform when
conditions outlined on page 13 are
satisfied. The air conditioner / heater
can be turned on beforehand so the
cabin of the vehicle can be cooled or
heated ahead of time.
Rear Defrost Function
The rear defrost turns on in the following
situations.
When the cabin temperature is 5ºC
(41ºF) or less, 7 seconds after the
engine start operation performed on
the Remote Engine Start.
When the rear defrost operation is
performed on the remote control.
10
Car Find Function
Car find
Answer back
Send
Remote control
Vehicle side
(Controller)
Directions for car find
operation → P.19
1. The reference operating range of the remote control can be reduced by
interference caused by any of conditions as follows.
There is any obstruction nearby (Buildings, walls, other vehicles, etc.).
There is any radio wave transmission nearby (television, radio, cellular,
another remote controller, etc.)
The battery becomes weak.
2. When there is a signal being transmitted that is close to the frequency band
used by this device in the surrounding area, transmission between the remote
control and controller shall be restricted. In this situation, the remote control will
display a communication error.
3. When conducting consecutive operations with the remote control switches,
wait until after the LED turns off.
4. A receive error may display on the remote control even if the engine has
started, depending on the radio transmission conditions in the area.
Note
When using the remote control to carry
out car find operations, the hazard
warning lights will flash twice and the
horn will sound twice to allow you to
confirm the location of the vehicle. This
function is useful for finding your
vehicle in places such as large car
parks.
Answer Back Function
This device conducts bidirectional
communication between the remote
control and the controller (vehicle side).
The user can check the status of the
operations: engine start, engine stop,
warm up time, and car find using the
LED on the remote control.
11
7. Low battery warning & replacement directions
Put a thin cloth etc on the tip of the minus
precision screwdriver and insert it into the
hole.
Push down the inserted screwdriver and
remove the battery cover.
Keep the batteries out of the reach of children. In the event that a battery is
accidently swallowed, consult with a physician right away.
WARNING
In order to prevent scratches on the remote
controller, paste cellophane tape etc in
keyholder.
Cellophane tape
Hole
Minus precision
screwdriver
Cloth
Push down
When replacing the lithium batteries (CR2032), replace both batteries together.
ADVICE
Lithium battery
(CR2032)
Lithium battery
(CR2016)
Lithium battery
(CR2025)
Be sure to insert the plus (+)
side facing upward
Remove the battery packing.
Lightly tap the remote controller in the palm of
your hand to release the batteries.
Install the new batteries with the (+) poles facing
upwards and attach the battery packing and the
battery cover.
If the battery power is depleted, the LED light (red) turns on when a switch is
pressed and battery power depleted is indicated. In this case, as battery
replacement will be required soon, replace the batteries with new ones
according to the following procedure.
12
8. Basic operations
Check points when the vehicle is parked.
When using the engine start function with this device, follow the instructions below
when parking, in order to avoid vehicle theft or an accident from occurring.
Be sure to always engage the parking brake.
Put the shift lever in the “P” position.
Be sure there is no advanced or smart key inside the vehicle.
Close all doors and windows.
Lock the doors.
Close the hood.
Turn off the windshield wipers.
Check that the steering lock is applied (locked).
CAUTION
The hood is
closed all the way.
The burglar
alarm is not
tripped.
There is no advanced key
(or smart key) inside the
All doors are closed
all the way.
The accelerator and foot
brake are not engaged.
The ignition switch
is not set to ACC
or ON, etc.
The shift lever is
in the “P” position.
The steering lock is
applied (locked).
The push start
switch is not
being pressed.
Engine Start Conditions
When using the Remote Engine Start, be sure to always check the start
conditions listed below beforehand. Even if just one of the conditions has
not been satisfied, the device will interpret this as a hazard and will not
operate. Even if the user tries to operate the remote control, the engine will
not start.
13

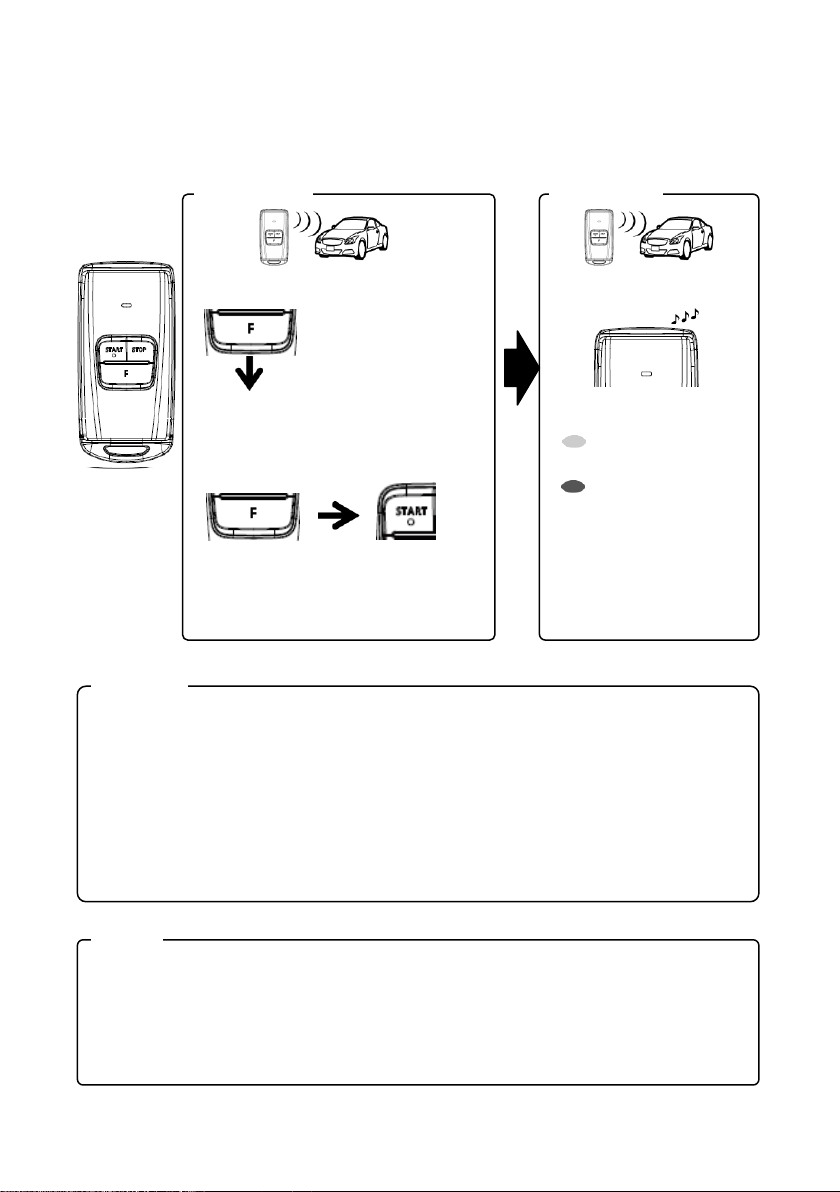

8-1. Engine start operation
Press F switch
Operation
Indication
Press switches until sound is heard.
Release F switch when beep sound
is heard
LED light color:
Engine start
Engine not started* or
Communication error
* Check "Engine Start
Conditions" (P.13).
Green
Red
After the engine start operation is initiated, the controller will automatically
send an answer.
If the engine start conditions are not satisfied, The engine start operation
cannot be performed.
For vehicles equipped with an automatic wiper function, when the engine
start operation is activated with the remote control, the wipers will not turn on
even when the wiper switch is set to the “AUTO” position and it begins to
rain.
After setting the vehicle's genuine theft-deterrent system, the theft-deterrent
system continues to operate and the set condition is maintained even if the
engine is started using the remote control. Therefore, the alarm is activated if
any of the warning conditions are met, such as the door opening. However,
the theft-deterrent system cannot be set after the engine is started using the
remote control.
ADVICE
⇒P.13
Press START
switch while LED
light (green) is
flashing (approx. 3
seconds)
14

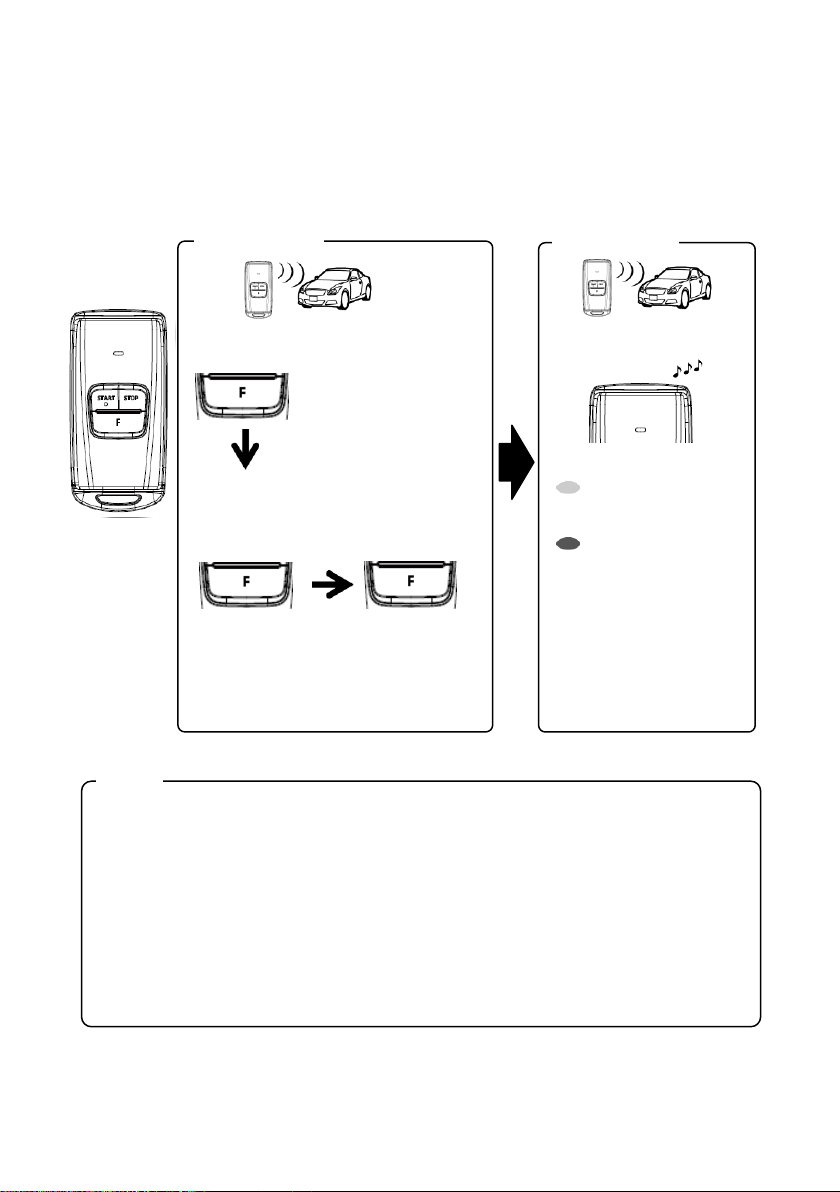

8-2. Engine stop operation
Other Engine Stop Conditions
The engine will stop if one of the following conditions is true.
1) The hood is opened.
2) The shift lever is put in a position other than the “P” position.
3) A door is opened.
4) The push start switch is pressed.
5) The pre-set warm up time has elapsed.
6) The brake pedal is engaged.
7) The accelerator pedal is engaged (the engine stops by the rpm restriction).
8) There is an advanced key or smart key inside the vehicle.
If the engine is started with the push start switch, it cannot be stopped with
the remote control.
The vehicle cannot be driven when the engine is started using the remote
control. To start driving the vehicle, stop the engine with the remote control
or opening the vehicle’s doors and restart the engine using the vehicle's
push button start switch.
Note
Press F switch
Operation
Indication
Press STOP switch
while LED light
(green) is flashing
(approx. 3 seconds)
Press switches until sound is heard.
Release F switch when beep sound
is heard
LED light color:
Engine stop
Engine not stopped* or
Communication error
* Radio signal from remote
controller not received.
Operate in reception range.
Green
Red
The controller buzzer will sound if the engine is stopped for reasons other
than opening a door or the pre-set engine warm-up time has elapsed.
Note
⇒P.13
15
8-3. Warm up time check
LED light color
Number of flashes
Remaining time
Green
1 time
0 to 5 minutes
2 times
5 to10 minutes
3 times
10 to 20 minutes
4 times
20 to 30 minutes
Red
Communication error
See table below
Press F switch
Operation
Indication
Press START switch
while LED light
(green) is flashing
(approx. 3 seconds)
Press switches until sound is heard.
Release F switch when beep sound
is heard
LED light color:
The remaining time until the engine turns off automatically is indicated by
the number of times the LED light flashes.
16

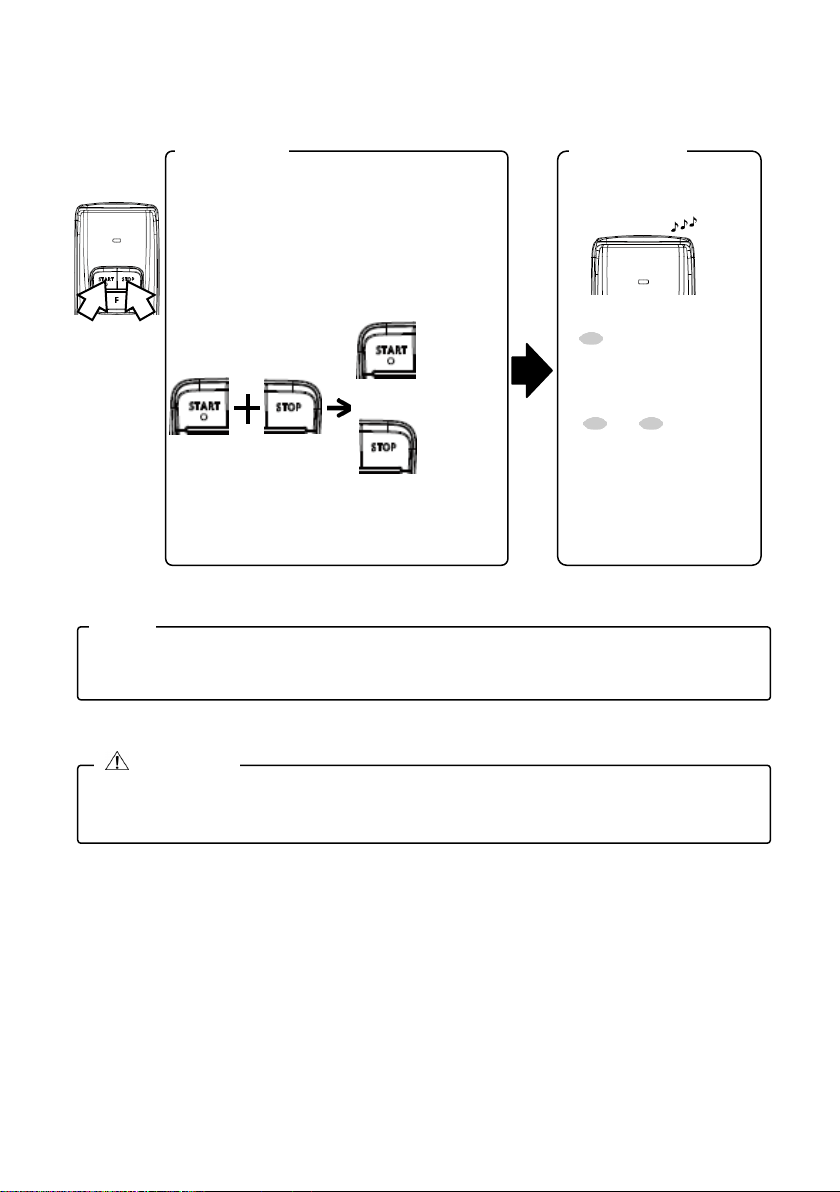

8-4. Warm up time settings
Press START switch
and STOP switch at
same time until LED
light (green) flashes
Press switch while
LED light (green)
flashes (approx. 3
seconds)
For
10-minute
warmup.
Operation
Indication
Release switches when beep sound is
heard.
LED light color
10 minutes
30 minutes
Green
[Beep]
Green
[Beep]
Green
[Beep]
For
30-minute
warmup.
Press the
START and
STOP
switches at
the same
time.
Some vehicle models stop the rear defrost after 15 minutes, even if the warm up time
is set to 30 minutes.
Note
To help protect the environment, conserve energy and avoid inconveniencing others,
do not perform idling when it is unnecessary, or longer than necessary.
CAUTION
.
17
8-5. Engine start operation with rear defrost start Up
Green
Red
Press F switch
Operation
Indication
Press START switch
while LED light
(green) is flashing
(approx. 3 seconds)
Press switches until sound is heard.
Release F switch when beep sound
is heard.
LED light color
Engine start
Engine not started* or
Communication error
* Check "Engine Start
Conditions" (P.13).
Press F switch while
LED light (green) is
flashing (approx. 3
seconds)
When the engine is started using this operation, the rear defrost operates by
force. The rear defrost also operates when the interior temperature is 5 degrees
C (41 degrees F) or lower at the time of engine start when the engine is started
with the engine start operation described on page 14.
Note
The rear defrost operation cannot be performed without starting the engine.
On some vehicle models, dash light does not turn on when the rear defrost is
turned on with the Remote Engine Start.
The rear defrost will automatically stop when the engine stops.
The rear defrost will automatically stop after 15 minutes of operation on some
vehicle models.
ADVICE
When the engine is started using this operation, the rear defrost operates.
18
8-6. Car find function
Press F switch
Operation
Indication
Press START switch
while LED light (green)
is flashing (approx.
3 seconds)
Press switches until sound is heard.
Release F switch when beep sound
is heard
LED light color
Car find operates
*Radio signal from remote
controller not received.
Operate in reception
range.
Press F switch while
LED light (green) is
flashing (approx. 3
seconds)
Green
Red
Car find does
not operate* or
Communication
error
When the hazard warning switch has already been pressed to flash the hazard
warning lights, the flashing of the hazard warning lights using the car find
function does not operate (operation using the hazard warning switch takes
precedence). Even in such cases, the remote controller notifies the user that
communication with the vehicle was completed using the same display as
indicated above and the beep sound.
Note
If this operation is carried out when the engine is stopped or after the engine
has been started by remote control, the vehicle's hazard warning lights will
flash twice and the horn will sound twice.
19
Loading...
