FALMEC Eros FPERO30U5SS, gruppo incasso NRS, FNINS20B5SS, FNINS28B5SS, Valentina insert Instruction Booklet
...
EN INSTRUCTION BOOKLET
FR MODE D'EMPLOI
ES MANUAL DE INSTRUCCIONES
IT LIBRETTO ISTRUZIONI
Eros
FPERO30U5SS
2
29
13/16
"
758mm 535mm
5
15/16
"
150mm
5 1/8"
130mm
21
1/16
"
10
1/4
" - 260mm
2
3/8"
60mm
12" - 305mm
Ø
EROS UNDERCABINET 30"
FPERO30U5SS
120V 60HZ, 280W 52lb - 24 kg
EN- tool required
FR- outil requis
ES- herramienta requerida
IT - Attrezzi necessari
EN- cable length 5,0ft (1,5m)
FR- longueur de câble 5,0ft (1,5m)
ES- longueur de câble 5,0ft (1,5m)
IT- lunghezza cavo 5,0ft (1,5m)
3
min 25” - 630 mm
max 26” - 660 mm
Y= 8” - 207mm
X
4
ø 5/16
ø 8 mm
V1 (x2)
2
A
3
Y= 8” - 207mm
1
A
B
C
1
2
2
EN - Installation measurements (1),
hood fastening (2).
FR - Fixation de la hotte (1),
cheminée en optionxx (4).
ES - Fijación de la campana (1),
chimenea opcional (4).
IT - Misure per l'installazione (1),
ssaggio cappa (2)
4
2
V2 (x2)
ø 1/4”
ø 6 mm
1
1 2
1
2
3
3
4
EN - Suction pipe assembly (3),
position metal lters (4).
FR - Montage du tuyau
d'aspiration (3), position les
ltres métalliques (4).
ES - Montaje del tubo
de aspiración (3), posición los
ltros metálicos (4).
IT - Montaggio tubo
d’aspirazione (3 ),
posizionamento ltri metallici
(4).
EN -
Mandatory safety screws.
FR - Vis de sécurité obligatoires.
ES - Tornillos de seguridad obligatorios.
IT - Viti di sicurezza obbligatorie.
5
6
EN - Assembling standard active carbon lter:
remove metal lters (5), assemble active
carbon lters (6).
FR - Montage ltre au charbon actif standard : reti-
rer les ltres métalliques (5), monter les ltres
au charbon actif (6).
ES - Montaje del ltro de carbón activo de serie:
quite los ltros metálicos (5), monte los ltros de carbón activo (6).
IT - Montaggio ltro carbone attivo di serie: ri-
muovere ltri metallici (5), montare ltri carbone attivo (6).
1 2
1
2
3
5
6
SAFETY INSTRUCTIONS
AND WARNINGS
Installation operations are to be carried out by skilled and qualied installers in accordance with the instructions in this booklet and in compliance with the regulations in force.
DO NOT use the hood if the power supply cable or other components are damaged:
disconnect the hood from the electrical power supply and contact the Dealer or an authorised Servicing Dealer for repairs.
Do not modify the electrical, mechanical or functional structure of the equipment.
Do not personally try to carry out repairs or replacements. Interventions carried out
by incompetent and unauthorised persons can cause serious damage to the unit or
physical and personal harm, not covered by the Manufacturer's warranty.
WARNINGS FOR THE INSTALLER
TECHNICAL SAFETY
Before installing the hood, check the integrity and function of each part.
Should anomalies be noted, do not proceed with installation and contact
the Dealer.
Do NOT install the hood if an aesthetic (or cosmetic) defect has been detected. Put it
back into its original package and contact the dealer.
No claim can be made for aesthetic (or cosmetic) defects once it has been installed.
During installation, always use personal protective equipment (e.g.: Safety shoes) and adopt
prudent and proper conduct.
The installation kit (screws and plugs) supplied with the hood is only to be used on masonry
walls: in case of installation on walls of a dierent material, assess other installation options
keeping in mind the type of wall surface and the weight of the hood (indicated on spec
sheets at the beginning of this manual).
Keep in mind that installations with dierent types of fastening systems from those supplied, or which are not compliant, can cause electrical and mechanical seal danger.
Do not install the hood outdoors and do not expose it to atmospheric elements (rain, wind,
etc.).
ELECTRICAL SAFETY
The electrical system to which the hood is to be connected must be in accordance with local standards and supplied with earthed connection in
compliance with safety regulations in the country of use. It must also comply with local standards regarding radio antistatic properties.
Before installing the hood, check that the electrical mains power supply corresponds with
what is reported on the identication plate located inside the hood.
The socket used to connect the installed equipment to the electrical power supply must
be within reach: otherwise, install a mains switch to disconnect the hood when required.
Any changes to the electrical system must be carried out by a qualied electrician.
The maximum length of the ue fastening screws (supplied by the manufacturer) must be
13 mm. Use of non-compliant screws with these instructions can lead to danger of an electrical nature.
Do not try to solve the problem yourself in the event of equipment malfunction, but contact
the Dealer or an authorised Servicing Department for repairs.
When installing the hood, disconnect the equipment by removing the
plug or switching o the main switch.
FUMES DISCHARGE SAFETY
Do no connect the equipment to discharge pipes of fumes produced from
combustion (for example boilers, replaces, etc.).
Before installing the hood, ensure that all standards in force regarding discharge of air out of
the room have been complied with.
USER WARNINGS
These warnings have been drawn up for your personal safety and those of
others. You are therefore kindly asked to read the booklet carefully in its
entirety before using the or cleaning the equipment.
The Manufacturer declines all responsibility for any damage caused directly, or indirectly, to persons, things and pets as a consequence of failing to comply with the
safety warnings indicated in this booklet.
It is imperative that this instructions booklet is kept together with the equipment for
any future consultation.
If the equipment is sold or transferred to another person, make sure that the booklet is
also supplied so that the new user can be made aware of the hood's operation and relative
warnings.
After the stainless steel hood has been installed, it will need to be cleaned to remove any
residues remaining from the protective coating as well as any grease and oil stains which, if
not removed, can cause irreversible damage to the hood surface. To properly clean the unit,
the manufacturer recommends using the supplied moist wipes, which are also available
sold separately.
Insist on original spare parts.
INTENDED USE
The equipment is solely intended to be used to extract fumes generated from cooking food in non-professional domestic kitchens: any other use is improper. Improper
use can cause damage to persons, things, pets and exempts the Manufacturer from
any liability.
The equipment can be used by children over the age of 8 and by persons with reduced
physical, sensory and mental abilities, or with no experience or knowledge, as long as they
do so under supervision or after having received relative instructions regarding safe use of
the equipment and understanding of the dangers connected to it.
Children are not to play with the equipment. Cleaning and maintenance by the user must
not be carried out by children without supervision.
USE AND CLEANING WARNINGS
Before cleaning or carrying out maintenance operations, disconnect the
equipment by removing the plug or switching o the main switch.
Do not use the hood with wet hands or bare feet.
Always check that all electrical parts (lights, extractor fan) are o when the equipment is
not being used.
The maximum overall weight of any objects placed or hung (if applicable) on the hood must
not exceed 3lb 5oz (1.5 Kg).
Always supervise the cooking process during the use of deep-fryers: Overheated oil can
catch re.
Do not leave open, unattended ames under the hood.
Do not prepare food over an open ame under the hood.
Never use the hood without the metal anti-grease lters: in this case, grease and dirt will
deposit in the equipment and compromise its operation.
Accessible parts of the hood can be hot when used at the same time as the cooking ap-
pliances.
Do not carry out any cleaning operations when parts of the hood are still hot.
There can be a risk of re if cleaning is not carried out according to the instructions and
products indicated in this booklet.
Disconnect the main switch when the equipment is not used for long periods of time.
If other appliances that use gas or other fuels are being used at the same
time (boiler, stove, replaces, etc.), make sure the room where the fumes
are discharged is well-ventilated, in compliance with the local regulations.

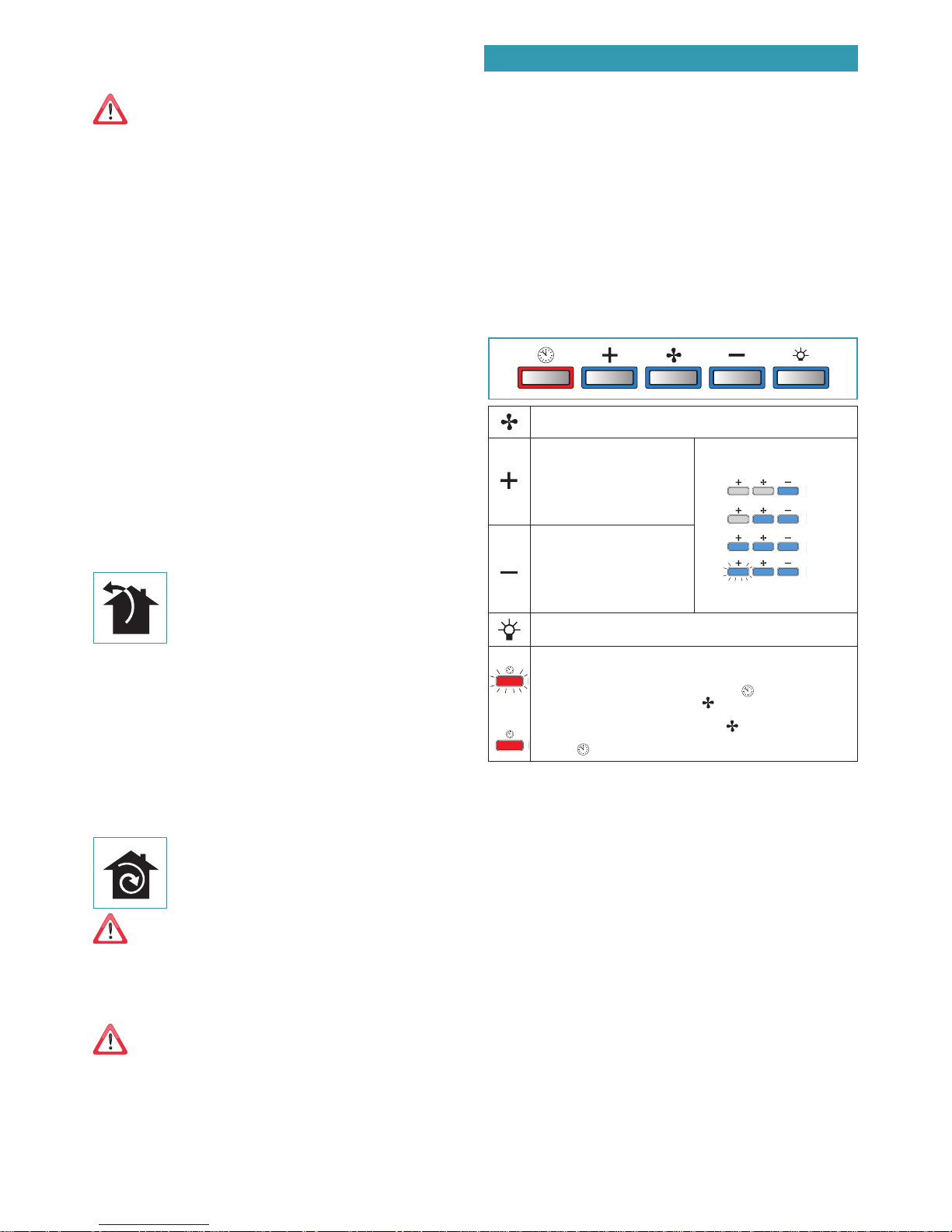

INSTALLATION
Intended only for qualied personnel
Before installing the hood, carefully read the section 'SAFETY INSTRUCTIONS AND WARNINGS'.
TECHNICAL FEATURES
The technical specications are exhibited on the labels located inside the hood.
POSITIONING
The minimum distance between the highest part of the cooking equipment and the
lowest part of the hood is indicated in the installation instructions.
Should the instructions for the gas cooker specify a greater distance, this must be taken
into consideration.
Do not install the hood outdoors and do not expose it to outdoor environment (rain, wind,
etc.).
