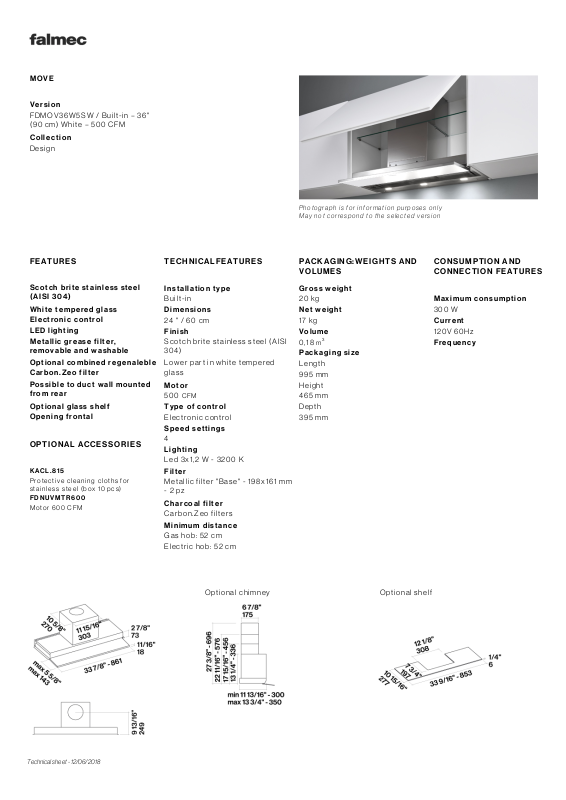

Falmec FDMOV36W5SB Specifications

MOVE

Version

FDMOV36W5SW / Built-in – 36"
(90 cm) White – 500 CFM

Collection

Design

Photograph is for information purposes only
May not correspond to the selected version

FEATURES TECHNICALFEATURES PACKAGING:WEIGHTS AND

VOLUMES

Scotch brite stainless steel
(AISI 304)

White tempered glass
Electronic control
LED lighting
Metallic grease filter,

removable and washable
Optional combined regenaleble

Carbon.Zeo filter
Possible to duct wall mounted

from rear
Optional glass shelf

Opening frontal

Installation type

Built-in

Dimensions

24 " / 60 cm

Finish

Scotch brite stainless steel (AISI

304)
Lower part in white tempered

glass

Motor

500

CFM

Type of control

Electronic control

Gross weight

20 kg

Net weight

17 kg

Volume

3

0,18

m

Packaging size

Length
995 mm
Height
465 mm
Depth
395 mm

Speed settings

OPTIONAL ACCESSORIES

4

Lighting

Led 3x1,2 W - 3200 K

KACL.815

Protective cleaning cloths for
stainless steel (box 10 pcs)

FDNUVMTR600

Motor 600 CFM

Filter

Metallic filter "Base" - 198x161 mm

- 2 pz

Charcoal filter

Carbon.Zeo filters

Minimum distance

Gas hob: 52 cm
Electric hob: 52 cm

CONSUMPTION AND
CONNECTION FEATURES

Maximum consumption

300 W

Current

120V 60Hz

Frequency

Technical sheet - 12/06/2018

Powered by TCPDF (www.tcpdf.org)

Optional chimney Optional shelf
