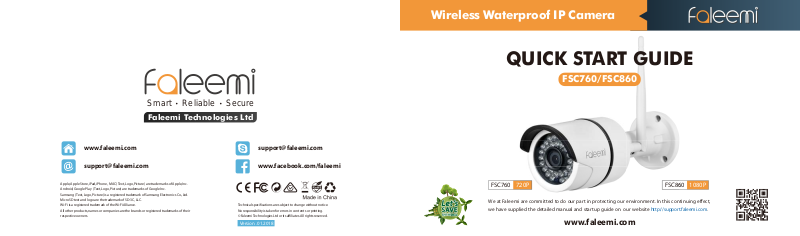

Page 1

Smart Reliable Secure

Faleemi Technologies Ltd

Wireless Waterproof IP Camera

QUICK START GUIDE

FSC760/FSC860

www.faleemi.com

[email protected]

Apple, Apple Store, iPad, iPhone, MAC (Text, Logo, Picture) are trademarks of Apple, Inc.

Android, Google Play (Text, Logo, Picture) are trademarks of Google Inc.

Samsung (Text, Logo, Picture) is a registered trademark of Samsung Electronics Co., Ltd.

MicroSD text and logo are the trademark of SD-3C, LLC.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

All other products, names or companies are the brands or registered trademarks of their

respective owners.

[email protected]

www.facebook.com/faleemi

Technical specifications are subject to change without notice.

No responsibility is taken for errors in contents or printing.

Version . 01.2018

FSC760 720P FSC860 1080P

We at Faleemi are committed to do our part in protecting our environment. In this continuing effect, we have supplied the detailed manual and startup guide on o ur website http://support.faleemi.com.

www.faleemi.com

Page 2

FSC760/FSC860 QUICK START GUIDEFSC760/FSC860 QUICK START GUIDE

Dear Customer,

Thanks for purchasing our products. If you encounter any problem while configuring your camera, or need

additional information, please feel free to contact the Faleemi Support by email/skype: [email protected].

Or visit the Faleemi website : https://www.faleemi.com/faq.

What’s in the box ?

Faleemi Wireless Waterproof IP Camera

Wi-Fi Antenna

Power Adapter

Network Cable

Mounting Screws & Plugs

Allen key

Quick Start Guide

IR LEDs

Lens

Light Sensor

WPS/Reset Button

DC 12V Power

RJ45 10/100M LAN Port

Wi-Fi Antenna

Get started

Router

Cable

Please download the Faleemi APP

TIPS

before doing the setup

Download the App (Android and iOS)

First, connect your mobile device to your WiFi and download the App “Faleemi” from the App Store or Google Play store,or scan below QR code to download it.

Cable

Plug

Page 3

FSC760/FSC860 QUICK START GUIDEFSC760/FSC860 QUICK START GUIDE

Setup by Ethernet Cable

1. Please plug the camera in with the included power supply. Please connect the camera to your router with the included ethernet cable.

2.4GHz

Router

2. Open the Faleemi App,

Click on [Add Camera].

PlugCable

3. Clicn on

[Add the camera via wired mode].

4. Click on [Next].

5. Please scan the QR Code at the

bottom of the camera

QR Code

If you see this, please click on "OK"

If you can’t scan the QRcode,

please Click on [Skip]

Skip

6. Type in the name you have selected

for your camera and click on [Next].

Please don't change the user name and password. You have to use the default ones here. But you can change them after your camera is connected. Please refer to the instruction on page 12.

if you can't scan the QR code, please enter the

DID (something like VIEW-1234567-ABCDE) in

the label on the camera manually.

Page 4

FSC760/FSC860 QUICK START GUIDE

7. It says Connection succeeded, if you want to use wired connection, please click on [Cancel]; if you want to use wifi, please click on [OK] to do the wifi connection.

8. Choose WiFi to connect

Please make sure the wifi you are going to

connect the camera to is the 2.4GHz WiFi.

9. Please enter your wifi password,

click on [Next].

Click on it to show and check your password

10. It will show WiFi is set successfully. there will be 2 beep sound. It means the camera is connected to your wifi, Click on [OK] , please remove the ethernet cable.

11. Click on the image to start to

view & control.

You will see it shows the camera online

Congratulations!

Your camera is connected now

To ensure the security of your camera, you are suggested to change the default password. Please refer to the instruction in Page 12.

If you are not able to connect your camera to your router with ethernet cable, here are the other 2 wireless connection instructions. Please visit

http://support.faleemi.com/fsc860/setup2.pdf

If the setting is failed, please find below solution or contact us by

Email: [email protected] Skype: [email protected] Phone: 213 293 3560 EST: 6am~11am, 8pm-11pm PST: 6am~8am, 5pm-12pm

When you call us, please wait some more

moment until it gets through.

Page 5

FSC760/FSC860 QUICK START GUIDEFSC760/FSC860 QUICK START GUIDE

Live Video Interface

Cruise Vertically (N/A) Cruise Horizontally(N/A) Menu Flip

Mirror

Preset

Faleemi_FSC860

Exit Snapshot to phone Record video to phone Audio on/off Microphone on/off

Contrast Brightness Restore to default 480P/720P/1080P*(*FSC860) Contract

IR LED Off Auto

Preset

Set or Call Preset (N/A)

Installation

Please install the camera after it is connected. Please pay attention to safety when you are installing it.

Screw A Screw A

Screw B

Mark the positions of the screw holes on the mounting surface.

Drill holes and insert the anchors(included) as needed.

Firmly attach the camera to the mounting surface using the included screws.

Loosen the Screw[A, A],[B] by turning them counter clockwise.

Adjust the angle of the cameras until the desired view is set.

Tighten the screws to secure camera's position.

Allen key A

Allen key B

Page 6

FSC760/FSC860 QUICK START GUIDEFSC760/FSC860 QUICK START GUIDE

How to connect the camera to the second Phone?

After you use one phone to get your camera connected to your WiFi and you can view the live video from your first phone. If you would like to add your camera to the second phone, please ensure your

second phone connects to your WiFi (the same WiFi your camera connected to) .

1. Download the Faleemi App to your second phone.

2. Open the Faleemi App, Click on [Add Camera].

3. Click on [Add the cameras

which are already connected to your WiFi network]

4. Click on [LAN Search].

5.Click on the camera searched. 6. Give your camera a name, and

input your Password, click on

[Done] go back to home to start to

view & control.

If you don’t find it, please click on

this icon to refresh.

Tips: Default (123456), but if you changed the password on your first phone, please enter your new password here.

Page 7

FSC760/FSC860 QUICK START GUIDEFSC760/FSC860 QUICK START GUIDE

Advanced Settings

Please follow below steps to go to Advanced Settings to do more settings.

2. Click on [Advanced Settings]. 3. Do advanced settings here.1. Click on the icon [ ].

Tips:

If you change your password,

please remember to update

the new password to your

other phone and click on

"Done"

Trouble Shooting Frequently Asked Questions

1. How do I change my camera password?

To ensure the security of your camera, you are suggested to change the default password.

Please follow below steps to do it. Click on the icon [ ] at the right of the camera and select [Advanced Settings] and next [User Setting].

Enter your new password and click on [Done] on the top right. Note that once the password is changed here, it will take effect immediately.

1. Click on the [User Setting].

2. Select [admin], Click on [ ].

3. Enter your new password, Click on [Done].

Record your new password here:

Page 8

FSC760/FSC860 QUICK START GUIDEFSC760/FSC860 QUICK START GUIDE

2.If you have several cameras, please follow below steps to use multi-view function.

Home

Home Oce

Store

Store Pets

3. How do I change my video stream resolution?

Click on the icon to change the resolution.

4. I mounted my camera upside down, how do I flip my camera’s video stream?

Click on to flip and mirror your camera.

Oce

Pets

Four Cameras

Home

online

Playing

VIEW-462517-FHO..

Oce

online

Playing

VIEW-462517-OFF..

Store

online

Playing

VIEW-462517-STO..

Pets

online

Playing

VIEW-462517-FPE..

5. How to restore to factory default?

Push down the “Reset” button for around 10-15 seconds until the red light changes from blinking

slowly to very quickly and then let the Reset button go.The camera will reboot automatially.

WPS/Reset

Button

10S+

Blinking Quickly

6. How to set email alert?

Please visit

http://support.faleemi.com/FSC860/Email_alert.pdf , If there is no

the guide for your email server, please email us [email protected].

Scan the QR Code

to view

7. How to link your camera to your PC/Mac by Faleemi Plus

Windows: Please visit https://youtu.be/sEuauwrchbs Mac: Please visit https://youtu.be/pljGg0l86N8
