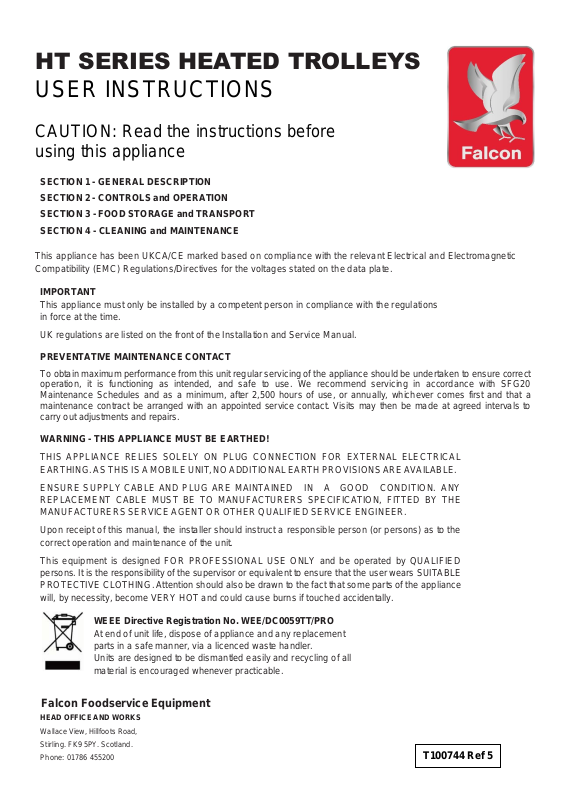

Falcon HT2 User Manual

HT SERIES HEATED TROLLEYS

USER INSTRUCTIONS

CAUTION: Read the instructions before
using this appliance

SECTION 1 - GENERAL DESCRIPTION
SECTION 2 - CONTROLS and OPERATION
SECTION 3 - FOOD STORAGE and TRANSPORT
SECTION 4 - CLEANING and MAINTENANCE

This appliance has been UKCA/CE marked based on compliance with the relevant Electrical and Electromagnetic
Compatibility (EMC) Regulations/Directives for the voltages stated on the data plate.

IMPORTANT

This appliance must only be installed by a competent person in compliance with the regulations
in force at the time.

UK regulations are listed on the front of the Installation and Service Manual.

PREVENTATIVE MAINTENANCE CONTACT

To obtain maximum performance from this unit regular servicing of the appliance should be undertaken to ensure correct
operation, it is functioning as intended, and safe to use. We recommend servicing in accordance with SFG20
Maintenance Schedules and as a minimum, after 2,500 hours of use, or annually, whichever comes first and that a
maintenance contract be arranged with an appointed service contact. Visits may then be made at agreed intervals to
carry out adjustments and repairs.

WARNING - THIS APPLIANCE MUST BE EARTHED!

THIS APPLIANCE RELIES SOLELY ON PLUG CONNECTION FOR EXTERNAL ELECTRICAL
EARTHING. AS THIS IS A MOBILE UNIT, NO ADDITIONAL EARTH PROVISIONS ARE AVAILABLE.

ENSURE SUPPLY CABLE AND PLUG ARE MAINTAINED IN A GOOD CONDITION. ANY
REPLACEMENT CABLE MUST BE TO MANUFACTURERS SPECIFICATION, FITTED BY THE
MANUFACTURERS SERVICE AGENT OR OTHER QUALIFIED SERVICE ENGINEER.

Upon receipt of this manual, the installer should instruct a responsible person (or persons) as to the
correct operation and maintenance of the unit.

This equipment is designed FOR PROFESSIONAL USE ONLY and be operated by QUALIFIED
persons. It is the responsibility of the supervisor or equivalent to ensure that the user wears SUITABLE
PROTECTIVE CLOTHING. Attention should also be drawn to the fact that some parts of the appliance
will, by necessity, become VERY HOT and could cause burns if touched accidentally.

WEEE Directive Registration No. WEE/DC0059TT/PRO

At end of unit life, dispose of appliance and any replacement
parts in a safe manner, via a licenced waste handler.
Units are designed to be dismantled easily and recycling of all
material is encouraged whenever practicable.

Falcon Foodservice Equipment

HEAD OFFICE AND WORKS

Wallace View, Hillfoots Road,
Stirling. FK9 5PY. Scotland.
Phone: [phone]

T100744 Ref 5

SECTION 1 - GENERAL DESCRIPTION

The HT Series Heated Trolleys are mobile units intended for transferring cooked food from kitchen area to remote
serving area, and comes in two and three compartment variants.

Each trolley has a single open heated chamber containing segregated rack compartments. Custom- made
racks suitable for use with 1/1 gastronorm containers are included. Ten rack runner positions are provided,
each positioned 65mm apart allowing containers with lids to be inserted.

Heating elements are fitted below chamber floor. The trolley is not suitable for cooking food.

SECTION 2 - CONTROLS and OPERATION

A dummy socket has been provided in trolley side panel for retaining plug and associated cable safely above
ground, away from castors when unit is not connected to mains power supply.

The unit has no ON/OFF switch. Elements/controls will be energised whenever unit is connected to mains power.
Controller has been pre-programmed at factory for a thermostat setting of 85°C.
When switching power ON to appliance, controller display will run through an initialisation process lasting a few

seconds before settling into its operating mode. Under normal operation, ambient chamber temperature will be
displayed.

Once fully pre-heated, chamber temperature will cycle around 85°C as elements are switched ON/OFF to
maintain set temperature. Empty chamber cycle normally remains within 10° of this setting.

Note: The Power ON neon will illuminate when connected to mains power. However,
controller display indicating other than chamber temperature and/or Power ON neon going OFF
for longer periods in combination with wide temperature swings when empty would signify an
appliance fault. If this happens, contact your Service Agent to have the fault rectified.

SECTION 3 ­FOOD STORAGE and TRANSPORT

The HT heated trolleys are mobile units intended to transport hot, cooked food from kitchen to serving area.
Pre-heat trolley before loading with cooked food.

Store, load and unload unit on a level floor in a well lit area.
During use, keep appliance plugged into mains power supply unless in transit between kitchen and serving

area. This will allow cabinet temperature to be monitored and boost heat provided if temperature drops below
85°C. Any heat-loss can only be recovered if unit is connected to mains power.

Hot food will add to heat generated by elements during pre-heat, and hence chamber temperature may be higher
than thermostat setting.

To avoid losing heat, NEVER leave doors open for longer than is necessary during loading.
THE TROLLEY IS HEAVY.
Take care when maneuvering unit.

Empty Anticipated

Trolley weight w/ racks max food load*

HT-2 150 kg 165 kg
HT-3 195 kg 245 kg

* includes weight of trays and containers

SECTION 4 ­CLEANING and MAINTENANCE

DISCONNECT FROM ELECTRICAL SUPPLY BEFORE ANY CLEANING IS UNDERTAKEN.
DO NOT STEAM CLEAN.

DO NOT USE ACID OR HALOGEN BASED
DESCALING LIQUIDS (such as chlorine).

Stainless Steel Surfaces

Clean using hot, soapy water and soft cloth. Certain types of scouring pads, including nylon types, may mark
stainless steel. Care should be taken when using these. Always rub in the direction of the grain to minimise
marking.

Carry out daily cleaning. Remove all trays and tray racks from food compartment and clean. Wipe down internal
chamber surfaces and trolley exterior.

Maintenance

It is recommended that the trolley is serviced at regular intervals. Contact your Service Agent if any fault arises
between visits. Appliance longevity and reliability will be improved by correct maintenance.

SERVICE INFORMATION

This unit carries an extensive mainland UK warranty. The warranty is in addition to and does not change
your statutory or legal rights.

The warranty policy can be found on our website which details the conditions of the warranty and the
exclusions.

https://www.falconfoodservice.com/info-centre/policy

Service calls to equipment under warranty will be carried out in accordance with the conditions of sale.
Warranty calls can be made between 8:30 am and 5:00 pm weekdays only.
To ensure your warranty enquiry is handled as efficiently as possible, ensure you have the following

appliance information prior to calling us:

1. Model number – found on data plate

2. Serial number – found on data plate

3. Brief description of the issue

To contact Falcon for a warranty issue dial (UK only) 01786 455 200 and select Warranty Issues from the
menu.
