Falcon E9641 User Manual

1

F900 SERIES

User, installation and servicing instructions

BAIN MARIE

E9641

Read these instructions before use

T100941

DATE PURCHASED:

MODEL NUMBER:

SERIAL NUMBER:

DEALER:

SERVICE PROVIDER:

REV 11

2

Falcon Foodservice Equipment

HEAD OFFICE

Wallace View, Hillfoots Road,
Stirling, FK9 5PY, Scotland
Tel: [phone]

WEEE Directive Registration No. WEE/DC0059TT/PRO
At end of appliance life, dispose of appliance and any replacement parts in a safe

manner, via a licensed waste handler. Appliances are designed to be dismantled
easily and recycling of all material is encouraged whenever practicable.

Dear Customer,
Thank you for choosing Falcon Foodservice Equipment.

This manual can be downloaded from www.falconfoodservice.com or scan
here.

IMPORTANT: Please keep this manual for future reference.

3

SYMBOLS.

• SPANNER • SCREWDRIVER • COOKING OIL • GREASE

• SPARK IGNITION • FLAME • WARNING • VIEWPORT

• ALLEN KEY •IGNITER •C SPANNER

4

• This appliance may be discoloured due to testing.

• These instructions are only valid if the country code appears on the appliance. If the code

does not appear on the appliance, refer to the technical instructions for adapting the
appliance to the conditions for use in that country.

• Installation must meet national or local regulations. Attention must be paid to: safety

(installation & use) regulations, health and safety at work act, local and national building
regulations, fire precautions act.

• To prevent shocks, all appliances must be earthed.

• This unit is fitted with an equipotential connection at the rear on the base.

• This appliance has been UKCA/CE marked based on compliance with the relevant

Electrical and Electromagnetic Compatibility (EMC) Regulations/Directives for the
voltages stated on the data plate.

• This equipment is for professional use only and must be used by qualified persons.

• The installer must instruct the responsible person(s) of the correct operation and

maintenance of the appliance.

• Unless otherwise stated, parts which have been protected by the manufacturer must not

be adjusted by the installer.

• Take care when moving an appliance fitted with castors.

• Check that no damage has occurred to the appliance or supply cord during transit. If

damage has occurred, do not use the appliance.

• Installation, periodic testing, repair and fixed wired connections should only be

undertaken by a competent electrician.

• Ensure supply cord is routed free from appliance to avoid damage.

• We recommend supplementary electrical protection with the use of a residual current

device. (RCD)

• The appliance has been designed and approved to use Falcon Kick plates: Non Falcon

kick plates could potentially adversely affect the performance of the appliance by
restricting the air to the appliance.

• All apparatus connected to a potable water network and including water drain devices has

to be provided with an air break before its discharge to the drainage system. Type AA.

PREVENTATIVE MAINTENANCE CONTRACT

To obtain maximum performance from this unit regular servicing of the appliance should be
undertaken to ensure correct operation, it is functioning as intended, and safe to use. We recommend
servicing in accordance with SFG20 Maintenance Schedules and as a minimum, after 2,500 hours of
use, or annually, whichever comes first and that a maintenance contract be arranged with an
appointed service contact. Visits may then be made at agreed intervals to carry out adjustments and
repairs.

5

CONTENTS

1.0 APPLIANCE INFORMATION ......................................................................................................... 6

2.0 OPERATION ................................................................................................................................. 7

2.1 COMPONENT PARTS ............................................................................................................... 7

2.2 CONTROLS ............................................................................................................................... 7

2.3 USING THE BAIN MARIE .......................................................................................................... 8

2.4 RESET ...................................................................................................................................... 8

3.0 CLEANING AND MAINTENANCE .................................................................................................. 9

4.0 SPECIFICATION ............................................................................................................................ 9

4.1 This unit is suitable for AC supplies only ................................................................................ 9

4.2 The standard terminal arrangements is Single phase (230V N~) ........................................... 9

5.0 DIMENSIONS / CONNECTION LOCATIONS ............................................................................... 10

6.0 INSTALLATION ........................................................................................................................... 11

6.1 SITING / CLEARANCES ........................................................................................................... 12

6.2 SUPPLY CONNECTION ........................................................................................................... 13

6.3 Electrical Ratings ................................................................................................................... 13

6.4 ASSEMBLY ............................................................................................................................. 14

6.5 COMMISSIONING .................................................................................................................. 15

6.6 SUITING ................................................................................................................................. 16

7.0 SERVICING ................................................................................................................................. 18

7.1 DOOR REMOVAL ................................................................................................................... 18

7.2 CONTROL PANEL REMOVAL .................................................................................................. 19

7.3 OPERATING THERMOSTAT & NEON REMOVAL .................................................................... 19

7.4 BASE PANEL REMOVAL ......................................................................................................... 20

7.5 ELEMENT TRAY REMOVAL .................................................................................................... 21

7.6 ELEMENT REMOVAL .............................................................................................................. 22

7.7 SAFETY THERMOSTAT REMOVAL .......................................................................................... 22

8.0 FAULT FINDING ......................................................................................................................... 23

9.0 SPARE PARTS – SPARES NUMBER ............................................................................................. 24

10.0 SERVICE INFORMATION ............................................................................................................ 24

6

1.0 APPLIANCE INFORMATION

This appliance has been UKCA/CE marked based on compliance with the relevant
Electrical and Electromagnetic Compatibility (EMC) Regulations/Directives for the
voltages stated on the data plate.

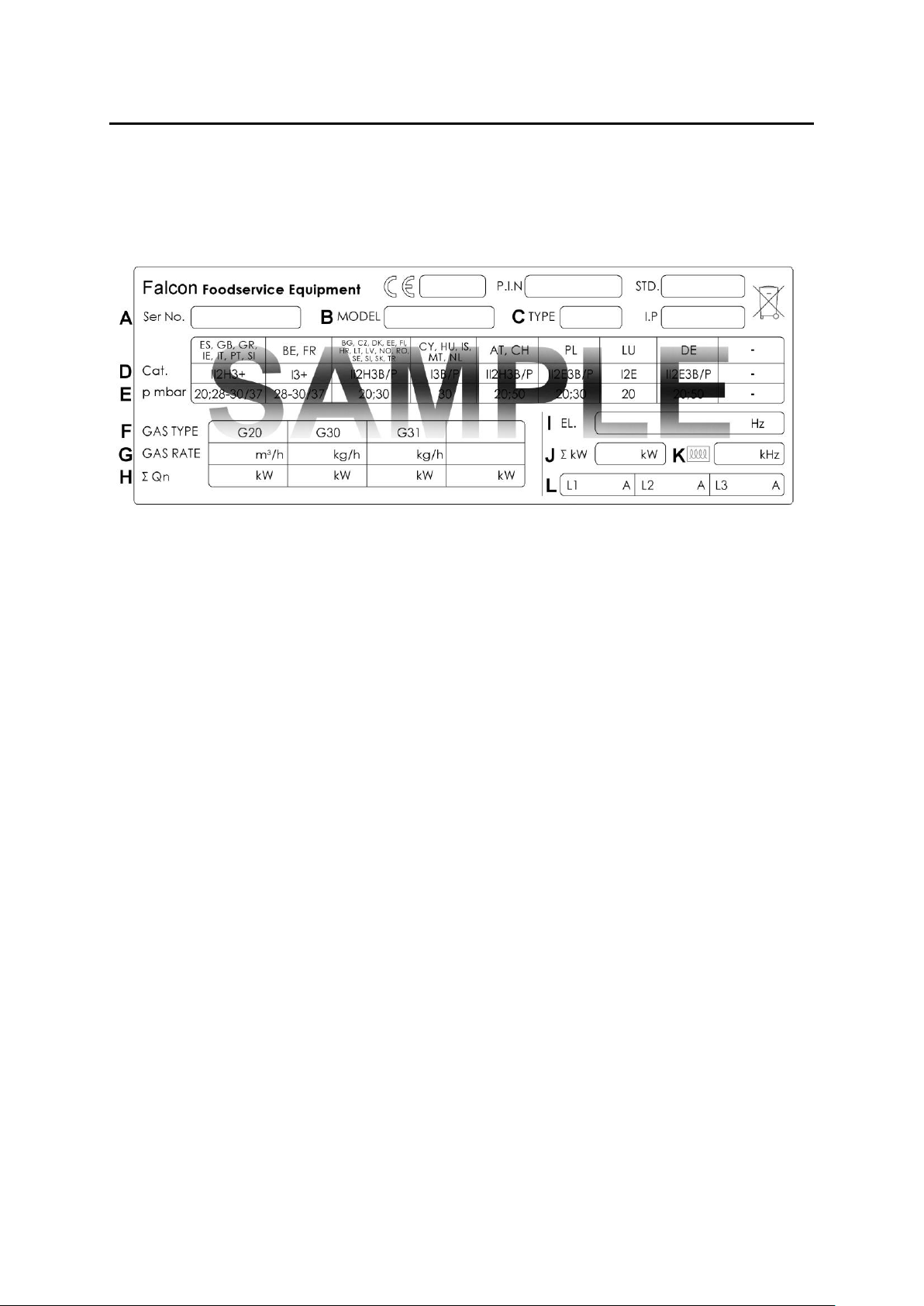

A - Serial No
B - Model No
C - Flue Type
D - Gas Category
E - Gas Pressure
F - Gas Type
G - Gas Rate
H - Total Heat Input
I - Electrical Rating
J - Total Electrical Power
K - Magnetic Field Frequency
L - Electrical Phase Loading

7

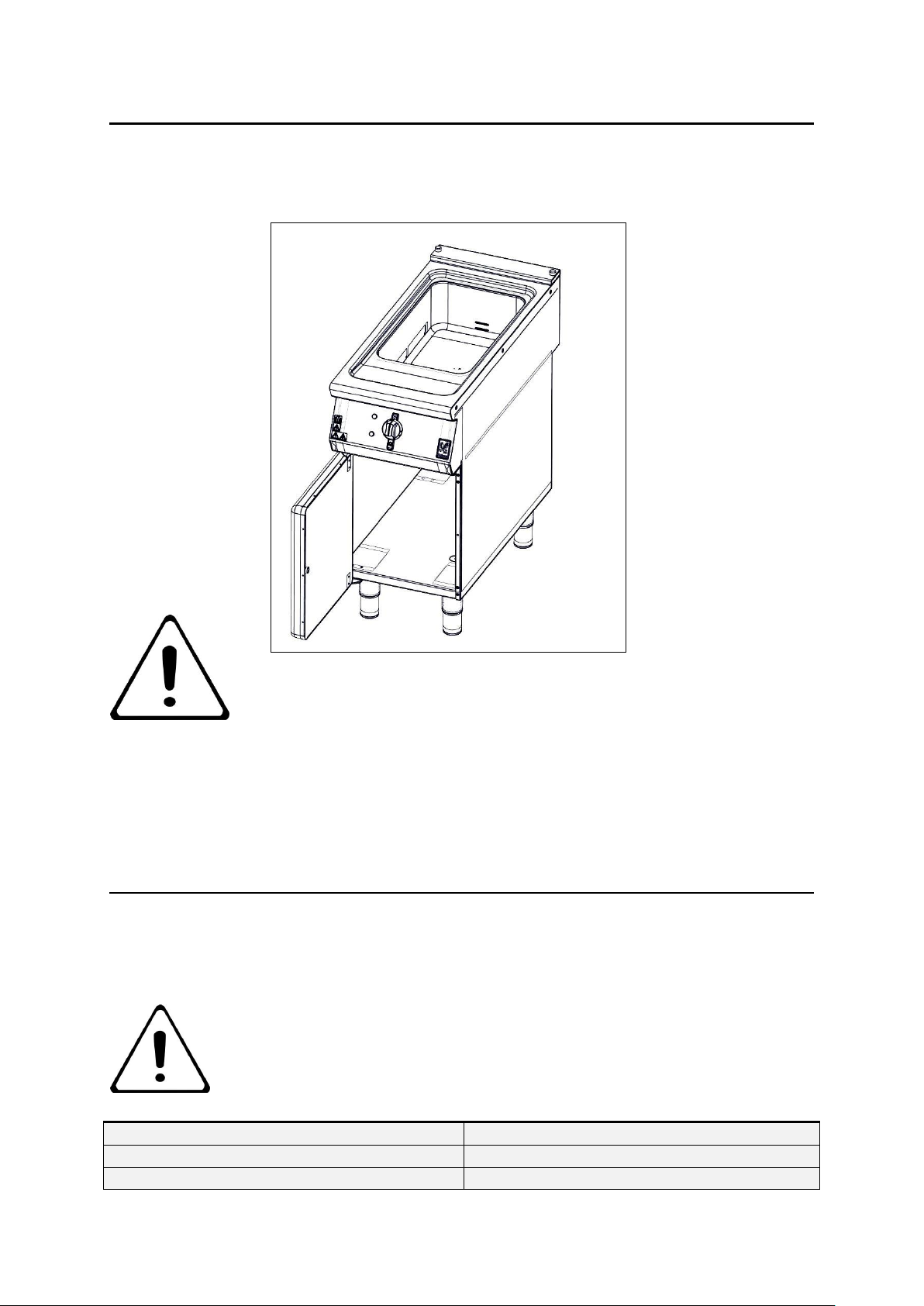

2.0 OPERATION

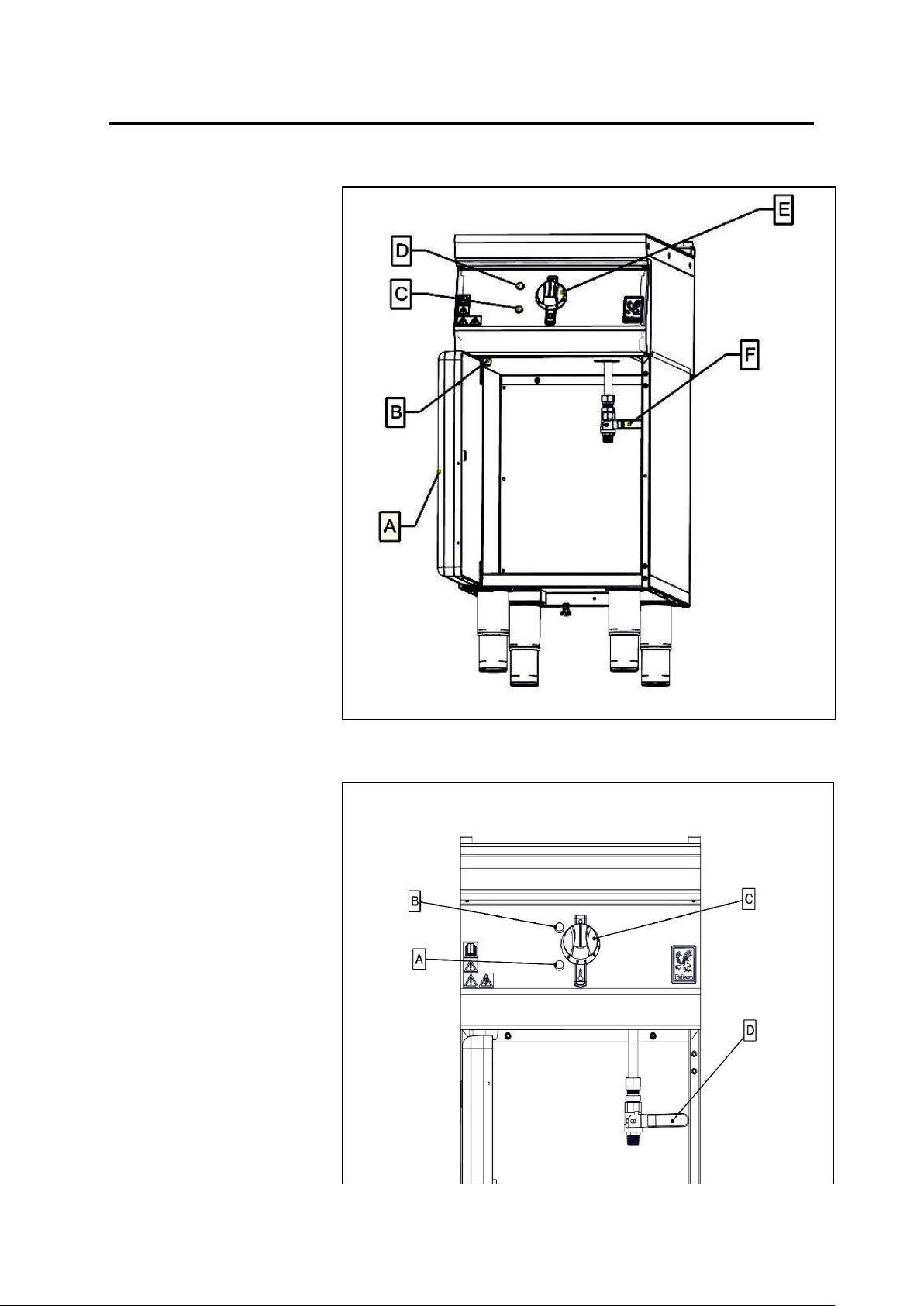

2.1 COMPONENT PARTS

A – DOOR
B – RESET SWITCH
C – HEAT DEMAND NEON
D - POWER NEON
E – TEMPERATURE CONTROL
F – DRAIN VALVE

2.2 CONTROLS

A. Heat demand neon (amber)
B. Power neon (red)
C. Temperature control
D. Drain valve
E. Reset (see 2.4)

8

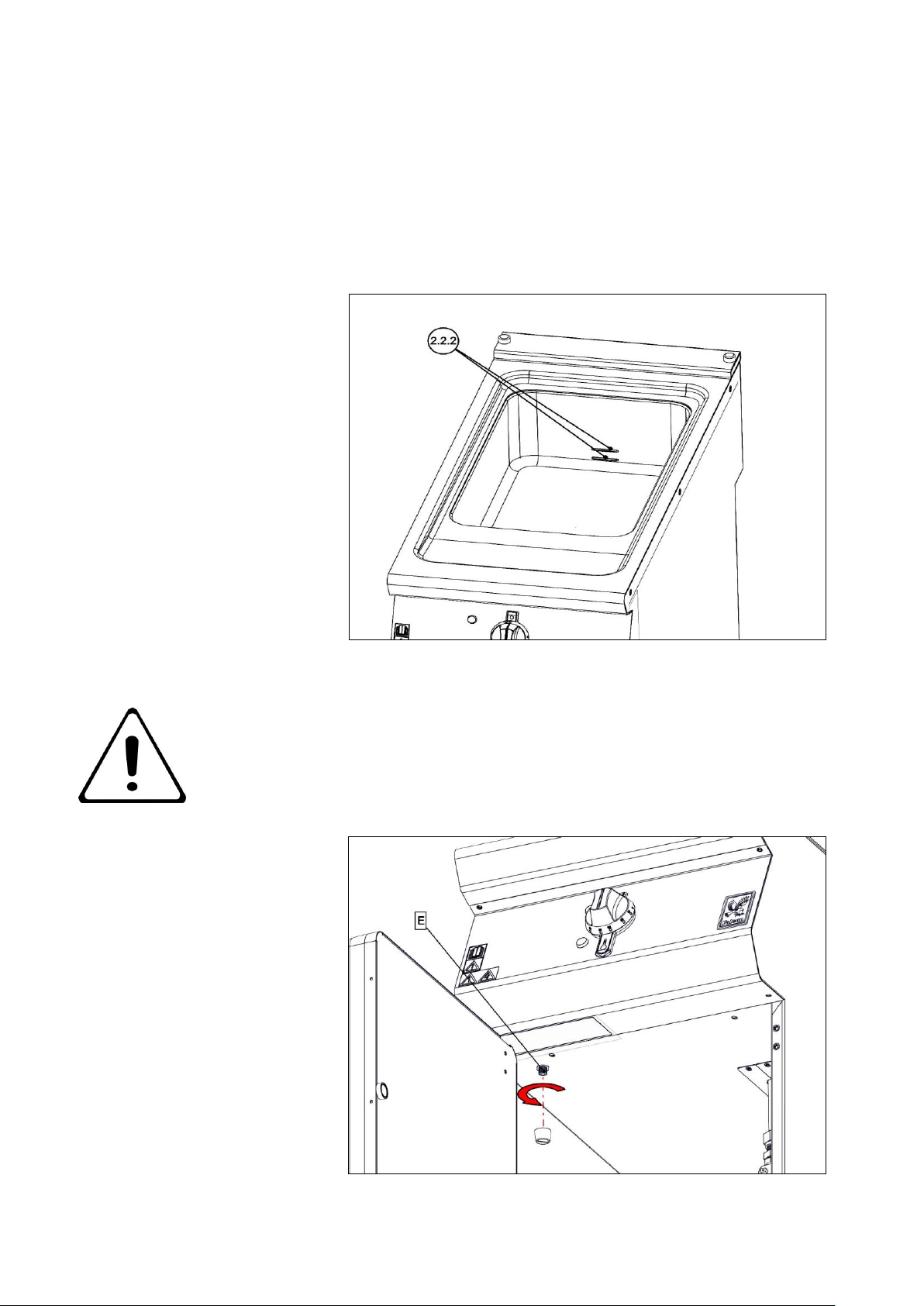

2.3 USING THE BAIN MARIE

2.3.1 Before use, clean the appliance inside and out. See section 3.

2.3.2 Ensure drain valve is closed; fill with water to marked level.

2.3.3 Set temperature control 3 to desired setting.

2.3.4 To switch the unit off, turn temperature control 3 to `off` position.

2.4 RESET

IF THE UNIT TURNS OFF, PRESS RESET BUTTON.

9

3.0 CLEANING AND MAINTENANCE

3.0.1 Turn off and allow cool down.

3.0.2 Drain water.

3.0.3 Remove other debris using a cloth.

FAILURE DUE TO LACK OF PROPER CLEANING IS NOT
COVERED BY WARRANTY.

4.0 SPECIFICATION

4.0.1 This unit is suitable for AC supplies only

4.0.2 The standard terminal arrangements is Single phase (230V N~)

THIS APPLIANCE MUST BE EARTH

Live

Brown

Neutral

Blue

Earth

Yellow/Green

10

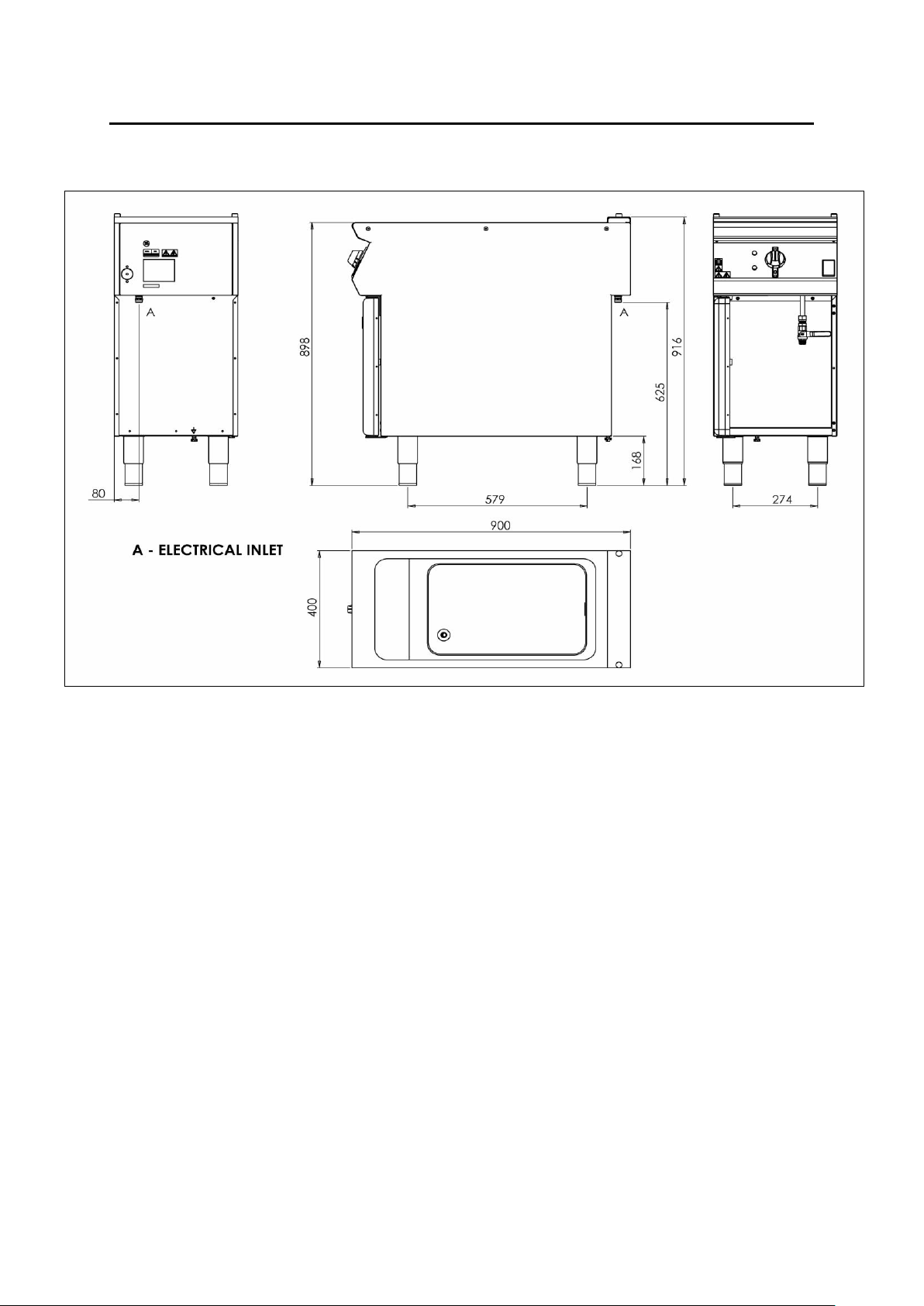

5.0 DIMENSIONS / CONNECTION LOCATIONS

11

6.0 INSTALLATION

ELECTRICAL SAFETY AND ADVICE REGARDING SUPPLEMENTARY ELECTRICAL

PROTECTION

Commercial kitchens and foodservice areas are environments where electrical appliances
may be located close to liquids, or operate in and around damp conditions or where
restricted movement for installation and service is evident.

The installation and periodic inspection of the appliance should only be undertaken by a
qualified, skilled and competent electrician; and connected to the correct power supply
suitable for the load as stipulated by the appliance data label.

The electrical installation and connections should meet the necessary requirements to the
local electrical wiring regulations and any electrical safety guidelines.

We recommend:-

• Supplementary electrical protection with the use of a type A residual current device
(RCD)

• Fixed wiring appliances incorporate a locally situated switch disconnector to connect to,
which is easily accessible for switching off and safe isolation purposes. The switch
disconnector must meet the specification requirements of IEC 60947.

Your attention is drawn to:­BS 7671:2018–Guidance Note 8 - 8.13 : Other locations of increased risk

It is recognized that there may be locations of increased risk of electric shock other than
those specifically addressed in Part 7 of BS 7671. Examples of such locations could include
laundries where there are washing and drying machines in close proximity and water is
present, and commercial kitchens with stainless steel units, where once again, water is
present.

Where because of the perception of additional risks being likely, the installation designer
decides that an installation or location warrants further protective measures, the options
available include:

• Automatic Disconnection of Supply (ADS) by means of a residual current device having
a residual operating current not exceeding 30mA;

• Supplementary protective equipotential bonding; and

• Reduction of maximum fault clearance time.

The provision of RCDs and supplementary bonding must be specified by the host
organization’s appointed installation designer or electrical contractor and installed by a
suitably qualified and competent electrician so as to comply with Regulations 419.2 and

544.2

12

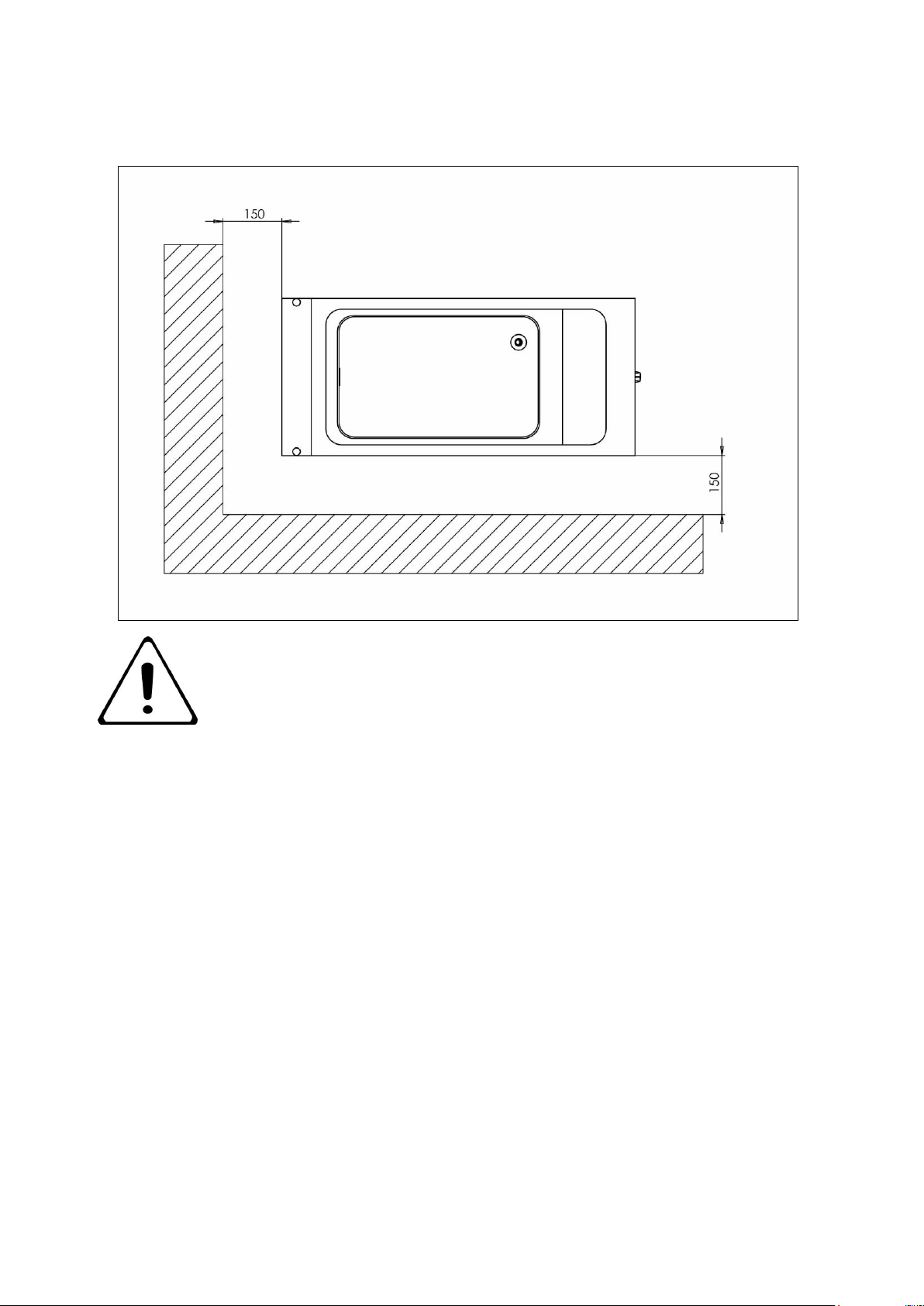

6.1 SITING / CLEARANCES

CAUTION: WALLS CLOSER THAN 150mm TO THE APPLIANCE MUST BE
NON COMBUSTABLE. IF SUITING THE NECESSARY CLEARANCES TO
ANY CUMBUSTIBLE WALL MUST BE THE LARGEST FIGURE GIVEN FOR
INDIVIDUAL APPLIANCES INSTRUCTIONS.

13

6.2 SUPPLY CONNECTION

6.2.1 A suitable mains cable is supplied that conforms to code designation 60245 IEC57,

Cable type H07RN-F. This appliance is designed to, and must be connected to fixed
wiring if cord is damaged, it must be replaced by a suitably qualified person

Access to mains terminal block is gained by removing control panel. (See section

7.2)

6.2.2 This appliance is also provided with a terminal for connection of an external

equipotential conductor. This terminal is an effective electrical contact with all fixed
exposed metal parts of the appliance, and shall allow the connection of a conductor
having a nominal cross section area of up to 10mm² it is located at the rear of the unit
and identified by the following label and must only be used for bonding purposes.

6.3 Electrical Ratings

Electrical loading is as stated in the table below and also on the appliance data plate.
The location of the mains isolating switch should be identified for use in any event of
an emergency or during cleaning.

Connection

A @230 volts

Fuse Rating

Live

5.9

8 amps

14

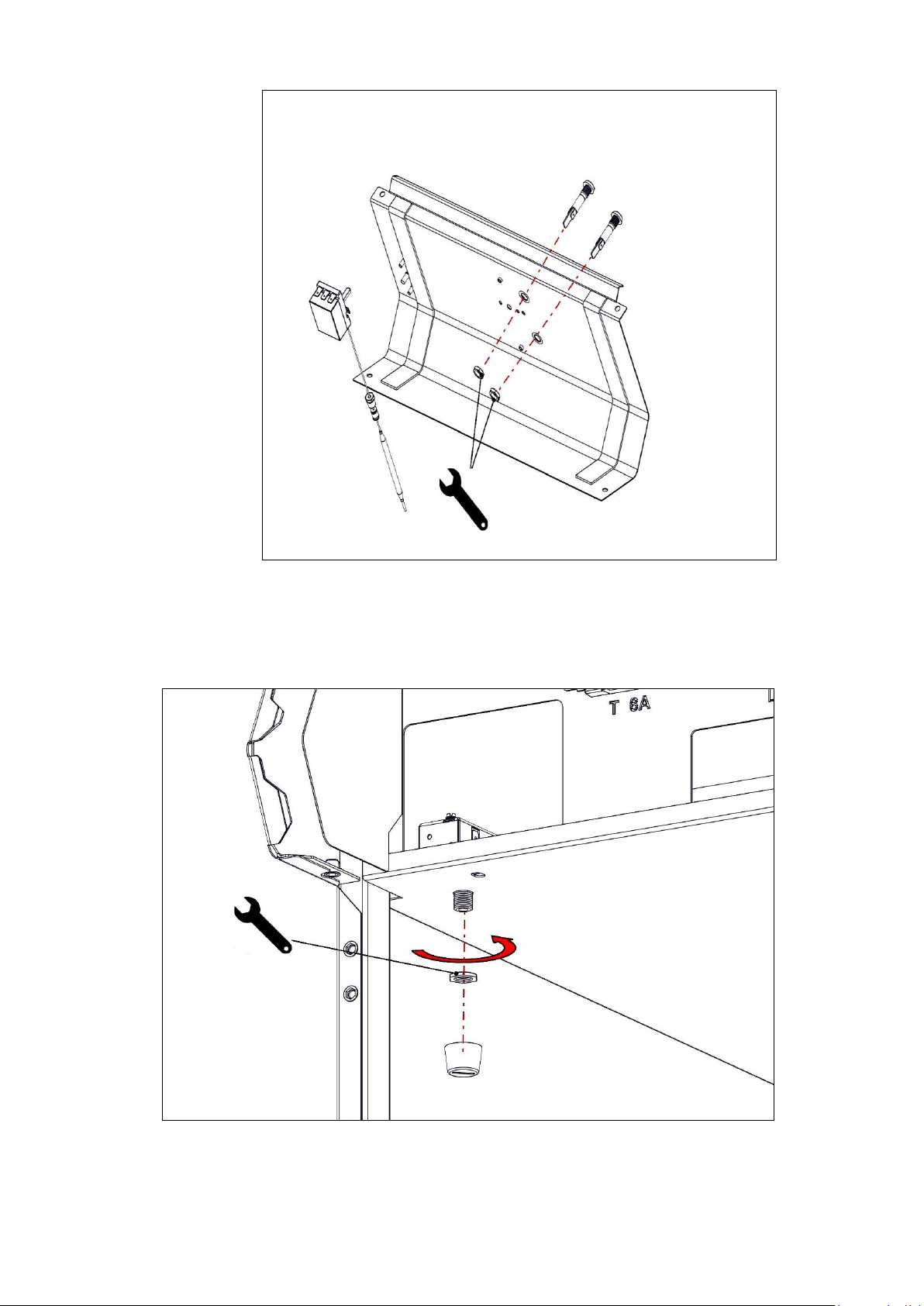

6.4 ASSEMBLY

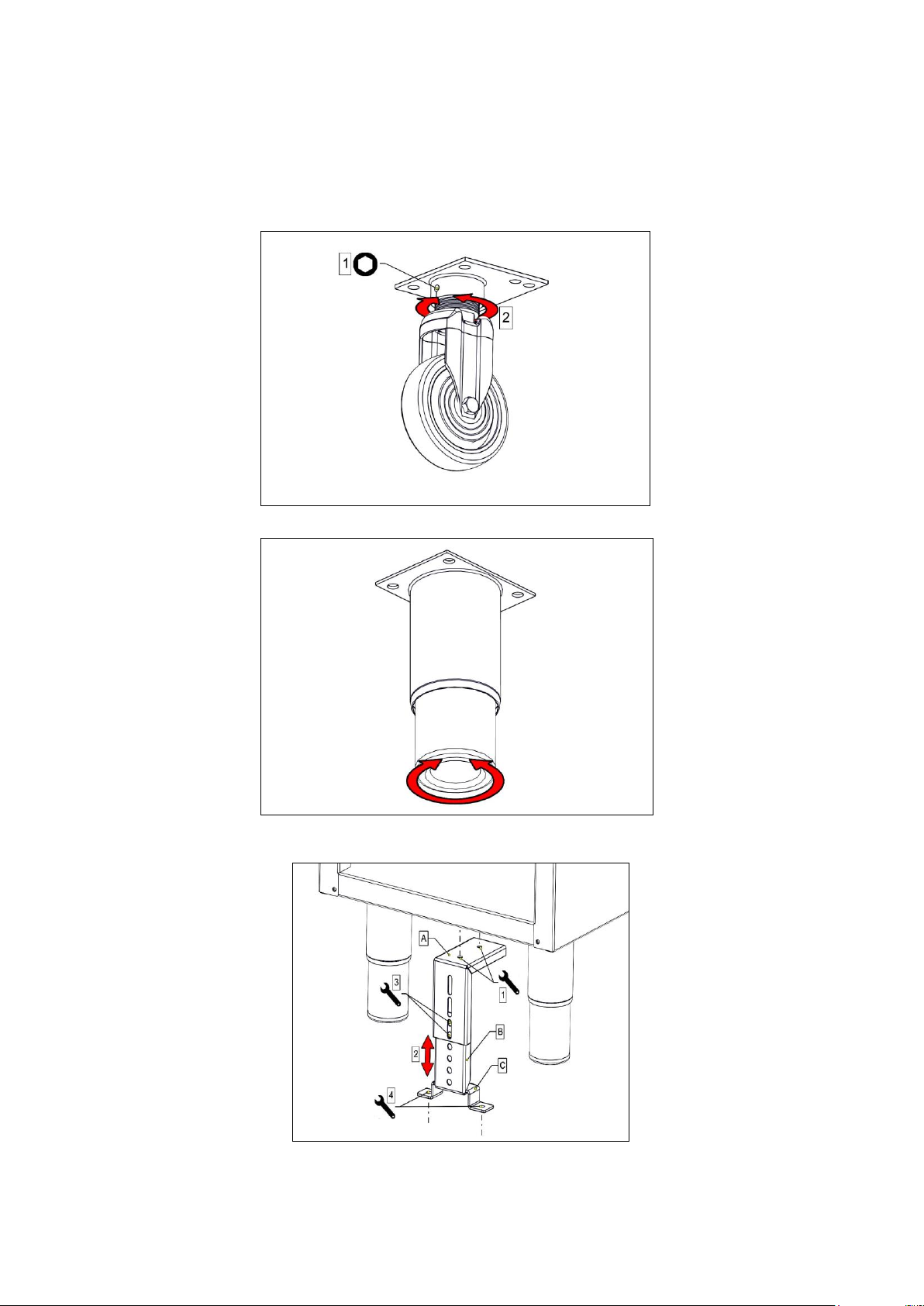

6.4.1 Position appliance and level using feet adjusters as shown below. Fit anti tilt device.

Anti tilt device

15

6.5 COMMISSIONING

6.5.1 Open door ensuring drain valve is closed.

6.5.2 Fill pan with water to maximum level mark.

6.5.3 Switch on unit (temperature control knob, see section 2.3.3).

6.5.4 Adjust to desired temperature (temperature control knob, see section 2.3.3).

If the appliance does not operate correctly please refer to section 2.3 and rectify the
problem.

PLEASE FILL OUT THE INFORMATION TABLE ON THE FRONT COVER
AFTER COMMISSIONING.

16

6.6 SUITING

“Patent No. GB 2540131”

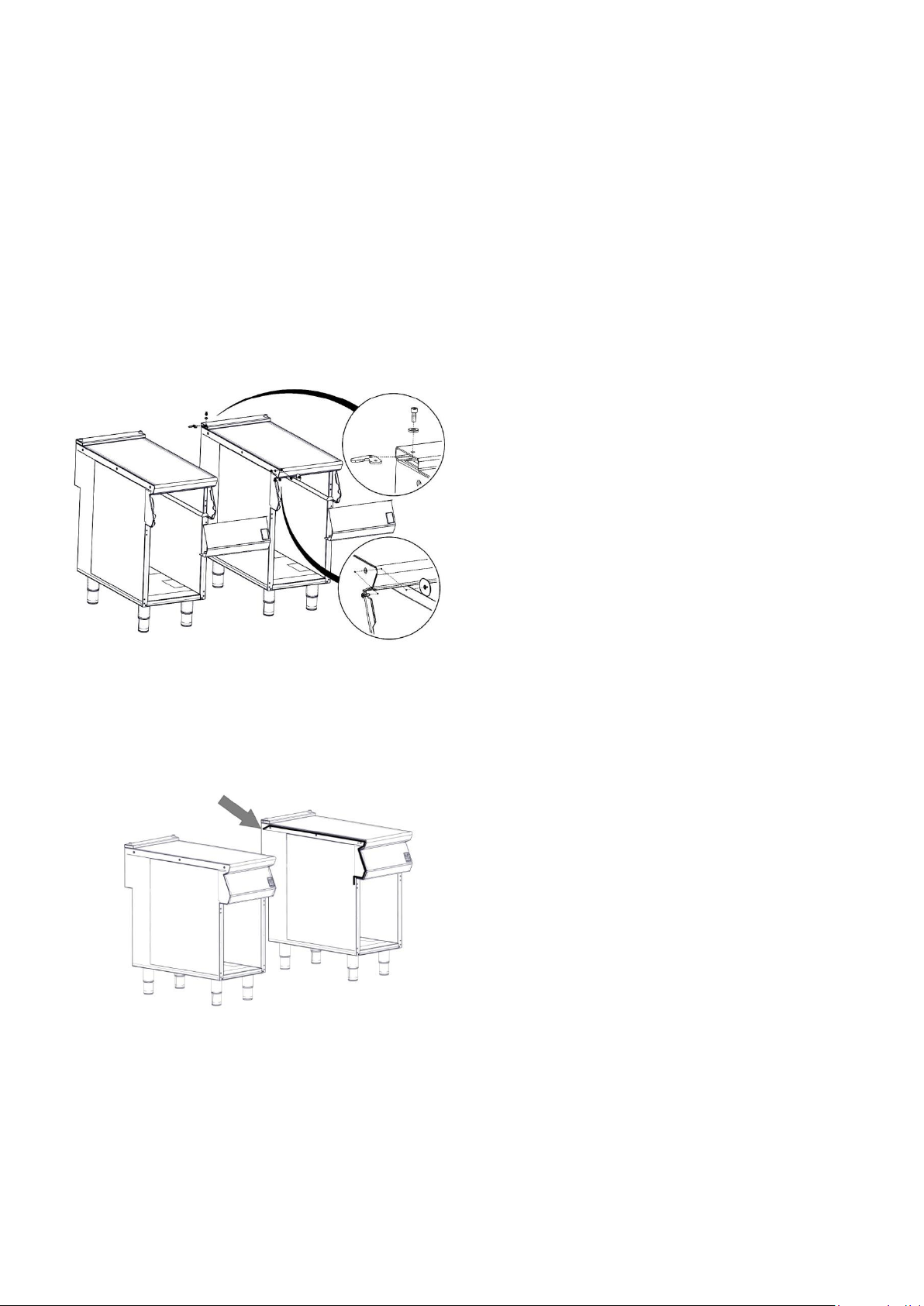

6.6.1 Before levelling and suiting units ensure the units are fully built, including all

accessories and castings.

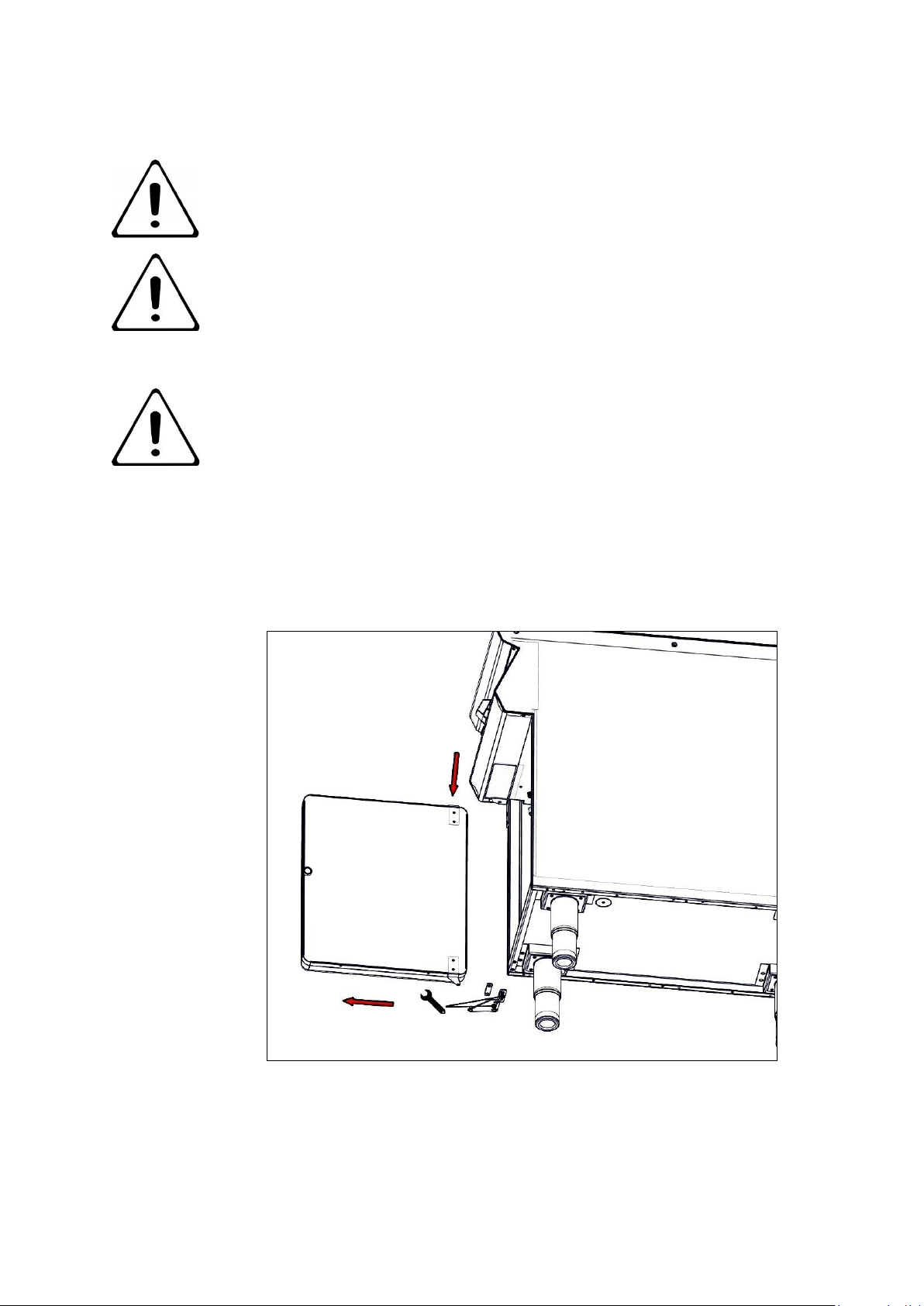

6.6.2 Undo the 4 fixing screws on the control panel and remove.

6.6.3 Remove the hob rear infill and replace with rear suiting plate and fixings.

6.6.4 Remove the front side panel countersunk screw and suiting plate.

NOTE: The DLS system is designed to give a quick and easy suiting solution. If

you require an improved seal between appliances we recommend you
use, a food grade, high temperature silicon sealant. This can be
supplied by Falcon part no – 523400021

6.6.5 Run a bead of silicon 5mm from profile edge as highlighted below.

17

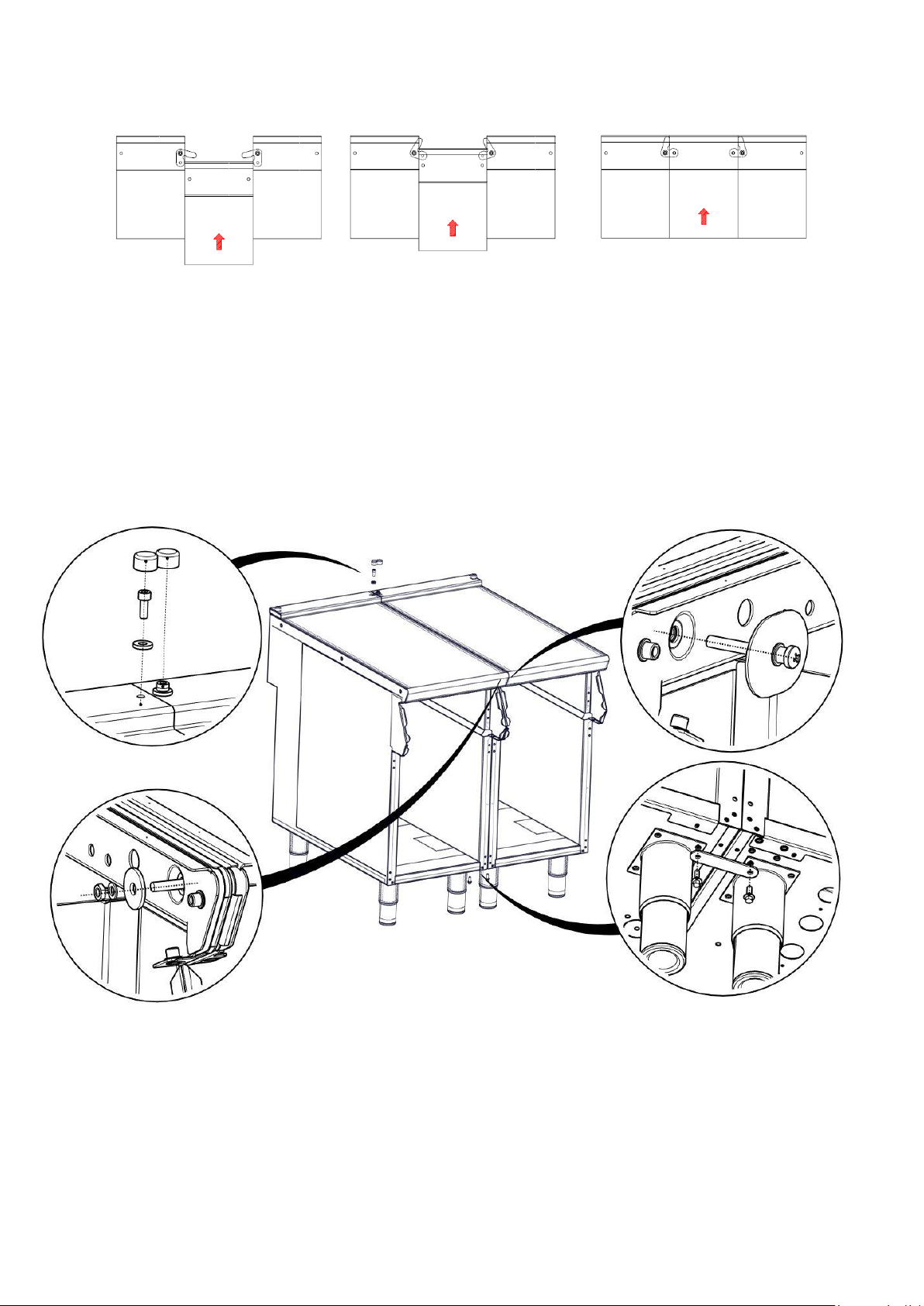

6.6.6 Slide suited units into position.

6.6.7 (A) Right hand unit: Screw the M5 x 40 screw (supplied in the kit) into one of the

suiting plates as shown and then insert through the front fixing holes of both units.

6.6.8 (B) Left hand unit: Slide the penny and lock washer on to the screw and secure using

the M5 nut.

6.6.9 (C) Remove the front bolts from feet, insert base tie plate and secure the bolts back

into position.

6.6.10 (D) Replace fixings on the rear hob and tighten screw caps into position.

6.6.11 Replace control panel.

A

B C D

18

7.0 SERVICING

BEFORE ATTEMPTING ANY MAINTENANCE, ISOLATE THE
APPLIANCE AT THE MAINS SWITCH AND TAKE STEPS TO
ENSURE THAT IT IS NOT INADVERTENTLY SWITCHED ON.

BEFORE ATTEMPTING ANY MAINTENANCE, ENSURE THE PAN
IS EMPTY.

MAINTENANCE CHECK

Regular servicing of the appliance should be undertaken to ensure correct
operation, it is functioning as intended, and safe to use. We recommend
servicing after 2,500 hours of use, or annually, whichever comes first.
Any maintenance schedule should be carried out in accordance with
SFG20 Maintenance Schedules. Should any issues with the integrity of
the components be identified these should be replaced. If the appliance is
not considered safe the unit should be removed from service and the
responsible person advised why the unit is not safe to use and what
remedial action is needed. Contents of the maintenance schedule should
be agreed with the maintenance provider.

7.1 DOOR REMOVAL

7.1.1 Remove door as shown.

19

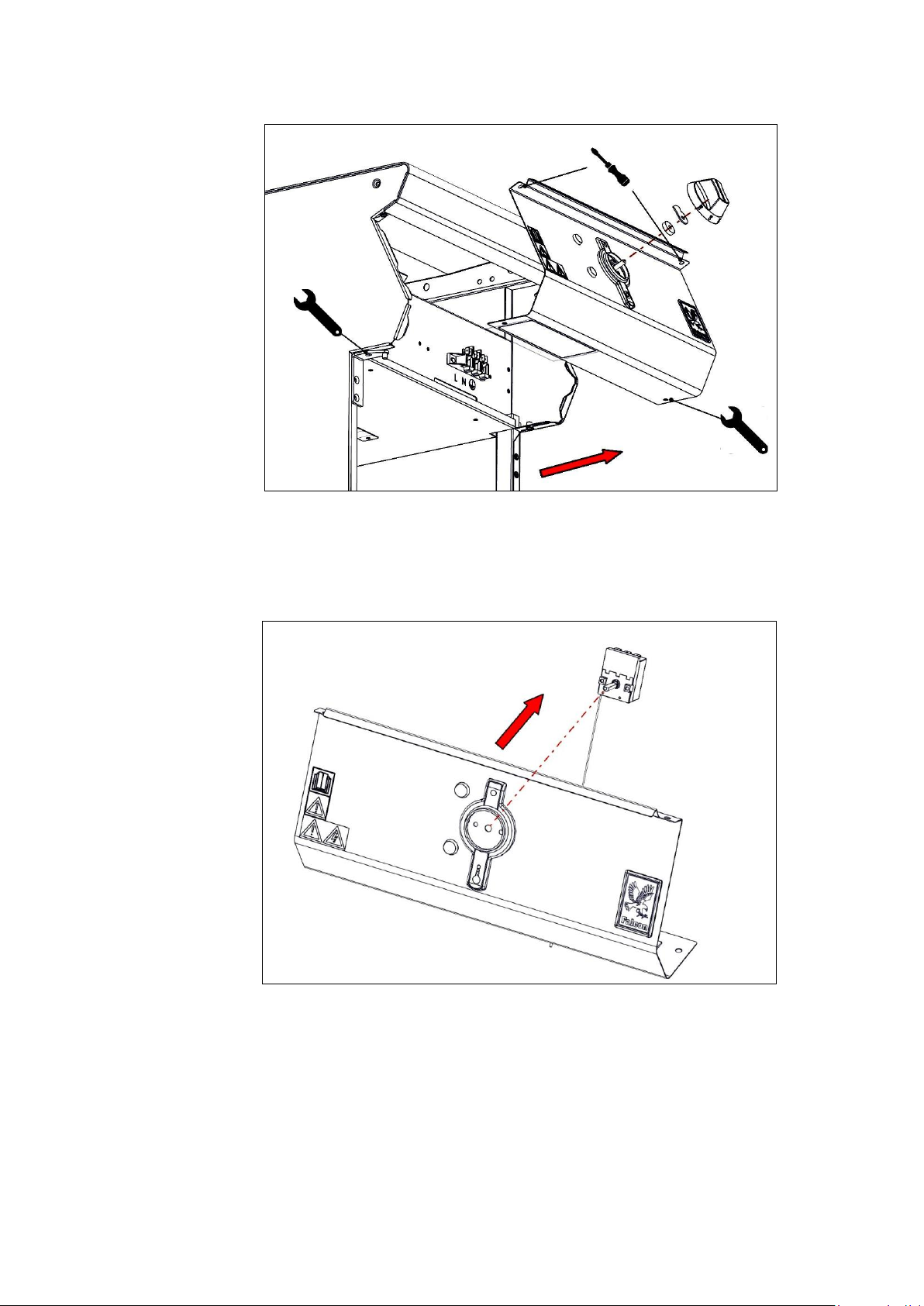

7.2 CONTROL PANEL REMOVAL

7.2.1 Remove as shown.

7.3 OPERATING THERMOSTAT & NEON REMOVAL

20

7.3.1 Remove as shown.

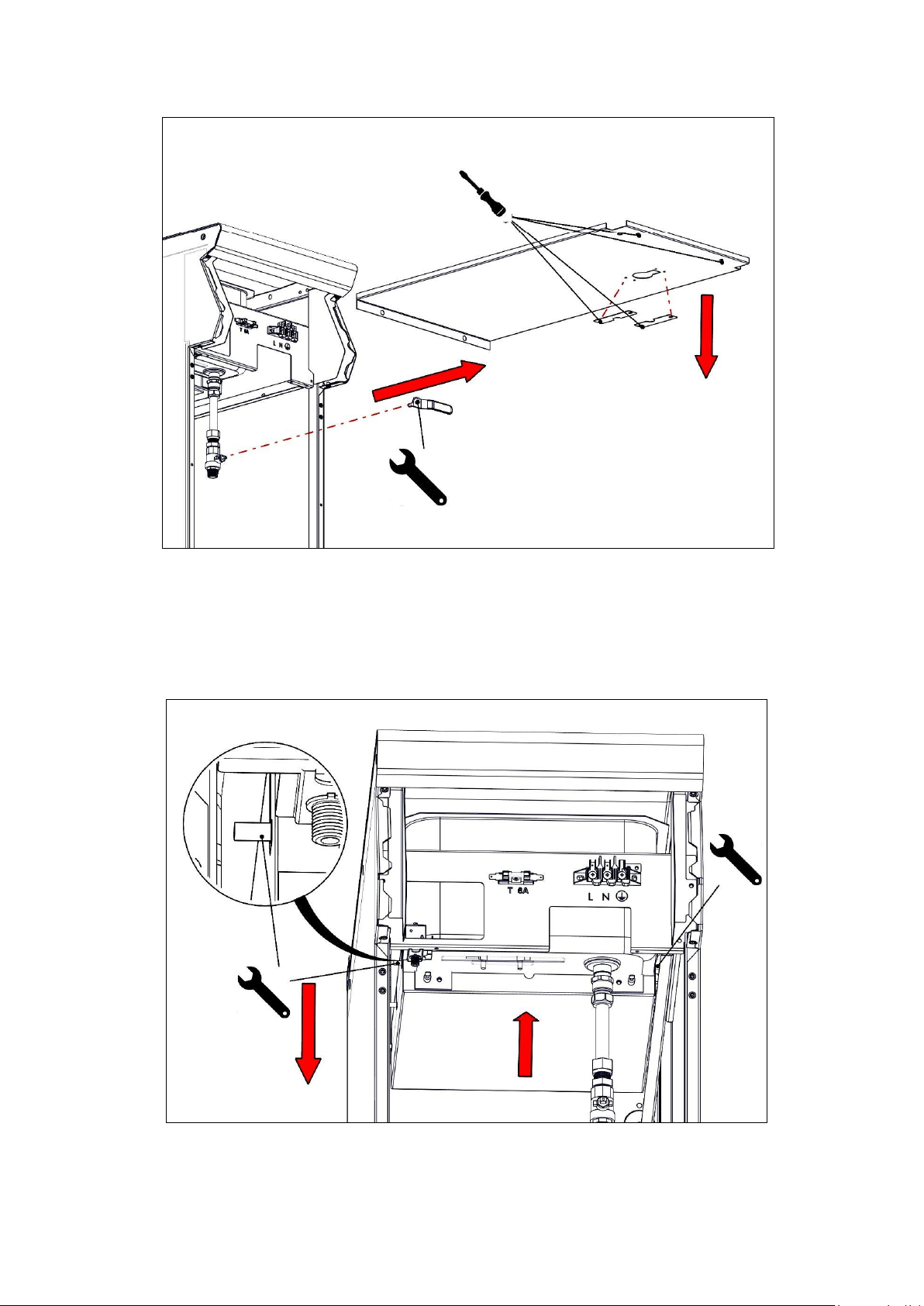

7.4 BASE PANEL REMOVAL

21

7.4.1 Remove as shown.

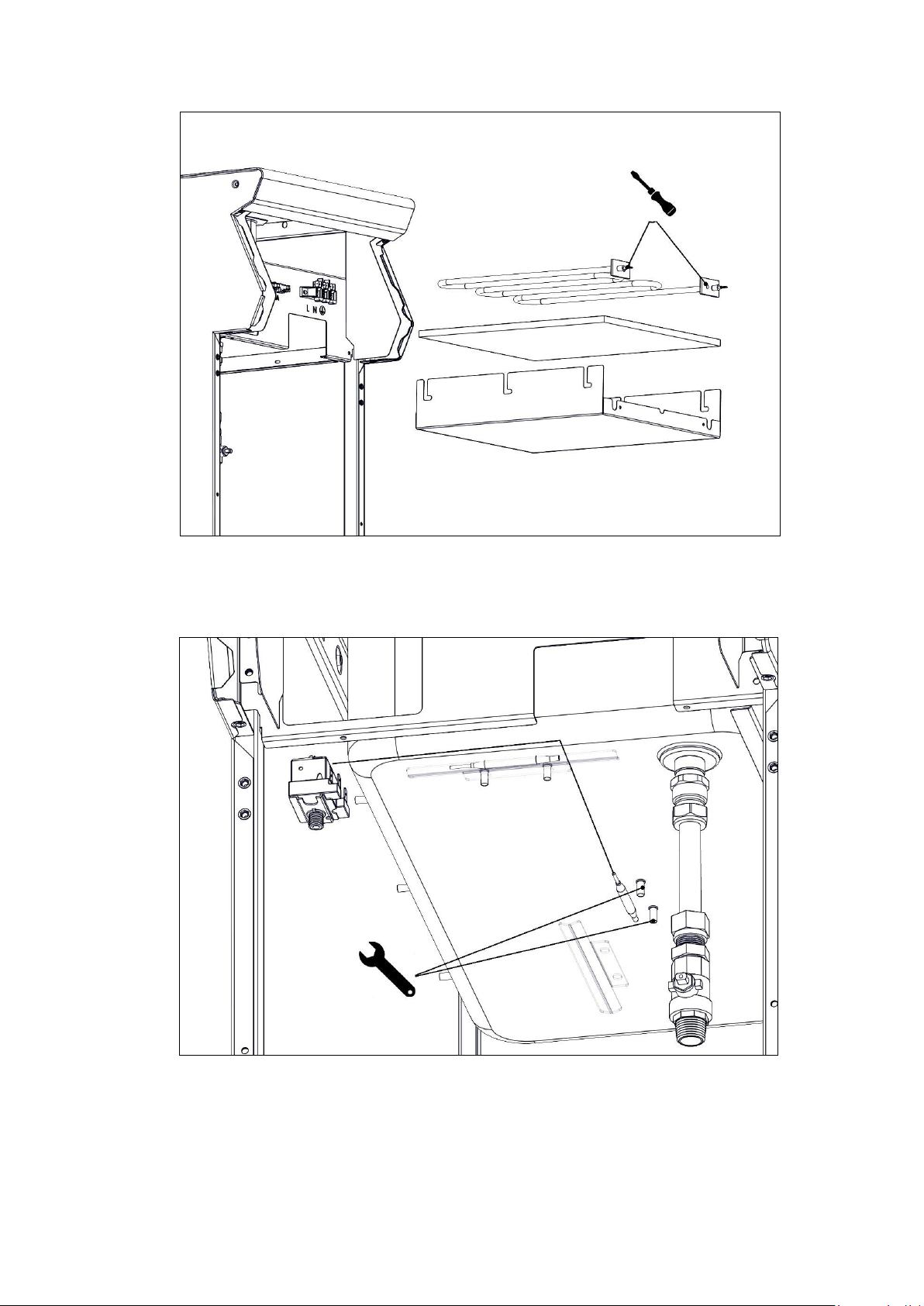

7.5 ELEMENT TRAY REMOVAL

7.5.1 Remove thermostats as shown.

22

7.6 ELEMENT REMOVAL

7.6.1 Remove as shown.

7.7 SAFETY THERMOSTAT REMOVAL

7.7.1 Remove as shown.

Replace all parts in reverse order

23

8.0 FAULT FINDING

FAULT

POSSIBLE CAUSES

REMEDY

Unit will not turn ON

No power to unit.

Check power supply is
connected & turned ON.

No power to unit (red neon
does not illuminate)

Disconnected from mains
power.

Check, Reconnect mains
power.

Unit will not operate

Unit not switched On.

Turn temperature control.

Safety cut out activated

Low water level.

Add water to pan.

Pan overflows

Too much water in pan.

Reduce water level.

Unit will not drain

Blocked drain.

Clean drain in pan.

Safety Stat continually
actives

Faulty stat.

Call service agent.

No heating of water

Faulty element, thermostat or
faulty wiring.

Call service agent.

No power to unit

Faulty rocker switch or wiring.

Call service agent.

24

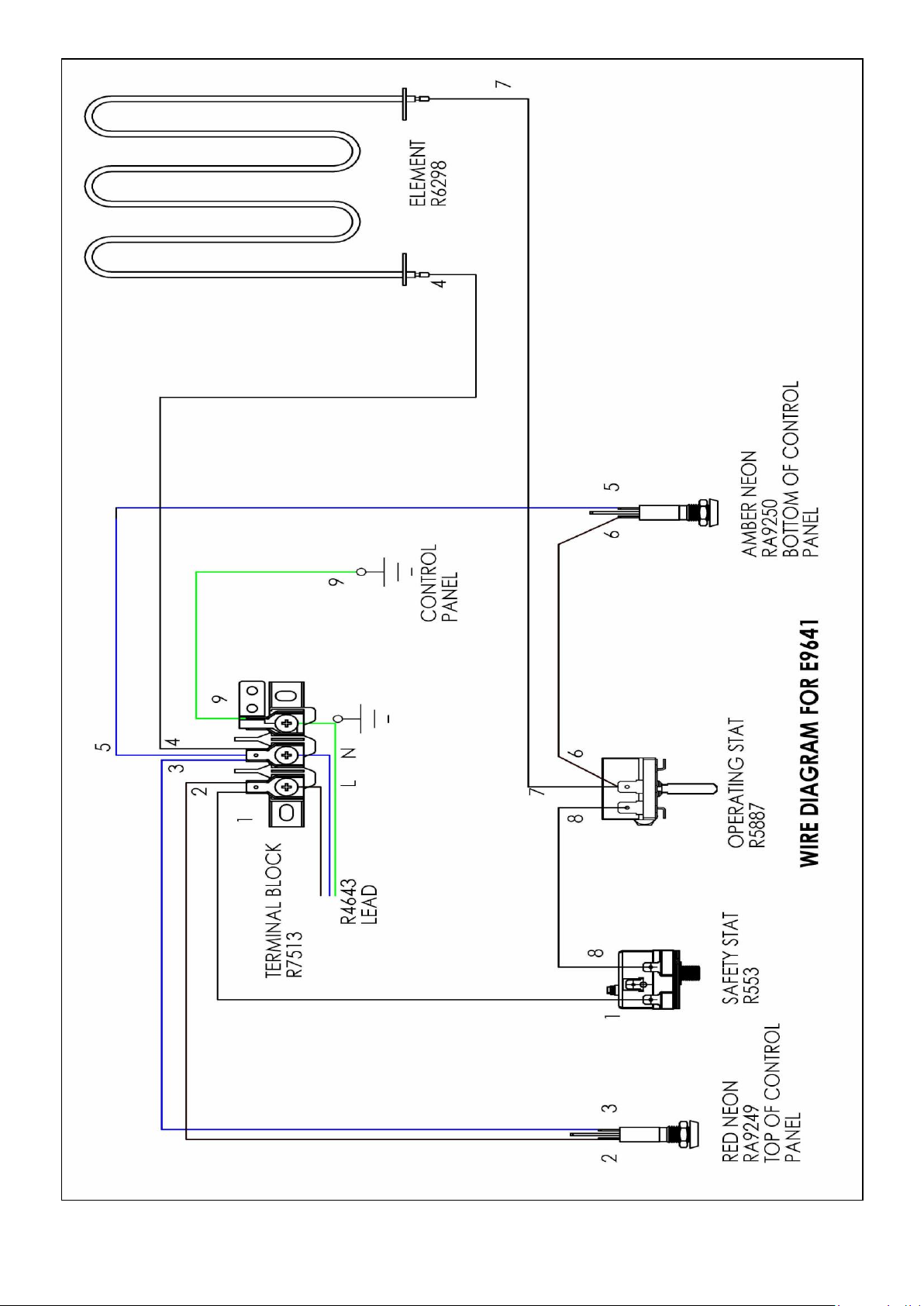

23

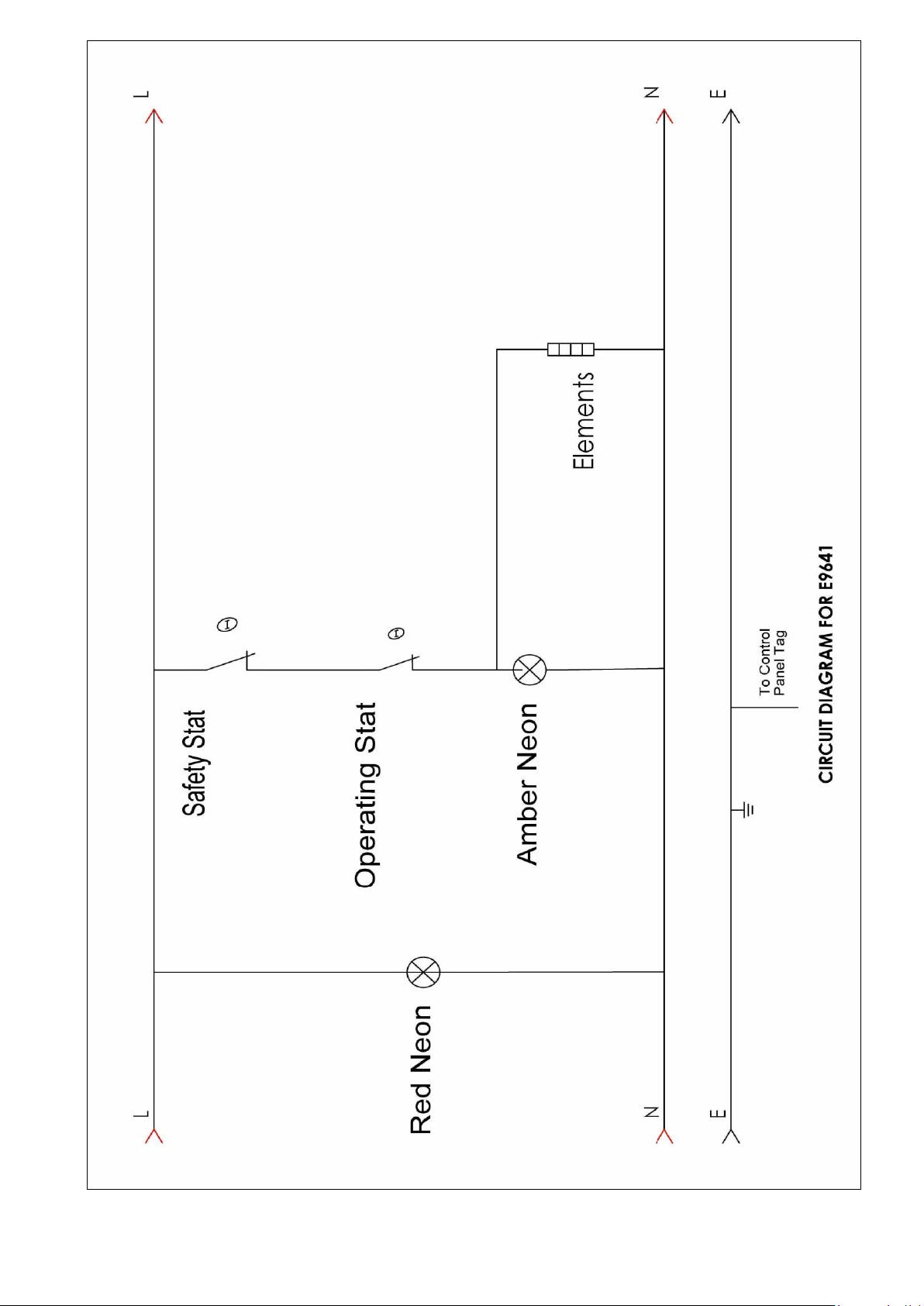

24

9.0 SPARE PARTS – SPARES NUMBER

Temperature control knob - 733950001
Power neon red - 730962010
Heat demand neon amber - 730962040
Element assembly - 539113140
Thermostat control - 735850004
Safety thermostat - 731320113
Control panel - 733950000

Door assembly - 533810000
Hinge kit - 533810002
F900 Screw cap kit - 533550009
Fixed castors set of 2 - 535400222
Swivel castors set of 2 - 530964340
Adjustable leg 150mm - 535480067
Drain valve – 539003251

When ordering spares, quote the following:

Model Number
Serial number

This information is found on data plate on front panel. (See section 1.0)
Visit our website for further spares information.

24

10.0 SERVICE INFORMATION

This unit carries an extensive mainland UK warranty. The warranty is in addition to and does
not change your statutory or legal rights.

The warranty policy can be found on our website which details the conditions of the warranty
and the exclusions.

https://www.falconfoodservice.com/info-centre/policy

Service calls to equipment under warranty will be carried out in accordance with the
conditions of sale.

Warranty calls can be made between 8:30 am and 5:00 pm weekdays only.
To ensure your warranty enquiry is handled as efficiently as possible, ensure you have the

following appliance information prior to calling us:

1. Model number – found on data plate

2. Serial number – found on data plate

3. Brief description of the issue

To contact Falcon for a warranty issue dial (UK only) 01786 455 200 and select Warranty
Issues from the menu.
