Falcon E3405 Servicing Manual

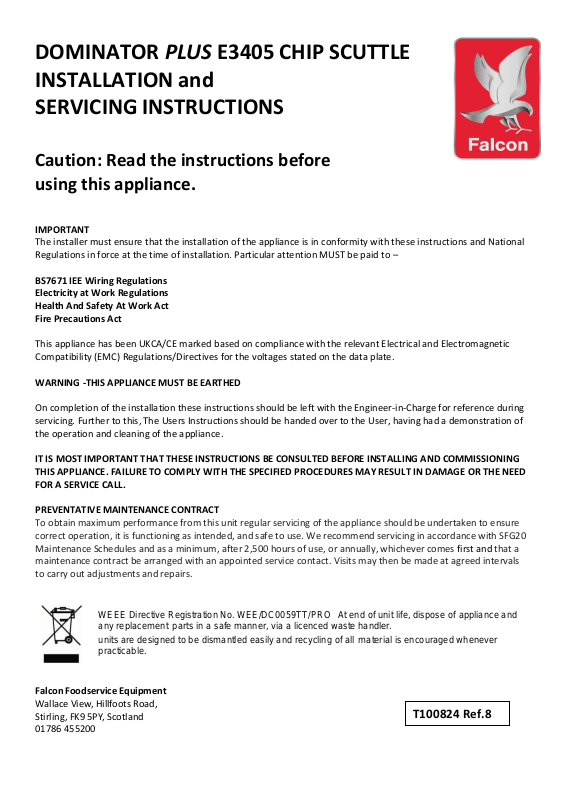

DOMINATOR PLUS E3405 CHIP SCUTTLE
INSTALLATION and
SERVICING INSTRUCTIONS

Caution: Read the instructions before
using this appliance.

IMPORTANT

The installer must ensure that the installation of the appliance is in conformity with these instructions and National
Regulations in force at the time of installation. Particular attention MUST be paid to –

BS7671 IEE Wiring Regulations
Electricity at Work Regulations
Health And Safety At Work Act
Fire Precautions Act

This appliance has been UKCA/CE marked based on compliance with the relevant Electrical and Electromagnetic
Compatibility (EMC) Regulations/Directives for the voltages stated on the data plate.

WARNING -THIS APPLIANCE MUST BE EARTHED

On completion of the installation these instructions should be left with the Engineer-in-Charge for reference during
servicing. Further to this, The Users Instructions should be handed over to the User, having had a demonstration of
the operation and cleaning of the appliance.

IT IS MOST IMPORTANT THAT THESE INSTRUCTIONS BE CONSULTED BEFORE INSTALLING AND COMMISSIONING
THIS APPLIANCE. FAILURE TO COMPLY WITH THE SPECIFIED PROCEDURES MAY RESULT IN DAMAGE OR THE NEED
FOR A SERVICE CALL.

PREVENTATIVE MAINTENANCE CONTRACT

To obtain maximum performance from this unit regular servicing of the appliance should be undertaken to ensure
correct operation, it is functioning as intended, and safe to use. We recommend servicing in accordance with SFG20
Maintenance Schedules and as a minimum, after 2,500 hours of use, or annually, whichever comes first and that a
maintenance contract be arranged with an appointed service contact. Visits may then be made at agreed intervals
to carry out adjustments and repairs.

WEEE Directive Registration No. WEE/DC0059TT/PRO At end of unit life, dispose of appliance and
any replacement parts in a safe manner, via a licenced waste handler.

units are designed to be dismantled easily and recycling of all material is encouraged whenever

practicable.

Falcon Foodservice Equipment

Wallace View, Hillfoots Road,
Stirling, FK9 5PY, Scotland
01786 455200

T100824 Ref.8

IMPORTANT INFORMATION

ELECTRICAL SAFETY AND ADVICE REGARDING SUPPLEMENTARY ELECTRICAL

PROTECTION

Commercial kitchens and foodservice areas are environments where electrical appliances may be located
close to liquids, or operate in and around damp conditions or where restricted movement for installation
and service is evident.

The installation and periodic inspection of the appliance should only be undertaken by a qualified, skilled
and competent electrician; and connected to the correct power supply suitable for the load as stipulated
by the appliance data label.

The electrical installation and connections should meet the necessary requirements to the local electrical
wiring regulations and any electrical safety guidelines.

We recommend:-

• Supplementary electrical protection with the use of a type A residual current device (RCD)

• Fixed wiring appliances incorporate a locally situated switch disconnector to connect to, which is easily

accessible for switching off and safe isolation purposes. The switch disconnector must meet the
specification requirements of IEC 60947.

Your attention is drawn to:­BS 7671:2018–Guidance Note 8 - 8.13 : Other locations of increased risk

It is recognized that there may be locations of increased risk of electric shock other than those specifically
addressed in Part 7 of BS 7671. Examples of such locations could include laundries where there are washing
and drying machines in close proximity and water is present, and commercial kitchens with stainless steel
units, where once again, water is present.

Where because of the perception of additional risks being likely, the installation designer decides that an
installation or location warrants further protective measures, the options available include:

• Automatic Disconnection of Supply (ADS) by means of a residual current device having a residual
operating current not exceeding 30mA;

• Supplementary protective equipotential bonding; and

• Reduction of maximum fault clearance time.

The provision of RCDs and supplementary bonding must be specified by the host organization’s appointed

installation designer or electrical contractor and installed by a suitably qualified and competent electrician so
as to comply with Regulations 419.2 and 544.2

SECTION 1 - INSTALLATION

UNLESS OTHERWISE STATED, PARTS WHICH HAVE BEEN PROTECTED BY THE
MANUFACTURER ARE NOT TO BE ADJUSTED BY THE INSTALLER.

MODEL NUMBERS, NETT WEIGHTS and DIMENSIONS

E3405

400

770

825

21

SITING
The appliance should be installed on a level, fireproof surface, in a well lit and draught free position.
If the floor is constructed of combustible material, then local fire requirements should be checked to ensure

compliance. A clear space of 150mm should be left below and also between rear and side of unit and any
non-combustible wall.

If this is not possible these surfaces should be clad in a suitable non-combustible, heat-insulating material. Close
attention be paid to Fire Regulations.

ELECTRICAL SUPPLY

The unit is suitable for AC supplies only.
The standard terminal arrangement is single phase
(230V~).
Live - Brown
Neutral - Blue
Earth - Yellow/Green

WARNING - THIS APPLIANCE MUST BE EARTHED

SUPPLY CONNECTION

A suitable mains input cable is supplied that conforms to code designation 60245 IEC 57, cable type H07RN-F.
If cable is damaged, it must be replaced by a suitably qualified person.
A suitably rated isolating switch with contact separation of at least 3mm in all poles must be installed and wiring

executed in accordance with relevant regulations.
All external wiring must be executed in accordance with relevant regulations.
Access to mains terminal block is gained by removing control panel.

Check that no damage has occurred to the appliance, power cable and plug face during transit. If damage has
occurred do not use the appliance.

Ensure that the mains power cable is routed free from the appliance to avoid damage.

We recommend supplementary electrical protection with the use of a residual current device (RCD).
Periodical testing, repair and fixing wiring connection should only be undertaken by a skilled and competent
electrician.

This appliance is also provided with a terminal for connection of an external equipotential conductor. This
terminal is in effective electrical contact with all fixed exposed metal parts of the appliance, and shall allow
the connection ofa conductor having a normal cross-sectional area of up to 10mm². it is located on the rear
panel and is identified by the following symbol and must only be used for bonding purposes.

ELECTRICAL RATINGS

Electrical loading is as stated in table below and also on appliance data plate.
The location of mains isolating switch should be identified for use in any event of an emergency or during

cleaning.

Connection

A @ 230V

L1

4.0

SECTION 2 - ASSEMBLY and COMMISSIONING

Note

The following information should be read as applicable to the unit being assembled.

ASSEMBLY

a) Unpack and level appliance b) Remove all packaging

CONNECTION TO AN ELECTRICAL SUPPLY

Connect as detailed in Sections 1.3 and 1.4.

STARTING UP

Switch on mains supply. Red neon will light.
Press switch, amber neon will light
Ensure both elements heat up.

INSTRUCTION TO USER

After installation and commissioning is completed, please hand User Instructions to user and ensure that the
person(s) responsible understands the instructions regarding correct operation and cleaning of the appliance.

SECTION 3 - SERVICING and MAINTENANCE

SERVICE INFORMATION

This unit carries an extensive mainland UK warranty. The warranty is in addition to and does not change your
statutory or legal rights.

The warranty policy can be found on our website which details the conditions of the warranty and the
exclusions.

https://www.falconfoodservice.com/info-centre/policy

Service calls to equipment under warranty will be carried out in accordance with the conditions of sale.

Warranty calls can be made between 8:30 am and 5:00 pm weekdays only.

To ensure your warranty enquiry is handled as efficiently as possible, ensure you have the following
appliance information prior to calling us:

1. Model number – found on data plate

2. Serial number – found on data plate

3. Brief description of the issue

To contact Falcon for a warranty issue dial (UK only) 01786 455 200 and select Warranty Issues from the
menu.

ELECTRICAL MAINTENANCE WARNING

BEFORE ATTEMPTING ANY MAINTENANCE, ISOLATE APPLIANCE AT MAIN SWITCH AND
TAKE STEPS TO ENSURE THAT IT IS NOT INADVERTENTLY

SWITCHED ON.

MAINTENANCE CHECK

Regular servicing of the appliance should be undertaken to ensure correct operation, it is
functioning as intended, and safe to use. We recommend servicing after 2,500 hours of use,
or annually, whichever comes first.

Any maintenance schedule should be carried out in accordance with SFG20 Maintenance
Schedules. Should any issues with the integrity of the components be identified these should be

replaced. If the appliance is not considered safe the unit should be removed from service and the
responsible person advised why the unit is not safe to use and what remedial action is needed.
Contents of the maintenance schedule should be agreed with the maintenance provider.

3.1 CONTROL PANEL REMOVAL
Remove 2 panel fixings from below hob. Release 3 fixings from below control panel.
Pull panel forward slightly from below and allow it to slide down until clear.
This will allow access to mains terminal block, neons and on/off switch
To access gantry element, remove 10 fixings from around gantry. Disconnect element wires then remove securing clip.

Replace in reverse order.
To access lower element, remove control panel and one side panel. Disconnect element cables.
Remove support bracket nuts, lower element tray and remove element. Replace in reverse order.
Supply Cord Replacement
If supply cord is damaged, it must be replaced by the manufacturer, service agent or a suitably qualified person.

Note: If any current is out-with these tolerances, the cause must be investigated and rectified.

Phase Min (A)

Max (A)

Actual (A)

L1 3.87

4.51

4.3

SECTION 4 - SPARES and

ACCESSORIES

When ordering spare parts, please quote model number, serial number and voltage stated on data plate.

Red neon
Amber neon
On/off switch
Element ceramic
Element tubular

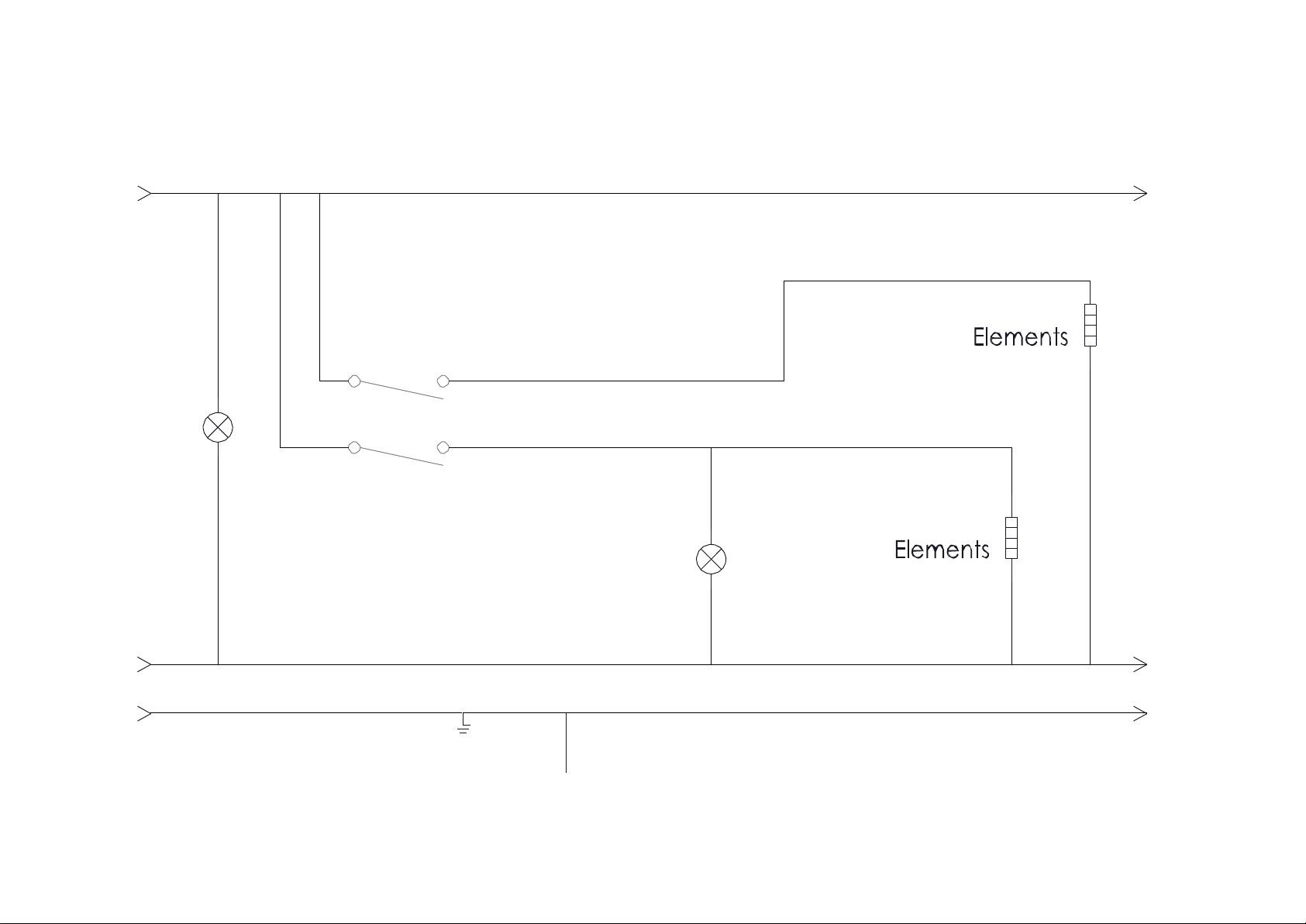

CIRCUIT DIAGRAM

L L

ON / OFF

Switch

Amber Neon

N N

E E

To Control
Panel Tag

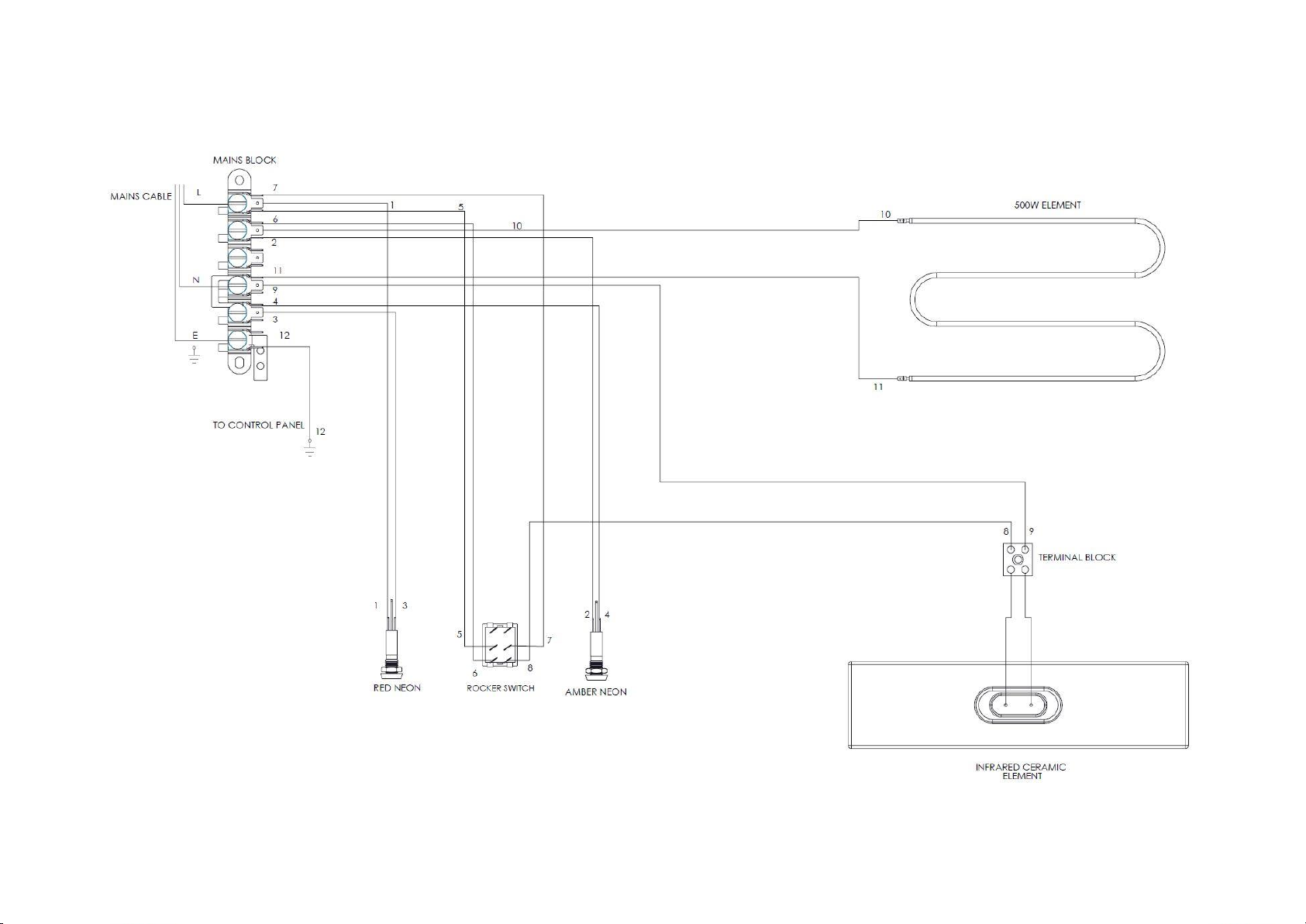

WIRING DIAGRAM
