4CH 960H
User Manual
28 pgs2.66 Mb0

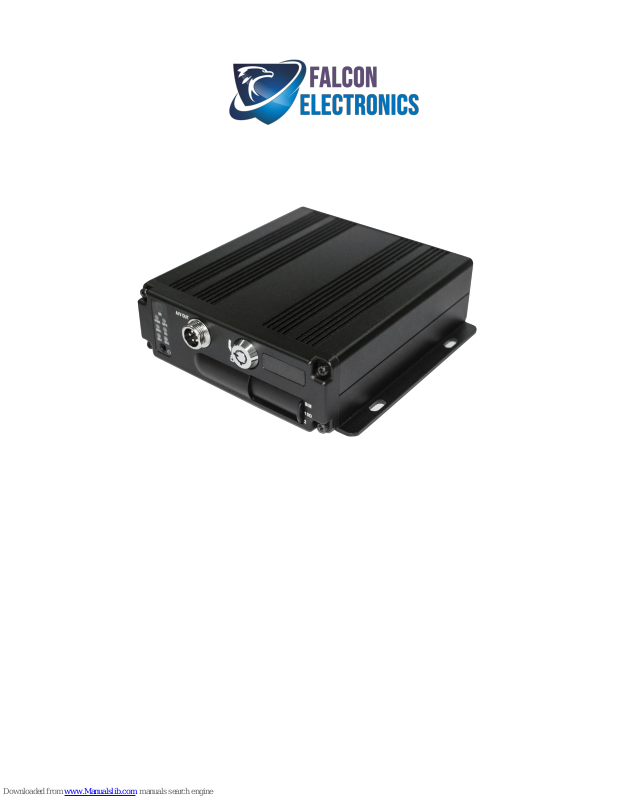

Falcon 4CH 960H, 4CH 720P User Manual

Contents
1 Technical Parameters .............................................................................................................................................. 1
2 Instruction of Installation.......................................................................................................................................... 3
2.1 Instruction of External Interface Wiring ......................................................................................................... 3
2.2 Instruction of SD Card Installation ................................................................................................................. 6
3 Instruction of Using .................................................................................................................................................. 6
3.1 Instruction of Front Panel ............................................................................................................................... 6
3.2 Instruction of Remote Control Operation........................................................................................................ 7
3.3 Menu Setting Instruction: ................................................................................................................................ 9
A. Lan Setting..................................................................................................................................................15
B. 3G Setting....................................................................................................................................................16
C.WIFI Setting................................................................................................................................................17
3.4 Video Backup ................................................................................................................................................ 20
3.5 PTZ control ................................................................................................................................................... 21
3.7 Video Data Volume ...................................................................................................................................... 21
3.8 How to Build Server ...................................................................................... Error! Bookmark not defined.
1 .Technical Parameters
Items
Device parameters
Performance index
Name
Product Name
4CH 960H Mini SD Mobile DVR
4CH 720P Mini SD Mobile DVR
System
Operation System
Linux
Operation Interface
Graphical Interfaces, Chinese/English optional
File System
Proprietary Format
System Privileges
User Password
Video
Video Input
4ch Independent Input: 1.0Vp-p，75Ω.Both B&W and Color Cameras
Video Output
1 Channel PAL/NTSC Output, 1.0Vp-p，75Ω， Composite Video Signal
Video Display
1 Or 4 Screen Display
Video Standard
PAL:25frames/Sec;NTSC:30frames/Sec
System Resources
PAL:100 Frames; NTSC:120 Frames
Audio
Audio Input
Four Channels Independent Input 600Ω
Audio Output
1 Channel(4 Channels Can Be Convert Freely)
Basic Output Level
1.0—2.2V
Distortion Plus Noise
≤-30dB
Recording Mode
Sound And Image Synchronization
Audio Compression
G711
Digital Processing & Storage
Image Compression
H.264 Fixed Code Stream
Image Format
PAL: 4*960H（960*576） NTSC:4*960H（960*480）
Video Stream
192Kbps-2.0Mbit/s（channel）
Video Taking Up Of Hard Disk
D1、960H:85M-675MByte/hour
720P:85MB-900MByte/hour
Playback Resolution
PAL: 1 or 4*960H(960*576) NTSC: 1 or 4*960H(960*480)
Audio Bitrate
4KByte / s / channel
Audio Taking Up Of Hard Disk
14MByte / hour / channel SD Storage
Double SD card storage, Support Max 2* 128GB
Image Quality
Eight Grades to Choose
Alarm
Alarm in
4 Channels Independent Input. High Voltage Trigger
Alarm out
1 Channels Independent output
Move Detect
available
Network Interface
Wire line Access
6pin RJ45 Port
Wifi
Built in WIFI Module, 802.11 B/G/N
GPS Interface
GPS
Built in GPS Module
Extend Interface
RS232
Built in RS232 port for free
RS485
Built in RS485 Port for free
Intercom
Built in Intercom port for free
G-Sensor
Built in G-sensor
Others
Power Consumption
DC8-36V 5% 8W（without HDD）
Working Temperature
-20℃ ~ +85℃
Clock
Built-In Clock, Calendar
Packaging
Product Size
137(L)*132(W)*40(H)mm
Product Weight
0.6KG(without HDD)
2 Instruction of Installation
2.1 Instruction of External Interface Wiring
Remarks:
If the power supply is 12V, then the current of 12V output can be just 1A. So if there are more than
3pcs cameras, we suggest customers to get power for other cameras from the 12V vehicle power directly or use Our special car power supply.
3G/4G 、this unit does not offer this option Ports:
DEBUG: testing port SENSOR: alarm port
2.2 Instruction of SD Card Installation
Unlock the main board with key, make sure the “arrowhead” point to the left “turn on” and then
switch it to the “turn off”.
Note: The lock in the main board can also control the power. When the main board is locked, it also
means the machine starts. So before turn it on, please make sure all the cables in the system are well connected. Otherwise the power in the car once connected, it will damage the machine.
3 Instruction of Using
3.1 Instruction of Front Panel
LED
PWR LED: lighting while work starts. Power LED on.  GPS LED: GPS working LED indicator 4G LED: Not Available on this unit  SD1 LED: When recording, playing, backup, LED is flashing  SD2 LED: When recording, playing, backup, LED is flashing  WIFI LED: when wifi module is running the LED is on.
Key and Other Descriptions
IR: infrared receiving window.
LOCK: while removing the hard drive, use the key to unlock in order to remove the hard
drive, unlock after machine’s auto-disconnects the power, the power auto-connect after being locked.
1: SD card1 slot 2: SD card2 slot A/V OUT: Audio/ Video output, Voice intercom input
:MIC input
3.2 Instruction of Remote Control Operation
：Record
：①Lead to menu；②Return key
：Enter the submenu to do the settings and also confirm the
settings
：For playback on the mobile DVR
: ①Stop when record and playback; ②Delete key
：Pause/Play when playback
：Into PTZ control mode. (NOT AVAILABLE)
：Mute key, to turn on or turn off audio output when
playback videos with audio.(The audio input of the playback device must be connected to the audio output of the DVR.)
：Fast-forward when video playback, play speed can be x2, x4, x8, press one time is x2,
press two times is x4, and press 3 times is x8.
：① Exit when video playback or backup. ② Exit from PTZ mode.
： Character shortcut key: Press A-B to get all characters
:①Upward for MENU selection. ②”UP” direction for PTZ control mode.
:①Downward for MENU selection. ②”Down” direction for PTZ control mode.
: ①Towards to left for MENU selection or MENU setup. ②”Left” direction for PTZ control
mode.
: ①Towards to right for MENU selection or MENU setup. ②”Right” direction for PTZ control
mode.
: ①screen zoom the first channel video when surveillance, record
② Enter password or set system password.
③shortcut keys, press the first key shortcut to switch the number 1, press the second key shortcut to switch the capital letter a, press the third key shortcut toggles the lowercase letters a, press the up and down keys to change value.
: ① screen zoom the second channel video when surveillance, record ② Enter
password or set system password.
: ① screen zoom the third channel video when surveillance, record ② Enter
password or set system password.
: ①screen zoom the fourth channel video when surveillance, record and playback ②
Enter password or set system password.
: Enter password or set system password.
: Enter password or set system password.
: Enter password or set system password.
: Enter password or set system password.
: Enter password or set system password.
: ①4 channel display when surveillance, record and playback. ②Enter password or set
system password.
Remark: When the DVR is in alarm condition, the remote control is invalid.
