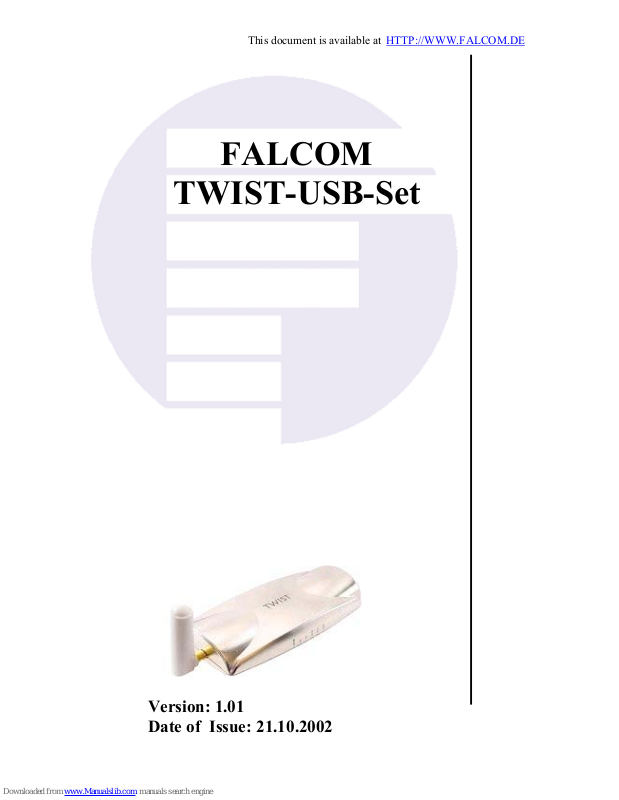

FALCOM TWIST-USB-Set User Manual
This document is available at HTTP://WWW.FALCOM.DE
FALCOM
TWIST-USB-Set
Version: 1.01
Date of Issue: 21.10.2002
FALCOM TWIST-USB VERSION 1.01
This document is a property of FALCOM GmbH and may not be copied or circulated without
permission.
Page 1
Index
0 PRELIMINARY NOTES................................................................................... 4
0.1 GENERAL ............................................................................................................... 4
0.2 ALERT SYMBOLS USED ........................................................................................... 4
0.3 SCOPE OF DELIVERY............................................................................................... 4
1 TECHNICAL SPECIFICATIONS ................................................................... 6
2 SECURITY.......................................................................................................... 9
2.1 GENERAL ............................................................................................................ 9
2.2 EXPOSURE TO RF ENERGY............................................................................. 9
2.3 EFFICIENT MODEM OPERATION................................................................... 9
2.4 ANTENNA CARE AND REPLACEMENT...................................................... 10
2.5 DRIVING............................................................................................................ 10
2.6 ELECTRONIC DEVICES.................................................................................. 10
2.7 VEHICLE ELECTRONIC EQUIPMENT.......................................................... 10
2.8 MEDICAL ELECTRONIC EQUIPMENT ........................................................ 10
2.9 AIRCRAFT......................................................................................................... 10
2.10 CHILDREN ........................................................................................................ 11
2.11 BLASTING AREAS........................................................................................... 11
2.12 POTENTIALLY EXPLOSIVE ATMOSPHERES............................................. 11
2.13 NON-IONISING RADIATION.......................................................................... 11
2.14 SAFETY STANDARDS ............................................................................................ 12
3 TECHNICAL DESCRIPTION........................................................................ 14
3.1 PARTS AND BRIEF DESCRIPTION............................................................................ 14
3.2 LED
BAR AS AN INDICATOR ON THE FALCOM TWIST-USB ................................ 15
4 START-UP......................................................................................................... 16
4.1 B
ASIC INSTALLATION ........................................................................................... 16
4.1.1 Installation of driver and driver application........................................................ 18
4.1.2 Display window .................................................................................................. 23
4.1.2.1 File menu item .................................................................................................... 23
4.1.2.2 PIN menu item .................................................................................................... 24
4.1.2.3 Configuration menu item.................................................................................... 24
4.1.2.4 Info menu item.................................................................................................... 25
4.2 DETECTING PREVIOUS DRIVER VERSION DURING INSTALLATION .......................... 26
5 FALCOM TWIST-USB MODEM TROUBLESHOOTING GUIDE.......... 29
6 ABBREVIATIONS ........................................................................................... 30
FALCOM TWIST-USB VERSION 1.01
This document is a property of FALCOM GmbH and may not be copied or circulated without
permission.
Page 2
Version history
Version Nr. Author Changes
1.00 S. Mohamad Initial version
1.01 S. Mohamad Setup.exe only for
Windows® 2000 and
Windows® XP (page 8)
FALCOM TWIST-USB VERSION 1.01
This document is a property of FALCOM GmbH and may not be copied or circulated without
permission.
Page 3
Information furnished herein by FALCOM GmbH
is believed to be accurate and reliable. However,
no responsibility is assumed for its use. Also the
information contained herein is subject to change
without notice.
Registered Trade Mark: Mobile Phone Tools is a
registered trade mark of the company BVRP. Windows,
Microsoft FAX and Hyperterminal are registered trade
marks of Microsoft Corporation.
FALCOM TWIST-USB VERSION 1.01
This document is a property of FALCOM GmbH and may not be copied or circulated without
permission.
Page 4
0 Preliminary notes
0.1 General
Thank you very much for deciding to buy the Falcom TWIST-USB
GPRS-Modem.
This User Manual contains all information you require to use the
Falcom TWIST-USB GPRS-Modem.
Please read this User Manual very carefully to avoid mistakes and to
make optimal use of the modem.
0.2 Alert symbols used
0.3 Scope of delivery
Parts Quantity
Modem (Basic unit) 1
Antenna 1
USB data cable 1
Setup CD: Driver, Documentation
and Cellular Phone Software
“BVRP Mobile Phone Tools® “
1
Headset 1
Modem-Cradle 1
Binder 2
Alerts the user to potential safety risks or damage of the
application software
Indicates important information and tips
FALCOM TWIST-USB VERSION 1.01
This document is a property of FALCOM GmbH and may not be copied or circulated without
permission.
Page 5
Falcom TWIST-USB GPRS modem GSM antenna
USB cable (2 m) Headset
Cradle + Binder Driver, documentation and application CD
FALCOM TWIST-USB VERSION 1.01
This document is a property of FALCOM GmbH and may not be copied or circulated without
permission.
Page 6
1 Technical specifications
Communications standard
GSM 900/1800 Phase 2/2+
GPRS Class B, multi-slot class 8 with MC35 based engine
Dual Band Modem
GPRS and GSM Services
Telephony Emergency Calls
SMS MO, MT, Cell Broadcast Return Call
Message
Data 300 ... 14400BPS, non-transparent, V.21,
V.22, V.23, V.22 up to V.26, V.32, V.34,
V.110
FAX Group3/Class 2
Supplementary services
Echo Cancellation, Call Forwarding, Phonebook, Multiparty, Call Baring,
Fixed Dialling Number, Call waiting and Call hold Call Line Identity,
Advance of Charge, USSD
Electrical Parameter
Power supply through USB-Port
Current consumption
GSM 900:
• 65 mA/5 V Power Mode 1 (idle)
• 385 mA/5 V Power Mode 2 (Power
Level 5; max.)
• 308 mA/5 V Power Mode 3 (Power
Level 7)
GPRS 900:
• 66 mA/5V Power Mode 1 (idle)
• 184 mA/5V active
• 320 mA/5V (during data transfer)
GSM 1800:
• 66 mA/5 V Power Mode 1 (idle)
• 308 mA/5 V Power Mode 2 (Power
Level 3; max.)
• 237 mA/5 V Power Mode 3 (Power
Level 7)
FALCOM TWIST-USB VERSION 1.01
This document is a property of FALCOM GmbH and may not be copied or circulated without
permission.
Page 7
RF-Parameter GSM 900: <-104 dBm GSM 1800: <-100
dBm
Interfaces
USB 1.1 USB-Connector
2,5mm audio socket
(4-poles)
Audio (Headset/Handset)
Power Output, Control Signals
Falcom Dual-Band GSM-Antenna or SMB-Connector for other GSMAntenna
LED bar LED-Indicators
SIM Card reader Small SIM Card (3V only)
Ambient temperature
Operating temperature -20 °C up to +55 °C
Storage temperature -20 °C up to +70 °C
General specifications
Dimensions (L x B x H) 114 x 52 x 27 (without antenna)
118 x 52 x 56 (with Falcom Dual
Band Antenna)
Weight 92 g
Accessories
Cradle
Antenna GSM 900/1800 (1900) Dual Band Antenna with SMB plug
connector
Standard USB Data cable 2 m
FALCOM TWIST-USB VERSION 1.01
This document is a property of FALCOM GmbH and may not be copied or circulated without
permission.
Page 8
Setup CD for Windows® 2000 and Windows® XP with current driver and
driver application as well as an application software (BVRP Mobile Phone
Tools® )
Headset with 2,5mm plug (4-poles)
Binder For fasten the Modem on the cradle in
case of operating in a vibrating Milieu
Modem certification
CE label according to CE 0682
FALCOM TWIST-USB VERSION 1.01
This document is a property of FALCOM GmbH and may not be copied or circulated without
permission.
Page 9
2 Security
IMPORTANT FOR THE EFFICIENT AND SAFE OPERATION OF
YOUR GSM MODEM READ THIS INFORMATION BEFORE USE !
Your GPRS modem is one of the most exciting and innovative electronic
products ever developed. With it you can stay in contact with your office,
your home, emergency services, and others, wherever service is provided.
2.1 GENERAL
Your modem utilises the GPRS standard for cellular technology. GPRS is a
newer radio frequency («RF») technology than the current GSM and FM
technology that has been used for radio communications for a couple of
years. The GPRS standard has been established for use in the European
community and elsewhere. Your modem is actually a low power radio
transmitter and receiver. It sends out and receives radio frequency energy.
When you use your modem, the cellular system handling your calls controls
both the radio frequency and the power level of your cellular modem.
2.2 EXPOSURE TO RF ENERGY
There has been some public concern about possible health effects of using
GPRS and GSM devices. Although research on health effects from RF
energy has focused for many years on the current RF technology, scientists
have begun research regarding newer radio technologies, such as GSM.
After existing research had been reviewed, and after compliance to all
applicable safety standards had been tested, it has been concluded that the
product is fit for use. If you are concerned about exposure to RF energy
there are things you can do to minimise exposure. Obviously, limiting the
duration of your calls will reduce your exposure to RF energy. In addition,
you can reduce RF exposure by operating your cellular modem efficiently
by following the below guidelines.
2.3 EFFICIENT MODEM OPERATION
For your modem to operate at the lowest power level, consistent with
satisfactory call quality: If your modem has an extendible antenna, extend it
fully. Some models allow you to place a call with the antenna retracted.
However your modem operates more efficiently with the antenna fully
extended. Do not hold the antenna when the modem is «IN USE». Holding
the antenna affects call quality and may cause the modem to operate at a
higher power level than needed.
