SURFACE MOUNT LED LAMP
STANDARD BRIGHT 0606
FEATURES
• Miniature footprint - 1.9(L) X 1.6(W) X 0.8(H) mm
• Wide viewing angle of 130°
• Water clear optics
• Moisture-proof packaging
• Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel
DESCRIPTION
These bi-color surface mount chip LEDs are designed to fit industry standard footprint. Small size, low profile and wide viewing
angle make these LEDs ideal for backlighting applications and panel illumination.
HER / AlGaAs Red / Yellow (for-34)
Green / Yellow (for -23)
POLARITY
TOP
SIDE
BOTTOM
0.075 (1.9)
0.035 (0.9)0.063 (1.6)
0.047 (1.2)
0.032 [0.8]
0.020 [0.5]
0.043 [1.1]
1
2
3
4
1
24
3
0.012 (0.3)
CATHODE MASK
NOTE:
Dimensions for all drawings are in inches (mm).
PACKAGE DIMENSIONS
QTLP600C-23 HER/Yellow QTLP600C-24 HER/Green
QTLP600C-34 Yellow/Green QTLP600C-74 AlGaAs Red/Green
APPLICATIONS
• Keypad backlighting
• Push-button backlighting
• LCD backlighting
2001 Fairchild Semiconductor Corporation
DS300118 8/30/01 1 OF 6 www.fairchildsemi.com
查询QTLP600C供应商
Parameter Symbol
QTLP600C
Units
-23 -24 -34 -74
Luminous Intensity (mcd)
Minimum I
V
4 / 2.5 4 / 7.5 2.5 / 7.5 10 / 7.5 IF= 20mA
Typical 7 / 4 7 / 12.5 4 / 12.5 20 / 12.5
Forward Voltage (V)
Maximum V
F
2.8 / 2.8 2.8 / 2.8 2.8 / 2.8 2.4 / 2.8 IF= 20mA
Typical 2.0 / 2.0 2.0 / 2.1 2.0 / 2.1 1.9 / 2.1
Wavelength (nm)
D
P
Peak 635 / 585 635 / 565 585 / 565 660 / 565 IF= 20mA
Dominant D
D
630 / 590 630 / 570 590 / 570 645 / 570
Spectral Line Half Width (nm) D 45 / 35 45 / 30 35 / 30 20 / 30 IF= 20mA
Viewing Angle (°) 20
1/
2
130 130 130 130 IF= 20mA
Parameter Symbol
QTLP600C
Units
-23 -24 -34 -74
Continuous Forward Current I
F
30 / 30 30 / 30 30 / 30 30 / 30 mA
Peak Forward Current
I
FM
160 / 160 160 / 160 160 / 160 180 / 160 mA
(f = 1.0 KHz, Duty Factor = 1/10)
Reverse Voltage V
R
5555V
Power Dissipation P
D
84 / 84 84 / 84 84 / 84 72 / 84 mW
Operating Temperature T
OPR
-40 to +85 °C
Storage Temperature T
STG
-40 to +90 °C
Lead Soldering Time T
SOL
260 for 5 sec °C
ELECTRICAL / OPTICAL CHARACTERISTICS
(TA =25°C)
ABSOLUTE MAXIMUM RATINGS
(T
A =25°C Unless otherwise specified)
SURFACE MOUNT LED LAMP
STANDARD BRIGHT 0606
QTLP600C-23 HER/Yellow QTLP600C-24 HER/Green
QTLP600C-34 Yellow/Green QTLP600C-74 AlGaAs Red/Green
www.fairchildsemi.com 2 OF 6 8/30/01 DS300118
TYPICAL PERFORMANCE CURVES
SURFACE MOUNT LED LAMP
STANDARD BRIGHT 0606
QTLP600C-23 HER/Yellow QTLP600C-24 HER/Green
QTLP600C-34 Yellow/Green QTLP600C-74 AlGaAs Red/Green
DS300118 8/30/01 3 OF 6 www.fairchildsemi.com
Fig. 1 Forward Current vs. Forward Voltage
90
80
70
60
50
40
30
20
- FORWARD CURRENT (mA)
10
F
I
0
1.0 2.0 3.0 4.0 5.0
1.0
0.5
HER
AlGaAs
RED
VF - FORWARD VOLTAGE (V)
GREEN
YELLOW
Fig. 2 Relative Luminous Intensity vs.
2.0
1.5
1.0
0.5
(NORMALIZED AT 20 mA)
RELATIVE LUMNOUS INTENSITY
0.0
0 5 10 15 20 25 30
Fig. 3 Relative Intensity vs. Peak Wavelength
GREEN
DC Forward Current
AlGaAs
RED
HER
YELLOW
GREEN
I
- DC FORWARD CURRENT (mA)
F
HER
AlGaAs REDYELLOW
RELATIVE INTENSITY
0
300 350 400 450 500 550 600 650 700 750
WAVELENGTH (nm)
Fig.4 Radiation Diagram
Fig.5 Maximum Forward Current
vs. Ambient Temperature
50
40
0˚
-10˚ 10˚
-20˚ 20˚
-30˚ 30˚
-40˚ 40˚
-50˚ 50˚
-60˚ 60˚
-70˚ 70˚
-80˚ 80˚
-90˚ 90˚
1.0 0.8 0.6 0.4 0.2 0 0.2 0.4 0.6 0.8 1.0
REL. LUMINOUS INTENSITY (%)
30
20
10
- FORWARD CURRENT (mA)
F
I
0
020406080
TA - AMBIENT TEMPERATURE (˚C)
100
60 - 120 sec
Preheating
+5° C/s MAX -5° C/s MAX
120 - 150° C MAX
5 sec MAX
soldering time
240° C MAX
0.075 (1.9)
0.035 (0.9)
0.043 (1.1)
0.024 (0.6)

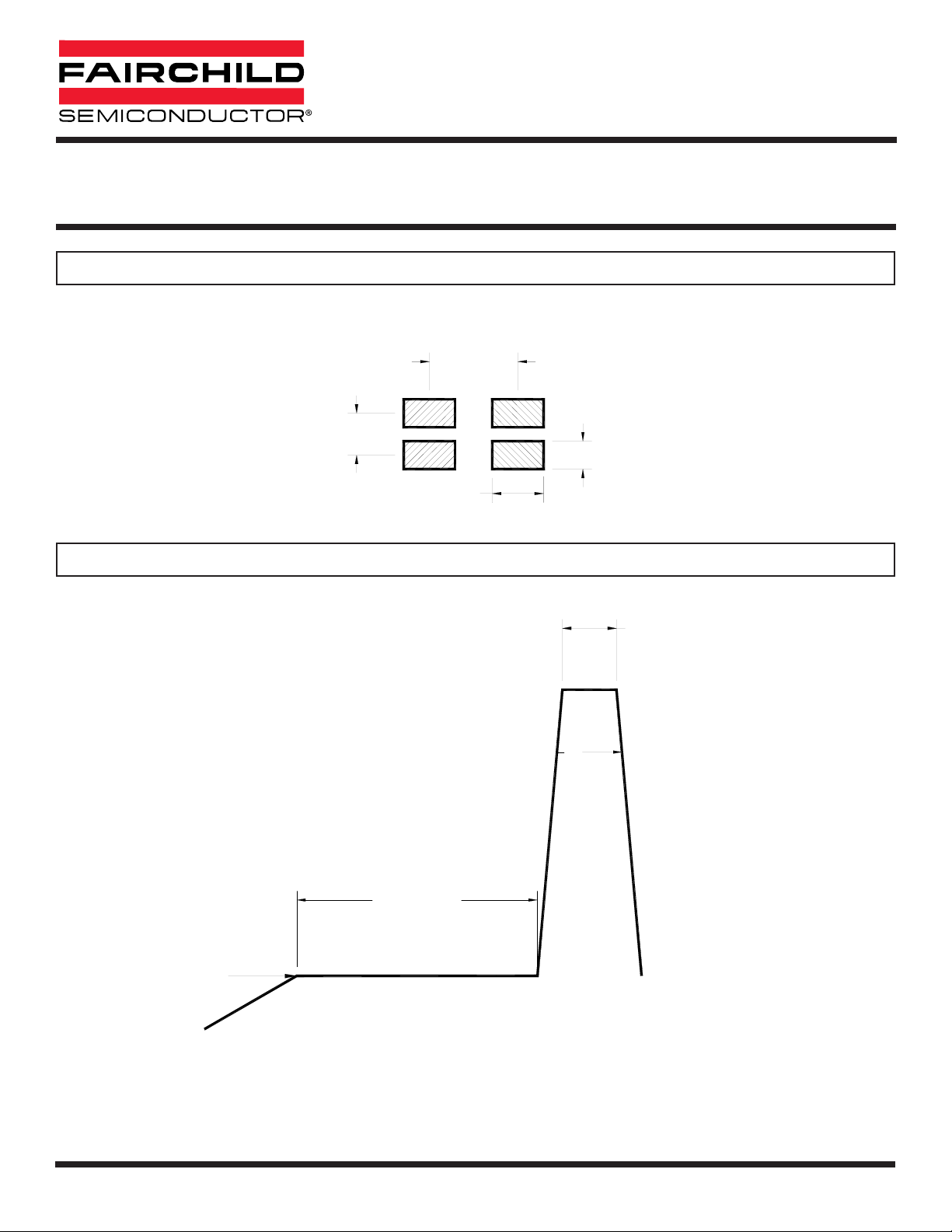

RECOMMENDED PRINTED CIRCUIT BOARD PATTERN
RECOMMENDED IR REFLOW SOLDERING PROFILE
SURFACE MOUNT LED LAMP
STANDARD BRIGHT 0606
QTLP600C-23 HER/Yellow QTLP600C-24 HER/Green
QTLP600C-34 Yellow/Green QTLP600C-74 AlGaAs Red/Green
www.fairchildsemi.com 4 OF 6 8/30/01 DS300118
SURFACE MOUNT LED LAMP
STANDARD BRIGHT 0606
QTLP600C-23 HER/Yellow QTLP600C-24 HER/Green
QTLP600C-34 Yellow/Green QTLP600C-74 AlGaAs Red/Green
Ø12.75
Ø
62.0±0.5
Ø
180±1
2.5±0.5
11.0
+0.5
-0.0
+0.25
-0.0
+1.5
8.4
-0.0
2.50±0.5
Progressive direction
Polarity
1.75
2.0±0.05
Ø1.55.±05
3.5±0.05
4.0
4.0
Dimensional tolerance is ± 0.1mm unless otherwise specified
Angle: ± 0.5
8.0
Unit: mm
1.63
1.27
2.39±0.05
0.25±0.1

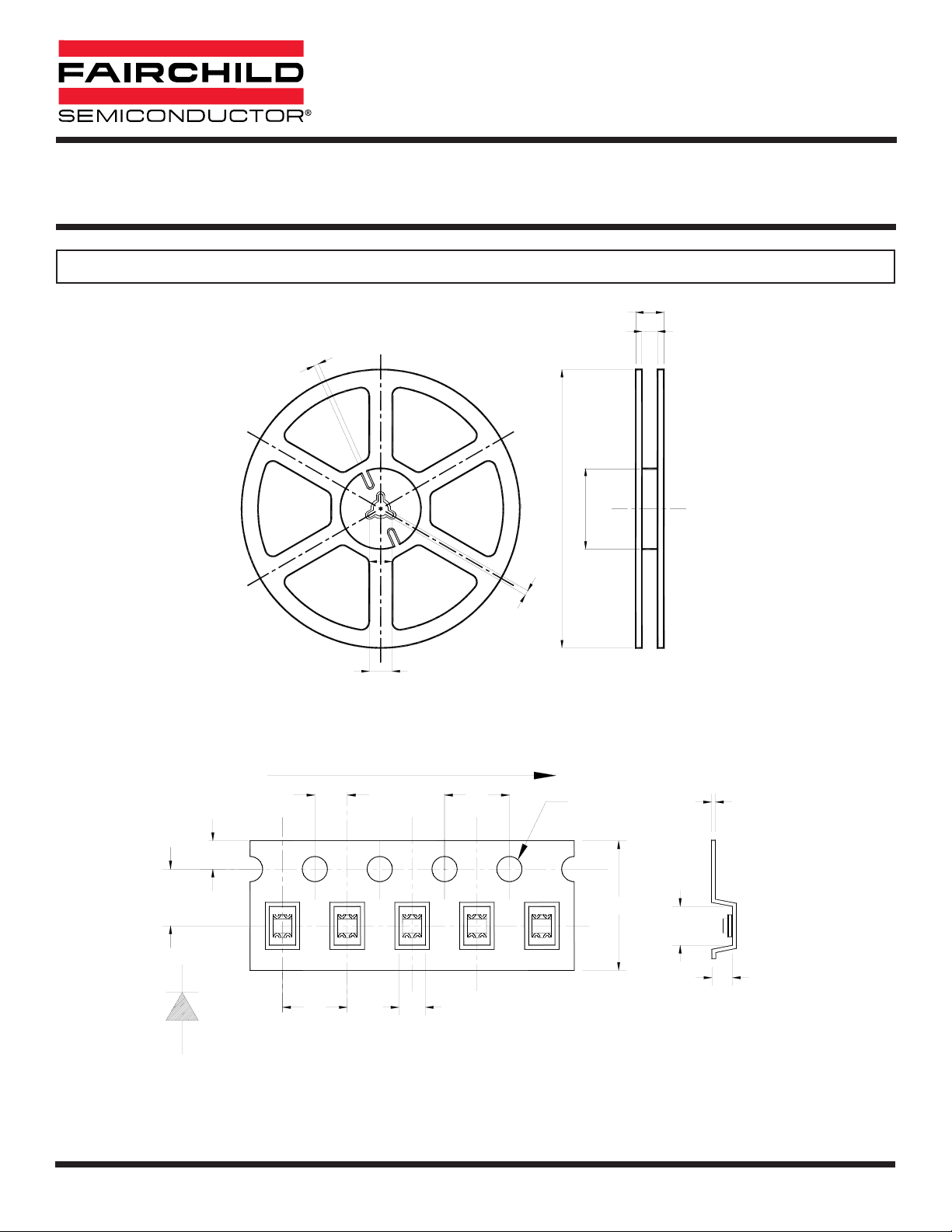

TAPE AND REEL DIMENSIONS
DS300118 8/30/01 5 OF 6 www.fairchildsemi.com
SURFACE MOUNT LED LAMP
STANDARD BRIGHT 0606
QTLP600C-23 HER/Yellow QTLP600C-24 HER/Green
QTLP600C-34 Yellow/Green QTLP600C-74 AlGaAs Red/Green
