AN-42036
PCB Grounding System and FAN2001/FAN2011
High Performance DC-DC Converters
Introduction
Ground wiring can often limit system performance. The
purpose of this application note is to help the system
designer utilize the benefits of the FAN2011 and FAN2001
families of high performance step-down DC-DC regulators,
to avoid PCB layout related problems and maximize overall
system performance. The basic concept of “star grounding”
is presented and ways of implementing star grounding for
systems like a cell phone, are shown.
Grounding Issues
Ground is defined as a reference potential for linear circuit
elements such as amplifiers, voltage references, and A/D
converters. It is used as the return for power systems
elements such as switching regulators, power amplifiers, and
digital circuit blocks. It is also used as a shield to prevent the
propagation of electromagnetic noise in the circuit. Because
of these diverse uses, care must be taken in laying out the
PCB ground system to avoid interference between different
areas of the board.
The finite resistance of the grounding path may couple the
noise generated by the power elements into the signal path of
the precision circuit elements, as shown in Figure 1.
overall output voltage accuracy are affected by this noise.
Another related issue of the ground system is its tendency to
carry inductively induced currents. Since the ground system
can be spatially extended, it is possible to generate
circulating currents in the ground caused by changing
external magnetic fields. Because the ground system has
usually low resistance, the ground loop currents can become
quite large. This often happens in larger systems that
magnetically couple to the 50 or 60 Hz power supply lines,
which are common in many areas. These circulating currents
can then induce noise in the sensitive linear circuits through
parasitic ground resistance, as shown in Figure 2.
Ground Loop
VCC
SYSTEM
GROUND
Figure 2. Coupling of Magnetically Induced Ground Cur-
LINEAR
CIRCUIT
Parasitic Ground Resistance
rent Noise
LINEAR
CIRCUIT
Magnetically Induced Ground
Magnetic Field
Current
Switching
VCC
LINEAR
CIRCUIT
SYSTEM
GROUND
Figure 1. Coupling of Ground Current Noise
If a ground connection carries substantial current, a voltage
drop will develop in the ground because of the basic
resistance of the ground material. This voltage drop makes
local ground different than zero volts, depending on circuit
topology and element location. If the current is high and if
there are ground sensitive circuits connected to this current
path, the voltage drop across the parasitic ground resistance
will produce offsets in the voltage measurements of the
sensitive linear circuit. In the case of a switching regulator,
where the power current is time varying, noise is induced in
the system. Linear circuits are referenced to ground and
some parameters of the converter such as load regulation and
Parasitic Ground Resistance
LINEAR
CIRCUIT
POWER
CIRCUIT
Power Ground Current
The Star Ground Technique
In all systems, the correct choice of the ground junction
point or single point ground reference, as it is sometimes
called, is important. The power management area in
particular requires special care as it supplies the current for
the whole system. It is necessary to first evaluate the flow of
the power supply and signal currents, and then configure the
path of the return currents and the location of the junction
point. This is necessary to minimize the introduction of DC
offsets and noise into the signal return paths.
In star grounding, a common point is chosen to which to
connect all ground lines. A physical point is chosen on the
circuit board to serve as the star ground point and all grounds
radiate from that point to the separate parts of the system.
Any one of the ground lines radiating from the star ground
may star again, forming a local star ground for a sub-circuit.
Special care must be taken to separate the signal ground
from the power ground at a star, such that no power current
will flow through any signal line ground. Cell phone system
design is complex as it compounds various sub-circuits such
as analog baseband, digital baseband, audio amplifiers, LCD
REV. 1.00 4/05/05
AN-42036 APPLICATION NOTE
p
controller, power and battery management, and RF
transceiver. Such a system is shown in Figure 3 with a
general scheme of a “star” ground connection. Ideally, all
grounds would converge on the main star and a single point
ground reference would be generated at that location. It is
physically difficult to bring all the traces on a board to a
physical location and make contact at a mathematical point
to avoid current generated interference. Therefore, the main
star might be broken into sub-stars. This shifts the burden to
coupling signals from one star to another, which have
slightly different, time variable ground reference potentials.
Signal coupling between different blocks would have to be
differential to avoid all ground problems.
Main Star
Positive Supply
Distribution
Local Ground
Plane
Local Ground
Plane
Memory &
I/O ports
Analog
Baseband
Digital
Baseband
Controller
CCD/CMOS
Switching
Regulator
FAN2001
Battery
RF
Transceiver
Audio
Amplifier
LCD
Camera
high current paths. If large ground noise is coupling into the
feedback signal the device may become unstable and
depending on the noise magnitude, the output voltage will be
out of regulation. The internal reference of the device is
connected to AGND pin. This pin should also be routed
separately from the high current paths directly into the
“star.” Any DC offset introduced into the analog ground pin
will affect the load regulation and consequently the
regulator's DC output voltage accuracy. An optimum PCB
layout for the FAN2011 family is shown in Figure 5.
Composite
Figure 3. Star Ground Connection for a Cell Phone
FAN2011 and FAN2001 Regulators
The FAN2011 and FAN2001 series of regulators uses a
current mode control loop with a fast transient response that
ensures excellent line and load regulation. A star ground
connection ensures that the highest performance is achieved.
The local ground plane for the switching regulator is shown
in Figure 4.
FAN2011
FB
PGND
SW
AGND
R2
R1
L
Cout
Figure 4. Star Ground Connection for High Performance
DC-DC Converters
To benefit from the high performance of the FAN2011/
FAN2001 families of regulators, care must be taken
designing the PCB layout. The high ground current paths are
identified in Figure 4 by bolded lines. The voltage feedback
signal, internally connected to an error amplifier, is sensitive
to noise and the resistors must be routed separately from the
N/C
VIN
PVIN
High ground
current
VCC
Cin
aths
Top L a y e r
Bottom Layer

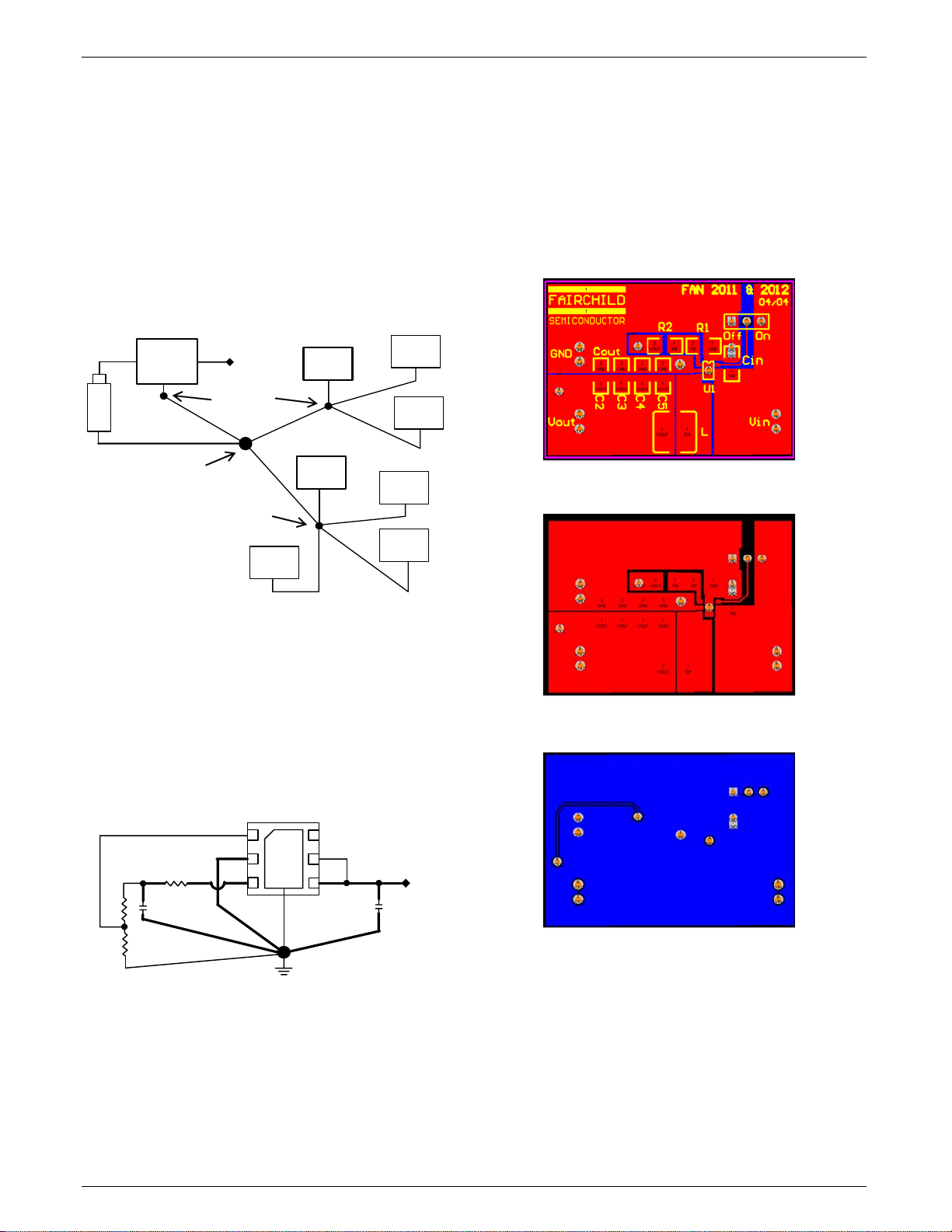

Figure 5. PCB Layout
