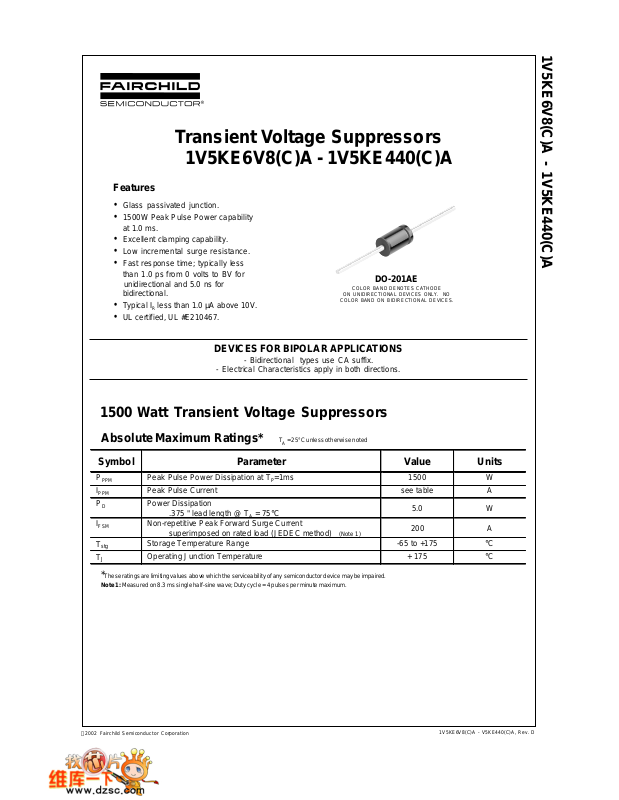

Transient Voltage Suppressors
1V5KE6V8(C)A - 1V5KE440(C)A
Features
• Glass passivated junction.
• 1500W Peak Pulse Power capability
at 1.0 ms.
• Excellent clamping capability.
• Low incremental surge resistance.
• Fast response time; typically less
than 1.0 ps from 0 volts to BV for
unidirectional and 5.0 ns for
bidirectional.
• Typical I
• UL certified, UL #E210467.
less than 1.0 µA above 10V .
R
DO-201AE
COLOR BAND DENOTES CATHODE
ON UNIDIRECTIONAL DEVICES ONLY. NO
COLOR BAND ON BIDIRECTIONAL DEVICES.
1V5KE6V8(C)A - 1V5KE440(C)A
DEVICES FOR BIPOLAR APPLICA TIONS
- Bidirectional types use CA suffix.
- Electrical Characteristics apply in both directions.
1500 Watt Transient Voltage Suppressors
Absolute Maximum Ratings* T
Symbol
P
Peak Pulse Power Dissipation at TP=1ms 1500 W
PPM
I
Peak Pulse Current see table A
PPM
PD Power Dissipation
I
Non-repetitive Peak Forward Surge Current
FSM
T
stg
TJ
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Note 1: Measured on 8.3 ms single half-sine wave; Duty cycle = 4 pulses per minute maximum.
.375 " lead length @ T
superimposed on rated load (JEDEC method)
Storage Temperature Range -65 to +175
Opera ting Junction Temperature + 175
Parameter
= 75°C
A
= 25°C unless otherwise noted
A
(Note 1)
Value
5.0 W
200 A
Units
°
C
°
C
2002 Fairchild Semiconductor Corporation
1V5KE6V8(C)A - V5KE440(C)A, Rev. D
Transient Voltage Suppressors
(continued)
1V5KE6V8(C)A - 1V5KE440(C)A
Electrical Characteristics T
Uni-directional
Bi-direc tiona l (C)
Device
Reverse
Stand-off Voltage
V
(V)
RWM
Breakdow n Voltage
= 25°C unless otherwise noted
A
Te st
(V)
V
BR
Curre nt
IT
(mA )
Clam ping
Voltage @I
V
(V)
C
Peak Pulse Current
PPM
(A)
I
PPM
Leakage V
I
(uA)*
R
RWM
Reverse
Min Max
1V5KE6V8(C)A 5.80 6.45 7.14 10 10.5 143 1000
1V5KE7V5(C)A 6.40 7.13 7.88 10 11.3 133 500
1V5KE8V2(C)A 7.02 7.79 8.61 10 12.1 124 200
1V5KE9V1(C)A 7.78 8.65 9.55 1 13.4 112 50
1V5KE10(C)A 8.55 9.50 10.5 1 14.5 103 10
1V5KE11(C)A 9.40 10.5 11.6 1 15.6 96.2 5
1V5KE12(C)A 10.2 11.4 12.6 1 16.7 90.0 5
1V5KE13(C)A 11.1 12.4 13.7 1 18.2 82.0 5
1V5KE15(C)A 12.8 14.3 15.8 1 21.2 71.0 5
1V5KE16(C)A 13.6 15.2 16.8 1 22.5 67.0 5
1V5KE18(C)A 15.3 17.1 18.9 1 26.2 59.5 5
1V5KE20(C)A 17.1 19.0 21.0 1 27.7 54.2 5
1V5KE22(C)A 18.8 20.9 23.1 1 30.6 49.0 5
1V5KE24(C)A 20.5 22.8 25.2 1 33.2 45.2 5
1V5KE27(C)A 23.1 25.7 28.4 1 37.5 40.0 5
1V5KE30(C)A 25.6 28.5 31.5 1 41.4 36.2 5
1V5KE33(C)A 28.2 31.4 34.7 1 45.7 33.0 5
1V5KE36(C)A 30.8 34.2 37.8 1 49.9 30.1 5
1V5KE39(C)A 33.3 37.1 41.0 1 53.9 28.0 5
1V5KE43(C)A 36.8 40.9 45.2 1 59.3 25.3 5
1V5KE47(C)A 40.2 44.7 49.4 1 64.8 23.2 5
1V5KE51(C)A 43.6 48.5 53.6 1 70.1 21.4 5
1V5KE56(C)A 47.8 53.2 58.8 1 77.0 19.5 5
1VKE62(C)A 53.0 58.9 65.1 1 85.0 17.7 5
1V5KE68(C)A 58.1 64.6 71.4 1 92.0 16.3 5
1V5KE75(C)A 64.1 71.3 78.8 1 104.0 14.6 5
1V5KE82(C)A 70.1 77.9 86.1 1 113.0 13.3 5
1V5KE91(C)A 77.8 86.5 95.5 1 125.0 12.0 5
1V5KE100(C)A 85.5 95.0 105.0 1 137.0 11.0 5
1V5KE110(C)A 94.0 106.0 116.0 1 152.0 9.9 5
1V5KE120(C)A 102.0 114.0 126.0 1 165.0 9.1 5
1V5KE130(C)A 111.0 124.0 137.0 1 179.0 8.4 5
1V5KE150(C)A 128.0 143.0 158.0 1 207.0 7.2 5
1V5KE160(C)A 136.0 152.0 168.0 1 219.0 6.8 5
1V5KE170(C)A 145.0 162.0 179.0 1 234.0 6.4 5
1V5KE180(C)A 154.0 171.0 189.0 1 246.0 6.1 5
1V5KE200(C)A 171.0 190.0 210.0 1 274.0 5.5 5
1V5KE220(C)A 185.0 209.0 231.0 1 328.0 4.6 5
1V5KE250(C)A 214.0 237.0 263.0 1 344.0 4.5 5
1V5KE300(C)A 256.0 285.0 315.0 1 414.0 3.8 5
1V5KE350(C)A 300.0 333.0 368.0 1 482.0 3.2 5
1V5KE400(C)A 342.0 380.0 420.0 1 548.0 2.8 5
1V5KE440(C)A 376.0 418.0 462.0 1 602.0 2.6 5
* For bidirectional parts with V
<10V, the IR max limit is doubled.
RWM
1V5KE6V8(C)A - 1V5KE440(C)A, Rev. D
