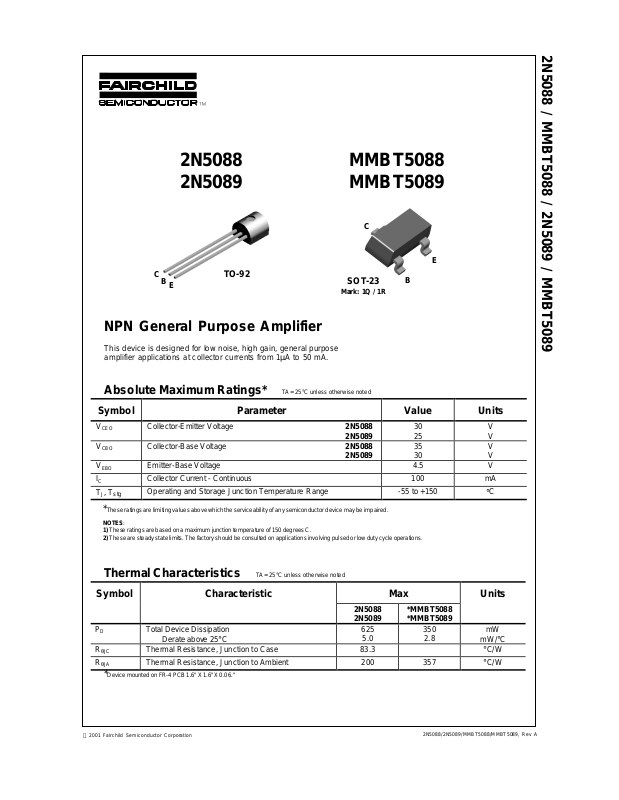

Fairchild 2N5088, 2N5089, MMBT5088, MMBT5089 datasheet

g

A

2N5088 / MMBT5088 / 2N5089 / MMBT5089

2N5088 2N5089

C

B

E

TO-92

MMBT5088 MMBT5089

C

SOT-23

Mark: 1Q / 1R

B

E

NPN General Purpose Amplifier

This device is designed for low noise, high gain, general purpose amplifier applications at collector currents from 1µA to 50 mA.

Absolute Maximum Ratings* TA = 25°C unless otherwise noted

Symbol Parameter Value Units

V

CEO

V

CBO

V

EBO

I

C

TJ, T

st

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

1) These ratings are based on a maximum junction temperature of 150 degrees C.

2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Collector-Emitter Voltage Collector-Base Voltage

Emitter-Base Voltage 4.5 V Collector Current - Continuous 100 mA Operating and Stora ge Junction Temperature Range -55 to +150

2N5088 2N5089 2N5088 2N5089

30 25 35 30

V V V V

°

C

Thermal Characteristics TA = 25°C unless otherwise noted

Symbol Characteristic Max Units

2N5088 2N5089

P

D

R

θ

JC

R

θ

J

Total Device Dissipa tion

Derate above 25°C

Ther mal Resistance, Junction to Case 83.3 Thermal Resistance, Junction to Ambient 200 357

625

5.0

*Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."

 2001 Fairchild Semiconductor Corporation

*MMBT5088 *MMBT5089

350

2.8

2N5088/2N5089/MMBT5088/MMBT5089, Rev A

mW

mW/°C

C/W

°

C/W

°

NPN General Purpose Amplifier

(continued)

Electrical Characteristics TA = 25°C unless otherwise noted

Symbol Parameter Test Conditions Min Max Units

OFF CHARACTERISTICS

V

(BR)CEO

V

(BR)CBO

I

CBO

I

EBO

ON CHARACTERISTICS

h

FE

V

CE(

sat

V

BE(on)

Collector-Emitter Breakdown Voltage*

Collector-Base Breakdown Voltage

Collector Cutoff Current

I

= 1.0 mA, IB = 0 5088

C

I

= 100 µA, IE = 0 5088

C

V

= 20 V, IE = 0 5088

CB

= 15 V, IE = 0

V

CB

5089

30 25

35 30

Emitter Cutoff Current VEB = 3.0 V, IC = 0

V

= 4.5 V, IC = 0

EB

DC Current Gain

I

= 100 µA, VCE = 5.0 V 5088

C

5089

I

= 1.0 mA, VCE = 5.0 V 5088

C

5089

= 10 mA, VCE = 5.0 V* 5088

I

C

5089

Collector-Emitter Saturation Voltage IC = 10 mA, IB = 1.0 mA 0.5 V

)

300 400 350 450 300 400

Base-Emitt er On Vo ltage IC = 10 mA, VCE = 5.0 V 0.8 V

50 50

50

100

900

1200

V V

nA nA

2N5088 / MMBT5088 / 2N5089 / MMBT5089

SMALL SIGNAL CHARACTERISTICS

f

T

C

cb

C

eb

h

fe

Current Gain - Bandwidth Product Collector-Base Capacitance VCB = 5.0 V, I

Emitter-Base Capacit anc e VBE = 0.5 V, I Small-Signal Current Gain

NF Noise Figure

= 500 µA,V

I

C

= 5.0 mA,

CE

f = 20 MHz

= 0, f = 100 kHz 4.0 pF

E

= 0, f = 100 kHz 10 pF

C

I

= 1.0 mA, V

C

= 5.0 V, 5088

CE

f = 1.0 kHz 5089

= 100 µA, VCE = 5.0 V, 5088

I

C

= 10 kΩ, 5089

R

S

f = 10 Hz to 15.7 kHz

50 MHz

350 450

1400 1800

3.0

2.0

*Pulse T est: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%

Spice Model

NPN (Is=5.911f Xti=3 Eg=1.11 V af=62.37 Bf=1.122K Ne=1.394 Ise=5.911f Ikf=14.92m Xtb=1.5 Br=1.271 Nc=2 Isc=0 Ikr=0 Rc=1.61 Cjc=4.017p Mjc=.3174 Vjc=.75 Fc=.5 Cje=4.973p Mje=.4146 Vje=.75 Tr=4.673n Tf=821.7p Itf=.35 Vtf=4 Xtf=7 Rb=10)

3

dB dB

T ypical Characteristics

2N5088 / MMBT5088 / 2N5089 / MMBT5089

NPN General Purpose Amplifier

(continued)

T ypic al Puls e d C u rrent Ga in

vs Collect or Current

1200

1000

800

600

400

200

0

FE

0.01 0.03 0.1 0.3 1 3 10 30 100

h - TYPICAL PULSED CUR RENT GAIN

125 °C

25 °C

I - COLLECTOR CURRENT (mA)

C

- 40 °C

V = 5.0 V

CE

Base-Emitter Saturation

Voltage vs Collector Cur rent

1

0.8

0.6

0.4

0.2

0.1 1 10 100

BESAT

V - COLLECTOR- EM ITT ER VO LTA GE (V)

- 40 °C

25 °C

125 °C

β

I - COLLECT OR CURRENT (mA)

C

= 10

Collector-Emitter Sat urati on Voltage vs Collector Curr en t

0.3

0.25

= 10

β

0.2

0.15

0.1

0.05

0.1 1 10 100

CESAT

V - COLLECTOR-EMITTER VOLTAGE (V)

I - COLLECTOR CURRENT (mA)

C

25 °C

125 °C

- 40 °C

Base-Emitter ON Voltage vs

Collector Current

1

0.8

0.6

0.4

0.2

BEON

0.1 1 10 40

V - BASE-EMITTER ON VOLTAGE (V)

- 40 °C 25 °C

125 °C

V = 5.0 V

CE

I - COLLECTOR CURRENT (m A)

C

Co llector-C u to ff Cur re nt

vs Ambie nt Temp er ature

10

V = 45V

CB

1

CBO

I - C OLLE CT O R CURRENT (nA)

0.1 25 50 75 100 125 150

T - A M BI E NT TE MP ERATURE ( C)

A

°

Typical Characteristics (continued)

2N5088 / MMBT5088 / 2N5089 / MMBT5089

NPN General Purpose Amplifier

(continued)

Input and Output Capacitance

vs Reverse Bias Voltage

5

4

3

C

te

2

CAPACITANCE (pF)

1

0

048121620

REVERSE BIAS VOLTAGE (V)

f = 1.0 MHz

C

ob

Normalized Collector-Cutoff Current

°

A

CHARACTERIS TIC S RELATIVE TO VALUE AT T = 25 C

1000

vs Amb ie nt Temp er atu re

100

10

1

25 50 75 100 125 150

T - AMBIENT TEMPERATURE ( C)

A

°

Contours of Constant Gain

Bandwi dt h Prod uc t (f )

10

7 5

3

2

CE

V - COLLECTOR VOLTAGE (V)

1

0.1 1 10 100

I - COLLEC T OR CURRENT (mA)

C

150 MH z

125 MH z 100 MH z

75 MHz

T

175 MH z

Wideband Noise Frequency

vs Source Resistance

5

4

3

2

1

NF - NOI S E FI GURE (d B)

0

1,000 2,000 5,000 10,000 20,000 50,000 100,000

V = 5.0 V

CE

BANDWI DT H = 1 5.7 kH z

I = 100 µA

C

R - SOURCE RESIST ANCE ( )

S

I = 30 µA

C

I = 10 µA

C

Ω

3

Noise Figure vs Frequency

10

I = 200 µA,

C

8

6

4

2

NF - NOISE FIGURE (dB)

0

0.0001 0.001 0.01 0.1 1 10 100

R = 10 k

I = 100 µA,

C

R = 10 k

S

I = 1.0 mA,

C

R = 500

S

I = 1.0 mA,

C

R = 5.0 k

S

f - FREQU ENCY (M Hz)

Ω

S

Ω

V = 5.0V

CE

Power Dissipation vs

Ambient Temperature

625

500

SOT-23

375

250

125

D

P - POW ER DISSIPATION (mW)

0

0 25 50 75 100 125 150

TO-92

TEMPERATURE ( C)

o

Typical Characteristics (continued)

2N5088 / MMBT5088 / 2N5089 / MMBT5089

NPN General Purpose Amplifier

(continued)

Cont ours of Co ns tant

Narrow Band Noise Figure

10,000

Ω

5,000

2,000

1,000

500

V = 5. 0 V

CE

f = 100 Hz BANDWIDTH

200

= 20 Hz

S

R - SOURC E RESISTANCE ( )

100

1 10 100 1,000

I - COLLECTOR CURRENT ( A)

C

3.0 dB

4.0 dB

6.0 dB

8.0 dB 10 dB

12 dB

14 dB

Contours of Constant

Nar r ow Band No is e Figure

10000

Ω

5000

2000 1000

500

V = 5.0V

CE

f = 10kHz

200

BANDWIDTH

S

= 2.0kHz

R - SOURCE RESISTANCE ( )

100

1 10 100 1000

I - COLL ECTO R CURR ENT ( A)

C

1.0 dB

2.0 dB

µ

3.0 dB

4.0 dB

6.0 dB

8.0 dB

Contours of Consta n t

Narrow Band Noise Figure

10,000

Ω

5,000

2,000

1,000

500

V = 5.0 V

CE

f = 1.0 kHz BANDWIDTH

200

= 200 Hz

S

R - SOURCE RESISTANCE ( )

100

1 10 100 1,000

I - COLLECTOR CURRENT ( A)

C

2.0 dB

3.0 dB

4.0 dB

6.0 dB

8.0 dB

Contours of Constant

Nar row B and No ise Fi gure

10000

Ω

5000

2000 1000

V =

CE

500

5.0V f = 1.0 MHz

200

BANDW IDTH

S

= 200kHz

R - SOURCE RESISTANCE ( )

100

0.01 0.1 1 10

I - COLLEC TO R CU RRENT ( A)

C

2.0 dB

3.0 dB

4.0 dB

8.0 dB

µ

7.0 dB

µ

5.0 dB

6.0 dB

NPN General Purpose Amplifier

Typical Common Emitter Characteristics (f = 1.0 kHz)

2N5088 / MMBT5088 / 2N5089 / MMBT5089

(continued)

Typical C o mmo n Emi tter Char acteri stics

1.4

CE

1.3

h

oe

1.2

1.1

h

re

1

h

ie

0.9

h

fe

0.8

CH AR AC TER ISTI CS RELATI VE TO VALU E( V =5V)

0 5 10 15 20 25

V - COLLECTOR VOLTAGE (V)

CE

h

fe

h

ie

h

re

h

oe

I = 1.0mA

C

f = 1. 0kHz T = 25 C

A

°

Typ ical Common Emitter Characteristics

100

C

f = 1.0kHz

10

h and h

re

ie

h

oe

1

h

fe

0.1

Typic al Common E mitter Characteristics

°

1.5

A

1.4

V = 5.0V

CE

1.3

f = 1.0kHz I = 1 .0mA

1.2

C

1.1 1

0.9

h

0.8

0.7

0.6

0.5

CHARACTERISTICS RE LATIVE TO VALUE (T =25 C)

h

oe

h

fe

h

ie

re

-100 -50 0 50 100 150

T - JU NC TIO N T EMP ERATURE ( C)

J

oe

h

re

h

fe

ie

h

ie

h

re

h

fe

h

oe

°

3

0.01

CHARACTERISTICS RELATIVE TO VALUE (I =1mA)

0.1 0.2 0.5 1 2 5 10 20 50 100

I - COLLEC TOR CUR RE NT (mA)

C

TO-92 Tape and Reel Data

TO-92 Packaging Configuration: Figure 1.0

FSCINT Label sample

FAIRCHILD SEMICONDUCTOR CORPORATION

LOT:

CBVK741B019

NSID:

PN2222N

D/C1:

SPEC REV:

D9842

QA REV:

HTB:B

QTY:

10000

SPEC:

B2

(FSCINT)

F63TNR Label sample

LOT: CBVK741B019

FSID: PN222N

D/C1: D9842 QTY1: SPEC REV: D/C2: QTY2: CPN:

QTY: 2000

SPEC:

N/F: F (F63TNR)3

TO-92 TNR/AMMO PACKING INFROMATION

Packing Style Qua n tity EOL code

Reel A 2,000 D26Z

E2,000 D27Z

Ammo M 2,000 D74Z

P2,000 D75Z

Unit w eight = 0.22 gm Reel weight with co m ponents = 1.04 kg Amm o weight with compo n ents = 1.02 kg Max q uantity p er intermediate bo x = 10,00 0 units

(TO-92) BULK PACKING INFORMATION

EOL

CODE

J18Z

J05Z

NO EOL

CODE

L34Z

DESCRIPTION

TO-18 OPTION STD NO LEAD CLIP

TO-5 OPTION STD NO LEAD CLIP TO-92 STANDARD

STRAIGHT FOR: PKG 92,

94 (NON PROELECTRON

SERIES), 96 TO-92 STANDARD

STRAIGHT FOR: PKG 94

(PROELECTRON SERIES

BCXXX, BFXXX, BSRXXX), 97, 98

NO LEADCLIP

LEADCLIP

DIMENSION

327mm x 158mm x 135mm

Immediate Box

Customized Label

QUANTITY

2.0 K / BOX

1.5 K / BOX

2.0 K / BOX

TAPE and REEL OPTION

See Fig 2.0 for various

Reeling Styles

5 Reels per

Intermediate Box

F63TNR Label

Customized Label

AMMO PACK OPTION

See Fig 3.0 for 2 Ammo

Pack Options

5 Ammo boxes per

Intermediate Box

F63TNR Label

BULK OPTION

See Bulk Packing Information table

FSCINT Label

2000 units per EO70 box for

std option

375mm x 267mm x 375mm

Intermediate Box

333mm x 231mm x 183mm

Intermediate Box

Anti-static

Bubble Sheets

114mm x 102mm x 51mm

FSCINT Label

Customized Label

FSCINT Label

Customized Label

Immediate Box

530mm x 130mm x 83mm

FSCINT Label

Intermediate box

ustomized

C Label

10,000 units maximum

per intermediate box

for std option

5 EO70 boxes per intermediate Box

March 2001, Rev. B1

TO-92 Tape and Reel Data, continued

TO-92 Reeling Style Configuration: Figure 2.0

Machine Option “A” (H)

Style “A”, D26Z, D70Z (s/h )

TO-92 Radial Ammo Packaging Configuration: Figure 3.0

FIRST WIRE OFF IS COLLECTOR ADHESIVE TAPE IS ON THE TOP SIDE FLAT OF TRANSISTOR IS ON TOP

ORDER STYLE

D74Z (M)

Machine Option “E” (J)

Style “E”, D27 Z, D71 Z (s/ h)

FIRST WIRE OFF IS EMITTER ADHESIVE TAPE IS ON THE TOP SIDE FLAT OF TRANSISTOR IS ON BOTTOM

ORDER STYLE

D75Z (P)

FIRST WIRE OFF IS EMITTER (ON PKG. 92) ADHESIVE TAPE IS ON BOTTOM SIDE FLAT OF TRANSISTOR IS ON BOTTOM

FIRST WIRE OFF IS COLLECTOR (ON PKG. 92) ADHESIVE TAPE IS ON BOTTOM SIDE FLAT OF TRANSISTOR IS ON TOP

September 1999, Rev. B

TO-92 Tape and Reel Data, continued

TO-92 Tape and Reel Taping Dimension Configuration: Figure 4.0

P Pd

Ha

H1

HO

P1 F1

User Direc tion of Feed

TO-92 Reel Configuration: Figure 5.0

Hd

b

d

L1

P2

PO

DO

S

L

W1

WO

ITEM DESCRIPTION

Base of Package to Lead Bend Compon en t He ig ht Lead Clinch Height Compon en t Ba s e Heig ht Compon en t Al ig nm e nt ( sid e/s id e ) Compon en t Al ig nm e nt ( fron t /b ac k ) Compon en t Pi tc h Feed Hole Pitch Hole Center to First Lead Hole Center to Component Center Lead Spread Lead Thickness Cut Lead Length Taped Lead Length Taped Lead Thickn es s Carrier Tape Thickness Carrier Tape Widt h Hold - down Tape Width Hold - down Tape position Feed Hole Position Sprocket Hole Diameter Lead Spring Out

t

W2

W

t1

SYMBOL

b Ha HO H1 Pd Hd P PO P1 P2 F1/F2 d L L1 t t1 W WO W1 W2 DO S

DIMENSION

0.098 (m ax )

0.928 (+ /- 0.025)

0.630 (+ /- 0.020)

0.748 (+ /- 0.020)

0.040 (m ax )

0.031 (m ax )

0.500 (+ /- 0.020)

0.500 (+ /- 0.008)

0.150 (+ 0 .00 9, -0.010)

0.247 (+ /- 0.007)

0.104 (+ /- 0 .010)

0.018 (+ 0 .00 2, -0.003)

0.429 (m ax )

0.209 (+ 0 .05 1, -0.052)

0.032 (+ /- 0.006)

0.021 (+ /- 0.006)

0.708 (+ 0 .02 0, -0.019)

0.236 (+ /- 0.012)

0.035 (m ax )

0.360 (+ /- 0.025)

0.157 (+ 0 .00 8, -0.007)

0.004 (m ax )

F63TNR Label

Customized Label

W2

ELECTROSTATIC

SENSITIVE DEVICES

D3

Note : All dimensions are in inches.

D4

D1

ITEM DESCRIPTION SYSMBOL MINIMUM MAXIMUM

D2

W1

W3

Reel Diame t er D1 13.9 75 14.02 5 Arbor Hol e Di am et er ( Standard) D2 1.160 1.200

Core Diameter D3 3.100 3.300 Hub Recess Inner Diameter D4 2.700 3.100 Hub Recess Depth W1 0.370 0.570 Flange to Flange Inner Width W2 1.630 1.690 Hub to Hub Center Width W3 2.090

Note: All dimensions are inches

(Small Hole) D2 0.650 0.700

July 1999, Rev. A

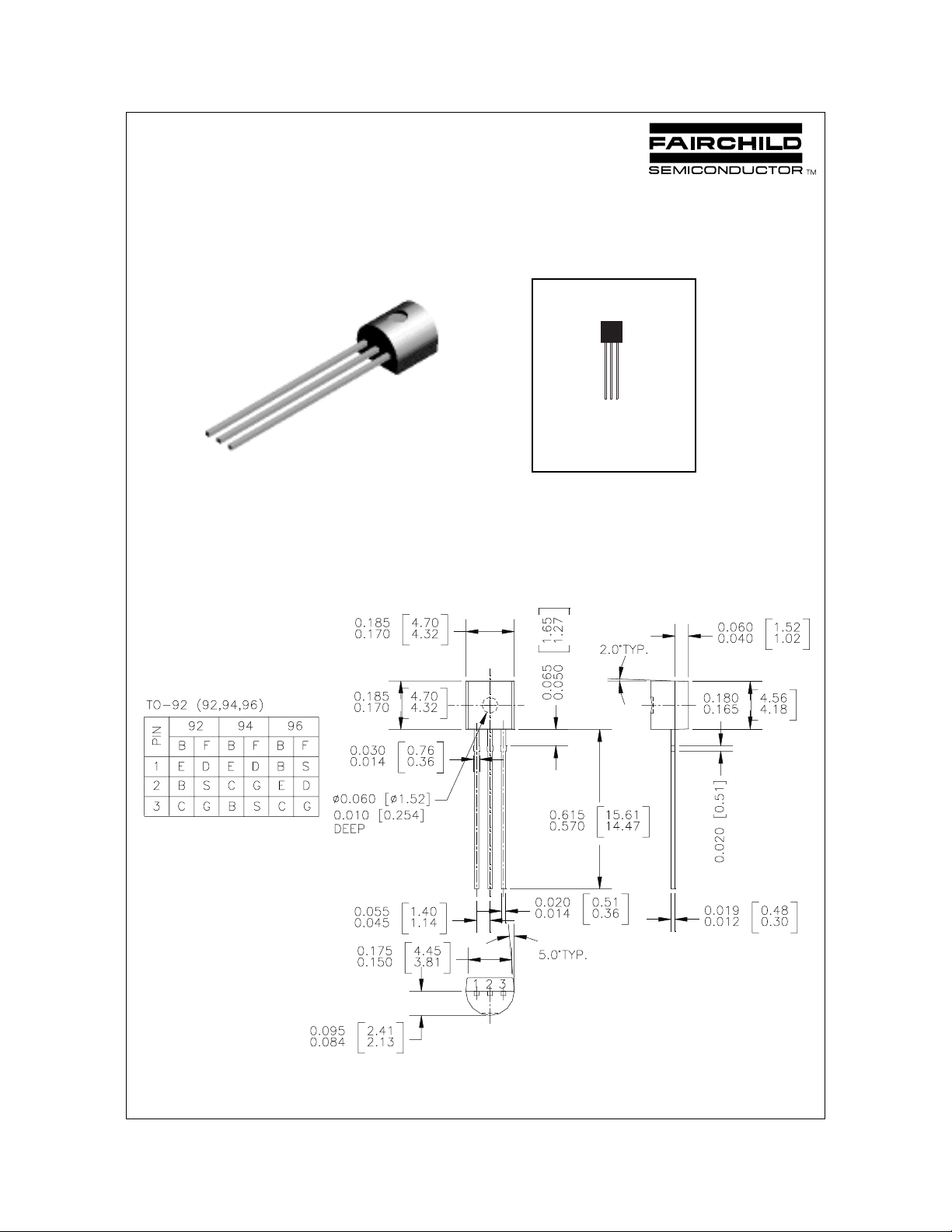

TO-92 Package Dimensions

TO-92 (FS PKG Code 92, 94, 96)

1:1

Scale 1:1 on letter size paper

Dimensions shown below are in:

inches [millimeters]

Part Weight per unit (gram): 0.1977

January 2000, Rev. B

SOT-23 Packaging Configuration: F igur e 1.0

Components

Leader Tape 500mm minimum or

125 empty pockets

Trailer Tape 300mm minimum or

75 empty pocket s

SOT-23 Tape Leader and Trailer

Configuration: Figure 2.0

Cover Tape

Carrier Tape

Note/Comments

Packaging Option

SOT-23 Packaging Information

Stan dard

(no flow code)

D87Z

Packaging type

Reel Size

TNR

7" Dia

TNR

13"

Qty per Reel/Tube/Bag

3,000 10,000

Box Dimensi on (mm)

187x107x183 343x343x64

Max qty per B o x

24,000 30,000

Weight per unit (gm)

0.0082 0.0082

Weight per Reel (kg)

0.1175 0.4006

Human readable Label

Human Readable Label

Human Readable Label sample

343mm x 342mm x 64mm

Intermediate box for L87Z Option

187mm x 107mm x 183mm

Intermediate Box for Standard Option

SOT-23 Unit Orientation

3P 3P 3P 3P

Human Readable

Label

Customized Label

Embossed

Carrier Tape

Antistatic Cover Tape

Packaging Description:

SOT-23 made from a dissipative (carbon filled) polycarbonate resin. The cover tape is a multilayer film (Heat Activated Adhesive in nature) primarily composed of polyester film, adhesive layer, sealant, and anti-static sprayed agent. These reeled parts in standard option are shipped with 3,000 units per 7" or 177cm diameter reel. The reels are dark blue in color and is made of poly styrene plastic (antistatic coated). Other option comes in 10,000 units per 13" or 330cm diameter reel. This and some other opti ons are described in the Packaging Information table.

These full reels are individually labeled and placed inside a st andard intermediat e made of recy clable corrugated brown paper with a Fairchild l ogo printing. One pizza box contains eight reels maximum. And these intermediate boxes are placed inside a labeled shipping box which comes in diff erent sizes depending on the number of parts shipped.

parts are shipped in tape. The carrier tape is

SOT-23 Tape and Reel Data

September 1999, Rev. C

SOT-23 Tape and Reel Data, continued

SOT-23 Embossed Carrier Tape Confi guration: Figure 3.0

T

B0

Wc

D0P0 P2

D1

E1

W

F

E2

Tc

K0

P1

A0

User Direction of Feed

Dimensions are in millimeter

Pkg type

SOT-23

(8mm)

Notes: A0, B0, and K0 dimensions are determined with respect to the EIA/Jedec RS-481

SOT-23 Reel Configuration: Figure 4.0

A0 B0 W D0 D1 E1 E2 F P1 P0 K0 T Wc Tc

3.15

2.77

8.0

1.55

1.125

1.75

6.25

+/-0.10

+/-0.3

+/-0.05

+/-0.125

+/-0.10

3.50

min

+/-0.05

rotational and lateral movement requirements (see sketches A, B, and C).

20 deg maximum

B0

20 deg maximum component rotation

Sketch A (Side or Front Sectional View)

Component Rotation

W1 Measured at Hub

A0

Sketch B (Top View)

Component Rotation

4.0 +/-0.1

Typical component cavity center line

Typical component center line

Dim A

Max

4.0 +/-0.1

1.30

0.228 +/-0.013

5.2 +/-0.3

0.5mm maximum

+/-0.10

0.5mm maximum

Sketch C (Top View)

Component lateral movement

0.06 +/-0.02

Dim A

max

Tape Size

8mm 7" Dia

8mm 13" Dia

Reel

Option

Dim N

Diameter Option

7"

See detail AA

B Min

Dim C

13" Diameter Option

See detail AA

W2 max Measured at Hub

W3

Dim D

min

DETAIL AA

Dimensions are in inches and millimeters

Dim A Dim B Dim C Dim D Dim N Dim W1 Dim W2 Dim W3 (LSL-USL)

7.00

0.059

177.8

13.00 330

1.5

0.059

1.5

512 +0.020/-0.008 13 +0.5/-0.2

0.795

2.165550.331 +0.059/-0.000

20.2

0.795

4.00

20.2

100

8.4 +1.5/0

0.331 +0.059/-0.000

8.4 +1.5/0

0.567

14.4

0.567

14.4

0.311 – 0.429

7.9 – 10.9

0.311 – 0.429

7.9 – 10.9

September 1999, Rev. C

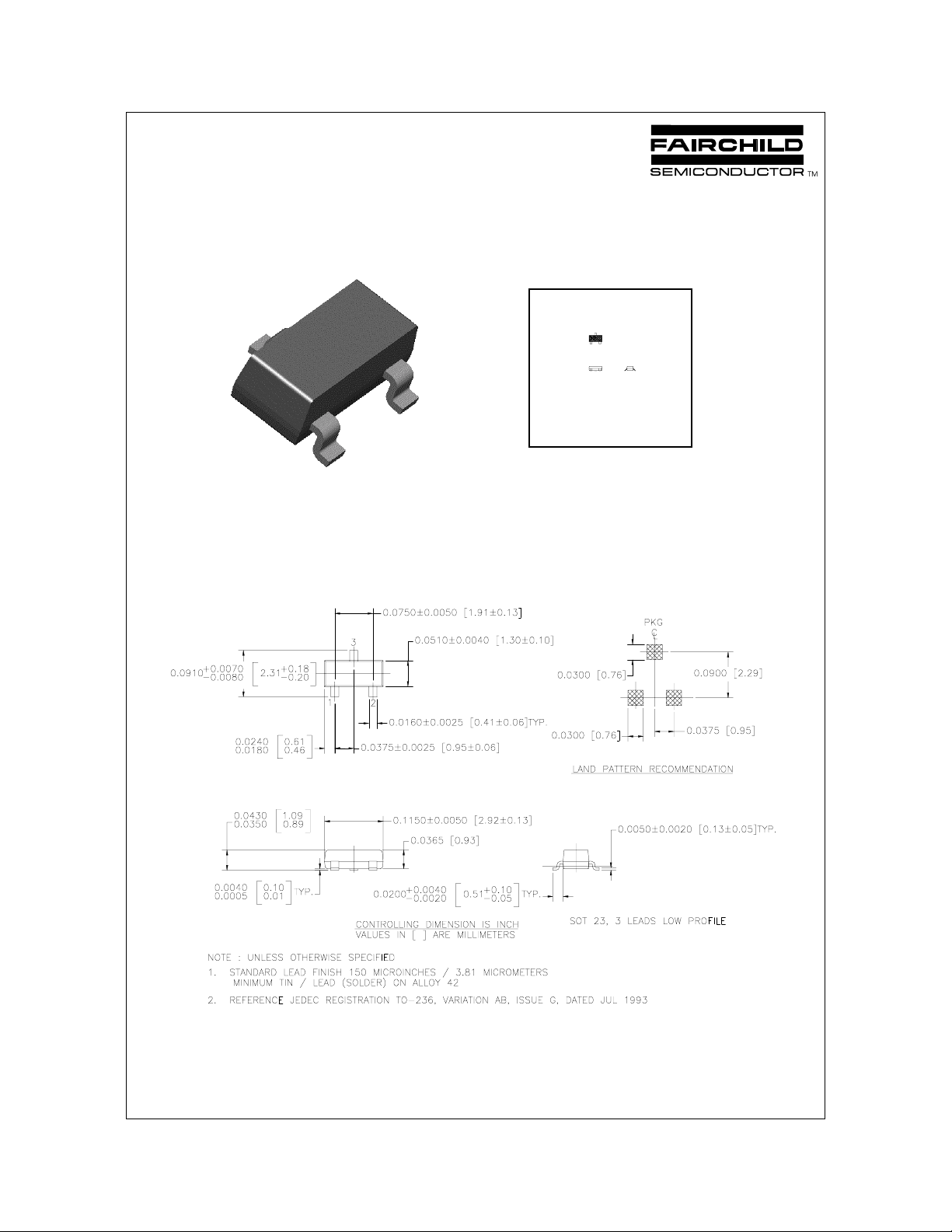

SOT-23 Package Dimensions

SOT-23 (FS PKG Code 49)

1:1

Scale 1:1 on letter size paper

Dimensions shown below are in:

inches [millimeters]

Part Weight per unit (gram): 0.0082

September 1998, Rev . A1

TRADEMARKS

The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is not intended to be an exhaustive list of all such trademarks.

ACEx™ Bottomless™ CoolFET™ CROSSVOLT™ DOME™ E2CMOS EnSigna

TM

FACT™ FACT Quiet Series™



FAST

FASTr™ GlobalOptoisolator™ GTO™ HiSeC™ ISOPLANAR™ MICROWIRE™ OPTOLOGIC™ OPTOPLANAR™ P ACMAN™ POP™

PowerTrench



QFET™ QS™ QT Optoelectronics™

Quiet Series™ SILENT SWITCHER SMART ST ART™ SuperSOT™-3 SuperSOT™-6 SuperSOT™-8



SyncFET™ TinyLogic™ UHC™ VCX™

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN T O IMPROVE RELIABILITY , FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICA TION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS P ATENT RIGHTS, NOR THE RIGHTS OF OTHERS.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORA TION. As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, or (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or

effectiveness.

PRODUCT STA TUS DEFINITIONS Definition of Terms

Datasheet Identification Product Status Definition

Advance Information

Preliminary

No Identification Needed

Obsolete

Formative or In Design

First Production

Full Production

Not In Production

This datasheet contains the design specifications for product development. Specifications may change in any manner without notice.

This datasheet contains preliminary data, and supplementary data will be published at a later date. Fairchild Semiconductor reserves the right to make changes at any time without notice in order to improve design.

This datasheet contains final specifications. Fairchild Semiconductor reserves the right to make changes at any time without notice in order to improve design.

This datasheet contains specifications on a product that has been discontinued by Fairchild semiconductor. The datasheet is printed for reference information only.

Rev. G

This datasheet has been download from:

www.datasheetcatalog.com

Datasheets for electronics components.
