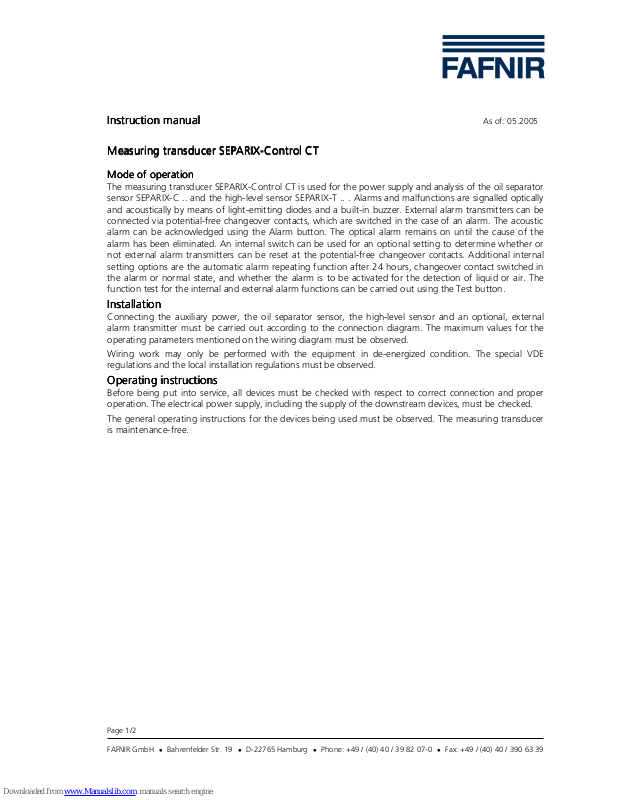

Instruction manual
Instruction manualInstruction manual
Instruction manual
As of: 05.2005
Measuring transducer SEPARIX
Measuring transducer SEPARIXMeasuring transducer SEPARIX
Measuring transducer SEPARIX----Control
ControlControl
Control CT
CTCT
CT
Mode of operation
Mode of operationMode of operation
Mode of operation
The measuring transducer SEPARIX-Control CT is used for the power supply and analysis of the oil separator
sensor SEPARIX-C .. and the high-level sensor SEPARIX-T .. . Alarms and malfunctions are signalled optically
and acoustically by means of light-emitting diodes and a built-in buzzer. External alarm transmitters can be
connected via potential-free changeover contacts, which are switched in the case of an alarm. The acoustic
alarm can be acknowledged using the Alarm button. The optical alarm remains on until the cause of the
alarm has been eliminated. An internal switch can be used for an optional setting to determine whether or
not external alarm transmitters can be reset at the potential-free changeover contacts. Additional internal
setting options are the automatic alarm repeating function after 24 hours, changeover contact switched in
the alarm or normal state, and whether the alarm is to be activated for the detection of liquid or air. The
function test for the internal and external alarm functions can be carried out using the Test button.
Installation
InstallationInstallation
Installation
Connecting the auxiliary power, the oil separator sensor, the high-level sensor and an optional, external
alarm transmitter must be carried out according to the connection diagram. The maximum values for the
operating parameters mentioned on the wiring diagram must be observed.
Wiring work may only be performed with the equipment in de-energized condition. The special VDE
regulations and the local installation regulations must be observed.
Operating instructions
Operating instructionsOperating instructions
Operating instructions
Before being put into service, all devices must be checked with respect to correct connection and proper
operation. The electrical power supply, including the supply of the downstream devices, must be checked.
The general operating instructions for the devices being used must be observed. The measuring transducer
is maintenance-free.
Page 2/2
FAFNIR GmbH Bahrenfelder Str. 19 D-22765 Hamburg Phone: +49 / (40) 40 / 39 82 07-0 Fax: +49 / (40) 40 / 390 63 39
Technical data
Technical data Technical data
Technical data
Auxiliary power
Auxiliary powerAuxiliary power
Auxiliary power 230 V; 50 – 60 Hz; ± 10 %; 8 VA
Sensor c
Sensor cSensor c
Sensor circuits
ircuitsircuits
ircuits
SEPARIX-C ..
Voltage U0 ≤ 14.3 V
Current I0 ≤ 21.2 mA
Power P0 ≤ 75.5 mW
Internal resistance Ri ≥ 673 Ω
Inductance (outward acting) Li negligible
Capacitance (outward acting) Ci ≤ 1 nF
IIC IIB
Outer inductance LO ≤ 80 mH ≤ 300 mH
Outer capacitance CO ≤ 0.68 µF ≤ 4.28 µF
SEPARIX-T ..
Voltage U0 ≤ 15.75 V
Current I0 ≤ 0.154 A
Power P0 ≤ 0.61 W
Internal resistance Ri ≥ 156.8 Ω
Inductance (outward acting) Li negligible
Capacitance (outward acting) Ci ≤ 0.3 nF
IIC IIB
Maximum outer inductance LO ≤ 440 µH ≤ 100 µH ≤5 mH ≤1 mH
Maximum outer capacitance CO ≤ 230 nF ≤ 310 nF ≤ 760 nF ≤ 1.6 µF
Output circuits potential
Output circuits potentialOutput circuits potential
Output circuits potential----free changeover contact
free changeover contactfree changeover contact
free changeover contact
Alternating voltage: U
eff
≤ 250 V; I
eff
≤ 5 A; P
eff
≤ 500 VA; cos ϕ ≥ 0.7
Direct voltage U ≤ 250 V; I ≤ 0.25 A; P ≤ 50 W
Ambient temperature
Ambient temperatureAmbient temperature
Ambient temperature 0 – 40 °C
Labelling:
Labelling:Labelling:
Labelling:
EC type test certificate no.: TÜV 05 ATEX 2819
In compliance with EC Directive 94/9:
0032 II (1) G [EEx ia] IIC / IIB
