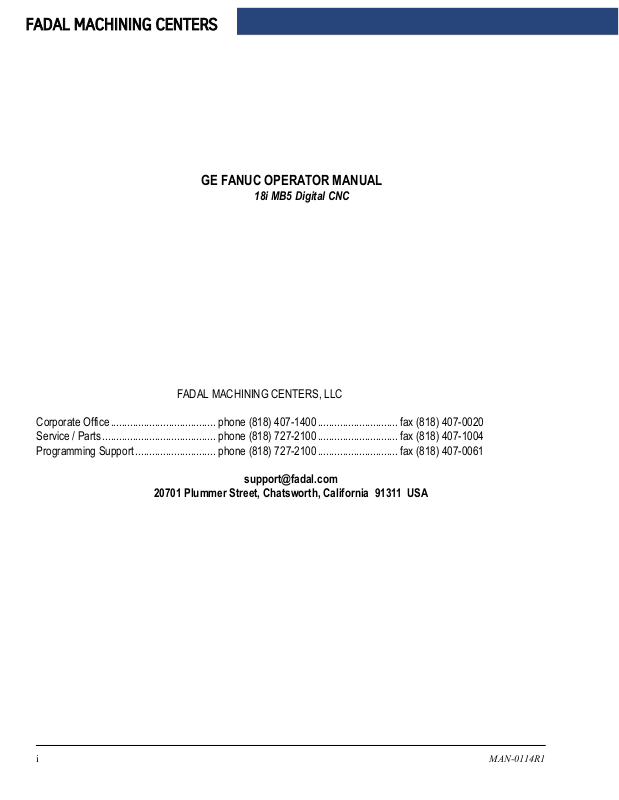

FADAL MACHINING CENTERS
GE FANUC OPERATOR MANUAL
18i MB5 Digital CNC
FADAL MACHINING CENTERS, LLC
Corporate Office...................................... phone (818) 407-1400............................. fax (818) 407-0020
Service / Parts......................................... phone (818) 727-2100............................. fax (818) 407-1004
Programming Support ............................. phone (818) 727-2100 ............................. fax (818) 407-0061
support@fadal.com
20701 Plummer Street, Chatsworth, California 91311 USA
i MAN-0114R1
GE FANUC OPERATOR MANUAL
TABLE OF CONTENTS
1.0 PRESTART CHECKING STEPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.1 OIL RESERVOIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 AIR PRESSURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.3 WATER RESERVOIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.4 FLOOD COOLANT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.5 SPINDLE COOLER RESERVOIR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.0 OPERATOR PANEL LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 POWER ON/OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1.1 POWER ON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1.2 POWER OF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 SAFETY FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.2.1 EMERGENCY STOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.2.2 DOOR OVRD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.2.3 WORK LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2.4 ALARM MSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 OPERATION MODE SELECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3.1 AUTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3.2 EDIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3.3 MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.3.4 REMOTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.5 REF RETURN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.3.6 JOG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
2.3.7 HANDLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
3.0 MANUAL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3.1 MANUAL OPERATION MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1.1 MANUAL REFERENCE POSITION RETURN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.1.2 JOG OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1.3 INC JOG OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1.4 HANDLE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1.5 JOG FEED RATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.0 AUTOMATIC OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.1 AUTOMATIC OPERATION MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
4.1.1 MDI OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1.2 MEMORY PROTECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
4.1.3 DNC OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.1.4 MEMORY PROTECTION KEY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
5.0 TEST FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5.1 TEST FUNCTION MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1.1 SINGLE BLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5.1.2 BLOCK DELETE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
JULY 2005 TABLE OF CONTENTS ii
FADAL MACHINING CENTERS
5.1.3 OPTION STOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
5.1.4 MC LOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.1.5 DRY RUN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.0 MACHINE SETUP FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.1 SETUP MODES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6.1.1 WORK MEAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6.1.2 TOOL MEAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6.1.3 FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6.1.4 HOME PSN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6.1.5 LOAD PSN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.1.6 Z HOME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
7.0 TOOL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7.1 MANUAL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.1.1 DRUM FRWD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7.1.2 DRUM REV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7.1.3 DRUM PSN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
7.1.4 TOOL REL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.1.5 TOOL CHNG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
7.1.6 TOOL LOAD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.1.7 REFERENCE THE DRUM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
7.2 AUTO OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
7.2.1 T-COMMAND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
7.2.2 TOOL CHANGER COMMAND. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
7.3 TOOL MANAGEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
7.3.1 INIT MAG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
7.3.2 TOOL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
7.3.3 TOOL BRKN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
7.3.4 EDIT THE TOOL/MAGAZINE LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
7.3.5 TOOL ORDER PROCEDURE (ATC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
7.3.6 TOOL LOADING (ATC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
7.3.7 TOOL CHANGER (ATC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
8.0 COOLANT OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
8.1 COOLANT CONTROL PUSH BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.1.1 AUTO COOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.1.2 FLOOD COOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
8.1.3 MIST COOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
9.0 SPINDLE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
9.1 SPINDLE OPERATION PUSH BUTTONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9.1.1 SPDL STOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
9.1.2 SPDL CW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
9.1.3 SPDL CCW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
9.1.4 MANUAL SPINDLE SPEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.1.5 M CODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
9.1.6 SPINDLE SPEED RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
9.1.7 SPINDLE OVERRIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
9.1.8 SPINDLE ORIENTATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
iii TABLE OF CONTENTS MAN-0114R1
GE FANUC OPERATOR MANUAL
10.0 HMOP OPERATION GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
10.1 HMOP OPERATION ON/ OFF SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10.2 OVERRIDE SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10.3 MEMORY OPERATION PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
10.4 MANUAL HANDLE FEED PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
10.5 MANUAL JOG FEED PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10.6 MANUAL REFERENCE RETURN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10.7 MANUAL SPINDLE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
10.8 KEY SHEET LAYOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
10.8.1 TOOL REL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
10.9 MESSAGE KEY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
11.0 APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
11.1 M CODE LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
11.2 ALARM LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
11.3 MACHINE COLD START PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
11.4 FANUC FILES BACKUP PROCEDURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
12.0 INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
JULY 2005 TABLE OF CONTENTS iv
FADAL MACHINING CENTERS
1.0 PRESTART CHECKING STEPS
1.1 OIL RESERVOIR Examine the oil levels. Both levels should be filled up to one inch from the bottom of the reservoir. The spindle oil reservoir may have oil in it for up to six months. The way lube oil reservoir may run out of oil in one week.
1.2 AIR PRESSURE Visually inspect the air pressure gauge to verify that it is set to at least 80-100 PSI. Air
NOTE:
VMCs with linear way systems require grease. See the Maintenance Manual on specifications on
the way lube and the spindle oil.
is used to change belt ranges in the spindle, orient the spindle, activate the tool in-out
cylinder, and it is, also, used for the air blast during a tool change. The tool changes
gauge should not exceed 120 PSI.
1 of 53 1.0 PRESTART CHECKING STEPS MAN-0114R1
GE FANUC OPERATOR MANUAL
1.3 WATER RESERVOIR
1.4 FLOOD COOLANT Replenish the flood coolant level to avoid running out of coolant during execution of the
Most new VMC models release water collected in the water reservoir automatically. It is
advisable to place an additional water trap in the air line going to the machine.
program.
1.5 SPINDLE COOLER
RESERVOIR
Examine the spindle cooler reservoir once a month.
JULY 2005 1.0 PRESTART CHECKING STEPS 2 of 53
FADAL MACHINING CENTERS
2.1 POWER ON/OFF
2.0 OPERATOR PANEL LAYOUT
2.1.1 POWER ON
1. Turn On the main breaker
To power on the machine, press the safety lock and turn the power switch in the
clockwise direction.
2. Press the CNC ON push button. CNC will boot up and enter operating status.
2.1.2 P O W E R O F F
Operator Panel B layout
3 of 53 2.0 OPERATOR PANEL LAYOUT MAN-0114R1
GE FANUC OPERATOR MANUAL
X
1. Press the CNC OFF push button.
2. Turn off the main breaker.
To power off the machine, turn the power switch in the counterclockwise direction.
SINGLE
BLOCK
TOOL
MEAS
DOOR
OVRD
CYCLE
STOP
BLOCK
DELETE
MC
LOCK
DRUM
FWD
CYCLE
START
MDIEDITAUTO
OPT
STOP
DRY
RUN
DRUM
REV
PRG
STOP
REMOTE
WORK
MEAS
TOOL
BRKN
WORK
LIGHT
ALARM
MSG
REF
RETURN
HOME
PSN
DRUM
PSN
TOOL
REL
JOG
LOAD
PSN
WASH
DWN
TOOL
CHNG
INC
HANDLE
JOG
X 100 X 10X 1 X 1000
Z
HOME
TOOL
INIT
DATA
MAG
LOAD
TOOL
FUNC
MIST
COOL
+
SPDL
CW
FLOOD
COOL
54
TRVRS
SPDL
STOP
AUTO
COOL
SPDL
CCW
GE Fanuc 18i-MB5 control is equipped with “Main B” Operator Panel. 55 Push button
layout is pictured above.
Clear key caps and custom legends have been installed as presently defined for
machine use. Unless otherwise noted, buttons fit with blank key caps (no legend) are
not defined for user-customer use.
ZY
6
-
2.2 SAFETY FUNCTIONS
2.2.1 EMERGENCY STOP SWITCH
EMERGENCY
STOP
If you press Emergency Stop button on the machine operator’s manual, machine
movement stops in a moment. This button is locked when it is pressed, and can be
unlocked by twisting it.
When the emergency stop is pressed, the emergency stop command is applied to the
machine, and the CNC is reset, spindle and XYZ axes are stopped, and the other
actions are interrupted. CNC will display EMG STOP message on the screen.
JULY 2005 2.0 OPERATOR PANEL LAYOUT 4 of 53
FADAL MACHINING CENTERS
2.2.2 DOOR OVRD
2.2.3 WORK LIGHT
2.2.4 ALARM MSG
2.3 OPERATION MODE
SELECTION
This push button enables opening machine doors without generating Feed Hold &
Cycle Start inhibits. While door override is applied, LED is flashing & Operator Message
(2006 Door open override is active) is displayed to remind that override is active.
Operation of Door Override push button may be selected as latching (default) or
momentary style by user. Latching operation provides On/Off toggle function.
Momentary function requires operator to hold push button while door override is
required.
Operator control of machine’s work light(s). Pressing push button toggles work light On/
Off.
Machine work light is set to automatically turn on with power-up of machine.
Pressing this button will reset the CNC and clear the PMC message.
2.3.1 AUTO
2.3.2 EDIT
2.3.3 MDI
Auto (Memory) Mode (Fanuc operator manual GFZ-63534EN Section 4.1)
Auto Mode also is called Memory Mode. Automatic operation of part program selected
from program files registered in control’s program directory.
Edit Mode (Fanuc operator manual GFZ-63534EN, Section 9)
Edit mode enables entering and editing of part programs stored in control’s part
program directory. Part programs stored on optional Data Server or memory card
inserted in PCMCIA card slot are not available for editing. Programs must be edited
before loading to storage media.
Manual Data Input Mode (Fanuc operator manual GFZ-63534EN, Section 4.2)
MDI mode is used for simple test operation. In the MDI mode, operator can create and
execute a program consisting up to 10 lines from the MDI panel, which is in the same
format as the normal program.
5 of 53 2.0 OPERATOR PANEL LAYOUT MAN-0114R1
GE FANUC OPERATOR MANUAL
2.3.4 REMOTE
2.3.5 REF RETURNE
2.3.6 JOG
2.3.7 HANDLE
Remote Mode (Fanuc operator manual GFZ-63534EN, Section 4.3, 4.13)
Remote mode is also called DNC mode. In the mode, it is possible to perform
machining while a program is being read in via reader/puncher interface, or remote
buffer. Operator can, also, perform machining with execution of the program in the
memory card, which is installed in the memory card interface, which is in the left side of
the screen.
Reference Return Mode (Fanuc operator manual GFZ-63534EN, Section 3.1)
Reference Return gives an opportunity to return all the axes to the machine zero
position.
Continuous Jog Mode (Fanuc operator manual GFZ-63534EN, Section 3.3)
In the continuous jog mode, pressing the direction switch on the operator’s panel
moves the tool along with the selected axes in the selected direction.
Handle (MPG) Mode (Fanuc operator manual GFZ-63534EN, Section 3.4)
In the handle mode, operator can move the axes by rotating the manual pulse
generator on the operator’s panel.
JULY 2005 2.0 OPERATOR PANEL LAYOUT 6 of 53
FADAL MACHINING CENTERS
3.1 MANUAL OPERA-
TION MODES
3.1.1 MANUAL REFER-
ENCE POSITION RETURN
3.0 MANUAL OPERATION
Reference Zero:
Manual reference position return is to move the tool to the reference position using
switches and push buttons located on the operator’s panel. Fadal machines are
equipped with Absolute Encoders. Stored position information from the encoders will
initialize the current machine position at power-up. Manual referencing of axes after
power-up should not be required. When position is established by absolute feedback,
REF RETURN MODE will simply command axes to Home position.
Reference Procedure:
1. Select REF RETURN Mode
2. Select one axis to be referenced by X, Y, Z, 4, or 5 axes button.
Machine axes will move at traverse rate to home position. When each axis has
completed finding the reference position, the related machine coordinate will become to
zero. Press the JOG, JOG INC, HANDLE or AUTO, MDI, and EDIT mode keys to exit
the Reference mode.
Pressing the POS key on the MDI panel will switch to different position display which
includes machine coordinate, absolute coordinate, and related coordinate.
For referencing of machine axes, including initialization of absolute encoder positions,
please see separate maintenance procedure in Appendix.
7 of 53 3.0 MANUAL OPERATION MAN-0114R1
NOTE:
FADAL machines do not use reference deceleration switches for establishing machine home posi-
tion. Dog-less reference operation is provided for referencing axes without reference switches.
Maintenance instructions for dog-less reference must be followed exactly, otherwise machine home
position will not be repeatable.
3.1.2 JOG OPERATION
GE FANUC OPERATOR MANUAL
1. Select JOG Mode.
2. Select one axis to be manually jogged by X, Y, Z, 4 or 5 axes buttons. Axis selec-
tion button does not have to be held down. LED will light indicating selected axis.
Pressing any axis button will automatically de-select previously selected axis. It is
implemented to prevent jogging of more than one axis simultaneously.
3. Press and hold + or - direction button for desired direction of travel. Axis motion will
continue until direction button is released. Direction LED will be lit during motion.
Machine axes will travel at jog rate 200 inch per minute. Feedrate Override rotary
switch may be used to vary jog rate.
4. Pressing TRVRS during continuous jog move will increase axis jog rate to traverse
speed (MAX 900IPM for XY axis, 700IPM for Z axis). Feed rate rotary switch is also
used to override traverse rates.
NOTE:
If the feedrate is at 0%, no motion will occur when using the “+/-” jog button.
6030, 8030 have the Max 400ZPM for X. Y. Z.
JULY 2005 3.0 MANUAL OPERATION 8 of 53
FADAL MACHINING CENTERS
3.1.3 INC JOG OPERATION
Each time a +/- button is pressed, the tool moves by the predetermined distance.
3.1.4 HANDLE OPERATION
1. Select INCR JOG Mode.
2. Select one axis by X, Y, Z, 4 or 5 axes buttons, as in JOG mode.
3. Select desired increment of travel by using X1, X10, X100 or X1000 push buttons.
4. Press + or - direction button for desired direction of travel. Incremental axis motion
of selected distance will be commanded per each press of direction button. Direction LED will be lit during motion.
Incremental travel selection by multiplier setting (X1, X10, X100 or X1000) is based on
the minimum command increment used by FADAL machine, 0.0001 inch or 0.001 mm.
Selection of X1 will command 0.0001” or 0.001mm for each press of direction button.
X10 commanding 0.001” or 0.01mm, (10 x 0.0001” or 10 x 0.001mm) and so on.
X1: 0.0001 inch (0.001mm)
X10: 0.001 inch (0.01mm)
X100: 0.01 inch (0.1mm)
X1000: 0.1 inch (1.0mm)
Handle mode is also referred to as MPG Mode (Manual Pulse Generator). By rotating
the manual handle, the tool moves by the distance corresponding to the degree of
handle rotation.
1. Select Handle Mode.
2. Select one axis by X, Y, Z, 4 or 5 axes buttons, as in JOG mode.
9 of 53 3.0 MANUAL OPERATION MAN-0114R1
GE FANUC OPERATOR MANUAL
3. Select desired increment of travel by using X1, X10, X100 or X1000 push buttons.
X1: 0.0001 inch (0.001mm)
X10: 0.001 inch (0.01mm)
X100: 0.01 inch (0.1mm)
4. Rotate manual pulse generator (MPG) clock-wise or counter clock-wise for plus or
minus motion, respectively. For each detent or “click” of MPG handle, one selected
increment or travel will be commanded. Direction LED will be lit during motion.
NOTE:
Increment travel selection by multiplier settings are used same as during INCR JOG mode. For
example, selection of X10 increment with clock-wise rotation of 15 “clicks” on MPG will command
0.0150” or 0.150mm of travel in plus direction.
NOTE:
When MPG hand wheel is rotated at a rate fast enough to exceed the axis traverse rate, the axis
speed is claimped at the traverse rate and excess rotation of the hand wheel is ignored. In this case,
the distance of axis travel will not equal the amount of hand wheel rotation.
3.1.5 JOG FEED RATE
When the machine is in the JOG mode, the jog feedrate varies from 0 IPM to 240 IPM
since the feedrate switch changes the feedrate from 0% to120%. For example, if Jog
Feedrate Switch is at 100%, the feedrate changes to 200IPM.
This switch affects the rapid speed since it is rapid speed override switch also.
When the HMOP operation ON/OFF switch is turn off, the effective feed override/
feedrate is only related with main operator panel feed override switch.
When the operation ON/OFF switch is turned on, the effective feed override/feedrate
value is that HMOP override switch’s value multiply main operator panel feed override
switch’s value.
NOTE:
If the feed override/feed rate is at 0%, no motion will occur when using the “+/-” jog button or execut-
ing the program.
JULY 2005 3.0 MANUAL OPERATION 10 of 53
FADAL MACHINING CENTERS
4.1 AUTOMATIC OPERATION MODES
4.0 AUTOMATIC OPERATION
4.1.1 MDI OPERATION
In the MDI mode, a program consisting of up to 10 lines can be created in the same
format as normal programs and executed from the MDI panel. MDI operation is used for
simple test operations.
In order to complete this operation, follow the next procedure:
1. Press the MDI mode selection switch.
2. Press the PROG function key on the MDI panel to select the program screen.
3. Prepare a program to be executed by an operation similar to normal program editing. M30, specified in the last block can return control to the beginning of the program after operation ends. Word insertion, modification, deletion, word search,
address search, and program search are available for programs created in the MDI
mode.
4. To entirely erase created program in the MDI mode, use one of the following methods:
• Enter address, and then press the DELETE key on the MDI panel.
• Alternatively, press the RESET key.
5. To execute a program, set the cursor on the head of the program. Push CYCLE
START button on the operator’s panel. By this selection, the prepared program will
start. When the program end (M02, M30) or ER (%) is executed, the program will
be erased and the operation will end. By command of M30, control returns to the
head of the prepared program.
6. To stop or terminate MDI operation in midway through, follow the next steps:
• Stop MDI operation.
Press the feed hold switch on the machine operator’s panel. The feed hold LED
goes on and the cycle start LED goes off.
• Terminate MDI operation.
Press the reset key on the MDI panel. Automatic operation is terminated and the
reset state is entered. When a reset is applied during movement, movement decelerates then stops.
11 of 53 4.0 AUTOMATIC OPERATION MAN-0114R1
GE FANUC OPERATOR MANUAL
4.1.2 MEMORY OPERATION (AUTO MODE)
Programs are registered in memory in advance. When one on these programs is
selected and the cycle start switch on the machine operator’s panel is pressed,
automatic operation starts, and the cycle start LED goes on.
When the feed hold switch in the machine operator’s panel is pressed during automatic
operation, this operation is stopped temporarily. When the cycle start switch is pressed
again, automatic operation is restarted.
When the RESET key on the MDI panel is pressed, automatic operation terminates and
the reset state is entered.
To complete this operation follow the next procedure:
1. Press the MEMORY (AUTO) mode selection switch.
2. Select the program from the registered programs doing the following steps:
• Press PROG to display the program screen.
• Press “+” soft key.
• Press “DIR” soft key and the program library will be displayed.
• Enter a program number using the numeric keys.
• Press the O SRH soft key.
3. Press the cycle start switch on the machine operator’s panel. Automatic operation
starts, and the cycle start LED goes on. When automatic operation terminates, the
cycle start LED goes off.
4. To stop or cancel memory operation midway through, follow the steps below:
• Stopping memory operation.
Press the feed hold switch on the machine operator’s panel. The feed hold LED
goes on and the cycle start LED goes off. The machine responds as follows:
When the machine was moving, feed operation decelerates and stops.
When dwell was being performed, dwell is stopped.
When M, S, or T was being executed, the operation stopped after M, S, or T is fin-
ished.
• Terminating memory operation.
Press the RESET key on the MDI panel.
Automatic operation is terminated and the reset state is entered. When a reset is
applied during movement, movement decelerates then stops.
JULY 2005 4.0 AUTOMATIC OPERATION 12 of 53
FADAL MACHINING CENTERS
4.1.3 DNC OPERATION
By activating automatic operation during the DNC operation mode (REMOTE), it is
possible to perform machining (DNC operation) while a program is being read in via
reader/puncher interface, or remote buffer. If the floppy cassette directory display option
is available, it is possible to select files (programs) saved in an external input/output unit
of a floppy format (Handy file, Floppy Cassettes, or FA card) and specify (schedule) the
sequence and frequency of execution for automatic operation.
To use the DNC operation function it is necessary to set the parameters related to the
reader/punch interface and remote buffer in advance.
To complete this procedure follow the next procedure:
1. Search for the program to be executed.
2. Press the REMOTE switch on the machine operator’s panel to set REMOTE mode,
then press cycle start switch. The selected file is executed.
During DNC operation, the program currently being executed is displayed on the
program check screen and program screen.
The number of displayed program blocks depends on the program being executed.
DNC Operation procedure with memory card:
13 of 53 4.0 AUTOMATIC OPERATION MAN-0114R1
GE FANUC OPERATOR MANUAL
1. Set the parameter of No.0020 to 4 in the setting screen in advance.
2. Change to REMOTE mode.
3. Press PROG function key on the MDI panel.
4. Push “+” soft key twice.
5. When “DNC-CD” soft key is pressed, the following screen is displayed.
The screen can be scrolled by page key. An arbitrary file number is input, and “F SRH”
soft key is pressed. Then the arbitrary file name is displayed at the top of DNC
operation (memory card) screen.
6. Input the file number which is going to be executed.
4.1.4 MEMORY PROTECTION KEY
7. Press the “DNC-ST” soft key, the file name will be displayed in the right side of
DNC FILE NAME:
For example, DNC FILE NAME:O0053
8. Press the CYCLE START button to execute the program selected.
This key is used to prevent part programs, offset values, parameters, and setting data
from being registered, modified, or deleted erroneously.
When the key is in the On position “I”, the memory is protected and operator can’t
change any data in the CNC. When the key is in the Off position “O” operator is able to
register/modify/delete the part programs, offset values, parameters and setting data.
JULY 2005 4.0 AUTOMATIC OPERATION 14 of 53
FADAL MACHINING CENTERS
5.1 TEST FUNCTION MODES
5.0 TEST FUNCTION
5.1.1 SINGLE BLOCK
5.1.2 BLOCK DELETE
5.1.3 OPTION STOP
Single Block (Fanuc Operator Manual GFZ-63534EN, III, Section 5.5)
Single Block Mode executes part program block by block. Single block mode is
implemented to toggle On/Off with press of button.
Pressing the single block switch starts the single block mode. When the cycle start
button is pressed in the single block mode, the tool stops after executing a single block
in the program. Check the program in the single block mode by executing the program
block by block.
Block Skip (Fanuc Operator Manual GFZ-63534EN, II, Section 12.2)
Skip execution of program Block (/). Multi level Block Skip is not supported. Block
Delete is implemented to toggle On/Off with press of button.
Optional Stop on M01 (Fanuc Operator Manual GFZ-63534EN, II, Section 11.1)
Option Stop is implemented to toggle On/Off with press of button. Executing program
will stop at M01 when option stop button is On. Operator needs to push CYCLE START
button to restart the program. It does not affect the program when the option stop button
is Off
5.1.4 PROGRAM STOP
M00 or M01 Program Stop (Fanuc Operator Manual GFZ-63534EN. III, Section 40.1)
Program Stop indicator LED is lit when part program execution is stopped by M00 or
M01 part program.
5.1.5 MC LOCK
15 of 53 5.0 TEST FUNCTION MAN-0114R1
Machine Lock (Test Mode) (Fanuc Operator Manual GFZ-63534EN, III, Section 5.1)
GE FANUC OPERATOR MANUAL
Machine Lock enables execution of part program without axis motion, but M/S/T
command still is able to execute. This button is for test purposes. Machine lock is
implemented to toggle On/Off with press of button.
5.1.6 DRY RUN
Dry Run Feed Rate (Fanuc Operator Manual GFZ-63534EN, III, Section 5.4)
This feed rate forces program federate to fixed “dry run” rate to speed non-cutting
testing of part programs. Dry Run is implemented to toggle On/Off with press of button.
The tool is moved at the feed rate specified by a parameter regardless of the feed rate
specified in the program. This function is used for checking the movement of the tool
under the state that the workpiece is removed from the table. Press the Dry Run switch
on the machine operator’s panel during automatic operation. The tool moves at the
feed rate 900/700 IPM when the feed rate is overridden by 100%. The rapid traverse
switch can also be used for changing the feed rate. The Dry Run feed rate changes as
shown in the table below according to the rapid traverse switch and parameters.
For X and Y axis, when the DRY RUN button is “ON”.
Rapid traverse button
ON
OFF
Program command
Rapid traverse Feed
700IPM 500IPM
900* Feedrate
override IPM
500*Feedrate
override IPM
*1
Rapid traverse button
For Z axis, w hen the DR Y RUN button is “ON”.
Program command
Rapid traverse Feed
ON
OFF
JULY 2005 5.0 TEST FUNCTION 16 of 53
*1. Speed is Clamped to maximum feedrate 500IPM
NOTE:
When the machine is in the Auto/Remote mode, operator can only turn on Dry Run by pressing Dry
Run & Func key at the same time.
700IPM 500IPM
700* Feedrate
override IPM
500*Feedrate
override IPM
*1
FADAL MACHINING CENTERS
6.1 SETUP MODES
6.0 MACHINE SETUP FUNCTION
6.1.1 WORK MEAS
6.1.2 TOOL MEAS
6.1.3 FUNCTION
Work Offset Setting (Fanuc Operator Manual GFZ-63534EN, III, Section 11.4.14)
This measurement simplifies setup of work/fixture offsets using Measurement B
feature. Please refer the Fanuc operator manual for the details.
Tool Length (Fanuc Operator Manual GFZ-63534EN, III, Section 11.4.14)
This measurement simplifies setup of tool length offsets using Measurement B feature.
Please refer the Fanuc operator manual for the details.
Function button
FUNC
Horizontal mounting of Operator Panel in Fadal pendant exposes operator buttons to a
more varied environment. To prevent accidental activation of selected operator panel
operations, the FUNC button is required to be pressed in combination with desired
operator panel function.
Operator Panel functions currently requiring FUNC button are:
HOME PSN LOAD PSN Z HOME INIT MAG
TOOL DATA TOOL CHNG LOAD TOOL
SPDL CCW SPDL CW TOOL BRKN
6.1.4 HOME PSN
Macro Program Positioning Axes to Home Position FUNC
Pressing this button will call the macro program which commands axes to machine
position of X0.0 Y0.0 Z0.0 using G53 traverse moves. Program will command Z-axis to
0.0 first, before X & Y axes motion are commanded.
FUNC button must be pressed simultaneously with HOME PSN to execute program.
17 of 53 6.0 MACHINE SETUP FUNCTION MAN-0114R1
GE FANUC OPERATOR MANUAL
6.1.5 LOAD PSN
6.1.6 Z HOME
Macro Program Positioning Axes to Table Load PSN FUNC
Pressing this button will call the macro program which commands axes to machine
position of X0.0, Z0.0, and Y plus limit position using G53 traverse moves. Table
position is in front and center. When control is set for metric operation, macro program
will automatically command to X0.0, Y+Limit, Z0.0 in mm units FUNC button must be
pressed simultaneously with LOAD PSN to execute program.
Macro Program Positioning Axes to Table Load PSN FUNC
Pressing this button will call the macro program which commands Z-axis to machine
position of Z0.0 using G53 traverse move.
FUNC button must be pressed simultaneously with Z HOME to execute program.
JULY 2005 6.0 MACHINE SETUP FUNCTION 18 of 53
FADAL MACHINING CENTERS
7.1 MANUAL OPERATION
7.0 TOOL OPERATION
7.1.1 DRUM FWD
7.1.2 DRUM REV
7.1.3 DRUM PSN
Manual Index of Tool Drum in Forward Direction
Commands are manually jogging or indexing of the tool drum in forward direction.
Forward direction is defined as indexing of tool pots in rising order:... 23, 24, 1, 2, 3,...
Rotating is counter clock-wise when looking at the back of tool operator station.
Jog Mode is required. Operator may hold down button for indexing of multiple tool pots,
or press momentarily to index one tool. DRUM PSN button can be used to display tool
pot at tool change (bottom) position. Operator message will update while tool carousel
is being manually rotated.
Manual Index of Tool Drum in Reverse Direction
Commands are manually jogging or indexing of the tool drum in reverse direction.
Reverse direction is defined as indexing of tool pots in decreasing order:... 3, 2, 1, 24,
23,... Rotating is clock-wise when looking at the back of tool drum from the operator
station.
Jog Mode is required. Operation is same as used for DRUM FWD.
Display of Tool Drum Position by Operator Message
Use of this button activates display of Operator Message containing tool pocket number
at tool change (button) position of carousel.
DRUM PSN message is set to automatically turn on with power-up of machine. Position
of Tool Drum is maintained in battery backed PMC Data table while machine is powered
down.
Operator may turn the message On/Off at any time using DRUM PSN push button.
19 of 53 7.0 TOOL OPERATION MAN-0114R1
GE FANUC OPERATOR MANUAL
7.1.4 TOOL REL
Tool Release (Draw Bar Open)
This button is for manually loading/uploading a tool holder. Operator must be prepared
to catch tool from spindle cartridge immediately upon pressing button. Spindle air is
turned on along with release of tool. Draw bar will open after pressing the button more
that 1 second and remain open while push button is still held.
Spindle must be stopped with control in JOG or HANDLE modes to enable tool release.
Unloading tool procedure:
1. The tool holder must be held in the left hand with the thumb and the first finger
grasping the holder below “V” groove. No other fingers should have contact with the
holder or the tool in the holder. The area below the “V” groove is called the safe
zone. The safe zone is the only place where the tool holder should be held.
RETENTION KNOB
V GROOVE
SAFE ZONE
2. Press the TOOL REL button. Keep the TOOL REL button pressed until the tool is
completely out of the spindle.
Loading tool procedure:
1. The tool holder must be held in the left hand with the thumb and the first finger
grasping the holder below the “V” groove. No other fingers should have contact with
the holder or the tool in the holder. The area bellow “V” groove is called the safe
zone. The safe zone is the only place where the tool holder should be held.
JULY 2005 7.0 TOOL OPERATION 20 of 53
FADAL MACHINING CENTERS
2. Place the holder into the spindle after pressing the TOOL REL button, not before.
The keys on the nose of the spindle must fit into the key-ways on the tool holder
flange.
3. Release the TOOL REL button to lock the tool into the spindle.
NOTE:
When loading a holder into the spindle, inspect the taper for chips and dents. Remove any chips or
dents from the taper with a flat stone.
Confirm the retention knob is securely tightened before placing the tool in the spindle.
After load a tool holder info the spindle, operator needs to edit the magazine management to write
the spindle tool number into the SPDL1 column, and then use the TOOL CHNG to load the spindle
tool into the magazine/carousel.
7.1.5 TOOL CHNG
7.1.6 TOOL LOAD
Macro Program Execute Tool Change FUNC
(Only for DATC)
Pressing this push button will execute macro program O8988. Program executes swap
of tool between spindle cartridge and current position of TOOL DRUM.
This button is for manually unloading of tools between spindle and tool drum, or loading
of tool to specific tool drum pot. Operator can position tool drum prior to use of TOOL
CHNG button.
During tool loading, operator may input tool number into spindle window on Tool
Magazine screen. Tool Change cycle will move tool number to magazine. Alternatively,
operator may edit magazine table once tools are loaded. Upon removal of tool from
spindle, operator should delete tool number from spindle window on Tool Magazine
screen.
FUNC button must be pressed simultaneously with TOOL CHNG to execute program.
Macro Program for Loading Tools FUNC
Machine with DATC:
Pressing this push button will execute the macro program O8989. Program searches
for and positions to empty tool pot in tool drum. Then executes swap of new tool from
spindle cartridge into empty tool pot.
This function is provided for manual tool loading from to tool drum. Operator to input
tool number from spindle window on Tool Magazine screen so that tool number can be
loaded to magazine, or edit magazine and spindle tool data after tools are loaded.
FUNC button must be pressed simultaneously with LOAD TOOL to execute program.
FUNC+LOAD TOOL procedure
• Manually load the tool to the spindle according the TOOL REL procedure.
• Press JOG or HANDLE mode.
• Press OFFSET/SETTING key on the MDI panel.
• Press “+” soft key below the LCD screen.
21 of 53 7.0 TOOL OPERATION MAN-0114R1
GE FANUC OPERATOR MANUAL
• Press TL-MNG soft key.
• Press MAG to enter the tool data management screen.
• Press “OPRT” soft key.
• Press EDIT soft key, the EDITING will be displayed on the screen.
• Move the cursor to the most right column: SPDL1.
• Input the tool number of the current spindle tool into the Spindle Tool column.
• Press INPUT, the tool number will be displayed in the SPDL1 column.
• Press FUNC+LOAD TOOL, tool will be loading the magazine automatically, and
the MAG management will be updated.
• Press OPRT.
• Press END to end the tool management editing.
NOTE:
Operator need register the tool into the management first before load the new tool.
Machine with ATC:
Press the push button with FUNC button will execute the macro program O8989.
Program positions to specific tool pot in tool drum, and then load the spindle tool into
the specific tool pot.
This function is provided for manually loading tools from spindle to TOOL DRUM.
Operator input tool number from spindle window on Tool Magazine screen so that tool
number can be loaded to magazine, or edit magazine and spindle tool data after tools
are loaded.
FUNC button must be pressed simultaneously with LOAD TOOL to execute program.
FUNC+LOAD TOOL procedure
• Manually load the tool to the spindle according the TOOL REL procedure.
• Press JOG or HANDLE mode.
• Press OFFSET/SETTING key on the MDI panel.
• Press “+” soft key below the LCD screen.
• Press TL-MNG soft key.
• Press MAG to enter the tool data management screen.
• Press “OPRT” soft key.
• Press EDIT soft key, the EDITING will be displayed on the screen.
• Move the cursor to the most right column: SPDL1.
• Input the tool number of the current spindle tool into the Spindle Tool column.
• Press INPUT, the tool number will be displayed in the SPDL1 column.
• Press FUNC+LOAD TOOL, tool will be loading the magazine automatically, and
the MAG management will be updated.
• Press OPRT.
• Press END to end the tool management editing.
NOTE:
Operator need register the tool type into the management first before load the new tool.
JULY 2005 7.0 TOOL OPERATION 22 of 53
FADAL MACHINING CENTERS
7.1.7 REFERENCE THE DRUM (ONLY FOR DATC)
7.2 AUTO OPERATION
7.2.1 T-COMMAND (TOOL NUMBER)
NOTE:
If the tool management screen, MAG has the same tool already, operator should clear this maga-
zine pot using EDIT and take the tool out from that magazine manually first before try to load
another tool.
1. Press REF RETURN button.
2. Press X1 button. The drum will automatically move to the number 1.
Eight digit T-Word may be programmed in block with or without M06 code.
T-Word programmed in block by itself will position tool carousel with position tool
carousel with programmed tool at 6 o’clock position (DATC) for next tool change.
Rotation of carousel will not inhibit continued execution of part program (FIN) as
carousel is away from work area. For DATC, this enables cycle time reduction of part
program execution, by allowing next tool to be immediately ready for tool change.
Programming T-Word after M06 will command positioning of carousel, followed by
immediate tool change. T-Word must be programmed following M06 in block, as TWord is argument passed to M06 macro program.
Programming T-code of tool that is already at tool change (6 o’clock) position will
command no activity by tool carousel, as requested tool, is already at tool change
position.
T-Word may be used to position tool carousel by pocket number when combining with
M100 miscellaneous code.
M100T5: Position carousel to tool pocket #5. Pocket #5 will be selected regardless of
tool number in pocket, or if pocket empty.
7.2.2 TOOL CHANGER COMMAND
ATC:
M06 Txx command from part program executes tool change cycle for carousel type
ATC tool changer. M06 command calls macro program O9021, which executes
required Z-axis motion commands & special Miscellaneous Codes (M- Codes) for
execution of the tool change cycle.
Tool number (T-Command) must always follow M06 code in program block. M06
programmed in block without T-Code following, or T-Code preceding M06 is illegal
syntax for this machine.
M06 T10: Proper Command Syntax
M06: Illegal, Macro Error 3020 will result
T05 M06: Illegal, Macro Error 3020 will result
23 of 53 7.0 TOOL OPERATION MAN-0114R1
GE FANUC OPERATOR MANUAL
NOTE:
Tool changer syntax on other makes/models of machines using GE Fanuc or Fanuc controls may
differ. Operation of syntax on this machine is as listed above, and not selectable.
WARNING !
1. Special M-Codes contained in macro program O9021 must never be used in enduser part programs without specific permission of Fadal Machining Centers. Any
use other than in O9021 macro cycle is the responsibility of the machine user/operator/programmer. Machine damage can occur.
2. End-user should always refer to Fadal Machining Centers Operator Manual: applicable to this machine, for proper M-Codes to be used during part programming.
3. Macro program O9021 must never be edited without permission of Fadal Machining Centers. Machine damage can occur.
DATC:
M06 command from part program executes tool change cycle for “dual arm” type DATC
tool changer. M06 command calls program O9020, which executes required Z-axis
motion commands & special Miscellaneous Codes (M-Codes) for execution of the tool
change cycle.
Tool number (T-Command) must follow M06 code in program block, when M06 and Txx
code are programmed in the same block. T-Code preceding M06 in same block is
improper syntax for this machine. T-Code may be programmed alone, in previous block
to provide positioning of TOOL DRUM prior to tool change. This method improves part
program cycle time.
T10: Tool Drum positions, following operations will continue
while drum.
G01 X . . ., Positions to Tool from pocket containing T10 tool.
. . . ,
. . . ,
M06: Tool change. T10 will be inserted into spindle, old tool to
empty pocket. D and/or H codes must be added after tool
change for offsets as required.
M06:T4 Legal. Tool Drum will position during tool change.
T05M06: Illegal command. Tool changes as intended will not occur.
Programming M06, without programming a new tool number, will not command a swap
of tools between the carousel and spindle. When no new tool number has been
specified, and the active tool is already in the spindle, it is expected that no tool change
is required.
JULY 2005 7.0 TOOL OPERATION 24 of 53
FADAL MACHINING CENTERS
7.3 TOOL MANAGEMENT
7.3.1 INIT MAG
NOTE:
Tool changer syntax on other makes/models of machines using GE Fanuc or Fanuc controls may
differ. Operation of syntax on this machine is as listed above, and not otherwise selectable.
WARNING !
1. Special M-Codes contained in macro program O9020 must never be used in enduser part programs without specific permission of Fadal Machining Centers. Any
use other than in O9020 macro cycle is the responsibility of the machine user/operator/programmer. Machine damage can occur.
2. End-user should always refer to Fadal Machining Centers Operator Manual: applicable to this machine, for proper M-Codes to be used during part programming.
3. Macro program O9020 must never be edited without permission of Fadal Machining Centers. Machine Damage could occur.
Macro Program Initial Tool Magazine Data FUNC
Pressing this push button will execute macro program O8986 which initials tool data
from magazine. Tool numbers in all tool drum pots are initialized to the related pocket
number. Tool number in the spindle is initialized to “0” indicating no tool in the spindle.
So, operator should take the tool off from the spindle after execution of this function.
FUNC button must be pressed simultaneously with INIT/CLR MAG to execute program.
7.3.2 TOOL DATA
NOTE:
Please take off the spindle tool after execute this function since this function clears the spindle tool
number to zero. Ignore this note to take off the tool from the spindle will cause tool changer crash.
Macro Program Loads Tool Management Data FUNC
Pressing this push button will execute macro program O8987 which demonstrates
loading of tool management data by part program command. Tool numbers 1-24 (1maximum of tool pocket numbers) are loaded as well as tool groups demonstrating tool
life setting by count and by time. The default setting is not tool management for those
tools of this function. FUNC button must be pressed simultaneously with TOOL DATA
to execute program.
NOTE:
User may setup the tool management function by manually setup the tool management screen
according their requirement.
25 of 53 7.0 TOOL OPERATION MAN-0114R1
GE FANUC OPERATOR MANUAL
7.3.3 TOOL BRKN
7.3.4 EDIT THE TOOL/ MAGAZINE LIST
Tool Broken FUNC
Pressing TOOL BRKN and FUNC button at the same time is a shortcut to mark active
tool as broken/ damaged in the tool management. This function enables operator to
mark tool as damaged without editing Tool Management Data. Tool management will
not select a damaged tool for use, from the tool group.
Edit the tool data:
• Press MDI button.
• Press OFFSET/ SETTING.
• Press “+” soft key.
• Press TL-MNG soft key.
• Press TOOL soft key to enter the tool data page.
• Press OPRT soft key.
• Press EDIT soft key to start editing the tool data.
• Press OPRT soft key gain after editing is finished.
• Press END soft key to exit tool data the editing mode.
Edit the Magazine data:
• Press MDI button.
• Press OFFSET/SETTING.
• Press “+”soft key.
• Press TL-MNG soft key.
• Press MAG soft key to enter the magazine data page.
• Press OPRT soft key.
• Press EDIT soft key to start editing the magazine data.
• Press OPRT soft key again after editing is finished.
• Press END soft key to exit magazine data the editing mode.
7.3.5 TOOL ORDER PROCEDURE (ONLY FOR ATC )
Procedure:
1. Move the drum to the number 1.
2. Execute the M11 to establish the tool order (the pocket number1) in the MDI mode.
3. Cycle the power.
NOTE:
7.3.6 TOOL LOADING (ATC)
JULY 2005 7.0 TOOL OPERATION 26 of 53
If user does not cycle the power after M11, that may cause the tool changer crash happening.
Turret (ATC) open for loading:
1. Change the machine to the MDI mode and execute the M150.
FADAL MACHINING CENTERS
M150 M-Code is provided to emulate Fadal control operation for manual tool
change. M150 will return tool in the spindle to carousel pocket and raise Z-axis to
clear tools. Carousel in left “out” position, enables operator to rotate carousel to
next tool.
NOTE:
M151 command may be used to pick up next tool, if desired. M150 will position above carousel
when no tool is in the spindle to be returned.
2. Change the mode to Jog, and use the DRUMFWD/DRUM REV button to rotate the
turret.
Operator can press FUNC+DRUM POS button to display the drum current position.
3. Change the machine to the MDI mode and execute the M151.
M151 M-Code is provided to emulate Fadal control operation for manual tool
change. M151 will proceed from position machine left by M150 cycle. After operator
has manually indexed tool carousel to desired new tool, executing M151 will pick
up operator-selected tool from carousel and return carousel to home position.
NOTE:
When user loads tools into the turret, they can place tools in the turret and use DRUM FWR/DRUM
REV button to put the next tool in the turret until all the tools are placed in the turret. Rotate the turret
until the first tool is in the number one position before setting the tool order (using M11 to establish
tool order).
WARNING !
1. M150 is provided for MDI use only to return tool to carousel. Use of the M150/M151
commands is responsibility of the machine operator. Machine damage may occur in
unintended use.
2. M151 is provided for MDI use only after M150 command for return of active tool to
carousel, and positioning of Z-axis above the carousel. Use of M150/M151 is the
responsibility of the machine operator. Machine damage can occur during unintended use.
3. M150/M151 commands should never be used during Automatic execution of part
programs.
7.3.7 TOOL CHANGER (RECOVERY ATC)
27 of 53 7.0 TOOL OPERATION MAN-0114R1
1. Press the RESET to disable the alarm.
NOTE:
If the alarm can not be disable, operator may cycle the power to clear the alarms.
2. Execute the M186 in the MDI mode to get the turret to the home position if the Z
axis still is in the home position.
GE FANUC OPERATOR MANUAL
NOTE:
User may move the Z axis to the safe area before return of the slide according to the real situation.
3. Move to the cold start position using either REF RETURN or G28.
4. Use the DRUM FWD/DRUM REV button to rotate the turret to the number 1.
5. Execute the M11 to establish the drum number 1. Cycle the power.
6. Double check the tool management to see if it is right. Edit it to make it right if it
needs.
JULY 2005 7.0 TOOL OPERATION 28 of 53
FADAL MACHINING CENTERS
8.1 COOLANT CONTROL PUSH BUTTONS
8.0 COOLANT OPERATION
8.1.1 AUTO COOL
8.1.2 FLOOD COOL
8.1.3 MIST COOL
AUTO COOL push button selects automatic control of coolant by programmed M-Code.
AUTO COOL button toggles on/off, as indicated by LED. While AUTO COOL is
active, manual coolant control buttons MIST COOL AND FLOOD COOL are
inhibited. AUTO COOL “OFF” enables control of coolant. AUTO COOL is defaulted
to “ON” condition at power-up.
When AUTO COOL is on, the following M-Code is used to control the coolant system:
M-Code:
M7: Mist coolant ON; Coolant though spindle ON
M8: Flood coolant ON
M9: Mist coolant, Flood coolant, coolant though spindle OFF
FLOOD COOL turns on/off the flood coolant pump when the AUTO COOL is off.
MIST COOL turns on/off the mist coolant pump and coolant through spindle solenoid
when the AUTO COOL is off.
NOTE:
FLOOD COOL and MIST COOL may be turned on simultaneously. MIST COOL also turns on the
coolant through spindle pump if the machine has this option.
29 of 53 8.0 COOLANT OPERATION MAN-0114R1
9.1 SPINDLE OPERATION PUSH BUTTONS
GE FANUC OPERATOR MANUAL
9.0 SPINDLE OPERATION
9.1.1 SPDL STOP
9.1.2 SPDL CW
9.1.3 SPDL CCW
Manual Spindle Stop
SPDL STOP applies stop to spindle running in either CW or CCW direction. SPDL
STOP button is inhibited when CYCLE START LED is on, indicating automatic cycle is
active. SPDL STOP does not cancel active spindle speed “S” word command. SPDL
STOP may be used from any automatic or manual mode.
Manual Spindle Start Clock-Wise & Spindle Jog CW FUNC
SPDL SW provides dual functions, based on operating mode of control.
Manual Spindle Start Counter Clock-Wise & Spindle Jog CCW FUNC
SPDL CCW, also, provides dual function, based on operating mode of control.
JOG Mode
X
SPDL CW
X
X
SPDL CCW
X
MDI , AUTO or
RE MOTE Mode
Jog Spindle in CW direction
Spindle Start in CW direction
Jog Spindle in CCW direction
Spindle Start in CCW direction
JULY 2005 9.0 SPINDLE OPERATION 30 of 53
FADAL MACHINING CENTERS
9.1.4 MANUAL SPINDLE SPEED
9.1.5 M CODE / S CODE
Spindle jog speed is defined in PMC data table. Spindle Speed Override rotary switch is
applied to spindle jog speed. Spindle will jog while FUNC+ SPNDL CW/CCW button is
held. Spindle will stop when CW/CCW button is released.
M command:
M3: Spindle CW rotate.
M4: Spindle CWW rotate.
M5: Spindle Stop.
M41: Spindle low gear range.
M42: Spindle high gear range.
S command: Spindle rotation speed command
The spindle speed can be specified directly by address S followed by a maximum fivedigit value (min-1). The unit is rotation per minute (RPM).
The S command must be specified with M3/M4 command in the same block to run the
spindle. Using M5 command or pressing RESET can stop the spindle.
Example: S10000; spindle rotation speed is 10000RPM.
M3 S2000 (Spindle CW, 2000RPM).
M4 S2000 (Spindle CCW, 2000RPM).
M5 Spindle stop.
9.1.6 SPINDLE SPEED RANGE
NOTE:
Use of FUNC+SPDL CW/CCW as spindle start in MDI, Auto & Remote Modes is inhibited when
Cycle Start LED is on, and also by state of door interlock. Programmed “S” word must be active for
use of buttons for spindle start. Care should also be used in CW/CCW rotation.
The spindle speed of Fadal VMC has the different configuration.
For EMCD, 2016, 2216, 3016 machines with maximum spindle speed 7.5K, the spindle
has a single range30-7500 RPM.
For 2216, 3016 machines with maximum spindle speed 15K, the spindle has a single
range 30-15000 RPM.
For 3020, 4020, 4525, 5020, 6030, 8030, 6535 40T machines with maximum spindle
speed 15K with a electrical high/low, the spindle range is as follows:
Low range: 30-2500
High range: 2501-15000
The VMC machines with mechanical Hi/Lo and the maximum speed Is 10K, the spindle
ranges are as follows:
Low range: 30-2500
High range: 2501-10000
31 of 53 9.0 SPINDLE OPERATION MAN-0114R1
GE FANUC OPERATOR MANUAL
9.1.7 SPINDLE OVERRIDE
9.1.8 SPINDLE ORIENTATION
Spindle override 50%-120%
This switch will adjust the commanded spindle speed by 50% to 120%.
Spindle orientation command for tool changer:
M190 : Spindle orientation
Execution of the M5/M3/M4 command or pressing the RESET key will release the
spindle orientation command.
M19: Spindle special orientation command for cycles
M19 positions spindle aligned with X & Y plane to provide for proper tool alignment during M19 ori-
ent cycles which is used during Fine Boring and Back boring canned cycles.
NOTE:
M19 should be used for the Fine Boring and Black Boring canned cycles only. Using M19 for other
purposes may cause machine crash.
JULY 2005 9.0 SPINDLE OPERATION 32 of 53
FADAL MACHINING CENTERS
SINGLE LED
10.0 HMOP OPERATION GUIDE
EMERGENCY
STOP
OPERATION ON/OFF
INPUT KEY
WITH LEDx20
MANUAL
PULSE
GENERATOR
OVERRIDE SWITCH
33 of 53 10.0 HMOP OPERATION GUIDE MAN-0114R1
GE FANUC OPERATOR MANUAL
CAUTION: (refer to FANUC HMOP manual)
Please hold the handy machine operator’s panel through belt. When operator holds the
handy machine operator’s panel without using belt, the handy machine operator’s panel
may be dropped. This unit has an enabling switch. When operator is surprised with
unexpected motion, he should release the enabling switch.
10.1 HMOP OPERA-
TION ON/OFF SWITCH
10.2 OVERRIDE SWITCH
Turn on this switch for the purpose of selecting the operation by handy machine
operator’s panel. Turn off this switch for operation by main operator’s panel. When
HMOP ON/OFF switch is turned on, the operator is permitted to use machine using
HMOP only. If HMOP ON/Off switch is turned off, the operator is permitted to use
machine using pendant.
CAUTION:
Please do not turn off the operation ON/OFF switch in the situation when operator
exposes himself to danger. When the operation ON/OFF switch is turned off, the
operation from main operator’s panel is possible, but it is dangerous.
The function of this switch is same as the feed rate switch on the main operator panel.
When the operation ON/OFF switch is turned on, the effective override value is that
HMOP override switch’s value multiply main operator panel feed override switch’s
value.
Example: The operation switch is on.
Main operator panel feed override is 80%
HMOP feed override is 50%
The effective feed override for the machine is 40%
80% x 50% = 40%
When the operation ON/OFF switch is turned off, the effective feed override is only
related with main operator panel feed override switch.
The keys for each of the next procedures are shaded.
JULY 2005 10.0 HMOP OPERATION GUIDE 34 of 53
FADAL MACHINING CENTERS
10.3 MEMORY OPERATION PROCEDURE
XYZ
456
HANDLE JOG
Xn MEM
SINGLE
BLOCK
• Refer the FANUC operator manual to select the program and call it out to memory to run.
• Turn on the HMOP operation ON/OFF switch.
• When the [MEM] key is pushed, mode is changed to MEM operation mode.
• When the [CYCLE START] key is pushed, automatic operation is started.
• When the [FEED HOLD] key is pushed, automatic operation is stopped.
• When the [RESET] key is pushed, CNC is reset. Reset and rewind signal should
be on for rewinding part program.
REF
DRY
RUN
SPINDL
START
SPINDL
INC
TOOL
REL(F1)
CYCLE
START
SPINDL
STOP
SPINDL
DEC
MESSAGE RAPID
FEED
HOLD
RESET
+
-
10.4 MANUAL HANDLE FEED PROCEDURE
• Override can be applied to feed rate speed by the override switch on handy
machine operator’s panel. Set feed rate override signal from 0% to 120% according
to the override switch position.
• For test operation [DRY RUN] and [SINGLE BLOCK] are available.
• One axis position is displayed normally. When the [XYZ456] key is pushed next
axis position is displayed.
XYZ
456
HANDLE JOG
Xn MEM
SINGLE
BLOCK
• When the [HANDLE] key is pushed, mode is changed to manual handle feed
mode.
REF
DRY
RUN
SPINDL
START
SPINDL
INC
TOOL
REL(F1)
CYCLE
START
SPINDL
STOP
SPINDL
DEC
MESSAGE RAPID
FEED
HOLD
RESET
+
-
35 of 53 10.0 HMOP OPERATION GUIDE MAN-0114R1
GE FANUC OPERATOR MANUAL
• The axis, which is moved by MPG, is selected by pushing the [XYZ456] key several times.
• When [Xn] key is pushed, manual handle feed amount selection is applied.
Please select X1-X10-X100 by pressing several times of this key.
• When the [RESET] key is pushed, the moving axis is stopped.
10.5 MANUAL JOG
FEED PROCEDURE
XYZ
456
HANDLE JOG
Xn MEM
SINGLE
BLOCK
• When the [JOG] key is pushed, mode is changed to manual continuous feed
mode.
• The axis, which is moved by the [JOG] key, is selected by pushing the [XYZ456]
key several times.
• When the “+” key is pushed, the desired axis moves to positive direction. When
the “-” key is pushed, the desired axis moves to negative direction.
• When the [RAPID] key is pushed, at the same time, rapid traverse is selected.
• Override can be applied to manual feed rate by the override switch on the handy
machine operator’s panel. Set manual feed rate override signal from 0% to 120%
(0 IPM to 240 IPM) according to the override switch position.
REF
DRY
RUN
SPINDL
START
SPINDL
INC
TOOL
REL(F1)
CYCLE
START
SPINDL
STOP
SPINDL
DEC
MESSAGE RAPID
FEED
HOLD
RESET
+
-
• When the [RESET] key is pushed, the moving axis are stopped.
JULY 2005 10.0 HMOP OPERATION GUIDE 36 of 53
FADAL MACHINING CENTERS
10.6 MANUAL REFERENCE RETURN
10.7 MANUAL SPINDLE CONTROL
XYZ
456
HANDLE JOG
Xn MEM
SINGLE
BLOCK
• When the [REF] key is pushed, mode is changed to manual continuous feed
mode and manual reference position return selection signal “ZRN” is asserted.
• The axis, which is moved for manual reference position return, is selected by
pushing the [XYZ456] key several times.
• When the “+” key or the “-” key is pushed, the axis moves to the direction of reference position.
XYZ
456
HADNLE JOG
Xn MEM
SINGLE
BLOCK
REF
DRY
RUN
REF
DRY
RUN
SPINDL
START
SPINDL
INC
TOOL
REL(F1)
CYCLE
START
SPINDL
START
SPINDL
INC
TOOL
REL(F1)
CYCLE
START
SPINDL
STOP
SPINDL
DEC
MESSAGE RAPID
FEED
HOLD
SPINDL
STOP
SPINDL
DEC
MESSAGE RAPID
FEED
HOLD
RESET
+
-
RESET
+
-
• When [SPINDL START] key is pushed, spindle motor is rotated to the direction
which is designed with the speed at the decided override.
• When [SPINDL STOP] key is pushed, spindle motor is stopped.
• When [SPINDL INC] key or the “SPINDL DEC” key is pushed, override of speed
is changed. The changing rate is 50% - 120%.
10.8 KEY SHEET
LAYOUT
37 of 53 10.0 HMOP OPERATION GUIDE MAN-0114R1
FANUC standard key sheet A is as follows. This key sheet is put on the standard unit.
GE FANUC OPERATOR MANUAL
Tool Release Button (F1 Function)
10.8.1 TOOL REL
NOTE:
XYZ
456
HADNLE JOG SPINDL
Xn MEM TOOL
SINGLE
BLOCK
Same function as the TOOL REL button on the operator panel.
It is used for manually loading/unloading a tool holder use HMOP when the HMOP
switch is on. Operator must be prepared to catch tool from spindle cartridge
immediately upon pressing button. Spindle air is turned on along with release of tool.
Draw Bar will open after pressing the button more than 1 second and remain open
while push button is still held. Spindle must be stopped, with control in JPG or HANDLE
modes to enable tool release.
Please refer the operator panel A section for more detail about release function.
REF SPINDL
START
INC
REL(F1)
DRY
RUN
CYCLE
START
SPINDL
STOP
SPINDL
DEC
MESSAGE RAPID
FEED
HOLD
RESET
+
-
10.9 MESSAGE KEY When the “MESSAGE” key is pressed, the screen is changed to user message screen. The next message screen is displayed after another pressing the “MESSAGE” key. When the “XYZ456” key is pressed, the screen returns to the screen according to each mode.
JULY 2005 10.0 HMOP OPERATION GUIDE 38 of 53
FADAL MACHINING CENTERS
11.0 APPENDIX
11.1 M CODE LIST
M Command Description Remark
See Unit II, Section 11.1 of 16i/18i Operator’s
M00 Program Stop
M01 Optional Program Stop
M02 End-of-Program
M30 End-of-Program
Manual
See Unit II, Section 11.1 of 16i/18i Operator’s
Manual
See Unit II, Section 11.1 of 16i/18i Operator’s
Manual
See Unit II, Section 11.1 of 16i/18i Operator’s
Manual
See Unit II, Section 12.3 of 16i/18i
M98 Sub-Program Call
Operator’s Manual
See Unit II, Section 12.3 of 16i/18i
M99 Sub Program End
M03 Spindle Start Forward
M04 Spindle Start Reverse
M05 Spindle Stop
Operator’s Manual
Macro Call O9020(DATC). Pass Tool
number in macro call
Macro Call O9021(ATC). Pass Tool
M06 Run Tool Change Cycle , M6 Txx
number in macro call
Coolant ON - Mist Coolant/Coolant
M07
M08 Coolant ON - Flood Colant
M09 Coolant OFF
M11
M19
Thru Spindle
Set Tool Carousel position to 1
(ATC Tool Changer ONLY)
FANUC canned cycl e positioning,
(Not for spindle orientation)
Mist Coolant (Coolant 2) Receptacle
Need to take off the tool from spindle and cycle
the power
Canned Cycles, spindle orients normal to X/Y
axes
M20 Wash Down, Toggle ON/OFF opt ion
When the machine the MIDACO pallet
M20 MIDACO pallet change 1
option
M20 Does nothing Standard.
M22 Chip Conveyor Toggle ON/OFF
M29 Rigid Tap
M41 Low Gear Select
M42
High Gear Select
option
M29 Sxxxx in block prior to G84
100% Spindle Speed Override
M48
Forced
Spindle speed will override selection.
100% Spindle Speed Override
M49
Released
M60 A Axis Brake ON
39 of 53 11.0 APPENDIX MAN-0114R1
GE FANUC OPERATOR MANUAL
M61 A Axis Brake OFF
M62 B Axis Brake ON
M63 B Axis Brake OFF
M64 M64/65 Output ON
M65 M64/65 Output OFF
M66/67 Output ON, Chip
M66
Conveyor ON
M66/67 Output OFF, Chip
M67
Conveyor ON
M68/69 Output ON, Wash Down
M68
ON
M68/69 Output OFF, Wash Down
M69
OFF
M78/79 Output ON, Cooled spindle
M78
ON(2016 & 3016L)
option
M78/79 Output OFF, Cooled
M79
M80
M85 A Axis Rotary Table Enable
M86 A Axis Rotary Table Disable
M87 B Axis Rotary Table Enable
M88 B Axis Rotary Table Disable
spindle OFF(2016 & 3016L)
MIDACO Pallet Changer 2 When the machine has MIDACO pallet option
option
Position Tool Drum to Pocket by T-
M100
M150
M151
Word Ex: “M100 T05”
Return the current tool to ATC
carousel(ATC ONLY) Only use it with M151
Tranfer the tool from carousel into
spindle.(ATC ONLY) Only use it with M150
Orient Tool to angle required for Tool
M190 Spindle Orient for tool changer
Change
JULY 2005 11.0 APPENDIX 40 of 53
FADAL MACHINING CENTERS
11.2 ALARM LIST 1. If it is a alarm related with CNC, please refer the CNC operator manual appendix.
2. Machine alarm lists.
Table 1: Alarm list
ALARM
NO.
2004 Operator function inhibited/check door overrides. alarm in
cycle...
2005 Machine door opens. Feed hold on cycle start is inhibited
2006 Door override is active
2007 Close machine door to continue or reset to cancel operation
2010 Press cycle start to restart spindle
2011 Press cycle start to resume program command
2020 Low lube oil level refill vactra-2 or equivalent
2026 Air-oil fault, illegal table data for air-oil intervals
2027 Air-oil fault feed hold/spindle stop forced. See other messages
2030 Air-oil low oil pressure fault
2031 Air-oil upper bearing pressure failed fault
DESCRIPTION
2032 Air-oil lower bearing pressure failed fault
2033 Air-oil high oil pressure while pump turned off
2034 Air-oil fault. Safety stop machine or stop will be forced
2035 Air-oil spindle air/vac pressure failed fault
2036 Air-oil level low. Please, refill reservoir
2037 Correct fault & use alarm -MSG PBTO all air-oil messages
2043 Chip conveyor overload trip maintenance must reset overload
2044 Tool arm overload trip maintenance must reset overload
2045 Tool magazine overload trip maintenance must reset overload
2046 Washdown pump overload trip maintenance must reset over-
load
1050 Initial shift fail, CYC CTRT inhibit
41 of 53 11.0 APPENDIX MAN-0114R1
GE FANUC OPERATOR MANUAL
Table 1: (Continued) Alarm list
ALARM
NO.
1051 Lost low gear during operation
1052 Lost HI gear during operation
1054 High to low gear shift failed
1055 Low to high gear shift failed
1083 Tool up at machine on failed
1084 Tool up at drum rotation failed
1086 Stored tool illegal, see OPR MSG
1090 No empty tool pockets available
1091 Invalid tool MGMT data for search
1092 Optional tool MGMT search illegal
1093 Empty pot search illegal data
1094 Empty pot search invalid pot
DESCRIPTION
1095 Tool MGMT search protected
1096 Tool changer initial fault. see msg
1097 No tool changer, cycle start inhibited
1104 ATC tool count switch missing
1110 ATC carousel extend failed
1111 ATC carousel retract failed
1112 ATC carousel e-stop alarm
1120 M85 window R/W data error
1132 5th axis brake on, command halted
1134 4th axis brake on command halted
1360 M84 LOGR CALIB data zero error
1361 M84 LOGR SPDL speed calc error
JULY 2005 11.0 APPENDIX 42 of 53
FADAL MACHINING CENTERS
Table 1: (Continued) Alarm list
ALARM
NO.
1362 M84 low gear shift error
1363 M84 LOGR WINDR read sample error
1364 M84 LOGR ARBITRARY data error
1365 M84 LOGR REV count windr error
1366 M84 LOGR COUNT windr error
1367 M84 LOGR data out of range error
1370 M84 LOGR DISP ratio math error
1371 M84 LOGR ratio range error
1372 M84 LOGR WINDW par set error 1
1373 M84 LOGR WINDW par set error 2
1374 M84 LOGR CALIB spindle start error
1376 M84 belt calib cycle inhibited
DESCRIPTION
1380 M84 high calib data zero error
1381 M84 high spindle calc error
1382 M84 high gear shift error
1383 M84 high windw read sample error
1384 M84 high arbitrary data error
1385 M84 high rev count windw error
1386 M84 high FDBK count windw error
1387 M84 high data out of range error
1390 M84 high display ratio math error
1391 M84 high ration range error
1392 M84 high windw par set error 1
1393 M84 high calib spindle start error
1400 M84 #3741 calc error
1401 M84 #3742 calc error
43 of 53 11.0 APPENDIX MAN-0114R1
GE FANUC OPERATOR MANUAL
Table 1: (Continued) Alarm list
ALARM
NO.
1402 M84 max low windw error
1403 M84 #3751 max hi window error
1404 M84 #3751 calc error
1405 M84 shift spindle window error
1406 M84 #3736 calc error
1407 M84 #3736 window error
1410 M84 #3752 window error
1411 M84 #3762 window error
1800 Adaptive feed hold on
1803 Adaptive alarm limit
1804 Adaptive PID error
1805 Adaptive speed error
DESCRIPTION
1806 Adaptive command error
1807 Adaptive function error
2057 PWR down req’d to CLR alarm 1050. Check air pressure 80-
90PSI
2060 Z axis tool change PROX switch not confirming tool change
position
2061 TOOL DRUM pot not up for rotation of tool drum
2062 TOOL DRUM pot not in down position for access by tool
arm
2063 TOOL ARM not in position for tool removal from spindle
2064 DRAWBAR not released for removal of tool from spindle
2065 TOOL ARM not in position for tool insertion into spindle
2066 DRAW BAR not clamped on new tool in spindle
2067 TOOL ARM not returned to park position at end of tool
change
JULY 2005 11.0 APPENDIX 44 of 53
FADAL MACHINING CENTERS
Table 1: (Continued) Alarm list
ALARM
NO.
2070 TOOL CHANGE command aborted tool change service
mode active
2071 TOOL CHANGE command aborted spindle frwd, rev, orient
active
2075 TOOL CHANGE & SPINDLE, e-stop forced alarm PB to
clear
2076 Tool change service mode set
2077 Tool chng alarm, alarm PB to CLR cycle start inhibited
2081 Current ATC carousel position reset to pocket #1
2082 Tool drum at pocket #[I220, D500] press drum position to
clear msg
2087 Stored tool value of 1-99999999 is not in legal range to
#[I220,R6134]
2100 Axis inhibit by midaco pallet changer
DESCRIPTION
2100 No tool changer selected correct K5.X & cycle power
2101 Illegal VMC tool changer setting correct K5.X & cycle
power
2102 VMC & HMC tool changer both set correct K5.X & cycle
power
2131 Use M61 to release 4th axis brake prior to axis command
block
2131 Use M62 to release 5th axis brake prior to axis command
block
2140 Adaptive warn limit
2377 M84 belt calibration active
45 of 53 11.0 APPENDIX MAN-0114R1
GE FANUC OPERATOR MANUAL
11.3 MACHINE COLD
START PROCEDURE
Fadal Fanuc VMC comes with absolute encoder which is setup in the Fadal already.
The machine will remember the position even if it is powered off. We need to make the
cold start position again if the alarm No.300 appears on the screen which can be
caused by low battery or disconnect the servo motor encoder.
Follow the next procedure:
1. Prepare: In MDI mode input G21 to change machine to Metric display.
1.1 Press the MDI push button on the operator panel A.
1.2 Press PROGRAM key one/two times on the MDI panel until PROGRAM (MDI) screen is displayed.
1.3 Press G21 using MDI panel.
1.4 Press EOB key on the MDI panel.
1.5 Press INSERT key.
1.6 Press CYCLE START push button on the operator panel A.
1.7 Make sure the screen is changed to Metric Mode (X***,*** is displayed).
1.8 Press REF RETURN push button on the operator panel A.
1.9 Press Z push button on the operator panel A (Manual Z axis zero return).
1.10 Press X push button on the operator panel A (Manual X axis zero return).
1.11 Press Y push button on the operator panel A (Manual Y axis zero return).
1.12 Preparation is done.
2. Reference all the axes.
2.1 Press REF RETURN and select reference mode, then push X/Y/Z key to move X/Y/Z axis to
zero position. CNC screen will display X0Y0Z0.
3. Install the tool.
3.1 Press JOG push button on the operator panel A.
3.2 Press TOOL REL push button on the operator panel and keep it. (Draw Bar will be released)
3.3 Put the tool inside of spindle nose.
3.4 Release the TOOL REL push button.
JULY 2005 11.0 APPENDIX 46 of 53
FADAL MACHINING CENTERS
4. Find out X axis zero position manually, make the cold start.
4.1 Press HANDLE and select MPG mode, press X1/X10/X100 to select MPG resolution, and press
X select to select X axis.
4.2 Use TAPE MEASURE find out the X axis middle point of the table, and make a mark.
4.3 Use MPG move the X axis to the X axis middle potion mark.
4.4 Record the X coordinate displayed on the CNC screen as A.
4.5 Press MDI push button on the operator panel A.
4.6 Press SYSTEM key on the MDI panel.
4.7 Press PARAMETER soft key below the LCD screen.
4.8 Press 1850 using MDI panel.
4.9 Press NO.SRH soft key below the LCD screen (Parameter 1850 will be displayed).
4.10 Move the cursor to X.
4.11 Press the X coordinator as following format: 34560 (3.456x10000).
4.12 Press INPUT key on the MDI panel (34560 will be displayed on the parameter 1850X column)
***Alarm 000 will pop up on the alarm window.
4.13 Power OFF the CNC (Press “O” button on the operator panel B).
4.14 Power ON the CNC (Press “T” button on the operator panel B).
***Alarm 300X will be displayed on the screen (it is normal).
4.15 Press JOG push button on the operator panel A.
4.16 Press X push button on the operator panel A.
4.17 Press “-” minus push button to move the X axis 55.0mm or more (press “+” push button if
machine is 2016, 3016, EMCD, 2216).
4.18 Press “+” plus push button to move the X axis middle position (press “-” push button if machine
is 2016, 3016, EMCD, 2216).
4.19 Press REF RETURN push button.
4.20 Press X push button. (X axis will automatically move to the zero position)
4.21 In case if zero position is wrong, repeat the previous steps starting with pressing MDI push
button of the operator panel A.
4.22 Double check the cold start position using tape measure.
47 of 53 11.0 APPENDIX MAN-0114R1
GE FANUC OPERATOR MANUAL
4.23 Press RESET key on the MDI panel. That will reset the 300 alarm.
5. Find out Y axis zero position manually, make the cold start.
5.1 Install the indicator on the spindle.
5.2 Repeat the same procedure as 4.1-4.23 to find out the Y axis cold start position.
6. Find out Z axis zero position manually, make the cold start.
6.1 Install tool on the arm (DATC) or Magazine (ATC).
6.2 Measure the height of the tool.
6.3 Install the tool on the spindle.
11.4 FANUC FILES
BACKUP PROCEDURE
6.4 Use MPG move the Z axis to the same height as the tool on the ARM/Magazine.
6.5 Repeat the same procedure as 4.5-1.23 to find out the Z axis cold start position.
7. Repeat the same procedure for A/B axis.
8. Cold Start setup is finished.
Please prepare the compact flash card.
Backup of data files procedure:
1. Power on VMC.
2. Place flash card in pendant’s drive. (Located to left of pendant display).
3. Power on pendant “I” key.
4. Wait for pendant to boot up.
5. Press “System” key on pendant.
6. Press “Edit” key on pendant.
7. Soft key “+” twice.
8.
9. Soft key “ALL IO”.
10. Soft key “PRGRM”.
11. Soft key “OPRT”.
12. Soft key “PUNCH”.
13. Enter file name “1”.
14. Soft key “EXEC”. File called “1.)08504” should be created
15.
16. Soft key “<“.
JULY 2005 11.0 APPENDIX 48 of 53
FADAL MACHINING CENTERS
17. Soft key “PARAM”.
18. Soft key “OPRT”.
19. Soft key “PUNCH”.
20. Enter file name “2”.
21. Soft key “EXEC”. File called “2.) CNCPARAM.DAT” should be created
22.
23. Soft key “<“.
24. Soft key “OFFSET”.
25. Soft key “OPRT”.
26. Soft key “PUNCH”.
27. Enter file name “3”.
28. Soft key “EXEC” File called “3.) TOOLOFST.DAT” should be created
29.
30. Soft key “<“.
31. Soft key “+” (next page).
32. Soft key “MACRO”.
33. Soft key “OPRT”.
34. Soft key “PUNCH”.
35. Enter file name “4”.
36. Soft key “EXEC” File called “4.) MACROVAR.DAT” should be created
37.
38. Soft key “<“.
39. Soft key “PITCH”.
40. Soft key “OPRT”.
41. Soft key “PUNCH”.
42. Enter file name “5”.
43. Soft key “EXEC” File called “5.) PITCHERR.DAT” should be created
44.
45. Soft key “<“.
46. Soft key “WORK”.
47. Soft key “OPRT”.
48. Soft key “PUNCH”.
49. Enter file name “6”. File called “6.) WORK-G54.DAT” should be created
50. Soft key “EXEC”
51.
52. Soft key “<“.
53. Soft key “+” (next page).
54. Soft key “TOOL”.
55. Soft key “OPRT”.
56. Soft key “PUNCH”.
57. Enter file name “7”.
58. Soft key “EXEC” File called “7.) TOOL-MNG.DAT” should be created
59.
60. Soft key “<“.
61. Soft key “MAG”.
49 of 53 11.0 APPENDIX MAN-0114R1
GE FANUC OPERATOR MANUAL
62. Soft key “OPRT”.
63. Soft key “PUNCH”.
64. Enter file name “8”.
65. Soft key “EXEC” File called “8.) MAGAZINE.DAT” should be created
66.
67. Soft key “<“.
68. Soft key “CUSTOM”.
69. Soft key “OPRT”.
70. Soft key “PUNCH”.
71. Enter file name “9”.
72. Soft key “EXEC” File called ”9.) CUSTOMIZ.DAT” should be created
73.
74. Soft key “<“.
75. Soft key “STATUS”.
76. Soft key “OPRT”.
77. Soft key “PUNCH”.
78. Enter file name “10”.
79. Soft key “EXEC” File called “10.) STATUS.DAT” should be created
80.
81. Soft key “<“.
82. Soft key “+” five(5) times.
83. Soft key “PMC”.
84. Soft key “IO”.
85. Soft key “M-CARD”.
86. Soft key “WRITE”.
87. Soft key “LADDER”.
88. File name should appear as “PMC-SB.000”.
89. Soft key “EXEC”. File called “11.) PMC-SB.000” should be created
90.
91. Soft key “<“.
92. Soft key “IO”.
93. Soft key “M-CARD”.
94. Soft key “WRITE”.
95. Soft key “PARAM”.
96. File name should appear as “PMC-SB.PRM”.
97. Soft key “EXEC”. File called “12.) PMC-SB.PRM” should be created
98.
99. Soft key “<“ two (2) times.
100.Soft key “SYSTEM”.
101.Soft key “OPRT”.
102.Soft key “PUNCH”.
103.Soft key “EXEC”. File called “13.) SYS_CONF.DAT” should be created
JULY 2005 11.0 APPENDIX 50 of 53
FADAL MACHINING CENTERS
A
Air Pressure 1
Alarm List 41
Alarm MSG 5
Auto 5
Auto Cool 29
Auto Operation 23
Automatic Operation Mode 11
B
Block Delete 15
12.0 INDEX
C
Coolant Control Push Buttons 29
D
DNC Operation 13
Door OVRD 5
Drum FWD 19
Drum PSN 19
Drum REV 19
Dry RUN 16
E
Edit 5
Edit the Tool Magazine List 26
Emergency Stop 4
F
Fanuc Files Backup Procedure 48
Flood Cool 29
Flood Coolant 2
Function 17
H
Handle 6
Handle Operation 9
HMOP Operation ON/OFF Switch 34
Home PSN 17
51 of 53 12.0 INDEX MAN-0114R1
I
INC Jog Operation 9
INIT Mag 25
J
Jog 6
Jog Feed Rate 10
Jog Operation 8
K
Key Sheet Layout 37
L
Load PSN 18
M
M Code / S Code 31
M Code List 39
Machine Cold Start Procedure 46
Manual Handle Feed Procedure 35
Manual Jog Feed Procedure 36
Manual Operation 19
Manual Operation Modes 7
Manual Reference Position Return 7
Manual Reference Return 37
Manual Spindle Control 37
Manual Spindle Speed 32
MC LCK 15
MDI 5
MDI Operation 11
Memory Operation Procedure 35
Memory Protection 12
Memory Protection key 14
Message Key 38
Mist Cool 29
GE FANUC OPERATOR MANUAL
O
Oil Reservoir 1
Operation Mode Selection 5
Option Stop 15
Override Switch 34
P
Power on 3
Power off 3
JULY 2005 12.0 INDEX 52 of 53
FADAL MACHINING CENTERS
Program Stop 15
R
Remote 6
Ref return 6
Reference the drum 23
S
Spindle cooler reservoir 2
Single block 15
Spdl stop 30
Spdl CW 30
Spdl CCW 30
Spindle Speed range 31
Spindle override 32
Spindle orientation 32
T
Tool meas 17
Tool rel 20, 38,
Tool chng 21
Tool load 21
Tool changer command 23
Tool data 25
Tool brkn 26
Tool order procedure 26
Tool loading 26
Tool changer 27
W
Work light 5
Work meas 17
Z
Z Home 18
53 of 53 12.0 INDEX MAN-0114R1
Loading...
