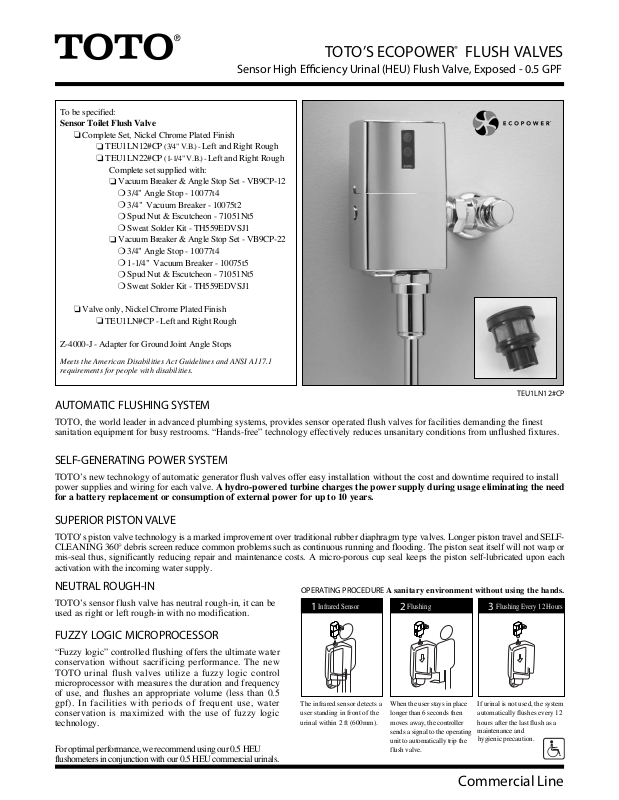

AUTOMATIC FLUSHING SYSTEM

TOTO, the world leader in advanced plumbing systems, provides sensor operated flush valves for facilities demanding the finest sanitation equipment for busy restrooms. “Hands-free” technology effectively reduces unsanitary conditions from unflushed fixtures.

SELF-GENERATING POWER SYSTEM

TOTO’s new technology of automatic generator flush valves offer easy installation without the cost and downtime required to install power supplies and wiring for each valve. A hydro-powered turbine charges the power supply during usage eliminating the need

for a battery replacement or consumption of external power for up to 10 years.

SUPERIOR PISTON VALVE

TOTO’s piston valve technology is a marked improvement over traditional rubber diaphragm type valves. Longer piston travel and SELFCLEANING 360° debris screen reduce common problems such as continuous running and flooding. The piston seat itself will not warp or mis-seal thus, significantly reducing repair and maintenance costs. A micro-porous cup seal keeps the piston self-lubricated upon each activation with the incoming water supply.

NEUTRAL ROUGH-IN

TOTO’s sensor flush valve has neutral rough-in, it can be used as right or left rough-in with no modification.

FUZZY LOGIC MICROPROCESSOR

“Fuzzy logic” controlled flushing offers the ultimate water conservation without sacrificing performance. The new TOTO urinal flush valves utilize a fuzzy logic control microprocessor with measures the duration and frequency of use, and flushes an appropriate volume (less than 0.5 gpf). In facilities with periods of frequent use, water conservation is maximized with the use of fuzzy logic technology.

For optimal performance, we recommend using our 0.5 HEU flushometers in conjunction with our 0.5 HEU commercial urinals.

To be specified:

Sensor Toilet Flush Valve

Complete Set, Nickel Chrome Plated Finish

TEU1LN12#CP

(3/4" V.B.) - Left and Right Rough

TEU1LN22#CP (1-1/4" V.B.) - Left and Right Rough

Complete set supplied with:

Vacuum Breaker & Angle Stop Set - VB9CP-12

3/4" Angle Stop - 10077t4 3/4" Vacuum Breaker - 10075t2 Spud Nut & Escutcheon - 71051Nt5 Sweat Solder Kit - TH559EDVSJ1

Vacuum Breaker & Angle Stop Set - VB9CP-22

3/4" Angle Stop - 10077t4 1-1/4" Vacuum Breaker - 10075t5 Spud Nut & Escutcheon - 71051Nt5 Sweat Solder Kit - TH559EDVSJ1

Valve only, Nickel Chrome Plated Finish

TEU1LN#CP - Left and Right Rough

Z-4000-J - Adapter for Ground Joint Angle Stops

Meets the American Disabilities Act Guidelines and ANSI A117.1 requirements for people with disabilities.

TOTO’S ECOPOWER®FLUSH VALVES

Sensor High Eciency Urinal (HEU) Flush Valve, Exposed - 0.5 GPF

Commercial Line

TEU1LN12#CP

Infrared Sensor

Flushing

Flushing Every 12 Hours

The infrared sensor detects a user standing in front of the urinal within 2 ft (600mm).

When the user stays in place longer than 6 seconds then moves away, the controller sends a signal to the operating unit to automatically trip the flush valve.

If urinal is not used, the system automatically flushes every 12 hours after the last flush as a maintenance and

hygienic precaution.

OPERATING PROCEDURE A sanitary environment without using the hands.

TOTO’S ECOPOWER®FLUSH VALVES

™

Sensor High Eciency Urinal (HEU) Flush Valve, Exposed - 0.5 GPF

SPECIFICATIONS

Product TEU1LN#CP– Valve Only, Left and Right Rough, Chrome Plated Finish

TEU1LN12#CP- Complete Set (3/4" V.B.), Left and Right Rough, Chrome Plated Finish

TEU1LN22#CP- Complete Set (1-1/4" V.B.), Left and Right Rough, Chrome Plated Finish

Power supply Hydro-Power Charge, 10 years based on 2,000 cycles per month

(Backup battery: 4 years at 4,000 cycles per month without recharging)

Supply water pressure 15 psi - 125 psi*

Water supply pipe

3/4" NPT

Discharge quantity Factory setting at 0.5 GPF/2.4 LPF

Ambient temperature 32°-104°F (0°-40°C)

Trap seal protection Automatic flushes once after twelve (12) hours of non use

Detection time Factory setting at six (6) seconds minimum

Detection range Self-adjusting to environment

Warranty Limited three (3) year warranty on all component parts. Details available upon request.

Listings A.S.S.E. 1037

TOTO Model No. __ ____________________________

Automatic infrared sensor activated, piston urinal flush valve. Heavy-duty zinc die cast cover with nickel chrome finish. Vandal resistant hex head screws. Automatic sensor adjustment on installation. Manual override button. Piston valve and

solenoid with self-cleaning mechanism. Automatic flush every twelve hours if not used. Angle stop and vacuum breaker in c luded with acces sories . Thr o ugh the u se o f TOT O ’s EcoPower

Flush Valves, using the valve 2000 times a month

will fully recharge the valve for up to 10 years.

SUGGESTED ENGINEERING SPECIFICATION:

DIAGRAM:

TEU1LN12#CP

These dimensions and specifications are subject to change without notice. *Water pressures over 80 psi are not recommended for most plumbing fixtures.

*Check local codes

4−3/4 1/2"

(120 13mm)

3/4"

inlet supply

11−1/2" (292mm)

1−1/2"

NPSM

Min.2−1/4"(57mm)

3/4"NPT

Max19-11/16"

(Max 500 mm)

Max31-1/2"

(Max 800 mm)

U.S. Patent Pending

TOTO U.S.A., INC. • 1155 Southern Road, Morrow, GA 30260 Tel. (888) 295-8134 • Fax. (770) 282-8701 • www.totousa.com

Printed on recycled paper

REV 10/07
