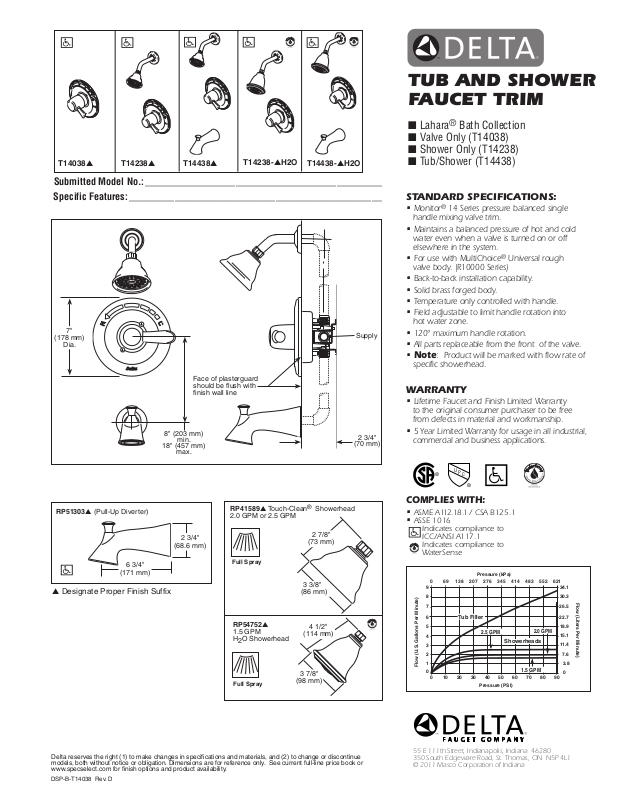

Tub AND SHOWER FAuCET TRIM

■ Lahara® Bath Collection

■ Valve Only (T14038)

■ Shower Only (T14238)

■ Tub/Shower (T14438)

STANDARD SPECIFICATIONS:

•

Monitor® 14 Series pressure balanced single

handle mixing valve trim.

•

Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.

•

For use with MultiChoice® Universal rough valve body. (R10000 Series)

•

Back-to-back installation capability.

•

Solid brass forged body.

•

Temperature only controlled with handle.

•

Field adjustable to limit handle rotation into hot water zone.

•

120° maximum handle rotation.

•

All parts replaceable from the front of the valve.

• Note:

specific showerhead.

WARRANTy

•

Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.

•

5 Year Limited Warranty for usage in all industrial, commercial and business applications.

Product will be marked with flow rate of

RP51303▲ (Pull-Up Diverter)

▲ Designate Proper Finish Suffix

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.

DSP-B-T14038 Rev. D

6 3/4"

(171 mm)

2 3/4"

(68.6 mm)

RP41589▲ Touch-Clean

2.0 GPM or 2.5 GPM

Full Spray

RP54752▲

1.5 GPM H2O Showerhead

Full Spray

2 7/8"

(73 mm)

3 3/8"

(86 mm)

4 1/2"

(114 mm)

3 7/8"

(98 mm)

Showerhead

COMPLIES WITH:

•

ASME A112.18.1 / CSA B125.1

•

ASSE 1016

Indicates compliance to ICC/ANSI A117.1 Indicates compliance to WaterSense
