Factory Direct Hardware T13220-CDN User Manual

0 10 20 30 40 50 60 70 80 90

Pressure

(

PSI)

Flow (U.S.

allons Per Minute)

0 69 138 207 276 345 414 483 552 621

3.8

7.6

11.4

15.1

18.9

22.7

Pressure (kPa)

Flow

(

Liters Per Minute

)

26.5

Tub Filler

30.3

34.1

Showerheads

1.5 GPM

2.0 GPM

2.5 GPM

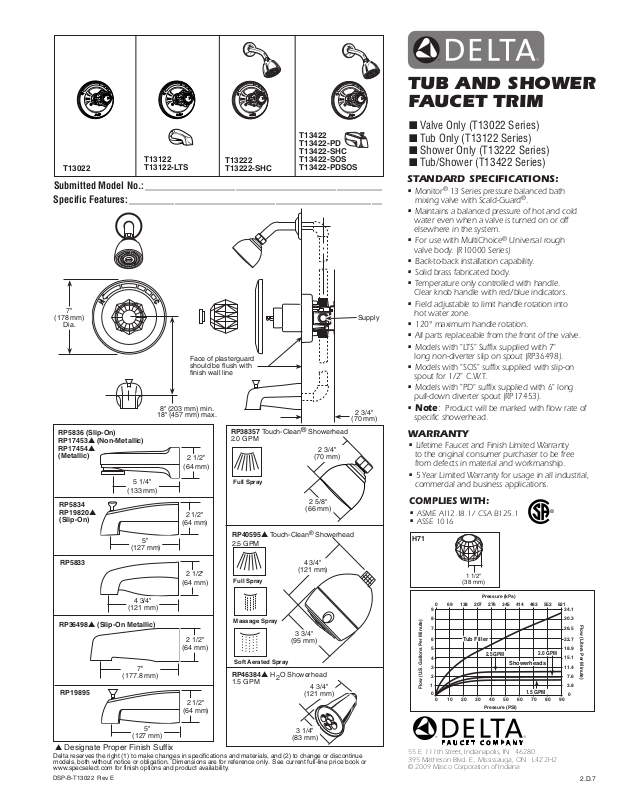

Tub AND SHOWER

FAuCET TRIM

T13422 T13422-PD T13422-SHC

T13022

T13122 T13122-LTS

T13222 T13222-SHC

T13422-SOS T13422-PDSOS

Submitted Model No.: _______________________________________________ Specific Features: __________________________________________________

(178 mm)

Dia.

RP5836 (Slip-On) RP17453▲ (Non-Metallic)

▲

RP17454 (Metallic)

RP5834

▲

RP19820 (Slip-On)

RP5833

5 1/4"

(133 mm)

(127 mm)

Face of plasterguard should be flush with finish wall line

8" (203 mm) min.

18" (457 mm) max.

2 1/2"

(64 mm)

2 1/2"

(64 mm)

2 1/2"

(64 mm)

RP38357 Touch-Clean® Showerhead

2.0 GPM

2 3/4"

(70 mm)

Full Spray

2 5/8"

(66 mm)

RP40595▲ Touch-Clean® Showerhead

2.5 GPM

4 3/4"

(121 mm)

Full Spray

Supply

2 3/4"

(70 mm)

■ Valve Only (T13022 Series)

■ Tub Only (T13122 Series)

■ Shower Only (T13222 Series)

■ Tub/Shower (T13422 Series)

STANDARD SPECIFICATIONS:

•

Monitor® 13 Series pressure balanced bath

mixing valve with Scald-Guard®.

•

Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.

•

For use with MultiChoice® Universal rough valve body. (R10000 Series)

•

Back-to-back installation capability.

•

Solid brass fabricated body.

•

Temperature only controlled with handle. Clear knob handle with red/blue indicators.

•

Field adjustable to limit handle rotation into hot water zone.

•

120° maximum handle rotation.

•

All parts replaceable from the front of the valve.

•

Models with "LTS" Suffix supplied with 7" long non-diverter slip on spout (RP36498).

•

Models with "SOS" suffix supplied with slip-on spout for 1/2" C.W.T.

•

Models with "PD" suffix supplied with 6" long pull-down diverter spout (RP17453).

• Note:

specific showerhead.

WARRANTy

•

Lifetime Faucet and Finish Limited Warranty to the original consumer purchaser to be free from defects in material and workmanship.

•

5 Year Limited Warranty for usage in all industrial, commercial and business applications.

COMPLIES WITH:

•

H71

Product will be marked with flow rate of

ASME A112.18.1 / CSA B125.1 ASSE 1016

1 1/2"

(38 mm)

RP36498

▲ (Slip-On Metallic)

RP19895

▲ Designate Proper Finish Suffix

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.

DSP-B-T13022 Rev. E

4 3/4"

(121 mm)

(177.8 mm)

(127 mm)

Massage Spray

2 1/2"

(64 mm)

2 1/2"

Soft Aerated Spray

RP46384▲ H2O Showerhead

1.5 GPM

3 3/4"

(95 mm)

(121 mm)

3 1/4"

(83 mm)

4 3/4"

2.D.7
