Factory Direct Hardware MS980CMG User Manual

Remote control

Face cover

Strainer

Literature

Washlet fastener

Remote control hangerRemote control

Installation bolt (2 pieces) Face cover Dust cover

(with screws)

Instruction manual Installation Instructions (this) How to Use Sheet Questionnaire Hook Toilet bowl label

Parts Indentification

Batteries

(AA X 3)

Anchor hook （3 pieces）

Screws

（3 pieces）

Warning

Caution

Prohibited

You mu s t n o t do

Meanings and symbols

Grounding

Prohibited!

You must d o

Mandatory

Do not install the product in a room where the humidity can exceed 90% RH

(Fire or electric shock may occur.)

Keep dry

Caution

Do not pull up on the product with excessive force by holding the seat or lid

(Injury may occur if the deat or lid is suddenly unhinged.)

Only use specified power supply (AC 120V)

(It may cause electric shock or fire.)

Do not bend or twist the water supply hose

(Leakage may result.)

When the power plug/cord is broken, or the outlet becomes loose, do not use them

(Fire or electric shock may occur.)

Do not remove the water filter while the water shutoff valve is open

(Water will shoot out.)

Do not use water other than tap water, portable water or well water (underground water)

(It may cause skin irritation.)

The water supply filter shall be installed firmly

(Leakage may occur.)

Power plug shall be inserted frimly into the outlet

(Fire or electric shock may occur.)

Be sure to install the grounding firmly (Type B)

(It may cause electric shock in case of trouble or current leakage.)

Stictly follow these instructions for installation

(Improper installation may cause leakage, electric shock or fire.)

Improper use or installation of this product may result in death or severe injury.

Improper use or installation of this product may result in injury or property damage.

■

The installation order is as follows

Please follow the instructions and install the NEOREST correctly. For details, see

Installation method

Special tool

Place the top unit on the toilet bowl5Check the power plug

Install the remote control

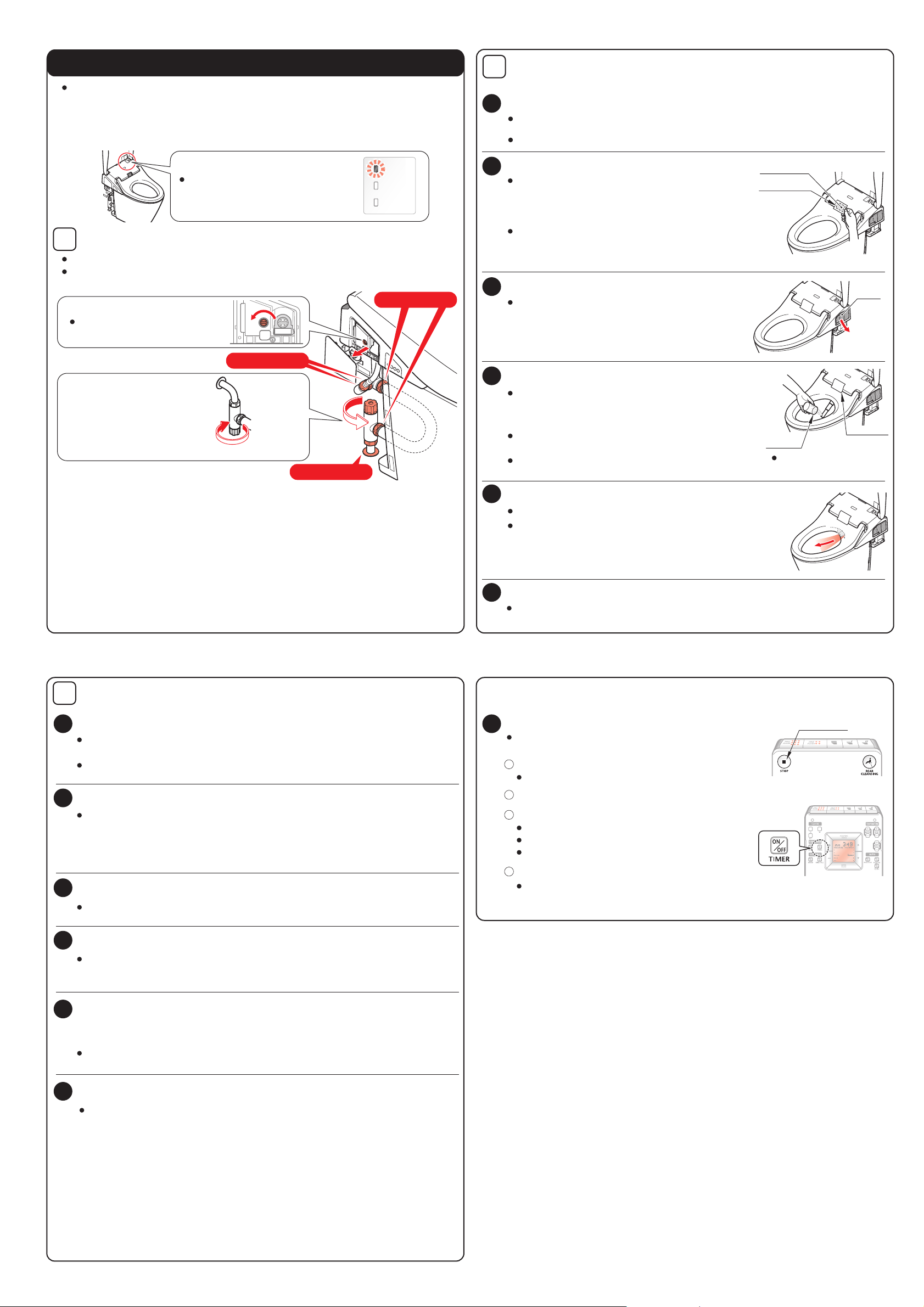

Test functionality and check for leakage

Install the side panel

Connect the hose with the water diverter

*Do not attach yet

*Do not open the water shutoff valve

Connect the flush valve terminals

Attach the top unit to the bowl

Strainer

Strainer Installation Instructions

Please make sure to install

Safety Precautions

Strictly follow the safety warnings and cautions

NEOREST 550 Installation Instructions

Before Installation

0GU9170

2008.10.3 D08028-4R

Parts and Features

Seat sensor A

Seat sensor B

Deodorizer filter

Wand

Heated seat

Toilet bowl

Water supply hose

Special tool Holder

Power plug

Top Unit

Dryer outlet cover

Lid

Water shutoff valve

Top unit display

Soft light

Top unit controls

Remote control receiver (2, left and right)

Water supply filter

Top Unit Gasket

(On-floor water supply case)

Read the guide carefully and follow it strictly for a proper installation.

Prohibited!

1. Do not apply power or supply water to the unit until the

installation process is complete.

2. Do not grasp the connection hose when mounting the Top unit onto the bowl.

3. The power voltage is 120V/60Hz. The rated energy consumption is 1284W. Use wiring and electrical outlet appropriate for this level of power.

4. The power cord is 3ft. (1m) in length. The electrical outlet should be located on the wall, within reach of the power plug.

5. Use a water supply pressure of 10PSI (0.07MPa) to 109PSI (0.75MPa) static.

6. The water temperature range should be 32~95°F (0 ~ 35°C).

7. Only use the flexible connecting hose provided in this kit.

nst

cti

on Manu

How to

She

Installation Instructions

Toilet bowl lablel

ues

naire

Side panel (2, right and left)

Connection hose

* Notice the polarity symbols

Install the remote control

Check the power plug

Install the face cover

Attach the top unit to the bowl

When the power plug is initially inserted and the lid is stopped by an obstacle in an in-between position while openning, it will return to that in-between position the next 3 times it opens. Remove the obstacle, detach the plug and re-insert it. Then push the “Lid open” switch on the remote control.

Soft light flashes for 10 seconds to a minute after the power plug is inserted. During this time the seat sensor A is calibrating. Only after this calibrating period will the lid open automatically when a person approaches to the NEOREST.

Insert the power plug into a 120V (60Hz) outlet

Confirm the wand is initialized by extending and retracting it. The dryer outlet will always open and close before the wand extends.

Open the seat and lid to prevent damage and facilitate installation.

Insert the dust cover from the bottom at an oblique angle and fix it in place with a screw

Install the face cover

Fasten the bolt and confirm it is firmly and stably situated on the toilet bowl.

Connect the flush valve terminals

Push the terminal A’s lead wire into the notch

Push the terminals into the top unit

Remove the tape from terminal A Connect terminal B to terminal A

Do not use excessive force.

* Confirm that the terminals are firmly connected.

* Do not pull on the terminal with excessive force.

Attach the top unit to the bowl

Deodorizing function starts working as soon as the power plug is inserted.

Open the battery cover and insert batteries

Insert the bolt through the notch into the installation hole

(2 bolts, left and right)

Determine the remote control mounting position

Place the remote control on remote control hanger

Push the wand cleaning ON/OFF button to test wand’s extending/retracting functionality.

If the wand does not respond, try other positions within the rough installation position shown in the diagram to the left or try the opposite wall.

Set down and try using the remote from a mounting position.

The performance of the remote control signal receiver depends on the room space, walls and material.

…Rough installation position …Rough using position

Rough using position

【Determine a postion that allows easy user operation】

【Test the reception of remote control signal】

Rough installation position

Install the remote control hanger with screws

Screw

Remote control hanger

Anchor hook

Drill 3 holes on the wall for installation. If the wall is made plaster or tile, drill 6,1-1/4in. (33mm) deep holes and install the remote control with anchor hooks.

Be sure the remote is at least 2-3/4in. (70mm) from the floor so that the remote covercan be freely opened.

open

Close Close

Water supply on the floor

Bolt

後部取付穴Installation hole

Notch

Terminal B

Terminal A

Lead wire

Screw driver

Notch

Face cover

Insert into the slot

Dust cover

Screw

Battery cover

3 AA batteries

Flush valve terminal wiring diagram

6”(

150

)

18”

(450

)

30”(

770

)

37”(95

)

48”(

)

12”(300

)

Caution

Place the top unit on the toilet bowl

Caution

Connect the hose before completely placing the top unit on the bowl. Otherwise it will be difficult to connect the hose.

During installation, be careful not drop the seat and lid while holding the product.

Insert the connection hose

through the hole in the plate

The top unit shall be parellel to the toilet bowl and installed vertically

Confirm that the flush valve terminal is not connected

This is to prevent the gasket from swelling.

o not turn the manual flush knob before the hose is connected. Otherwise, water will spray

When inserting the connection hose through the hole in the plate, be careful to not fold it. Otherwise, leakage will occur.

Connect the hose with the water diverter

Installation method

Connection hose

Water diverter

Flush valve terminal

Gasket

Tape

Connection hose

Hole in the plate

Cap nut

Water supply on the floor

* Confirm that the gasket is installed properly. Otherwise water leakage will occur. * Confirm that the hose is connected firmly and stably.

Insert the strainer in the water diverter. Use a wrench to fasten the cap nut

Remove the strainer from it’s packaging

Attach the hose to the water diverter with the strainer inside.

Wrench

Connecting hose

Cap nut (with gasket)

Strainer

Turn right

Connection hose

Water diverter

Insert the strainer into the water diverter

Insert the studed end first

* When connecting the hose, please install the strainer.

Tape
