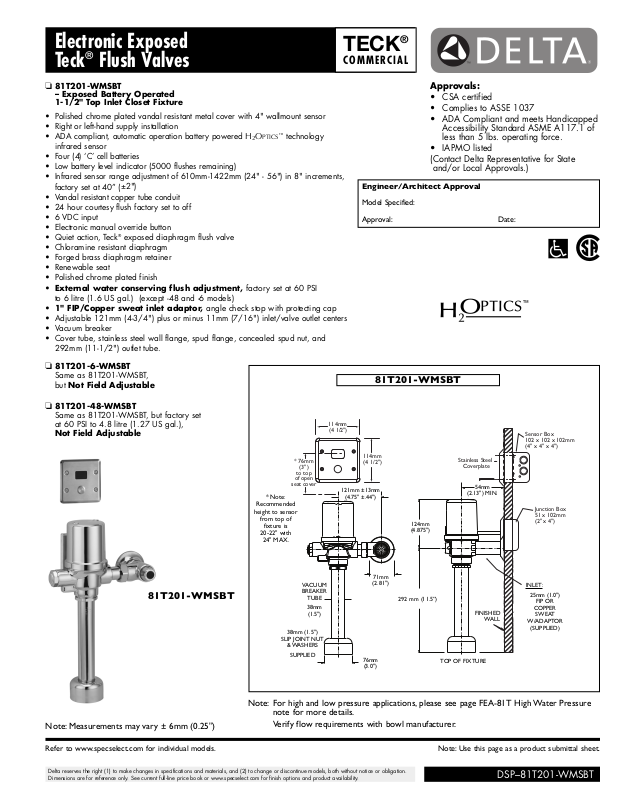

Factory Direct Hardware 81T201-WMSBT User Manual

Electronic Exposed Teck®Flush Valves

Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.

DSP–81T201-WMSBT

❏ 81T201-WMSBT

– Exposed Battery Operated 1-1/2'' Top Inlet Closet Fixture

• Polished chrome plated vandal resistant metal cover with 4" wallmount sensor

• Right or left-hand supply installation

• ADA compliant, automatic operation battery powered H

OPTICS

™

technology

infrared sensor

• Four (4)

‘C’ cell

batteries

• Low battery level indicator (5000 flushes remaining)

• Infrared sensor range adjustment of 610mm-1422mm (24" - 56") in 8" increments, factory set at 40” (

±2")

• Vandal resistant copper tube conduit

• 24 hour courtesy flush factory set to off

• 6 VDC input

• Electronic manual override button

• Quiet action, Teck®exposed diaphragm flush valve

• Chloramine resistant diaphragm

• Forged brass diaphragm retainer

• Renewable seat

• Polished chrome plated finish

• External water conserving flush adjustment, factory set at 60 PSI to 6 litre (1.6 US gal.) (except -48 and -6 models)

• 1" FIP/Copper sweat inlet adaptor, angle check stop with protecting cap

• Adjustable 121mm (4-3/4") plus or minus 11mm (7/16") inlet/valve outlet centers

• Vacuum breaker

• Cover tube, stainless steel wall flange, spud flange, concealed spud nut, and 292mm (11-1/2") outlet tube.

❏ 81T201-6-WMSBT

Same as 81T201-WMSBT, but Not Field Adjustable

❏ 81T201-48-WMSBT

Same as 81T201-WMSBT, but factory set at 60 PSI to 4.8 litre (1.27 US gal.),

Not Field Adjustable

Engineer/Architect Approval

Model Specified:

Approval: Date:

81T201-WMSBT

Note: Measurements may vary ± 6mm (0.25'')

Note: For high and low pressure applications, please see page FEA-81T High Water Pressure

note for more details. Veri fy flow requirements with bowl manufacturer.

Approvals:

•

CSA certified

• Complies to ASSE 1037

•

ADA Compliant and meets Handicapped Accessibility Standard ASME A117.1 of less than 5 lbs. operating force.

•

IAPMO listed

(Contact Delta Representative for State

and/or Local Approvals.)

81T201-WMSBT

121mm ±13mm

(4.75" ±.44")

71mm (2.81")

VACUUM BREAKER

TUBE

38mm (1.5")

SLIP JOINT NUT

& WASHERS

SUPPLIED

124mm (4.875")

292 mm (11.5”)

54mm

(2.13") MIN.

FINISHED

WALL

TOP OF FIXTURE

INLET:

25mm (1.0")

FIP OR

COPPER

SWEAT

W/ADAPTOR

(SUPPLIED)

Refer to www.specselect.com for individual models. Note: Use this page as a product submittal sheet.

* Note:

Recommended

height to sensor

from top of

fixture is

20-22" with

24" MAX.

76mm (3.0")

TECK

COMMERCIAL

* 76mm

(3")

to top

of open

seat cover

114mm (4 1/2")

Stainless Steel

Coverplate

Sensor Box 102 x 102 x 102mm (4" x 4" x 4")

Junction Box 51 x 102mm (2" x 4")
