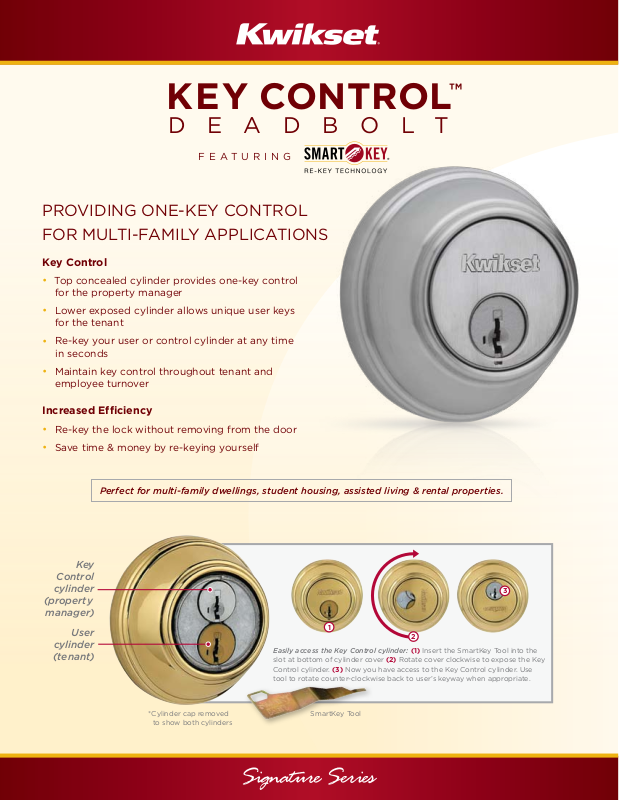

KEY CONTROL
DEADBOLT
FEATURING
PROVIDING ONE-KEY CONTROL
FOR MULTI-FAMILY APPLICATIONS
Key Control
Top concealed cylinder provides one-key control •
for the property manager
Lower exposed cylinder allows unique user keys
•
for the tenant
Re-key your user or control cylinder at any time
•
in seconds
Maintain key control throughout tenant and
•
employee turnover
™
Increased Efciency
Re-key the lock without removing from the door•
Save time & money by re-keying yourself•
Perfect for multi-family dwellings, student housing, assisted living & rental properties.
Key
Control
cylinder
(property
manager)
User
cylinder
(tenant)
3
1
2
Easily access the Key Control cylinder: (1) Insert the SmartKey Tool into the
slot at bottom of cylinder cover (2) Rotate cover clockwise to expose the Key
Control cylinder. (3) Now you have access to the Key Control cylinder. Use
tool to rotate counter-clockwise back to user’s keyway when appropriate.
*Cylinder cap removed
to show both cylinders
SmartKey Tool
With
THE SMART ALTERNATIVE TO MASTER KEYING
BOTH CYLINDERS FEATURE SMARTKEY® RE-KEY TECHNOLOGY
1a
Concealed Key Control cylinder has a unique patented keyway to provide
increased security. Simply rotate the cylinder cap to expose the cylinder for use.
1b
User cylinder utilizes the traditional Kwikset keyway and keys.
1c
Gear assembly enables both cylinders to lock or retract the deadbolt latch.
1a
CERTIFIED GRADE 2 ANSI/BHMA SECURITY
™
BUMPGUARD
2a
Patented side locking bar technology offers improved security by protecting
against lock bumping, an attack on conventional pin & tumbler locks.
-
DRILL RESISTANCE-
2b
Cylinder uses two steel balls inserted into the front of the key face
to resist attacks from drilling.
PICK RESISTANCE-
2c
Superior SmartKey withstands the highest level of UL pick testing,
the UL 437, Par. 11.6.
SPECIFICATIONS:
Standard
Door Prep
Door
Thickness
Cylinder
Faceplate
Cross Bore 2-1/8". Edge Bore 1"
Latch Face 1" x 2-1/4"
1 3/8" – 1 3/4"
®
2 SmartKey
cylinders: 1 standard Kwikset
for users, 1 unique patented keyway for
1-Key Control
1" x 2-1/4"
FUNCTIONS:
816 Key Control Deadbolt
817 UL Key Control Deadbolt
Deadbolt operated by key outside
and thumb turn inside.
DIMENSIONS:
C - 1 5/8"
1c
1b
2c
2a
2b
A - 2 7/8"
B - 3"
Strike
Bolt
ANSI/BHMA
ADA
UL
FINISHES:
3
Polished
Brass
5
Antique
Brass
1 1/4" x 3-5/8"
1" throw
A156.5 Grade 2
Interior turn piece meets 4.13.9 ADA
Meets UL 3 hour re rating for UL
function. UL Ref# R10923
11P
Venetian
Bronze
15
Satin
Nickel
26D
Brushed
Chrome
EASILY RE-KEY IN 3 SIMPLE STEPS:
1
Insert functioning key &
turn 1/4 turn clockwise.
2
Insert & remove the
SmartKey learn tool.
Remove functioning key.
3
Insert new key and turn
You must have your functioning
key & your SmartKey tool for
the system to work.
1/2 turn counter-clockwise.
Your lock is now re-keyed!
SmartKey Tool Functioning Key
