Electronic Basin/Sink Faucet
3000T & 3001T Series Adjustable Program
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
DSP–3000T Rev. F
* Mixing Valve supplied by others. Flowrates are at 60 PSI.
(1) With Thermostatic Limit Stop. (2) Optional spouts R3, R4, R7 and R35 only available in this series due to fixed gooseneck supplied. (3) Hydro Power
♥
available. Add suffix -HP.
Refer to www.specselect.com for individual models. Note: Use this page front and back, with specification drawing page referenced above, as product submittal sheets.
Engineer/Architect Approval
Model Specified:
Approval: Date:
Specification: (example)
• Battery (4 ‘C’ cell) or Hardwire (24 VAC) infrared electronic handwash system
•H
2
OPTICS™ technology – no external adjustments required
• Chrome plated one piece cast main body with integral sensor and rigid spout
• Field adjustable water resistant program controller with LCD screen
• Controller retains adjusted settings in event of power failure
• Visual battery strength indicator
• Forged brass solenoid valve (control box No. 0 only)
• Tempered water supplied to solenoid valve, (except control box options No. 0, 1 and 2)
and... with... (specify battery or hardwire)
with... (add spout required)
with... (add outlet required)
with... (add control box required)
with... (add suffix -KS if required - See Back Page)
with... (add suffix -HP if required - See Back Page)
with... (transformer - specify separately - See Back Page)
3001T3470A
000
SPOUT & SENSOR
OUTLET
CONTROL BOX
222
111
333
555
777
999
444
666
888
Base Model with
Surface ✭ount Housing*
SEE Specification Drawing #5 (3)
For RECESSED MOUNTING
Components ASSEMBLED in 10" Box
w/S/S Cover. *
SEE Specification Drawing #6
Vandal Resistant
1.5 USGPM (5.7 L/min)
Laminar w/Agion
♣
Antimicrobial
Vandal Resistant
1.5 USGPM (5.7 L/min)
Flow Control Aerator
For SURFACE MOUNTING
Components ASSEMBLED in 10" Box
w/Aluminum Cover. *
SEE Specification Drawing #6
(R5) Single Hole Deckmount
Gooseneck Spout with
Integral Sensor in Base (2)
(R5) Deckmount Gooseneck
Spout with Integral Sensor in
Base and 4" Forged
Coverplate (2)
(R5) Gooseneck Spout
with Integral Sensor in
Base and 8" Forged
Coverplate (2)
Smooth End, Laminar Flow
Control in Base of
Gooseneck Spout
1.5 USGPM (5.7 L/min.)
For RECESSED MOUNTING
Components & Thermostatic Mixing Valve
ASSEMBLED in 10" Box w/S/S Cover.
SEE Specification Drawing #8
For SURFACE MOUNTING
Components & Thermostatic Mixing Valve
ASSEMBLED in 10" Box w/Aluminum Cover.
SEE Specification Drawing #8
For RECESSED MOUNTING
Components & Mechanical Mixing Valve (1)
ASSEMBLED in 10" Box w/S/S Cover.
SEE Specification Drawing #7
For SURFACE MOUNTING
Components & Mechanical Mixing Valve (1)
ASSEMBLED in 10" Box w/Aluminum Cover.
SEE Specification Drawing #7
✔✔✔
Smooth End, Laminar Flow
Control in Base of
Gooseneck Spout
0.5 USGPM (1.9 L/min.)
TECK
®
COMMERCIAL
DESCRIPTION PRODUCT NO.
Hardwire 3000T3 A
Battery Operated 3001T3 A
Hardwire with Battery Backup 3000T3 A
-BB
Approvals:
•
CSA certified
•
Complies to ASME A112.18.1
•
ADA Compliant and meets
Handicapped Accessibility
Standard ASME A117.1 of less than
5 lbs. handle operating force.
•
IAPMO listed
•
Control Box Option 6 & 7 Mechanical
Mixing Valve CSA certified
•
Control Box Option 8 & 9 Thermostatic
Mixing Valve CSA certified and meets
ASSE 1016, 1017, 1070
(Contact Delta Representative for State
and/or Local Approvals.)
OPERATION: (Optional Adjustments)
• Water flows when sensor is activated.
• Water flow stops at the selected run-on time
after user removes hands from sensing zone.
Run-on time selections are 0 to 8 seconds or
1 to 8 minutes for scrub-up applications.
Factory set to 0 seconds.
• Blocking time between uses has selectable
range of 1 to 8 seconds. Factory set to
1 second.
•
Adjustable response time.
•
Auto shut-off feature.
• Optional metered program mode with
selection of 7 to 240 seconds of continuous
operation.
• Adjustable sensing distance 76 to 381mm
(3" to 15") factory set to 254mm (10") (+/– 1.0”)
3/8" Compression
Connection
Watertight Connection
36" Long
32mm (1.25")
Dia. Hole
Required
58mm
(2.28")
Integral
Sensor
62mm
(2.46")
38mm
(1.5")
Max. Deck
Thickness
59mm
(2.31")
L
D
A
C
38mm
(1.5")
Max. Deck
Thickness
59mm
(2.31")
62mm
(2.46")
L
C
A
with Outlet #2 and 3 with Outlet #7 and 8
#4 - 102mm (4.0")
#5 - 203mm (8.0")
38mm
(1.5")
Max. Deck
Thickness
32mm (1.25") Dia.
3 Holes Required
Watertight Connector
36" Long
3/8" Compression
Connection
#4 - 191mm (7.5")
#5 - 282mm (11.1")
Integral
Sensor
A
C
D
L
78mm
(3.08")
63.5mm
(2.50")
78mm
(3.08")
63.5mm
(2.50")
L
A
C
with Outlet #7 and 8
OUTLET “D”
NO. mm in.
2 18 0.69
3 18 0.69
with Outlet #2 and 3
Electronic Basin/Sink Faucet
3000T & 3001T Series Adjustable Program
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
DSP-3000T Rev. F
3000T & 3001T ELECTRONIC FAUCET OPTIONAL ACCESSORIES:
✔ TRANSFORMERS:
060704A 110 to 24VAC Class II 20VA (Up to 5 Electronic Valves)
060771A 110 to 24VAC Class II 40VA (Up to 10 Electronic Valves)
060772A 110 to 24VAC Class II 100VA (Up to 25 Electronic Valves)
✔
CORDS:
060690A 36" Cable Extension
GOOSENECK SPOUT ASSEMBLIES
FLOWRATE vs PRESSURE
2.5
2
1.5
1
.5
00
0
1
2
3
4
5
6
7
8
9
10 20 30 40 50 60 70 80
Line Pressure (psig)
FLOW
(l/min.)
FLOW
(USGPM )
Spout Outlets
No. 3 Aerator
No. 2 Laminar Flow Outlet
No. 7 Flow Control
No. 8 Flow Outlet
Outlet Flowrates
Note: Measurements may vary ± 6mm (0.25'')
“A” “C” “L”
Spout/Outlet mm in. mm in. mm in.
Gooseneck-Standard (R5)
for Outlet #2, 3 152 6 124 4.9 188 7.4
Gooseneck-Standard (R5)
for Outlet #7 and 8 152 6 117 4.6 196 7.7
3000T3421A
Typical
Installation
Refer to www.specselect.com for individual models.
Product supplied as shown by solid lines. All items shown by dotted lines supplied by others.
GOOSENECK
SPOUT #3
3 POSITION SWITCH
Add suffix “-KS” to
Product Number for
Keyed Switch
See DSP-ELACC Rev. A for
detailed specification
GOOSENECK
SPOUT
#4 & #5
TECK
®
COMMERCIAL
HYDRO POWER
™
■ Add suffix “-HP” to Product Number for Hydro Power™.
See DSP-HP for detailed specification. Available on
Battery Powered #0 Control Box and #2, 3, 7 outlets only.
HARDWIRE WITH BATTERY
BACKUP
■ Add suffix “-BB” to Product Number. See DSP-BB for
detailed specification.
Gooseneck
Spout
Sensor
Coverplate
355mm
(14") max.
Watertight
Connector
Flexible, Sensor
Cord Conduit
257mm (10.13")
Control Box
Inlet - 1/2" Copper
(Tempered Water
By Others)
SUPPLIED:
3/8" MIP Outlet from Box
3/8" Compression Joint at Spout
BALANCE BY OTHERS
305mm (12")
Stainless Steel
Cover Plate
77mm (3.0")
102mm (4")
Specification Drawing #5
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
DSP–3000T Rev. F
COMPONENTS ONLY UNASSEMBLED
146mm
(5.73")
Recommended
381mm (15" max.)
to top of counter
36mm
(1.43")
1/8" Allen Screw
89mm
(3.5") MAX.
Note: Measurements may vary ± 6mm (0.25'')
3000T and 3001T
SERIES
508mm
(20")
3/8" COMPRESSION
FITTING BOTH ENDS
3000T AND 3001T SERIES: ADJUSTABLE PROGRAM
✔
PRODUCT NO. VALVE TYPE COVER
3000T 3 0 A Deckmount Handwash Hardwire Surface Mounted, Vandal Proof Control Housing
3001T 3 0 A Deckmount Handwash Battery Surface Mounted, Vandal Proof Control Housing
VANDAL PROOF
SURFACE MOUNT
CONTROL HOUSING
S/S HOSE
Note: Stainless Steel hose connection supplied
between Solenoid Valve and Spout
Battery Operated box shown.
Hardwire Version
comes complete with Watertight
Connector and Hardwire Converter
24VAC to 6VDC.
Hardwire with Battery Backup
(-BB) comes complete with
Watertight Connector,
Hardwire Converter 24VAC to
6VDC and 9V battery. See DSP-BB.
Hydro Power™Version
comes with Generator Assembly,
Power Module and 3/8 compression
x 1/2" FIP Hose. See DSP-HP.
TECK
®
COMMERCIAL
139mm
(5.47")
Battery
Pack
3/8" Compression
Connection
Outlet
100mm
(3.96")
Enter
Exit
3000T Controller
Inlet 3/8" NPT
or 3/8" Compression
Adaptor (Supplied)
TEMPERED WATER - ASSEMBLED CONTROL BOX
3000T AND 3001T SERIES: ADJUSTABLE PROGRAM
✔
PRODUCT NO. FAUCET TYPE MOUNT TYPE COVER
*3000T 3 1 A Deckmount Handwash Hardwire Recessed Mount 305mm (12") Stainless Steel
3000T 3 2 A Deckmount Handwash Hardwire Surface Mount 254mm (10") Aluminum
*3001T 3 1 A Deckmount Handwash Battery Recessed Mount 305mm (12") Stainless Steel
3001T 3 2 A Deckmount Handwash Battery Surface Mount 254mm (10") Aluminum
*This product is supplied with Flexible Sensor Cord Conduit on Recessed Mount Installations.
Specification Drawing #6
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
DSP–3000T Rev. F
Note: Measurements may vary ± 6mm (0.25'')
Note: For wallhung sink installations, sensor conduit rough-in should be directly under basin to minimize sensor cord exposure.
25mm
(1.0")
53mm
(2.07")
102mm
(4.0")
25mm
(1.0")
57mm
(2.25")
203mm
(8.0")
254mm
(10.0")
257mm
(10.13")
127mm
(5.0")
127mm
(5.0")
70mm (2.75") Diameter
Outlet 3/8" M.I.P.
Tempered Water
(By Others)
Inlet: 1/2" Copper
3000T Controller
Aluminum
Control Box
Solenoid Valve
Flexible Sensor Cord Conduit
(Supplied on Recessed Mount Box)
Screwdriver Stop
Bracket and battery
holder not required
for hardwire models
Aluminum
Control Box
Enter
Exit
Battery Operated box shown.
Hardwire Version comes
complete with Watertight
Connector and Hardwire
Converter 24VAC to 6VDC.
Hardwire with
Battery Backup (-BB)
comes complete with
Watertight Connector,
Hardwire Converter
24VAC to 6VDC and
9V battery. See DSP-BB.
Connection from box to
spout by others.
3000T AND 3001T
SERIES
TECK
®
COMMERCIAL

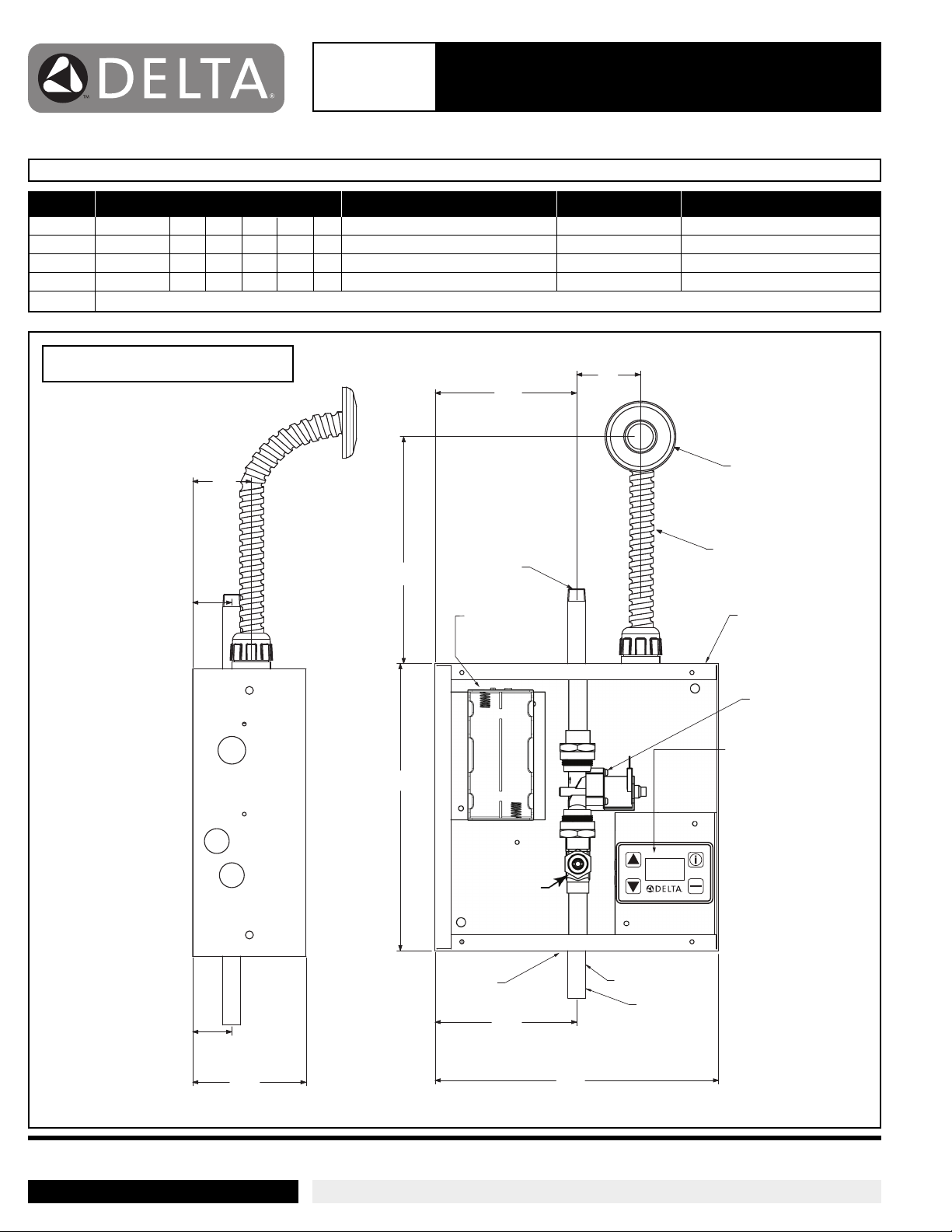

Specification Drawing #7
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
DSP–3000T Rev. F
Note: Measurements may vary ± 6mm (0.25'')
MECHANICAL MIXING VALVE ASSEMBLED CONTROL BOX
3000T and 3001T
SERIES
3000T AND 3001T SERIES: ADJUSTABLE PROGRAM
✔
PRODUCT NO. FAUCET TYPE MOUNT TYPE COVER
*3000T 3 6 A Deckmount Handwash Hardwire Recessed Mount 305mm (12") Stainless Steel
3000T 3 7 A Deckmount Handwash Hardwire Surface Mount 254mm (10") Aluminum
*3001T 3 6 A Deckmount Handwash Battery Recessed Mount 305mm (12") Stainless Steel
3001T 3 7 A Deckmount Handwash Battery Surface Mount 254mm (10") Aluminum
*This product is supplied with Flexible Sensor Cord Conduit on Recessed Mount Installations.
Note: For wallhung sink installations, sensor conduit rough-in should be directly under basin to minimize sensor cord exposure.
Battery Operated box shown.
Hardwire Version comes
complete with Watertight
Connector and Hardwire
Converter 24VAC to 6VDC.
Hardwire with
Battery Backup (-BB)
comes complete with
Watertight Connector,
Hardwire Converter
24VAC to 6VDC and
9V battery. See DSP-BB.
Connection from box to
spout by others.
TECK
®
COMMERCIAL
35mm
(1.38")
53mm
(2.07")
Outlet: 3/8" M.I.P.
203mm
(8.0")
Bracket
and
battery
holder not
required
for
hardwire
models
74mm
(2.9")
70mm (2.75") Diameter
Flexible Sensor
Cord Conduit
(Supplied
on recessed
mount box)
3000T Controller
74mm
(2.9")
Outlet 3/8" M.I.P.
Inlets
1/2" Copper
Solenoid Valve
257mm
(10.13")
Screwdriver
Stop
102mm
(4.0")
Mechanical Mixing Valve
with Checks and Thermostatic Limit Stop
254mm
(10.0")
Enter
Exit
Specification Drawing #8
Delta reserves the right (1) to make changes in specifications and materials, and (2) to change or discontinue models, both without notice or obligation.
Dimensions are for reference only. See current full-line price book or www.specselect.com for finish options and product availability.
DSP–3000T Rev. F
Note: Measurements may vary ± 6mm (0.25'')
THERMOSTATIC MIXING VALVE ASSEMBLED CONTROL BOX
3000T and 3001T
SERIES
3000T AND 3001T SERIES: ADJUSTABLE PROGRAM
✔
PRODUCT NO. FAUCET TYPE MOUNT TYPE COVER
*3000T 3 8 A Deckmount Handwash Hardwire Recessed Mount 305mm (12") Stainless Steel
3000T 3 9 A Deckmount Handwash Hardwire Surface Mount 254mm (10") Aluminum
*3001T 3 8 A Deckmount Handwash Battery Recessed Mount 305mm (12") Stainless Steel
3001T 3 9 A Deckmount Handwash Battery Surface Mount 254mm (10") Aluminum
*This product is supplied with Flexible Sensor Cord Conduit on Recessed Mount Installations.
Note: For wallhung sink installations, sensor conduit rough-in should be directly under basin to minimize sensor cord exposure.
Battery Operated box shown.
Hardwire Version comes
complete with Watertight
Connector and Hardwire
Converter 24VAC to 6VDC.
Hardwire with
Battery Backup (-BB)
comes complete with
Watertight Connector,
Hardwire Converter
24VAC to 6VDC and
9V battery. See DSP-BB.
Connection from box
to spout by others.
TECK
®
COMMERCIAL
35mm
(1.38")
53mm
(2.07")
Outlet: 3/8" M.I.P.
203mm
(8.0")
Bracket
and
battery
holder not
required
for
hardwire
models
74mm
(2.9")
70mm (2.75") Diameter
Flexible Sensor
Cord Conduit
(Supplied
on recessed
mount box)
3000T Controller
74mm
(2.9")
Outlet 3/8" M.I.P.
Inlets
1/2" Copper
102mm
(4.0")
257mm
(10.13")
Solenoid Valve
Screwdriver
Stop
Thermostatic Mixing Valve
with Checks
254mm
(10.0")
Loading...
