Factory Direct Hardware 34016 User Manual

Installation Instructions / Warranty

Axor Citterio M

34010XX1
34016XX1
34017XX1

Axor Citterio M

34120XX1
34127XX1

Axor Citterio M

34210XX1

2

Axor Citterio M
Lav Mixer 34010XX1
Small Lav Mixer 34016XX1
Lav Mixer less Drain 34017XX1
Tall Lav Mixer 34120XX1
Tall Lav Mixer less Drain 34127XX1

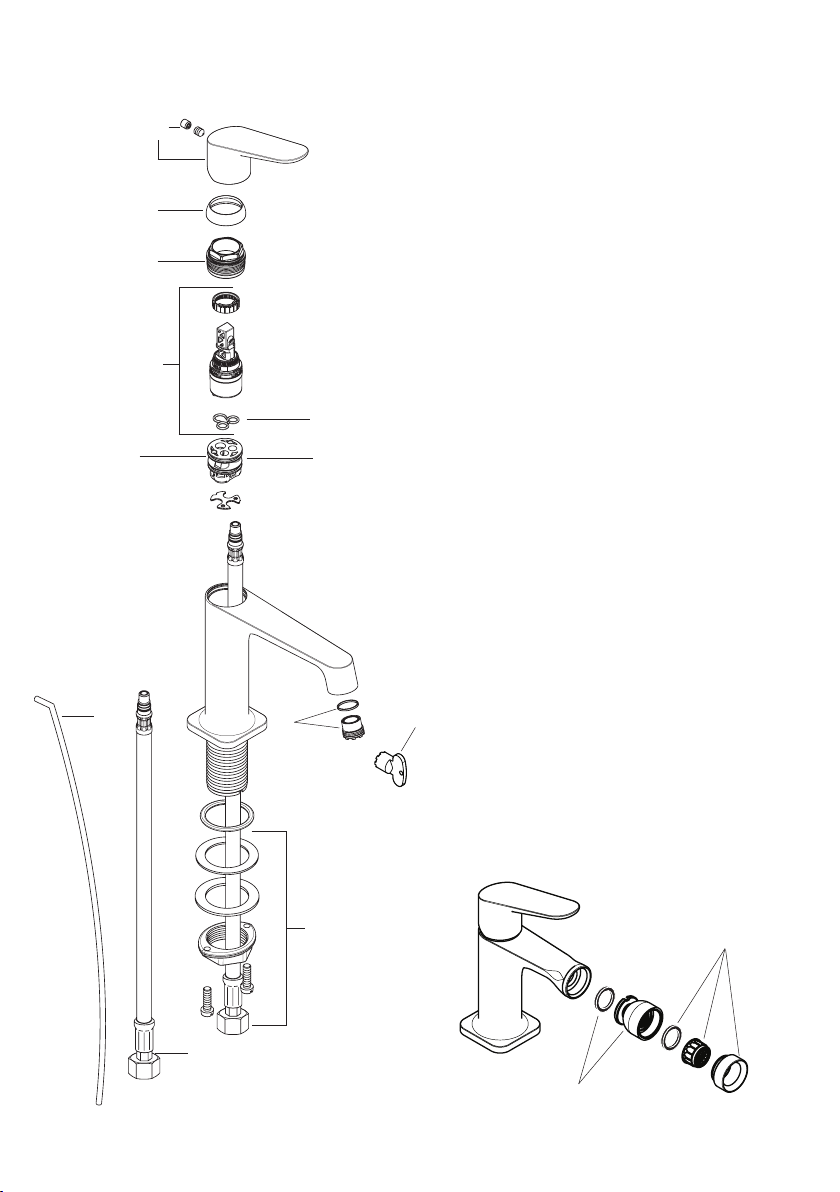

Bidet Mixer 34210XX1

34010XX1 34017XX1

34016XX1 34210XX1

34120XX1 34127XX1

Technical Information

Recommended water pressure 14.7 - 72.5 psi
Max. water pressure 145 psi

Recommended hot water temp. 120� - 140� F*
Max. hot water temp 165�F*

Hole size in mounting surface 1 3/8"
Max. mounting surface depth 1 5/8"
Flow rate – lavatory 1.5 gpm
Flow rate – bidet 2.2 gpm
Cartridge with high temperature limit stop
3/8" supply hoses

*Please know and follow all applicable local plumbing codes when setting

the temperature on the water heater.

Installation Considerations

For best results, Hansgrohe recom-

•
mends that this unit be installed by
a licensed, professional plumber.

Please read over these instructions

•
thoroughly before beginning instal­lation. Make sure that you have
all tools and supplies needed to
complete the installation.

This faucet can be used with a

•
continuous flow water heater if the
flow pressure is at least 20 psi.

3

4

Installation

Install the drain pull rod*.

*Drain and pull rod not included with models

34017XX1 or 34027XX1.

Position the faucet and sealing gasket on the mounting
surface.

Install the fiber washer, friction washer, and mounting
nut.

Tighten the mounting nut by hand.

Tighten the tensioning screws.
