PARTS MANUAL
33A/35A SERIES
RIM EXIT DEVICES
JUNE 2005
33A RIM
35A RIM
PM33A35A_Rim_B
VD-4049
Copyright © 2005 Ingersoll-Rand. All right s reserved.
INDEX
33A/35A Rim Panic Devices
Basic Device ............................................................................................................................... 4-5
Baseplate Assembly....................................................................................................................... 6
V ariations of the Basic Device
CD (Cylinder Dogging)........................................................................................................... 4
HD-EL (Hex Dogging/Electric Latch Retraction) .................................................................... 7
EL (Electric Latch Retraction) ............................................................................................... 8
SS (Signal Switch)................................................................................................................ 8
CX Chexit.............................................................................................................................. 9
RX (Request to Exit) .......................................................................................................10-11
LX (Latch Bolt Monitoring) ...............................................................................................10-1 1
ALK Exit Alarm Kit..............................................................................................................12
General Information
Introduction..................................................................................................................................... 2
How to Order .................................................................................................................................. 2
Part Number Changes .................................................................................................................... 2
Finishes ......................................................................................................................................... 3
Outside Trim Functions .................................................................................................................. 3
Strikes............................................................................................................................................ 3
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 33A/35A Rim Panic Exit Hardware
Devices. (33A Series and 35A Series devices are almost identical. The 33A Series has a grooved case; the
35A Series has a smooth case.)
HOW TO ORDER
Some parts are sold separately . Other items are available as p art of a kit or multiple quantity package.
For the best possible service when ordering replacement parts or assemblies, please provide the following
information:
• Part number or assembly number
• Description
• Quantity needed
• Finish desired (if available finished)
• Date of original purchase (if known)
T o find out the name of your local V on Duprin distributor or sales representative, cont act:
Von Duprin Division
Ingersoll-Rand Company
2720 T obey Drive
Indianapolis, Indiana 46219
Phone: (800) 999-0408
Fax: (800) 999-0328
Website: www .vonduprin.com
PART NUMBER CHANGES
This manual reflects the product as sold in June 2005. Because of changes to the product and/or
manufacturing process, part numbers can change.
Page 2 of 12
PM33A35A_Rim_a
OUTSIDE TRIM FUNCTIONS
386DT***
386NL**
388NL-OP****
33A/35A SERIES FINISHES
U.S. Std
Reference
BHMA
Reference Description
US3
US4
US10
US15
US26
US26D
US28
313AN
315AN
360T
360T-BE* 360L
360L-BE*
360L-DT***
* “BE” (Blank Escutcheon) no cylinder used - lever always active
** “NL” (Night Latch) rigid lever - key retracts latch bolt
*** ”DT” (Dummy Trim) rigid lever for pull operation
**** “NL-OP” (Optional Pull) needs to be added
605
606
612
619
625
626
628
710
71 1
Polished Brass
Dull Brass
Dull Bronze
Satin Nickel
Polished Chrome
Dull Chrome
Anodized Alum. (Clear)
Anodized Alum. (313)
Dark Bronze
Anodized Alum. (Black)
STRIKES
Adjusting block
1
1439 Strike - Single door
Standard Panic Exit Hardware
Strike Plate
970323
1
299 Strike - Single or Double
Door Panic Exit Hardware
Adjusting Shim
971995
Wear plate
971998
Drive nuts
4299101022
970321
Wear plate
960012
Rivets
963074
Screw Pkg
900254
1410 Strike - Single Door Integral
Stop Panic Exit Hardware
Screw
Pkg
900263
1606 Strike - Single or Double
Door Panic Exit Hardware
Adjusting Shim
961084
1
1609 Strike - Double Door Rim/
Vertical Rod Combination (Consult
Factory) Panic Exit Hardware
Screw
Pkg
900253
1408 Strike - Double Door
Used on 5754 Mullions
Panic Exit Hardware
PM33A35A_Rim_a
Metal Door Screw Package PKGSRV .1023 (Pkg of 10)
1
Wood Door Screw 964291 (Qty of 1)
Page 3 of 12
33A/35A RIM PANIC DEVICE
7A
8
9
7
7B
7B
1
10A
10
17
16
6
17
4
5
10B
14
18
11
13
12
12A
CD Conversion Kit
33A Series - 050115
35A Series - 050132
7B
Hex Dogging Kit
33A Series - 050114
35A Series - 050117
Page 4 of 12
15
3A
3
3B
3C
7B
2
Less Dogging
1
Cover Plate Kit
33A Series - 050133
35A Series - 050109
PM33A35A_Rim_a
33A/35A RIM PANIC DEVICE
Item No. Quantity Part No. Description Finish
1 900619 33A/35A Series Mounting Pkg. (1-3/4 & 2-1/4)
1 1 090085 227 Dog Key 5/32” Hex (Pkg of 10)
1 1 090005 227 Dog Key 5/32” Hex (Pkg of 2)
2 1 090040 Hex Dog Shaft (Pkg of 2)
3 1 107813 Cylinder Mounting Pkg X
3A 1 050525 Cylinder Collar X
3B 1 050490 Cylinder Locating Washer - CD/SS
3C 1 050526 Cylinder Locknut
4 1 090046 CD Dogging Plug (Pkg of 2)
5 1 090045 CD Actuator Arm (Pkg of 2)
6 1 *PBKIT 33A/35A Series Push Bar Retrofit Kit - 3’ Door X
6 1 *PBKIT 33A/35A Series Push Bar Retrofit Kit - 4’ Door X
7 1 050014 33A/35A Series Series End Cap Kit X
7A 1 050524 Impact Resistant End Cap Bracket
7B 1 090036 Cover Plate Anti-rattle S pring (Pkg of 10)
8 1 900597 Device End Cap and C/Case Screw Pkg. X
9 1 050486 33A Series Mechanism Case - 3’ Door X
9 1 050487 33A Series Mechanism Case - 4’ Door X
9 1 050488 35A Series Mechanism Case - 3’ Door X
9 1 050489 35A Series Mechanism Case - 4’ Door X
10 1 050529 Control Link Pin & Ret. Ring
10A 1 090031 Series Control Link Pin
10B 1 090107 Retaining Ring (Pkg of 10)
11 2 090037 #8-32 x 3/8” Baseplate Screw (Pkg of 10)
12 1 050530 Mechanism Case Bracket Kit
12A 2 090073 Mechanism Case Bracket Screw (Pkg of 10)
13** 1 050403 33A/35A Rim Center Case Less Cover
14 1 050474 33A Series Cover Plate - C. Case Side X
14 1 050475 35A Series Cover Plate - C. Case Side X
15 1 050483 33A/35A Rim Center Case Cover Kit X
16 1 050491 Shock Absorber & Holder Assembly
17 2 090049 Push Bar Guide (Pkg of 10)
18 4 900892 Center Case Cover Screws (Pkg of 4) X
X in “Finish” column designates finished items; finish must be specified when ordering.
* To order , specify device type, size, and finish. Example: PBKIT 33A 3’ US28
**Device mounting screws 900619 included.
PM33A35A_Rim_a
Page 5 of 12
33A/35A RIM PANIC DEVICE BASEPLATE ASSEMBLY
Item No. Quantity Part No. Description Finish
1 1 090043 Dogging adapter (Pkg of 2)
2 1 090042 Dogging adapter spring (Pkg of 2)
3 1 090041 Dogging spring (Pkg of 2)
4 1 090040 Hex dogging shaft (Pkg of 2)
5 1 090044 Dogging hook (Pkg of 2)
6 1 090039 Latch return spring (Pkg of 10)
7 4 090038 Rubber bumper (Pkg of 4)
8 1 050491 Shock absorber
7
6
8
4
5
3
1
2
Page 6 of 12
PM33A35A_Rim_a
HD-EL33A/HD-EL35A HEX DOGGING/ELECTRIC LATCH
RETRACTION OPTION - PANIC DEVICE ONLY
Item No. Quantity Part No. Description Finish
1 1 050531 EL Dogging Rod Kit - 3’ Device
1 1 050532 EL Dogging Rod Kit - 4’ Device
2 1 1 10388 EL 6’ Cable and Connector
3 1 050534 EL Potted Circuit Breaker
4 1 050536 HD-EL Solenoid
5 1 050537 HD-EL Solenoid Plunger
6 1 050538 EL Dogging Rod Retainer
7 1 050539 EL Receptacle Connector - 2 Position
8 2 050540 EL Female T erminal
9 1 050541 HD-EL Dog Screw
10 1 050542 HD-EL Solenoid Bracket
11 1 050543 HD-EL Dogging Spring
12 1 990599 EL Plug Connector - 2 Position
13 1 990857 EL Receptacle Connector - 3 Position
14 1 990858 EL Plug Connector - 3 Position
* 1 050384 HD-EL Conversion Kit - 3'
* 1 050385 HD-EL Conversion Kit - 4'
*Kit includes items 1-1 1 plus new control link, retaining ring, and baseplate screws.
9
4
3
2
7
8
12
13
14
10
6
5
11
1
PM33A35A_Rim_a
Page 7 of 12
EL33A/EL35A SERIES ELECTRIC LATCH RETRACTION OPTION
Item No. Quantity Part No. Description Finish
1 1 050531 EL Dogging Rod Kit - 3’ device
1 1 050532 EL Dogging Rod Kit - 4’ device
2 1 1 10388 EL 6’ Cable and Connector
3 1 050534 EL Potted Circuit Breaker
4 1 050535 EL Solenoid Assembly
5 1 050538 EL Dogging Rod Retainer
6 1 050539 EL Receptacle Connector
7 2 050540 EL Female T erminal
8 1 990599 EL Plug Connector - 2 Position
9 1 990857 EL Receptacle Connector - 3 Position
10 1 990858 EL Plug Connector - 3 Position
* 1 050070 EL Conversion Kit - 3’
* 1 050078 EL Conversion Kit - 4’
*Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.
4
3
6
2
7
8
9
10
5
SS33A/SS35A SERIES (SIGNAL SWITCH) OPTION
Item No. Quantity Part No. Description Finish
1 1 050544 SS Cable
2 1 050545 SS Housing
3 1 990601 SS Plug Connector - 6 Position
4 1 990602 SS Receptacle Connector - 6 Position
1
1
Page 8 of 12
3
4
2
PM33A35A_Rim_a
CX33A/35A SERIES CHEXIT AND CX-RCM OPTION
Item No. Quantity Part No. Description Finish
1 1 050228 Chexit PCB Kit - 15 Second Release
1* 1 050700 Chexit PCB Kit - 30 Second Release
1 1 050701 Chexit PCB Kit - 0 Second Release
1 1 050702 Chexit PCB Kit - Boca 15 Second Release
1* 1 050703 Chexit PCB Kit - Boca 30 Second Release
2 1 050533 CX Solenoid and Plunger
3 1 11 31 1 1 Faceplate and Adapter X
4 4 963898 6-32 x 3/8” OPHMS Faceplate Screws X
5 1 991338 RCM 3 Wire RX Cable
6 1 991339 RCM 2 Wire Solenoid Cable
7 1 112018 Chexit Wiring Assembly
8 1 991336 CX-RCM Cable Assy - 5 Wire
9 1 090036 Cover Plate Anti-rattle Spring (Pkg of 10)
10 1 970513 LED Cover Mask - Chexit
11 1 970519 LED Cover - Chexit
12 1 113781 Sign 15 Second - Chexit
13 1 113782 Sign 30 Second - Chexit
*Over 15 seconds delay requires a letter of approval from authority having local jurisdiction.
Fax letter in with sales order. The order cannot be processed without the letter.
1
2
*RCM Kit Less Module - CX35A - 050376
*RCM Kit Less Module - CX33A - 050375
*Includes items 3-11
5
6
4
3
7
8
9
10
11
CX Cover Plate Kit
33A Series - 050669
35A Series - 050670
12
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 15 SECONDS
13
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 30 SECONDS
PM33A35A_Rim_a
Page 9 of 12

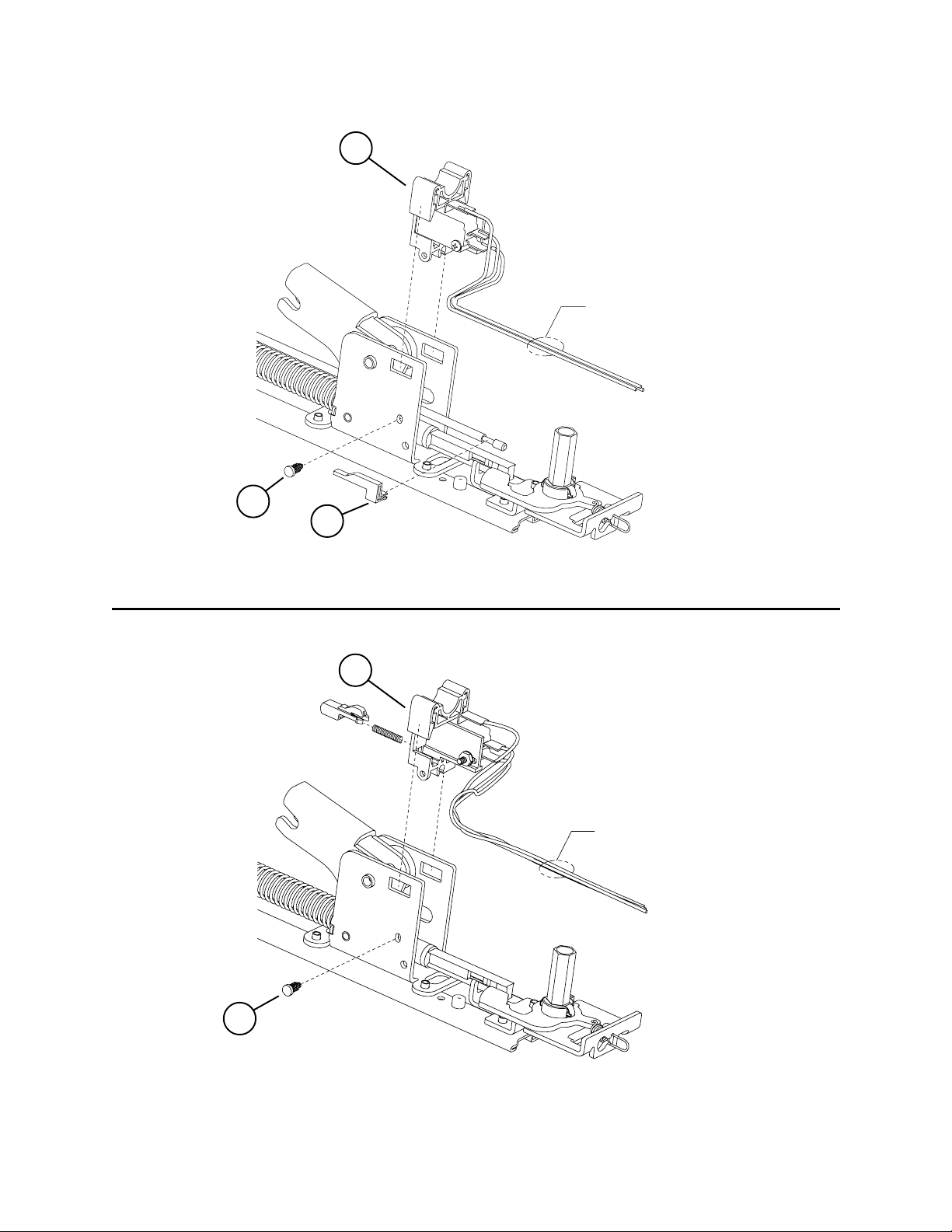

1
7
8
LX Switch
Wire Colors
Violet, Gray, White
(for Low Current
Violet, Gray, Black)
RX Switch
2
Wire Colors
Red, Y ellow, Blue
(for Low Current
Green, Y ellow, Blue)
7
Page 10 of 12
PM33A35A_Rim_a
33A/35A SERIES LX (LATCH BOLT MONITOR) &
RX (REQUEST TO EXIT) OPTIONS
Item No. Quantity Part No. Description Finish
1 1 050254 LX Switch Kit 3’ Device
1 1 050255 LX Switch Kit 4’ Device
1 1 050247 LX-EL Switch Kit
1 1 050283 LX-LC (Low Current) Switch Kit 3’ Device
1 1 050285 LX-LC (Low Current) Switch Kit 4’ Device
1 1 050287 LX-LC-EL (Low Current) Switch Kit
2 1 050251 RX Switch Kit
2 1 050281 RX-LC (Low Current) Switch Kit
3 1 050256 LX-RX Switch Kit 3’ Device
3 1 050257 LX-RX Switch Kit 4’ Device
3 1 050259 LX-RX-EL Switch Kit
3 1 050289 LX-RX-LC (Low Current) Sw. Kit 3’ Device
3 1 050291 LX-RX-LC (Low Current) Sw. Kit 4’ Device
3 1 050293 LX-RX-LC-EL (Low Current) Switch Kit
2 & 4 1 050270 RX-2 Switch Kit
4 1 050271 RX-AUX Switch Kit
5 1 964558 8-32 x 5/16” PPHMS
6 1 964019 #8 Washer
7 1 090099 Pine Tree Clip (Pkg of 10)
8 1 971091 LX Actuator
LX-RX Switch
3
7
Wire Colors
Red, Y ellow, Blue
(for Low Current
Green, Y ellow, Blue)
Wire Colors
Violet, Gray, White
(for Low Current
Violet, Gray, Black)
4
6
5
Wire Colors
Red, Y ellow, Blue
(for Low Current
Green, Y ellow, Blue)
RX-AUX Switch
PM33A35A_Rim_a
Page 11 of 12
33A/35A ALK EXIT ALARM KIT
Item No. Quantity Part No. Description Finish
1 1 111795 ALK PCB Assembly
2 1 050525 Cylinder Collar X
3 1 969122 ALK Alarm Device Sign
4 1 969349 ALK Arming Label
5 1 969350 ALK Disarming Label
6 1 969354 Retainer Nut
7 1 970594 ALK Cylinder S p acer
8 1 090036 Cover Plate Anti-rattle spring (Pkg of 10)
9 1 971556 ALK Switch Actuator
10 1 971557 ALK Cylinder Bracket
11 1 990637 ALK Battery
12 1 050406 33A Series ALK Cover Plate Kit X
12 1 050407 35A Series ALK Cover Plate Kit X
X in “Finish” column designates finished items; finish must be specified when ordering.
EMERGENCY EXIT ONLY
ALARM WILL SOUND
12
2
8
10
7
1
11
3
A
M
R
A
S
I
D
R
M
Page 12 of 12
9
5
6
4
PM33A35A_Rim_a
Loading...
