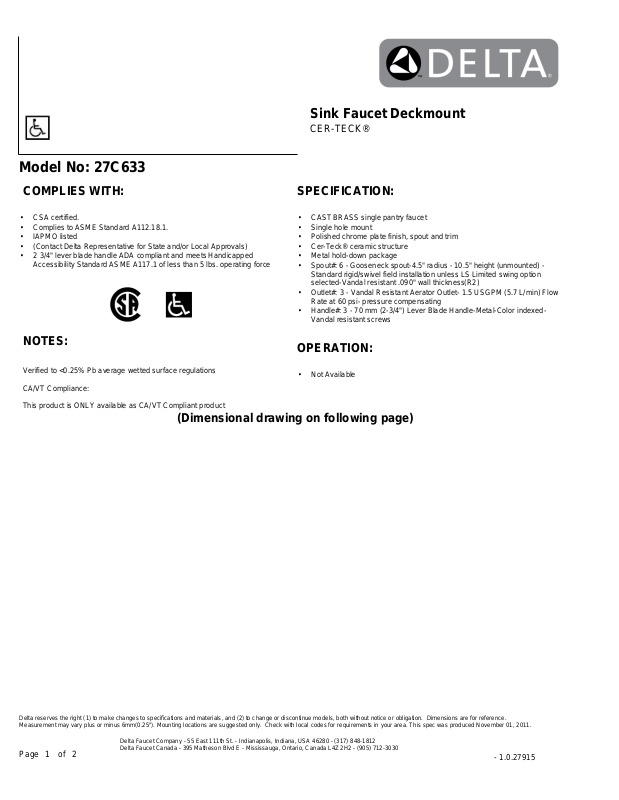

Factory Direct Hardware 27C633 User Manual
Model No: 27C633
SPECIFICATION:
•
CAST BRASS single pantry faucet
•
Single hole mount
•
Polished chrome plate finish, spout and trim
•
Cer-Teck® ceramic structure
•
Metal hold-down package
•
Spout#: 6 - Gooseneck spout-4.5" radius - 10.5" height (unmounted) -
Standard rigid/swivel field installation unless LS Limited swing option
selected-Vandal resistant .090" wall thickness(R2)
•
Outlet#: 3 - Vandal Resistant Aerator Outlet- 1.5 USGPM (5.7 L/min) Flow
Rate at 60 psi- pressure compensating
•
Handle#: 3 - 70 mm (2-3/4") Lever Blade Handle-Metal-Color indexed-
Vandal resistant screws
COMPLIES WITH:
•
CSA certified.
•
Complies to ASME Standard A112.18.1.
•
IAPMO listed
•
(Contact Delta Representative for State and/or Local Approvals)
•
2 3/4" lever blade handle ADA compliant and meets Handicapped
Accessibility Standard ASME A117.1 of less than 5 lbs. operating force
(Dimensional drawing on following page)
•
Not Available
OPERATION:
NOTES:
Verified to <0.25% Pb average wetted surface regulations
CA/VT Compliance:
This product is ONLY available as CA/VT Compliant product
Delta Faucet Company - 55 East 111th St. - Indianapolis, Indiana, USA 46280 - (317) 848-1812
Sink Faucet Deckmount
CER-TECK®
Delta reserves the right (1) to make changes to specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference.
Measurement may vary plus or minus 6mm(0.25"). Mounting locations are suggested only. Check with local codes for requirements in your area. This spec was produced November 01, 2011.
Page of1 2
Delta Faucet Canada - 395 Matheson Blvd E - Mississauga, Ontario, Canada L4Z 2H2 - (905) 712-3030
Model No: 27C633
Delta Faucet Company - 55 East 111th St. - Indianapolis, Indiana, USA 46280 - (317) 848-1812
Delta reserves the right (1) to make changes to specifications and materials, and (2) to change or discontinue models, both without notice or obligation. Dimensions are for reference.
Measurement may vary plus or minus 6mm(0.25"). Mounting locations are suggested only. Check with local codes for requirements in your area. This spec was produced November 01, 2011.
Page of2 2
Delta Faucet Canada - 395 Matheson Blvd E - Mississauga, Ontario, Canada L4Z 2H2 - (905) 712-3030
