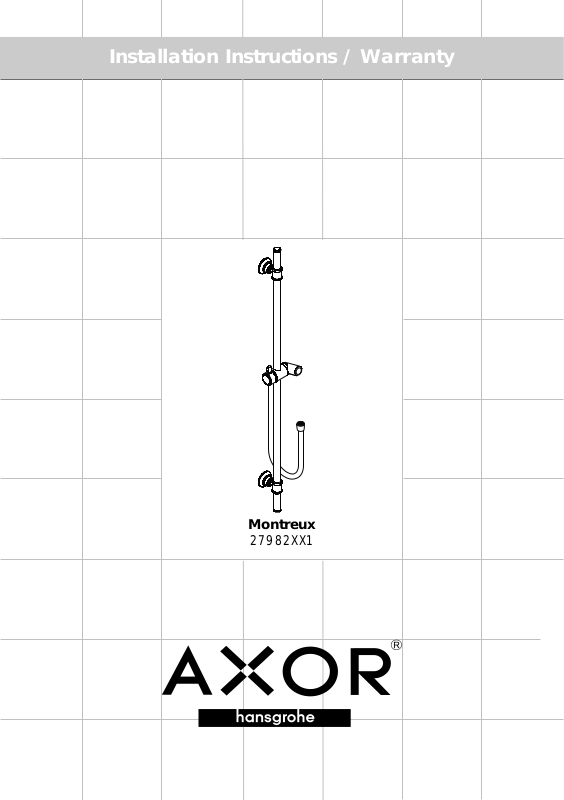

Installation Instructions / Warranty

Montreux

27982XX1

Axor Montreux Wallbar with Hose
27982XX1

Installation Considerations:

This wallbar should be mounted only on a
flat wall surface -- no projecting joints or tiles
should be present at the mounting points.

The mounting kit included with this wallbar
is suitable for a tile, stone, or other solid
surface wall.

If the wallbar is to be installed on a fiber­glass or acrylic shower unit, please contact
the manufacturer of the shower unit for
their recommendations regarding suitable
mounting hardware. Reinforcement may be
required at the mounting points.

Do not experiment with the mount­ing pieces. The mounting pieces must be

firmly screwed to the wall before installing
them on the wallbar.

A 63” Techniflex hose is included with the

27982XX1

2

27982XX1 wallbar.

Wallbar Installation

Mark the positions of the screw holes, using the mounting brackets
as templates. The notch on the mounting bracket should be on
the top for the top mounting bracket, on the bottom for the bottom
mounting bracket.

Drill the holes with a 6 mm bit suitable for the wall surface.

Install the anchors. Seal the wall around the anchors with
waterproof bathroom sealant.

Install the mounting brackets with the screws.

3

Position the bar over the mounting brackets. Press the
bar into place.

Install the Hose and Handshower* :

Place the black rubber hose washer in one end of the
handshower hose. Screw this end of the hose to the wall
outlet*.

Place the screen washer in the other end of the hose.
Screw this end of the hose to the handshower*.

Place the handshower in the wallbar slider.

*Handshower and wall outlet not included.

4

Remove the Wallbar:

Push a small tool, such as an Allen wrench into the hole
on the bottom of the escutcheon. Push the tool firmly
upwards against the spring-loaded pin. Pull outwards on
the end of the bar.

Cleaning Recommendation for Hansgrohe Products

Modern faucetry and shower products utilize a combination of materials to comply with the needs of the
market with regard to design and functionality.

To avoid damage, it is necessary to use some caution when cleaning. Damage caused by improper treatment
is not covered under the Hansgrohe warranty.

Cleaning Materials for Faucets and Showers

• To remove lime scale, use only products made specifically for that purpose. Always follow the
manufacturer’s instructions when using.

• Do not use cleaners that contain hydrochloric, formic, acetic, or phosphoric acids, as these will cause
considerable damage to finishes and to plastic components.

• Never mix cleaning materials.

• Never use cleaners containing abrasives. Do not use abrasive cleaning cloths, pads, or sponges.

Cleaning Procedures

• Clean your faucets and shower products as and when required. Regular cleaning will prevent scale
buildup and water spotting.

• Follow the label instructions. Do not allow any cleaner to remain on the product for longer than
necessary.

• When using spray cleaners, spray first onto a sponge or cloth – do not spray directly onto the product.

• After cleaning, rinse thoroughly with clear water to remove any cleaner residue.

Important

• Soap and shampoo residue can also cause damage to the product. Rinse well with clean water after use.

• If the surface is already damaged, harsh cleaning materials will cause further damage.

5

Limited Lifetime Consumer Warranty

This product has been manufactured and tested to the highest quality standards by Hansgrohe, Inc. (“Hansgrohe”). This
warranty is limited to Hansgrohe products which are purchased by a consumer in the United States after March 1, 1996 and
installed in either the United States or Canada.

WHO IS COVERED BY THE WARRANTY
This warranty extends to the original consumer purchaser only.
WHAT IS COVERED BY THE WARRANTY
This warranty covers only your Hansgrohe manufactured product. Hansgrohe warrants this product against defects in material

or workmanship as follows: Hansgrohe will repair at no charge for parts only or, at its option, replace any product or part of
the product which proves defective because of improper workmanship and/or material, under normal installation, use, service
and maintenance. If Hansgrohe is unable to provide a replacement and repair is not practical or cannot be timely made,
Hansgrohe may elect to refund the purchase price in exchange for the return of the product.

LENGTH OF WARRANTY
Replacement or repaired parts of products will be covered for the term of this warranty as stated in the following two

sentences. If you are a consumer who purchased the product for use primarily for personal, family, or household purposes,
this warranty extends for as long as you own the product and the home in which the product is installed. If you purchased the
product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only
(i) for 1 year, with respect to Interaktiv and Retroaktiv products and (ii) for 5 years, with respect to AXOR, ShowerPower and
Pharo products.

THIS WARRANTY DOES NOT COVER and HANSGROHE WILL NOT PAY FOR:
A. Conditions, malfunctions or damage not resulting from defects in material or workmanship.
B. Conditions, malfunctions or damage resulting from (1) improper installation, improper maintenance, misuse, abuse,

negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning agents or “no rinse” cleaning products,
or the use of the product in any manner contrary to the product instructions.

C. Labor or other expenses for the disconnection or return of the product for warranty service, or for installation or

reinstallation of the product.

D. Accessories or related products not manufactured by Hansgrohe.

TO OBTAIN WARRANTY SERVICE
Contact your Hansgrohe retailer, or write to Technical Service at:
Hansgrohe Inc.

1492 Bluegrass Lakes Parkway
Alpharetta GA 30004

Or, call Hansgrohe toll-free at [phone].
In requesting warranty service, you will need to provide

1. The sales receipt or other evidence of the date and place of purchase.

2. A description of the problem.

3. Delivery of the product or the defective part, postage prepaid and carefully packed and insured, to Hansgrohe Inc.
1492 Bluegrass Lakes Parkway, Alpharetta, Georgia 30004, Attention: Technical Service, if required by Hansgrohe.

When warranty service is completed, any repaired or replacement product or part will be returned to you postage prepaid.

6

EXCLUSIONS AND LIMITATIONS
REPAIR OR REPLACEMENT (OR, IN LIMITED CIRCUMSTANCES, REFUND OF THE PURCHASE PRICE) AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. HANSGROHE NEITHER ASSUMES NOR AUTHORIZES
ANY PERSON TO CREATE FOR IT ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THIS PRODUCT.

HANSGROHE SHALL NOT BE LIABLE TO PURCHASER OR ANY PERSON FOR ANY INCIDENTAL, SPECIAL, OR
CONSEQUENTIAL DAMAGES, ARISING OUT OF BREACH OF THIS WARRANTY OR ANY IMPLIED WARRANTY
(INCLUDING MERCHANTABILITY).

Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.

This warranty gives you specific legal rights and you may have other rights which vary from State to State.
You may be required by law to give us a reasonable opportunity to correct or cure any failure to comply before you can bring

any action in court against us under the Magnuson-Moss Warranty Act.
PRODUCT INSTRUCTIONS AND QUESTIONS
Upon purchase or prior to installation, please carefully inspect your Hansgrohe product for any damage or visible defect.

Prior to installing, always carefully study the enclosed instructions on the proper installation and the care and maintenance of
the product. If you have questions at any time about the use, installation, or performance of your Hansgrohe product, or this
warranty, please call or write to us at the toll-free number and address printed above.

7

Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004

Tel. [phone] • Fax [phone]

www.hansgrohe-USA.com

US - Installation Instructions • Part No. 90593221 • Revised 06/2006
