Factory Direct Hardware 06462 User Manual [en, es, fr]

Installation Instructions / Warranty

Talis S

06462XX0

Technical

Données techniques Datos tecnicos

Information

Recommended water
pressure

Max. water pressure Pression d’eau maximum Presión en servicio max. 147 psi

Pression d’eau recommandée Presión recomendada en

servicio

15 - 75 psi

Recommended hot water
temp.

Max. hot water temp Température maximum d'eau

Température recommandée
d'eau chaude

chaude

Temperatura recomen­dada del agua caliente

Temperatura del agua
caliente max.

120� - 140� F*

176�F*

Flow rate Capacité nominale Caudal máximo 1.5 gpm

Hole size in mounting
surface

Max. depth of mounting
surface

*Please know and follow all applicable local plumbing codes when setting the temperature on the water heater.
* Vous devez connaître et respecter tous les codes de plomberie locaux applicables pour le réglage de la température du
chaue-eau.
*Debe conocer y cumplir todos los códigos locales aplicables para ajustar la temperatura del calentador de agua.

Dimension du trou dans la
surface de montage

Profondeur maximale de la
surface de montage

Tamaño del oricio en la
supercie de montaje

Profundidad máxima de la
supercie de montaje

1½"

2⅜"

2

Installation Considerations

For best results, Hansgrohe recommends that

•
this unit be installed by a licensed, profes­sional plumber.

Please read over these instructions thoroughly

•
before beginning installation. Make sure that
you have all tools and supplies needed to
complete the installation.

Protection against backow provided by

•
check valves in the sprayhead.

Keep this booklet and the receipt (or other

•
proof of date and place of purchase) for
this product in a safe place. The receipt is
required should it be necessary to request
warranty parts.

À prendre en considération pour l’installation

Avant de commencer l’installation, assurez-

•
vous que le robinet est complet et en bon
état et vériez que vous disposez de tous
les outils, fournitures et pièces nécessaires à
l’installation.

Pour de meilleurs résultats, ce produit devrait

•
être installé par un plombier professionnel
certié.

Deux clapets anti-retour à l’intérieur du gicleur

•
ore une protection contre le siphonnement à
rebours.

Conservez ce livret et le reçu (ou une autre

•
preuve sur laquelle gurent la date et l’endroit
de l’achat) pour ce produit dans un endroit
sûr. Le reçu est requis si vous commandez des
pièces sous garantie.

Consideraciones para la instalación

Para obtener mejores resultados, Hansgrohe

•
recomienda que la instalación de esta unidad
esté a cargo de un plomero profesional
matriculado.

Antes de comenzar la instalación, lea estas

•
instrucciones detenidamente. Asegúrese de
tener las herramientas y los insumos necesa­rios para completar la instalación.

La protección contra ujo inverso se propor-

•
cionia mediante dos válvulas de retención

Mantenga este folleto y el recibo (u otra

•
prueba de la fecha y el lugar de compra)
para este producto en un lugar seguro. El re­cibo es requerido lo debe es necesario para
solicitar partes de garantía.

English

Français

Español

see page 4

voir page 7

ver página 10

3

English

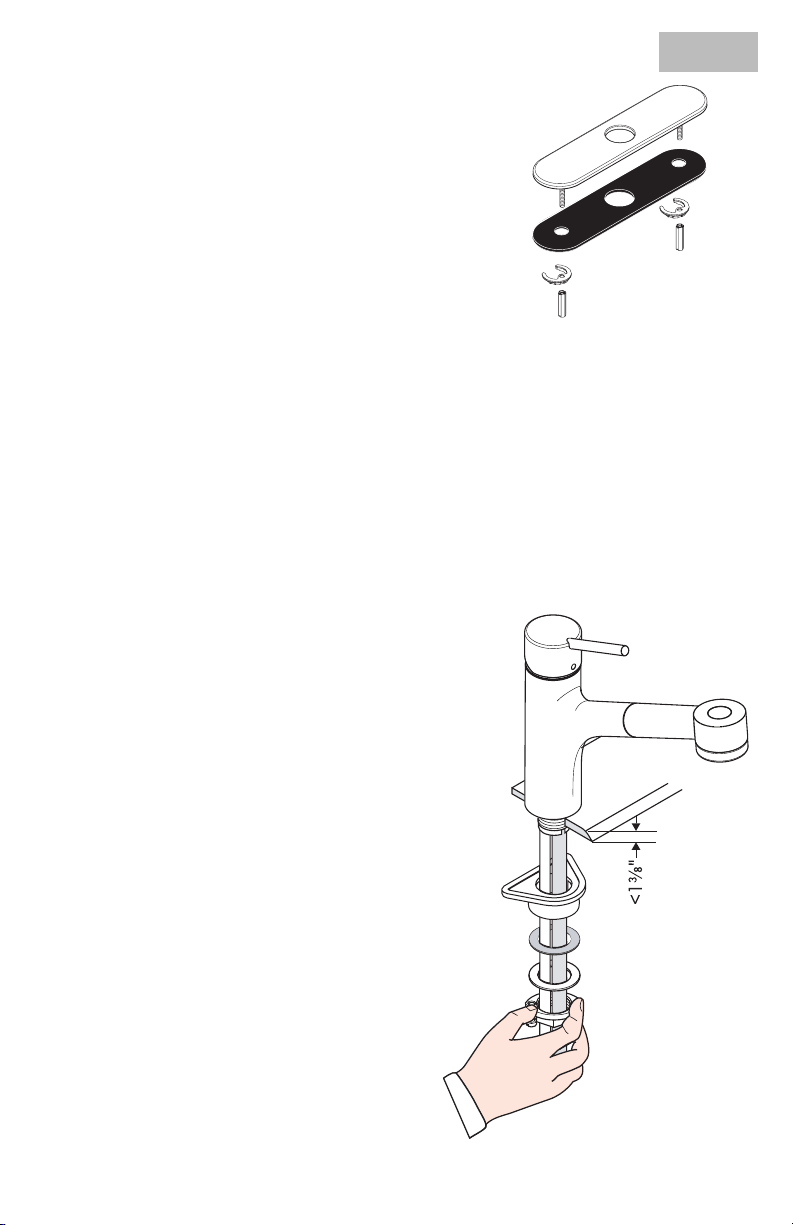

Install baseplate 06473XX0 (not
included, optional)

Position the baseplate and gasket on the faucet deck.
From under the sink, install the mounting anges and
tighten the mounting collars by hand.

The baseplate can be used on a kitchen sink with fewer
than three holes. Remove and disgard the threaded studs
on the bottom of the baseplate. Align the baseplate and
the gasket visually.

Install the faucet:

Position the faucet and sealing ring on the mounting
surface.

Install the ber washer, metal washer and mounting nut.

If the mounting surface is less than 1⅜", install the gray
plastic support.

4

If the mounting surface is greater than 1⅜", omit the support.

Do not fully tighten the mounting nut at this time.

Check the orientation of the faucet. The spout swivels
150° and should swivel evenly to the right and to the left.

Pivot the faucet if necessary.

English

When it is satisfactory, tighten the mounting nut and the ten­sioning screws.

5

English

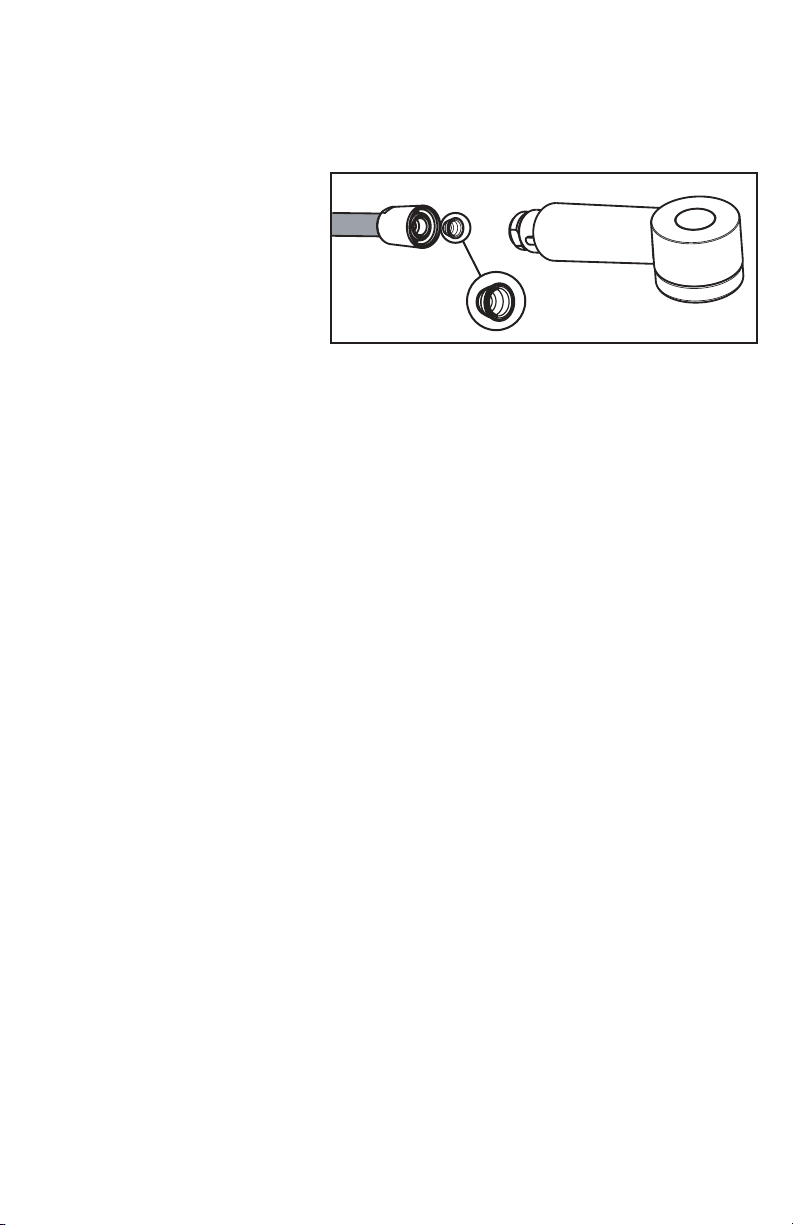

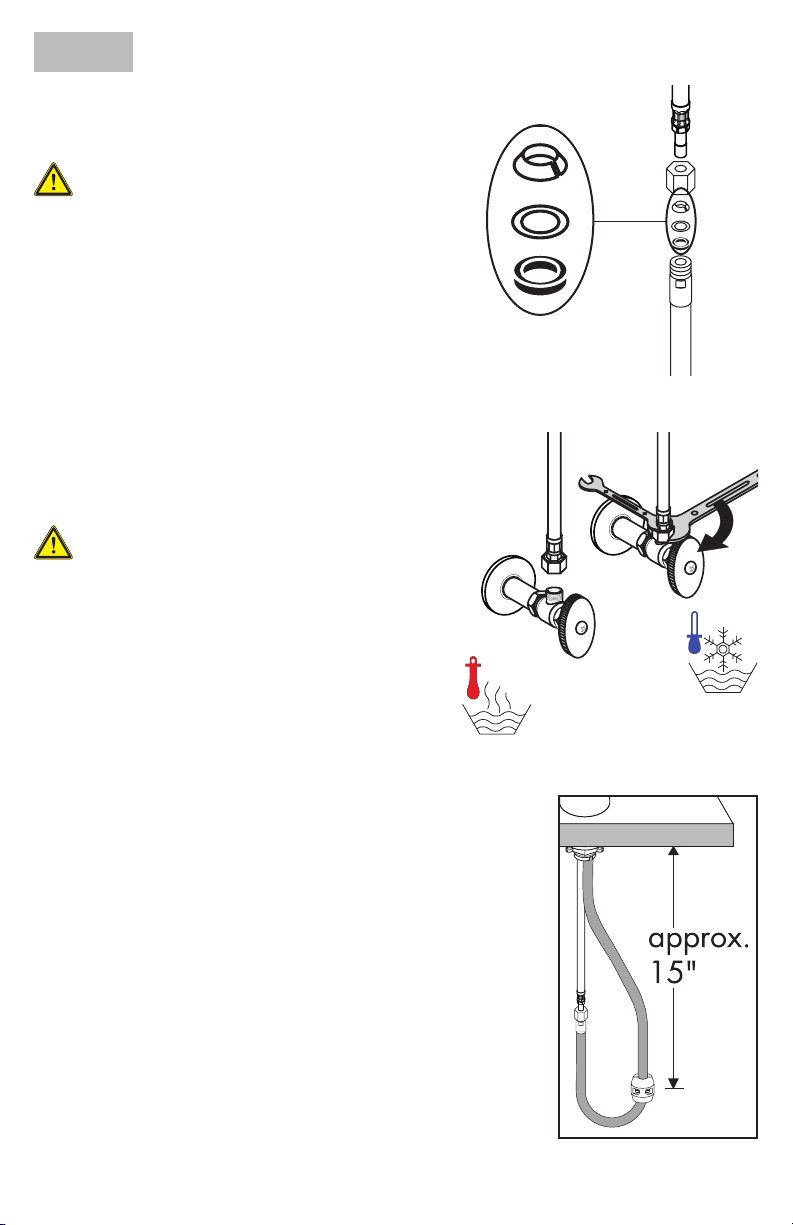

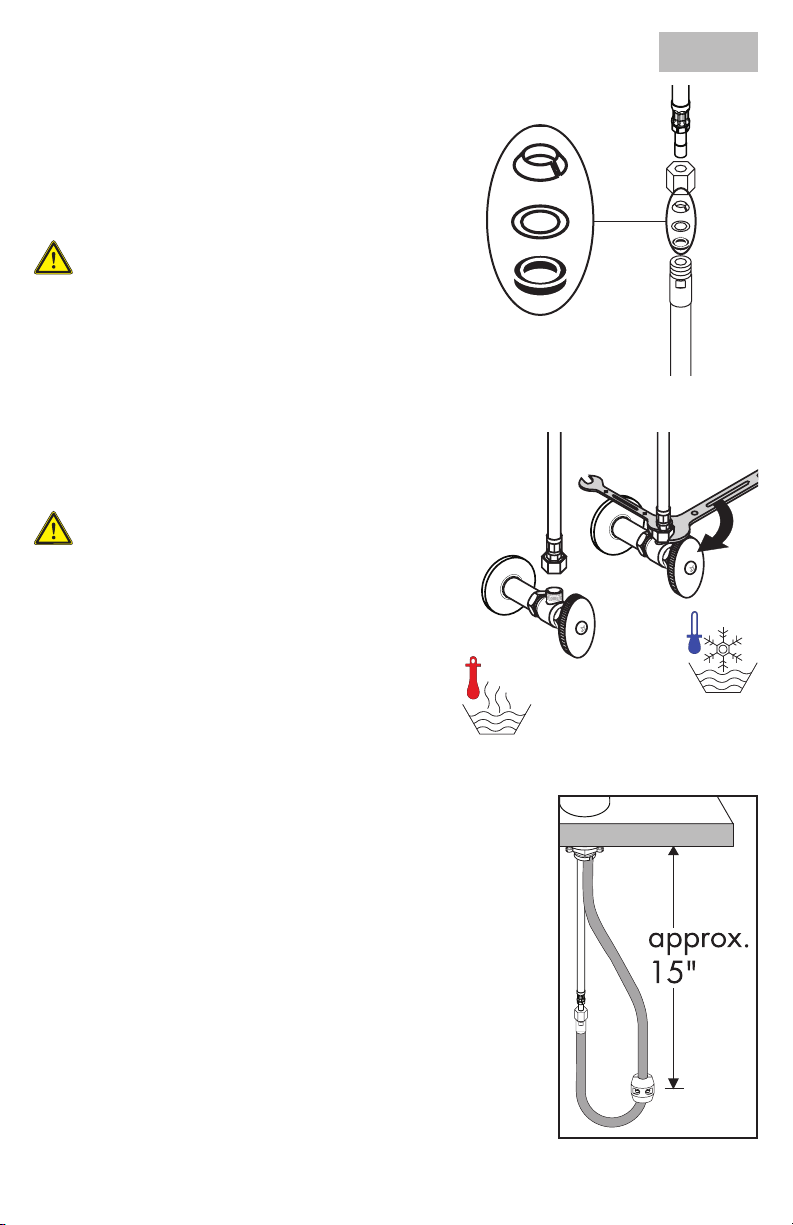

Install the handspray hose: slide the nut, cone

washer, brass washer and black rubber washer over the
end of the connecting hose.

Begin tightening by hand, then nish by using a wrench.

Hold the handspray hose steady
while tightening the nut. Do not
allow either hose to twist.

Connect the supply hoses to the stops.

Use two wrenches, as shown
in the diagram, to prevent the
hoses from twisting.

Install the hose weight: proper positioning of the hose weight

insures that the hose will retract smoothly.

Install the hose weight on the handspray hose.

Pull out on the handspray and guide it back into the holder.
Reposition the weight if necessary.

Turn on the water and check all connections for leaks.

6
