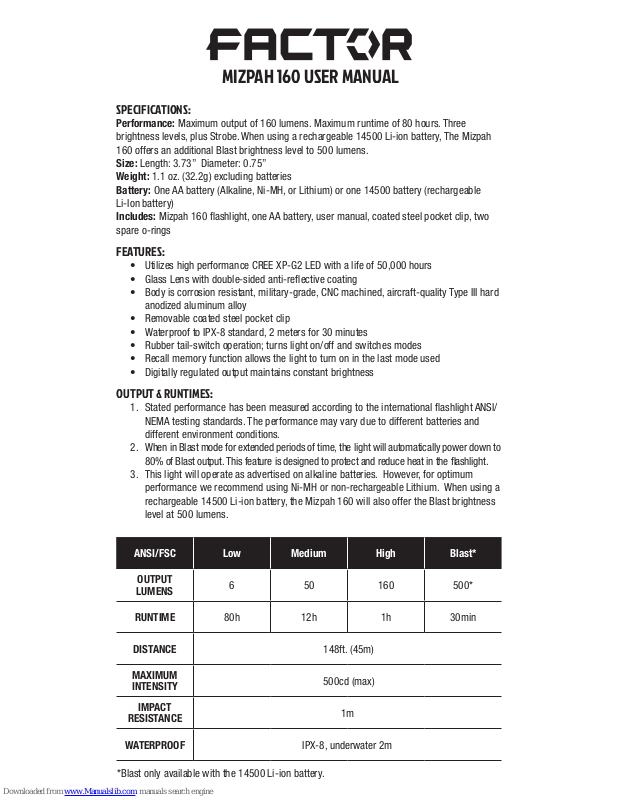

Page 1
SPECIFICATIONS:
Performance: Maximum output of 160 lumens. Maximum runtime of 80 hours. Three
brightness levels, plus Strobe. When using a rechargeable 14500 Li-ion battery, The Mizpah
160 offers an additional Blast brightness level to 500 lumens.
Size: Length: 3.73” Diameter: 0.75”
Weight: 1.1 oz. (32.2g) excluding batteries
Battery: One AA battery (Alkaline, Ni-MH, or Lithium) or one 14500 battery (rechargeable
Li-Ion battery)
Includes: Mizpah 160 flashlight, one AA battery, user manual, coated steel pocket clip, two
spare o-rings
FEATURES:
• Utilizes high performance CREE XP-G2 LED with a life of 50,000 hours
• Glass Lens with double-sided anti-reflective coating
• Body is corrosion resistant, military-grade, CNC machined, aircraft-quality Type III hard
anodized aluminum alloy
• Removable coated steel pocket clip
• Waterproof to IPX-8 standard, 2 meters for 30 minutes
• Rubber tail-switch operation; turns light on/off and switches modes
• Recall memory function allows the light to turn on in the last mode used
• Digitally regulated output maintains constant brightness
OUTPUT & RUNTIMES:
1. Stated performance has been measured according to the international flashlight ANSI/
NEMA testing standards. The performance may vary due to different batteries and
different environment conditions.
2. When in Blast mode for extended periods of time, the light will automatically power down to
80% of Blast output. This feature is designed to protect and reduce heat in the flashlight.
3. This light will operate as advertised on alkaline batteries. However, for optimum
performance we recommend using Ni-MH or non-rechargeable Lithium. When using a
rechargeable 14500 Li-ion battery, the Mizpah 160 will also offer the Blast brightness
level at 500 lumens.
MIZPAH 160 USER MANUAL
ANSI/FSC Low Medium High Blast*
OUTPUT
LUMENS
6 50 160 500*
RUNTIME 80h 12h 1h 30min
DISTANCE 148ft. (45m)
MAXIMUM
INTENSITY
500cd (max)
IMPACT
RESISTANCE
1m
WATERPROOF IPX-8, underwater 2m
*Blast only available with the 14500 Li-ion battery.
Page 2
OPERATION:
Battery Installation
Loosen and remove head of flashlight and insert the one included AA battery.
1. Insert battery into the flashlight with positive (+) towards the head of the flashlight.
2. The flashlight will not light up if the battery’s end is reversed.
On/Off
• Fully press the tail switch to turn the light ON/OFF.
• There is no momentary on function.
Mode Selecting
• With the flashlight on, half press the tail switch to cycle through different brightness levels
from Blast (only when using one rechargeable 14500 battery)→High→Mid→Low→Strobe.
Recall Memory Function
The Mizpah 160 memorizes the last mode (including Strobe) used before turning it off. The
next time the light is turned on, it will access the last mode used.
Store and Maintenance
• To store or pack your flashlight, simply loosen the flashlight head a half turn to avoid
accidental turn-on and possible battery leakage.
• See flashlight care instructions on www.factorequipment.com
THE FACTOR OATH
All Factor employees pledge to support you to the point of satisfaction on all its products.
We are committed to making sure our products are functioning as advertised, and all your
inquiries are addressed.
WARRANTY
Factor provides a Limited Lifetime Warranty on all its products against defects in materials or
workmanship.
Unwarrantable
1. Damage, destruction, disassembly and unauthorized intentional modifications
2. Damage due to improper storage or battery leakage.
SERVICE
1. Contact us by email at [email protected] or go to
www.factorequipment.com/contact-support/
2. Any product update information will be displayed on www.factorequipment.com.
Factor Equipment reserves the right to update its products and communicate these
updates via the website.
WARNING:
Please avoid shining this light directly into anyone’s eyes. This is a high-intensity lighting
device, capable of causing damage to eyes.
BATTERY SPECIFICATIONS
Type of Battery Description Voltage Recommendation
Ni-MH Battery AA 1.2V Recommended
Lithium Battery
(non-rechargeable)
AA 1.5V Recommended
Alkaline Battery AA 1.5V Recommended
Li-ion Rechargeable Battery 14500 3.7V Recommended. Only purchase
high quality protected 14500.
