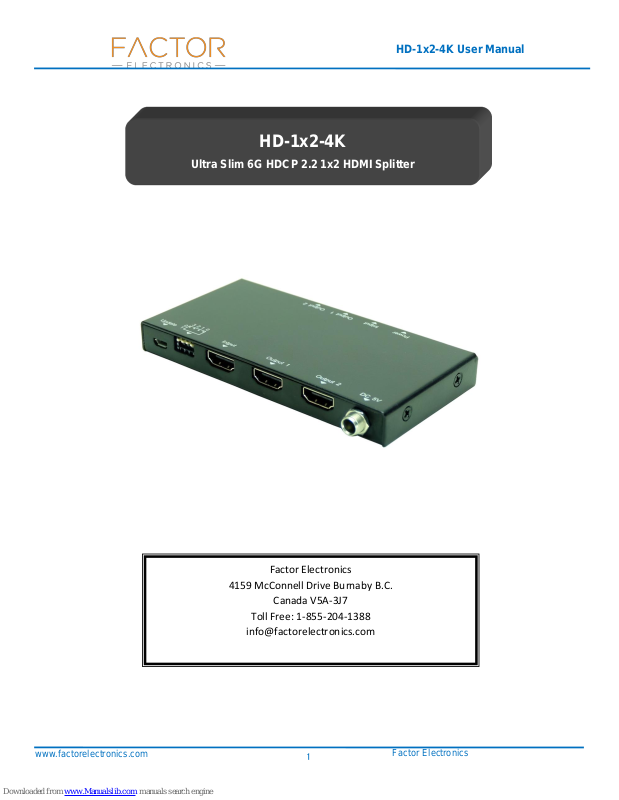

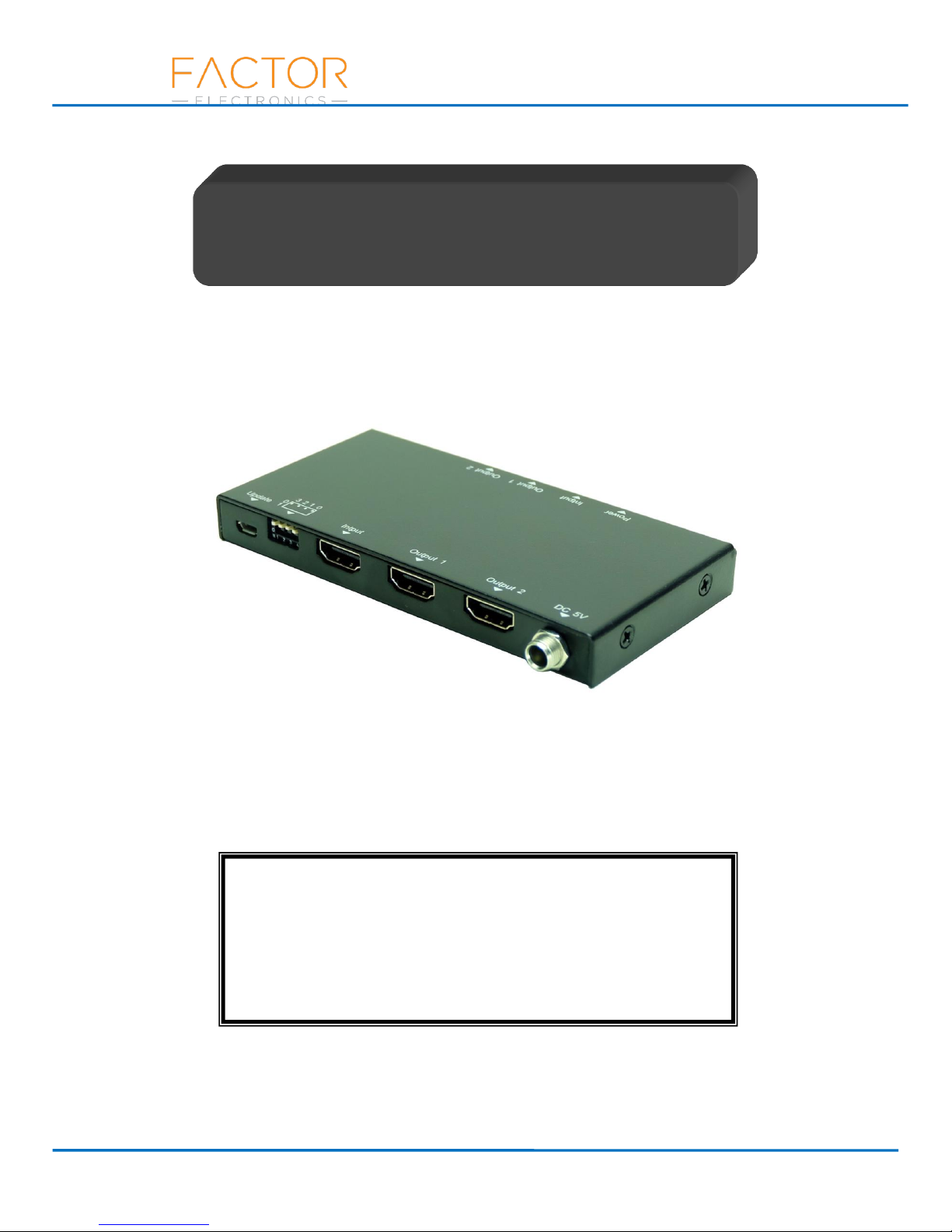

Page 1
1
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics
Factor Electronics
4159 McConnell Drive Burnaby B.C.
Canada V5A-3J7
Toll Free: 1-855-204-1388
HD-1x2-4K
Ultra Slim 6G HDCP 2.2 1x2 HDMI Splitter
Page 2
2
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
Page 3
3
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics
Table of Content
Introductions ....................................................................................................................... 4
Features ............................................................................................................................... 4
Panel Descriptions .............................................................................................................. 5
Rear Panel .................................................................................................................... 5
Front Panel ................................................................................................................... 6
Application Diagram............................................................................................................ 6
Specifications ...................................................................................................................... 7
Package Contents ............................................................................................................... 7
Maintenance ........................................................................................................................ 8
Warranty Policy ................................................................................................................... 8
Limitations of Warranty....................................................................................................... 8
Exclusive Remedies ............................................................................................................ 9
RMA Policy .......................................................................................................................... 9
Standard Replacement ................................................................................................. 9
Once you have obtained an RMA number ................................................................... 10
Please note ................................................................................................................. 10
Page 4
4
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics
Introduction
The 1x2 6G HDCP 2.2 HDMI Splitter splits a single HDMI input to 2 HDMI outputs. It provides
high performance audio and video output through HDMI cables up to 4K@60Hz (YUV 4:4:4)
resolution and is capable of provide high quality audio and video performance. It supports high
resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby
Atmos and DTS-HD Master Audio, with audio sampling rates up to 192kHz.
The HD-1X2-4K is ideally used for home theater, entertainment rooms, lecture rooms, hall
presentations, show rooms, demo rooms and public commercial displays.
Features
Ultra slim, thickness only 14mm
Supports HDMI 2.0 4K@60Hz (YUV 4:4:4)
HDCP 2.2/HDCP1.x and DVI compliant
Supports UHD TV resolutions up to 4K2k (3840x2160@24/25/30/50/60 & 4096x2160
@24/25/30/60)
Displays UHD source on 2 UHD TV displays simultaneously
Full 3D pass-Through
Supports LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby TrueHD,
Dolby Atmos and DTS-HD Master Audio
With EDID Management
With Mini-USB port for firmware upgrade.
Note: When displaying HDMI 6G/HDCP 2.2 signals, equivalent source signals, output display and HDMI cables are required
in order to secure the best image display.
Page 5
5
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics
Panel Descriptions

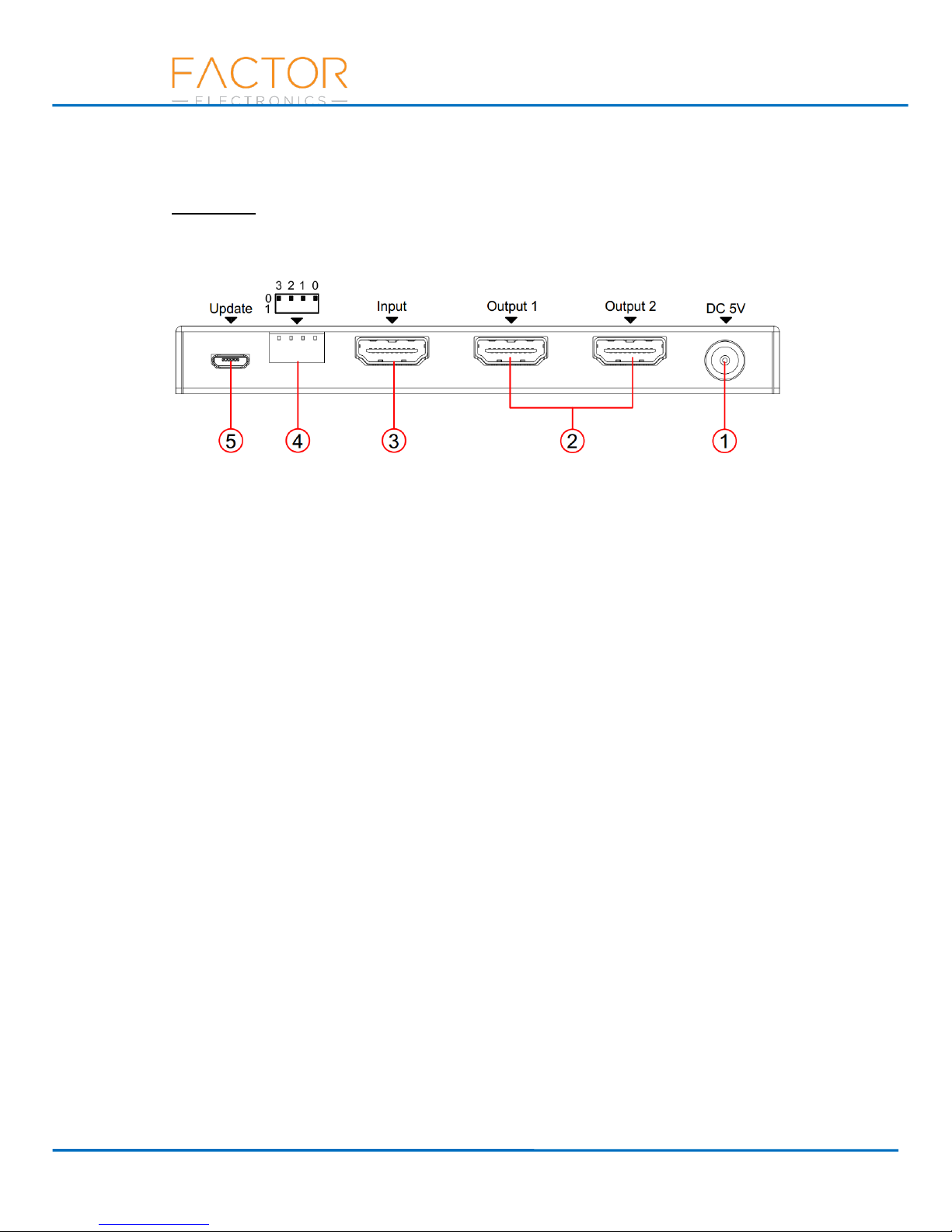

Rear Panel
① DC 5V – Connect to 5V/1A DC adapter.
② HDMI Output 1 and 2 – Connect to sink devices using HDMI cables.
③ HDMI Input – Connect with input sources, such as DVD, STB, TV box…
④ DIP Switch – EDID Management.
[DIP]=0000: Copy EDID From Output1, i.e., EDID pass through
[DIP]=0001: HDMI 1080p@60Hz, Audio 2CH PCM
[DIP]=0010: HDMI 1080p@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0011: HDMI 1080p@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0100: HDMI 1080i@60Hz, Audio 2CH PCM
[DIP]=0101: HDMI 1080i@60Hz, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=0110: HDMI 1080i@60Hz, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=0111: HDMI 1080p@60Hz/3D, Audio 2CH PCM
[DIP]=1000: HDMI 1080p@60Hz/3D, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1001: HDMI 1080p@60Hz/3D, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1010: HDMI 4K2K, Audio 2CH PCM
[DIP]=1011: HDMI 4K2K, Audio 5.1CH PCM/DTS/DOLBY
[DIP]=1100: HDMI 4K2K, Audio 7.1CH PCM/DTS/DOLBY/HD
[DIP]=1101: DVI 1280x1024@60Hz, Audio None
[DIP]=1110: DVI 1920x1080@60Hz, Audio None
[DIP]=1111: DVI 1920x1200@60Hz, Audio None
⑤ Mini USB Port – Used for firmware updates.
Page 6
6
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics

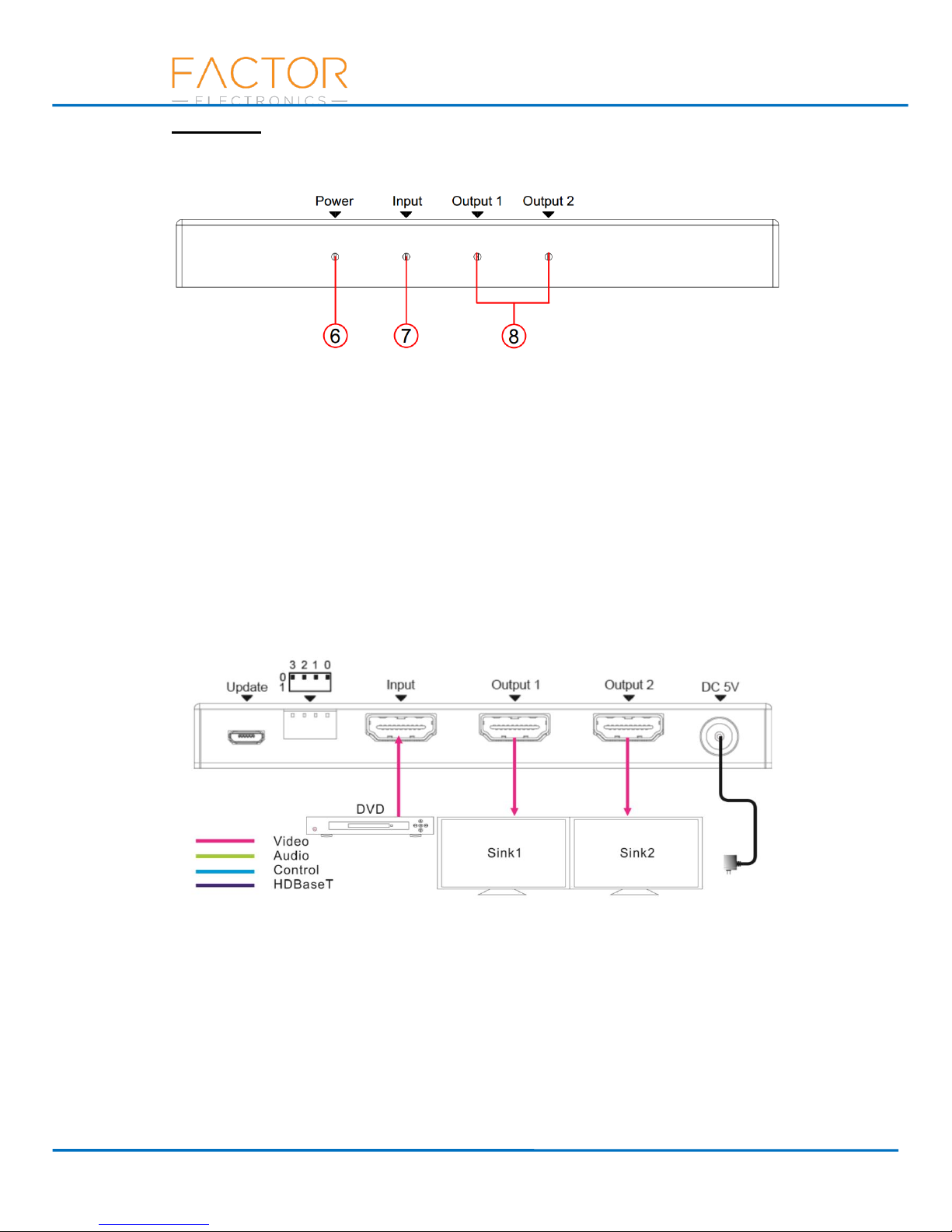

Front Panel
⑥ Power LED – Lit if the power supply is properly connected.
⑦ Input LED - Indicates the status of the input connection.
⑧ Output LED - Indicates the status of the output connections.
Application Diagram
Page 7
7
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics
Specifications
Video Bandwidth
600MHz/6Gbps per Color
Input Ports
1x HDMI, 1x Mini USB (Firmware upgrade)
Output Ports
2x HDMI
Resolutions
Up to 4K@50/60Hz, (YUV 4:4:4), Full 3D Pass-through
HDMI Cable Distance
5m for 1080p@60Hz, 3m for 4K@60Hz (YUV 4:4:4)
Power Supply
5V/1A DC
Power Consumption
3W
ESD Protection
Human body model:
±8 kV (air-gap discharge)
±4 kV (contact discharge)
Dimensions
128mm (W) x 64mm (D) x14mm (H)
Weight
120g
Chassis Material
Aluminum
Chassis Color
Black
Operating Temperature
0˚C~40˚C/32˚F~104˚F
Storage Temperature
−20˚C~60˚C/−4˚F~140˚F
Relative Humidity
20~90% RH (non-condensing)
Rack-Mountable
Rack ears included
NOTE: Specifications are subject to change without notice. Weight and Dimensions are approximate.
Package Contents
1) 1x HD-1x2-4K
2) 1x 5V/1A DC Power Supply
3) 2x Pair of Velcro straps for mounting.
Page 8
8
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics
Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this
unit.
Warranty Policy
Factor Electronics products are warranted against defects in material and workmanship for two
years from the date of shipment. During the warranty period, Factor Electronics will, at its
option, repair or replace products that prove to be defective. Repairs are warranted for the
remainder of the original warranty or a 90 day extended warranty, whichever is longer.
For equipment under warranty, the owner is responsible for freight to Factor Electronics and all
related customs, taxes, tariffs, insurance, etc. Factor Electronics is responsible for the freight
charges only for return of the equipment from the factory to the owner. All equipment returned
for warranty repair must have a valid RMA number issued prior to return and be marked clearly
on the return packaging. Factor Electronics strongly recommends all equipment be returned in
its original packaging.
Factor Electronics obligations under this warranty are limited to repair or replacement of failed
parts, and the return shipment to the buyer of the repaired or replaced parts.
Limitations of Warranty
The warranty does not apply to any part of a product that has been installed, altered, repaired,
or misused in any way that, in the opinion of Factor Electronics, would affect the reliability or
detracts from the performance of any part of the product, or is damaged as the result of use in
a way or with equipment that had not been previously approved by Factor Electronics.
The warranty does not apply to any product or parts thereof where the serial number or the
serial number of any of its parts has been altered, defaced, or removed.
The warranty does not cover damage or loss incurred in transportation of the product.
The warranty does not cover replacement or repair necessitated by loss or damage from any
cause beyond the control of Factor Electronics, such as lightning or other natural and weather
related events or wartime environments.
Page 9
9
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics
The warranty does not cover any labor involved in the removal and or reinstallation of
warranted equipment or parts on site, or any labor required to diagnose the necessity for repair
or replacement.
The warranty excludes any responsibility by Factor Electronics for incidental or consequential
damages arising from the use of the equipment or products, or for any inability to use them
either separate from or in combination with any other equipment or products.
A fixed charge established for each product will be imposed for all equipment returned for
warranty repair where Factor Electronics cannot identify the cause of the reported failure.
Exclusive Remedies
Factor Electronics warranty, as stated is in lieu of all other warranties, expressed, implied, or
statutory, including those of merchantability and fitness for a particular purpose. The buyer
shall pass on to any purchaser, lessee, or other user of Factor Electronics products, the
aforementioned warranty, and shall indemnify and hold harmless Factor Electronics from any
claims or liability of such purchaser, lessee, or user based upon allegations that the buyer, its
agents, or employees have made additional warranties or representations as to product
preference or use.
The remedies provided herein are the buyer’s sole and exclusive remedies. Factor
Electronics shall not be liable for any direct, indirect, special, incidental, or consequential
damages, whether based on contract, tort, or any other legal theory.
RMA Policy
When returning product to Factor Electronics for any reason, the customer should fill out the
official RMA form to obtain a RMA number. Without the permission or approval, Factor
Electronics will be no responsible for any return.
This can be initiated by emailing or calling your related sales.
All requests are processed within 48 hours.
Standard Replacement
For customers that agree to return defective product to Factor Electronics first, a Standard
Replacement option is available.
Page 10
10
www.factorelectronics.com
HD-1x2-4K User Manual
Factor Electronics
An RMA number must first be issued by sales. This RMA number will need to be referenced on
the outside of the return shipment.
Upon receipt of the defective product, Factor Electronics will, at its discretion, either repair or
replace the product and ship it out in the most expeditious manner possible. Subject to
availability, the replacement product will be shipped on the business day following receipt of
the defective product.
In the event the product returned to Factor Electronics has been discontinued (i.e. the product
is no longer being manufactured by Factor Electronics but is still under warranty), Factor
Electronics will, at its discretion, either repair or replace with recertified product.
Once you have obtained an RMA number
After obtaining an RMA number from Factor Electronics, you must send the product - freight
prepaid - to Factor Electronics Technology Co., Ltd. The Factor Electronics RMA number must
be prominently displayed on the outside of your package. If you send your product to Factor
Electronics without the RMA number prominently displayed on the outside of the package, it
will be returned to you unopened.
Please use a shipping company that can demonstrate proof of delivery. Factor Electronics
does not accept responsibility for any lost shipments unless proof of delivery to Factor
Electronics is provided.
Please note
Product shipped to Factor Electronics must be properly packaged to prevent loss or damage in
transit.
Shipping your RMA to Factor Electronics using regular mailing envelopes is not acceptable, as
they do not protect the product from damage during shipping.
Factor Electronics will not repair or replace a module that is shipped in such a way that the
product is not properly protected.
Factor Electronics will not accept any product that has been damaged as a result of accident,
abuse, misuse, natural or personal disaster, or any unauthorized disassemble, repair or
modification.
