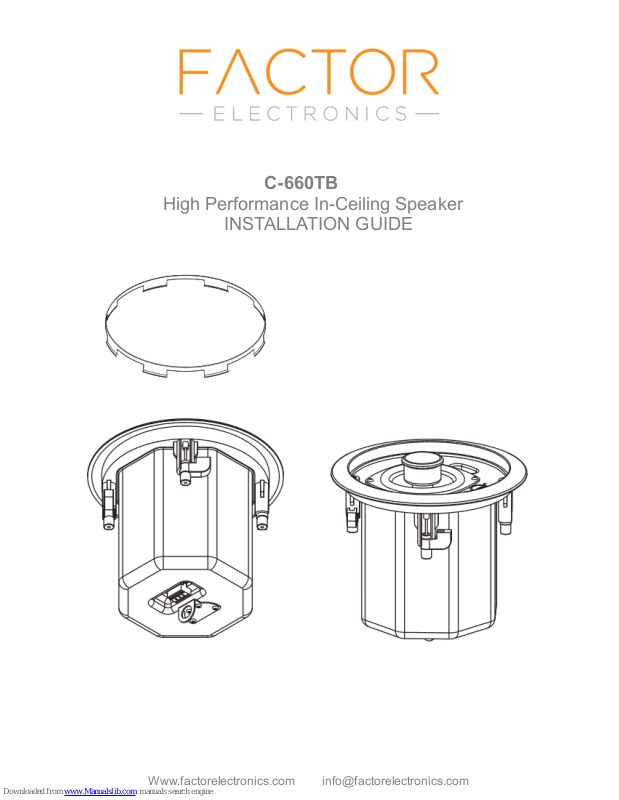

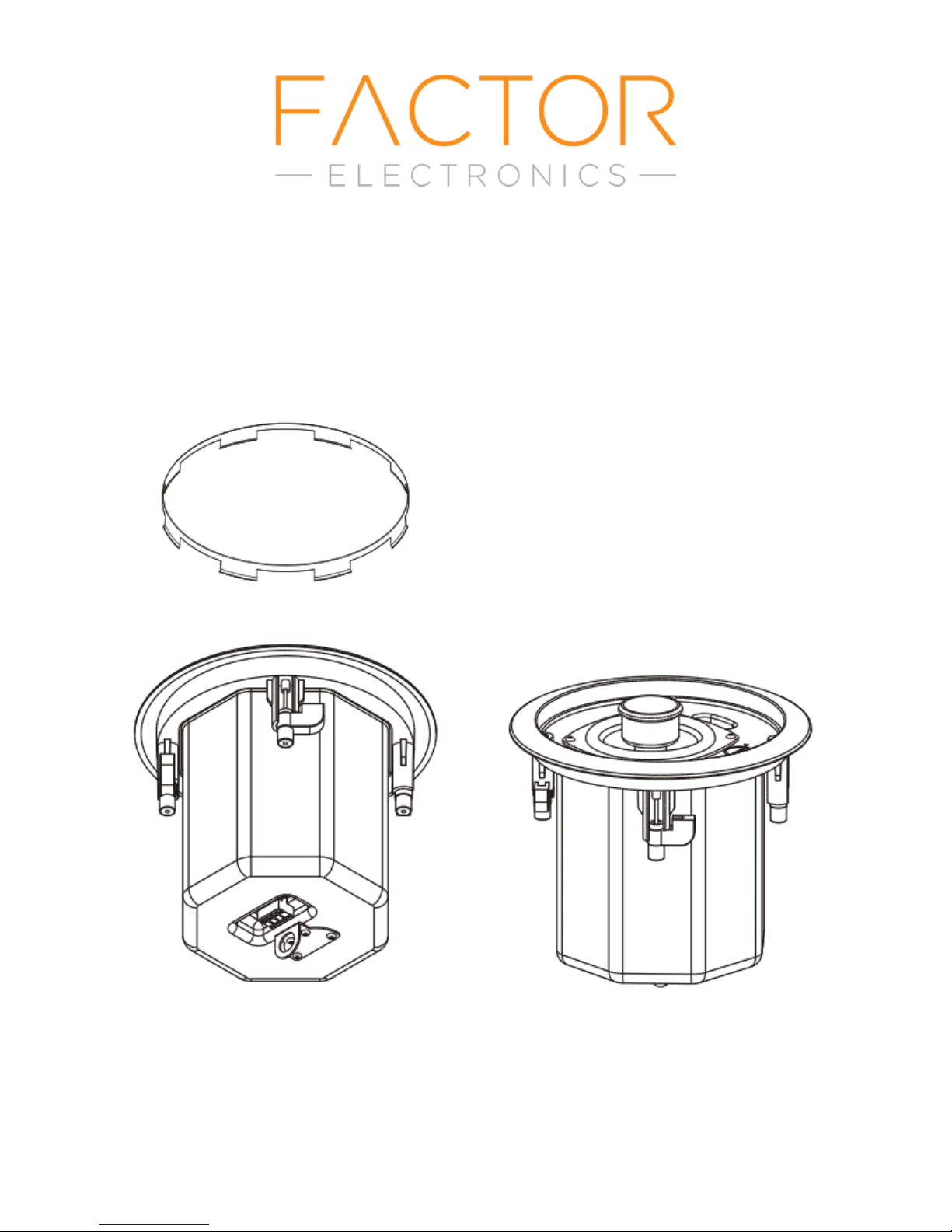

Page 1
C-660TB
High Performance In-Ceiling Speaker
INSTALLATION GUIDE
Www.factorelectronics.com [email protected]
Page 2
Thank you for purchasing the Factor Electronics C-660TB high performance in-ceiling speakers.
Please read this entire manual to get the most from your C-660TB speakers and ensure proper
Installation. The C-660TB is designed to provide high quality background music and paging in a
variety of Installations like schools, houses of worship, retail, industrial, office buildings and homes.
The C-660TB can be used with high impedance 25/70 volt amplifiers or low impedance 4/8 ohm
amplifiers safely. To insure proper installation please set the wattage tap dial and the wire-in
terminals to the correct settings described in this manual.
The C-660TB includes:
1. Speaker with metal back box
2. Removable grille
3. T-Bar ceiling support
4. Cutout template

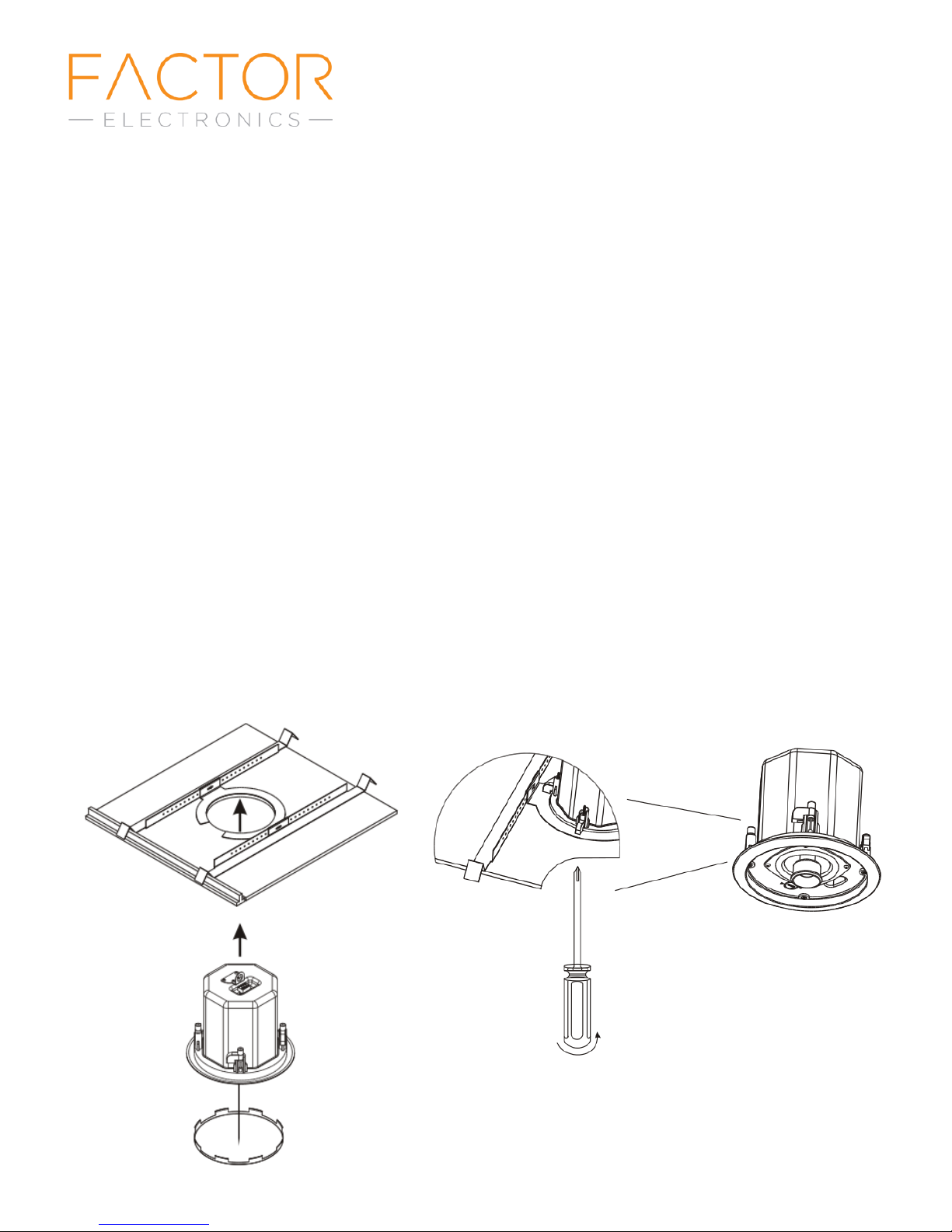

Installation T-Bar Ceiling:
1. Use the cutout template to trace a circle in the ceiling tile.
2. Use a sharp blade or saw to cut the hole.
3. Place the T-Bar ceiling support on the back side of the ceiling tile.
4 Place the C-660TB through the cutout.
5. Using a screwdriver or drill fitted with a Phillips bit to tighten the four L-Clamp screws until
the L-Clamps are snug to the back of the T-Bar ceiling support. Do not over tighten!
6. Adjust the wattage tap dial to the required setting.
7. Remove the terminal block connector on the back box and insert the speaker wires as shown.
8. Attach a chain or aircraft type cable to the seismic anchor and attach to the ceiling joist.
9. Power the amplifier ON and test the system.
1. 2. 3. 4.
5.
Www.factorelectronics.com [email protected]
Page 3

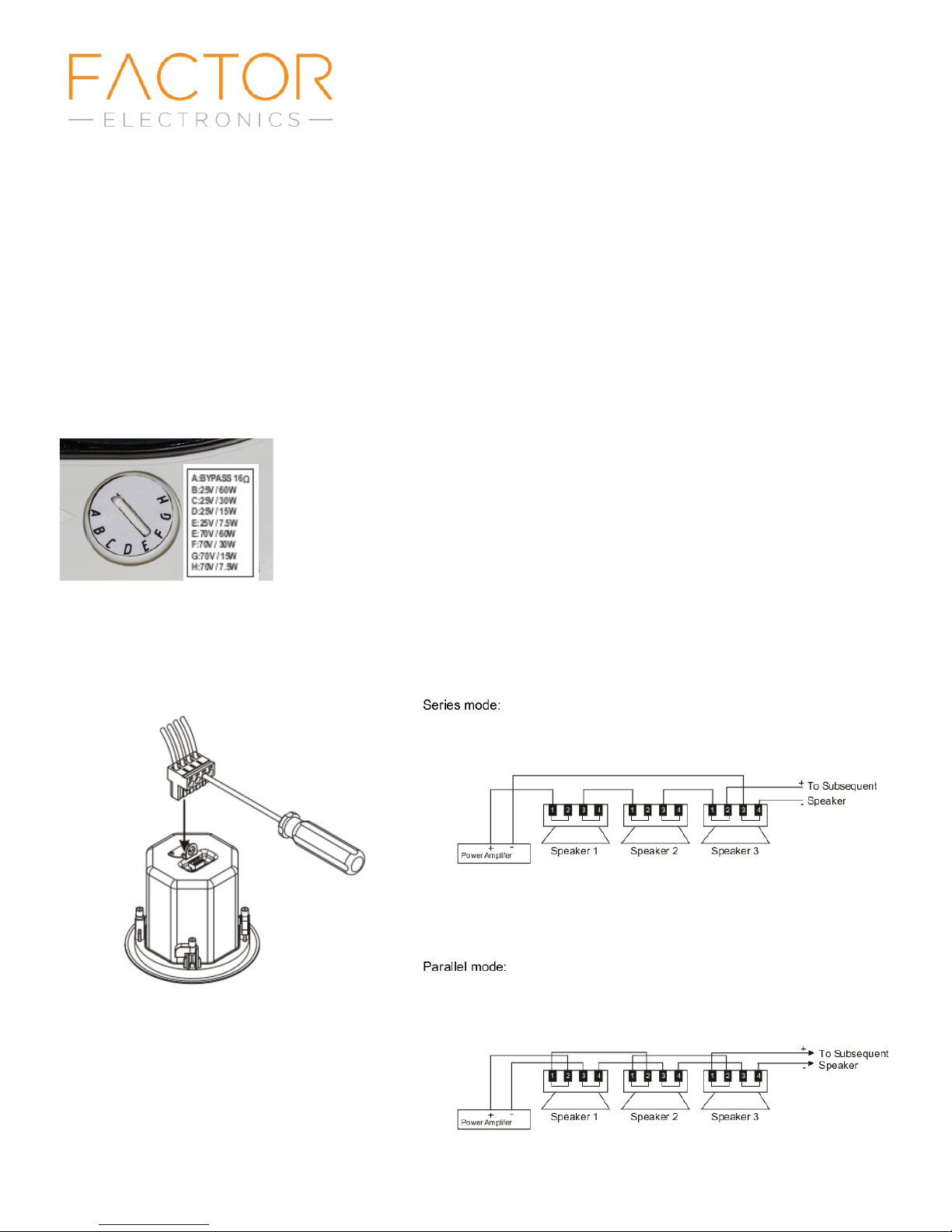

6.The C-660TB provides an easy way for installers to set and adjust wattage taps with a front baffle
screw terminal. The taps can be adjusted after the speaker is installed in the ceiling. We recommend
Setting the correct taps prior to installation then adjusting the taps after installation only when necessary.
Always set the taps to the 25 volt settings when using a 25 volt amplifier and the 70 volt settings when
using a 70 volt amplifier. Never exceed the wattage rating of the connected amplifier.
Combine the wattage settings of all the speakers in the system to calculate the total wattage.
Example: 10 speakers all tapped at 15 watts = 150 watts. Use an amplifier that provides a minimum
of 150 watts at 25 or 70 volts.
16 ohm Bypass:
This setting bypasses the internal transformer. Never use this setting when connecting the C-660TB to
a constant voltage 25/70 volt amplifier, this will overload the amplifier and possibly void the warranty.
Use the 16 ohm setting when connecting the C-660TB to a low impedance mono or stereo amplifier
with a minimum impedance rating of 4-16 ohms. If you are unsure of how to connect the C-660TB,
please call of e-mail Factor Electronics for technical support.
7. The C-660TB provides a 4 position terminal block connector to connect the speaker(s) to the amplifier.
The terminal block connector provides two + POSITIVE terminals and two – NEGATIVE terminals which
Can be used for input to the speaker and output to another speaker which saves installation time.
Parallel, series or combinations of series/parallel wiring can easily be achieved.
Www.factorelectronics.com [email protected]
Page 4
SPECIFICATIONS
Model C-660TB
Woofer 6.5” Polypropylene
Tweeter 1” Titanium dome
Input Power 125 watts/peak16ohms
Output Power Taps 7.5/15/30/60 watts
Input Voltage 25/70 volts
Input Impedance 25V 83/41/20/10 ohms
Input Impedance 70V 666/333/166/83 ohms
Frequency Response 90Hz-20kHz
Efficiency @ 1W-1M 92dB
Overall Dimensions 10” Diam/ 7”Depth
Cutout Dimension 8.75”-223mm
Back Box Aluminium 6” depth
Bracket Steel T-Bar support
Shipping Weight 15.4lb/7kg
Limited Warranty 10 years
In an effort to provide our customers with the latest advancements in technology, Factor Electronics
specifications are subject to change from time to time without notice.
Contact Information
Factor Electronics
#108, 19232 Enterprise Way, Surrey B.C. Canada V3S-6J9
E-mail: [email protected]
Website: www.factorelectronics.com
Warranty
Factor Electronics ceiling speakers are warranted to be free from defects in
workmanship and materials for a period of (10) years without charge for parts or labour.
This warranty applies only to the original owner. The owners responsibilities are to provide proof
of purchase and transportation to the dealer the unit was purchased from or transportation to Factor
Electronics. This warranty does not apply to units that have been subject to misuse, abuse, neglect
or improper installation, and does not apply to repairs or alterations made by unauthorized persons.
This warranty specifically excludes responsibility for consequential damage. Retention of your
original bill of sale is required to obtain service under the terms of this warranty.
