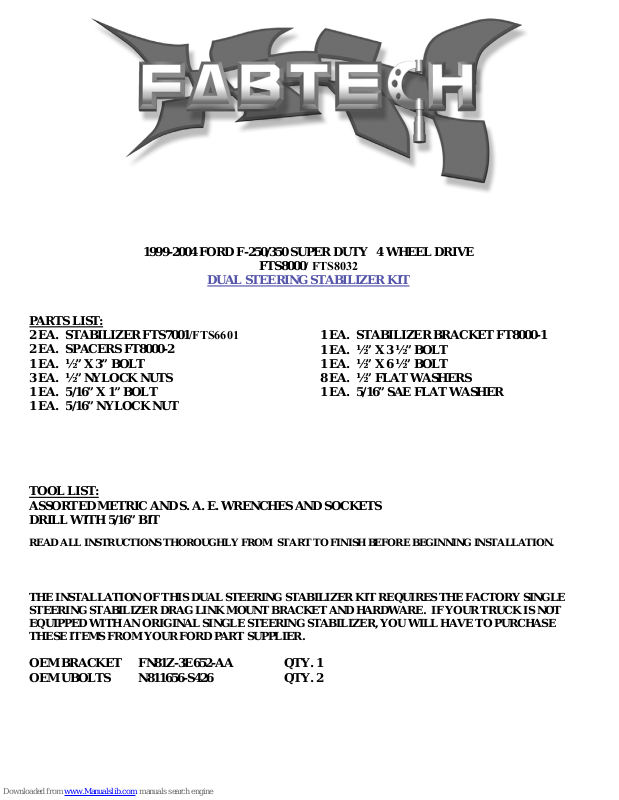

1999-2004 FORD F-250/350 SUPER DUTY 4 WHEEL DRIVE
FTS8000/ FTS8032
DUAL STEERING STABILIZER KIT
PARTS LIST:
EA. STABILIZER FTS7001/FTS6601
2
2 EA. SPACERS FT8000-2
1 EA. ½” X 3” BOLT
3 EA. ½” NYLOCK NUTS
1 EA. 5/16” X 1” BOLT
1 E
A. 5/16” NYLOCK NUT
1 EA. STABILIZER BRACKET FT8000-1
1 EA. ½” X 3 ½” BOLT
1 EA. ½” X 6 ½” BOLT
8 EA. ½” FLAT WASHERS
1 EA. 5/16” SAE FLAT WASHER
TOOL LIST:
ASSORTED METRIC AND S. A. E. WRENCHES AND SOCKETS
DRILL WITH 5/16” BIT
READ ALL INSTRUCTIONS THOROUGHLY FROM START TO FINISH BEFORE BEGINNING INSTALLATION.
THE INSTALLATION OF THIS DUAL STEERING STABILIZ
STEERING STABILIZER DRAG LINK MOUNT BRACKET AND HARDWARE. IF YOUR TRUCK IS NOT
EQUIPPED WITH AN ORIGINAL SINGLE STEERING STABILIZER, YOU WILL HAVE TO PURCHASE
THESE ITEMS FROM YOUR FORD PART SUPPLIER.
ER KIT REQUIRES THE FACTORY SINGLE
OEM BRACKET FN81Z-3E652-AA QTY. 1
OEM UBOLTS N811656-S426 QTY. 2
Page 2
INSTRUCTIONS:
1. Disconnect the negative terminal on the battery. Remove the original steering stabilizer cylinder from the drag link and differential
m
ount. DO NOT REMOVE THE MOUNT FROM THE DRAG LINK, IT WILL BE REUSED.
2. Take the stabilizer cylinders and press
½” sleeves into each urethane bushing.
3. Slide the stabilizer bracket onto the differential mount as shown below. Insert a ½” x 3” bolt through the original bolt, to help locate
the bracket. Make sure the plate with the 5/16” hole is sitting flush against the factory bracket, and mark the position with a center

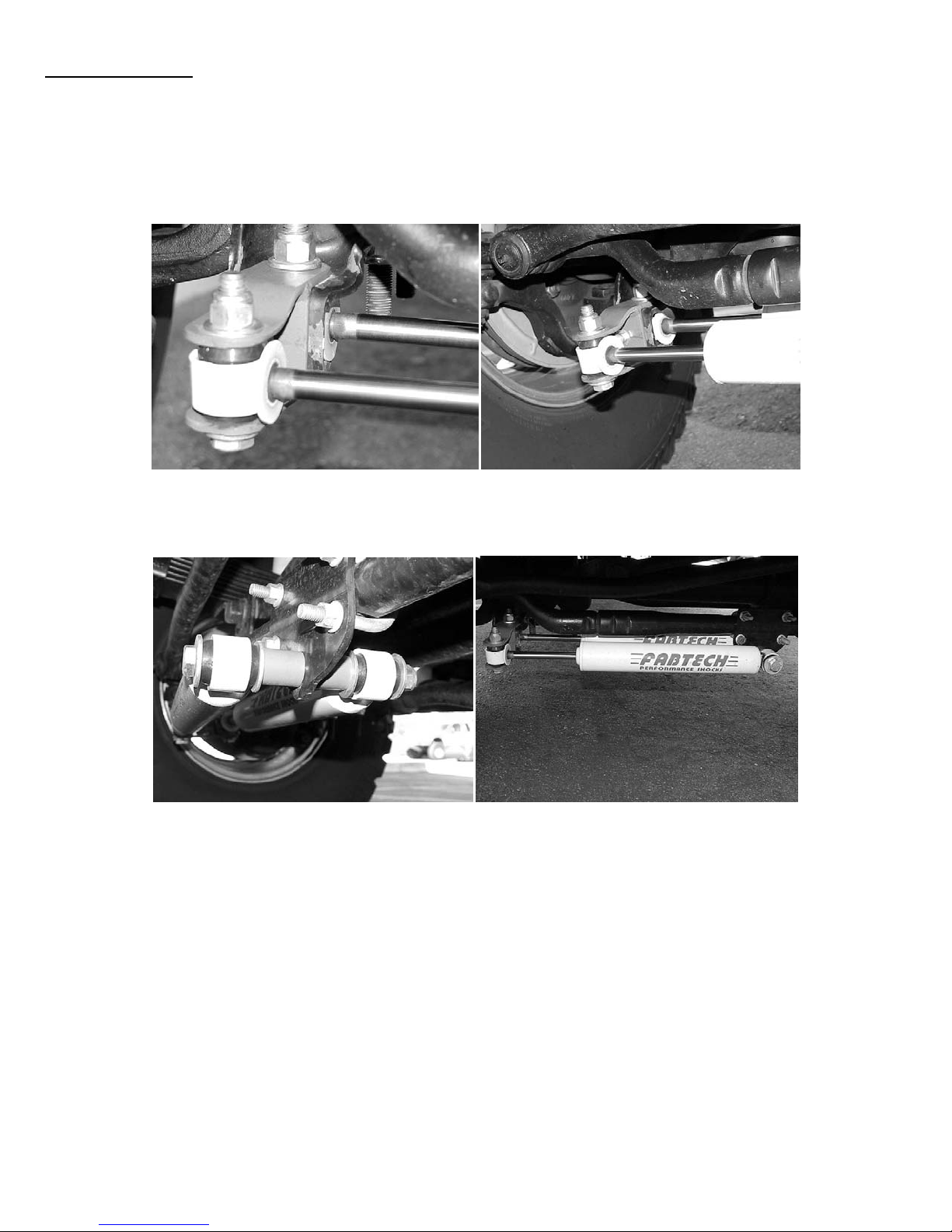

punch. Move the bracket out of the way and drill out the hole using a drill with a 5/16” bit. SEE PHOTOS BELOW.
4. Insert the 5/16” bolt through the original bracket from rear to front. Place a 5/16” flat washer followed by a 5/16” nylock nut on the
end of t
he bolt. Do not fully tighten. Slide the rod end of the stabilizer cylinder into the original mount and reinstall the ½” x 3” bolt
from the bottom up, with a ½” flat washer on each side. Place a ½” nylock nut on top and hand tighten. Fully tighten the 5/16” bolt
llowed by the ½” bolt. Now install the front cylinder using the ½” x 2 ½” bolt and hardware. SEE PHOTOS BELOW
fo
.
5. Take the ½” x 6 ½” bolt and slide one flat washer on it. Insert it through the front cylinder bushing, followed by another ½” flat
washer and one spacer sleeve. Slide the bolt through the hole in the or
bol
t, followed by a flat washer, the shock, another washer and a ½” nylock nut. Fully tighten all
iginal bracket on the drag link. Slide the other spacer onto th
hardware.
6. Turn the steering fully in each direction and make sure there is plenty of clearance between the cylinders and all brackets.
