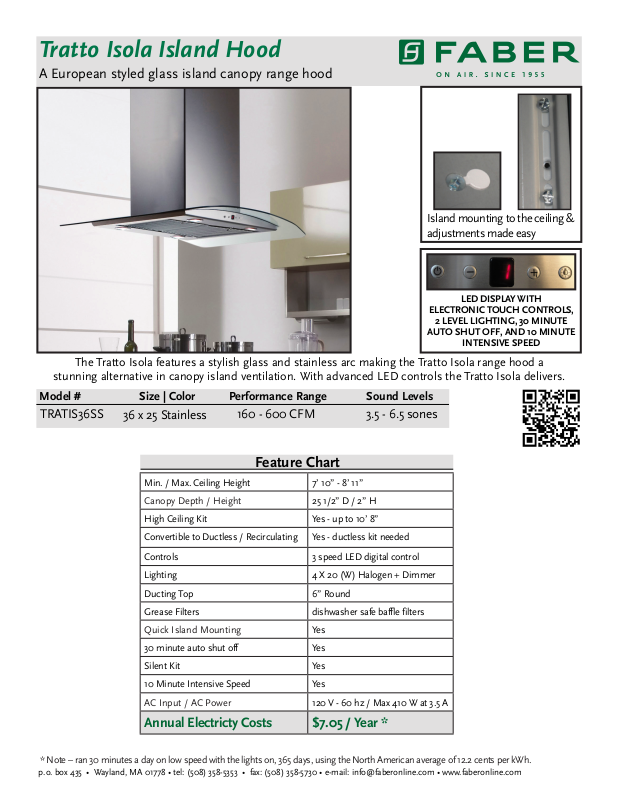

FABER TRATIS36SS User Manual

Tratto Isola Island Hood

A European styled glass island canopy range hood

Island mounting to the ceiling &
adjustments made easy

LED DISPLAY WITH

ELECTRONIC TOUCH CONTROLS,

2 LEVEL LIGHTING, 30 MINUTE

AUTO SHUT OFF, AND 10 MINUTE

INTENSIVE SPEED

The Tratto Isola features a stylish glass and stainless arc making the Tratto Isola range hood a

stunning alternative in canopy island ventilation. With advanced LED controls the Tratto Isola delivers.

Model # Size | Color Performance Range Sound Levels

TRATIS36SS

36 x 25 Stainless

160 - 600 CFM 3.5 - 6.5 sones

Feature Chart

Min. / Max. Ceiling Height 7’ 10” - 8’ 11”

Canopy Depth / Height 25 1/2” D / 2” H

High Ceiling Kit Yes - up to 10’ 8”

Convertible to Ductless / Recirculating Yes - ductless kit needed

Controls 3 speed LED digital control

Lighting 4 X 20 (W) Halogen + Dimmer

Ducting Top 6” Round

Grease Filters dishwasher safe baffle filters

Quick Island Mounting Ye s

30 minute auto shut off Ye s

Silent Kit Ye s

10 Minute Intensive Speed Ye s

AC Input / AC Power 120 V - 60 hz / Max 410 W at 3.5 A

Annual Electricty Costs $7.05 / Year *

* Note – ran 30 minutes a day on low speed with the lights on, 365 days, using the North American average of 12.2 cents per kWh.

p.o. box 435 • Wayland, MA 01778 • tel: [phone] • fax: [phone] • e-mail: [e-mail] • www.faberonline.com

Dimensional Diagrams

11 7/16”

32” -

11 7/16”

(see installation instructions for more information)

DuctlessDucted

min & max ceiling height examples

x = range hood height above cook top

ducted / ductless

x = 24"

min

7' 10"

max

8' 5"

x = 30"

min

8' 4"

max

8' 11"

For higher ceiling installations, the High
Ceiling Chimney Kit includes an additional
support structure which adds 21" to the

various ceiling heights in the chart.

High Ceiling Chimney Kit

# HIGH2

Extends the island chimney for high ceilings

Ductless Conversion Kit # DUCT2

Includes: • Lower Chimney with holes
for ducting • Ductless Diverter Assembly

• Vent Grates • Charcoal Filter

ACCESSORIES

Replacement Charcoal Filter # FILTER2

For ductless installations, high
quality, heavy duty filters ensure

the removal of smoke and odors
from the kitchen.

# CFMREDCFM Reducer Kit

For use in make up air environments where
an under 300 cfm hood is required. This kit
reduces the ducting to 5” round and reduces
the cfm to under 300

WARNING! Product specifications are subject to change without notification. Consult the installation instructions before you begin installing this rangehood.
