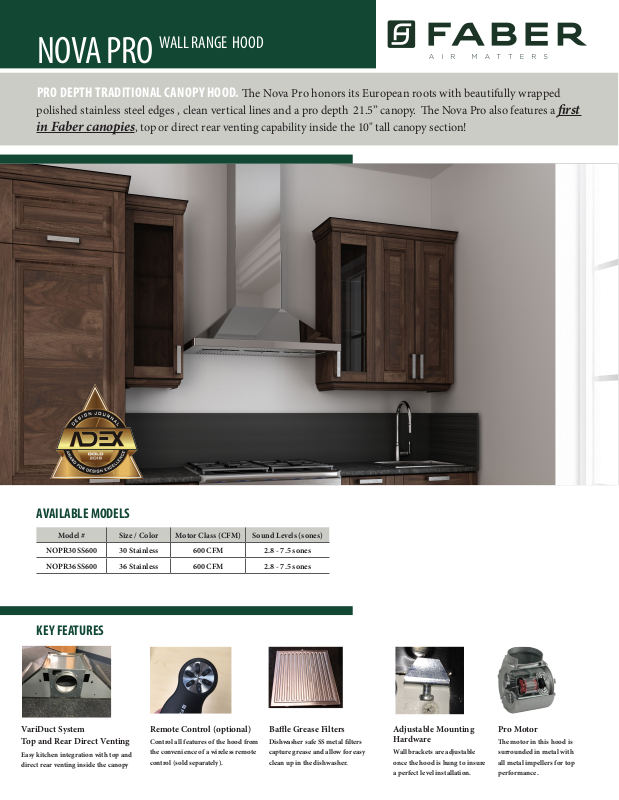

Faber NOPR30SS600, NOPR36SS600 Specsheet

WALL RANGE HOOD

NOVA PRO

PRO DEPTH TRADITIONAL CANOPY HOOD. e Nova Pro honors its European roots with beautifully wrapped

polished stainless steel edges , clean vertical lines and a pro depth 21.5” canopy. e Nova Pro also features a rst

in Faber canopies, top or direct rear venting capability inside the 10" tall canopy section!

AVAILABLE MODELS

Model # Size / Color Motor Class (CFM) Sound Levels (sones)

NOPR30SS600 30 Stainless 600 CFM 2.8 - 7.5 sones

NOPR36SS600 36 Stainless 600 CFM 2.8 - 7.5 sones

KEY FEATURES

VariDuct System
Top and Rear Direct Venting

Easy kitchen integration with top and
direct rear venting inside the canopy

Remote Control (optional)

Control all features of the hood from
the convenience of a wireless remote
control (sold separately).

Bae Grease Filters

Dishwasher safe SS metal lters
capture grease and allow for easy
clean up in the dishwasher.

Adjustable Mounting
Hardware

Wall brackets are adjustable
once the hood is hung to insure
a perfect level installation.

Pro Motor

e motor in this hood is
surrounded in metal with
all metal impellers for top
performance .

WALL RANGE HOOD

NOVA PRO

SPECIFICATIONS DIMENSIONS

min / max ceiling height 7' 5" - 8' 11 3/8"

convertible to ductless /
recirculating

canopy depth / height 21 9/16”| 10 3/8”

high ceiling kit yes - up to 11' 8 7/8"

controls (underneath) 4 speed push button white LED

pro motor yes - (metal impellers)

lighting 2 X 5 (W) LED

ducting top / rear (Vari-Duct) 6" round

grease lters dishwasher safe stainless steel bae

adjustable mounting hardware yes

ADA compliant yes - with remote control purchase

power cord yes - wire box optional

AC input / AC Power 340 watts / 2.8 amps

PERFORMANCE

SPEED 1 2 3 BOOST

CFM 150 350 450 560

Sones 2.8 4.3 6.0 7.5

yes – kit sold separately

Ducted / Ductless

MIN / MAX CEILING HEIGHTS

DUCTED RECIRC HIGH CEILING

Min @ 24” OFF 7' 5" 7' 5" 9' 3/8"

Max @ 30” OFF 8' 11 3/8" 8' 11 3/8" 11' 8 7/8"

ACCESSORIES

# CFMRED –

CFM Reducer Kit *

For use in make up air areas where an under
300 cfm hood is required. is kit reduces the
ducting to 5” round and reduces the cfm to
under 300.

# CFMRED2 –

CFM Reducer Kit*

For use in make up air environments where
an under 400 cfm hood is required. is kit
reduces the ducting to 5” round and reduces
the cfm from 600 to under 400.

# DUCT5

Ductless Conversion Kit

To convert the Novo Pro to ductless, this kit
includes charcoal lters and a diverter to
send the air thru the side grates on the upper
chimney.

# FILTER1 –

Charcoal Filter Kit

High quality charcoal lter for use when
recirculating the air back into the kitchen.
Filters out odor and should be replaced
every 6 months.

# FILTER1LL –

Long Lasting Charcoal Filter Kit

New washable charcoal lter can be recharged
and washed up to 8 times. For use when
recirculating the air back into the kitchen.
Filters out odor and can last up to 4 years.

# HIGH3–

High Ceiling Chimney Kit

Extends the chimney for high ceilings to
11' 8 7/8".

# MUDAMPER6 / MUDAMPER8 –

Universal Make-Up Air Damper

Satises make-up air requirements, this kit
uses an air switch to activate the make-up air
damper to open and bring fresh air into the
home when the hood fan is on. It then closes
tightly when the hood is o. e CFM level is
not reduced with this accessory.

# REMCTRL –

Remote Control

Control all features of the hood from the con­venience of a wireless remote control.

# WIREBOX –

Fixed Wiring Box

Replace the power cord with a hard wired box
to power the range hood.

Rear Vent (Vari-Duct) Dimensions

(blower comes in top vented position)

4" 5/16

1"

5" 7/8

Rev: 4/18

WARNING! Product specications are subject to change without
notication. Consult the installation instructions before you begin
installing this range hood. * Check local make up air codes for
guidelines.

2 Cabot Road Hudson, MA 01749 • TEL: [phone] • E-Mail: [e-mail] www.faberonline.com

Imagined in Italy
