INSTALLATION MANUAL
FT-VF-NS4
REV 020118
PRESENTATION
• Congratulations for purchasing the video interface FT-VF-NS4.
• Please, read this manual with attention before installing your new device.
• Keep this manual with you in order to check the functioning procedures and
the security information.
• We recommend that a professional, with experience in the field of installation
of vehicle devices, is the one to install this interface.
• The car ignition must be off during all the installation process.
CHARACTERISTICS
• Unblocks video while the vehicle is moving (DVD and USB)
• Enables 2 AV inputs
• Enables front camera input
By using the front camera, you automatically lose the AV1(DVD) input
• TV and DVD can be controlled by steering wheel commands
Check the compatible models on the table on page 2
• 12V, Post-key and GND outputs
• Plug and Play connections
• 1 year warranty against manufacturer defect
• Compatible vehicles:
Important Notice:
Video visualization is strictly forbidden to the vehicle’s driver. The visualization of video is
reserved only to the passengers in the vehicle. FAAFTECH holds no responsibility over
eventual damaged caused by the poor usage of this function.
www.faaftech.com/produtos/interface-de-video/ft-vf-ns4
1

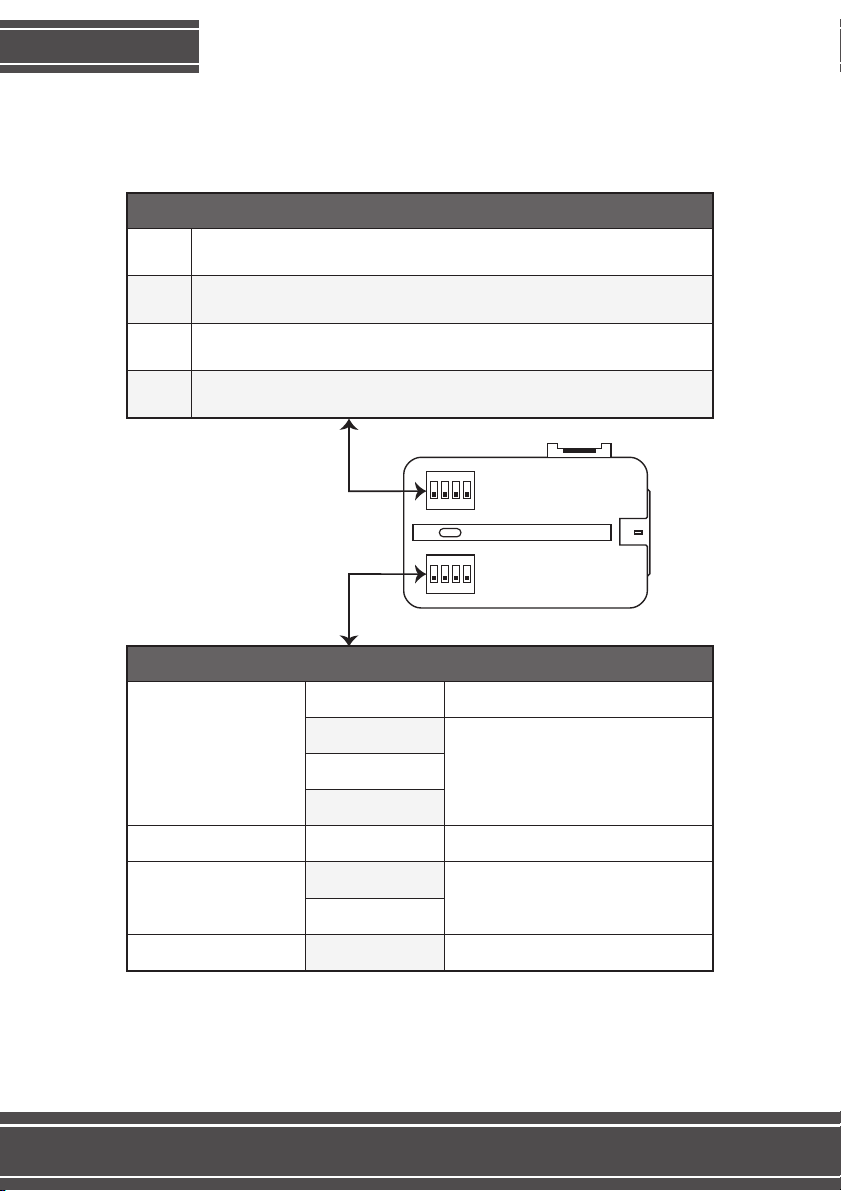

Dip Switches
Set up the interface’s DIP Switches while the equipment is unplugged from the
whip, and while the car ignition is off.
SETUP
DIP 1
DIP 2
DIP 3
Up enables AV1(DVD) input
Down disables AV1 input
Up enables AV2 (TV) input
Down disables AV2 input
Up enables AV1(DVD) as front camera
Down disables front camera input
DIP 4
No function
ON
1 2 3 4
ON
1 2 3 4
TV and DVD selection
FT-TV-1SEG DIP 1 UP DIP 2 DOWN
FAAFTECH TV
LBSAT TV DIP 1 UP DIP 2 UP
FAAFTECH DVD
SOUNDSTREAM DVD
FT-TV-1SEGII
FT-TV-1SEGIII
FT-TV-HDII
LBCR-1100
FT-DVD-1/2DIN
FT-DVDII
VDVD-155
DIP 1 DOWN DIP 2 DOWN
DIP 3 UP DIP 4 UP
DIP 3 DOWN DIP 4 DOWN
If you are installing a TV or a DVD that is not listed above, keep the respective
DIP Switches down.
2

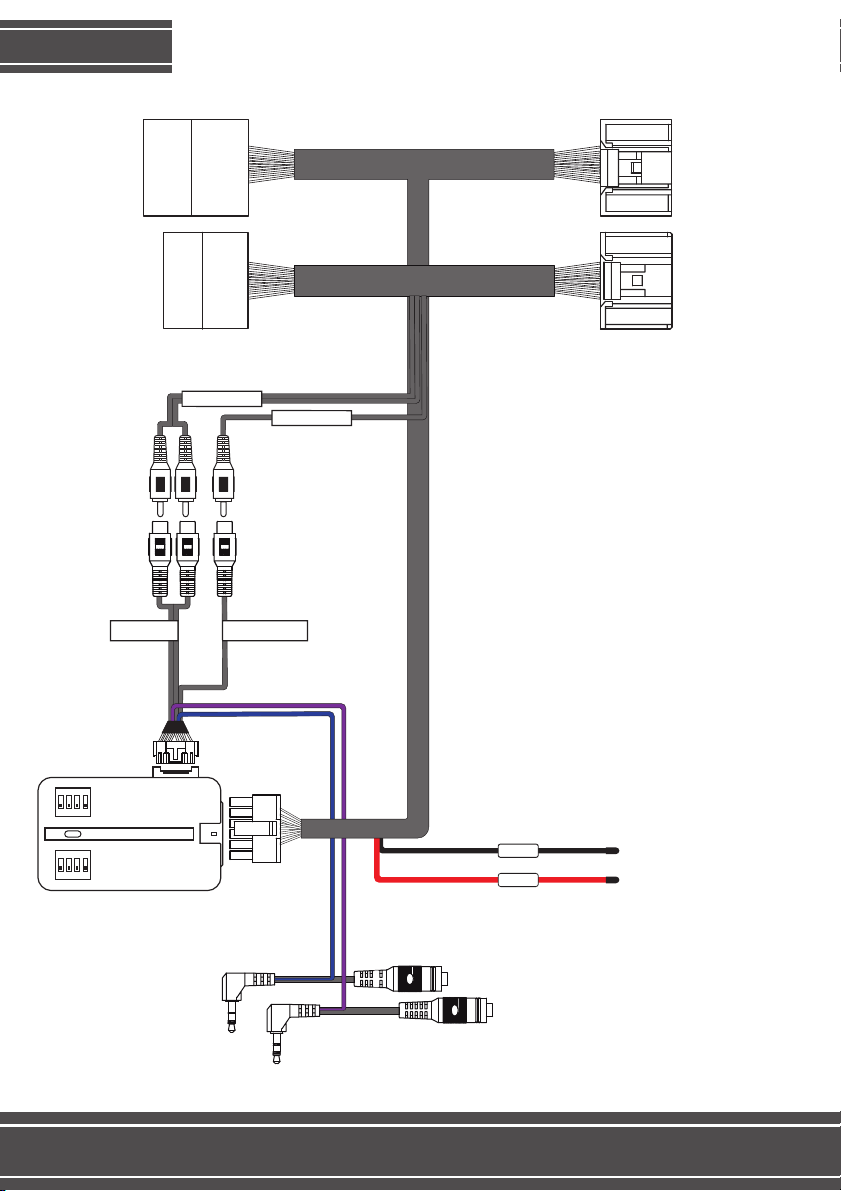

Connections
Connect to the whip Connect to the multimedia
Entrada AUX
ON
1 2 3 4
ON
1 2 3 4
Connect to the TV and
DVD IR inputs if they
are compatible
Entrada CâmeraSaida Audio
Câmera OEM
GND
ACC
Auxiliary outputs
ACC – Post-key output to
power the accessories, 2A
maximum.
GND – Ground output to
connect the accessories.
3
FUNCTIONING
AV INPUT
Follow the steps below to access the accessories you have installed on the
device’s AV inputs.
1°. Select the auxiliary entry on the multimedia menu;
2°. Press and hold the “Reject Call” button on the steering wheel to access the
device AV mode;
3°. Simply touch that same button to toggle between AV1(DVD) and AV2(TV) if
they are installed;
4°. Press and hold the “Reject Call” button to return to the original menu.

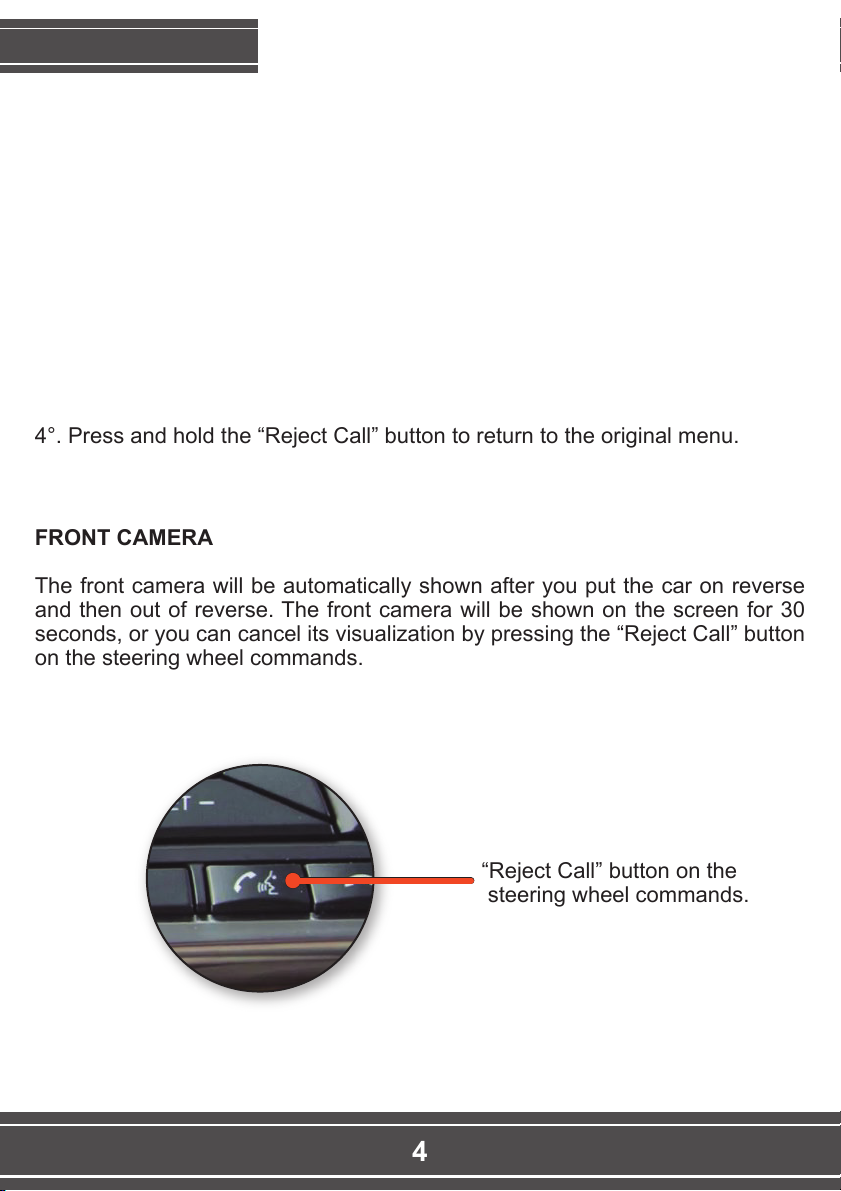

FRONT CAMERA
The front camera will be automatically shown after you put the car on reverse
and then out of reverse. The front camera will be shown on the screen for 30
seconds, or you can cancel its visualization by pressing the “Reject Call” button
on the steering wheel commands.
“Reject Call” button on the
steering wheel commands.
4
FUNCTIONING

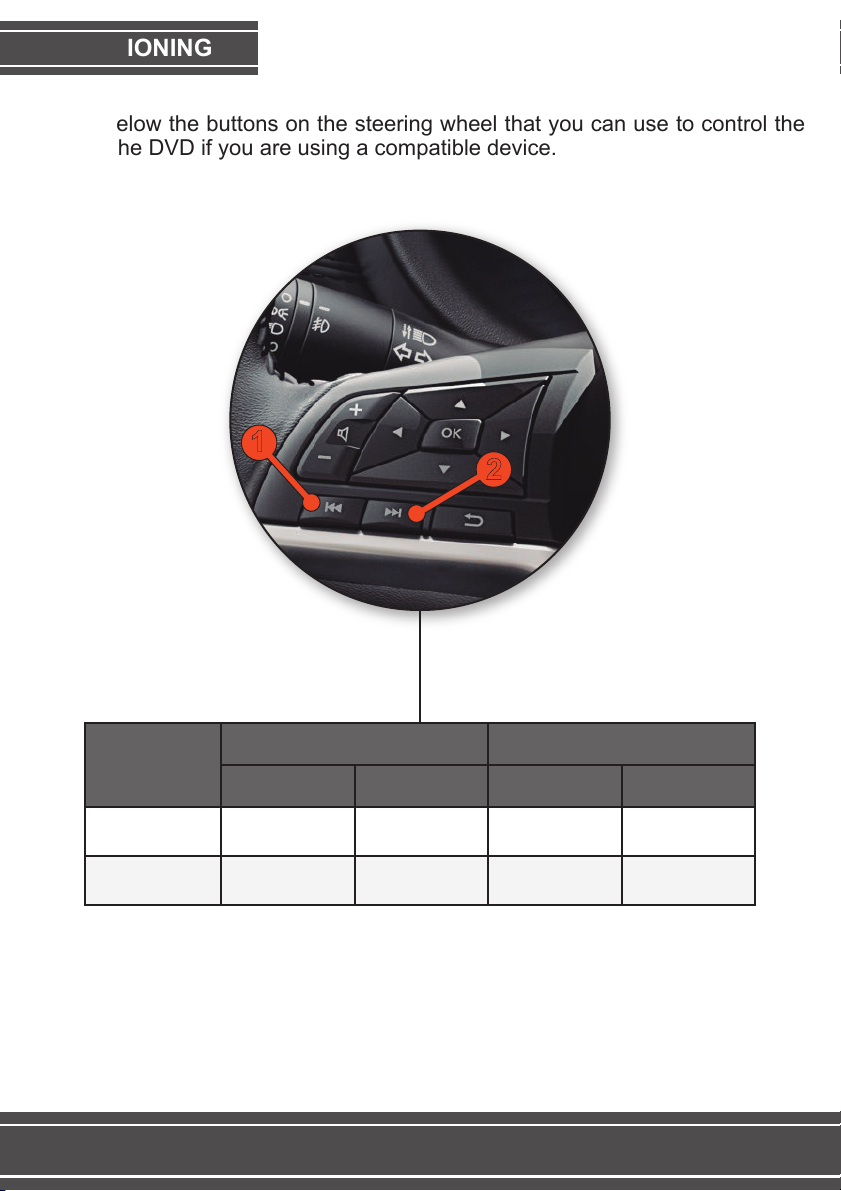

Check below the buttons on the steering wheel that you can use to control the
TV and the DVD if you are using a compatible device.
1
2
BUTTON #
Simple Touch
Channel + Scan Track + EnterButton 1
Channel - ---------- Track - ----------Button 2
DVD COMMANDSTV COMMANDS
2-second touch Simple Touch
5
2-second touch
Warranty
FAAFTECH assures their clients a 01 (one) year period against defects in
materials and workmanship, proved by presenting both the receipt of purchase
from the reseller to the costumer and the present Warranty Certificate filled,
observing the following:
1. FAAFTECH will null the warranty if Faaftech or their authorized technical
assistance concludes that the equipment suffered from damage caused by poor
usage, by inadequate installing, by accidents (crashes, falls, and others), or if
there are any signs of the product having been violated, adjusted or fixed by
non-authorized personnel;
2. The Warranty Certificate is only valid when filled and presented together
with the receipt from the reseller to the costumer, as well as the attendance
number that is generated by our Technical Support, which can be reached from
the numbers: +55 0800 603 2330 (landlines only) or +55 62 3241 4600. From
Mondays to Fridays, from 8 a.m. to 6 p.m. (GMT -03:00).
3. Any repairs and maintenances of the equipment still covered by the warranty
will be exclusively handled by FAAFTECH.
4. This warranty will not cover any products with unreadable or adulterated serial
code numbers.
5. The expenses with shipping, securing and packaging are not covered by this
warranty, and they are the full responsibility of the owner of this equipment.
WARRANTY CERTIFICATE
EQUIPMENT: FT-VF-NS4
BUYER’S NAME:
PHONE NUMBER: ( ) CITY: STATE/PROVINCE:
ADDRESS:
DATE OF PURCHASE: RECEIPT NUMBER:
SERIAL NUMBER:
Attention: This Warranty Certificate is only valid when filled and presented together with the receipt from the
reseller to the costumer. Keep this in a safe place.
ATTENDANCE NUMBER:
1 Year
6
TECHNICAL SUPPORT
Follow us on social media
0800 603 2330 ou (62) 3241-4600
suporte@faaftech.com.br
www.faaftech.com.br
Available from Monday to Friday, from 8 a.m. to 6 p.m. Brasilia time
