FAAFTECH FT-VF-NS3-1SEG Installation Manual

Installation Manual

For your safety and comfort, read this manual carefully.

FT-VF-NS3-1SEG

REV 081117

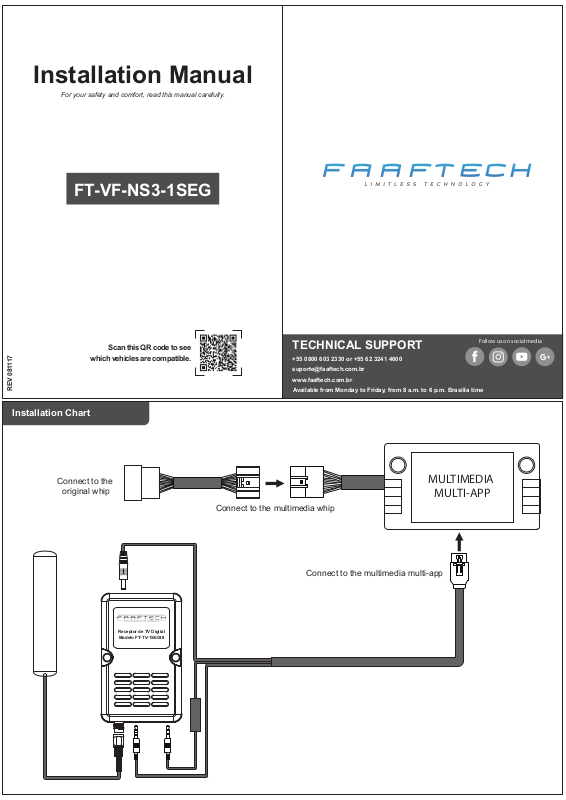

Installation Chart

Connect to the

original whip

Scan this QR code to see

which vehicles are compatible.

TECHNICAL SUPPORT

[phone] or [phone]

[e-mail]

www.faaftech.com.br

Available from Monday to Friday, from 8 a.m. to 6 p.m. Brasilia time

Connect to the multimedia whip

Connect to the multimedia multi-app

Follow us on social media

MULTIMEDIA

MULTI-APP

Receptor de TV Digital

Modelo FT-TV-1SEGIII

Accessing the TV

To visualize the Digital TV, you must access the ISDB source on the multimedia Multi-APP, as shown on the picture below:

Controlling the Digital TV

See below how you can control the Digital TV trough the steering wheel commands and through the multimedia touchscreen.

Touch Screen

Touch the screen as shown on the image below to flip through and
scan the available channels.

Steering Wheel Command

Use the steering wheel command bellow to flip
through channels.

Note: the buttons shown below are invisible buttons. They will not
show up on the multimedia screen, but if you touch on the places
indicated, the respective function will be executed.

Channel forward

Channel
Forward

List / Enter

Channel back

Channel

Back

Press

3 times

to scan
