FAAFTECH FT-LVDS-AUD4 Installation Manual

INSTALLATION MANUAL

FT-VIDEO-LVDS

AUD4

REV 161117

PRESENTATION

• Congratulations for purchasing the video interface FT-LVDS-AUD4.

• Please, read this manual with attention before installing your new device.

• Keep this manual with you to check the functioning procedures and the
security information.

• We recommend that a professional, with experience in the field of installation
of vehicle devices, is the one to install this interface.

• The car ignition must be off during the entire installation process.

CHARACTERISTICS

• Unblocks video while vehicle is moving (Original USB video/DVD/TV)

• Enables 3 AV inputs

• Enables inputs for rear camera and front camera*

• TV and DVD controlled by iDrive and original vehicle commands

• 12V, ACC and CAMERA output

• Plug and Play Connections

• 1-year warranty against manufacturer defect

• Compatible vehicles:www.faaftech.com/produtos/interface-de-video/ft-lvds-aud4

* 3rd AV input can be set up to be used as AV, NAV or Front Camera.

1

DIP Switches

Set up the interface’s DIP Switches while the equipment is unplugged from the
whip, and while the car ignition is off.

1 2 3 4 5 6 7 8

ON

SETUP DIP SWITCHES

DIP 1

DIP 2

DIP 3

DIP 4

DIP 5

UP enables AV1 (DVD) input

DOWN disables AV1 input

UP enables AV2 (TV) input

DOWN disables AV2 input

UP enables AV3, NAV or FRONT CAM input (see pages 11-12)

DOWN disables AV3 input

Cars with an 8,2” screen: DIP 4 and DIP 5 up

Cars with a 7,0” screen: DIP 4 up and DIP 5 down

Cars with a 5,8” screen: DIP 4 and DIP 5 down

DVD AND TV SELECTION DIP SWITCHES

FT-TV-1SEG DIP 6 up and DIP 7 down

FAAFTECH TV

LBSAT TV DIP 6 up and DIP 7 upLBCR-1100

FAAFTECH DVD

FT-TV-1SEG II

FT-TV-1SEG III

FT-TV-HD II

FT-DVD-1/2DIN

FT-DVD II

VDVD-155SOUNDSTREAM DVD

DIP 6 down and DIP 7 down

DIP 8 up

DIP 8 down

2

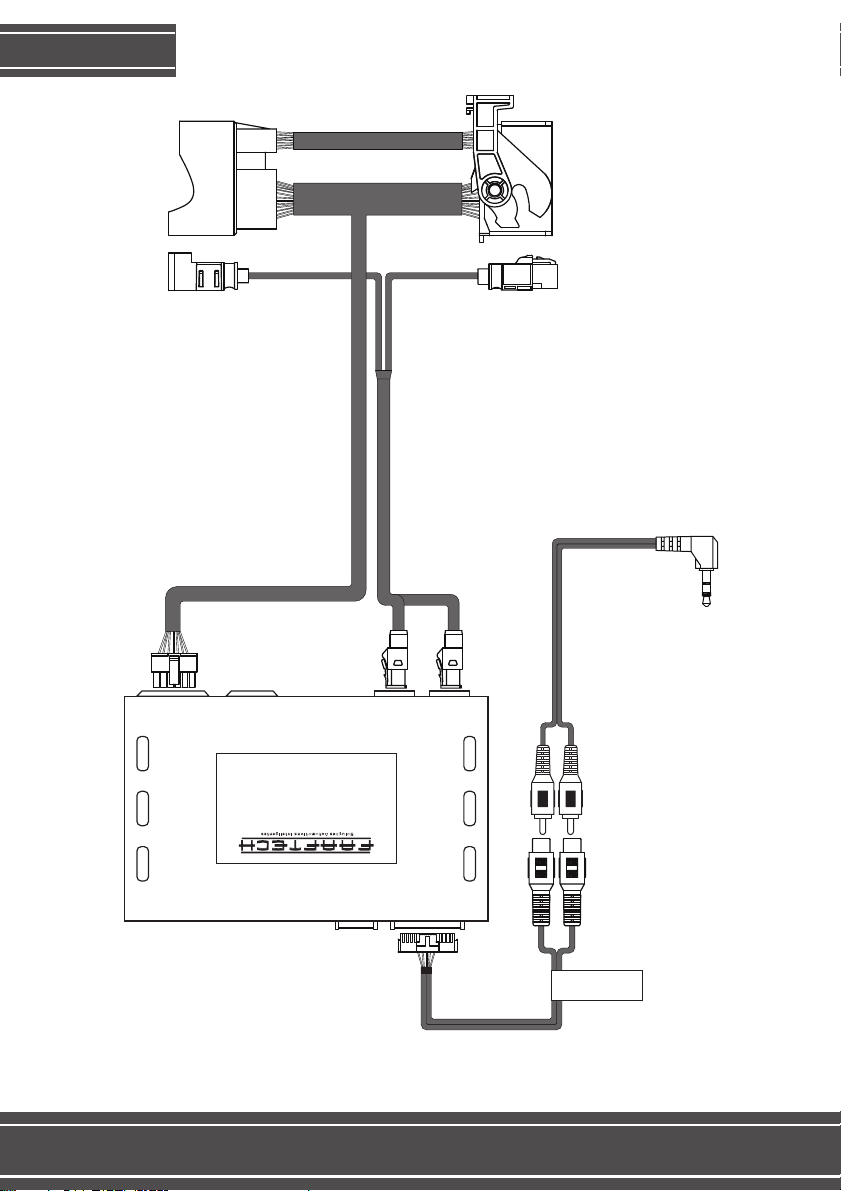

CONNECTIONS

Connect to

the whip

Connect to

the whip

OUT

CAN/POWERINPOWER

IN/OUT

LVDS

Connect to the radio located
inside the glove compartment

Connect to the radio’s pink
or gray LVDS plug

Connect to the AUX entry

on the console or on the glove

compartment

DIP

SELECT

UPDATE

S/N: xxxxxxxxxx

Versão: xx
Modelo: FT-LVDS-AUD4

DATA OUT/

ANTENAAVIN/OUT

3

Saida Audio

Accessories Connections

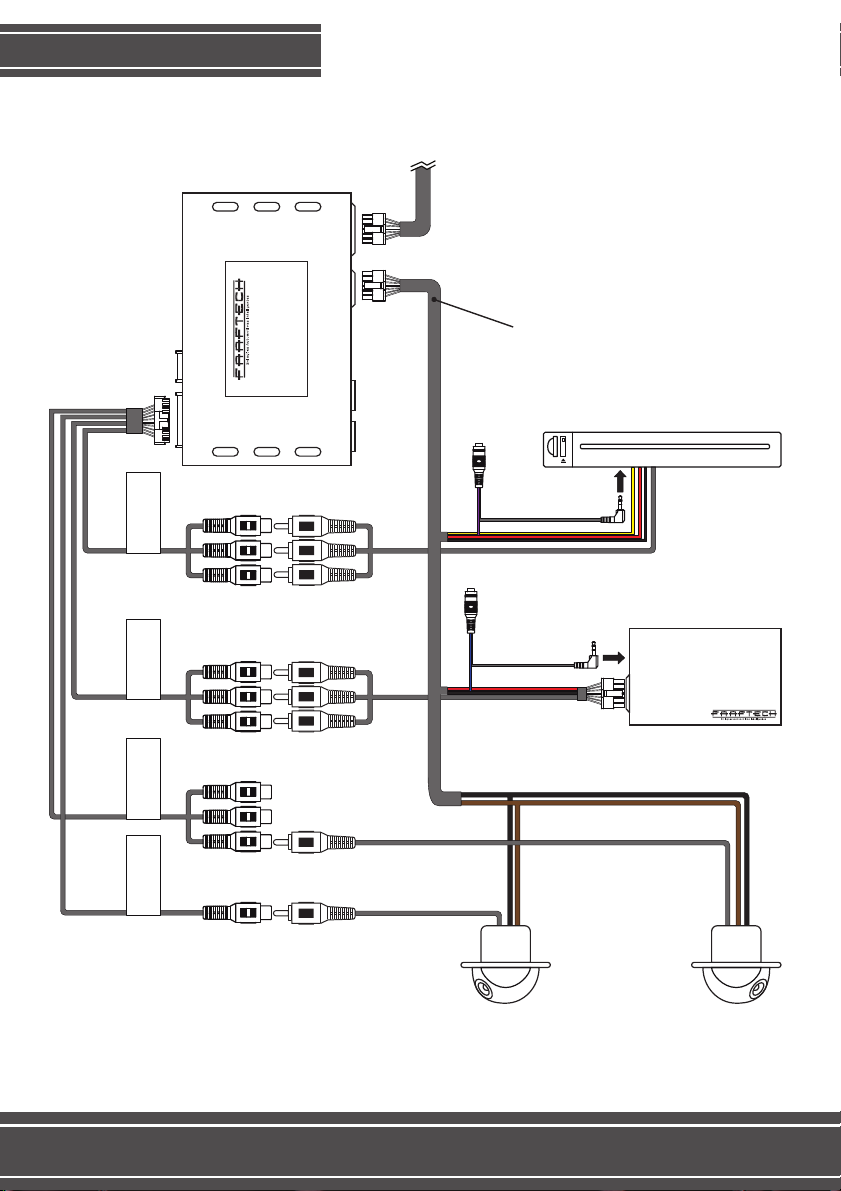

Check this example on the installation of a DVD, a TV, a front camera on the AV3
input and a rear camera.

SELECT

UPDATE

ANTENA

IN/OUT

(AV1)

Entrada DVD

DIP

DATA OUT/

AV

Modelo: FT-LVDS-AUD4

Versão: xx

S/N: xxxxxxxxxx

IN

CAN/POWER

OUT

POWER

LVDS

IN/OUT

Use the auxiliary exits to power the
accessories, such as DVD, TV and
camera, if you install them.

MOBILE MULTI-MEDIA PLAYER

SD

DVD

(AV2)

Entrada TV

Entrada AV3

Entrada

Video Camera

Accessories such as DVD, TV and camera are sold separately.

4

Receptor de TV Digital

Front CameraRear Camera

FUNCTIONING

Follow the steps bellow to access the accessories that are installed on the
device’s inputs.

1st Select the AUX audio source from the multimedia;

2nd Press and hold the button (on the steering wheel) or the MENU button
(on the dashboard or central console) to gain access to the interface’s AV mode;

3rd Simply touch the same button to toggle between the DVD (AV1), TV (AV2)
and the AV3;

4th If you want to return to the original menu, press and hold one of those
buttons again for two seconds.

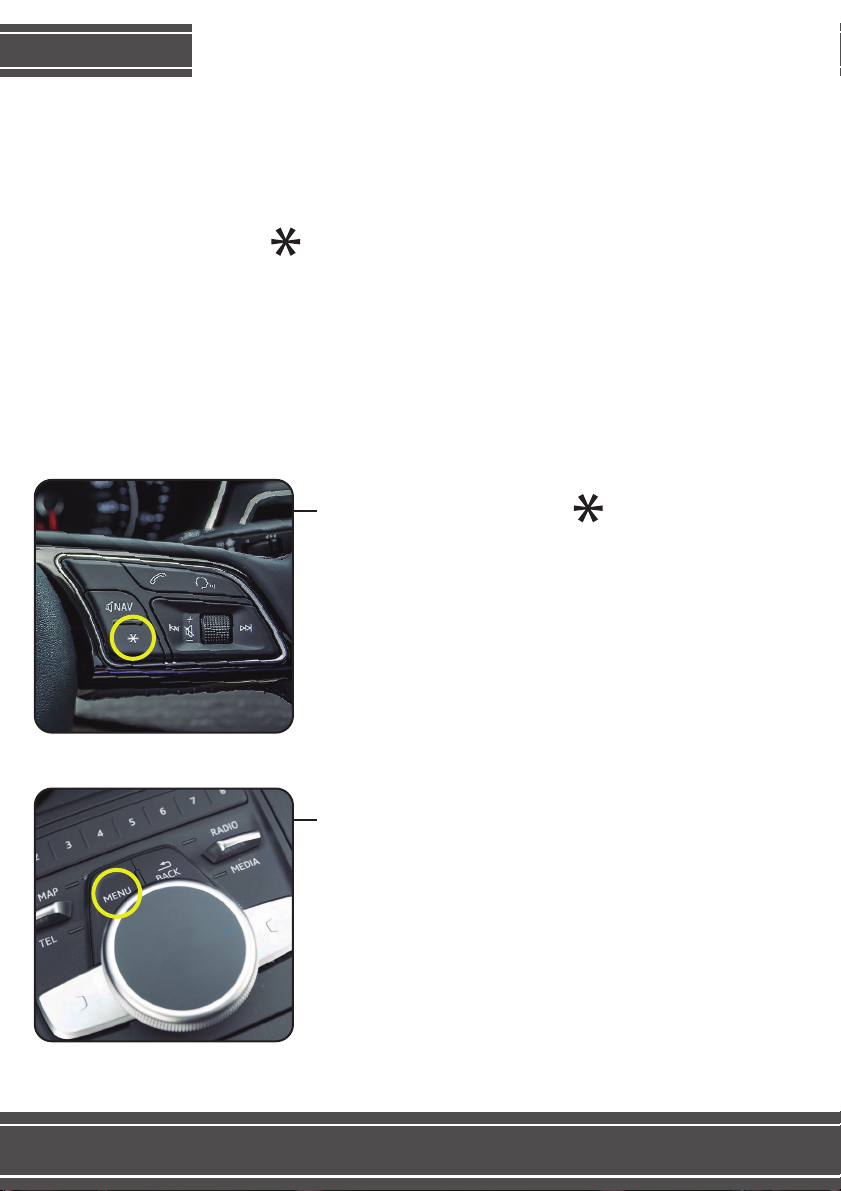

Steering wheel command’s button

Central console MENU button

5

FUNCTIONING

See below the available commands to control the DVD and the TV through the
vehicle’s original commands.

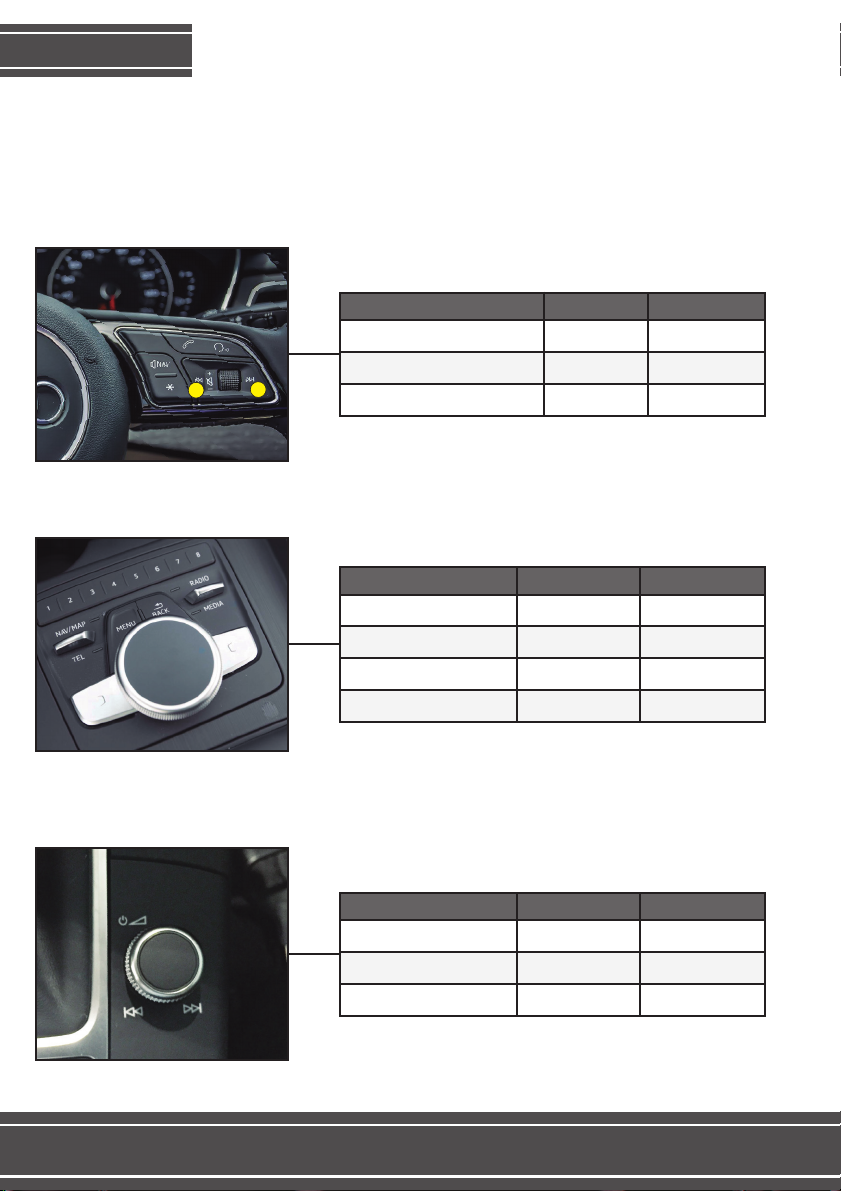

Steering wheel commands

1

2

iDrive commands

Console buttons commands

Command

Simply touch the 1 button

Simply touch the 2 button Channel + Track +

Hold the 2 button for 3 seconds Scan --------

Movimento

Turn right

Turn left Channel - Menu navigation

Quick press List/Enter Enter

Long press List Menu

TV command

DVD command

Track -Channel -

DVD commandComandos TV

Menu navigationChannel +

Command

Push to the right

Push to the right and hold Scan --------

Push to the left Channel - Faixa -

DVD commandTV command

Faixa +Channel +

6

CAMERA FUNCTIONS

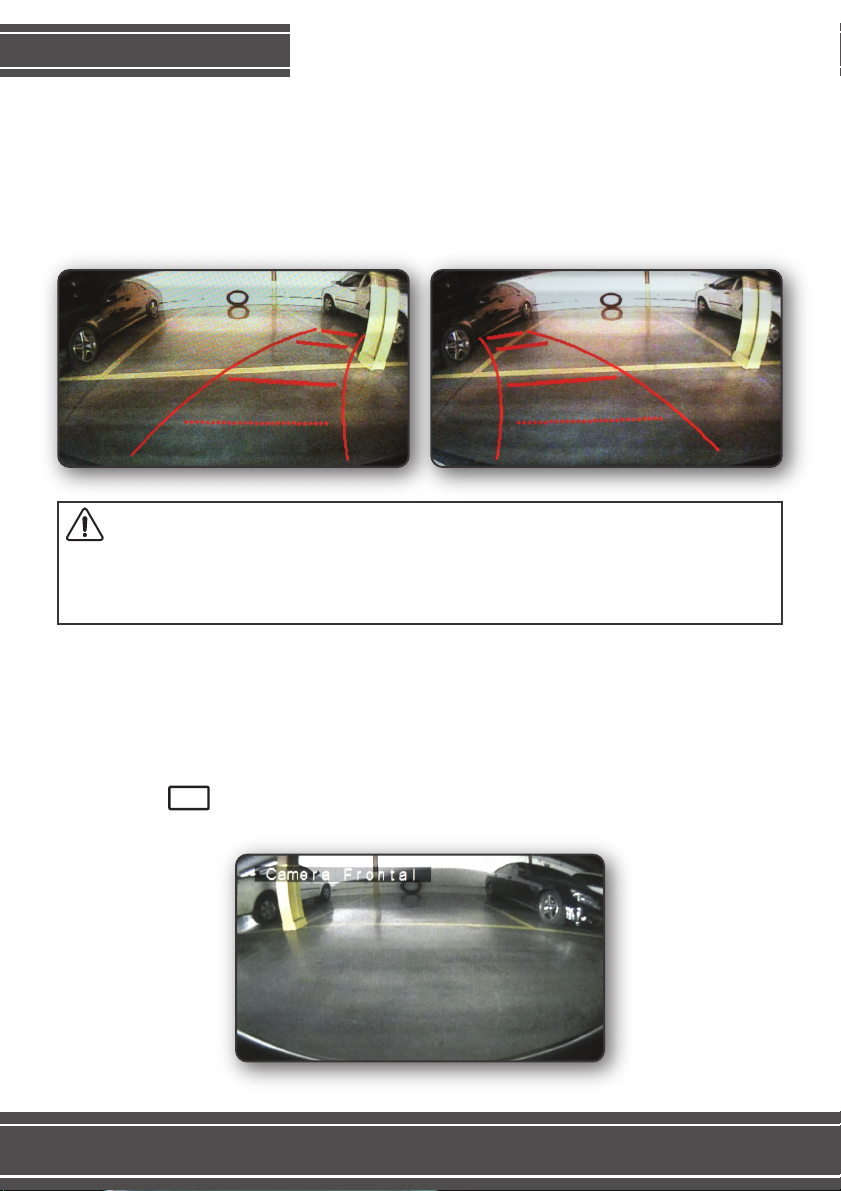

Rear Camera

Once you put your vehicle on reverse, the rear camera will automatically show
on the screen.

As you spin the steering wheel, the parking lines will move, showing the
vehicle’s approximate direction as you keep going.

Important Notice:

The parking lines do not offer 100% precision on the track they show. Use
them only as an auxiliary resource as you park your vehicle.

Frontal camera

When you put the car on reverse, then switch the gear to N or D, the front
camera will automatically appear on the screen. The camera will remain turned
on for 30 seconds, or until the car reaches the speed of 15 km/h (9.32 mph) or if
you press the OK button on the steering wheel (see image of the MEDIA button
on the next page).

7

CAMERA FUNCTIONS

Camera Visualization

You can view your installed cameras at any point by following these steps:

• Press and hold the OK button on the steering wheel for three seconds, to view
your rear camera;

• Simply touch the OK button if you want to alter between the rear camera and
the front camera (in case both are installed);

• Press and hold for three seconds the OK button to exit the camera view and
return to the original menu.

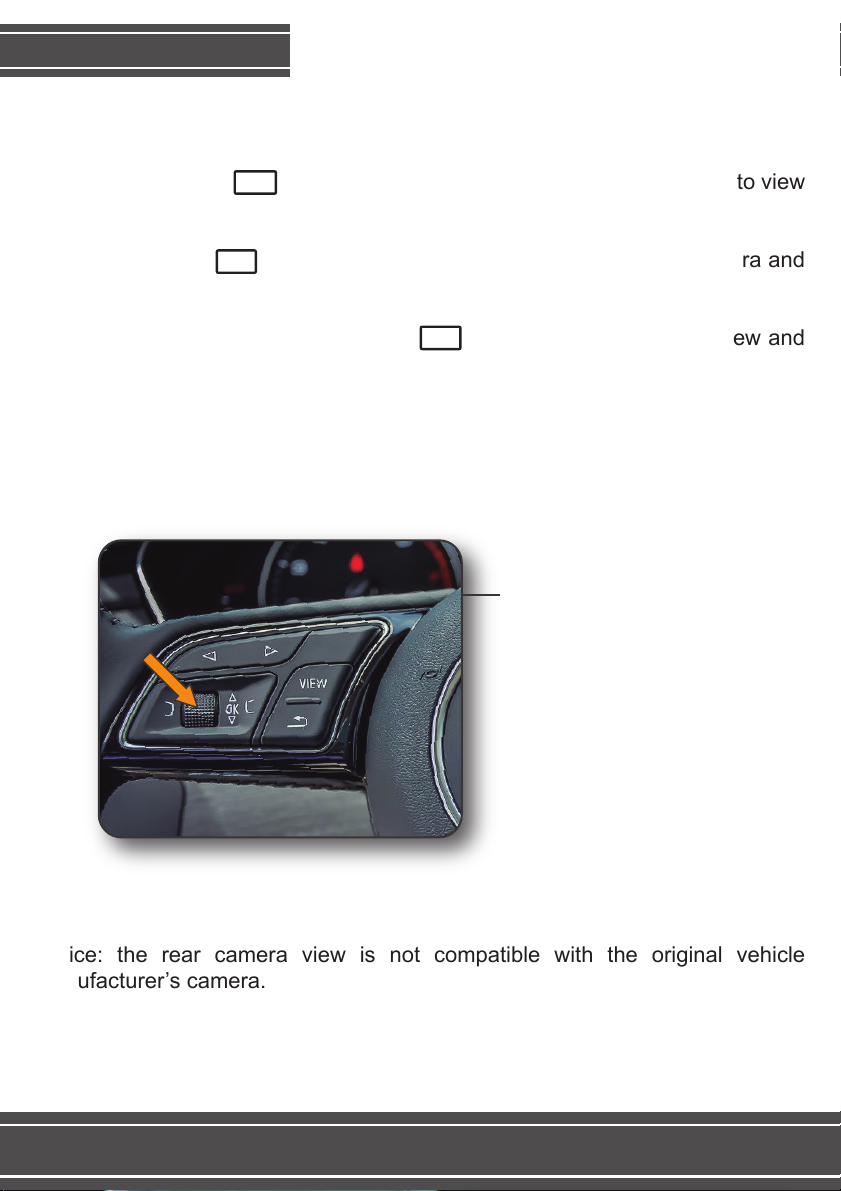

Steering wheel
command’s OK button

Notice: the rear camera view is not compatible with the original vehicle
manufacturer’s camera.

8

Video while Moving

This interface has a function, so you can turn on/off the visualization of video
while the vehicle is moving.

• Press the BACK button on central console for 3 seconds to toggle video
while moving on or off.

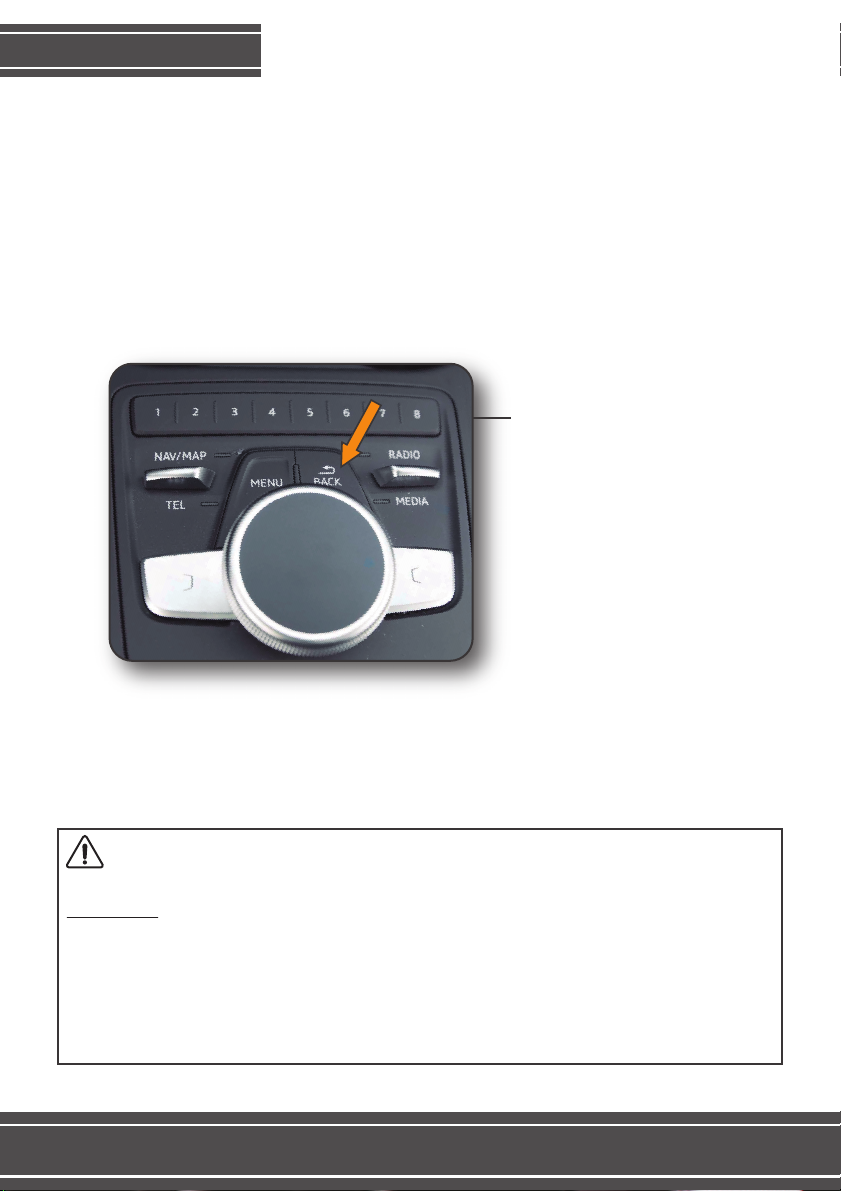

BACK button on
the central console

Observação Importante

In some cases, the original GPS might malfunction when video while moving is
unblocked. When using the original GPS, we recommend you turn off the video
while moving function.

Video visualization is strictly forbidden to the vehicle’s driver. The visualization of
video is reserved only to the passengers in the vehicle. FAAFTECH holds no
responsibility over eventual damaged caused by the poor usage of this function.

9

SETUP MENU

See below how you can access the FT-LVDS-AUD4 Setup Menu:

1st Access AV1 (DVD), AV2 (TV) or AV3;

2nd Press the iDrive button and hold for about 5 seconds to open the setup
menu;

3rd Turn the iDrive left or right to choose between the menu functions and press
the button to select the function you want. You can choose to see the menu in
English from the sixth option (Idioma).

Camera Tras
Linhas Est.
AV1
AV2
AV3
Idioma
Cambio

PORTUGUES

AUTOMATICO

ON
ON

DVD

TV

AV3

Reset

Camera Tras (Rear Camera):

ON – If you are installing a rear camera.
OFF – If you are not installing a rear camera and the vehicle does not have an
original vehicle manufacturer’s rear camera.
OEM – In case the vehicle already has an original vehicle manufacturer’s rear
camera.

Linhas Est. (Parking Lines):

ON – Enables the parking lines during rear camera view.
OFF – Disables the parking lines during rear camera view.

AV1:

Chooses the name of auxiliary entry AV1: DVD or AV1.

10

SETUP MENU

AV2:

Chooses the name of auxiliary entry AV2: TV or AV2.

AV3:

AV3 – Choose this option if you want to use AV3 as a third audio/video input.
NAV – Choose this option if you want to use AV3 for the GPS.
CAM FRONT – Choose this option if you want to use AV3 as an input for a front
camera.

Idioma (Language):

PORTUGUES – Changes the Setup Menu language to Portuguese.
ENGLISH – Changes the Setup Menu language to English.

Cambio (Switchgear):

Automatico – Choose this for cars with an automatic transmission.
Manual – Choose this for cars with a stick shift.

Reset:

Resets all the Setup Menu settings to the original manufacturer’s configuration.

11

Problem Solving

1. After installing the interface, the multimedia won’t turn on.

• Review the installation and check if the cables are connected according to the
images on pages 3 and 4;

• Check if all the cables are well connected, and if there are no wires coming out
of the connectors.

2. The rear camera won’t show up when I put my car on reverse.

• Check the Setup Menu to see if the “Camera Tras (Rear Camera)” option is
correctly configured.

3. When I put my vehicle on reverse, I see the message “Incompatible
Video”.

• Check the compatibility of your rear camera. LVDS is only compatible with
NTSC video system cameras; other formats may not work.

4. I have installed a front camera, but it doesn’t work after I put my car out
of the reverse gear.

• Access the Setup Menu (page 11), go to option AV3 and set it as “CAM
FRONTAL”.

5. I can see the images of the accessories (i.e. DVD, TV), but I can’t hear
any audio.

• Make sure to access the auxiliary audio entry before accessing the
accessories video.

12

Warranty

FAAFTECH assures their clients a 01 (one) year period against defects in

materials and workmanship, proved by presenting both the receipt of purchase
from the reseller to the costumer and the present Warranty Certificate filled,
observing the following:

1. FAAFTECH will null the warranty if Faaftech or their authorized technical
assistance concludes that the equipment suffered from damage caused by poor
usage, by inadequate installing, by accidents (crashes, falls, and others), or if
there are any signs of the product having been violated, adjusted or fixed by
non-authorized personnel;

2. The Warranty Certificate is only valid when filled and presented together
with the receipt from the reseller to the costumer, as well as the attendance
number that is generated by our Technical Support, which can be reached from
the numbers: [phone] (landlines only) or [phone]. From
Mondays to Fridays, from 8 a.m. to 6 p.m. (GMT -03:00).

3. Any repairs and maintenances of the equipment still covered by the warranty
will be exclusively handled by FAAFTECH.

4. This warranty will not cover any products with unreadable or adulterated serial
code numbers.

5. The expenses with shipping, securing and packaging are not covered by this
warranty, and they are the full responsibility of the owner of this equipment.

Warranty Certificate

Equipment: FT-LVDS-AUD4

BUYER’S NAME:

PHONE NUMBER: ( ) CITY: STATE/PROVINCE:

ADDRESS:

DATE OF PURCHASE: RECEIPT NUMBER:

SERIAL NUMBER:

Attention: This Warranty Certificate is only valid when filled and presented together with the receipt from the

reseller to the costumer. Keep this in a safe place.

ATTENDANCE NUMBER:

1 Year

13

TECHNICAL SUPPORT

[phone] or [phone]

[e-mail]

www.faaftech.com.br

Available from Monday to Friday, from 8 a.m. to 6 p.m. Brasilia time

Follow us on social media
