TABLE OF CONTENTS
Important Safety Requirements & Instructions ...................................................................................1
Responsibilities of Installers and Technicians ....................................................................................2
Important Safety Requirements by UL Standards ..............................................................................3
Classes of Vehicular Gate Operators .................................................................................................4
General Specifications........................................................................................................................5
Installation Specifications ...................................................................................................................6
Hookup Electrical Power - Gate Travel Adjustment ...........................................................................7
Standard Installation for Gates from 8’ to 16’ in Length .....................................................................7
Standard Installation for Gates from 16’ to 20’ in Length ...................................................................8

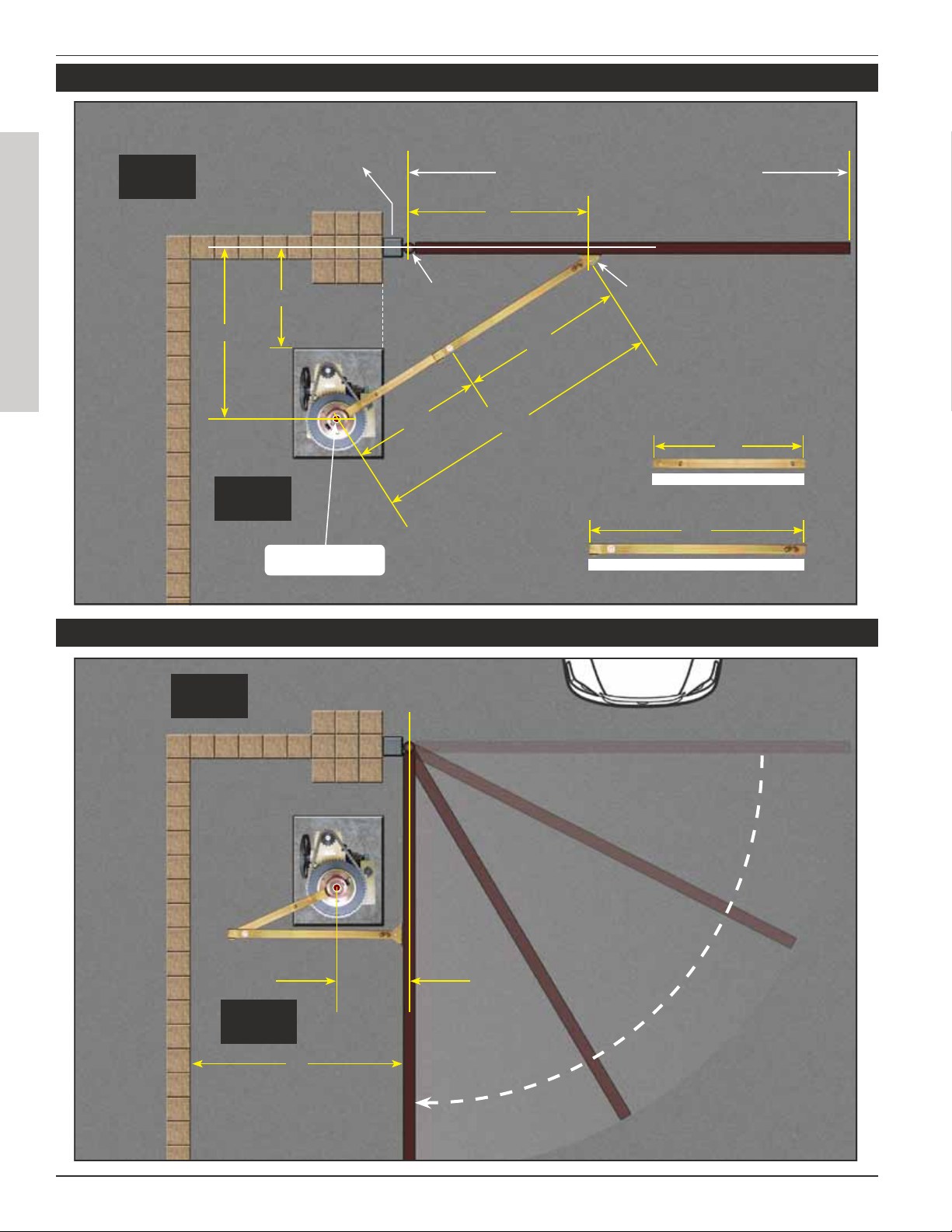

Space Required for Standard Gate in the Open Position ...................................................................8

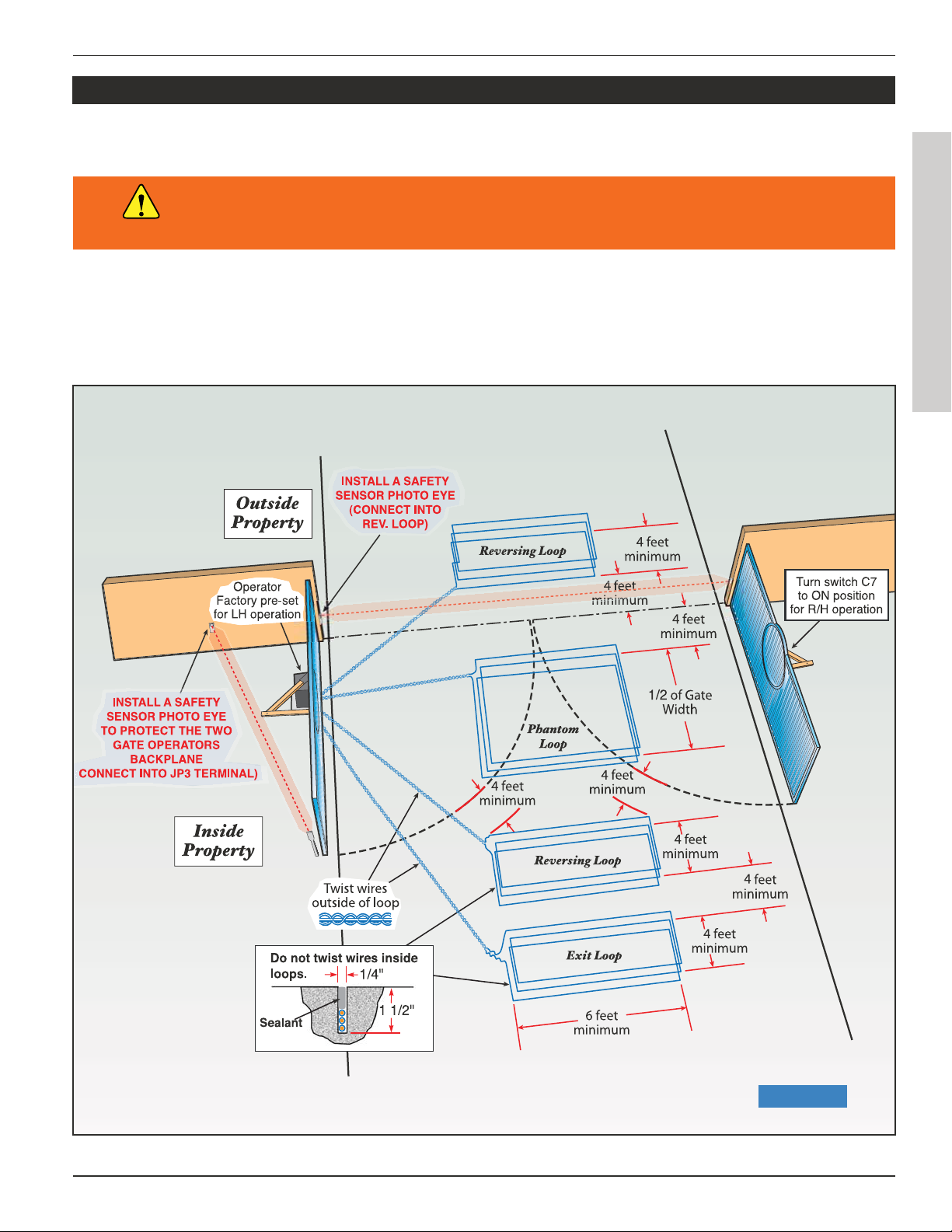

Sensor Installation ..............................................................................................................................9

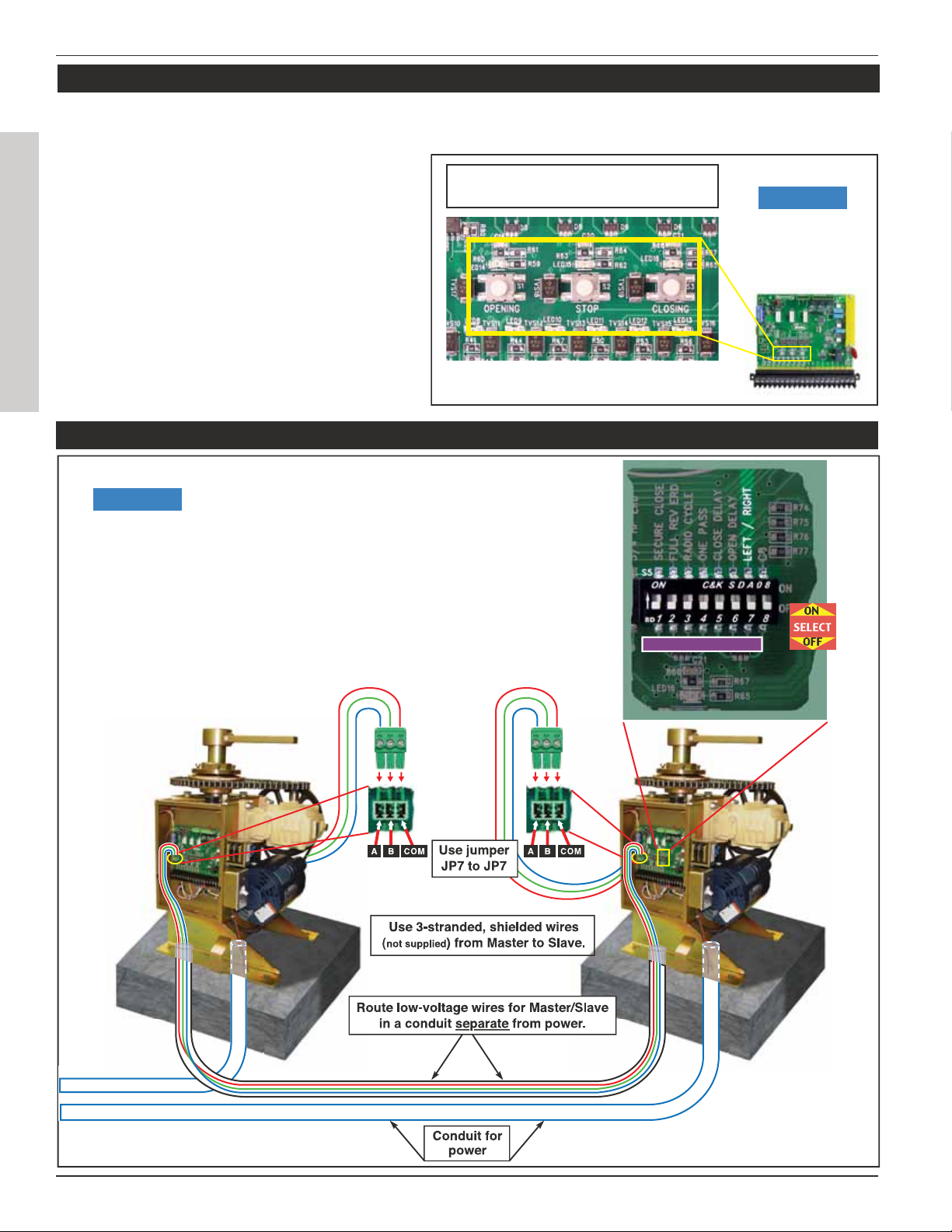

Pushbutton Controls & Master/Slave Installation .............................................................................10

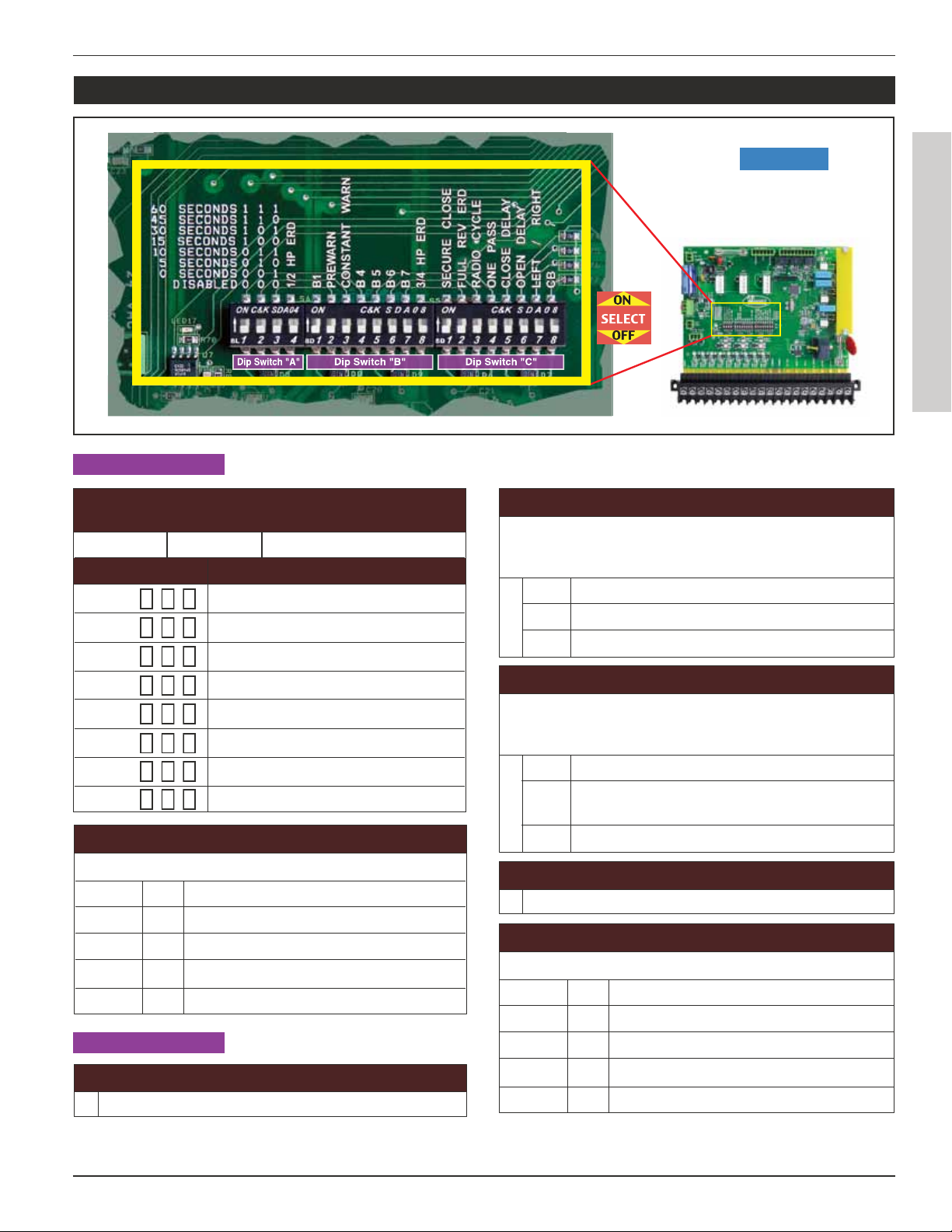

Dip Switch Configuration ............................................................................................................ 11-12

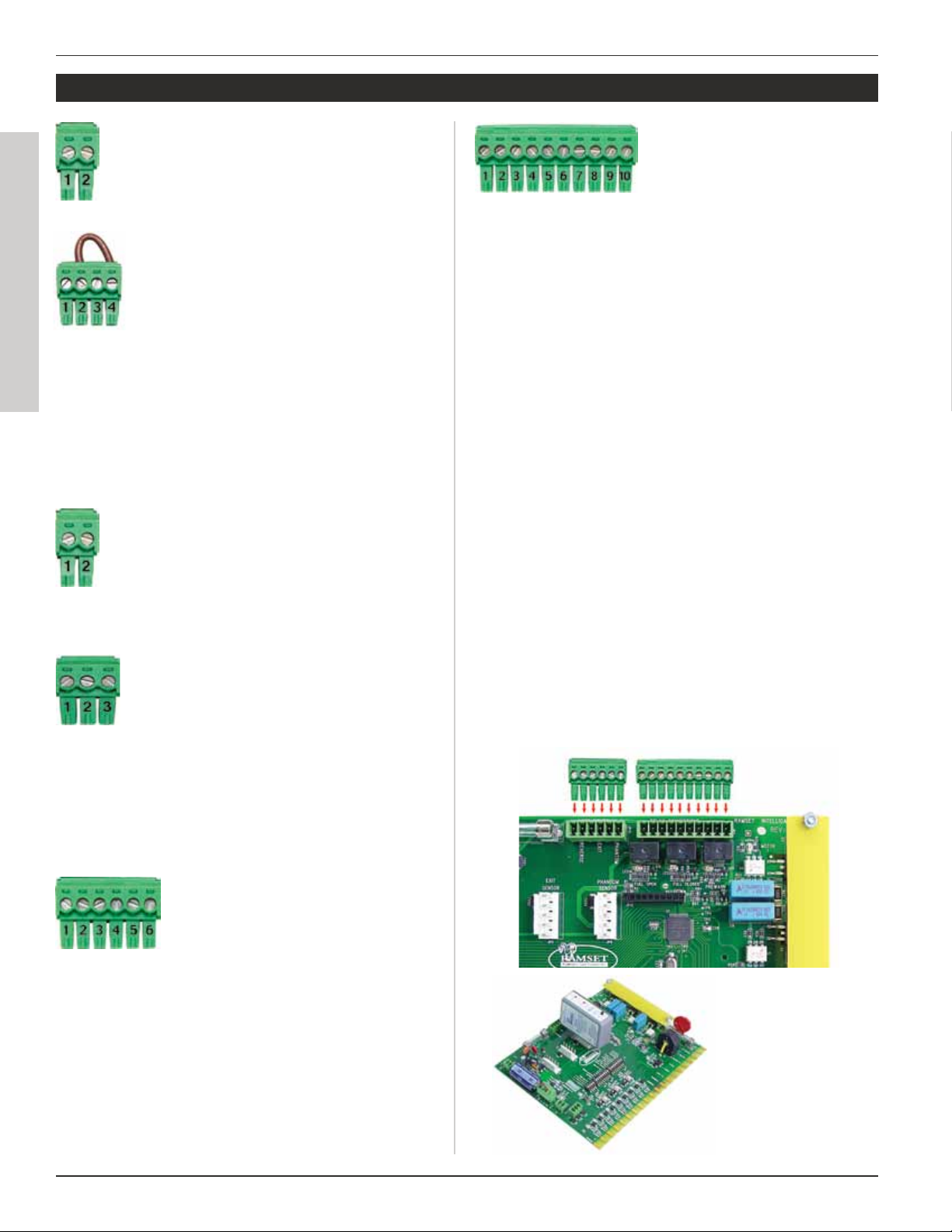

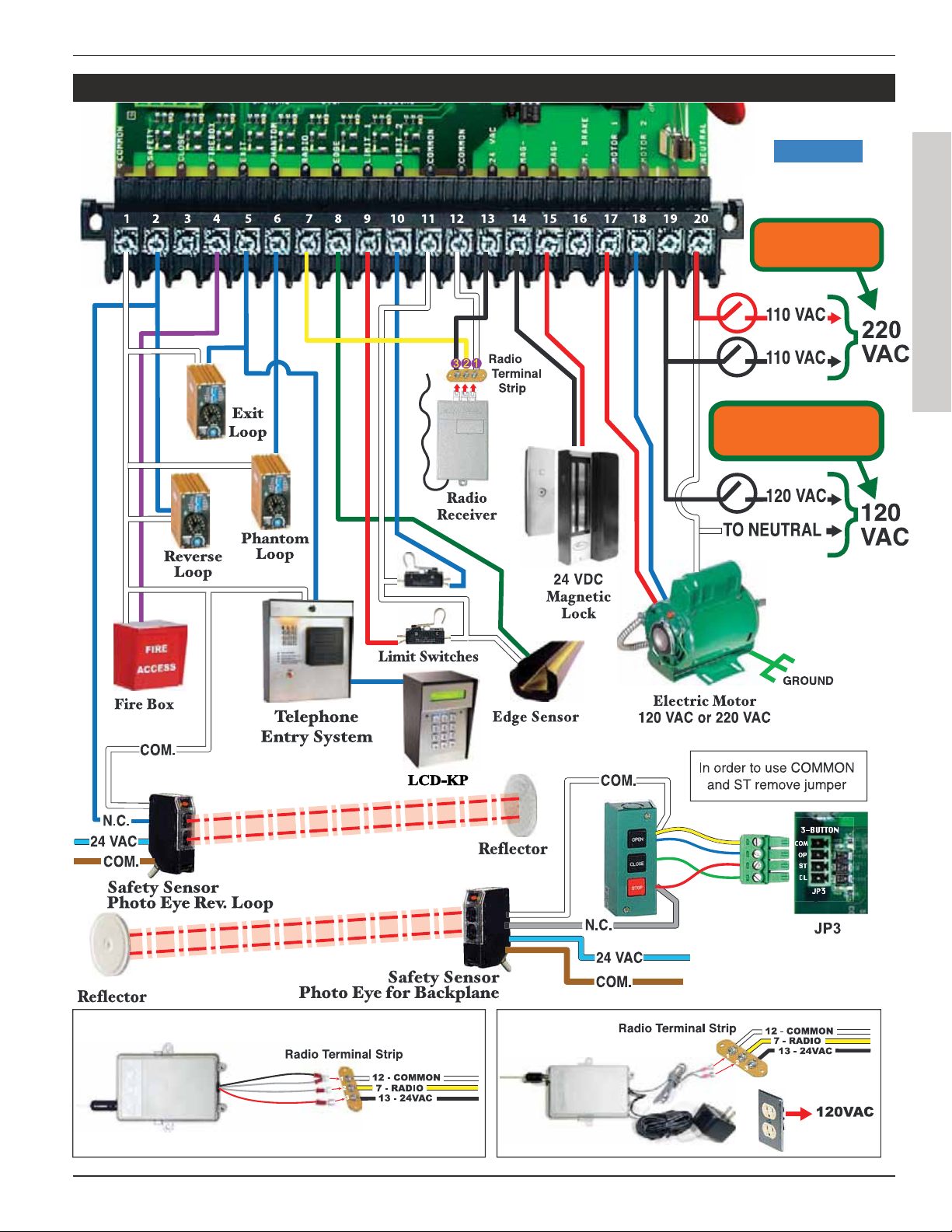

Terminal Strip Connections ........................................................................................................ 13-14
RAM 30-30
Ramset “Intelligate” Control Board ...................................................................................................15
Wire Board Connections...................................................................................................................16
Exploded View Parts Diagram ..........................................................................................................17
Bill of Materials ........................................................................................................................... 18-19
Gate Entrance Safety Precautions ...................................................................................................20
Important Information for The Homeowner.......................................................................................21
Troubleshooting Table ......................................................................................................................22
Ramset Optional Accessories ..........................................................................................................23
Do not install this gate operator if you do not have experience or appropriate
WARNING
training with gate operators.
IMPORTANT SAFETY REQUIREMENTS & INSTRUCTIONS
WARNING To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls.
Keep the remote control away from children.
3. Always keep people and objects away from the gate.
NO ONE SHOULD CROSS THE PATH OF THE MOVING
GATE.
4. Test the Vehicular Gate Operator monthly. The gate
MUST reverse on contact with a rigid object or stop
when an object activates the non-contact sensors.
After adjusting the limit of travel, retest the Vehicular
Gate Operator. Failure to adjust and retest the
Vehicular Gate Operator properly can increase the
risk of injury or death.
5. Use the Emergency Release only when power switch
or circuit breaker has been turned off. Using the Emergency Release during a power failure can be a hazard
if power is abruptly restored.
6. KEEP GATES PROPERLY MAINTAINED. Read the
Owner’s Manual. Have a qualified service person
make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians must
use separate entrance.
8. SAVE THESE INSTRUCTIONS.
www.ramsetinc.com
1
RAMSET
RESPONSIBILITIES OF INSTALLERS AND TECHNICIANS
INSTALLATION
• READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE ATTEMPTING
ANY INSTALLATION.
• DO NOT EXCEED THE EQUIPMENT SPECIFICATIONS.
• INSURE A SAFE AND PROPER INSTALLATION.
RAM 30-30
• INSTALL THIS EQUIPMENT IN ACCORDANCE WITH THE UL 325 SPECIFICATIONS.
• MAKE SURE TO ELIMINATE ANY PINCH POINTS EXISTING ON THE INSTALLATION.
(ie. ROLLERS, ARMS…etc. )
• RAMSET GATE OPERATORS MUST BE INSTALLED BY A TRAINED TECHNICIAN.
SAFETY DEVICES
• REMOVE OR PROTECT ALL PINCH POINTS FROM THE GATE OPERATOR.
• MAKE SURE EVERY INSTALLATION HAS A MINIMUM OF ONE NON-CONTACT
SAFETY DEVICE (SUCH AS A PHOTO EYE OR LOOP DETECTOR).
• CHECK THE E.R.D. SENSITIVITY FOR PROPER ADJUSTMENTS.
• MAKE SURE THAT ALL AREAS AROUND THE GATE ARE SAFE AND SECURE.
(SUCH AS THE FRONT, REAR, AND TRAVEL AREA).
COMMUNICATE WITH THE END-USER
• INSTRUCT THE END USER ON HOW TO SAFELY OPERATE ALL FUNCTIONS
OF THE OPERATOR.
• INSTRUCT THE END-USER ON HOW TO SAFELY USE THE EMERGENCY
RELEASE.
• CLEARLY LABEL AND IDENTIFY THE CIRCUIT BREAKER FOR THE OPERATOR.
• SHOW THE END-USER THE LOCATION OF THE CIRCUIT BREAKER FOR THE
OPERATOR.
• THOROUGHLY EXPLAIN ANY AND ALL WARRANTIES ASSOCIATED WITH THE
OPERATOR AND INSTALLATION.
• KEEP A COPY OF EACH MANUAL HANDY FOR FUTURE REFERENCES.
• PROVIDE THE END-USER WITH THE “HOME OWNERS MANUAL PACKET”
(INCLUDED WITH EVERY OPERATOR).
2
www.ramsetinc.com
IMPORTANT SAFETY REQUIREMENTS BY UL STANDARDS
RAMSET
Prior to installation, the following must be
observed: (per UL 325.56.8.4).
a) Install the gate operator only when:
1. The operator is appropriate for the construction of
the gate and the usage Class of the gate,
2. All openings of a horizontal slide gate are guarded
or screened from the bottom of the gate to a minimum of 4 feet (1.22 m) above the ground to prevent
a 2 1/4 inch (57.2 mm) diameter sphere from passing
through the openings anywhere in the gate, and in
that portion of the adjacent fence that the gate covers
in the open position.
3. All exposed pinch points are eliminated or guarded,
and
4. Guarding is supplied for exposed rollers.
b) The operator is intended for installation only on gates
used for vehicles. Pedestrians must be supplied with a
separate access opening. The pedestrian access opening
shall be designed to promote pedestrian usage. Locate
the gate such that persons will not come in contact with
the vehicular gate during the entire path of travel of the
vehicular gate.
c) The gate must be installed in a location so that enough
clearance is supplied between the gate and adjacent
structures when opening and closing to reduce the risk
of entrapment. Swinging gates shall not open into public
access areas.
g) The stop and/or reset button must be located in the lineof-sight of the gate. Activation of the reset control shall not
cause the operator to start.
h) A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
i) For gate operators utilizing a non-contact sensor in accordance with UL 31.1.1:
1. See instructions on the placement of non-contact
sensors for each Type of application.
RAM 30-30
2. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the
sensor while the gate is still moving, and
3. One or more non-contact sensors shall be located
where the risk of entrapment or obstruction exists,
such as the perimeter reachable by a moving gate or
barrier.
j) For a gate operator utilizing a contact sensor in accordance with 31.1.1:
1. One or more contact sensors shall be located where
the risk of entrapment or obstruction exists, such as at
the leading edge, trailing edge, and postmounted both
inside and outside of a vehicular horizontal slide gate.
2. One or more contact sensors shall be located at the
bottom edge of a vehicular vertical lift gate.
d) The gate must be properly installed and work freely in
both directions prior to the installation of the gate operator. Do not over-tighten the operator clutch or pressure
relief valve to compensate for a damaged gate.
e) For gate operators utilizing Type D protection:
1. The gate operator controls must be placed so that
the user has full view of the gate area when the
gate is moving.
2. The placard as required by 58.1.6 shall be placed
adjacent to the controls,
3. An automatic closing device (such as a timer, loop
sensor, or similar device) shall not be employed,
and
4. No other activation device shall be connected.
f) Controls intended for user activation must be located at
least six feet (6’) away from any moving part of the gate
and where the user is prevented from reaching over, under, around or through the gate to operate the controls.
Outdoor or easily accessible controls shall have a security
feature to prevent unauthorized use.
3. One or more contact sensors shall be located at the
pinch point of a vehicular vertical pivot gate.
4. A hardwired contact sensor shall be located and its
wiring arranged so that the communication between
the sensor and the gate operator is not subjected to
mechanical damage.
5. A wireless contact sensor such as one that transmits
radio frequency (RF) signals to the gate operator for
entrapment protection functions shall be located where
the transmission of the signals are not obstructed or
impeded by building structures, natural landscaping or similar obstruction. A wireless contact sensor
shall function under the intended end-use conditions.
6. One or more contact sensors shall be located on
the inside and outside leading edge of a swing gate.
Additionally, if the bottom edge of a swing gate is
greater than 6 inches (152 mm) above the ground
at any point in its arc of travel, one or more contact sensors shall be located on the bottom edge.
7. One or more contact sensors shall be located at the
bottom edge of a vertical barrier (arm).
www.ramsetinc.com
3
RAMSET
CLASSES OF VEHICULAR GATE OPERATORS
Vehicular horizontal slide-gate operator (or system) - A vehicular gate operator (or system) that
controls a gate which slides in a horizontal direction that is intended for use for vehicular entrance or
exit to a drive, parking lot, or the like.
Vehicular swing-gate operator (or system) - A vehicular gate operator (or system) that controls a
gate which swings in an arc in a horizontal plane that is intended for use for vehicular entrance or exit
to a drive, parking lot or the like.
RAM 30-30
Residential vehicular gate operator-Class I - A vehicular gate operator (or system) intended for
use at a home of one-to four single family dwellings, or a garage or parking area associated there
with.
Commercial/general access vehicular gate operator-Class II - A vehicular gate operator (or system) intended for use in a commercial location or building such as a multi-family housing unit (five or
more single family units), hotels, garages, retail stores, or other buildings serving the general public.
Industrial/limited access vehicular gate operator-Class III - A vehicular gate operator (or system)
intend ed for use in an industrial location or building such as a factory or loading dock area or other
locations not intended to service the general public.
Restricted access vehicular gate operator-Class IV - A vehicular gate operator (or system) intended for use in a guarded industrial location or building such as an airport security area or other restricted access locations not servicing the general public, in which unauthorized access is prevented
via supervision by security personnel.
RECOMMENDED ELECTRICAL CONNECTION
A 3 wire, 120 VAC electrical circuit with a 15 amps independent circuit breaker for single operator
and a 20 amps for Master/Slave. Low voltage control wires must be run in a separate conduit to the
operator.
NOTE: Always consult and follow all local building and electrical codes prior to installation.
RECOMMENDED WIRE GAUGE
AMPERES
INPUT POWER MOTOR HP RUN START
120V Single Phase 3/4 8.0 8.7
220V Single Phase 1 4.7 5.0
4
MAXIMUM CONDUIT DISTANCE IN FEET
USING COPPER WIRE BY WIRE SIZE
14ga. 12ga. 10ga. 8ga.
Up to 50’ 50-150’ 150-250’ 450’
Up to 100’ 50-350’ 350-650’ 800’
www.ramsetinc.com
GENERAL SPECIFICATIONS
MAXIMUM GATE SIZE & WEIGHT: 20’ @ 3000 lbs
GATE TRAVELING SPEED: Approx 90° opening in 16 sec
MOTOR: 3/4 Hp, 1 Hp
DUTY CYCLE: Continuous
OPERATING TEMPERATURE: -10º F to 160º F
POWER FAILURE RELEASE: Knob Release or Battery Back Up
RAMSET
OVERALL DIMENSIONS:
SHIPPING WEIGHT: 200 lbs
WARNING
Do not exceed the specifications. The warranty on your unit will be void if the
installation exceeds the recommended specifications.
H 27½” L 17½” W 23½”
RAM 30-30
* EMERGENCY RELEASE
By Release Lever; remove cap, lift up emergency release handle and push gate open.
•Optional BBS. (1000 Lbs Max)
•Optional Power Inverter. ( 3/4 Hp units only)
www.ramsetinc.com
5
RAMSET
3
BOLTS 4X
”
INSTALLATION SPECIFICATIONS
CONCRETE PAD CONSTRUCTION:
Dimensions given for the pad are based on soil
bearing shear of 2000 P.S.F. These figures may
have to be adjusted depending on local soil
conditions.
1. Construct form for mounting pad according
to dimensions shown in Figure 1 and 2.
2. Locate mounting pad according to dimen-
RAM 30-30
sions given in illustration.
3. Level top edge of form.
4. Set reinforcing bars and wire mesh.
5. Allow pad to cure for 48 hours, and remove
forms.
6. Note: conduits 6” above concrete pad.
Steel Square Tubing
CONDUIT FOR ELECTRIC POWER
CONDUIT FOR COMMUNICATION
CONDUIT FOR MASTER/SLAVE
26”
13”
6 3/4”
Inside
Property
2 1/2”
14”
20”
4x4
Outside
Property
STANDARD
INSTALLATIONS
Gates From: 8’-16’ (18”)
Gates From 16’-22’ (24”)
Gate Opened
Figure 2
ALLOW 2” ABOVE
GROUND LEVEL
MINIMUM FOR
LEVELING.
3/4” ANCHOR
/4” ANCHOR
BOLTS 4X
GROUND LEVEL
18”
15
15”
24”
DEDICATED CONDUIT
WITH 15 amp BREAKER
6
18”
www.ramsetinc.com
INDEPENDENT CONDUIT
FOR LOW VOLTAGE
WIRES
ELECTRICAL
CONDUIT FOR
MASTER/SLAVE
HOOKUP ELECTRICAL POWER GATE TRAVEL ADJUSTMENT
Figure 4
Outlet
Leads
Gate travel is adjusted by loosening the limNote: 15 amp wires connected to independent
breaker.
it Cams and adjusting them until proper gate
travel has been achieved.
RAMSET
RAM 30-30
STANDARD INSTALLATION FOR GATES FROM 8’ TO 16’ IN LENGTH
WARNING
Outside
Property
Do not exceed the specifications. The warranty on your unit will be void if the
installation exceeds the recommended specifications.
Steel Square Tubing
4x4
8’ to 16’ Maximum Gate Length
44”
Gate Closed
18”
36”
Inside
Property
Gate Rotation
(Hinge)
Center
29”
Supplied Bracket
39”
68”
OPERATOR
PIVOT SHAFT CENTER
SHORT ARM DIM. LONG ARM DIM.
www.ramsetinc.com
28” 38”
7
RAMSET
STANDARD INSTALLATION FOR GATES FROM 16’ TO 20’ IN LENGTH
Outside
Property
RAM 30-30
Steel Square Tubing
24”
42”
Inside
Property
PIVOT SHAFT CENTER
4x4
OPERATOR
Gate Rotation
(Hinge)
Center
33 1/4”
16’ to 20’ Maximum Gate Length
50”
Gate Closed
Supplied Bracket
43 1/4”
76 1/2”
32”
SHORT ARM DIM.
42”
LONG ARM DIM.
SPACE REQUIRED FOR A STANDARD GATE IN THE OPEN POSITION
Outside
Property
15 1/4”
Inside
Property
4’
4 ft. Length is the minimum
space required between
the open gate to the wall
for this standard installation.
Gate Opened
8
www.ramsetinc.com
RAMSET
SENSOR INSTALLATION
Ramset Gate Operators should always be installed with non-contact sensing devices such as
Loop Detectors, Photo Eyes or the equivalent.
A non-contact sensor (photoelectric sensor or equivalent) and a contact sensor (edge
WARNING
Reversing Loops on the ground floor, prevents gate from closing when vehicle is in loop area.
Exit Loops on the ground floor, opens gate when vehicle crosses loop area.
Photoelectric Safety Sensor (Photo Eye) prevents the gate from closing when any object interrupts the
beam.
device or equivalent) is required on each individual installation to comply with UL325.
RAM 30-30
www.ramsetinc.com
Figure 10
9
RAMSET
PUSHBUTTON CONTROLS
Three pushbuttons are located under the dip switches for operation of the gate (see Figure 11). The opening,
stop and closing buttons can be utilized to set limit switches and verify proper system operation when
installing or servicing an operator.
Opening:
Pressing this button will cause the gate to open.
L.E.D.’s light up when opening,
Closing or Stopped
Figure 11
Stop:
Pressing this button will cause the gate to
stop moving.
“Intelligate”
Control Board
Closing:
RAM 30-30
Pressing this button will cause the gate to close.
Reset E.R.D. Board:
Push all three pushbuttons for approximately
5 seconds. All three L.E.D.’s should blink.
MASTER SLAVE INSTALLATION
Figure 12
MASTER / SLAVE INSTALLATION
Set Dip Switch (C8) "Slave Mode" to ON for
slave operator.
(RH) Right Hand operation requires Dip Switch
(C7) "Left/Right" to be ON.
Dip Switch “C”
10
www.ramsetinc.com
DIP SWITCH "A"
“Intelligate” Control Board
RAMSET
DIP SWITCH CONFIGURATION
Figure 13
RAM 30-30
Dip Switch "A" 1, 2 & 3;
AUTOMATIC TIMER TO CLOSE GATE
‘0’ is “OFF” ‘1’ is “ON”
Switch 1 2 3 Gate Open Duration:
Dip Switch “A” 4 - 1/2 HP ERD
Dip switch A4 works with Dip switch B8
DIP A4 B8 Sensitivity
OFF OFF Most Sensitive
ON OFF 1/2 Hp—Medium Sensitivity
OFF ON
ON ON
1 1 1
1 1 0
1 0 1
1 0 0
0 1 1
0 1 0
0 0 1
0 0 0
60 seconds
45 seconds
30 seconds
15 seconds
10 seconds
05 seconds
00 seconds
disabled - command required to close
3/4 Hp—Medium Sensitivity
Least Sensitive
DIP SWITCH "B"
Dip Switch "B" 1; Not in use at this time.
Leave in the ‘Off ’ position.
Dip Switch "B" 2; “PRE WARN”
Used with JP2 “Relay Connections”: pins 7 & 8.
Triggers a relay, for an alarm or light (not included), for 3 seconds before the gate will move in any direction.
Sw. Function:
ON Triggers the relay on JP2 pins 7 & 8 for 3 seconds.
OFF
Regular working conditions
Dip Switch "B" 3; “CONSTANT WARN”
Used with JP2 “Relay Connections”: pins 7 & 8.
Triggers a relay, for an alarm or light (not included), to be active anytime the gate is in motion.
Sw. Function:
ON Triggers the relay on JP2 pins 7 & 8 while the gate
is moving
OFF
Regular working conditions
Dip Switch "B" 4,5,6 & 7; Not in use at this time.
Leave in the ‘Off ’ position.
Dip Switch “B” 8 - 3/4 HP ERD
Dip switch B8 works with Dip switch A4
DIP A4 B8 Sensitivity
OFF OFF Most Sensitive
ON OFF 1/2 Hp—Medium Sensitivity
OFF ON
ON ON
3/4 Hp—Medium Sensitivity
Least Sensitive
www.ramsetinc.com
11
RAMSET
DIP SWITCH "C"
DIP SWITCH CONFIGURATION
Dip Switch "C" 1; “SECURE CLOSE”
Sw. Function:
OFF
Normal Operation
ON
When power is lost, then regained, control board
checks status of the gate. If open and safety devices are cleared, gate will close automatically.
RAM 30-30
WARNING:
When installing or servicing an operator, make sure switch
"C" 1 is ‘Off’. If switch "C" 1 is ‘On’, the gate will move when
power is applied and severe injury may occur.
Dip Switch "C" 2; “FULL REV ERD”
Changes how long a gate will reverse when an obstruction is
met when closing.
Sw. Function:
ON Reverses until the open limit is reached
OFF
Reverses for 2 seconds and stops again.
Dip Switch "C" 3; “RADIO CYCLE”
Sw. Function:
OFF Normal Operation - gate only opens and closes on
the limit switches. If the gate is in travel then it will
always open.
ON
Cycle mode - gate opens and closes on the limit
switches, but if in travel, then it will stop with a first
command and reverse with a second command.
Dip Switch "C" 5; “CLOSE DELAY”
One second delay on the closing of the gate.
Dip Switch "C" 6; “OPEN DELAY”
One second delay on the opening of the gate.
Dip Switch "C" 7; “LEFT / RIGHT”
Sw. Function:
OFF Left hand installations - All operators come factory
ON
Right hand installations - Reverses motor & limit
switches without moving any wires.
Dip Switch "B" 8; Not in use at this time.
Leave in the ‘Off ’ position.
Dip Switch "C" 4; “ONE PASS”
Sw. Function:
OFF
Normal Operation - fully opens and closes
ON
One pass mode - The gate will open until “the reversing loop” is initially activated and then cleared,
the gate will then close. If the “reversing loop” is
then activated again, before the gate is fully
closed, the gate will stop until the “reversing loop”
is cleared, then continue to close.
12
www.ramsetinc.com
SAFETY
For
RAM 30 30
For
RAM 30 30
3/4 Hp
TERMINAL STRIP CONNECTION
RAMSET
Figure 14
RAM 30-30
www.ramsetinc.com
13
RAMSET
TERMINAL STRIP CONNECTIONS
Terminal # 1 - COMMON:
Low voltage common.
Terminal # 2 - REV LOOP:
Stops the gate from closing. If the gate is open,
it holds the gate open. If the gate is closing, it
stops and reopens the gate. If the gate is closed,
the gate will remain closed. The function can be
altered with Dip Switch “C” 4 (see “Dip Switch
RAM 30-30
Configuration”). Used with loop detectors, photo
eyes, safety edges…etc. Becomes active with a
closed contact to common.
Terminal # 3 - CLOSE:
Closes the gate. Used with three button stations
or pushbuttons. Becomes active with a closed
contact to common.
normal operation. If triggered twice before
reaching a limit switch, the alarm will sound for
6 minutes and the control board will not accept
any commands. After the 6 minutes the 24 VDC is
removed from the alarm connection and the board
resets to normal operation.
Terminal # 9 and 10 - LIMIT 1 & LIMIT 2:
Direction depends on Dip Switch “C” 7 (See “Dip
Switch Configuration”). Stops the motor from
moving in one direction. These wires are preset in
factory and should not be moved. Becomes active
with a closed contact to common.
Terminal # 11 and 12 - COMMON:
Low voltage common.
Terminal # 13 - +24 VAC:
Provides 24 VAC for peripheral accessories.
Terminal # 4 - FIREBOX:
Opens the gate. Used with fire department key
switches & controls. Opens with closed contact
to common. Closes immediately when closed
contact on common is removed.
Terminal # 5 - EXIT:
Opens the gate. Used with loop detectors, photo
eyes, keypads, phone entry systems, three-button stations…etc. Becomes active with a closed
contact to common.
Terminal # 6 - PHANTOM:
Keeps the gate open when the open limit switch
is activated. Used with loop detectors. Becomes
active with a closed contact to common.
Terminal # 7 - RADIO:
Operation depends on dip switch “C” 3 (See “Dip
Switch Configuration”). Used with an RF receiver
or pushbutton. Becomes active with a closed
contact to common.
Terminal # 8 - EDGE:
When triggered the gate will stop. The gate will
remain stopped until the detector is cleared. Once
the detector is cleared, the operator will resume
Terminal # 14 and 15 - MAG (-) & MAG (+):
Supplies 24 VDC to a Magnetic Lock when the
gate is closing or closed. If gate is opening or
opened, then no power is supplied. Leave open
if not used.
Terminal # 16 - M BRAKE:
Used ONLY on the Ram 50 Operator. If while
the gate is closed someone or something tries to
manually open the gate without a proper signal
(keypad, exit loop, radio signal…), the motor will
lock up for 6 minutes. After the 6 minutes, the
operator will then secure close the gate.
Terminal # 17 and 18 - MOTOR 1 & MOTOR 2:
Supplies power to the motor. Direction depends
on Dip Switch “C” 7 (see “Dip Switch Configuration”). These wires are preset and connected in
the factory and should not be moved.
Terminal # 19 and 20 - AC HOT & NEUTRAL:
110 VAC or 220 VAC to power the operator.
Voltage is predetermined at factory and cannot be
changed by the installer or technician.
14
www.ramsetinc.com
RAMSET “INTELLIGATE” CONTROL BOARD
RAMSET
Introduction:
Ramset’s “Intelligate” Control Board works
with Sliding, Swinging and Overhead vehicular
gate operators. It is controlled by a programmable microprocessor that reads and precisely
executes all functions of the Control Board.
The Control Board is powered by a separate
mounted 24 VAC transformer. This allows no
necessary board modifications between 110
Power Transformer
40VA.
VAC and 220 VAC single-phase applications.
Some of the functions of the Control Board
are: 0 - 60 seconds automatic close timer, self
adjusting E.R.D. with low and high setting,
constant warning, prewarning, secure close,
one pass, open & close delay, left/right hand
operation, plug-in loop detectors and RS485
three wire master/slave connection.
Reverse Loop
Figure 15
Exit Loop
Phantom Loop
Relay Connections
Indicator lights, alarms and sirens.
RAM 30-30
3 Button Station
Dipswitches
Automatic Timer, Prewarn,
Constant Warning, Secure Close,
Full Reverse ERD, Radio Cycle,
One Pass, Low / High ERD,
Adjustment, Close Delay,
Open Delay and Left / Right.
Foot Pedal Plug
Stops the motor from running
while the foot pedal is engaged.
Master / Slave Plug
Synchronizes movement between two
gates. 3 wires (A-, B- and Common).
Standard Connections
Reverse Loop, Fire Box, Exit Loop,
Phantom Loop, Radio, Edge Sensor,
24 VAC and Magnetic Lock.
JP9
JP3
JP11
JP7
plug-in
plug-in
JP10
plug-in
JP2
Microprocessor
Reprogrammable, controls
all functions of the operator.
ERD
Self adjusting, with low
and high adjustments.
3 Button Station
Open - Stop - Close
www.ramsetinc.com
15
RAMSET
WIRE BOARD CONNECTIONS
JP9 - Input Power:
1,2) 24 VAC power.
Connection from external transformer to
power Control Board.
JP3 - 3 Button:
Used with a 3-button station to open,
RAM 30-30
stop, and close the gate. The open and close are
normally open connections and the stop is a normally closed connection, remove jumper wire when
connecting 3 button station. Common and stop are
also used with a photo eye used to protect the
backplane of the operators.
1) Open 2) Stop 3) Close 4) Common
JP2 - Relay Connections:
1) 24 VDC. 5) Relay Common
2) 24 VAC 6) Fully Closed-N.C.
3) 5 VDC 7-8) Constant/Prewarn
4) Fully Open-N.O. 9-10) E.R.D. Alarm.
If E.R.D. is triggered twice before reaching a limit,
24 VDC is supplied to sound an alarm (included with
operator).
Fully Open N.O. (works with relay common)-
Relay rated at 125 VAC, 2 amps. Normally open connection. Open contact occurs until the open limit is
triggered. When the open limit is triggered, a closed
contact occurs.
JP11 - Foot Pedal Plug:
Stops the motor from running while
the foot pedal is engaged.
JP7 - Master/Slave plug:
1) A 2) B 3) Common
tween two gates. A three-wire, Shielded cable is
needed to run from the A, B, & Common (JP7) of
the master P.C.B. to the A, B, & Common (JP7) of
the slave P.C.B.
Used to synchronize the operation be-
JP10 - Loop Inputs:
1-2) Reverse 3-4) Exit 5-6) Phantom
Use with ILD-24s, Loop wires should
be connected to this plug.
Relay Common - Relay rated at 125 VAC, 2 amps.
The common of the Fully Closed N.C. relay and the
Fully Open N.O. relay.
Fully Closed N.C. (works with relay common)
Relay rated at 125 VAC, 2 amps. Normally closed
connection. Closed contact occurs until the closed
limit is triggered. When the closed limit is triggered, an
open contact occurs.
JP4, JP5 & JP8 - Reverse, Exit & Phantom
Sensor:
Used with the Ramset ILD-24 plug-in loop
detector. The Loop wires should be connected into
the “LOOP INPUTS” plug.
16
www.ramsetinc.com
PARTS DIAGRAM
RAMSET
42
46
45
44
41
10
Figure 16
11
RAM 30-30
28
15
16
8
17
6
2
43
5
38
35
39
34
33
36
29
32
27
19
37
34
39
40
3
13
7
4
12
26
1
32
18
22
31
23
14
9
13
21
20
24
25
www.ramsetinc.com
17
RAMSET
BILL OF MATERIALS FOR: RAM 30-30
ITEM PART # PART DESCRIPTION 3/4 HP 1 HP
1 800-00-06 Chassis 1 1
2 800-02-08 Gear Reducer - Size 70, Ratio 60:1 1 1
3 800-04-12 Motor, Standard - 120VAC 3/4 HP 1
4 800-04-13 Motor, Standard - 220VAC 1HP 1
5 800-06-00 Sprocket - 1 1/8” - 50BS15H 1 1
6 800-08-05 Pulley, Cast Iron - 7/8” x 10” : MA100 1 1
7 800-08-45 Pulley, Steel - 5/8” x 2” : AK20 1 1
RAM 30-30
8 800-10-30 Belt - 4L-360 1 1
9 800-12-07 Shaft, Output - 2 1/8” x 25” 1 1
10 800-14-07 Cover, Polyethylene 1 1
11 800-14-15 Cover, Polyethylene Cap Arm 1 1
12 800-20-03 Limit Switch 2 2
13 800-44-02 Bearing, Pillow Block Flange - F211 2 2
14 800-48-03 Cam, Limit Switch - 3 1/16” x 4” : ID 2 3/16” 2 2
15 800-50-05 Clamp Release - ID 2 3/16”: OD 3 1/2” x 8” 1 1
16 800-52-12 Chain, Drive - #50 (34 links) 1 1
17 800-52-53 Master Link - #50 1 1
18 800-56-02 Box, Control Board Metal 1 1
19 800-60-00 Transformer, 120/240V to 18VAC - 40VA UL 1 1
20 800-60-11 Switch, Power - 220 VAC 1
21 800-60-15 Outlet/Switch Combo 1
22 800-62-00 Control Board - Intelligate 1 1
23 800-64-00 Edge Connector - 20 Pin 1 1
24 800-66-04 Lexan Control Board Cover 1 1
25 800-66-40 Lexan Main Shaft Cover 1 1
26 800-68-07 Instruction Manual 1 1
27 800-70-20 Horn Alarm Buzzer 1 1
28 800-70-35 Knob - 5/16” - 18 x 1 1/2” 1 1
29 800-70-36 Knob - 5/16” - 18 x 1/2” 1 1
30 800-70-55 Radio Receiver Terminal 1 1
31 800-70-99 Warning Sign For Gates - Slide/Swing 2 2
32 800-75-11 TORQUE LIMITED SPROCKET ASSEMBLY 1 1
33 800-06-10 Sprocket - 50A54 - ID 4 3/16” : OD 11” - 54 teeth 1 1
34 800-26-02 Friction Disc, Torque Limited - ID 4 1/4” : OD 7” 2 2
35 800-26-11 Tension Washer, Torque Limited - ID 3 7/8” : OD 6” 1 1
36 800-26-30 Ring/Spacer, Metal - I.D. 3 13/16” - O.D. 4 3/16” 1 1
37 800-36-46 Bolt, Hex Head - 3/8” - 16 x 1” 3 3
38 800-58-01 Arbor Nut, Torque Limited 1 1
39 800-58-12 Arbor Washer, Torque Limited - I.D. 3 1/2” - O.D. 7” 2 2
40 800-58-32 Arbor, Torque Limited - I.D. 2 3/16 - O.D. 3 3/4” - H 3 5/8” 1 1
18
www.ramsetinc.com
RAMSET
BILL OF MATERIALS FOR: RAM 30-30
ITEM PART # PART DESCRIPTION 3/4 HP 1 HP
41 800-75-00 ARM ASSEMBLY 1 1
42 800-28-00 Arm, Metal Tubing - 1” x 2” x 32” 1 1
43 800-28-01 Arm, Metal Tubing - 1” x 2” x 42” 1 1
44 800-54-10 Bracket, Channel - 1 3/4” x 10” 1 1
45 800-54-30 Bracket, External Gate - 1 1/2” x 12” 1 1
46 800-54-37 Bracket, Gate 1 1
RAM 30-30
www.ramsetinc.com
19
RAMSET
GATE ENTRANCE SAFETY PRECAUTIONS
WARNING
RAM 30-30
Not following these instructions may cause severe injury or death to persons
IMPORTANT SAFETY INSTRUCTIONS
1. Never let children operate or play with gate con-
trols. Keep the controls away from children.
2. The entrance is for vehicles only. Pedestrians
should use a separate entrance.
3. Always keep people, children and objects away
from the gate while the gate is in operation. No one
should cross the area of a moving gate.
4. No opening devices such as a keypad, cardreader
etc., should be installed close to the gate, where
the gate could possibly cause injury.
5. Use warning signs attached on both sides of the
gate.
20
www.ramsetinc.com
IMPORTANT INFORMATION FOR THE HOMEOWNER
RAMSET
RAM 30-30
* Ask your technician about all the features of our
new Ramset operator.
* Safety devices, such as reversing loops, phantom
loops, photo eyes, or miller edges must be installed
on your gate before the operator may be used. Ask
your technician which safety devices best suit your
safety needs.
* Read your warranty certificate and fill out your
warranty extension card. Return the warranty card,
via certified mail, to Ramset within 90 days of
purchase:
Ramset Automatic Gate Services, Inc.
9116 De Garmo Ave.
Sun Valley, CA. 91352
* Never let children operate or play with gate controls.
Keep the controls away from children.
* The entrance is for vehicles only. Pedestrians
should use a separate entrance.
* Use the emergency release only when the gate is
not moving & power is turned off to the unit.
* Have the technician give you a demonstration of
how to use the emergency release.
* Keep gates properly maintained. Have a qualified
gate technician service the gate operator and gate
hardware every six months to a year. This includes
checking of safety devices, E.R.D. and battery back
up systems.
* Warning signs must be placed on every gate in a
highly visible area.
* To reset the audible alarm on the gate operator you
must turn the power of the unit off for approximately
10 seconds, then back on.
* Always keep a good relationship with your
technician and keep his or her number handy for
future maintenance or emergencies.
* Always keep people, children and objects away
from the gate while the gate is in operation. No one
should cross the area of a moving gate.
www.ramsetinc.com
Ramset wishes to thank you for trusting
us to meet your gate operator needs
21
RAMSET
CONDITION
NO LIGHTS ARE 'ON'.
GATE MOVES A COUPLE
OF FEET AND THEN
REVERSES.
"EXIT" L.E.D. IS ALWAYS
'ON'.
"REV LOOP" L.E.D.
ALWAYS 'ON'.
"RADIO" L.E.D. ALWAYS
'ON'.
GATE DOESN'T OPEN.
GATE DOESN'T CLOSE.
GATE DOESN'T CLOSE
AUTOMATICALLY.
GATE AUTOMATICALLY
OPENS, BUT DOESN'T
AUTOMATICALLY CLOSE.
RADIO/RECEIVER HAS NO
RANGE.
POSSIBLE CAUSES
1. Circuit breaker popped.
2. 1/2 amp. fuse blown.
3. Power supply damaged on
Control Board.
1. E.R.D. too sensitive.
1. Faulty accessory connected
to the "Exit".
1. Faulty accessory connected
to the "Rev Loop".
1. Stuck button on Transmitter
2. Faulty Receiver.
1. Radio L.E.D. 'On'.
2. 10 amp. fuse blown.
3. Opening accessory not functioning.
1. No lights are 'On'.
2. Exit, Rev Loop, Radio L.E.D. 'On'.
3. 10 amp. fuse blown.
4. Thermal/overload button
popped on motor.
1. Dip switches "A" 1-3 are all
'Off'.
2. Dip switch not on all the way.
1. Motor direction wrong.
1. Signal blocked.
2. Area not suitable for type of
Receiver.
SOLUTION
1. Reset circuit breaker.
2. Replace 1/2 amp. fuse.
3. Return Control Board for repair.
1. A) for 1/2 hp motors: turn dip switch
"A" 4 'On'.
B) for 3/4 hp motors: turn dip switch
"B" 8 'On'.
1. Disconnect all accessories, including
plug-ins, using the "Exit" input.
If problem persist, contact Ramset.
1. Disconnect all accessories, including
plug-ins, using the "Rev Loop" input.
If problem persist, contact Ramset.
1. Check all transmitters.
2. Remove receiver.
If problem persist, contact Ramset.
1. See above symptoms/solutions.
2. Check/replace 10 amp. fuse.
3. Check/replace opening accessory.
1. See above symptoms/solutions.
2. See above symptoms/solutions.
3. Check/replace 10 amp. fuse.
4. Reset thermal/overload button on the
back of the motor.
1. Set dip switches "A" 1-3 for auto
close.
2. Turn off dip switches "A" 1-3, then
turn the appropriate switches back
'On'.
1. Turn on dip switch "C" 7 (left/right).
1. Make sure antenna is in proper posi-
tion & not shorted to chassis.
2. May need to change to long range
receiver.
TROUBLESHOOTING TABLE
RAM 30-30
22
www.ramsetinc.com
LCD-Keypad
1,024 Codes
5,112 Event Log
LCD Display
7-Day Timer
Time Zones
Latching
Stainless Steel Faceplate
RAMSET OPTIONAL ACCESSORIES
Fire Box
Allows the fire department
to open the gate in the
case of an emergency.
RAMSET
RAM 30-30
Post Mounts
1/4” angle iron flats.
3/16” square tubing legs.
Used to mount the
operator off the ground.
Key Switch Box
Suitable for use on
Entry doors where access
is restricted by a key.
RPI-TL
(Ramset Power Inverter)
Maintains power to your operator
and accessories when the main
power is lost. Usable on 1/2 &
3/4 Hp operators only.
Magnetic Lock
12/24V DC.
1100 lb holding force.
Secures the gate(s) closed.
Uphill Hinges
Heavy duty hinges used
for uphill swing gate
applications.
Goose Necks
Square - 16 ga.
Available in 48” pad-mount
or 66” in-ground. Used for
mounting keypads, phone entry
systems, card readers...etc.
Uphill Arms
1” X 2” rectangular
12 ga. steel tubing anodized
with heavy duty ball joints
for flexibility.
BBS-Battery
Back-Up System
1000 lb capacity. Opens the gate
when power is lost.
www.ramsetinc.com
ILD-24S
Loop Detector
Plug-in loop detector with
sensitivity adjustment and
inherent loop diagnostics.
23
9116 De Garmo Ave.
Sun Valley, CA 91352
Tel: (818) 504-2533 • Fax: (818) 504-1141
www.ramsetinc.com
Loading...
