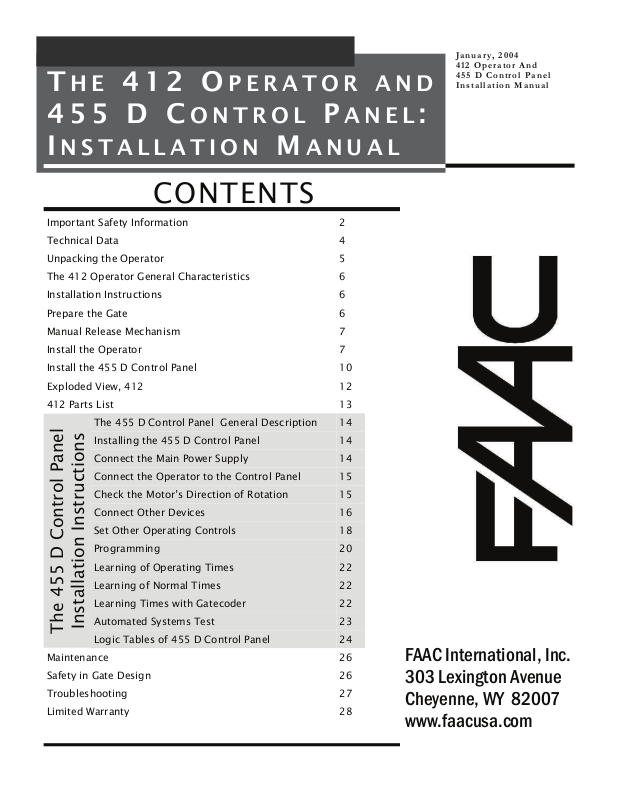

T HE 412 OPERATOR AND
January, 2004
412 Operator And
455 D Control Panel
Installation Manual
455 D C
NSTALLATION MANUAL
I
ONTROL PANEL:
CONTENTS
Important Safety Information 2
Technical Data 4
Unpacking the Operator 5
The 412 Operator General Characteristics 6
Installation Instructions 6
Prepare the Gate 6
Manual Release Mechanism 7

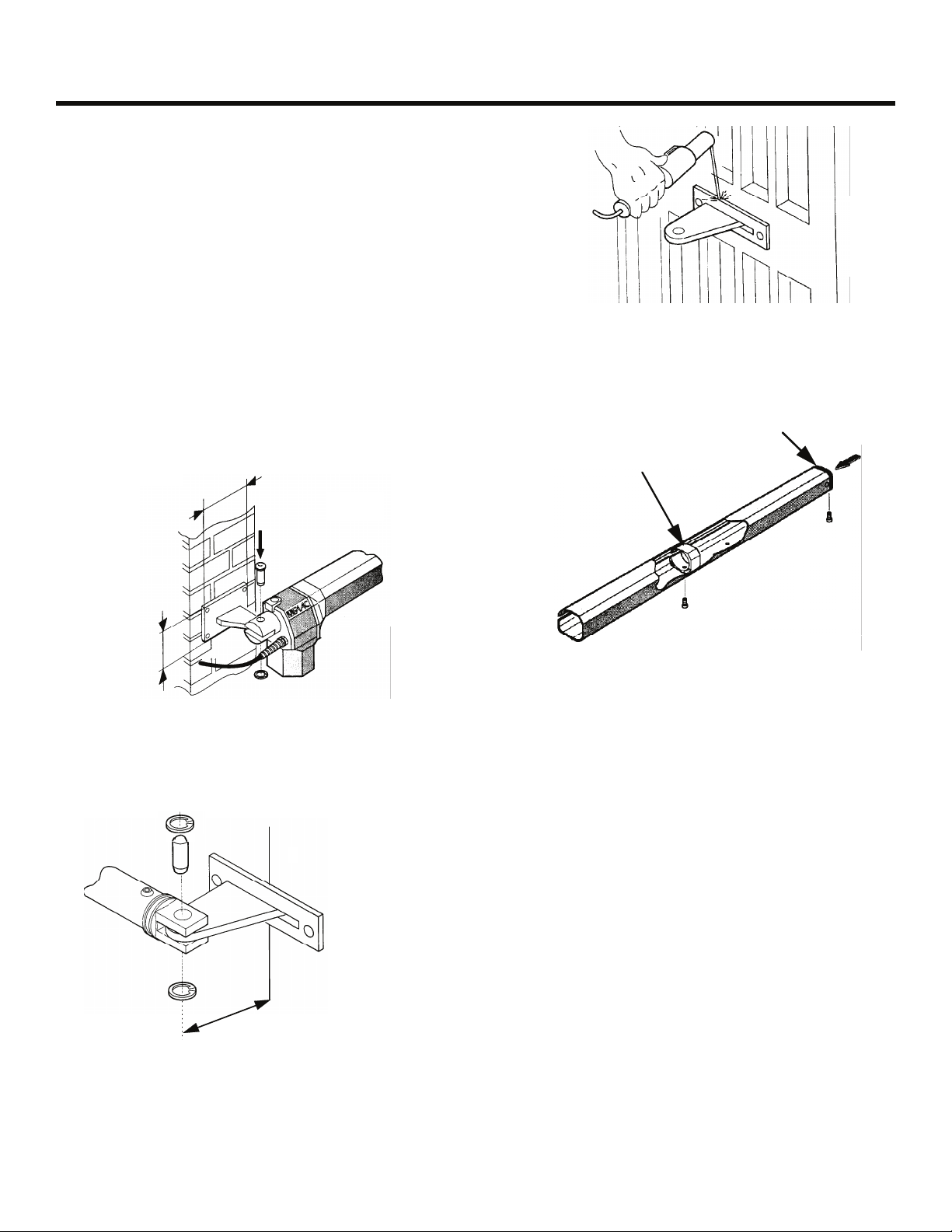

Install the Operator 7
Install the 455 D Control Panel 10

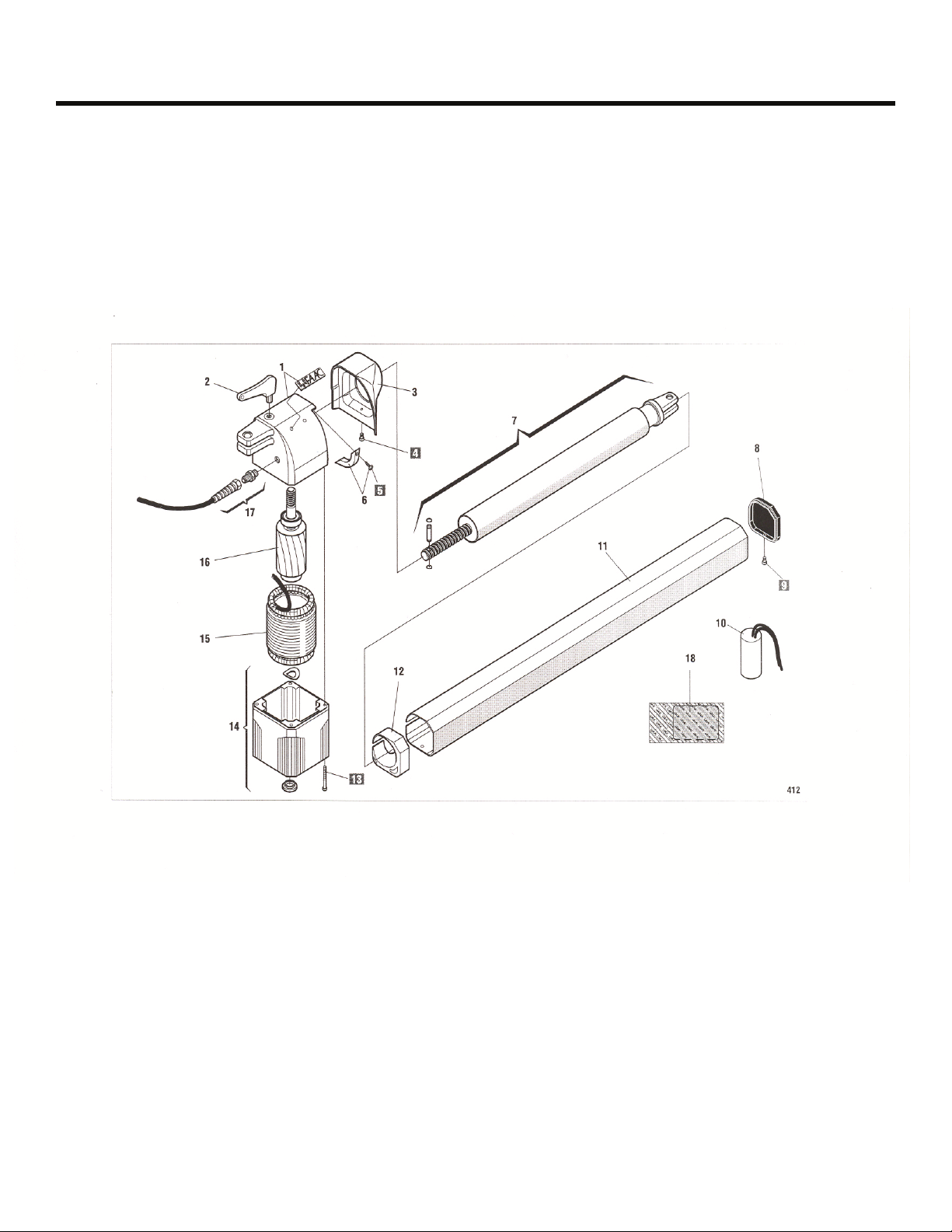

Exploded View, 412 12
412 Parts List 13
The 455 D Control Panel General Description 14
Installing the 455 D Control Panel 14
Connect the Main Power Supply 14
Connect the Operator to the Control Panel 15
Check the Motor’s Direction of Rotation 15

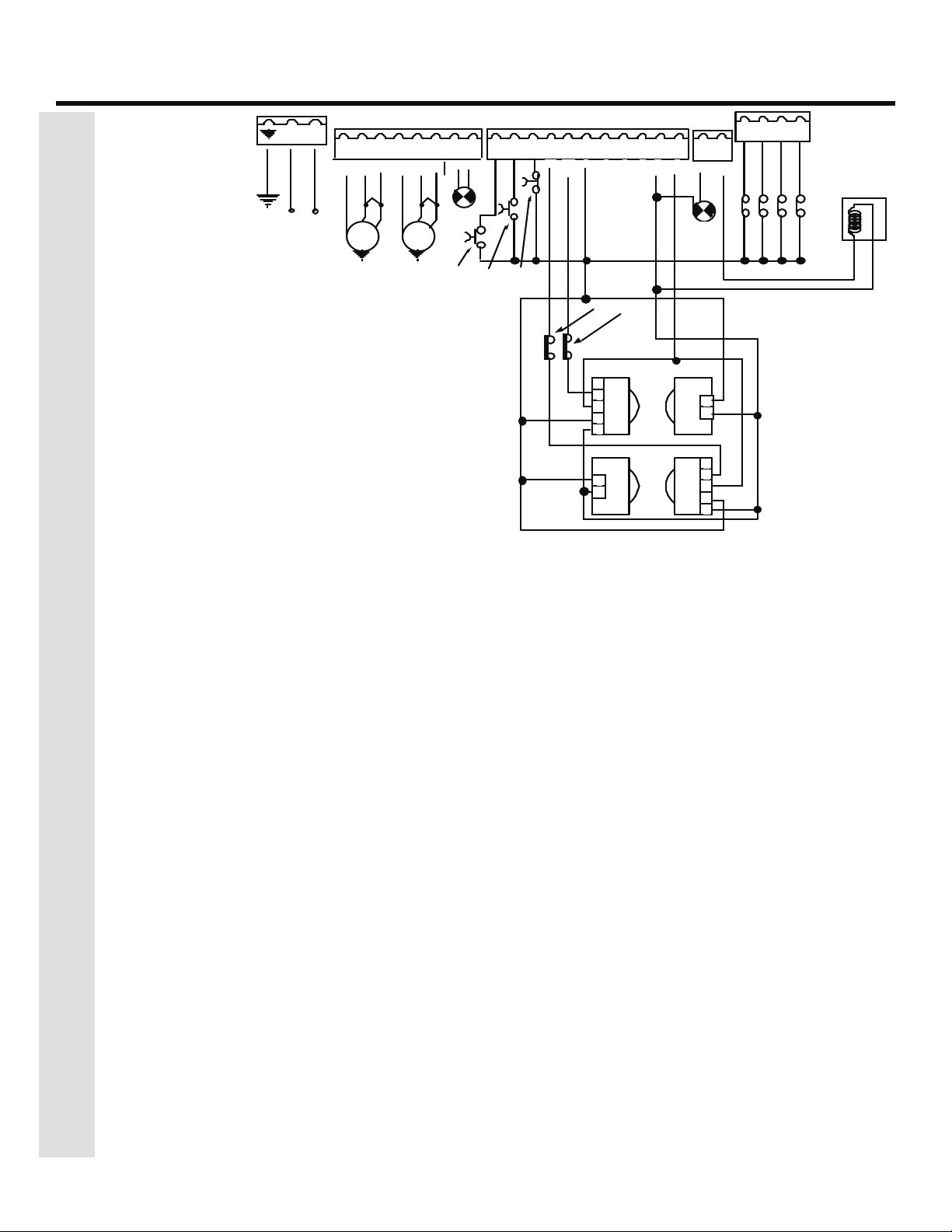

Connect Other Devices 16
Set Other Operating Controls 18

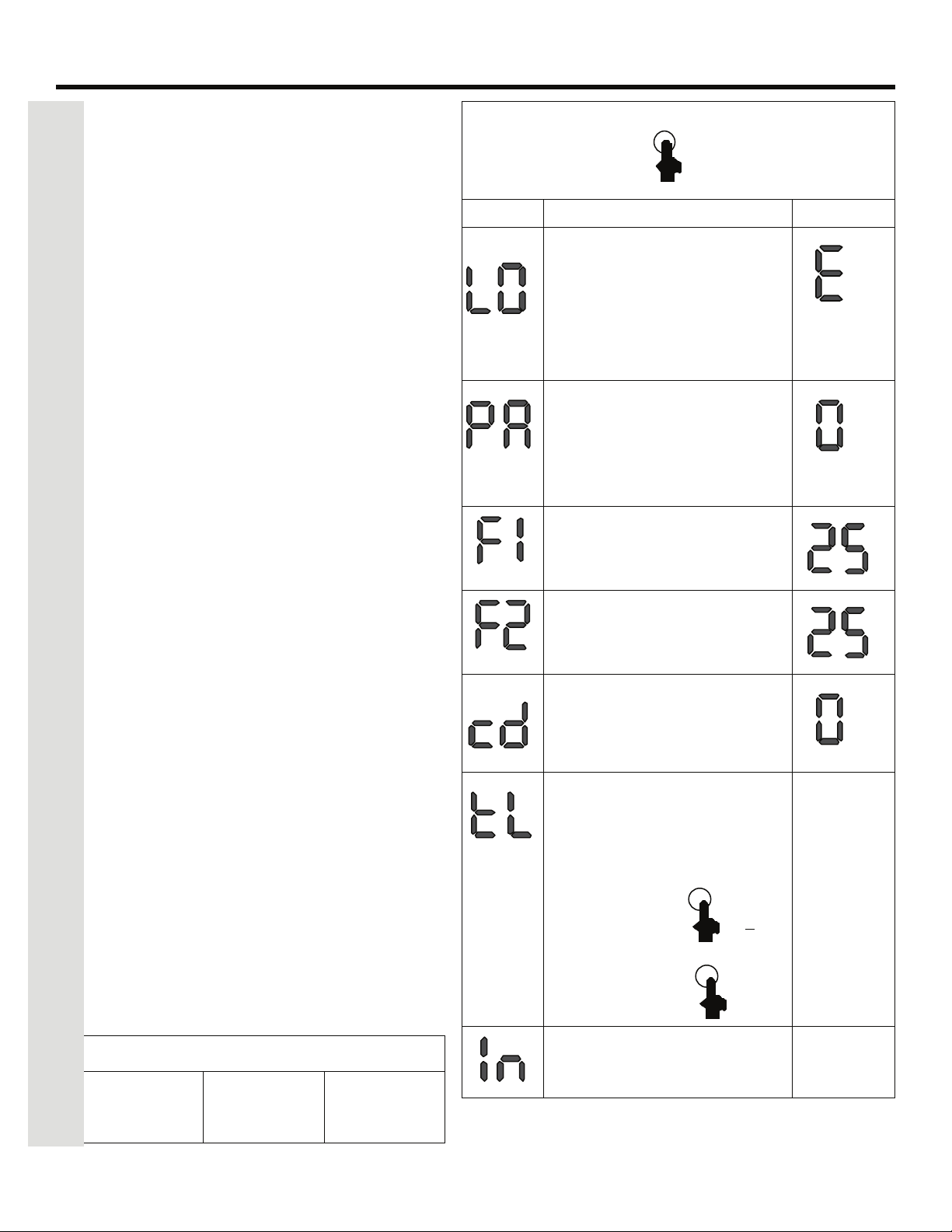

Programming 20
Learning of Operating Times 22
Learning of Normal Times 22
Learning Times with Gatecoder 22
Automated Systems Test 23
Installation Instructions
The 455 D Control Panel
Maintenance 26
Safety in Gate Design 26
Troubleshooting 27
Limited Warranty 28
Logic Tables of 455 D Control Panel 24
FAAC International, Inc.
303 Lexington Avenue
Cheyenne, WY 82007
www.faacusa.com
January, 2004
Page 2
455 D Control Panel Installation Manual
412 Operator And
IMPORTANT SAFETY INFORMATION
Both the installer and the owner and/or operator of this
system need to read and understand this installation
manual and the safety instructions supplied with other
components of the gate system. This information
should be retained by the owner and/or operator of the
gate.
WARNING! To reduce the risk of injury or death
1. READ AND FOLLOW ALL
INSTRUCTIONS.
2. Never let children operate or play with gate
controls. Keep the remote control away from
children.
3. Always keep people and objects away from
the gate. NO ONE SHOULD CROSS THE
PATH OF THE MOVING GATE.
4. Test the gate operator monthly. The gate
MUST reverse on contact with a rigid object
or stop when an object activates the noncontact sensors. After adjusting the force or
the limit of travel, retest the gate operator.
Failure to adjust and retest the gate operator
properly can increase the risk of injury or
death.
5. Use the emergency release only when the
gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read
the owner’s manual. Have a qualified service
person make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians
must use separate entrance.
8. SAVE THESE INSTRUCTIONS.
When installing the photo-beams supplied with this
unit two things need to be considered.
1. Care should be exercised to reduce the risk of
nuisance tripping, such as when a vehicle, trips
the sensor while the gate is in motion.
2. One or more photobeams shall be located
where the risk of entrapment exists, such as
the perimeter reachable by the moving gate
leaf.
GATE DESIGN
1. A gate is a potential traffic hazard, so it is important that you locate the gate far enough away
from the road to eliminate the potential of traffic
getting backed up. This distance is affected by the
size of the gate, how often it is used, and how fast
the gate operates.
2. The operator you choose to install on your gate
must be designed for the type and size of your gate
and for the frequency with which you use the
operator.
3. Your gate must be properly installed and must work
freely in both directions before the automatic
operator is installed.
4. An automatic operator should be installed on the
inside of the property/fence line. Do not install the
operator on the public side of the property/fence
line.
5. Pedestrians should not use a vehicular gate system.
Prevent such inappropriate use by installing
separate gates for pedestrians.
6. Exposed, reachable pinch points on a gate are
potentially hazardous and must be eliminated or
guarded.
7. Outward swinging gates with automatic operators
should not open into a public area.
8. The operating controls for an automatic gate must
be secured to prevent the unauthorized use of those
controls.
9. The controls for an automatic gate should be
located far enough from the gate so that a user
cannot accidentally touch the gate when operating
the controls.
10. An automatic gate operator should not be installed
on a gate if people can reach or extend their arms
or legs through the gate. Such gates should be
guarded or screened to prevent such access.
INSTALLATION
1. If you have any question about the safety of the
gate operating system, do not install this operator.
Consult the operator manufacturer.
2. The condition of the gate structure itself directly
affects the reliability and safety of the gate
operator.
3. Only qualified personnel should install this
equipment. Failure to meet this requirement could
cause severe injury and/or death, for which the
manufacturer cannot be held responsible.
4. The installer must provide a main power switch that
meets all applicable safety regulations.
5. Clearly indicate on the gate with the 2 warning signs
that are included (visible from either side of the
gate).
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Page 3
6. It is extremely unsafe to compensate for a damaged
gate by increasing hydraulic pressure.
7. Devices such as reversing edges and photobeams
must be installed to provide better protection for
personal property and pedestrians. Install reversing
devices that are appropriate to the gate design and
gate application.
8. Before applying electrical power, be sure that the
voltage requirements of the equipment correspond
to your supply voltage. Refer to the label on your
operator system.
USE
1. Use this equipment only in the capacity for which it
was designed. Any use other than that stated should
be considered improper and therefore dangerous.
2. When using any electrical equipment, observe some
fundamental rules:
• Do not touch the equipment with damp or
humid hands or feet.
• Do not install or operate the equipment
with bare feet.
• Do not allow small children or incapable
persons to use the equipment.
3. If a gate system component malfunctions, turn off
the main power before making any attempt to repair
it.
4. Do not attempt to impede the movement of the
gate. You may injure yourself as a result.
5. This equipment may reach high temperatures
during operation; therefore, use caution when
touching the external housing of the operator.
6. Learn to use the manual release mechanism
according to the procedures found in this installation manual.
7. Before carrying out any cleaning or maintenance
operations, disconnect the equipment from the
electrical supply.
8. To guarantee the efficiency of this equipment, the
manufacturer recommends that qualified personnel
periodically check and maintain the equipment.
U.L. CLASS AND FAAC OPERATOR
Model
Class I: Residential Vehicular Gate Operator
402 750
422 760
412 400
620 640
885
Class II: Commercial/General Access Vehicular Gate Operator
400 640
620 885
Class III: Industrial/Limited Access Vehicular Gate Operator
400 640
620 885
Class IV: Restricted Access Vehicular Gate Operator
Duty Cycle Typical Use
• Home use
• Small apartment building, for
Limited duty
Continuous duty
Continuous duty
example, up to 4 units in a
building, with limited public
access
• Apartment buildings
• Very public access
• No public access
620 640
885
Continuous duty
• Prison rated security
Page 4
TECHNICAL DATA
T
HE 412 COMPACT OPERATOR
Parameter Measure
1
Voltage required
Duty type Residential duty
Maximum duty cycle
Maximum leaf length, ft (m) 14 (4.3)
, VAC 115, +/–10%, 50-60 Hz 230, +6 or -10%, 50-60 Hz
2
18 cycles/hr 30 cycles/hr
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Maximum leaf swing, deg 110
3
Thrust and traction
(Nm)
Stroke, in. (cm) 11 3/8 (29)
4
Rod speed
sec)
Thermal cut out, deg F (deg
C)
Operator dimensions,
l ´ w ´ h, in. (cm)
Operator weight, lb (kg) 14.3 (6.5)
Current draw, A 5 2
Maximum amperage draw
for accessories, mA
, in./sec (cm/
, ft-lb
0-294 (0-400) 0-235 (0-320)
3/4 (1.9) 5/8 (1.6)
284 (140)
39 5/16 ´ 3 3/4 ´ 7 9/16
(99.8 ´ 9.5 ´ 19.2)
800 mA 800 mA
1) While the 412 Operator is capable of 18 or 30 cycles/hr, as a residential-duty operator it is not designed for
such continuous, sustained operation.
January, 2004
412 Operator And
455 D Control Panel Installation Manual
UNPACKING THE OPERATOR
When you receive your 412 Compact Operator, complete
the following steps.
Inspect the shipping box for physical damage such as a
torn carton. Then inspect the operator after you remove
it from the box. Notify the carrier immediately if you
note any damage because the carrier must witness the
damage before you can file a claim.
As you unpack the box, insure that all the parts listed
below are included (also see Figure 1). Your kit (a pair of
operators) has these parts:
(1) Control panel enclosure with control panel and
photobeams inside (only 1 per kit).
(2) 412 Operator units. One is marked SX and one is
marked DX. Be sure to install each on the proper
gate leaf (see Figure 2).
(2) Protective covers for the worm screw housing of the
operator
(1) Package of mounting hardware:
(2) Rear mounting brackets
(2) Rear mounting plates that attach to the gate
post (or column)
(2) Front mounting brackets that attach the
operators to the gate leaves
(1) Parts package:
(2) Capacitors
(2) End caps
(2) Plastic inserts for the protective cover
(2) Manual Release keys
(2) Plugs for covering the Manual Release keyhole
(6) Snap rings
(4) Screws for attaching the cover to the operator
(2) Long pins for rear mounting (each requires 1
snap ring)
(2) Short pins for front mounting (each requires 2
snap rings)
Rear bracket
Power cable
Page 5
Front bracket
Worm screw
Cover
Motor
Cable cover
Figure 1. Parts of the 412 Compact Operator
(SX model is shown)
Figure 2. Mount the proper model (SX or DX) on the gate
leaf whether the gate swings inward or outward.
Page 6
THE 412 COMPACT OPERATOR
GENERAL CHARACTERISTICS
The FAAC 412 Compact Operator is an automatic gate
operator for a swinging gate leaf. The 412 Compact
Operator is useful in apartment and other residential
applications and can accommodate a gate leaf up to 14
ft (4.3 m) long.
The self-contained 412 Compact Operator consists of an
electric motor that drives a worm screw housed in an
aluminum casing.
The locking the 412 Operator provides in the fully
opened and fully closed positions is a service device
rather than a security device. Additional, external locks
are recommended under the following conditions:
∗ It is a solid-faced gate.
∗ The length of the gate leaf is 6 ft (2 m) or longer.
∗ The installation requires tight security.
∗ The site is subject to vandalism.
∗ The site is subject to strong or very gusty wind.
For gates with two leaves, two operators are installed.
In two-operator gate installations, both operators are
wired to one control panel. In such gate installations,
one leaf can be wired and programmed to close slightly
later than the other leaf to accommodate overlapping
gate designs.
The electronic control panel is a microprocessor-based
controller that accepts a wide range of product
accessories and reversing devices, thus allowing for
flexible gate system design.
January, 2004
412 Operator And
455 D Control Panel Installation Manual
For its protection, the single-phase, bidirectional motor
shuts off automatically if its operating temperature
reaches 284 deg F (140 deg C). Also for the protection
and proper operation of the 412 Operator, each gate
leaf on which it is installed must have a fixed positive
stop in both the opened and closed positions.
Built-in security and anti-crushing measures of the 412
Operator include a key-operated Manual Release
mechanism and a torque adjustment mechanism that
precisely controls the force transmitted to the gate leaf
through the 412 Operator.
The Manual Release mechanism is a key-operated device
that disengages (or engages) the worm screw drive of
the 412 Operator. When the drive is disengaged, you
can open and close the gate leaf by hand. Such manual
operation of the gate is necessary during installation
and useful during power failures.
The torque of the 412 Operator is set during Basic
Programming of the 455 D Control Panel. (see page 20
for Basic Programming). FAAC recommends that the
gate leaf stop if it encounters a force of more than
about 33 lb (15 kg).
Reversing devices (such as inductive loops and
photocells) should be installed to provide non-contact
reversing operation.
INSTALLATION INSTRUCTIONS
Installing the 412 Operator involves preparing the gate,
installing the operator(s), installing the control panel,
setting the torque adjustments on the control panel,
and setting other operational controls.
Note: The following installation instructions assume
you are fully capable of installing an
electromechanical operator on a gate. This manual
does not instruct you in designing a gate, installing
a gate (whether on masonry, wood, or metal posts),
or basic electrical wiring. The installation tasks
discussed in this manual are tasks particular to the
412 Operator.
PREPARE THE GATE
Before you install the 412 Operator, you need to prepare
the gate itself for the operator. Be sure to do the
following three things:
Make sure that the gate structure is solidly built. Add
reinforcing crosspieces if necessary to the gate leaves.
Make sure that the gate moves smoothly on its hinges
without excessive friction by swinging it opened and
closed by hand. If necessary, lubricate all the gate's
moving parts.
Provide positive stops for the gate leaves in the fully
opened and fully closed positions (see Figure 3).
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Figure 3.
Positive Stops
MANUAL RELEASE MECHANISM
The Manual Release mechanism is a built-in release
device of the 412 Operator (see Figure 4). To access the
keyhole, remove the plug on the top of the motor
housing. Then insert the key and turn it a half turn in
the direction of the gate’s closing to disengage the
operator’s motorized operation. You can now move the
gate leaf by hand to open or close the gate. Operating
the gate leaf by hand is necessary during installation
and is useful during power failures.
Remove the plug
1.
on the top of the
motor housing
Insert the Manual Release
2.
key and turn it in the
direction of the gate’s
closing
Figure 4. Use the Manual Release key to disengage the
412 Operator from its motor so that you can move the
gate leaf by hand in the opening or closing direction
I
NSTALLING THE OPERATOR
Once you have prepared the gate, you are ready to
proceed with the installation of the operator.
Follow the instructions below to install your operator
whether in an inward or outward swinging
configuration.
Installing the operator consists of the following steps:
∗ Establishing the orientation of each gate leaf and its
operator.
∗ Attaching the rear mounting bracket
∗ Attaching the operator to the rear mounting bracket
∗ Attaching the front mounting bracket to the
operator
Page 7
∗ Attaching the front mounting bracket to the gate
leaf
∗ Attaching the operator’s protective cover
∗ Installing the 455 D control panel
∗ Adjusting the torque for the operator
∗ Setting the operating controls
ESTABLISH THE ORIENTATION OF THE
O
PERATOR AND THE GATE LEAF
Before you begin mounting brackets or attaching parts,
you first need to establish the proper orientation of
each operator in relation to its gate leaf.

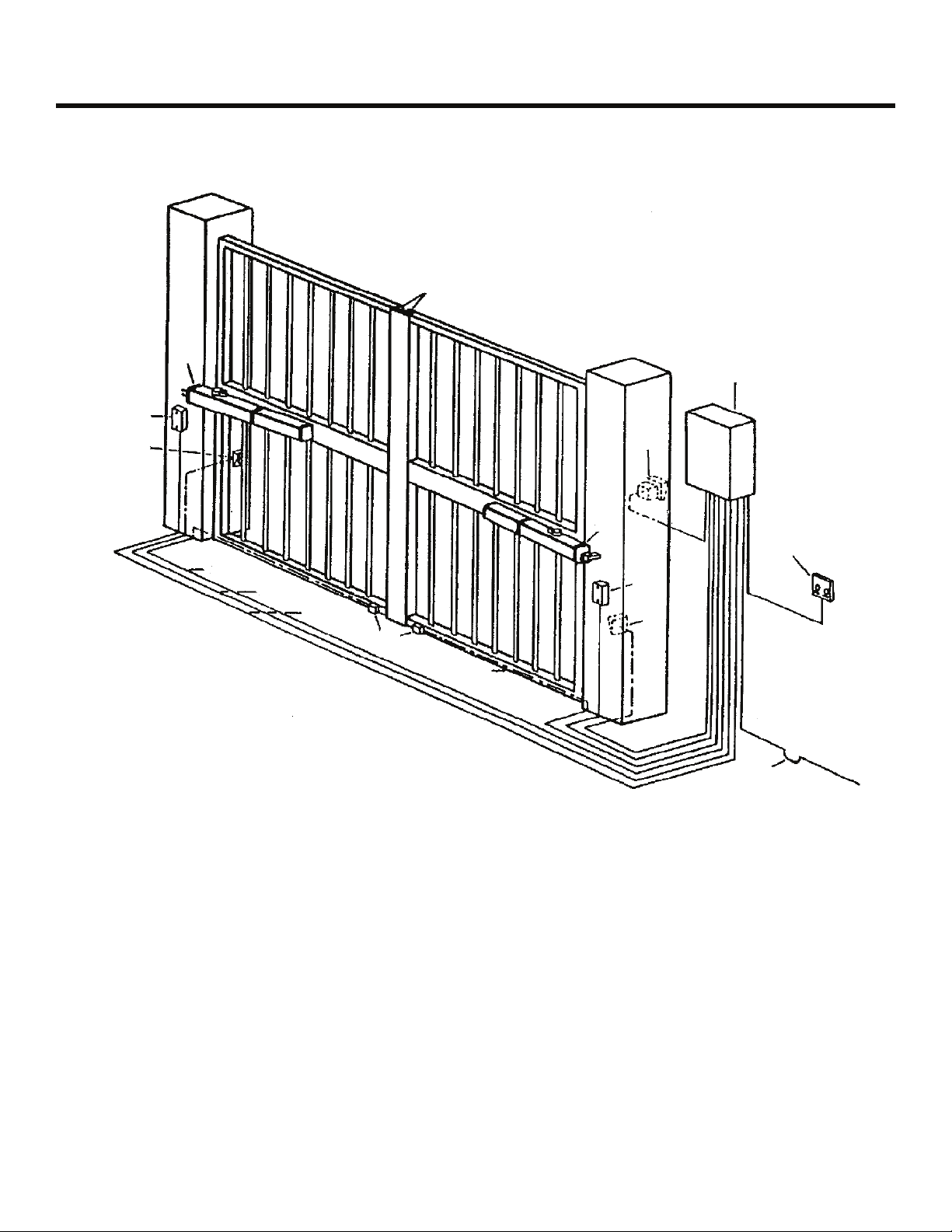

Figure 2 (page 5) shows a biparting gate from the side
where the operators are mounted. The operator
attached to the hinge on the left of the gate must be an
SX model. If the hinge is on the right side, the DX
model must be installed.
Installing the operator on the wrong side makes it
impossible to install the protective cover of the
operator.
ATTACH THE REAR MOUNTING
B
RACKET
Inward swinging gate:
You need to determine whether to attach the rear
mounting bracket directly to the post (or wall) or to
notch the post and install a recessed liner. Large pillars
require a recessed liner to house the rear mounting
bracket and part of the operator so that the pillar will
not interfere with the swing of the gate when it is fully
opened.
To determine whether you need a recessed liner,
measure the distances B and D (shown in Fig. 5) on your
gate. If your measure of B or D is greater than the
dimensions shown for your operator in Figure 5, notch
the post and construct a recessed liner for the post
mounting bracket (see Figure 6). The recessed liner
should be constructed of 3/16 or 1/4 in. steel with a
minimum interior height of 11 13/16 in. (30 cm) so as
to allow you to meet the required dimensions shown in
Figure 5. Make sure the recessed liner is securely
embedded in the post (or wall).
There are two parts to the rear mounting bracket. The
horizontal bracket attaches to the operator, and the
slotted vertical plate attaches to the gate post (see
Figure 8). Weld the two parts together and bolt the
assembly to the gate post of column. Note, though, that
use of the vertical rear mounting plate is optional.
Once you have positioned the rear mounting bracket,
attach the bracket to the post (or wall or recessed liner),
making sure the dimensions on your gate system match
those shown in Figure 5.
Page 8
January, 2004
412 Operator And
455 D Control Panel Installation Manual
B
Gate post
(or column)
Figure 5. Important
mounting dimensions for
inward-swinging 412
operators, top view
Mounting Dimensions
90-deg Swing 110-deg Swing
A
B
WARNING! A and B should differ by no more than 2 in. Larger differences may dangerously alter the speed of
operation.
C
D
Maximum 4 1/2 in. (10.8 cm) 3 3/8 in. (8.45 cm)
A
5 3/4 in. (14.5 cm) 4 7/8 in. (12.5 cm)
5 3/4 in. (14.5 cm) 4 7/8 in. (12.5 cm)
D
F
36 1/4 in. (89.2 cm)
C
Axis of rotation
for gate leaf
Center of gate leaf
E
E Less Than A
11 13/16 in.
(30 cm)
4 in.
(10 cm)
5 29/32 in.
(15 cm)
Figure 6. The required dimensions of the recessed liner
when notching the gate post
Less Than A
Outward swinging gate:
If you are installing the 412 Operator to swing the gate
outward, construct a steel elbow of sufficient size to
attach to the gate pillar and rear mounting bracket (see
Figure 7 for elbow dimensions).
ATTACH THE OPERATOR TO THE REAR
M
OUNTING BRACKET
Attach the operator to the rear mounting bracket with
the long pin and one snap ring on the bottom (see
Figure 8).
ATTACH THE OPERATOR TO THE FRONT
M
OUNTING BRACKET
Attach the operator to the front mounting bracket with
the short pin and one snap ring on the bottom and one
snap ring on the top (see Figure 9).
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Page 9
Figure 7. Important
mounting dimensions for
outward-swinging 412
operators, top view
Mounting Dimensions
90-deg Swing 110-deg Swing
A
B
WARNING! A and B should differ by no more than 2 in. Larger differences may dangerously alter the speed of
C
D
E Less Than A
Gate post
(or column)
Axis of rotation
for gate leaf
D
A
F
Steel elbow
5 3/4 in. (14.5 cm) 4 7/8 in. (12.5 cm)
5 3/4 in. (14.5 cm) 4 7/8 in. (12.5 cm)
operation.
24 1/4 in. (62 cm)
N/A N/A
B
Centerline of gate leaf
E
C
ATTACH THE FRONT MOUNTING BRACKET
TO THE GATE LEAF
Disengage the operator’s worm screw drive from its motor
with the Manual Release. Insert the key in the top of the
motor assembly, and turn the key a half turn in the
direction of the gate’s closing.
You should be able to lengthen or shorten the cylinder
covering the operator’s worm screw by pulling or pushing
the cylinder. Lengthen or shorten the operator to the
required distance for your gate installation:
Inward swinging: Lengthen the worm screw
completely and push the cylinder in 1/8 to
1/4 inch.
Outward swinging: Shorten the worm screw
completely and then pull the cylinder out 1/8
to 1/4 inch.
With the gate in the fully closed position, temporarily
clamp the front mounting bracket (previously attached to
the operator) to the gate leaf and insure that the cylinder
of the worm screw is level.
Move the gate leaf by hand to the fully opened position
against the gate stop and insure that the cylinder is level.
Next, you must determine that the worm screw has not
reached the full extent of its travel. Remove the operator
from the front mounting bracket and push or pull the
cylinder in the direction of it opening direction of
travel:
Inward swinging: You should be able to push
the cylinder in about 1/2 of an inch.
Outward swinging: You should be able to pull
the cylinder out about 1/2 of an inch.
If the worm screw was not at the full extent of its
travel when attached to front mounting bracket, then
with the operator detached from the front mounting
bracket, permanently attach (weld) the front mounting
bracket to the gate leaf (see Figure 10).
If the worm screw was at the full extent of its travel,
try moving the front mounting bracket toward the
hinge and retesting. If again the front mounting fully
extends the worm screw, then the rear mounting
dimensions are incorrect (see Figure 5 or 7, whichever
applies to your installation). Reattach the rear
mounting bracket as necessary.
Once the front mounting bracket is welded in place,
you can reattach the operator to the bracket.
Page 10
r
ATTACH THE OPERATOR COVER.
Once the operator is attached to the gate leaf, you
next prepare the cover for installation.
Caution: If you did not correctly establish the
orientation of the gate leaf and properly
install the DX model on the right side and SX
on the left side, you will be unable to install
the cover on either operator.
Position the mounting insert inside the aluminum
cover and then slide the aluminum cover into
position. Secure the cover and insert with the short
screws provided (see Figure 11).
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Figure 10. Weld the front mounting bracket into position
after insuring the operator is level in the fully closed and
fully opened positions
4 3/8 in.
(11 cm)
2 3/4 in.
(7 cm)
Figure 8. Attach the operator to the rear
mounting bracket (an SX version is shown)
Minimum of 3 1/8 in. (8 cm) from
the back of the vertical mounting
plate to the center of the front
mounting hole on the operator
Figure 9. Secure the operator to the front mount-
ing bracket with the short pin and 2 snap rings
The plastic cover insert
has a slot that must align
with the slot in the cover
End cap for cove
Figure 11. Attach the cover with two screws (SX
model shown)
INSTALLING THE 455 D CONTROL
ANEL
P
Locate the control panel enclosure in the most
convenient position possible, considering the movement
of the gate. Figure 12 shows a basic layout for a twoleaf gate with the 412 Compact Operator.
Installing the control panel consists of the following
general steps:
• Connecting the main power to the control
panel
• Connecting the activating device
• Connecting the operator to the control panel
• Checking the direction of the motor's rotation
• Connecting other devices to the control panel
• Set operating modes
The installer is responsible for grounding the gate and
operator systems, for providing the main power breaker
switch, and for making sure that the entire gate system
meets all applicable electrical codes.
For the complete 455 D Control Panel Installation
Instructions, see pages 14—25 of this manual.
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Page 11
Figure 12. The layout of a sample gate system
6
1
5
3
A
Locate switches at least
10 ft from the gate
2
8
1
A
4
A
B
5
C
3
7
B
A
C
D
9
1 Operator
2 Control Panel
3 Photocell A 2 × 18 AWG A 2 × 18 AWG
4 Switch B 4 × 14 AWG B 4 × 14 AWG
5 Junction box (see text) C 5 × 18 AWG C 5 × 18 AWG
6 Reversing edges D 4 × 14 AWG up to 414 ft D 3 × 14 AWG up to 130 ft
7 Gate stops
8 Switch
9 Wiring to main circuit breaker
220 VAC 115 VAC
Wire Gauges for Given Voltage
3 × 10 AWG up to 340 ft
January, 2004
Page 12
455 D Control Panel Installation Manual
412 Operator And
The 412 Compact Operator
January, 2004
412 Operator And
455 D Control Panel Installation Manual
412 Compact Operator
POS PART NO. DESCRIPTION QTY
1 799360 Motor Housing, SX top section 1
1 799359 Motor Housing DX top section 1
2 713009 Manual Release Key, 412 1
3 7171345 Flange, Protective Cover, 412 SX 1
3 7171335 Flange, Protective Cover, 412 DX 1
4 N/A Nickel Plated Self Tapping Screw (3.5 x 13 mm) 1
5 N/A Self Tapping Screw (5.5 x 15 mm) 2
Page 13
Parts List
6 799358 Cylinder Collar 1
7
736060* Cylinder Assembly New (Slide On)*
8 727148 End Cap, Protective Cover SX 1
8 727147 End Cap, Protective Cover DX 1
9 N/A Nickel Plated Self Tapping Screw (3.5 x 9.5 mm) 3
10 2705 Capacitor For 115 v (25μf) 1
10 2707 Capacitor For 220 v (8μf) 1
11 727216 Protective Cover, 412 1
12 722298 Protective Cover Support, 412 1
13 N/A Self Tapping Screw (5 x 18 mm) 4
14 716074 Motor Housing, Bottom Section 1
15 746030 Stator (motor) for 220 v 1
15 746755 Stator (motor) for 115 v 1
16 746028 Rotor (motor) 1
17 710919 Strain Relief, 412 1
18 390009 Skin Pack, 412 (1 pack = 2 operators) 1
1
*Models Manufactured before 2000 used a screw in type cylinder assembly. The part
number for this type cylinder is 736039. The manufacture date is the NR number on
the sticker located on the top motor housing.
Page 14
January, 2004
412 Operator And
455 D Control Panel Installation Manual
THE 455 D CONTROL PANEL
GENERAL DESCRIPTION
The FAAC 455 D control panel is used to operate the
following models.
Swing gate operators:
400 412
402 750
422 760
Barrier gate operators:
610/615
The 455 D programming controls the following:
Operating logic: A, S, E, EP, B, and C logics
available.
Reversing device behavior: Choose whether a
triggered reversing device during closing
immediately reverses gate movement or stops
the gate and reverses gate movement when no
longer triggered.
Torque or Pressure: Force adjustment for the
412 operator. Adjustable from 0 to 50.
Caution: For all hydraulic operators, the torque
must be programmed to the maximum (50)
setting.
Pause time between opening and closing:
adjustable from 0 to 240 seconds.
Opening/Closing time: adjustable
from 0 to 120 seconds.
Leaf delay on closing: adjustable from 0 to 4.1
minutes.
The 455 D control panel should be installed in an
enclosure that is conveniently located as close as
possible to the gate operator. All electrical
connections from the control panel to the operator
must be made in a weatherproof junction box.
The 455 D control panel requires a single-phase
power supply voltage (115 VAC [±10%] or 230 VAC
[+6 or -10%], 50–60 Hz). The power supply should be
protected by a 15 amp dedicated circuit breaker (not
provided).
The installer is responsible for grounding the
operator system, for providing the main power
breaker switch, and for making sure that the entire
gate system meets all applicable electrical codes.
The installer should refer to the installation manual
for a given operator for more information.
NOTE: An installation is U.L. compliant only
when you install the FAAC operators according
to the UL325 standards.
INSTALLING THE 455 D CONTROL
P
ANEL
Locate the control panel in the most convenient position
possible, considering the movement of the gate.
Installing the control panel consists of the following
general steps:
∗ Connecting the main power to the control
panel
∗ Connecting the activating device
∗ Connecting the operator to the control panel
∗ Checking the direction of the motor's rotation
∗ Connecting other devices to the control panel
∗ Set operating modes
CONNECT THE MAIN POWER SUPPLY
WARNING! Turn the main power off before you
make any electrical connections or before
programming.
Wire the main power supply to control panel terminals
in block J3 (see Figures 13 and 14). The installer is
responsible for insuring that a separate, grounded
circuit protected by a circuit breaker is between the
control panel and the main power supply. All wiring
should conform to applicable electrical codes, and all
wiring and fittings should be weatherproof and/or
suitable for burial.
Connect the ground to the grounding terminal in block
J3 and connect the power wires to the terminals labeled
N (neutral) and L (line).
N
OTE: For a 230V system, a neutral is not
needed. Connect one 115V line to the L (Line)
and a second 115V line to the N (Neutral).
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Page 15
CONNECT THE OPERATOR(S) TO THE
C
ONTROL PANEL
WARNING!
you make any electrical connections or before
programming.
CAUTION: The operators are grounded only by
the grounded circuit the installer provides.
USING A JUNCTION BOX
If an operator is more than 2 ft away from the control
panel, you must use a junction box for connection.
Use a U. L. Listed cord grip where the operator cord
enters the junction box.
Note: If you have a one-leaf gate design, the
operator must be connected to Motor 1
(terminals 1,2, & 3)
To wire up motor 1, connect the white wire to
terminal 1(on the J4 terminal strip), the black wire to
2, and the red wire to 3. Wire each leg of the capacitor
(supplied) to terminals 2 & 3.
Turn the main power off before
Note: If you want to delay the closing of one
gate leaf in a two-leaf gate design, be sure to
connect its operator to Motor 1.
In order to wire motor 2 in a bi-parting system,
connect the white wire to terminal 4 (on the J4
terminal strip), the black wire to 5, the red wire to 6.
Wire each leg of the capacitor (supplied) to terminals
5 & 6.
CHECK THE MOTOR’S DIRECTION OF
R
OTATION
After you have connected the main power supply, and
the operator(s) to the control panel, you need to
check the direction of rotation for each operator
motor in your gate design.
Note: To check a motor’s direction of rotation,
you must have three closed circuits on terminal
block J1. Install one circuit between terminals 11
and 16, another circuit between terminals 12
and 19, and another circuit between terminals
13 and 19.
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
J3
K
1-455D115 = 115V
1-455D = 230V
M
N L
MA IN

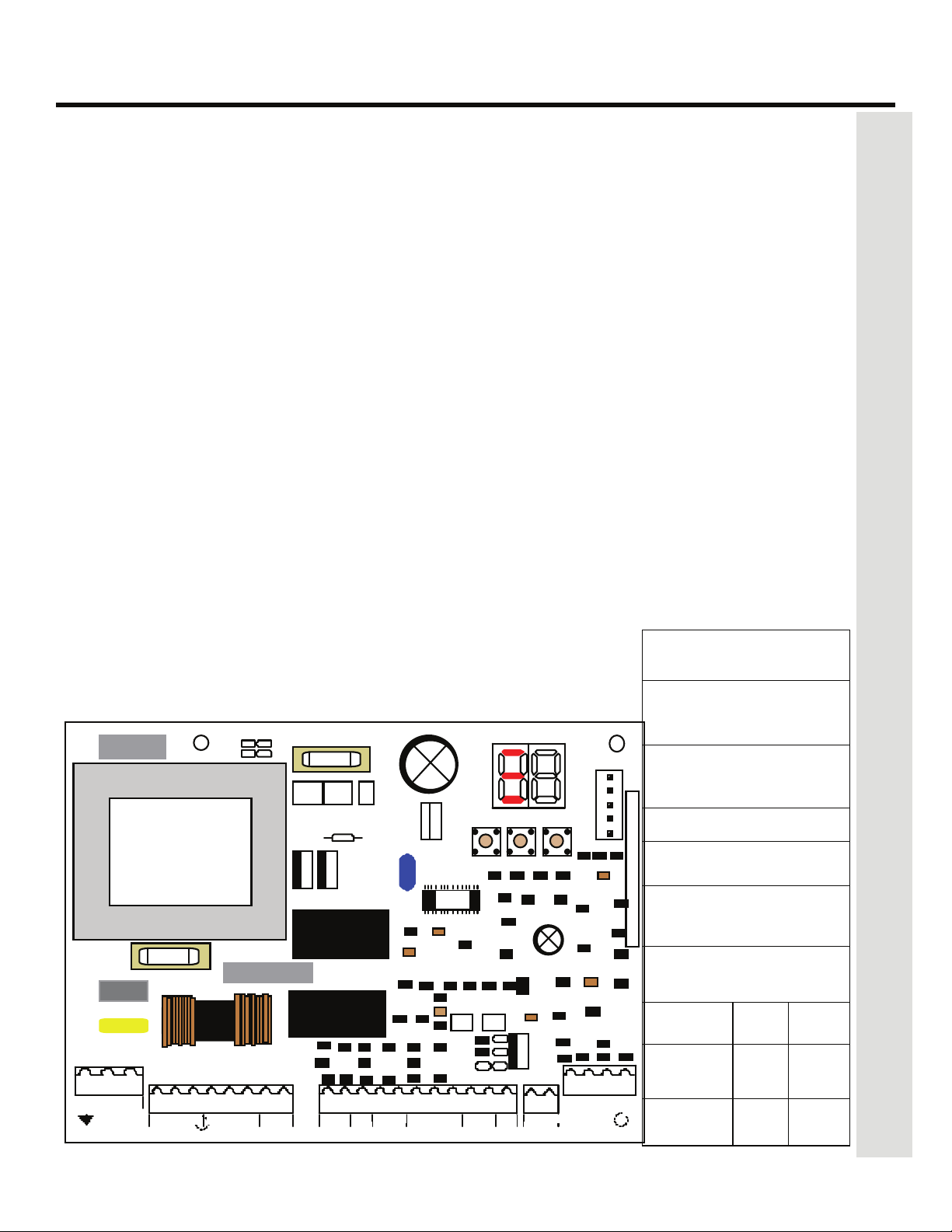

Figure 13. The 455 D Control Panel
MOTOR 2
M
LAM PCOMOP CL
CLCOMOP
F1
1 2 3 4 5 6 7 8
MOTOR 1
F2
J4J5J1
9 10 11 12 13 14 15 16 17 18 19
NC -B -
A + TX
STOP
V1- 4
61C455D
J3 terminal block for
main power supply
J4 terminal block for
connecting the operator
(s)
J1 terminal block for low-
J2
F-+
voltage accessories
RADIO
J2 quick connector port
F Function Push Button
— Programming Push
Button
+ Programming Push
Button
FUSES
J6
22 23 24 25
20 21
FCA 1
FCA 2
+OP -CL
+24 VFS W
FS W
W. L.
LOCK
FCC 1
F1
Main Power
FCC 2
F2
Accessories
220
VAC
5 A 10 A
800
mA
115
VAC
800
mA
Page 16
January, 2004
412 Operator And
455 D Control Panel Installation Manual
N L
115 V AC +/- 10%
or
230 V AC +6/ -10%
50-60 Hz
1 2 3 4 5 6 7 8
MOTOR 1
BLUE
M1
OPCOM CL
C1
OPCOM CL
MOTOR 2
BLUE
M2
C2
Figure 14.
The terminal strip wiring of
the 455 D with photobeams
NOTE: In order to c omply wi th UL 325 , two s ets
of FAAC photobeams must be installed. One set
should be 6 in. outside the closed gate(s) and act
as a closing reversing devic e. Another set should
be 6 in. beyond the swing of the gate(s) and act
as an opening reversing device. The installer is
responsible for determining the appropri ate
mounting height.
You cannot check the motor’s direction of rotation
without these circuits (jumpers) or the accessories.
When properly prepared for testing, the LEDS FSWOP,
STOP, and FSWCL should be illuminated (see figure 16
on page 17).
WARNING! Running the operator—even for
testing purposes—without a connected reversing
device is potentially dangerous. Do not place
yourself within the path of the moving gate
during your test.
Disengage the operator(s) with the Manual Release
key (see operator installation manual), and open the
gate by hand about halfway.
Next, engage the operator(s) with the Manual Release
key so that you can check the rotation of the motor
(s).
To activate the operator(s) momentarily short across
terminals 9 and 14.
Turn on the main power and send an activating signal
to the operator. The gate leaf (or leaves) should open.
If a gate leaf closes, then you need to turn off the
main power and reverse the connection of the red
and black wires on terminal block J4 for the operator
controlling that leaf. Then you need to recheck the
rotation direction again.
After having completed your test of the motor’s
direction of rotation, replace any test circuits you
installed (between terminals 11 and 16, between 12
and 19, and between 13 and 19) with the proper
reversing and stop devices. The instructions for
installing such accessories follow.
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
9 10 11 12 13 14 15 16 17 18 19
LA MP
STOPOPE N OP EN
(1 of 2 )
-
OPCL -
FS W
CONNECT OTHER DEVICES
WARNING! Turn the main power off before you
make any electrical connections.
POWER SUPPLY FOR ACCESSORIES: You can access a 24
VDC output for supplying power to accessories
through terminals 17 or 18, (+) and 14 or 15 or 16, () on terminal block J1. In most cases, this source can
be used to power 24 VDC accessories.
NOTE: The 455 D control panel allows a
maximum accessory load of 800 mA.
EVERSING DEVICES: Reversing devices include
R
photocells, inductive loops, and so forth. All of the
reversing devices should have contacts of the
normally closed (N.C.) type. Where you connect a
device depends on whether you want the device to
operate during opening or during closing.
N
OTE: UL does not recognize the FAAC system
with loop detectors or safety edges. FAAC
photobeams must be used to comply with UL
325.
To wire photobeams, refer to page 19 (see FSWOP for
opening photobeams, and FSWCL for closing
photobeams). Photobeams must be connected as
shown. See also page 19 for the wiring of inductive
loops. If using more than one reversing device, they
must be wired in series.
- - +
Other safeties
1
2
3
4
5
1
2
+
24V
FS W OP
FS W C L
FS W
20 21
W.LIGHT
24 vdc
3 W
1
2
1
2
3
4
5
22 23 24 25
LOCK
ELECTRIC LOCK
January, 2004
412 Operator And
455 D Control Panel Installation Manual
To the U. L. Listed gate operator
(a)
U.L. Listed Control Panel Enclosure
(b)
Page 17
U.L. Listed
cord grip

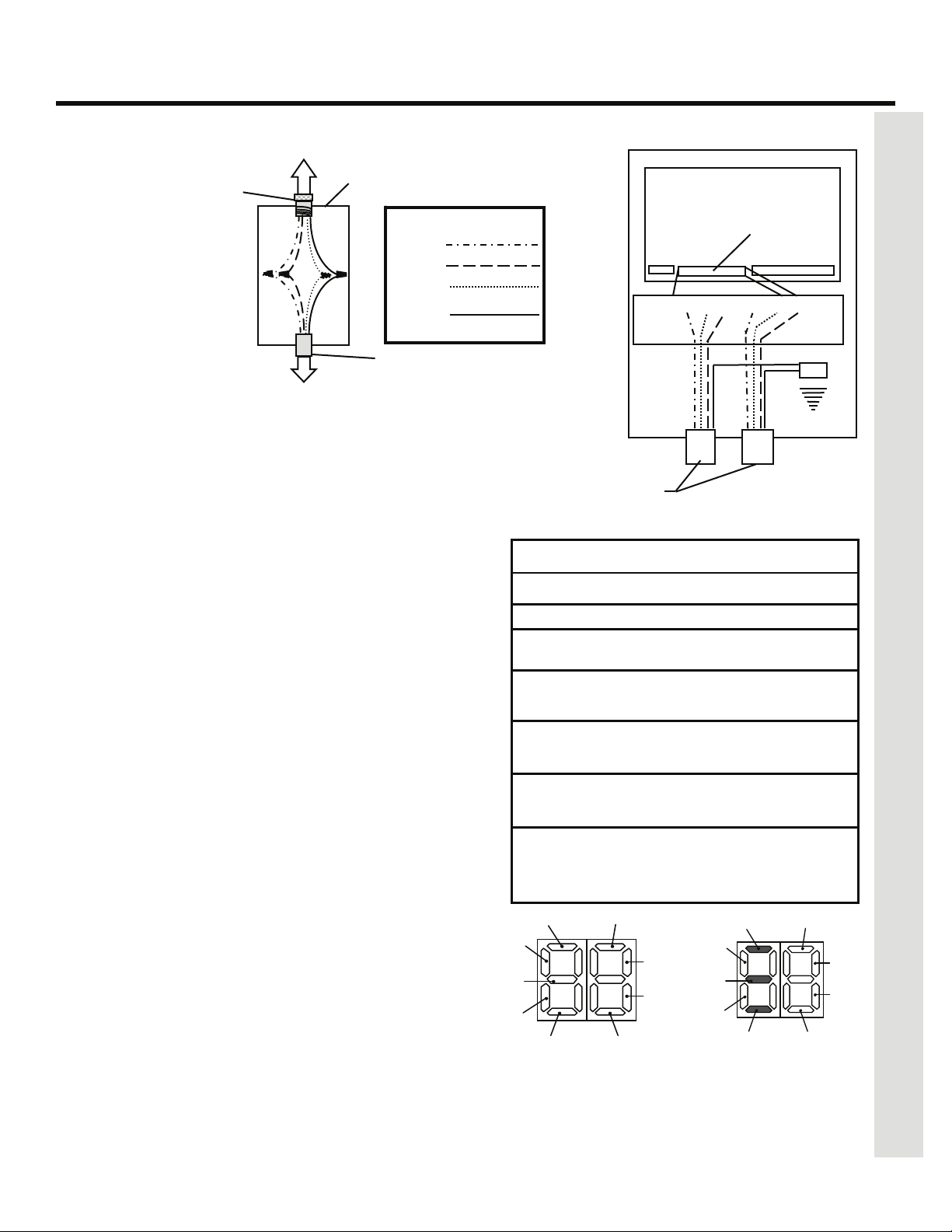

Figure 15.
Wiring detail (a) inside
the junction box and
(b) from the junction
box or operator to the
high-voltage terminal
Junction box
White
Red
Black
Yellow/
Green
Legend
strip on the 455 D
control panel
To the U.L. Listed
control panel
Conduit to U.L. Listed
control panel enclosure
according to N.E.C.
ACTIVATING DEVICES AND RADIO RECEIVER: The
activating devices and radio receiver for your gate must
have normally open (N.O.) contacts. Connect such
devices to terminals 9 and 14.
N
OTE: The FAAC radio receiver plugs into the 5
prongs labeled J2 (Quick connect port).
Page 19 shows how to connect a three or four wire
receiver.
DECODER CARD: If you are installing the Digicard
magnetic card reader, or the Digikey keyboard, use the
quick-fit connector J2 for the DS decoder card.
N
OTE: If your using both a receiver and decoder,
hard wire the decoder and plug in the receiver.
OPEN/HOLD OPEN DEVICE: To open and hold open the
gate, simply maintain a contact across terminals 9 and
14. (“A” Mode only)
STOP BUTTON: The stop button you install must have
normally closed (N.C.) contacts. Multiple stop buttons
must be wired in series. Connect your stop device
between terminals 11 and 16.
N
OTE: The 455 D will not operate the motors
without a closed circuit between 11 & 14.
The LED Indicators: The nine light emitting diodes
(LEDs) on the control panel can be used to check for the
proper function of the devices attached to the panel.
The LED lights are on whenever the contacts are closed
across each of the respective terminals.
OP_A and OP_B (Partial Opening) should illuminate only
when an activating signal is sent for 2 and 1 gate leaves,
respectively. STOP should be illuminated except when
the stop button is pressed. FSWOP and FSWCL should be
illuminated except when the reversing devices, for
Cord grip or
conduit from
U.L. Listed gate
operator(s)
LED On Off
OP_A
Command Given No Command
OP_B Command Given No Command
Stop No Command Command Given
FSW
Open
FSW
Close
FCA1
Opening reversing
devices clear
Closing reversing
devices clear
Flashes when gate coder is in use.
FCC1
FCA
2
Flashes when gate coder is in use.
FCC
2
FSWOP
OP_A
STOP
OP_B
FSWCL
FCA1
FCA2
This display shows the
meaning of each LED.
Figure 16. The 455 D display.
455 D Control Panel
High-voltage
terminal strip
J3 J4
COM OP CL COM OP CL
Op.1 Op.2
J1
Ground
Reversing device
triggered
Reversing device
triggered
Operator 1
Operator 2
FCA1
FCC1
FSWOP
OP_A
STOP
FCC2
OP_B
FSWCL
FCA2
This display shows the normal
status of the control panel.
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
FCC1
FCC2
Page 18
January, 2004
412 Operator And
455 D Control Panel Installation Manual
opening and closing, respectively, are triggered. Use
the LEDs and the next table to determine if the
accessory devices you have installed are operating
properly.
Electric Locks: An electric lock can be wired to
the 455 D in
provided). If a reversing stroke is needed to allow the
electric lock to release, this must be done in advanced
programming.
See page 19 for the connections for a magnetic locking
device.
terminals 18 and 21 (12Vac pulsed
WARNING LIGHT: Connect a warning light to
terminals 18 and 20 in the group labeled W.LIGHT
in terminal block J1 and J5. The terminals provide
an output voltage of 24 VDC, maximum power 3
Watts. This output voltage will power most 24 VDC
warning lights.
N
OTE: The behavior of the warning light varies
according to the logic you have set.
LOGICS A, S, E, EP, AND B: The warning light is on
steadily during opening and the pause phase. During
closing, the light flashes.
LOGIC C: The warning light is on steadily during
opening and flashes during closing.
SET OTHER OPERATING CONTROLS
WARNING
make any electrical connections.
You need to program the control panel for your gate's
operation. The 455 D Control Panel has on board
programming that controls a wide range of functions.
OPERATING LOGICS
NOTE: The 455 D Control Panel provides inputs
for opening reversing devices and closing
reversing devices. FAAC strongly recommends
the use of reversing devices, such as photocells
or other non-contact sensors.
•
A (automatic): The gate opens on command
and automatically closes after a pause phase. A
second command while opening is ignored; a
second command during the pause phase
interrupts the pause time; a second command
during closing reopens the gate. A maintained
open command will hold the gate open.
•
S (security): The security mode is like A logic
except that a second command during opening
immediately closes the gate. A maintained
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
open command will not hold the gate open.
! Turn the main power off before you
• E (semi-automatic): This mode requires a
command to open and a command to close.
A second command during opening stops the
gate. A second command during closing
reopens the gate.
•
EP (semi-automatic, step by step): This
mode requires a command to open and a
command to close. A second command
during opening or closing causes the gate to
stop. A third command then reverses the
previous motion of the gate.
•
B (manned, pulsed): This mode is designed
for guard station use and requires a threebutton switch (pulsed) to open, close, and
stop the gate.
•
C (manned and constant): This mode
requires constant pressure switches. One to
open and one to close. No pressure on a
switch stops the gate.
The three programming push buttons allow the
programming of the torque (or pressure), the pause
time between opening and closing, and the leaf delay
on closing.
WARNING! Turn the main power off before you
make any electrical connections.
For all FAAC hydraulic operators using the 455 D
control panel, the force must be set at its maximum
setting of 50 in order to supply the correct voltage to
the operator.
PAUSE TIME: The pause time between opening and
closing can be adjusted from 0 seconds to 4 minutes.
Time is adjusted in one-second increments from 0—
59 seconds. When 60 seconds is reached, time is
adjusted in 10 second increments up to 4 minutes.
i.e. if display shows 2.5, it means 2 minutes and 50
seconds.
LEAF DELAY: You may choose to delay one leaf on
closing for overlapping gate leaves. Be sure the
operator on the leaf for delayed closing is connected
to Motor 1. On opening, the leaf connected to Motor 2
is delayed 2.5 sec.
N
OTE: If an opening leaf delay is desired, it must
be enabled in the Advance Programming.
However, if enabled, you cannot adjust this
opening delay of the operator connected to
Motor 2.
The closing leaf-delay time is adjustable from 0 to 4
minutes.
NOTE: If the opening/closing time is set at less
than the leaf delay time, the delayed leaf closes
at the end of the closing time.
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Page 19
Free Ex it Loop/ Phone/ Firebox
(Hold Open Dev ices)
9
14
FAAC
Rev ersing Photocells
(f or opening)
Addit ional
Reversing Devices
19
17
13
14
17
Magnetic Loc k
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
Lock
+
17
NO
C
14
18
21
Shadow Loop
1
TX
2
1
2
3
RX
4
5
19
12
Addit ional
Reversing Devices
7
8
12 vac
Relay
N.C.
N.O.
COM
Coil Volt age =
Mot or V oltage
N.C.
N.O.
COM
C
NC
Addit ional
Reversing Devices
19
17
12
19
17
Revers ing Devic es
19
12
15
17
FAAC
Rev ersing Photocells
(f or c losing)
FAAC
Saf ety Loop
Addit ional
Detector
(f or c losing)
3 & 4 Wire R adio Receiv ers
1
TX
2
14
1
2
3
RX
9 NO
14
17
If 4 Wire Receiver
C
-
+
4
5
Saf et y Series
Wiring
1
TX
2
PHOTO-BEAMS
RX
LOOP
DET ECT OR
(F AAC)
FAAC
1
1
2
7
8
19
17
12
14
17
2
3
4
5
1
2
7
8
NO = Normally Open, NC = Normally Closed, C = Common, TX = Transmitter, RX = Receiver

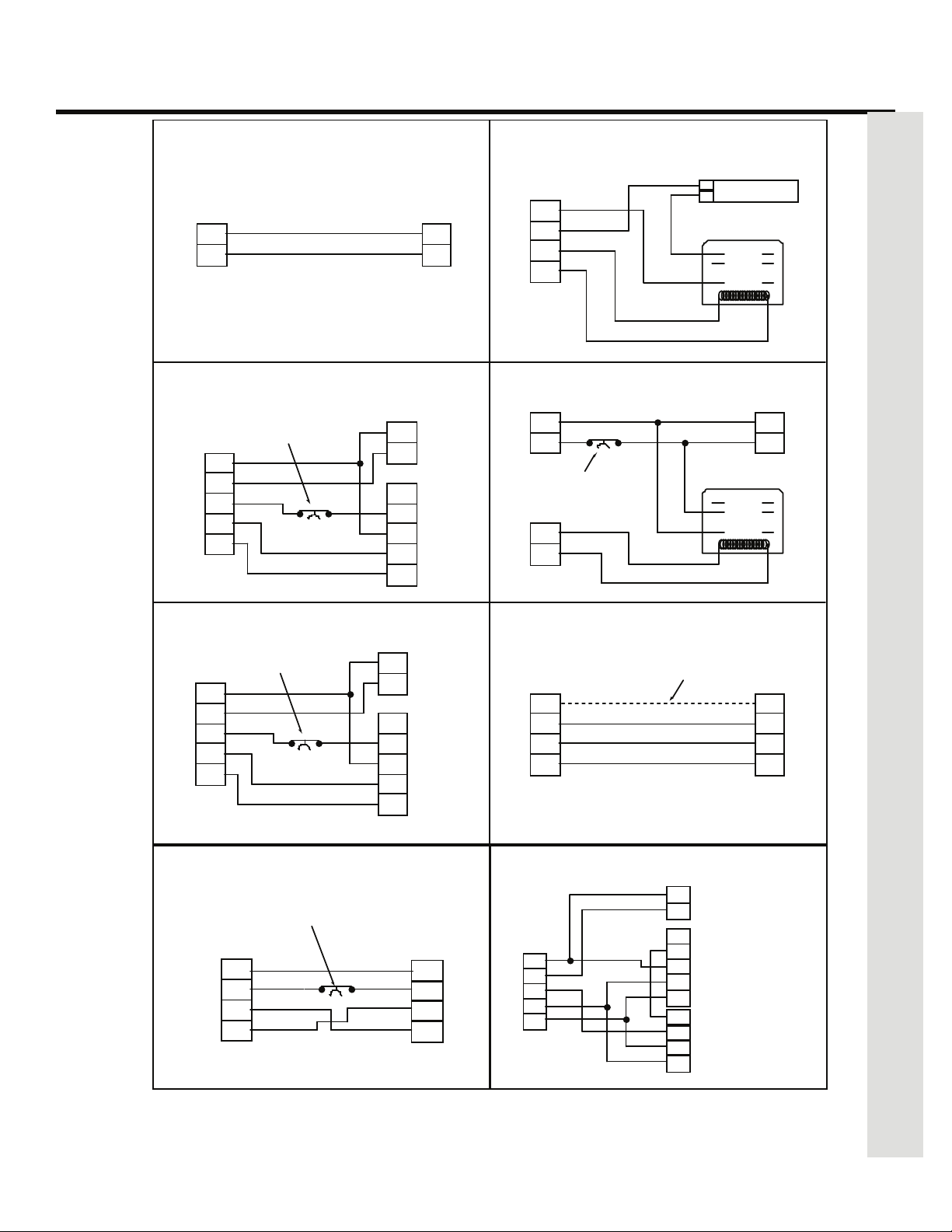

Figure 17. Common Accessories wired to 455 D Control Panel
Page 20
January, 2004
412 Operator And
455 D Control Panel Installation Manual
PROGRAMMING
To program the automated system, the
“Programming Mode” must be accessed.
Programming is split into two parts: BASIC and
ADVANCED.
BASIC PROGRAMMING
To access BASIC PROGRAMMING, press the “F” key.
• If you press it (and hold it down), the display
shows the name of the first function.
• If you release the key, the display shows the
value of the function that can be modified with
keys + and — .
• If you press and hold down the “F” key again
(and hold it down), the display shows the name
of the next function, etc.
• When you reach the last function, press “F” to
exit the program, and the display resumes
showing the status of the inputs.
The table on the right shows the sequence of
functions accessible in BASIC PROGRAMMING.
ADVANCED PROGRAMMING
To access ADVANCED PROGRAMMING, press the “F”
key and, as you hold it down, press the “+” key:
• If you release the “+”, the display indicates the
name of the first function.
• If you release the “F” key, too, the display
shows the value of the function that can be
modified with keys “+” and “—”.
• If you press the “F” key (and hold it down), the
display shows the name of the next function,
and if you release it, the value that can be
modified with keys “+” and “—”.
• When you reach the last function, press the “F”
key to exit the program, and the display
resumes showing the status of the inputs.
The table on page 21 shows the sequence of
functions accessible in ADVANCED PROGRAMMING.
BASIC PROGRAMMING
F
Display Function Default
O
PERATING LOGICS
A = Automatic (Timer to Close)
E = Semi Automatic
S = Security
EP = (Semi-Automatic) Step by Step
B = Manned, Pulsed
C = Manned, constant
P
AUSE TIME
This is the time between open and
closing and is adjustable from 0 to
4 min. This is only true in “A”
Mode. (see pause time description)
ORCE/TORQUE MOTOR 1
F
This adjusts the force / torque that
motor 1 is applying to the gate
leaf. Setting is 0 to 50.*
F
ORCE/TORQUE MOTOR 2
This adjusts the force / torque that
motor 2 is applying to the gate
leaf. Setting is 0 to 50.*
C
LOSING LEAF DELAY
Delays the closing of operator
wired into motor one outputs. Adjustable from 0 to 4 minutes
(Same as pause time)
M
OTOR RUN TIME
This enables where you choose
from “simple” learning or
“complete” learning of the motor
run time. See page 10 & 11 for
complete details.
Simple Learning
+
~ 1 s.
Complete Learning
+
> 3 s.
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
PROGRAM BUTTONS
+ -
LEFT MIDDLE RIGHT
F
* With Hydraulic operators the Force/Torque must be set to
the maximum setting of 50.
XIT PROGRAMMING
E
Exit from programming and return
to display of inputs status.
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Page 21

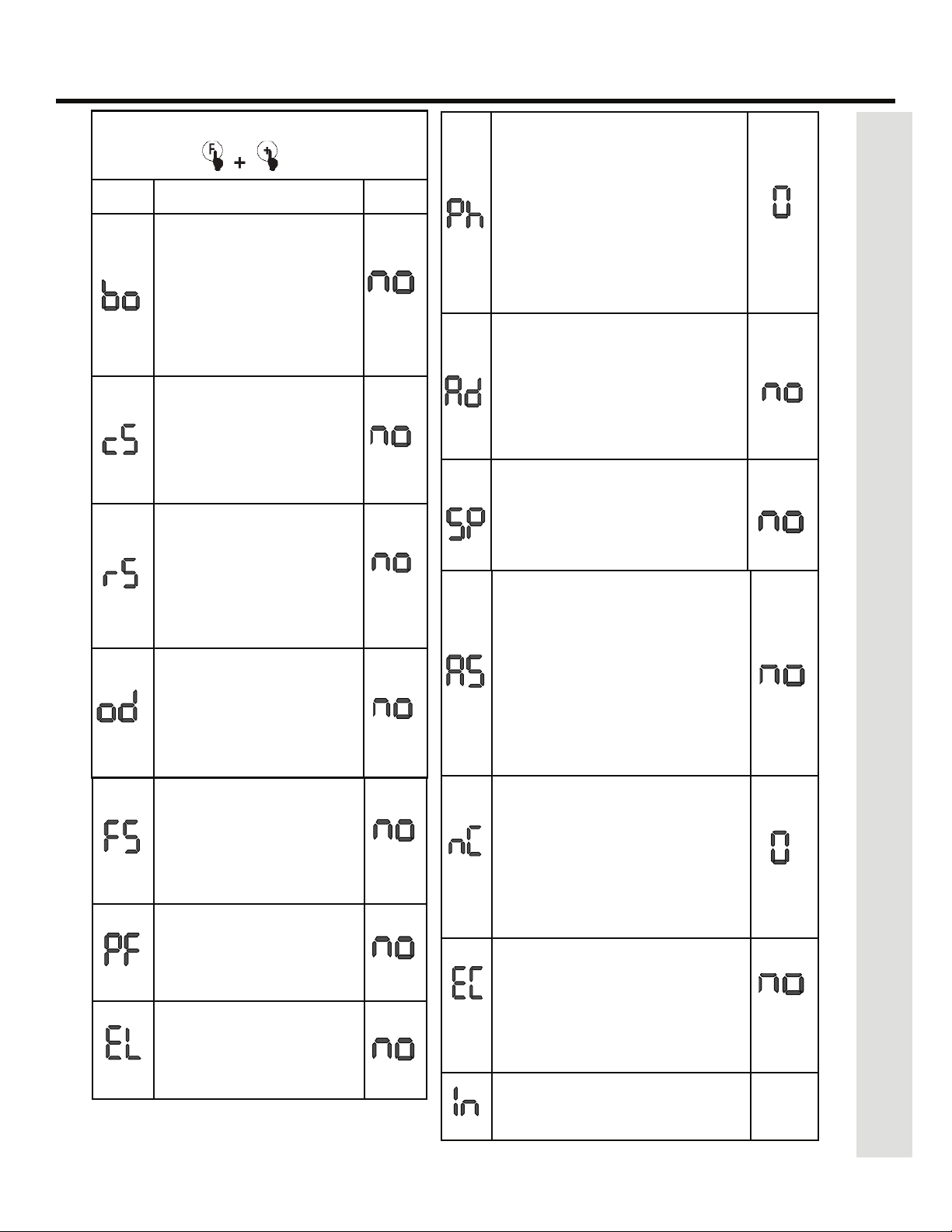

ADVANCED PROGRAMMING
Display Function Default
AXIMUM TORQUE AT INI-
M
TIAL
THRUST: The motors
operate at maximum
torque (ignoring the torque
setting) at start of movement. Useful for heavy
leaves.
L
The motors are activated at
full speed for 1s to facilitate locking of the electric
lock.
R
Before opening, while the
gate is closed, the motors
thrust to close for 2 s thus
facilitating release of the
electric lock.
L
(2
Enables delayed start of
leaf 2, avoiding interference between leaves.
F
If this function is activated,
it enables a function test of
the photocells before any
gate movement.
P
5s before start of movement.
E
For using the electric lock on
leaf 2 instead of on leaf 1.
Y = Enable
No = Disabled
AST STROKE AT CLOSING:
Y = Enable
No = Disabled
EVERSING STROKE:
Y = Enable
No = Disabled
EAF 2 OPENING DELAY
S):
Y = Enable
No = Disabled
AIL SAFE:
Y = Enable
No = Disabled
RE FLASHING (5S):
Y = Enable
No = Disabled
LECTRIC LOCK ON LEAF 2:
Y = Enable
No = Disabled
NDICATOR-LICHT:
I
If 0 is selected, the output functions as a standard indicator-light
(lit at opening and pause, flashing
at closing, and off when gate
closed). Time can be adjusted
from 0 to 59s in 1s increments,
and from 1.0 to 4.1 min. in 10s
steps.
0 = Standard Indicator-Light
From 1 to 4.1 = Timed Output
C
LOSING PHOTOCELLS REVERSE AT
RELEASE: Enable this function if
you want the closing photocells to
stop the gate and reverse it after
the beam is cleared. Default setting
is immediate reverse.
Y = Enable
No = Disabled
A.D.M.A.P. F
If this function is enabled, the
safety devices to comply with
French standard NFP 25/362.
SSISTANCE REQUEST (COMBINED
A
WITH NEXT FUNCTION): If acti-
vated, at the end of countdown
(settable with the next function, i.e.
“Cycle programming”) it effects 8s
of pre-flashing at every Open pulse
(job request). Can be useful for
setting scheduled maintenance
jobs.
YCLE PROGRAMMING:
C
For setting count down of system
operation cycles. Settable (in thousands) from 0 to 99 thousand cycles. The displayed value is updated as cycles proceed. This function can be used to check use of
the board or to exploit the
“Assistance Request” function
E
XTRA WORK TIME:
When operating, if reversing occurs,
and if the leaf does not reach its
end contact point, you can activate
this function to increase work time.
XIT PROGRAMMING:
E
Exit from programming.
UNCTION:
Y = Enable
No = Disabled
Y = Enable
No = Disabled
Y = ACTIVE
N
O = DISABLED
.
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
Page 22
January, 2004
412 Operator And
455 D Control Panel Installation Manual
LEARNING OF OPERATING TIMES
WARNING:
safety devices are disabled
all traffic must be avoided in the path of the gate
leaf(s).
During the learning procedure, the
! Therefore, any and
NOTE: Programming must start with the gate(s)
in the closed position.
Opening/closing time is established by the learning
procedure which varies slightly according to whether
you are or are not using Gatecoders.
LEARNING OF NORMAL TIMES
Normal learning (i.e. without Gatecoders) can be done
in two different ways:
SIMPLE LEARNING (WITHOUT SLOW DOWN)
Close the gates, enter “B
TIME LEARNING function and press the + push-button
for 1 second the display begins flashing and the
leaves begin the opening movement.
Wait for the leaves to reach the opening positive stop
and then supply an OPEN A command after the
desired motor run time has been reached (by pushbutton or radio control) to stop the movement: the
leaves stop and the display stops flashing. One more
command given will close the gate.
The procedure has ended and the gate is ready to
operate.
COMPLETE LEARNING (WITH SLOW DOWN)
NOTES:
If you do not wish to slow the gate operator
•
(s) down, wait for the gate to reach its
positive stop and supply two (2) consecutive
open commands (within 1 second).
• If only one gate operator (1) is used, you
must go through the entire programming
procedure, as if you were programming for
two gate operators (2). When the operator
has finished opening, supply 5 open
commands until the gate operator begins to
close, and then resume normal operations.
Close the gates, enter “B
TIME LEARNING function and press the + push-button
for more than 3 seconds: the display begins flashing
and leaf 1 begins opening. The following functions
can be commanded by the OPEN A (by push-button
wired to terminals 9 and 14, or radio control):
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
ASIC PROGRAMMING”, select the
ASIC PROGRAMMING”, select the
• When gate operator (1) reaches the position
that you want it to slow down, an open
command must be given to start the slow
down phase.
• When gate operator (1) reaches the positive
stop and the desired motor run time has
been reached, an open command must be
given to shut the motor off. At this point
gate operator (2) will automatically start to
open.
• When gate operator (2) reaches the position
that you want it to slow down, an open
command must be given to start the slow
down phase.
• When gate operator (2) reaches the positive
stop and the desired motor run time has
been reached, an open command must be
given to shut the motor off. At this point
gate operator (2) will automatically start to
close.
• When gate operator (2) reaches the position
that you want it to slow down, an open
command must be given to start the slow
down phase.
• When gate operator (2) reaches the positive
stop and the desired motor run time has
been reached, an open command must be
given to shut the motor off. At this point
gate operator (1) will automatically start to
close.
• When gate operator (1) reaches the position
that you want it to slow down, an open
command must be given to start the slow
down phase.
• When gate operator (1) reaches the positive
stop and the desired motor run time has
been reached, an open command must be
given to shut the motor off.
The display stops flashing and the gate is ready for
normal operation.
LEARNING TIMES WITH GATECODER
Learning with the Gatecoder can be done in two
different ways:
SIMPLE LEARNING
Close the gates, enter “Basic Programming”, select the
TIME LEARNING function and press the + push-button
for 1 second: the display begins flashing and the
leaves begin the opening movement.
The movement stops automatically when the opening
positive stop is reached and the display stops
flashing.
January, 2004
412 Operator And
455 D Control Panel Installation Manual
Page 23
The procedure has ended and the gate is ready to
operate, using default slow down automatically set
by the control panel.
COMPLETE LEARNING
NOTES:
• If only one gate operator (1) is used, you
must go through the entire programming
procedure, as if you were programming a
gate operator (2). When the gate operator
(1) has finished opening, supply 5 open
commands until the gate operator begins
to close, and then resume normal
operations.
Close the gates, enter “B
the TIME LEARNING function and press the + pushbutton for more than 3 seconds: the display begins
flashing and leaf 1 begins opening movement. The
following functions can be commanded by the OPEN
A command (by radio control or key push-button):
• When gate operator (1) reaches the
position that you want it to slow down, an
open command must be given to start the
slow down phase. When the gate operator
reaches its positive stop, the operator will
automatically shut off.
• An open command must be given to start
opening gate operator (2).
• When gate operator (2) reaches the
position that you want it to slow down, an
open command must be given to start the
slow down phase. When the gate operator
reaches its positive stop, the operator will
automatically shut off.
• An open command must be given to start
closing gate operator (2).
ASIC PROGRAMMING”, select
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
• When gate operator (2) reaches the position
that you want it to slow down, an open
command must be given to start the slow
down phase. When the gate operator reaches
its positive stop, the operator will
automatically shut off.
• An open command must be given to start
closing gate operator (1).
• When gate operator (1) reaches the position
that you want it to slow down, an open
command must be given to start the slow
down phase. When the gate operator reaches
its positive stop, the operator will
automatically shut off.
The display stops flashing and the gate is ready for
normal operation.
NOTES:
• The open command to slow down the gate
should be given before the gate reaches the
positive stop to prevent the gate from hitting
the stop at full speed. The positive stop could
be mistaken for an obstacle and then upon
hitting it, the gate(s) would automatically
reverse on contact.
AUTOMATED SYSTEM TEST
When you have finished programming, check if the
system is operating correctly.
Most important of all, check that the force is adequately
adjusted and that the safety devices are operating
correctly.
If pressure adjustments on hydraulic operators are not
set before programming. It may need to be
reprogrammed for desired results.
Page 24
January, 2004
412 Operator And
455 D Control Panel Installation Manual
A (Automatic) Logic (455 D)
Gate Status Open A Open B Stop Opening
Opens single leaf
connected to Motor
1 and closes it after
pause time
Interrupts the
pause time
No effect No effect No effect Off
Stops No effect
No effect
(opening is
inhibited)
Closed
Opening
Opened
Closing
Stopped
Opens both leaves
and closes them
after pause time
No effect No effect Stops
Interrupts the
pause time
Opens both leaves Opens leaf Stops No effect
Closes the leaves Closes the leaf
Reversing
Device(s)
Stops; gate closes
when reversing device no longer trig-
gered
No effect
S (Security) Logic (455 D)
Gate Status Open A Open B Stop Opening
Opens single leaf
connected to Motor
1 and closes it after
pause time
No effect No effect No effect Off
Closed
Opening
Opens both leaves
and closes them after
pause time
Closes both leaves Closes leaf Stops
Reversing
Device(s)
Stops; gate closes
when reversing device no longer trig-
gered
Closing
Reversing
Device(s)
No effect On
Gate remains open
until reversing devices
no longer triggered
Depends on DIP
switch 4
No effect
(opening is inhibited)
Closing
Reversing
Device(s)
No effect On
Warning
Light
On
Flashes
On
Warning
Light
Opened
Closing
Stopped
Closes both leaves Closes leaf Stops No effect
Opens both leave
Closes the leaves Closes the leaf
Opens leaf Stops No effect
No effect
(opening is
inhibited)
No effect
B (Manned, Pulsed) Logic (455 D)
Gate Status Open A Open B Stop Opening
Closed
Opens 1 or both
leaves
No effect No effect No effect No effect Off
Reversing
Device(s)
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
Opening
Opened
Closing
Stopped
No effect No effect Stops No effect Stops On
No effect
No effect No effect Stops Stops No effect Flashes
Opens 1 or both
leaves
Closes 1 or both
leaves
Closes 1 or both
leaves
No effect No effect No effect On
No effect No effect No effect On
Gate remains open
until reversing devices
no longer triggered
Depends on DIP
switch 4
No effect (opening is
inhibited)
Closing
Reversing
Device(s)
On
Flashes
On
Warning
Light
January, 2004
412 Operator And
455 D Control Panel Installation Manual
E (Semi-automatic) Logic (455 D)
Page 25
Gate Status Open A Open B Stop Opening
Closed
Opening
Opened
Closing
Stopped
Opens both leaves
Stops Stops Stops
Closes both leaves Closes leaf Stops No effect
Closes both leaves Closes leaf Stops
Closes the leaves Closes the leaf
Opens single leaf
connected to
Motor 1
No effect No effect No effect Off
No effect
(opening is
inhibited)
Reversing
Device(s)
Stops; gate closes
when reversing
device no longer
triggered
No effect
(opening is inhibited)
No effect
EP (Semi-automatic, Step by Step) Logic (455 D)
Gate Status Open A Open B Stop Opening
Closed
Opens both leaves Opens single leaf
connected to
Motor 1
No effect
(opening is in-
hibited)
Reversing
Device(s)
No effect
(opening is inhibited)
Closing
Reversing
Device(s)
No effect On
No effect
(opening is inhib-
ited)
Depends on DIP
switch 4
No effect
opening is inhib-
ited)
Closing
Reversing
Device(s)
No effect (opening
is inhibited)
Warning
Light
THE 455 D CONTROL PANEL INSTALLATION INSTRUCTIONS
On
Flashes
On
Warning
Light
Off
Opening
Opened
Closing
Stopped
Stops Stops Stops Stops; gate closes
Closes both leaves Closes leaf Stops No effect No effect (opening
Stops Stops Stops No effect
Gate leaves reverse
direction
Gate leaf reverses
direction
No effect
(opening is in-
hibited)
when reversing
device no longer trig-
gered
(opening is inhibited)
No effect
(opening is inhibited)
C (Manned and Constant) Logic (455 D)
Gate Status Open A Open B Stop Opening
Closed
Opening
Opened
Closing
Stopped
Opens 1 or
both leaves
No effect No effect Stops No effect Stops On
No effect Closes 1 or
No effect No effect Stops Stops No effect Flashes
Opens 1 or
both leaves
No effect No effect No effect No effect Off
both leaves
Closes 1 or
both leaves
No effect No effect No effect On
No effect No effect No effect On
Reversing
Device(s)
No effect On
is inhibited)
Depends on DIP
switch 4
No effect
(opening is inhib-
ited)
Closing
Reversing
Devices(s)
On
Flashes
On
Warning
Light
Page 26
January, 2004
412 Operator And
455 D Control Panel Installation Manual
MAINTENANCE
THE 412 OPERATOR
The FAAC 412 Operator requires no maintenance.
Periodically inspect the operator, however, to ensure
continued proper operation.
SAFETY IN GATE DESIGN
• A gate is a potential traffic hazard, so it is
important that you locate the gate far enough
away from the road to eliminate the potential
of traffic getting backed up. This distance is
affected by the size of the gate, how often it is
used, and how fast the gate operates.
• The operator you choose to install on your
gate must be designed for the type and size of
your gate and for the frequency with which you
use the operator.
• Your gate must be properly installed and must
work freely in both directions before the
automatic operator is installed.
• An automatic operator should be installed on
the inside of the property/fence line. Do not
install the operator on the public side of the
property/fence line.
• Outward swinging gates with automatic
operators should not open into a public area.
THE 455 D CONTROL PANEL
Keep the Control Panel free from spider webs, insects,
etc. Otherwise the Control Panel requires no
maintenance.
• Pedestrians should not use a vehicular gate
system. Prevent such inappropriate use by
installing separate gates for pedestrians.
• The operating controls for an automatic gate
must be secured to prevent the unauthorized
use of those controls.
• The controls for an automatic gate should be
located far enough from the gate so that a
user cannot accidentally touch the gate when
operating the controls.
• Exposed, reachable pinch points on a gate are
potentially hazardous and must be eliminated
or guarded.
• It is extremely unsafe to compensate for a
damaged gate by over tightening a clutch or
increasing hydraulic pressure.
• An automatic gate operator should not be
installed on a gate if people can reach or
extend their arms or legs through the gate.
Such gates should be guarded or screened to
January, 2004
412 Operator And
455 D Control Panel Installation Manual
TROUBLESHOOTING
WARNING! Before you do any work on the control panel,
be sure to turn off the main power.
NOTE: Any control panel specific information in the following applies to the 455 D control panel only.
Page 27
PROBLEM: THE GATE DOES NOT RESPOND TO
AN ACTIVATING SIGNAL.
SOLUTION:
You should have at least one operator wired to
terminals 1,2 and 3.
Be sure that you have the motor start capacitors wired in
terminals 2 and 3, 5 and 6 with the directional leads.
Be sure that the torque/force setting is at the maximum
setting of 50 in programming for hydraulic operations.
Verify that the LEDs FSWOP, FSWCL, and the STOP are
illuminated. If they are not illuminated, be sure that you
have closed circuits in the stop and reversing inputs.
Verify that your activating device works properly. OP_A
should illuminate when you signal the gate to open. If
OP_A does not illuminate when you signal the gate, then
the problem may be in your activating device. Short
across terminals 9 and 14. If the short causes the gate
to open, then the problem is in the activating device.
Repair or replace the device
.
PROBLEM: THE GATE DOESN'T OPEN (OR CLOSE)
THOUGH THE MOTORS ARE RUNNING.
SOLUTION:
Make sure that the motor is running in the right
direction, and make sure the Manual Release
mechanism has fully engaged the system.
PROBLEM: THE GATE OPENS BUT DOES NOT
CLOSE.
SOLUTION:
Make sure you have selected the desired operating
mode.
Verify that the reversing devices are working properly.
FSWOP and FSWCL should be illuminated except when a
reversing device is triggered. If either does not
illuminate, then one of your reversing devices is
preventing the gate from responding to your signal.
Check your reversing devices.
If no reversing devices are installed, make sure a circuit
is installed between appropriate terminals.
PROBLEM: THE GATE DOES NOT FULLY OPEN
(OR CLOSE).
SOLUTION:
Check the operator's open/close time selection. You
should set a time that is just longer than the rated
speed of your model of operator. For example, because
the 412 CBAC has a rated opening time of 13 sec, you
should set the time at 20 or 25 seconds.
Check to see that there are no obstructions in the path
of the gate or that the hinges are not binding.
PROBLEM: THE OPERATOR DOESN'T WORK
SMOOTHLY AND THE GATE JERKS AS IT OPENS
AND CLOSES.
SOLUTION:
Make sure the Manual Release Mechanism has fully
engaged the worm screw operation of the operator.
Make sure that a flexible gate leaf is not the problem. If
the gate leaf flexes, then stiffen the gate or use a slower
operator.
January, 2004
412 Operator And
455 D Control Panel Installation Manual
LIMITED WARRANTY
Page 28
To the original purchaser only: FAAC International,
Inc., warrants, for twenty-four (24) months from the
date of invoice, the gate operator systems and other
related systems and equipment manufactured by FAAC
S.p.A. and distributed by FAAC International, Inc., to be
free from defects in material and workmanship under
normal use and service for which it was intended
provided it has been properly installed and operated.
FAAC International, Inc.'s obligations under this
warranty shall be limited to the repair or exchange of
any part of parts manufactured by FAAC S.p.A. and
distributed by FAAC International, Inc. Defective
products must be returned to FAAC International, Inc.,
freight prepaid by purchaser, within the warranty
period. Items returned will be repaired or replaced, at
FAAC International, Inc.'s option, upon an examination
of the product by FAAC International, Inc., which
discloses, to the satisfaction of FAAC International, Inc.,
that the item is defective. FAAC International, Inc. will
return the warranted item freight prepaid. The products
manufactured by FAAC S.p.A. and distributed by FAAC
International, Inc., are not warranted to meet the
specific requirements, if any, of safety codes of any
particular state, municipality, or other jurisdiction, and
neither FAAC S.p.A. or FAAC International, Inc., assume
any risk or liability whatsoever resulting from the use
thereof, whether used singly or in combination with
other machines or apparatus.
Any products and parts not manufactured by FAAC
S.p.A. and distributed by FAAC International, Inc., will
carry only the warranty, if any, of the manufacturer. This
warranty shall not apply to any products or parts thereof
which have been repaired or altered, without FAAC
International, Inc.'s written consent, outside of FAAC
International, Inc.'s workshop, or altered in any way so
as, in the judgment of FAAC International, Inc., to affect
adversely the stability or reliability of the product(s) or
has been subject to misuse, negligence, or accident, or
has not been operated in accordance with FAAC
International, Inc.'s or FAAC S.p.A.'s instructions or has
been operated under conditions more severe than, or
otherwise exceeding, those set forth in the
specifications for such product(s). Neither FAAC S.p.A.
or FAAC International, Inc., shall be liable for any loss or
damage whatsoever resulting, directly or indirectly,
from the use or loss of use of the product(s). Without
limiting the foregoing, this exclusion from liability
embraces a purchaser's expenses for downtime or for
making up downtime, damages for which the purchaser
may be liable to other persons, damages to property,
and injury to or death of any persons. Neither FAAC
S.p.A. or FAAC International, Inc., assumes nor
authorizes any person to assume for them any other
liability in connection with the sale or use of the
products of FAAC S.p.A. or FAAC International, Inc. The
warranty hereinabove set forth shall not be deemed to
cover maintenance parts, including, but not limited to,
hydraulic oil, filters, or the like. No agreement to replace
or repair shall constitute an admission by FAAC S.p.A. or
FAAC International, Inc., of any legal responsibility to
effect such replacement, to make such repair, or
otherwise. This limited warranty extends only to
wholesale customers who buy directly through FAAC
International, Inc.'s normal distribution channels. FAAC
International, Inc., does not warrant its products to end
consumers. Consumers must inquire from their selling
dealer as to the nature and extent of that dealer's
warranty, if any.
This warranty is expressly in lieu of all other
warranties expressed or implied including the warranties of merchantability and fitness for use. This
warranty shall not apply to products or any part
thereof which have been subject to accident, negligence, alteration, abuse, or misuse or if damage was
due to improper installation or use of improper
power source, or if damage was caused by fire, flood,
lightning, electrical power surge, explosion, wind
storm, hail, aircraft or vehicles, vandalism, riot or
civil commotion, or acts of God.
FAAC International, Inc.
303 Lexington Avenue
Cheyenne, WY 82007
www.faacusa.com
Loading...
