F4Devices FORGE F4 tech User Manual

1"

"

" " "

"

"

"

"

"

FORGE

HANDHELD USER

MANUAL

"

"

"

"

"

"

"

"

"

"

"

"

"

2"

"

" " "

Table of Contents

Chapter 1"....................................................................................................................................................."6"

Getting Started"........................................................................................................................................."6"

Identifying Hardware Components"......................................................................................................"6"

Front of Device"................................................................................................................................"6"

Keypad"............................................................................................................................................."8"

Top View"........................................................................................................................................."9"

Back of Device"................................................................................................................................"9"

Base"..............................................................................................................................................."10"

Preparing your Device"........................................................................................................................"11"

Installing the Battery and SIM Card (select models)"...................................................................."11"

Connecting to A/C Power/Charging the Battery"............................................................................"13"

Initial Startup"................................................................................................................................."14"

Syncing Device to Your PC"..............................................................................................................."14"

Installing ActiveSync and WMDC"................................................................................................"15"

User Options"......................................................................................................................................" 16"

Using the MicroSD card"................................................................ ................................................"16"

Using the Ultrasonic Ranging Module".............................................................................................."17"

Chapter 2"..................................................................................................................................................."17"

The Basics"............................................................................................................................................."17"

Powering On/Off"..............................................................................................................................."17"

Power Saving"....................................................................................................................................."17"

Turning the backlight on/off".........................................................................................................."17"

Suspend Mode"..............................................................................................................................."18"

On-Screen Navigation"......................................................................................................................."18"

Using the Stylus"............................................................................................................................."18"

Home Screen"....................................................................................................................................."19"

Portrait/Landscape View"..............................................................................................................."20"

Navigation Bar"..............................................................................................................................."20"

Tool Bar"........................................................................................................................................."20"

Programs"............................................................................................................................................"21"

Notifications".................................................................................................................................."21"

Entering Information into Your Device"............................................................................................."21"

3"

"

" " "

Writing on the Screen"...................................................................................................................."22"

Drawing on the Screen"..................................................................................................................."22"

Recording a Message"....................................................................................................................."23"

Securing Your Device"........................................................................................................................"24"

Securing Your Device with a Password"........................................................................................."24"

Chapter 3"..................................................................................................................................................."25"

Device Management".............................................................................................................................."25"

Power Management"..........................................................................................................................."25"

Low Battery Signals/Actions"........................................................................................................."25"

Power-Saving Tips"............................................................................................................................"26"

Customizing Your Device"................................................................................................................."27"

Chapter 4"..................................................................................................................................................."28"

Microsoft Pocket Outlook"......................................................................................................................"28"

Calendar: Scheduling Appointments and Meetings"..........................................................................." 28"

Creating an Appointment"..............................................................................................................."29"

Using the Calendar Summary Screen"............................................................................................"30"

Contacts: Tracking Friends and Colleagues"......................................................................................."30"

Creating a Contact"........................................................................................................................."30"

Tasks: Keeping a To-Do List"............................................................................................................."30"

Creating a Task".............................................................................................................................."30"

Notes: Capturing Thoughts and Ideas"................................................................................................"31"

Creating a Note".............................................................................................................................."31"

Email: Sending and Receiving Email Messages"................................................................................"31"

Synchronizing Email Messages"....................................................................................................."31"

Connecting Directly to an Email Server"........................................................................................"32"

Using the Message List".................................................................................................................."32"

Composing /Sending an Email"......................................................................................................"32"

Managing Email Messages and Folders"........................................................................................"33"

Chapter 5"..................................................................................................................................................."34"

More Programs"......................................................................................................................................"34"

ActiveSync/WMDC"..........................................................................................................................."34"

Synchronizing Data"......................................................................................................................."35"

Office Mobile"...................................................................................................................................."35"

4"

"

" " "

Creating an Office File".................................................................................................................."36"

Opening an Office File".................................................................................................................."36"

Internet Explorer"................................................................................................................................"37"

Browsing the Internet"...................................................................................................................."37"

Windows Live Messenger"................................................................................................................."38"

Setting up Windows Live".............................................................................................................."39"

Signing into Messenger"................................................................................................................."39"

Windows Media Player"......................................................................................................................"39"

Pictures & Videos".............................................................................................................................."40"

Viewing Pictures & Videos"..........................................................................................................."40"

Camera"..............................................................................................................................................."41"

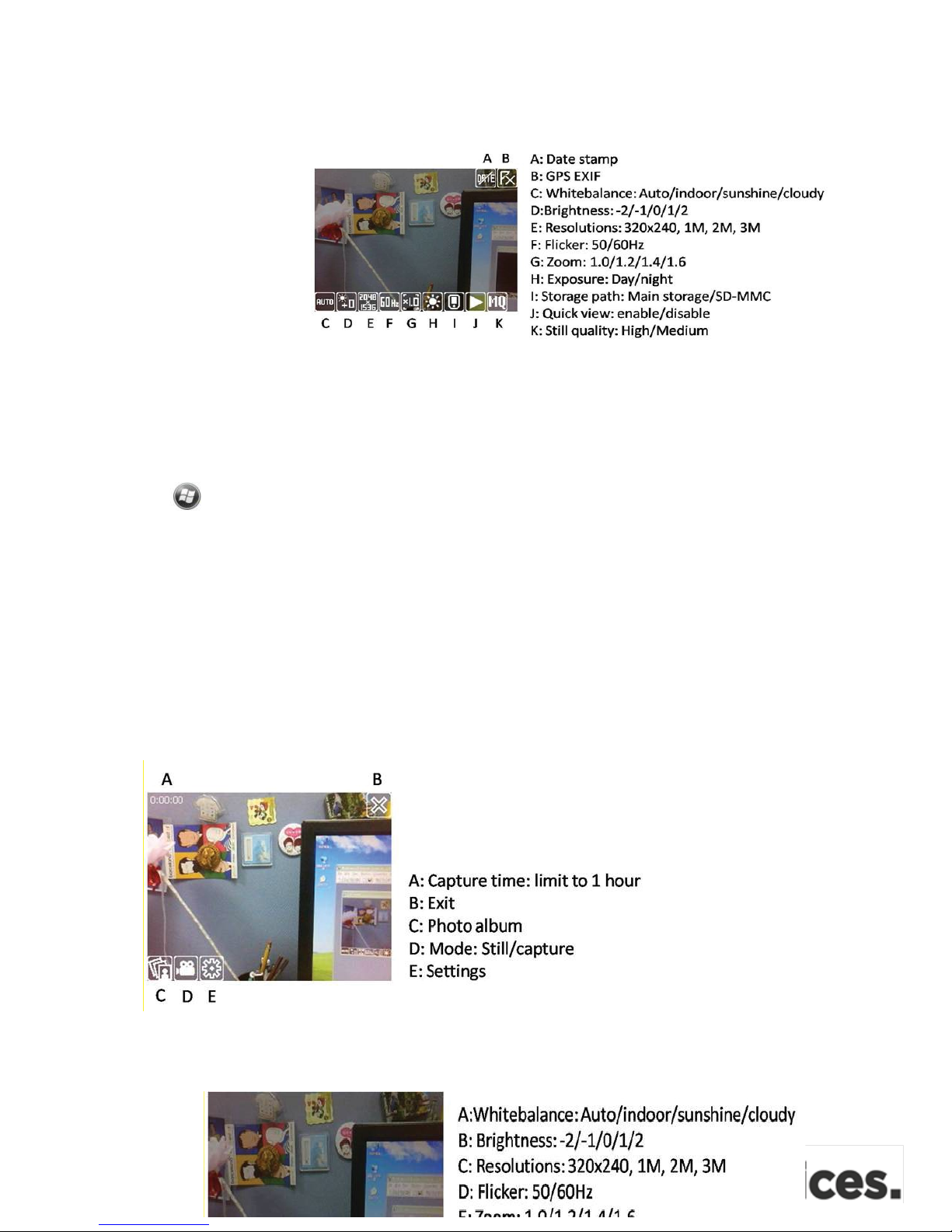

Taking Pictures".............................................................................................................................."41"

Recording Video Clips".................................................................................................................."42"

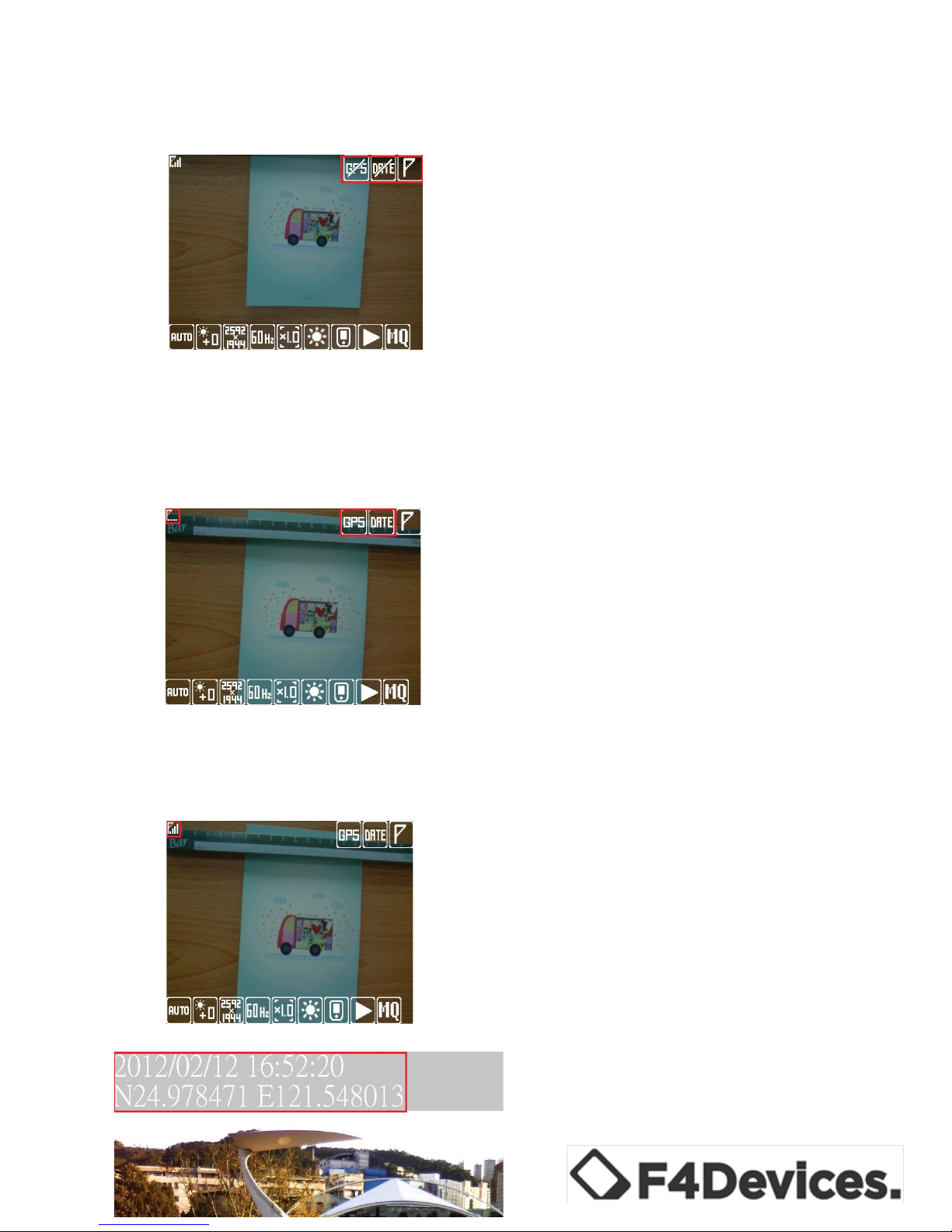

Geotagging"...................................................................................................................................."43"

Chapter 6"..................................................................................................................................................."45"

Getting Connected"................................................................................................................................."45"

Types of Connections"........................................................................................................................" 45"

Setting up a Cellular (HSDPA) Connection".................................................................................."45"

Searching and Organizing Information".............................................................................................."47"

Remote Desktop"................................................................................................................................"47"

Setting up a Dial-up Connection"...................................................................................................."49"

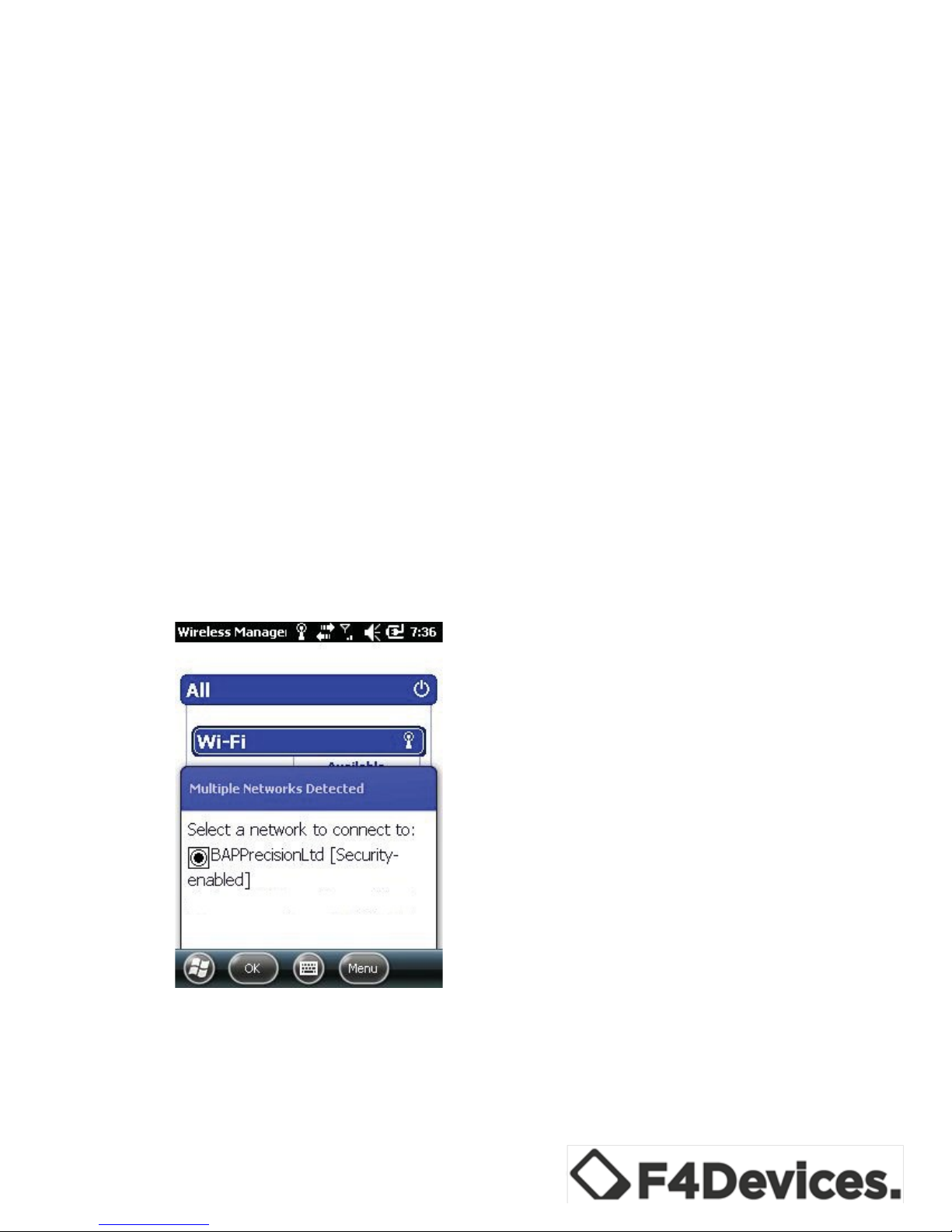

Using a Wireless Network"................................................................................................................."49"

Switching On or Off the Wi-Fi Radio"............................................................................................"49"

Using Bluetooth"................................................................................................................................."51"

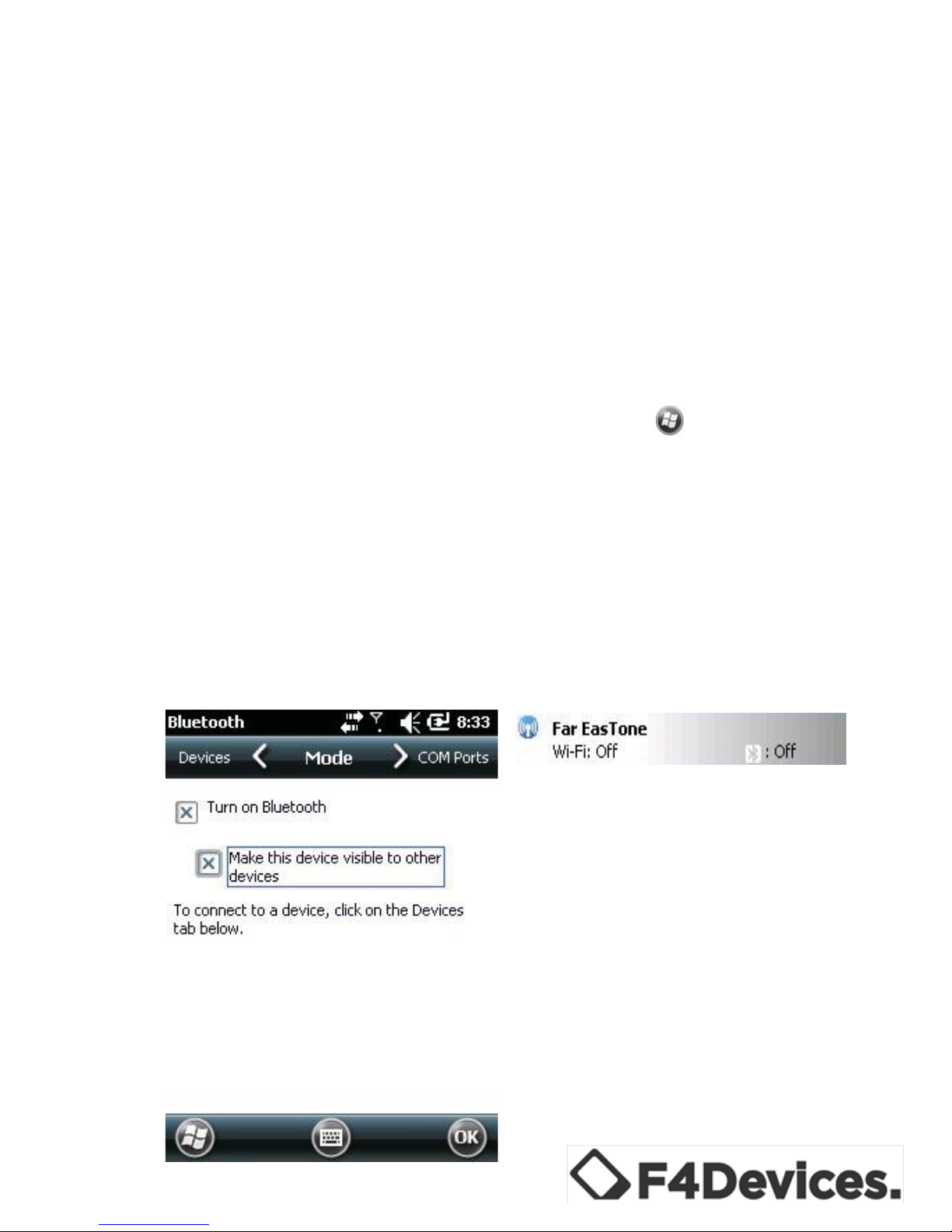

Switching On or Off the Bluetooth"................................................................................................"52"

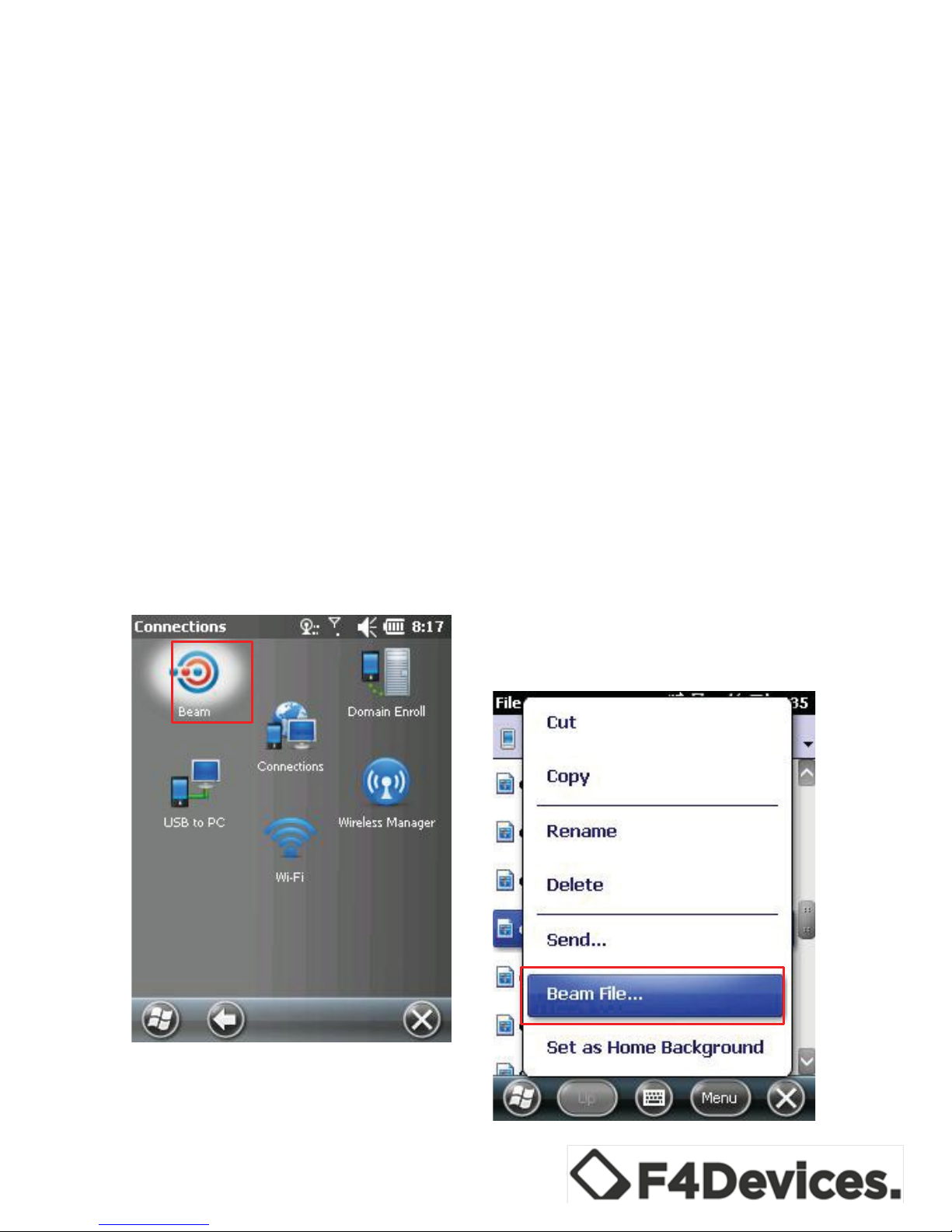

Sending Files Via Bluetooth".........................................................................................................."53"

Receiving Files Via Bluetooth"......................................................................................................."54"

Creating a Bluetooth Partnership"..................................................................................................."54"

Chapter 7"..................................................................................................................................................."55"

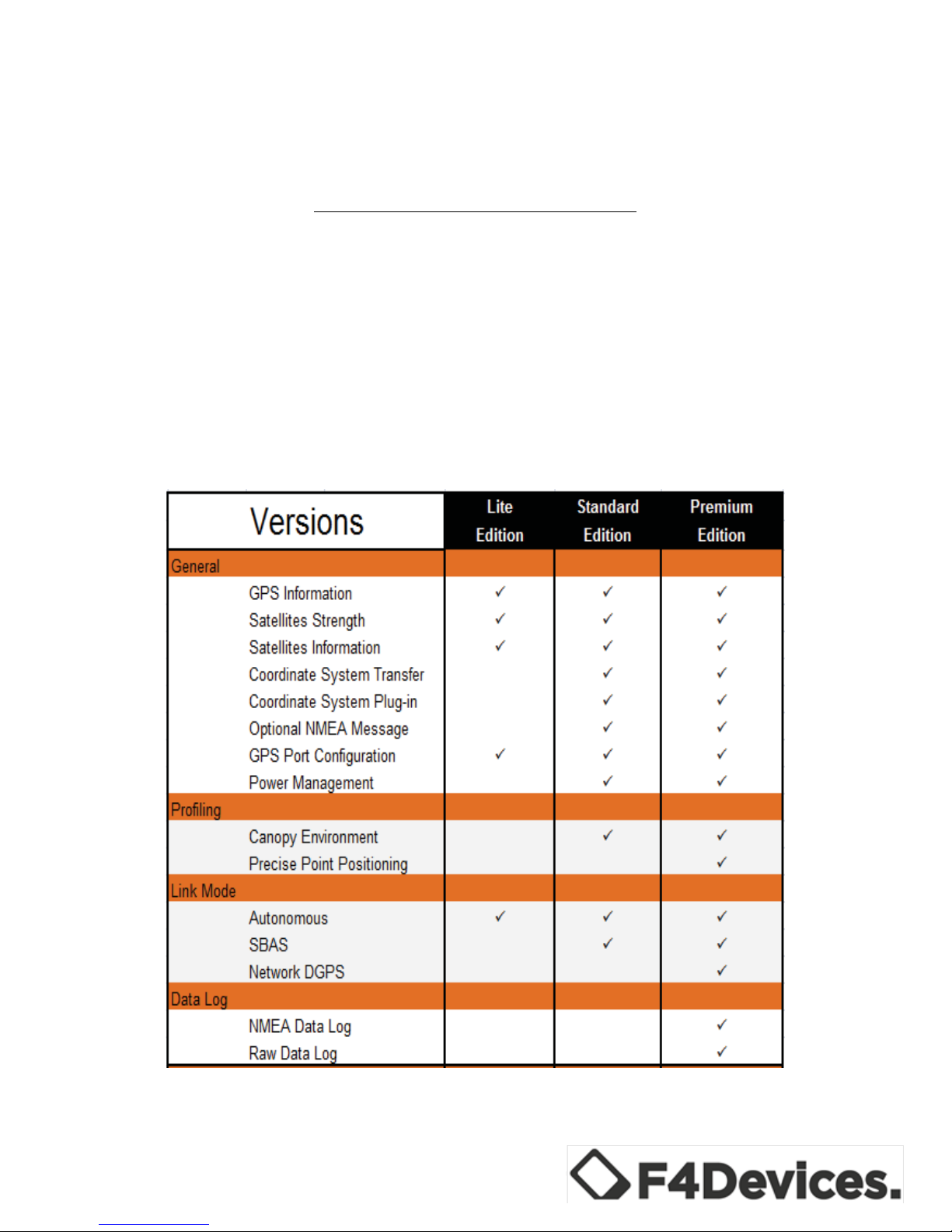

GeoAssist Software"..............................................................................................................................."55"

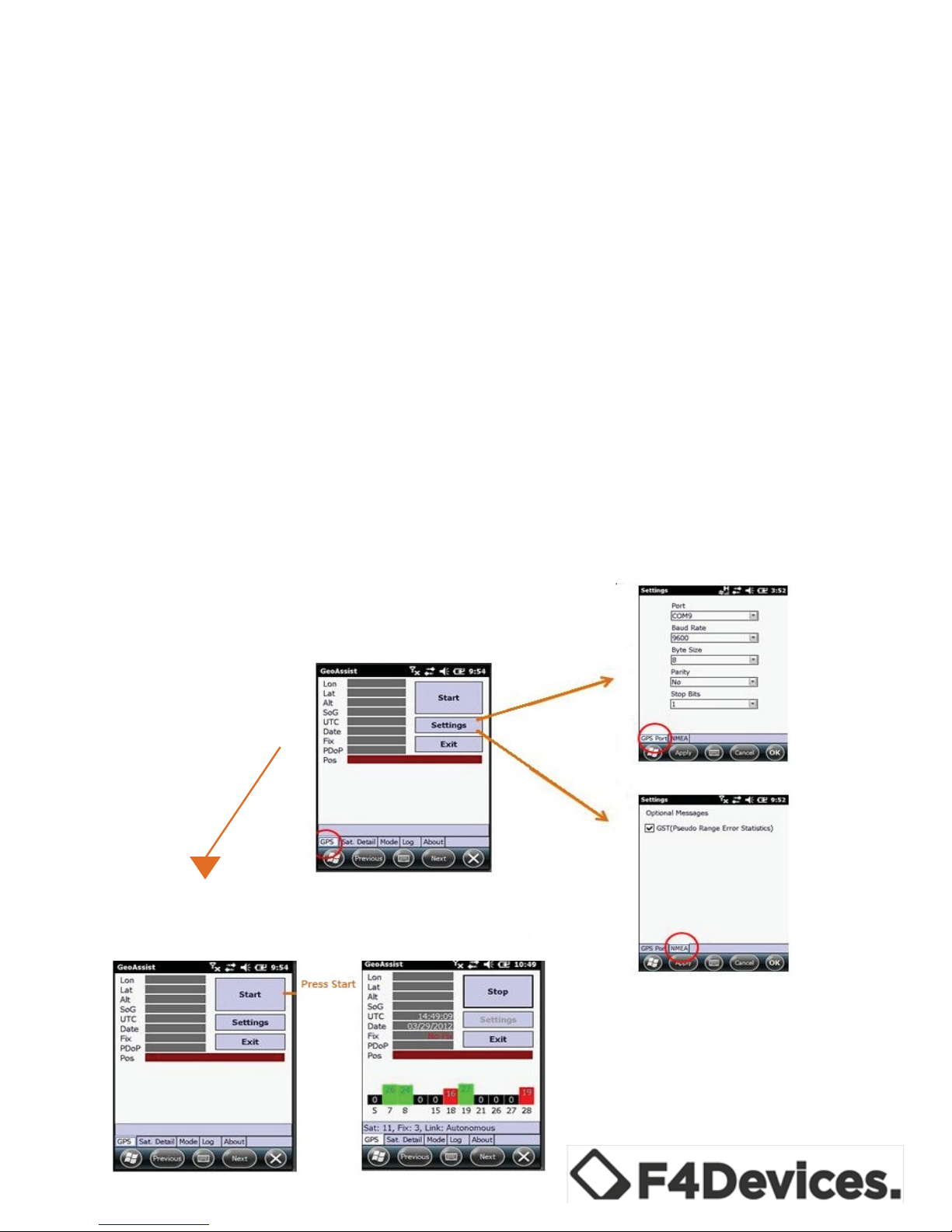

Starting GeoAssist"............................................................................................................................."55"

GeoAssist Settings"............................................................................................................................."56"

GPS Tab"........................................................................................................................................."56"

5"

"

" " "

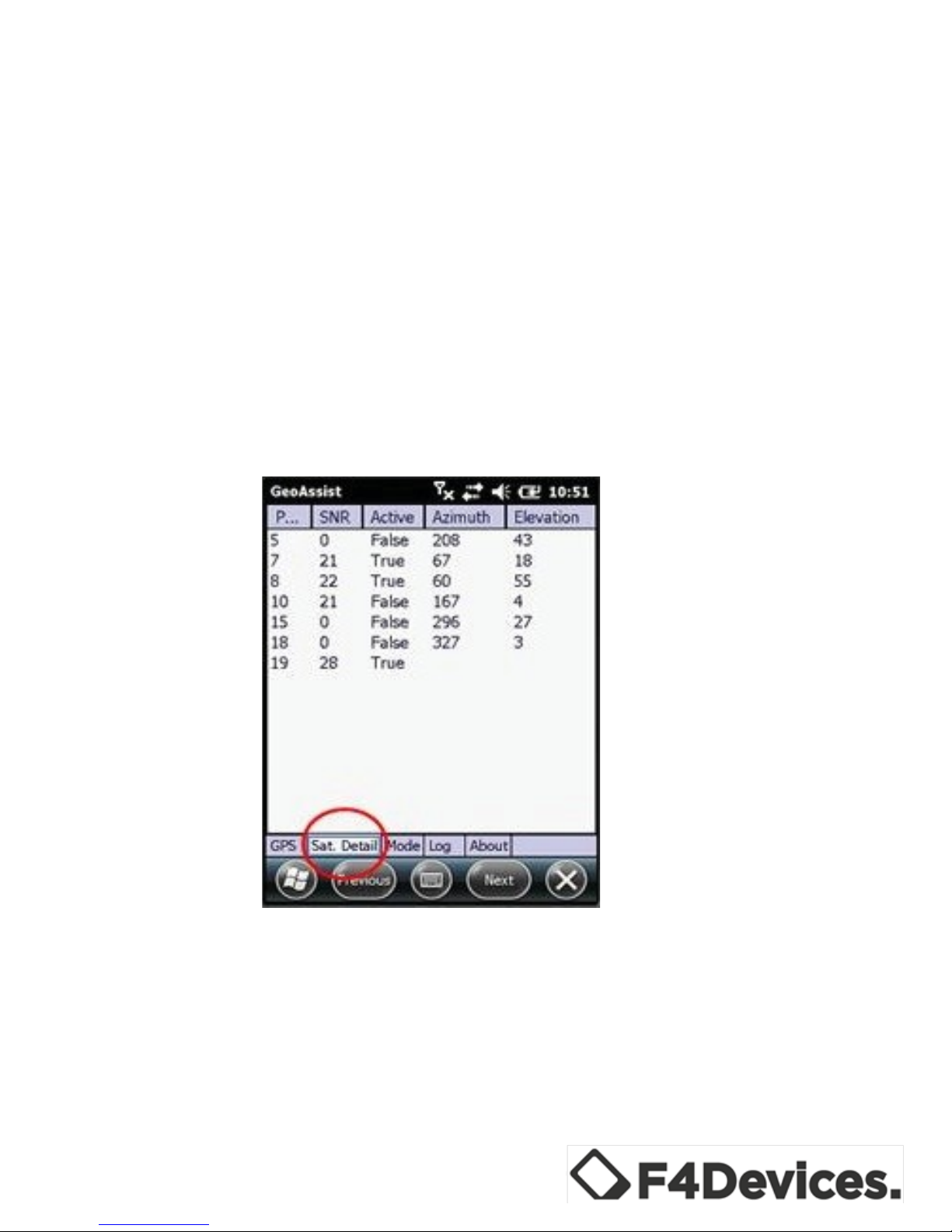

Satellite Detail Tab"........................................................................................................................"57"

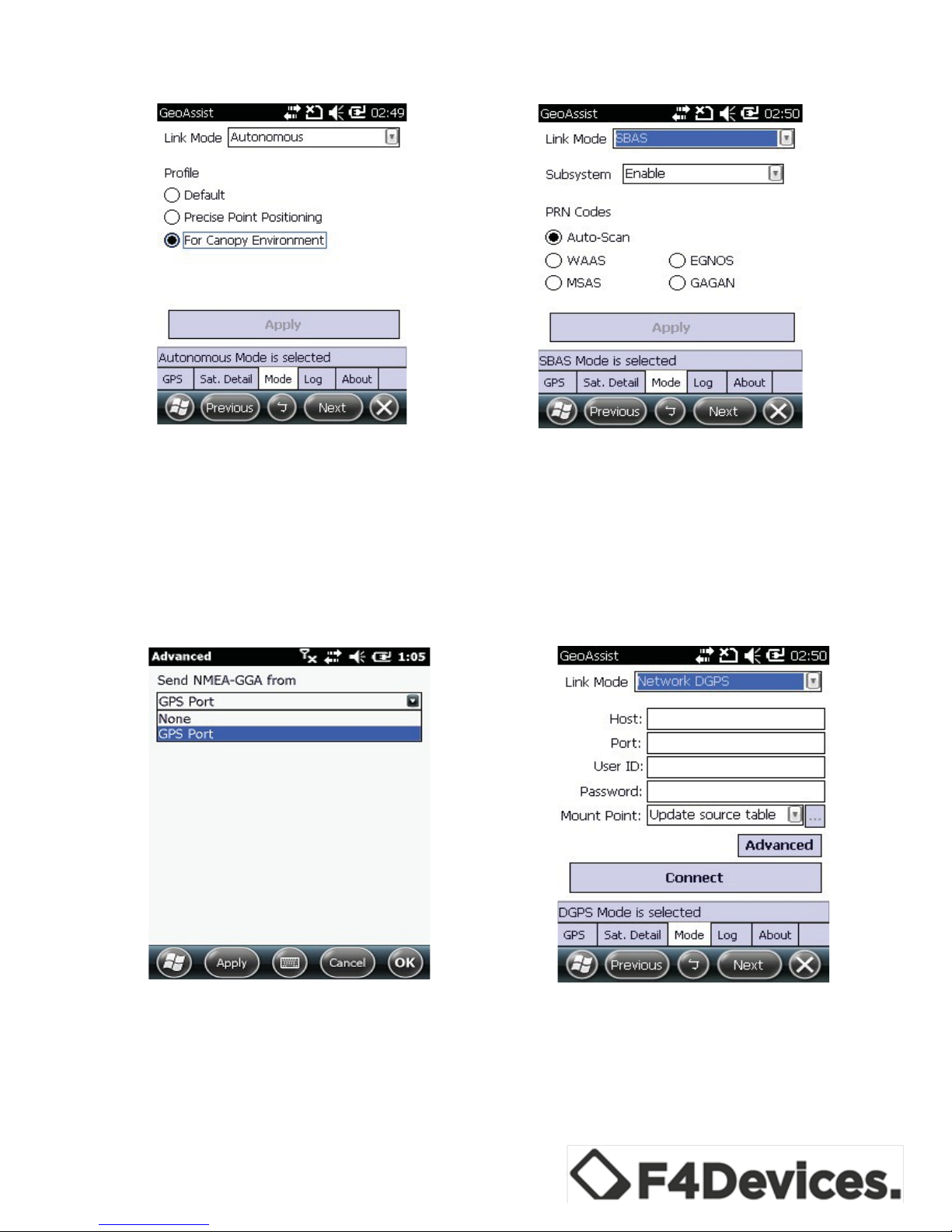

Use Mode Tab"..............................................................................................................................."58"

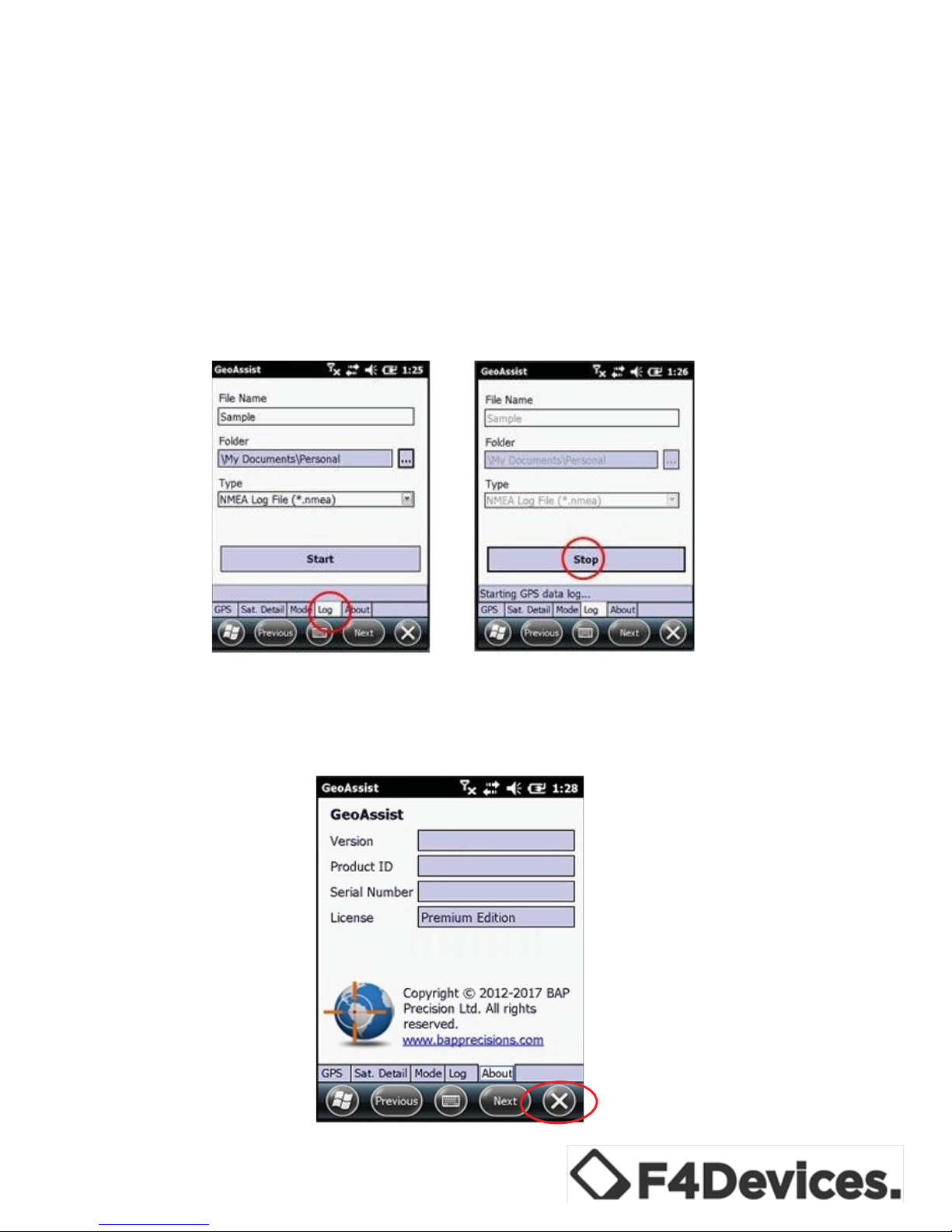

Log Tab"........................................................................................................................................."60"

About Tab"......................................................................................................................................"60"

Chapter 8"..................................................................................................................................................."61"

Recommended Settings"........................................................................................................................."61"

GPS Settings and Best Practices"........................................................................................................" 61"

Handheld and Best Practices".............................................................................................................."61"

Chapter 9"..................................................................................................................................................."62"

Troubleshooting & Maintenance"..........................................................................................................."62"

Resetting Your Device"......................................................................................................................."62"

Restoring Device to Factory Settings"................................................................................................"63"

Troubleshooting"................................................................................................................................."64"

Caring for Your Device"....................................................................................................................."66"

Chapter 10"................................................................................................................................................."67"

Safety Precautions"................................................................................................................................."67"

About Charging"................................................................................................................................."67"

About the Charger"............................................................................................................................."67"

About the Battery"..............................................................................................................................."68"

FCC Warning"....................................................................................................................................."68"

Chapter 11"................................................................................................................................................."69"

Echo Distance Module (Select Models)"................................................................................................"69"

Clinometer (Select Models)"..................................................................................................................."73"

"

"

" "

6"

"

" " "

Chapter 1

Getting Started

Identifying Hardware Components

Front of Device

1

2

3

6

5

4

7"

"

" " "

Ref Component

Description

1.

LED1 Indicator

LED1: System Notification and Battery Status Indication

Blinking Green displays charging battery

Solid Green displays full battery

Blinking Red displays low battery

Solid Red displays faulty battery

Alternating Green and Amber displays charging battery with
Windows notifications

Alternating Red and Amber displays low battery with Windows
notifications

Alternating Amber and Green displays full battery with Windows
notifications

Alternating Amber and Red displays faulty battery with Windows
notifications

2.

LED2 Indicator

LED2: Status Indication for Integrated Module

3.



Touch Screen

Video display that responds to finger taps and gestures

4.



Microphone

Voice recorder

5.



Reset

Resets the device

6.



Keypad

See “Keypad” section for details

8"

"

" " "

Keypad

Ref Component

Description

1.

Navigation

Navigates options in 4 directions, center button selects option

2.

Function Keys

F1 ~ F7 Function keys are multi-purpose keys that perform functions

defined by individual API

3.

Back Tab Key

Backspace key

4.

Front Tab Key

Forward delete key

5.

Power Button

Turns device on and off

6.

Start Menu

Opens Start Menu

7.

Numeric Keys

12 key numeric keys is embedded in the typewriter keys

8.

Camera Button

Press to take a photo

9.

Num Lock

Pressing this key toggles the Num Lock on and off. When on, the Num Lock
activates the numeric keys

1

2

3

5

6

4

7

8

9

9"

"

" " "

Top View

1

2

3

4

5

6

7

8

2

9

Back of Device

10"

"

" " "

Top View/Back of Device

Base

"

"

Component

Description

1.

Ultrasonic Cover

Covers and protects ultrasonic

2.

Hand Strap hole

Install hand strap

3.

LED flash light

Flashlight

4.

Camera

Takes pictures and records video

5.

Stylus

Used to input information and select options on the
touch screen

6.

External GPS
Antenna

Allows for use of optional external antenna. Antenna
may be placed on top of a vehicle/building to gain
greater reception

7.

Speaker

Plays music, sounds and voices

8.

Battery Cover
Screw

Locks the battery cover

9.

Battery Cover

Covers and protects battery

Ref Component

Description

1.

Power Connector

Allows for battery charging through an A/C adapter

2.

USB OTG (Host & Client)
Connector

Allows for USB connection

11"

"

" " "

Preparing your Device

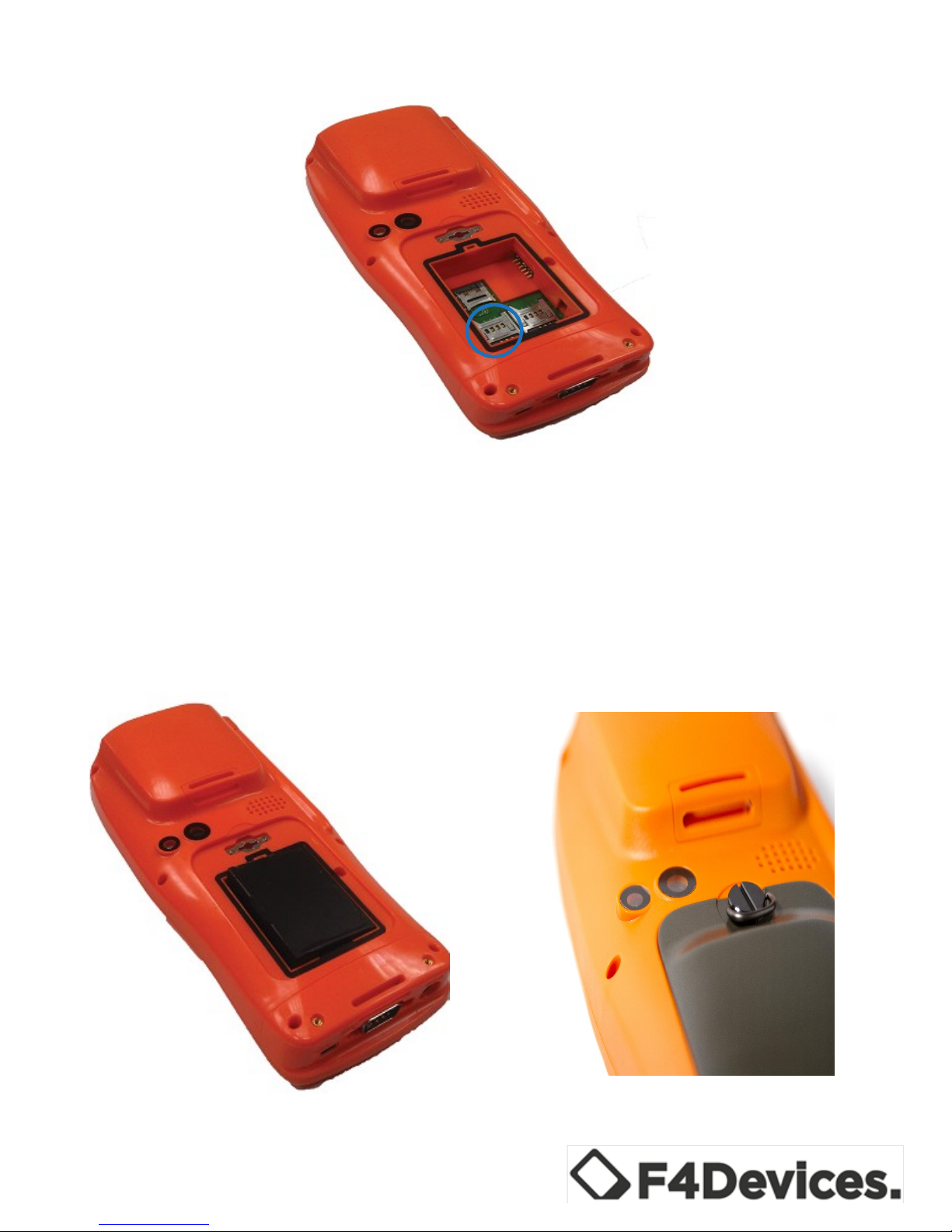

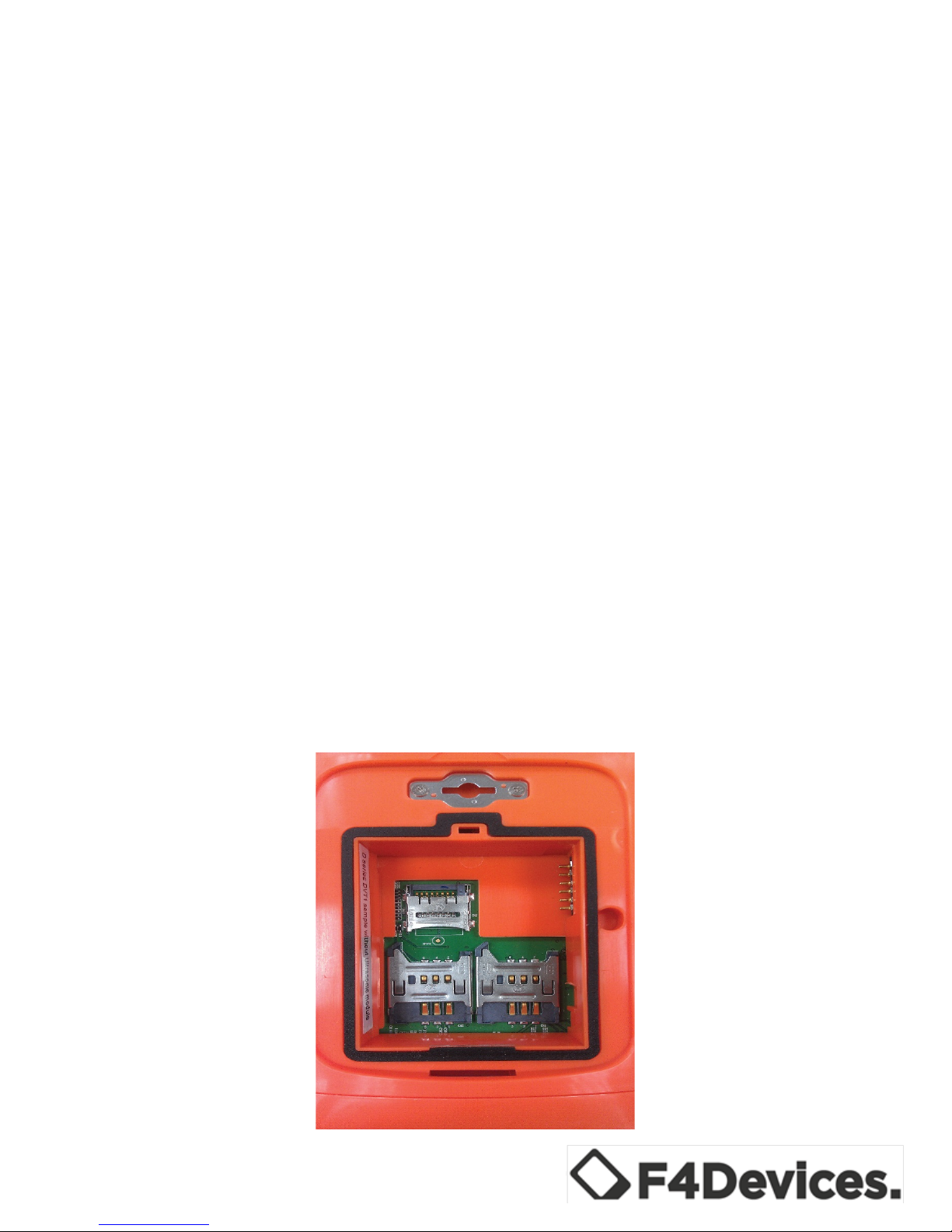

Installing the Battery and SIM Card (select models)

1. Detach the battery cover from device.

2. If your model has the 3.5G capability, you will need to

3.

UART(RS232) Connector

Connects to a RS232 device

12"

"

" " "

install the SIM card provided by your mobile provider and
insert the SIM card into the slot, then push to lock.

3. To remove the SIM card, slide to open, then remove card.

4. To install the battery, insert the connector side of the
battery first, then secure the connection.

13"

"

" " "

5. Attach the battery cover to the device.

Connecting to A/C Power/Charging the Battery

•

Fully charge battery before initial use of your device

•

Connect the converter to the A/C charger.

•

The LED indicator will blink green when the battery is
charging. Do not disconnect your device from A/C power
until the battery is fully charged. This may take a couple of
hours.

For Optimal Performance:

• Only use the included A/C charger.

• The lithium battery does NOT need to be fully discharged

before next charging.

• Do NOT charge the battery in high temperatures (i.e. direct
sunlight).

• The battery MUST be fully charged at least once every two
weeks even if the device is not in use. Over-discharge of
the battery creates negative battery performance.

• The battery will also charge if the device is connected via
USB to a computer.

14"

"

" " "

Initial Startup

• Connect the device to A/C power or make sure the battery
has been fully charged.

• Turn on device by pressing the Power button.

• Select the language you prefer to use.

• Follow the Setup Wizard’s on screen instructions.

o If a SIM card has been inserted and the 3.5G network
provider has set the PIN, you will be prompted to
enter PIN.
o Once Setup is complete, the Home screen will appear.
The device is now ready for use.

Syncing Device to Your PC

Your device can connect and synchronize data with a Windows­based computer through ActiveSync and Windows Mobile
Device Center (WMDC). ActiveSync is compatible with
Windows XP. WMDC is only compatible with Windows Vista
or Windows.

ActiveSync and WMDC act as gateways between your device
and your computer. They allow for transferring Outlook email,
appointments, contacts, and tasks as well as media (i.e. pictures,
music, and videos).

15"

"

" " "

Installing ActiveSync and WMDC

• Before installation, make sure Microsoft Outlook is

installed on your computer.

• Be sure to install ActiveSync or Windows Mobile Device

Center before connecting to your device.

• For Windows XP, download and install ActiveSync.

• For Windows Vista or Windows 7, download and install

Windows Mobile Device Center. Visit the Microsoft
website to download the program and to obtain operating
instructions: http://www.microsoft.com.

• ActiveSync connection problems may occur in some cases.

Likely causes include:

o Interoperability with firewall applications
o Network management applications
o For troubleshooting information, visit the

Microsoft website: http://www.microsoft.com.

•

After software installation is complete, connect your device
to your computer via the USB cable. The device is now
ready to be synchronized.

16"

"

" " "

User Options

Using the MicroSD card

The device supports micro Secure Digital (microSD). Use the
following steps to insert a microSD card:

•

Detach the battery cover from device.

•

Remove the battery.

•

Insert the card into the slot.

•

Re-insert the battery.

•

Re-attach the battery cover to device.

Make sure the microSD card slot is free of debris and always
store microSD card in a protective case to avoid heat, dust, &
humidity.

17"

"

" " "

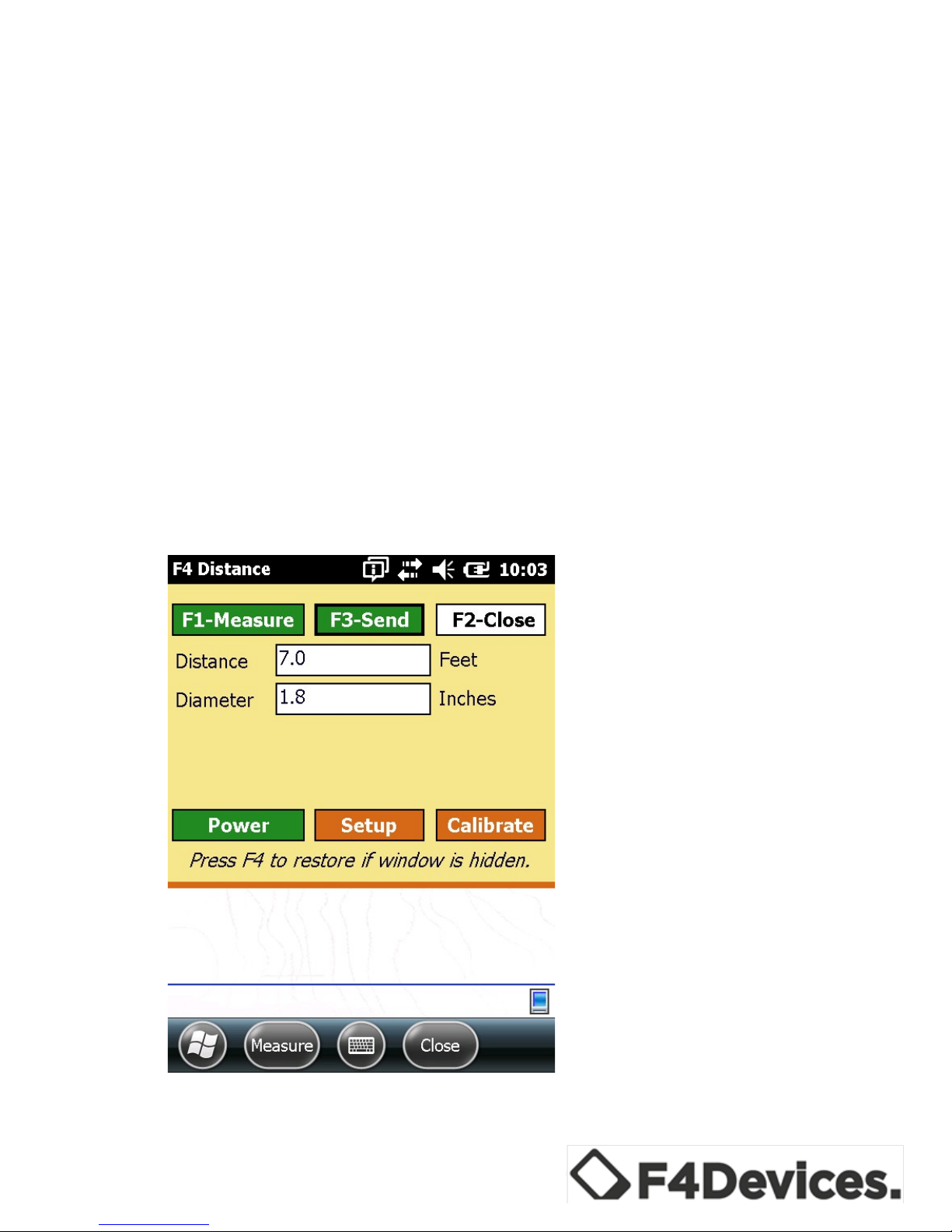

Using the Ultrasonic Ranging Module

This device supports the Ultrasonic Ranging Module. For
additional product information, please contact your reseller or an
authorized service provider.

Chapter 2

The Basics

Powering On/Off

"

To turn off the device, hold down the power button; the device
will display a 3 second countdown notification, then power off.

Power Saving

Turning the backlight on/off

"

•

The touchscreen’s backlight dims after inactivity. By
default, the touchscreen will dim after 30 seconds of
activity on battery power.

•

While connected to A/C charger, the touchscreen will dim
after 1 minute of activity.

•

To restore the backlight, either double tap the touchscreen
or press any button.

18"

"

" " "

Suspend Mode

•

The device sets itself into suspend mode after inactivity. By
default, the device will set itself into suspend mode after 3
minutes of inactivity on battery power.

•

The device will set itself into suspend mode after 5 minutes
of inactivity while connected to A/C power.

•

To manually set the device into suspend mode, briefly press
the power button.

•

To resume operation, press the power button.

On-Screen Navigation

Using the Stylus

This tool is used to navigate the device’s touchscreen. The stylus
is located at the device’s left side; remove from slot for use.

Tap

To open items and select options, touch the screen once with the
stylus.

Drag

To drag text and images across the screen, tap, hold, and drag
text or image. Lists and multiple items can also be selected and
moved.

Tap and Hold

19"

"

" " "

Tap and hold the stylus on an item to view a shortcut menu of
available options. From the shortcut menu, select preferred
option.

Home Screen

•

When the device is turned on, the default screen is the
Home screen.

•

The Home screen can be accessed by tapping: and then
Home.

•

The Home screen displays upcoming appointments, active
tasks, email messages and notifications, and more. If a
section of the Home screen is tapped, the associated
program will open.

20"

"

" " "

Portrait/Landscape View

To change the view preference, tap: Settings/System/Screen/
General/then select “Landscape” or “Portrait”.

Navigation Bar

The navigation bar is located at the top of the screen. It displays
active programs and tools, such as: volume, battery, time,
connectivity, and more. Tap the navigation bar to setup related
items.

Navigation Bar:

Tool Bar

The toolbar is located at the bottom of the screen, including
options such as an onscreen keyboard and the Menu button.

Tool Bar:

21"

"

" " "

Programs

To switch from one program to another without closing other
programs, tap: to open the Start menu.

All available programs can be accessed through the Start menu.

Notifications

The device has a variety of reminder notifications, such as:
calendar appointments, tasks, alarm clock, etc. Notifications
types include the following:

•

A screen message

•

A sound, which can be changed or specified

•

The notification flashes in amber

To specify and choose reminder types and sounds, tap:
/Settings/Sounds & Notifications.

Entering Information into Your Device

"

Text can be entered by:

• Using the onscreen keyboard

• Using the handwriting recognizer

To show or hide the onscreen keyboard, tap: :""""""""". The soft
keyboard appears by default.

To change input modes, tap and hold: , and select “preferred
mode” from the popup menu.

• When using the onscreen keyboard, the device auto-

detects words that are being typed.

22"

"

" " "

• Tap on the displayed word to insert it.

"

"

Writing on the Screen

"

In programs that accept writing, such as Notes, a stylus can be
used to write onto the screen. Writing can be edited and
formatted into text later.

To write on the screen, tap:" /Draw to switch to drawing
mode.

Drawing on the Screen

Pictures, diagrams, charts, etc. can be drawn onto the screen
using the same input method for writing text:

1. Tap: /Draw to enter drawing mode.

2. To draw, cross 3 ruled lines on first stroke; a drawing box
should appear.

3. Any strokes or marks made within the guidelines will
become part of the drawing.

4. Drawings that do not cross three ruled lines will be treated
as writing.

23"

"

" " "

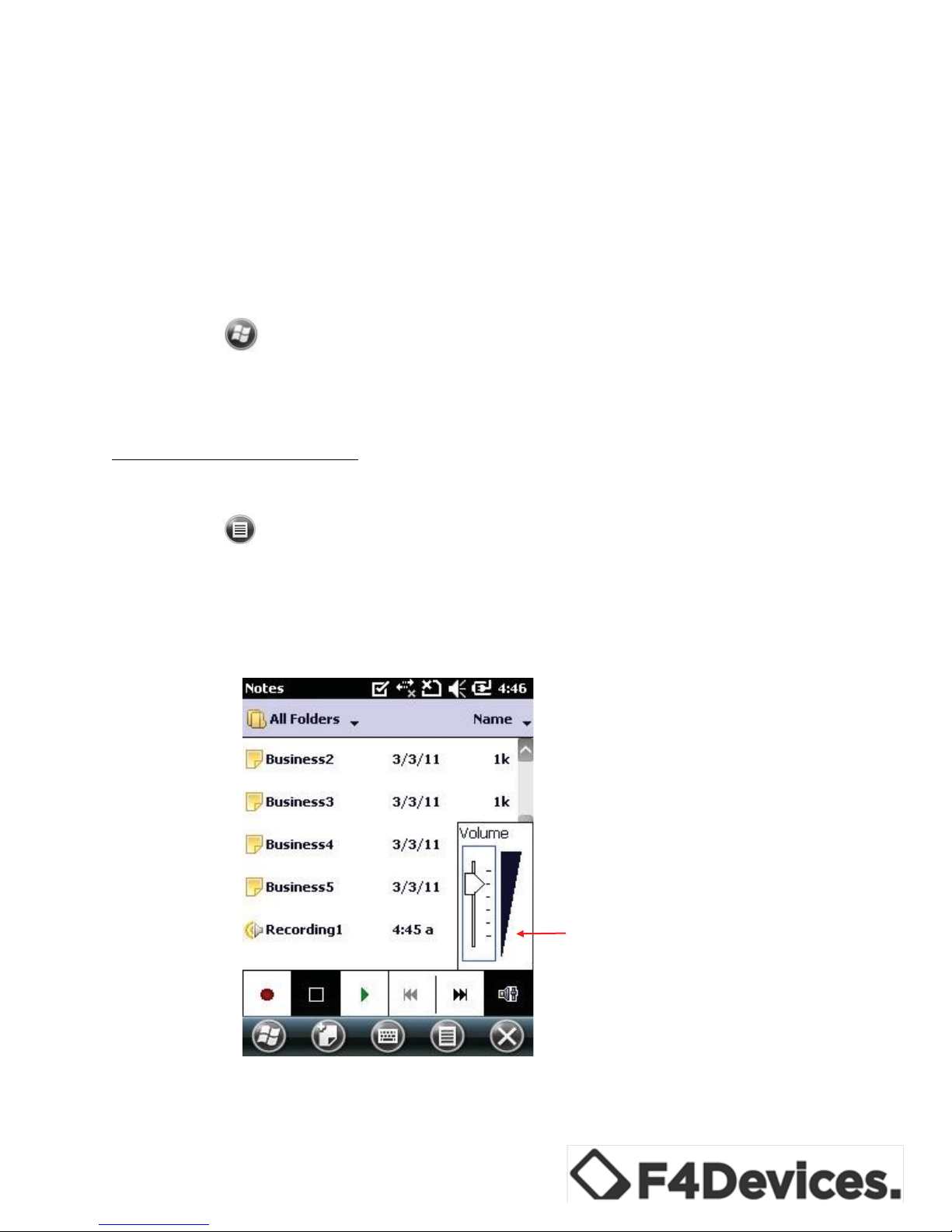

Recording a Message

This device has the capability to record messages. Located in
the “Notes” program, a stand-alone recording can be created
with the note.

To create a recording:

• Tap: /Notes to open the program

• Tap: /View Recording Toolbar

• Place the device’s microphone near your mouth or the

source of the sound.

• Tap the “Record” button on the Recording toolbar to begin
recording.

• To stop recording, tap the “Stop” button on the Recording
toolbar. The new recording will appear in the note list or as
an embedded icon. To play a recording, select the recording
in the list or tap its icon in the note.

Drawing Box"

Volume Control

Recording File

24"

"

" " "

Securing Your Device

Locking Your Device

Your device can be locked
when not in use. This
prevents accidental/undesired
operation of the touchpad or
keypad.

To lock the device:

• Tap: Device Unlocked
on the Home screen

To unlock the device:

• Tap: /Unlock

Securing Your Device with a Password

To keep data secure, a password can be assigned to be inputted
each time the device is turned on.

• Tap: /Settings/Lock

• Tap to select prompt if phone unused for. In the box to the

right, select a desired period of time.

• Select password type.

• Enter desired password. Confirm the password.

• Tap “OK” to save the settings.

• If the password is forgotten, the memory must be cleared

25"

"

" " "

before accessing the device.

Chapter 3

Device Management

"

Power Management

"

A fully charged battery should supply power for approximately
8 hours. Operation time will vary depending on usage of the
device. Continuous multimedia operation or micro SD card
operation will decrease the battery’s power supply.

Low Battery Signals/Actions

• The battery should be charged for at least 30 minutes if the
device displays a warning of low power. Failure to do so
may result in insufficient battery power for operation.

• Battery power can be monitored by tapping:
/Settings/System/Power

• The available remaining power is displayed on a status bar
in the “Power” control panel.

• When the battery is low, a warning message will appear.

• As a precaution, all data should be saved and the battery

should recharged immediately via A/C power or USB
power.

• Failure to do so may result in data loss.

26"

"

" " "

Power-Saving Tips

The following describes how to maximize the, battery power
and operation time.

• Set the device to suspended mode when not in use. By
default, the screen will automatically dim. When the device
has remained in idle mode for an extended period of time,
the device will automatically go into suspend mode.

• The idle time required before the device goes into suspend
mode can be adjusted by tapping:
/Settings/System/Power/Advanced

• The device can also be set into suspended via the Power
button.

• Disable functions and features you don’t intend on using.

• Decrease the volume.

• Disable unused or unnecessary sounds and lights.

• Keep only the most necessary sounds and lights. These

settings can be adjusted by tapping:
/Settings/Sounds & Notifications

• Avoid power-consuming operations such as: using a
modem or other peripheral, multimedia playback and
recording, and using or monitoring wireless network
signals.

27"

"

" " "

Customizing Your Device

You can customize the settings of the device to your own
preferences by tapping: /Settings.

The items you can customize are described as follows:

Items

Description

Bluetooth

To set up or change the Bluetooth connection.

Clock & Alarms

To change the time, date, and alarms.

Home

To select the information, theme, and background to be
displayed on the Home screen.

Lock

To set a security password.

Sounds &
Notifications

To change the settings for the system’s sounds, volume,
and notifications.

Connections

Connections

To set up or change connection information.

Domain Enroll

To connect the device with company resources. An
enrollment password should be provided by the company’s
system administrator.

Beam mode

To enable to receive incoming files.

USB to PC

To adjust settings for the type of USB connection and to
enable advanced network functionality.

Wi-Fi

To configure the wireless network module.

Personal

Buttons

To assign hardware buttons to specific programs and to
adjust sensitivity levels of the buttons, i.e. repetition rate of
scroll.

28"

"

" " "

Owner Information

To enter personal information.

Chapter 4

"

Microsoft Pocket Outlook

Microsoft Pocket Outlook includes Calendar, Contacts, Tasks,
Notes, and Messaging. These programs can be used individually
or together. For detailed information on using Microsoft
programs, tap: /Help.

Calendar: Scheduling Appointments and

Meetings

Use Calendar to schedule appointments, including meetings and
other events. Appointments can be viewed as Agenda, Day,
Week, Month, or Year. Notifications can be set as reminders for
appointments. Appointments can also be displayed on the Home
screen. Tap: /Calendar to access the program.

Tap to access

29"

"

" " "

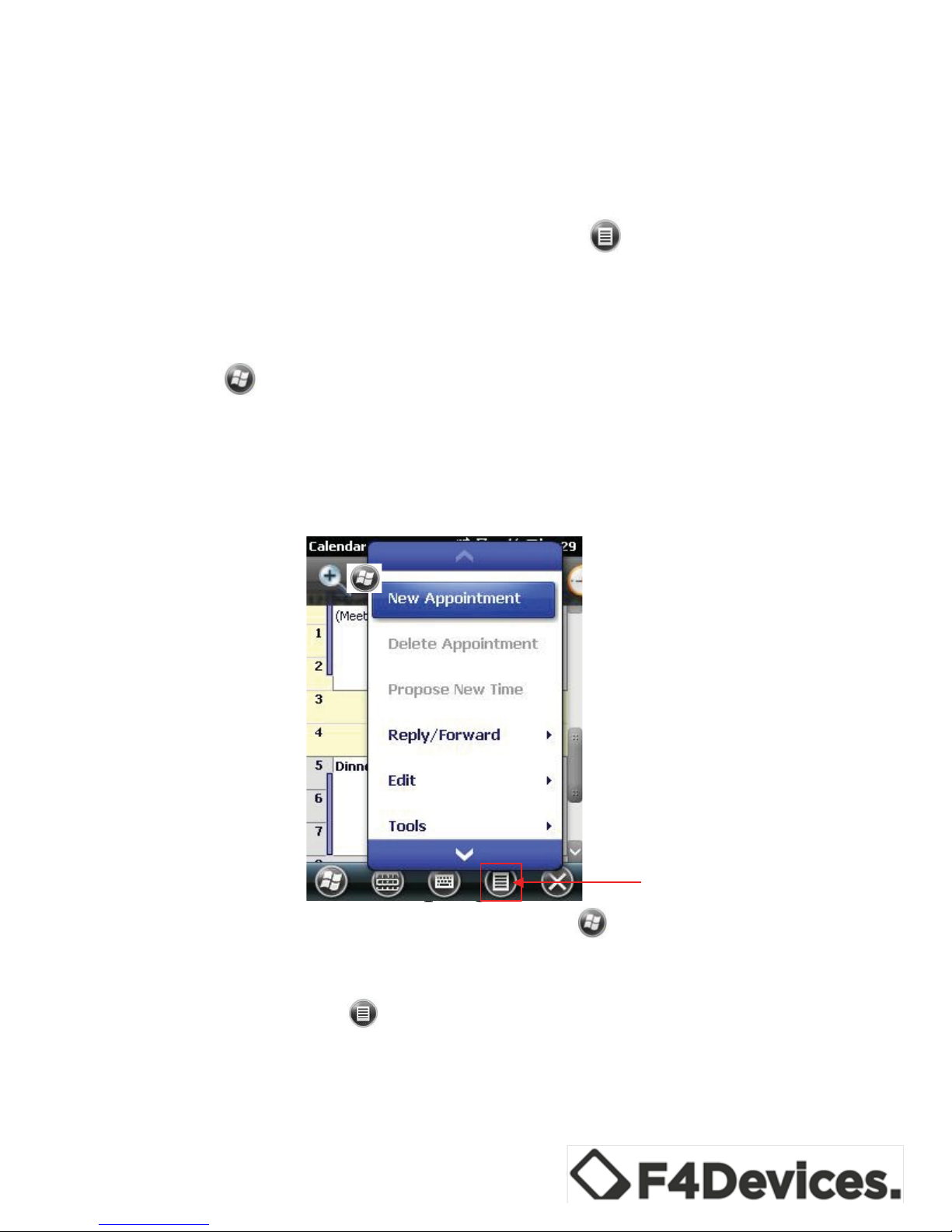

Creating an Appointment

"

• In “Day” or “Week” view, tap the desired date and time for
the appointment.

• Tap: /New Appointment

• Using the Onscreen Keyboard, tap first to select the field,

and then enter a description and location.

• If needed, tap the date and time to change them.

• Enter other desired information. You will need to hide the

Onscreen Keyboard to see all available fields.

• Tap “ok” to save and return to Calendar.

Tap to add new

30"

"

" " "

Using the Calendar Summary Screen

When you tap an appointment Calendar, a summary screen is
displayed. To change the appointment, tap /Edit.

Contacts: Tracking Friends and Colleagues

• Contacts maintains a list of friends and colleagues.
Tap: /Contacts for access.

• For model with the 3.5G connection function, contacts
stored in the SIM card will also appear in the list.

• They are indicated by the icon.

Creating a Contact

• In contacts, tap:

• For model with the 3.5G connection function: Outlook or

SIM contact should be selected.

• Using the Onscreen Keyboard, enter a contact’s
information. Scroll to view all available fields.

• Tap “ok” to save and return to contact list.

• When a contact in the contact list is tapped, a summary

screen is displayed.

Tasks: Keeping a To-Do List

Use Tasks to create a To-Do list. Tap /Tasks to access.

Creating a Task

• In “Tasks”, tap: /New Task

• Using the Onscreen Keyboard, enter a description.

• Enter a start date and due date, or enter other information

31"

"

" " "

by first tapping the field. Hide the Onscreen Keyboard to
view all available fields.

• Tap “OK” to save and return to the task list.

• A summary of a task appears when it is tapped. To change

the task, tap: .

Notes: Capturing Thoughts and Ideas

Reminders, thoughts, ideas, drawings, etc. can be quickly jotted
with Notes. A note can be a written note, an audio recording, or
a written note with an audio recording. Tap: /Notes to open
the program.

Creating a Note

• In “Notes”, tap: .

• Create a note by writing, drawing, typing, or recording.

• Tap “OK” to save and return to the note list.

Email: Sending and Receiving Email Messages!

The email program can be used to send and receive email
messages in two ways:

• Sync the device with Microsoft Exchange or Outlook on a
computer.

• Connect directly to an email server through an Internet
Service Provider (ISP) or a network.

• Tap: /Email to access the program.

Synchronizing Email Messages

• Email messages can be synchronized as part of the general
synchronization process.

32"

"

" " "

• Enable “Inbox synchronization in ActiveSync/Windows
Mobile Device Center”. For information on enabling Inbox
synchronization, see “ActiveSync/Windows Mobile Device
Center Help” on the desktop computer.

Connecting Directly to an Email Server

Email messages can be sent and received by connecting to a
POP3 or IMAP4 email server through an ISP or local area
network. Multiple email services can be used to receive
messages. To use multiple email services, each email service
needs to be set up and named.

Using the Message List

Received messages are displayed in the message list. Tap a
message to open it. By default, when the device is synchronized
with a desktop computer or a server, only messages from the
previous three days and only the first 2 kb will be synced with
the device. Attachments will not be synced with the device. The
original messages will remain on the desktop computer.

Messages can be marked so that the device will retrieve the
messages in full during the next synchronization or email server
connection. To do so, tap and hold the desired message to
retrieve from the message list. On the shortcut menu, tap
Download Message. An icon will appear in the Inbox message
list to display the message status.

Composing /Sending an Email

• Select the account in “Email”.

• In the message list, tap: /New.

33"

"

" " "

• In the “To” field, enter an email address of one or more
recipients, separating them with a semicolon. If the address
is already in the contact list, tap “To” to select the email
address.

• Enter message.

• To check spelling, tap: /Spell Check.

• To attach a file to the message, tap: /Insert and select the

desired file.

• Tap ”Send” when complete. If working offline, the
message is moved to the Outbox folder and is sent the next
time the device is connected to a server or a desktop
computer.

• Messages in the Outbox folder will be delivered in one of
two ways:

o The message is transferred to the Outbox folder in

Exchange or Outlook upon next synchronization.

o The message is transferred to the email server upon

connection.

Managing Email Messages and Folders

Each email service account has its own folder hierarchy with
five default folders: Inbox, Outbox, Deleted Items, Drafts, and
Sent Items. The messages received and sent through the mail
service are stored in these folders. Additional folders can be
created within each hierarchy. To create folders, tap:
/tools/Manage Folders. The “Deleted Items” folder contains
messages that have been deleted on the device. The behavior of
the “Deleted” and “Sent Items” folders depends on the chosen
options.

34"

"

" " "

Chapter 5

"

More Programs

This chapter overviews other programs built into the device and
how to use the programs. For detailed information on using
Microsoft programs, tap:"""""""""/Help.

ActiveSync/WMDC

ActiveSync on the device works with ActiveSync on a Windows
XP computer and with Windows Mobile Device Center
(WMDC) on a Windows Vista/Windows 7 computer.

When a connection is established between the device and a
computer, information can be synchronized on the device and
the computer with ActiveSync or WMDC. Synchronization
compares the data on both the device and the computer and
updates both systems with the most recent information.

For example: Outlook Contacts, Calendar and Tasks databases
on the device can be kept up to date by synchronizing the device
with Microsoft Outlook data on the computer.

Synchronize email messages in the device Outlook Inbox with
email messages in Microsoft Outlook on the computer.

35"

"

" " "

Synchronize Microsoft Word, Excel, and PowerPoint files
between the device and the computer. Files are automatically
converted to the correct format.

There are options to control which information types are
synchronized and how much data is synchronized.

ActiveSync can also:

• Copy (not synchronize) files between the device and
computer.

• Add and remove programs on the device.

• Pass through the computer to a network or the Internet.

Synchronizing Data

Once synchronization set is complete, date can be synchronized
between the device and the computer.

To synchronize data:

• Connect the device to computer

• On the device, tap: /ActiveSync

• Tap “Sync” to begin synchronization

Office Mobile

Microsoft Office Mobile works with Microsoft Office on the
computer to give easy access to copies of office documentation.
Tap: /Office Mobile 2010 and select program.

• Excel Mobile 2010

• OneNote Mobile 2010

• PowerPoint 2010

36"

"

" " "

• SharePoint WorkSpace

Mobile 2010

• Word Mobile 2010

Creating an Office File

• Tap: /Office Mobile and select program.

• Enter the information.

• After entering the information, tap “OK”. The file is

automatically saved and named according to the first
characters of text entered in the file.

• PowerPoint presentations on the device cannot be created

or edited.

Opening an Office File

Upon opening an Office Mobile program, a file list will appear.
Tap a file to open it. Only one file may be opened at the time. If
a second file is opened, the first file will be saved and closed
automatically.

If the HSDPA connection requires manual setup, you must
obtain the specific settings from the cellular service provider and
do the following:

• Tap /Settings/Connections/Connections

• In either group, tap “Add a New Modem Connection”.

• In the “Enter a Name for the Connection” field, enter a

name for the connection.

37"

"

" " "

• In the “Select a Modem” field, select “Cellular Line
(HSDPA)”, and then tap “Next”.

• Enter the access point name provided by the cellular
service provider, and tap “Next”.

• Enter the username and password and tap “Finish”.

Internet Explorer

Internet Explorer can be used to view Webpages in the
following ways:

• Connect to an ISP or network and browse the Web. To do
this, a connection must be created.

• During synchronization with a computer, download links
and mobile favorites that are stored in the Mobile Favorites
subfolder in Internet Explorer on the computer. While
connected to an ISP or network, the device can download
files and programs from the Internet or an intranet.

• Tap: /Internet Explorer. The Internet Explorer Mobile
home page appears.

Browsing the Internet

• Tap: /Internet Explorer.

• Tap the “Favorites” soft key to display the Favorites list.

• Tap the desired page to view.

• To visit webpages not include in “Favorites”, enter a web

address in the address bar at the top of the screen and
tap: , or tap the arrow to choose from a previously
entered address.

38"

"

" " "

Zoom in/out

Windows Live Messenger

Windows Live Messenger provides practically instant access to
up to date MSN Hotmail Inbox, Messenger Contacts list, and
options for customizing the Messenger experience. Windows
Live requires an internet connection, either a MSN Hotmail
account, an MSN Messenger account or a Windows passport
account.

Features of Windows Live Messenger include:

Favorite"

39"

"

" " "

• MSN Hotmail

o Read, write, and send email. Delete email and manage

Hotmail folders.

• MSN Messenger

o Send and receive instant messages.
o Check which contacts are online.
o Subscribe to status updates for selected contacts.
o Synchronize the Windows Live contacts, Hotmail inbox, and

MSN Messenger to the device.

Setting up Windows Live

• Tap: /Windows Live to access program

• Tap “Sign into Windows Live”

• Tap “Accept”

• Follow the onscreen instructions to complete the setup

Signing into Messenger

Before signing into Messenger, Windows Live must be signed
into first.

• Tap /Messenger to access the program

• Tap “Sign In”

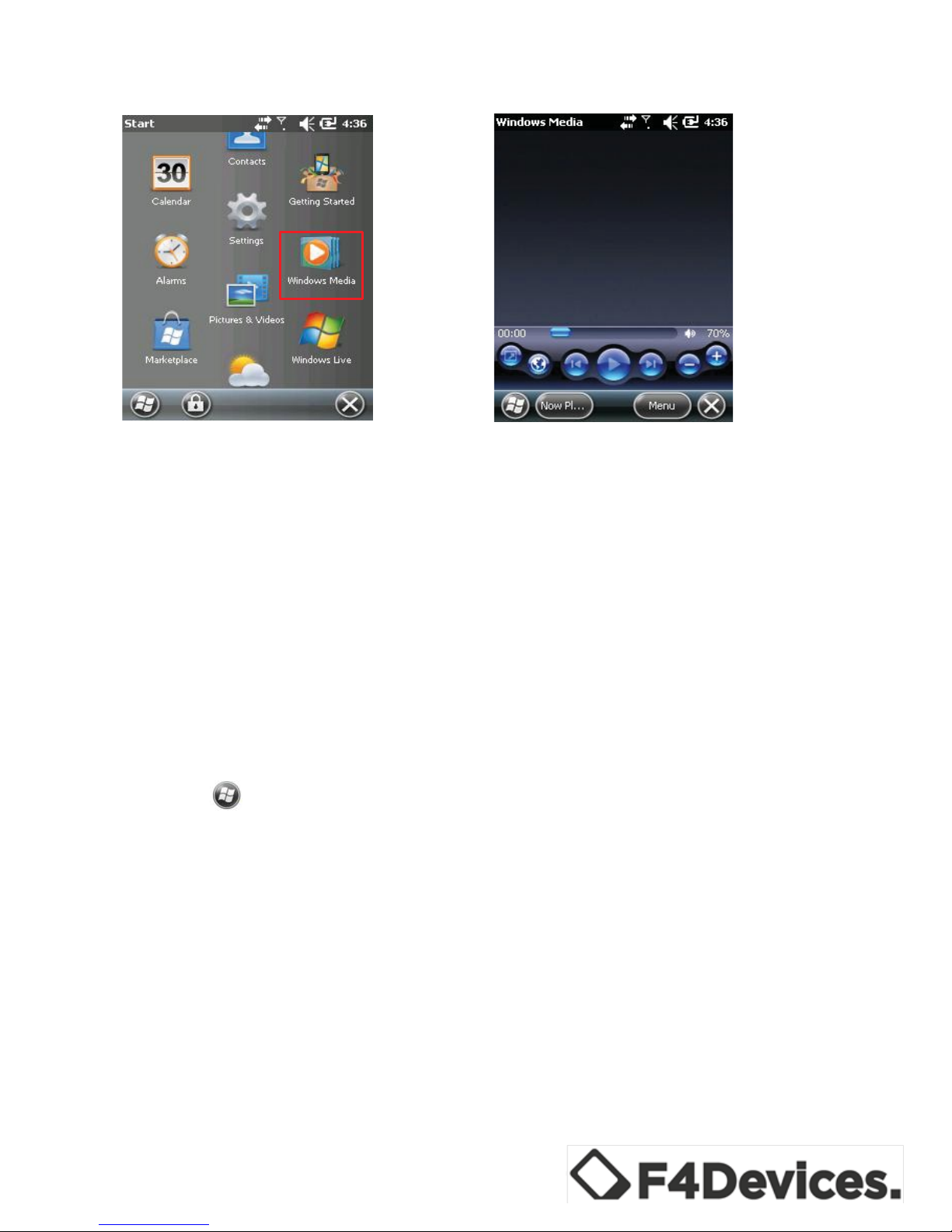

Windows Media Player

Windows Media Player can be used to play digital audio or
video stored on the device, on a network, or on a website.
Supported formats are Windows Media or MP3 format
(including files with the extensions: .asf, .wma, .wmv, and .mp3)
Microsoft Windows Media Player on a desktop computer can be
used to copy digital audio and video files to the device.

40"

"

" " "

Pictures & Videos

Features of Pictures & Videos includes:

• Viewing pictures and video clips

• Sending pictures and videos to others

• Setting a picture as the background on the Home screen

• Playing a slideshow

• Editing pictures

Viewing Pictures & Videos

• To view pictures or video stored on a storage card,
tap: /Pictures & Videos.

• By default, the program displays thumbnails of the pictures
and videos in the “My Pictures” folder, within the “My
Documents” folder on the device.

• Thumbnails of pictures and videos appear on the screen.
Tap one of them to view in full screen."

41"

"

" " "

Camera

Taking Pictures

• To start the program, press the camera button on the device
or tap: /Pictures & Videos/ /Camera. The camera
screen will appear.

• Aim the camera lens at the subject. Press the camera button
halfway for automatic focusing. A white frame will appear.
Wait until the color of the frame turns green indicating that
the subject is in focus.

• Press the camera button fully to take the picture.

• The taken picture will be displayed on the screen. Tap the

screen or press the camera button to go back to the camera
screen.

• If the picture is not chosen to be deleted after it was taken,
the picture is saved to the pre-selected storage location.

42"

"

" " "

Recording Video Clips

• To start the program, press the camera button or tap:
/Programs/Pictures & Videos/Camera.

• Tap the “/” at left corner of the screen to switch between
camera and video modes.

• Press the camera button to start recording.

• To stop recording, press the camera button.

• The video clip is saved to the pre-selected storage location.

To view the video clip, tap “Thumbnails”.

43"

"

" " "

Geotagging

• This picture shows you the user interface of the Geo
Camera. Tap the “Set up” item on the bottom of the screen.

• To enable the coordinate and date marks, tap the upper
right icons. The upper left icon (flag) shows the GPS
position fixed or not.

• To enable the coordinate and date marks, tap the upper
right icons. The upper left icon (flag) shows the GPS

44"

"

" " "

position fixed or not.

• To check coordinates from BAP Forge series unit, the
coordinate and date marks will show on the upper left
corner of the photo.

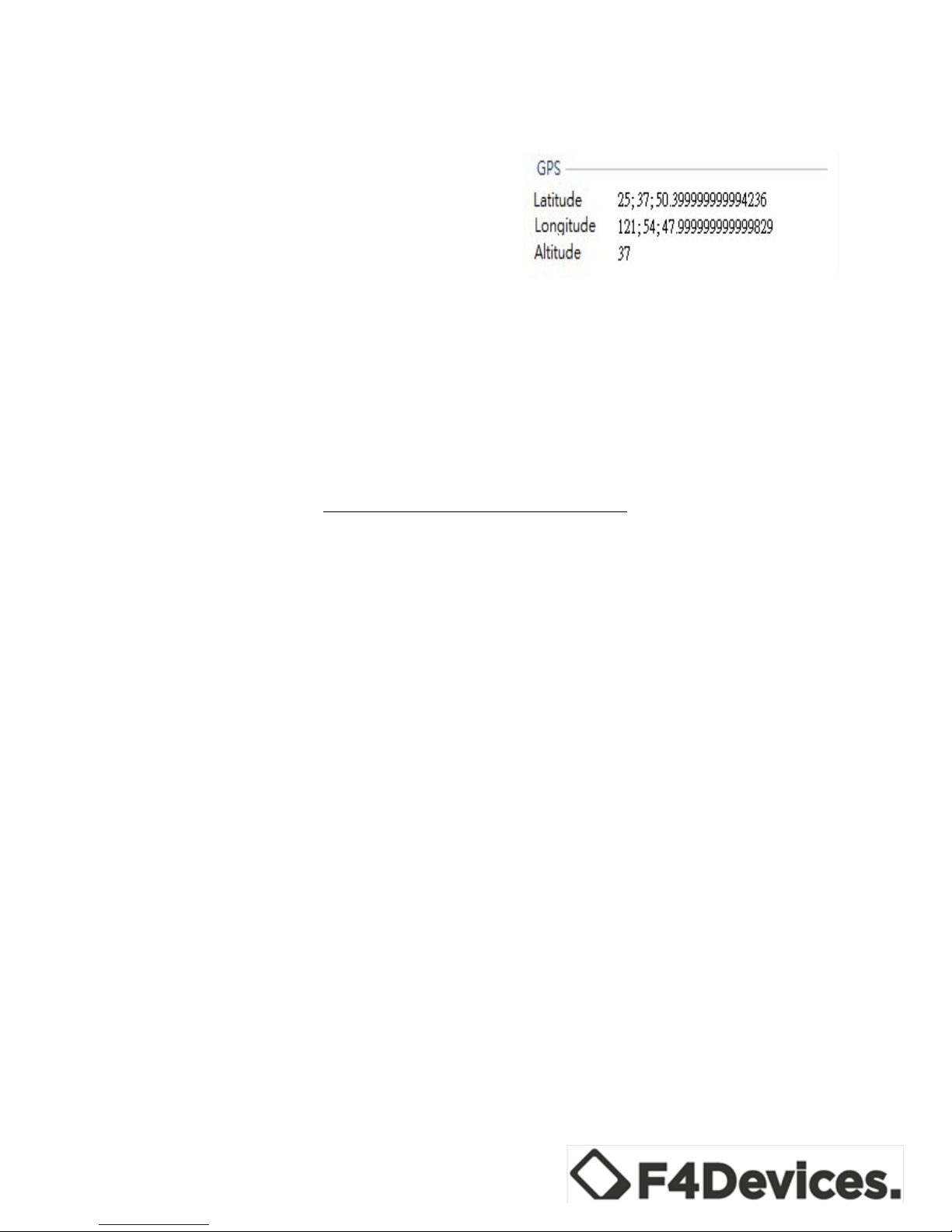

• To check the coordinates from PC/NB, copy the file from
BAP Forge series to PC/NB and right click on the file.
Select “Content” to check more information.

45"

"

" " "

Chapter 6

Getting Connected

Types of Connections

The device can connect to the Internet, a computer, and to other
devices and services. Using Cellular Connection (Select model
only) Model with 3.5G connection function, allow the device to
access the Internet via the mobile phone service network.

Setting up a Cellular (HSDPA) Connection

HSDPA service requires a subscription with a mobile phone
service network operator. In most cases, the cellular (HSDPA)
connection will be preconfigured by the cellular service provider
and does not need to be setup or changed.

46"

"

" " "

System

About

To show the hardware information and to define the device name for identifying
itself to other computers.

Backlight

To adjust the brightness level and power saving options.

Certificates

To establish personal identification or the identification of other computers.
Establishing a personal identification of the device and other computers prevents
unauthorized users from accessing the device and information on the device.

Customer Feedback

To send personal feedback to Microsoft regarding the Windows Mobile

Encryption

To encrypt files on the storage card.

Error Reporting

To enable or disable error reporting to Windows Mobile technical support group.

External GPS

To configure the GPS hardware settings.

Managed Programs

To show the installation history of managed programs.

Memory

To view the system memory or the memory of any installed storage card and to
manually stop a program if it becomes unstable.

" "

Power

To show the remaining battery power and to set battery power
settings.

Regional Settings

To specify the region and the local number, currency, time, and date.

Remove Programs

To remove programs.

47"

"

" " "

Screen

To set the orientation of the screen to portrait or landscape. To adjust the
touch screen for accurate screen taps.
To adjust the text size.

System Information

To view system information.

Task Manager

To view or perform task management of programs.

Searching and Organizing Information

The “Search” feature on the device helps quickly locate
information.

To Search for a file:

• Tap “Search Phone”, enter the file name, select data type,
and tap “Search” to start the search.

• File Explorer can also be used to find files on the device
and to organize these files into folders. Tap: /File
Explorer

• Files can be moved in File Explorer by tapping and holding
the item. Tap “Cut” or “Copy” on the shortcut menu,
browse to the new location, and tap “Paste”.

Remote Desktop

Remote Desktop allows the device to log onto a Windows
Terminal Server and use the programs installed on the server.

• Access to a remote computer requires that the computer

48"

"

" " "

have Terminal Services or Remote Desktop installed.

• To connect to a remote computer:

o Tap /Remote Desktop Mobile
o Select the computer. Enter the username, password,

and domain

o Tap “Connect”

49"

"

" " "

Setting up a Dial-up Connection

Depending on the wireless service provider, dial up connections
may or may not be supported. With dial up, the service provider
gives a phone number that connects the device to the Internet.

• Tap /Settings/Connections/Connections

• In either group, tap “Add a new modem connection”

• In the “Enter a name for the connection” field, enter a name

for the connection

• In the “Select a modem” field, select “Cellular Line”, and
then tap “Next”

• Enter the phone number provided by the service provider,
and tap “Next”

• Enter the username and password, and tap “Finish”

Using a Wireless Network

The device has a built-in wireless network module. If the device
is within a wireless LAN (WLAN) environment, it can connect
to the network without any cables.

Switching On or Off the Wi-Fi Radio

By default, the Wi-Fi radio is turned off. To turn on or off the
Wi-Fi radio:

• Tap the Wi-Fi icon on the Home screen to access Wireless
Manager.

• Tap the Wi-Fi box to change the Wi-Fi radio status from
Off to Available.

50"

"

" " "

When the Wi-Fi radio is on, the Wi-Fi radio status on the Home
screen will be displayed as Available. To turn off the Wi-Fi
radio, follow the above procedure, but tap the Wi-Fi box to
change the Wi-Fi radio status from Available to Off. The Wi-Fi
radio status on the Home screen will be displayed as Off.

• Turn on the Wi-Fi radio.

• Tap Menu/Wi-Fi Settings to open the Wireless Networks

Configuration screen. By default, the device will
automatically detect available wireless networks.

• If more than one network is detected, the screen will
display a network list. Tap the desired network and follow
the procedure to configure the wireless network.

• If the selected network requires a network key, enter the
key and tap Next/Finish on the screen.

• End the Wi-Fi connection by switching off its radio.

51"

"

" " "

• Search for a network to connect to by tapping:

/Settings/Connections/Wi-Fi/Search Networks

• Once connected to a network, a shortcut is created on
Settings. To change the network settings, tap:
Settings/Connections/Wi-Fi. Tap the desired network and
change the settings.

• Leaving the radio on will drain the battery power at quicker
rate.

Using Bluetooth

BAP does not guarantee that all Bluetooth headsets/devices from
all manufacturers are compatible with the device. The device
incorporates Bluetooth capability. Bluetooth technology is a
short-range (approximately 10m or 30ft) wireless
communications technology.

Bluetooth technology features the ability to do the following:

• Beam information, such as files, tasks, contacts, etc. to
other Bluetooth supported devices.

• Connect the device to a Bluetooth enabled phone to be used
as a modem. When the device is connected to another
device or computer, the device can locate and use the
services available on the other device or computer.

52"

"

" " "

Switching On or Off the Bluetooth

By default, the radio is turned off. To turn on Bluetooth, do the
following:

• Tap the Wireless Manager section on the Home screen.

• Tap the Bluetooth box to change the Bluetooth radio status

from Off to On.

• For other devices with Bluetooth capabilities to detect the
device and attempt to beam information to it, establish a
connection, or use a Bluetooth service, tap:""""""
/Setting/Bluetooth Mode/Make this device visible to other
devices.

• To turn off the Bluetooth radio, follow the above
procedure, but tap the Bluetooth box to change the
Bluetooth radio from On or Visible to Off. The Bluetooth
radio status on the Home screen will be displayed as Off.

• Leaving the radio on will drain the battery power more
quickly.

53"

"

" " "

Sending Files Via Bluetooth

• Turn on the Bluetooth radio.

• Make sure that the device and the device that is receiving

the information are within close range and that the device is
discoverable.

• From the program, tap and hold the desired item.

• Tap “Beam File” in the shortcut menu.

• The device will search for other devices with Bluetooth

capabilities within close range, and will display them in the
list. Tap the desired destination device.

• Files are saved automatically before they are beamed. If a
Word document or Excel workbook was created on a
computer, unsupported content and formatting may be lost
when the files are saved.

54"

"

" " "

Receiving Files Via Bluetooth

• Make sure that “Make this device visible to other devices”
in Bluetooth settings is selected.

• Make sure that the device and the destination device are
within close range and that the device is discoverable.

• When prompted to receive an incoming beam, tap “Yes” to
receive.

Creating a Bluetooth Partnership

A Bluetooth partnership is a connection that allows for secure
information exchange via Bluetooth technology. When a
partnership between two devices is created, the devices do not
need to be discoverable for secure information exchange. A
matching passkey is required on both devices to create a
partnership. A Bluetooth partnership will work as long as the
Bluetooth function is turned on.

• Turn both devices, set them to discoverable, and place them
in close range.

• Tap: /Settings/Bluetooth/Devices/Add new device.

• The device will search for other devices with Bluetooth

capabilities and display them in the list.

55"

"

" " "

Chapter 7

GeoAssist Software

Starting GeoAssist

GeoAssist is a GPS utility that allows the end user to view the
status of the GPS and, depending on the version, allows the user
to configure the GPS and optimize it for the environment for
which it will be used. This instruction guide will show you all of
the features and their application. The versions of GeoAssist that
are available are Lite (L), Standard (S), and Premium (P).

56"

"

" " "

GeoAssist Settings

GPS Tab

• The GPS Tab allows you to setup the connection settings
for the GPS, Start/Stop the GPS communications, as well
as Exit the program.

• The GPS Settings for the Forge handheld should be set to
use COM 9 as the communications port and the baud rate
should be set to 9600.

• Next, set the additional NMEA sentences you would like to
have enabled.

• The GST string reports the GPS Pseudo-range Error
(Noise) Statistics. When satisfied, press the “Apply”
button.

57"

"

" " "

Satellite Detail Tab

The Satellite Detail tab (L,S,P) gives you information regarding
each satellite being used.

• PRN: Pseudo-Random Noise (unique identifier for each
satellite

• SNR: Signal to Noise Ratio

• Active: Used in Position – True/False

• Azimuth: Position in the sky from True North

• Elevation: Elevation of satellite above the horizon

58"

"

" " "

Use Mode Tab

Link Mode: Autonomous (L,S,P)

• Default (L,S,P) – offers no enhanced settings or filter
algorithms; Default mode in Lite version

• Precise Point Positioning (P) – Precision, Open Sky

• For Canopy Environments (S,P) – Precision

High-Multipath Environments

SBAS (P)
SBAS is enabled by default to automatically (auto-scan) locate
the SBAS for the local position. The GeoAssist Premium
version gives you the following control over SBAS:

• Subsystem (P):

o Disable – Turn SBAS off
o Enable – Turn SBAS on

PRN Codes (P)
Choose the SBAS that best fits your needs.

• Press apply when ready

• In order for “Apply” to be active, the GPS must be started.

Network DGPS (P)

• Host: Enter your host name IP address

• Port: Enter the port given by provider

• User ID: Enter your User ID

• Password: Enter your password

• Advanced – Some NTRIP servers require the GGA string

in order to process the correction. Here you can set the
location from where the GGA string is set.

• When the settings are correct, press the “Connect” button

59"

"

" " "

1) 2)

3) 4)

60"

"

" " "

Log Tab

• The Log Tab (P) gives you the ability to store NMEA date
in a .nmea file.

• This will not store feature attribute or value data, just raw
.nmea string from the GPS receiver.

• Choose a storage location, then press “Start”. When you are
finished, press “Stop”.

About Tab

The “About Tab” validates your license edition as well as
version.

61"

"

" " "

Chapter 8

Recommended Settings

"

GPS Settings and Best Practices

• Starting the GPS: Open GeoAssist and start the GPS.
Choose the “Mode” tab and select the mode for which you
want to use the GPS. Leave GeoAssist running while in use
and collecting data.

• GPS COM Port: COM 9

• GPS Baud Rate: 9600

• While in “Canopy” mode, it is best to walk directly to

target and stop to collect data. Wandering around target or
moving the unit aimlessly may cause inaccurate data.

• If GPS performance is slow, reset the handheld.

Handheld and Best Practices

• Begin each day be resetting the handheld. This normal
practice for most devices and will help with performance.

• For best results and when possible, charge the device via
the provided A/C wall charger or desktop battery charger.
Charging via the auto adapter or USB may take the unit
longer to reach a full charge.

62"

"

" " "

Chapter 9

Troubleshooting & Maintenance

Resetting Your Device

If the device stops responding, or appears to be “frozen” or is
“locked up”, the device may need resetting.

Reset button

63"

"

" " "

Restoring Device to Factory Settings

The device can be restored back to its factory default state by
clearing the memory from the device. Restoring the device back
to its factory default state should be done in the following cases:

• When the device does not respond after being restarted.

• When the password is forgotten.

• Clearing the memory deletes all data, files, system settings,

and additional programs that were installed or
synchronized.

• Back up data on a computer, storage media, or another
device before restoring to factory default state. Regular
back-up of data ensures data integrity during emergency or
accidental situations.

To clear the memory from the device, proceed with the
following:

• Turn off the system

• Press F1 soft key, F2 soft key and power button

simultaneously

• Release all the keys. A “Hive Clean” message should
appear

• Press “Yes”

64"

"

" " "

Troubleshooting

If a problem occurs that cannot be solved, contact the dealer for
assistance.

Problem Solution

Power does not switch on when
using battery power.

The remaining battery power may be too low to
run the device. Charge the battery for 20 minutes
before use.

Screen responds slowly.

Make sure that the device is not running out of
battery power. If the problem still persists, restart
the device.

Screen freezes.

Restart the device.

Cannot establish a connection
with a computer via USB.

Make sure that the device and the computer are
both switched on before trying to establish a
connection.

Make sure that the cable is securely plugged into
the USB port on the computer and on the device.
Connect the USB cable directly to the computer.
Do not run the cable through a USB hub.

65"

"

" " "

In some specific cases, the device may experience connection
problems when it is connected to a Windows computer running
ActiveSync. To resolve the problems, please tap: /Settings/
Connections/USB to PC/Enable advanced network functionality.

Problem

Solution

A warning message of not
enough memory appears.

Delete unneeded files.

Remove unneeded programs.

Delete all files and clear history in Internet
Explorer.

Stop programs that are not being currently
used. To check the state of active programs,
tap: /Settings /System/Task Manager. To
stop the program by tapping End Task.

Restart the device.

Move the data/file to the storage card using file
explorer.

Move Email attachments to storage card.

66"

"

" " "

Caring for Your Device

• Keep the device away from excessive moisture and extreme
temperatures.

• Avoid exposing the device to direct sunlight or strong
ultraviolet light for extended periods of time.

• Do not place anything on top of the device or drop objects
on the device.

• Don not drop the device or subject it to severe shock.

• Do not expose the device to sudden and severe temperature

changes. This could cause moisture condensation inside the
unit, which could damage the device. In the event of
moisture condensation, allow the device to dry out
completely before next use.

• The screen surface can easily be scratched. Avoid touching
it with sharp objects. Non-adhesive generic screen
protectors designed specifically for use on portable devices
with LCD panels may be used to help protect the screen
from minor scratches.

• Never clean the device with it powered on. Use a soft, lint-
free cloth to wipe the screen and exterior of the device. Do
not use paper towels to clean the screen.

• Never attempt to disassemble, repair or make any
modifications to the device. Disassembly, modification, or
any attempt at repair could cause damage to the device and
may even cause bodily or property damage. Disassembly or
modification of the device voids the warranty of the device.

• Do not store or carry flammable liquids, gases or explosive
materials in the same compartment as the device, its parts
or its accessories.

67"

"

" " "

Chapter 10

Safety Precautions

• Prolonged listening of music at maximum volume can
damage the ears.

• The use of headphones other than those recommended/
supplied can cause hearing impairment due to excessive
sound pressure.

About Charging

• Use only the A/C adapter supplied with your device. Use of
another A/C adapter will result in malfunction and/or
danger.

• Use only the car charger supplied by the manufacturer. Use
of another type of car charger will result in malfunction
and/or danger.

• Use a specified cradle approved by the manufacturer.

• Use a specified battery.

About the Charger

• Do not use the charger in a high moisture environment.
Never touch the charger with wet hands, feet or any other
body part.

• Allow adequate ventilation around the charger when using
it to operate the device or charge the battery. Do not cover
the charger with paper or other objects that will reduce
cooling. Do not use the charger while it is inside a carrying
case. Connect the charger to a proper power source.

• If damaged, replace the charger with a manufacturer’s
approved charger. Once damaged, the charger cannot be
repaired.

68"

"

" " "

About the Battery

• Use a specified battery approved by the manufacturer.

• Do not place the battery in fire. The battery can burst or

explode, releasing hazardous chemicals.

• Dispose or recycle used batteries according to the
instructions.

• Only use a replacement battery recommended by the
manufacturer.

• The battery should only be used in the specified device.

FCC Warning

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures; reorient or relocate the receiving antenna.

69"

"

" " "

Chapter 11

Echo Distance Module

On Forge Echo models, the Echo Distance is used in tandem
with the Transponder to measure distances and calculate limiting
diameters of trees from plot center on variable radius plots.

• Tap / F4 Distance to open the program.

• Remove the rubber cover at the top of the Forge.

• Connect a 9 Volt battery to the Transponder.

• While holding the Transponder to the Forge coupler, tap

Power and then F1-Open to open the transciever.

• Next, tap F3-Power while still holding the Transponder to
the Forge coupler. Wait for the Transponder to power up. It
will chirp twice when it is powered up.

• Tap F2-Close to close the set-up window.

70"

"

" " "

Before the Transponder is used to measure distance, it should be
calibrated. Temperature can affect the Transponder’s
performance, so it is important to calibrate the Transponder at
the start of each day it is used.

• Tap the Setup button.

• Use the drop-down menus to choose your distance units,

limiting diameter units, BAF, and other information.

• Tap F2-Close to close the window.

• On the main screen, tap the Calibrate button.

• Tap F3-Temp and the Forge will read the temperature.

• Set the Set Distance to 20, 30, 40, or 50 feet.

• Using a measuring tape, walk the Set Distance value you

chose away from the Transponder.

• Hold the Forge at the Set Distance value. Tap F1-Calibrate.

• Tap F2-Close when calibration is complete.

71"

"

" " "

Now that the echo distance application is set up and
calibrated, it is ready to measure distance.

• To measure distance, place the powered-up Transponder on
the object to be measured.

• Walk away from the Transponder with the Forge. There is
no need to measure this distance with a measuring tape.

• Tap F1-Measure to measure the distance between the Forge
and the Transponder. The Transponder will chirp,
indicating that it is receiving signal.

• The distance and limiting diameter measurements will
appear in the appropriate windows once the Transponder
has completed its measurement.

72"

"

" " "

To power down the Transponder:

• Tap Power.

• Tap F1-Close to power down.

• Tap F2-Close to close the window, and F2-Close again to

close the program.

• Remove the battery from the Transponder.

73"

"

" " "

Clinometer

The Clinometer tool is used to measure height. It works with or
without the echo distance tool. When using this application, treat
your head as the pivot point and keep the Forge vertical as you
measure height to ensure more accurate results.

• Tap / F4 Height to open the program.

• Place the powered-up Transponder on the object to

be measured or input the distance to the object, if known.

• Set the Handheld offset distance. This is the distance you
hold the Forge from your eyes.

• Tap Start Camera to bring up the camera.

74"

"

" " "

• Tap F1-Distance to measure the straight-ahead distance to
the object. Or, enter the distance into the box.

• Keeping your head as the pivot point, pivot downwards and
line up the camera sights with the base of the object.

• Tap F3-Height to measure the base of the object. The base
will be displayed in the first white box.

• Now pivot upwards and line up the camera sights with the
top of the object or the target to measure.

• Tap F3-Height to measure the top of the object or target to
measure. The number will be displayed in the second box.
This is the height of the object. Up to 8 measurements can
be made.

• To clear out height measurements, tap Clear All.

• Tap F2-Close to close the program.

"
