Ezze Mobile Tech SL900 Users Manual

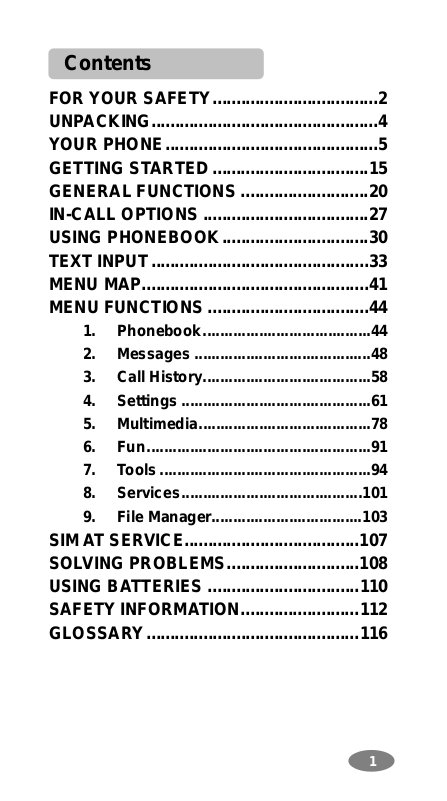

Contents
FOR YOUR SAFETY...................................2
UNPACKING................................................4
YOUR PHONE.............................................5
GETTING STARTED .................................15
GENERAL FUNCTIONS ...........................20
IN-CALL OPTIONS ...................................27
USING PHONEBOOK...............................30
TEXT INPUT..............................................33
MENU MAP................................................41
MENU FUNCTIONS ..................................44
1. Phonebook.......................................44
2. Messages .........................................48
3. Call History.......................................58
4. Settings ............................................61
5. Multimedia........................................78
6. Fun....................................................91
7. Tools.................................................94
8. Services..........................................101
9. File Manager...................................103
SIM A T SERVICE.....................................107
SOLVING PROBLEMS............................108
USING BA TTERIES ................................1 10
SAFETY INFORMATION.........................112
GLOSSARY.............................................116
For Your Safety
For your safety, please refer to the guideline prior
to using the phone. Failure to comply with the
guideline may cause malfunctions or hazardous to
user.
Road Safety Comes First
Please be careful not to use the phone while
driving. In case you need to use the phone, please
pull over your vehicle first. In some countries, it is
illegal to use a wireless phone while driving. Also, it
is recommended to avoid using a mobile phone
while refueling at a gas station
Switch off in Aircraft
Mobile phones may cause interference to the
aircrafts. Please make sure the phone is switched
off while in the airplanes.
Respect Special Regulations
Please follow special regulations in any areas
where it is suggested. It is recommended to switch
off your phone whenever it is illegal to use, or
when it may cause interferences, such as hospitals.
Interference
All mobile phones may be subject to radio
interference, which may affect the performance
during calling and receiving.
Qualified Service
It is highly recommended to have a repair service
by qualified service personnel. Use only the
approved accessories and batteries.
Use Properly
Use only in the normal position (hold to the ear).
Avoid unnecessary contact with the antenna when
the phone is switched on.
Emergency Calls
When making an emergency calls, please ensure
that the phone is switched on and is in service.
Enter the emergency number (Official Emergency
Number or another official emergency number) and
press the [Send Key]. Inform your current location.
Do not end the call until given permission to do so.
You may end the call by pressing the [End Key].
Unpacking
Thank you for purchasing this product. Please
check the product contents to see if you have all
the available items as below.
the actual product in your package.)
(*Images may vary from
Handset
Manual
micro SD (T-Flash) Card
(optional)
PC Sync Manager CD &
USB Data Cable
Battery
Ear/Microphone
Traveler’s Charger
Your Phone
Phone Layout
Key Definition
Soft Keys
Performs functions identified by
left/right display prompt.
Right button: Cancels numbers &
letters when you make a call or
input letter for phonebook,
message or WAP.
Speaker Phone (Optional)
Right button: Starts and stops the
“Speaker Phone” mode during a
voice call.
Navigation Keys
Scrolls through the menu options.
Moves the cursor up and down in
the normal editing mode.
Moves the cursor to left and right in
all editing mode.
Send Key
Dials or answers a call.
Recalls the last 10 numbers in the
idle mode.
Power on/off Key & End Key
Ends a call.
Switches the phone on and off.
(press this key and hold)
Cancels your input in the menu
facility and returns to the idle mode.
Alphanumeric Keys
You may enter numbers, letters and
special characters.
It changes camera settings in
camera mode.
Special Function Keys
Enters Special Characters /
Performs Various Functions
Shortcuts
Side Key(On the right side of your
phone)
Adjusts the Keypad Tone volume in
idle mode.
Flashes light on or off in idle mode
by pressing and hold the key.
Adjusts the earpiece volume during
a call by pressing briefly.
Starts “voice recording” during a
call by pressing and hold the side
key (up). Stops “voice recording” by
pressing and holding down the side
key.
Adjusts the Audio Player volume.
Moves through months in calendar
mode.
Left: Accesses to “Message”
Right: Accesses to “Shortcuts”
Up: Accesses to “Bluetooth”
Down: Accesses to “Music”
from an idle mode
You may dedicate the left
navigation key for favorite menu in
‘Dedicated key’ setting menu
(Menu > 4.Settings > 1.Phone
Setup > Display Settings)
WAP Key
Accesses to WAP menu (press
shortly), and launch WAP browser
(press and hold).
Camera Shutter
In camera and video preview mode,
works as a shutter.
Camera Hot Key (side)
Press and hold to start the camera
preview mode.
In camera and video preview mode,
works as a shutter.
To select the “Keypad Lock” option
menu, press this key and hold.
Switches Main LCD preview mode
and Sub LCD preview mode.
To activate the “Silent Mode”
option, press this key and hold.
Flips the camera and video
preview; use it when you swivel the
camera.
Icons
Icon Description
Signal Strength: Shows the strength
of the receiving signal. The greater the
number of bars, the better the signal
strength.
GPRS: Shows the strength of the
receiving GPRS signal.
The greater the number of bars, the
better the signal strength.
GPRS Connect: Appears when you
connect to GPRS.
Roaming: Appears when the phone is
roaming.
L1, L2: Some SIM cards support two
phone numbers and you can switch the
number (line) with this feature. The
phone will display this icon when you
set a line.
Missed Calls: Appears when there is
missed call(s).
New Message: Appears when a new
incoming text message is arrived and
unread.
MMS Unread: Appears when a new
MMS message is arrived and unread.
MMS Busy: Appears when MMS is
busy, such as receiving and sending a
message.
Broadcast Message: Appears when
Broadcast Message receive mode is
active..
WAP Mail: Appears when WAP mail is
arrived.
Call Barring On: Appears when the
call barring mode is active.
Call Forward: Appears when the call
p
y
forward mode is active.
IrDA: Appears when the IrDA port is
activated.
Bluetooth: Appears when the
Bluetooth power is on. It has to be on,
if you want to use the Bluetooth
function. When you finish using, turn
off the Bluetooth power.
Ring: Appears when the Ring mode is
active.
Vibrate and Ring: Appears when the
Vibrate and Ring mode is active.
Vibrate then Ring: Appears when the
Vibrate then Ring mode is active.
Vibrator On: Appears when the
Vibration mode is active.
Silent Mode: Appears when the silent
mode (manner mode) is active.
Alarm On: Appears when you set the
alarm.
Stopwatch: Appears when you set the
stopwatch.
Lock: Appears when you set the
phone lock.
Battery Strength: Shows the level of
your battery. The more bars you see,
the more
General: appears when you set the
Sound & Light profile as General.
Meeting: appears when you set the
Sound & Light profile as Meeting.
Outdoor: appears when you set the
Sound & Light profile as Outdoor.
ower
ou have left.
Indoor: appears when you set the
Sound & Light profile as Indoor.
Headset: appears when you set the
Sound & Light profile as Headset.
Display Layout
The idle screen display includes three areas.
Status Indicator Icons
Text & Graphic Area
Soft Key Area
Menu Navigation
Selecting Functions and Options
Your phone offers a set of functions that allow
you to customize your phone. These functions
are arranged in menus and sub-menus,
accessible with the two soft keys. Each menu
and sub-menu allows you to view and alter the
settings of a particular function.
Using Soft Keys
The roles of the soft keys vary according to the
current context; the label on the bottom line of
the display just above each key indicates its
current role.
In an Idle screen, by pressing the left soft key
(labeled as “Menu”), you can access to menus;
by pressing the right soft key (labeled as
“Name”), you can view the phonebook list.
Menu Navigation
Navigation key: you
may navigate menus.
Left so ft key: accesses
to the sub menu by
selecting “Ok” or
accesses to options.
Right soft key: you may
go back to the previous
screen.
Using Sub Menu Navigation Keys
Up & down navigation key: you may
navigate menus up and down.
Left navigation key: You
may go to upper depth
menu from the current
depth.
Right navigation key:
You may go to sub depth
menu from the current
depth.
Left soft key: accesses to the sub menu by
selecting “Ok” or accesses to options.
Right soft key: you may go back to the
previous screen.
Backlight
The display is illuminated by a backlight. When you
press any key, the backlight lights up. It dims by
two levels of illumination, if no key is pressed
within a given period, depending on the LCD
Backlight option in the Sound & Light menu.(see
4.Settings/1.Phone Setup/1.Sound & Light)
To specify the length of time for which the backlight
is active, set the LCD Backlight option.
Phone Features
H/W Features
Feature Description
Dimension
44 x 89 x 16.2 mm
Main LCD
Camera
Flash Light
Speaker
Vibrator
Antenna
Phone
Memory
SIM
IrDA
Bluetooth
Data
microSD
(T-Flash)
Card
(Optional)
1.8" 262K TFT LCD
(176 x 220)
1.3 Mega Pixel CMOS
Yes
2 in 1 Speaker
Built-in vibrator
Internal
60MB
3V
Yes
1.2
USB Connection and PC Link
Manager
※Use only genuine microSD
(T-Flash) cards approved &
specified by the SD Card
Association and SanDisk:
Hhttp://www.sdcard.orgH
S/W Features
Feature Description
RF
GSM /
GPRS
Message
GSM900, DCS1800, PCS1900
GSM Phase 2 & 2+
Class 8 GPRS
MMS / EMS / SMS
WAP
Java
DRM
Text Input
Camera
Video
Wallpaper
Sound
Games
Phonebook
Tools
WAP 2.0 (Obigo Browser)
CLDC1.0 / MIDP2.0
DRM 1.0
T9 Intelligent Text Input, Multitap
1.3 Mega Pixel Camera
Video Record & Play (MPEG4)
Pictures and user definable
JPG, GIF, BMP
MP3 Player
MP3, MID, WAV, AMR, iMelody
Sound Recorder (AMR, WAV)
Fun Games
300 Entries of Phonebook
Calendar, To-Do, Alarm, World
Clock, Calculator, Units
Converter, Currency Converter,
Health Tools, Stopwatch
Getting Started
Your First Call
Please refer to the following diagram that
describes the main steps to make a first call.
INSERT A SIM CARD
(Phone is switched off and battery should be
removed)
CHARGE THE BATTERY
SWITCH THE PHONE ON/OFF
ENTER YOUR PIN(ACCESS CODES)
DIAL THE PHONE NUMBER REQUIRED
WHEN FINISHED, END THE CALL
Installing the SIM card
When you subscribe to a cellular network, you will
need a plug-in SIM card loaded with your
subscription details (PIN, and optional services
available).
1. If necessary, switch off the phone by holding
down the End/Power key until the Power off
message appears.
2. Remove the battery by following the steps
below:
① Pull up and hold the locking catch above the
battery on the back of the phone.
② Lift the battery, as shown below.
3. Put the SIM card into the phone. Ensure that
the SIM card is inserted properly.
4. Place the battery pack inside the phone. Slide
in the battery cover to the phone. Align the
bottom of the battery with the corresponding
slots in the phone and place the battery inside
the phone.
Charging the Battery
Your phone package comes with a battery, and a
traveler’s charger. You can also use USB data
cable to charge your phone, however, the charging
time may be different from traveler’s charger.
Use only approved batteries and chargers for your
safety.
Note: It is highly recommended to fully charge
the battery prior to using your phone for the first
time
1. After putting the battery to the phone properly,
insert the charging plug into the charging port
on the “left side” of the phone.
2. Connect the traveler’s charger to a standard
AC outlet.
3. When charging is completed, disconnect the
traveler’s charger from the power outlet and
from the phone by pulling the charging plug.
Low Battery Indicator
When the battery level is low, the phone will make
a warning sound and displays a warning message
on the screen: When the battery becomes too
weak to operate, it switches off automatically.
Note: When the battery is discharged
completely, and not used for a while, the phone
will not display the charging image for about 30
minutes while charging. After 30 minutes of
charging, the phone will display the charging
image.
Switching the Phone On/Off
1. Hold down the power on/off key more than one
second to switch on.
2. If the phone asks for a PIN, key-in the PIN.
The phone searches for your network and when
it finds it, it will display the idle screen. The
external display shows the signal strength,
battery strength and current time and date.
3. When you wish to switch off the phone, hold
down the power on/off key for more than two
seconds.
Access Codes
There are access codes for your SIM card. These
codes help you to protect the phone against
unauthorized use.
When requested for any of the code explained
below, key-in the appropriate code (displayed as
asterisks) and press the OK key.
PIN
The Personal Identification Number or PIN (4-
8digits) protects your SIM card against
unauthorized use. The PIN comes with the SIM
card; see the SIM card instruction provided with
your card.
If you enter an incorrect PIN three times in
succession, the code will be disabled and cannot
be used until you re-enable it by entering the
PUK.
PUK
The 8-digit PUK (Personal Unblocking Key) is
required to change a disabled PIN. The PUK
may be supplied with the SIM card. If not, or in
case you have lost it, please contact your
service provider.
To re-enable your PIN, proceed as follows.
1. Key-in the PUK and press the OK key.
2. Enter a new PIN of your choice and press
the OK key.
3. When the Confirm New PIN message is
displayed, key-in the same code again and
press the OK key.
If you enter an incorrect PUK ten times in
succession, the SIM card becomes invalid.
Please contact your service provider for a new
card.
Pin Password
The 4 ~ 8 digits of password is required when
you use the Call barring function. You can obtain
the password from your service provider when
you subscribe to this function.
General Functions
Making a Call
To make a call on your phone, check the phone if
the screen is idle and the phone indicates signal.
Then key-in the area code and phone number
using the numeric keys and press the Send Key.
If you set the Connect tone to ON, you will hear
the connecting tone when the call is answered by
the caller. For details, please refer to 4.
Settings>1.Phone Setup >1.Sound & Light.
Making an International Call
Press the * key twice to display “+” character.
Input the country code, area code (without the
leading zero), and the phone number. Then press
the Send Key. The ‘+’ informs the network that it is
the international call.
Correcting the Number
Area Displays
The last digit
displayed
Any other digit
in the number
The whole
display
Press the [Clear] soft key
(right).
Press the Right & Left
navigation key until the cursor
is exactly to the right of the
digit to erase.Press the [Clear]
soft key (right).
Hold down the [Clear] soft key
(right) for more than two
seconds.
Entering a “Pause or Wait”
You may enter a pause (“P”) character into a dial
string by pressing the left special function key *
three times. Press the left special function key *
four times to enter a wait (“W”) character into a dial
string.
Search number under Phonebook
When you make a call, press the [Name] soft key
(right) from the idle screen. You can choose a
phonebook name by pressing the up & down
navigation keys. It will display a phone number
under the name. Press the Send Key to make a
call. If you want to view the details of the
phonebook entry, select the [Option] soft key and
select “View.” Press the Send Key to make a call. If
there is no phone number in your phonebook, it will
display [Empty] pop-up.
Making a Call from Phonebook
You can store the names and phone numbers in
the SIM card and phone memory called
[Phonebook]. If you want to find a number by
phonebook name, press the [Menu] soft key (left),
and then choose “Quick Search” menu or “Search
Entry” menu. By inputting full name or a first letter
of the name, it will display the matching entry. If
you have found a name you want to make a call,
choose the name by moving the up & down
navigation keys. Press the Send Key to make a
call. However, if there is more than one entry in the
selected name, it will display a list of numbers.
Then you may simply select one entry and press
the Send Key to make a call.
You can also select “Search Entry” menu under
Phonebook menu, if you want to search with other
than the first letters. If you want to see all lists of
phonebook, just choose the [Option] soft key (left)
without inputting any letter and select “Search.”
Select one entry and press the Send Key to make
a call.
Making a Call with Speed Dial
To use Speed Dial feature, press and hold the
speed dial number key, the phone will dial to the
associated phone number. (See 1.7 Speed Dial, for
detail).
Making a Call from Message
You can make a call from message by pressing the
[Ok] soft key (left) and [Option] soft key (left) and
select “Use Number” and press the Send Key
when the number you want to call back is
highlighted, or select “Dial” menu in the “Use
Number” list.
Redialing the Last Number
The phone stores the last 10 numbers dialed. To
recall any of these numbers, proceed as follows.
1. If you have typed any characters on the display,
clear the display by pressing the [Clear] soft
key, or press the End key to go back to idle
screen.
2. Press the Send Key to display a list of the last
dialed numbers.
3. Use the navigation keys Up & Down to scroll
through the numbers until the required number
is highlighted.
4. In order to Dial the number highlighted, press
the Send Key
Ending a Call
When you have finished your call, press the End
key for a short time.
Answering a Call
When you answer a call, the phone rings or
vibrates according to the Sound & Light settings
with the incoming call animation.
When the caller is identified, the phone will display
the caller’s phone number and name, if stored in
the phonebook. If the caller cannot be identified,
only the caller’s phone number will be displayed.
1. Press the Send key, if the Send Key answer
option is set to ON. Press any key to answer a
call except for the power on/off key, if the Any
Key answer option is set to On. Slide up the
phone to answer a call, if the Slide Answer
option is set to on.
2. To reject an incoming call, press the [Reject]
soft key.
3. End the call by pressing the End key.
Emergency Call
Ensure that the phone is switched on and in
service.
Enter the emergency number (Official Emergency
Number or second official emergency number) and
press the Send Key. provide your location. Do not
end the call until given permission to do so. End
the call by pressing the End key.
Note : When “Enter Lock Code” or “Enter PIN”
messages are prompted on the display during
power-on, some network may not allow
emergency call. However, some network may
request to insert a SIM card and enter Official
Emergency Number.
Adjusting Earpiece Volume
During calling, you can adjust the earpiece volume
by pressing up or down side keys on the right side
of this phone.
If you want to change the keypad tone, press the
side volume keys to up or down in an idle mode
Ear/Microphone
If you insert the ear/microphone jack to the
ear/microphone hole in the left side of your phone,
you can use it in the same way as your phone’s
earpiece and microphone.
You can answer or end a call by pressing the hook
button on the ear/microphone.
To answer another call while you are on the phone,
you can answer the waiting call by pressing the
hook button on the ear/microphone.
SD Card
Warning: It is highly recommended to use
only the genuine microSD cards approved and
specified by the “SD Card Association.”
Hhttp://www.sdcard.orgH or SanDisk. Using other
products that are NOT indicated by SD Card
Association or SanDisk may cause damage to
the microSD card slot of your phone.
Installing the microSD Card
Your mobile phone is compatible with microSD
Card. As shown below, open the battery and
place the microSD card in the slot as shown
below. After inserting the microSD card, slide
down the protector.
Uninstalling the microSD Card
Slide the protector up and push the card to slide
out. After uninstalling the card, close the
protector.
How to Use the microSD Using the USB
data cable
When you plug in the USB data cable to the
powered off phone, the phone will be in Storage
Mode displaying USB connection animation.
When you plug in the USB data cable while the
phone is powered on, the phone will display USB
Configuration menu (Storage Mode/PC Sync
Mode). Select Storage Mode for USB connection
mode; otherwise select PC Sync Mode for using
the phone and charging it.. If you select PC Sync
Mode, the phone will remain powered on and in
the idle status for your usual phone usage.
If you want to explore and edit the microSD Card,
select Storage Mode. Open the Windows
Explore of your PC and open the Portable Disk
driver.
You can use the installed microSD Card to your
phone as a portable disk; saving Music files
image files, or other files.
Note: It is recommended that microSD card
has about 100KB free space for Audio File
play list. If the microSD card is full, the phone
may not able to play a new music file.
* In case the Storage Mode is selected
WITHOUT inserting the microSD memory
card, “No memory card” warning will appear.
Note: The USB data cable from your package
is used for both data transmission and power
charging cable, however, the charging level
will differ from the traveler’s charger.
Security
There are six types of security setting categories,
and you can optimize security mode by choosing
sub menus in “Security Setup” in “Settings” menu.
These security settings will help you to keep
privacy and to prevent other people from using the
phone without your permission.
Please see details of security features. For basic
key protection, please see the following description
of the keypad lock function.
Keypad Lock
You have an option to lock the keypad of your
phone to protect from mistakenly pressed keys
which may cause malfunctions.
Press the * key to activate the keypad lock, and
select the key locking time from 5 seconds to 5
minutes. When the Keypad Lock feature is
enabled, you must press the [unlock] soft key
(right) and then press the Right soft key and #
key in sequence, each time you need to release
the keypad lock. You may not make a call or
operate the phone if unlock code is not entered.
However, answering a call and receiving
message are available without entering the
unlocking key sequence. (see Settings >
Security Setup > Auto Keypad Lock.)
In-Call Options
Your phone provides a number of call control
functions which is allowed to use during calling.
Putting a Call on Hold/Un-hold
You can put the current call on hold when the call
is in active state if this service is supported on the
network. To activate, press the [Hold] soft key.
To make the put on hold call reactivate, press the
[Un-hold] soft key.
Making a Second Call
You can make a second call during calling. To do
this, key-in the second phone number or fetch it up
with Phonebook option and press the Send Key.
The first call is automatically put on hold.
Making an International Second Call
Press the
Key-in the country code, area code (without the
leading zero), and the phone number or fetch it up
with Phonebook option. Then press the Send Key.
The first call is automatically put on hold.
The ‘+’ tells the network that the call is
international.
Answering a Second Incoming Call
You will be notified of an incoming call while you
are in a call. Call Waiting tone will sound in the
earpiece, and the display will show that a second
call is coming. This feature, known as Call Waiting,
is only available if the network supports it.
You can answer the second incoming call by
pressing the [Accept] soft key or the Send Key.
The first active call is automatically put on hold,
and then the incoming call is active.
You can reject the incoming call during a call
key twice to display “+” character.
*
without answering it by pressing the End key.
Storing a Number
You can store phone numbers to the phonebook by
using the [Phonebook] Menu even during you are
in a call.
Mute a Call
You can mute your voice sound while you are on
the phone.
Voice Recording a Call
You can record the conversation during a voice call.
Press and hold the side key (up) to start recording
the call, and press and hold the side key (down).
Speaker Phone Call (Optional)
You can use the Speaker Phone call feature while
you are on the phone. Press the right soft key
[HandsFree] while you are on a voice call, it will
start the Speaker Phone mode.
Swapping Calls
Between Active Call and Held Call
You can swap calls while there are active held calls
on conversation. To swap between the active call
and the held call, press the [SWAP] soft key.
The current active call is placed on hold and the
held call is reactivated.
Conference Call
You can make calls while there are active held
calls on conversation by using [Conference Call]
menu in [Call Menu]. [Conference Call] menu is
appearing only when you accept the second call.
The current active call is placed on hold and the
held call is reactivated. If you want to quit
conference call and do not want to hang up any
call, you can choose [Split Call] Menu in [Call
Menu]. [Split Call] menu appears only when you
are on a conference call.
Note: Some networks do not allow the user to
change this setting.
Sending Message
You can send messages by using the [SMS] Menu
in [Messages] even during you are calling.
Inter-working Phonebook
You can use [Phonebook] menu and sub menus
even while you are calling.
Using Phonebook
You can store phone numbers and its corresponding names in the memory of your SIM card.
In addition, you can store up to 300 entries and
categorize in 5 groups. The SIM card and phone
memories, although physically separate, are used
as if they were a single entity, called phonebook.
Storing a Phone Number with a Name and
an Image
As soon as you start to enter a number, [Save]
appears above the soft key (left) to allow you to
store numbers in the phonebook.
1. Key-in the number to be stored. You can input
the number up to 40 digits.
Note: If you make a mistake while entering a
number, correct it by using the [Clear] soft key
(right). Press the [Clear] soft key to clear one
letter/digit at a time. Press and hold the [Clear]
soft key to clear the entire message or
characters on the edit screen.
2. Select the storage from “To SIM” or “To
Phone.” You can also check how many you
have saved and total entries you can store in
the storage.
3. Select a category to edit. To select the category,
scroll to the category and press the [Edit] soft
key (left). The following categories are
available:
Name: Max. 30 English characters. Press
[Edit] to input the characters.
Number: Max. 40 digits. Enter digits by
pressing alphanumeric keys.
Home Number: Max. 40 digits. Enter digits by
pressing alphanumeric keys.
Loading...
