Contents

FOR YOUR SAFETY ....................................................2

UNPA CKING................................................................7

YOUR PHONE ..................................................... ........8

GETTING STARTED ...................................................18

GENERAL FUNCTIONS..............................................23

IN-CALL OPTIONS.....................................................27

TEXT INPUT TIPS.......................................................29

USING PHONEBOOK .................................................31

MESSAGES...............................................................33

CALL HISTORY..........................................................38

SETTINGS............................................................ ......40

MUL TIMEDIA.......................................... ....................49

TOOLS.............................. ......................................... 52

SERVICES................. ........................................... ......56

FILE MANAGER.........................................................59

USING BATTERI ES ....................................................62

MENU MAP...............................................................64

For Y our Safety

For your safety, please refer to the guideline prior to using the phone. Failure to comply with the guidelines may cause malfunctions or be hazardous to the user.

OAD SAFETY COMES FIRST

Please be careful not to use the phone while driving. In case you need to use the phone, please pull over your vehicle first. In some countries, it is illegal to use a wireless phone while driving. Also, it is recommended to avoi d using a mobile phone while refueling at a gas station

WITCH OFF IN AIRCRAFT

Mobile phones may cause interference to the aircrafts navigation system. Please make sure the phone is in flight mode on or switch off mode while in the airpl anes.

ESPECT SPECIAL REGULATIONS

Please follow special regulations in any area s wherever it is applicable. It is recommended to switch off your phone whenever it is illegal to use, o r when it may cause interferences, such as hospitals.

NTERFEREN CE

All mobile phones may be subject to radio interference, which may affect the performance during calling and receiving.

UALIFIED SERVICE

It is highly recommended to have a repair service by

qualified service personnel. Use only the approved accessories and batteries.

SE PROPERL Y

Use only in the normal position (hold to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.

MERGENCY CALLS

When making an emergency calls, please ensure that the phone is switched on and is in service. Enter the emergency number (Official Emergency Number or another official emergency number) and press the [Send Key]. Inform your current location. Do not end the call until given permission to do so. You may end the call by pressing the [End Key].

PERATING ENVIRONMENT

 Remember to follow any special regulations in force in

any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interferen ce or danger (in a hospital for example).

 Operation of any radio-transmitting equipment, in cluding

cellular phones, may interfere with inadequately protected medical devices. Consult a doctor or the manufacturer of the medical device if you have any questions. Other electronic equipment may also be subject to interference.

 As with other mobile radio-transmitting equipment, you

are advised that for satisfactory operations and personal safety, the equipment should only be used in the normal operating position.

 Always switch off the phone when refueling (service

station). You are reminded of the need to observe restrictions on the use of radio equipment in fuel depots (fuel storage and distribution areas), chemical plants or where blasting operations are in progre ss.

 Do not store or carry flammable liquids, gases or

explosive materials in the same compartment as the phone, its parts or accessories.

 Switch off your cellular phone when in aircraft. The use

of cellular phones in aircraft is illegal and may be dangerous to the operation of the aircraft or disrupt the cellular network. Failure to observe these instructions may lead to the suspension or denial of cellular telephone services to the offender, legal action or both.

ARE AND MAINTENANCE

Your phone is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help you fulfill the warranty obligations and enjoy this product for many years.  Keep the phone and all its parts and accessories out of

the reach of small children.

 Keep the phone dry. Precipitation, humidity and liquids

containing minerals will corrode the electronic circuits.

 Do not use or store the phone in dusty, dirty areas as its

components may get damaged.

 Do not store the phone in warm area s. High

temperatures can shorten the life of electronic devices, damage batteries and warp or melt certain plastics .

 Do not store the phone in cold areas. When the phone

warms up to its normal temperature, moisture can form inside the phone, which may damage the electronic circuits.

 Do not attempt to open the phone’s casing. Non-expert

handling of the phone may cause damages to your phone.

 Do not drop or knock the phone. Rough handling may

damage the internal circuits.

 Do not use harsh chemicals, cleaning solve nts or strong

detergents to clean the phone. Wipe out with a soft cloth slightly dampened in mild, soapy water.

 If the phone or any of its accessories are not working

properly, take them to your nearest qualified service center. The personnel there will assist you, and if necessary, arrange for the phone to be repaired.

Unpacking

Thank you for purchasing this product. Please check the product contents to see if you have all the available items

(*Images may var y from the actual pr oduct in your

as below.

package.)

Handset

User Manual

micro SD (T-Flash) Card

(optional)

PC Sync Manager CD & USB Data Cable

Battery

Ear/Microphone

Travel Charger

Your Phone

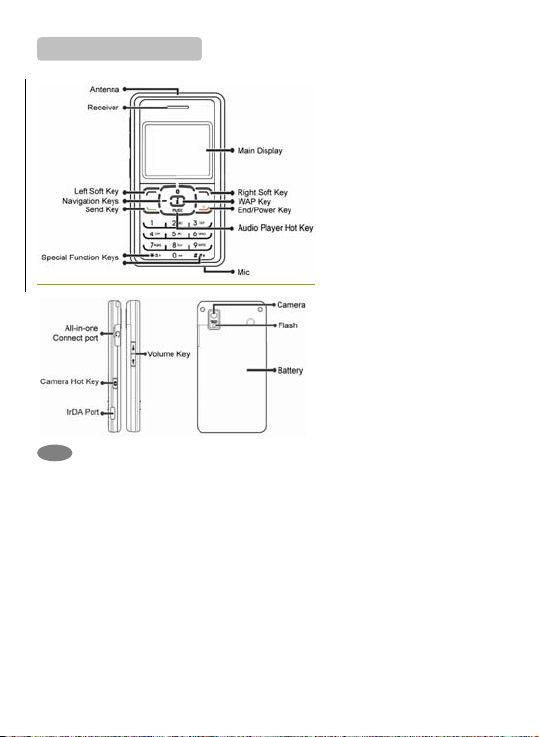

PHONE LAYO U T

KEY DEFINITION

Soft Keys

Perform functions identified by left/right display prompt. Right button: Cancel numbers & letters when you make a call or input letter for phonebook, message or WAP. Speaker Phone (Optional) Right button: Start and stop the “Speaker Phone” mode during a voice call.

Navigation Keys

Scroll through the menu options. Move the cursor up and down in the normal editing mode. Move the cursor to left and right in all editing mode.

Send Key

Dial or answer a call. Recall the last call numbers in the idl e mode.

Power on/off Key & End Key End a call. Switch the phone on and off. (press this key and hold) Cancel your input in the menu facility and return to the idle mode.

Alphanumeric Keys You may enter numbers, letters and special characters. It changes camera settings in camera mode.

Special Function Keys

Enter Special Characters / Perform Various Functions

Side Key(On the right side of your phone)

Adjust the Keypad Tone volume in idle mode. Flash light on or off in idle mode by pressing and holding the key. Adjust the earpiece volume during a call by pressing briefly. Start “voice recording” during a call by pressing and holding the side key (up). Stop “voice recording” by pressing the [Stop] soft key. Adjust the Audio Player volume.

Move through months in calendar mode.

SHORTCUTS

Left: Access to “Message” Right: Access to “Tone Setup” Down: Access to “Audio Player”

from an idle mode You may dedicate the left navigation key for favorite menu in ‘Dedicated key’ setting menu

(Menu > 4.Settings > 1.Phone Setup > Dedicated Key)

WAP Key

Access to WAP menu (press shortly), and launch WAP browser (press and hold).

Camera Shutter

In camera and video preview mode, works as a shutter.

Camera Hot Key (side) Press and hold to start the camera preview mode. In camera and video preview mode, works as a shutter. To activate the “Keypad Lock”, press this key and hold. To activate the “Silent Mode” option, press this key and hold.

DISPLA Y LAYOUT

The idle screen display includes three areas.

Status Indicator Icons

Text & Graphic Area

Soft Key Area

CONS

Icon Description

Signal Strength: Shows the strength of the

receiving signal. Greater the number of bars, stronger the signal strength.

GPRS: Shows the strength of the receiving GPRS signal. Greater the number of bars, stronger the signal strength.

GPRS Connect: Appears when you connect to GPRS.

서식 있는 표

Roaming: Appears when the phone is roaming.

L1, L2: Some SIM cards support two phone numbers and you can switch the number (line) with this feature. The phone will display this icon when you set a line.

Missed Calls: Appears when there is missed call(s).

New Message: Appears when a new incoming text message is received and is unread .

MMS Unread: Appears when a new MMS message is arrived and unread.

MMS Busy: Appears when MMS is busy, while receiving and sending a message.

Broadcast Message: Appears when Broadcast Message receive mode is active ..

WAP Mail: Appears when WAP mail is received.

Call Barring On: Appears when the call barring mode is active.

Call Forward: Appears when the call forward mode is active.

IrDA: Appears when the IrDA port is activated.

Ring: Appears when the Ring mode is active.

Vibrate and Ring: Appears when the Vibrate and Ring mode is active.

Vibrate then Ring: Appears when the Vibrate then Ring mode is active.

Vibrator On: Appears when the Vibration mode is active.

Silent Mode: Appears when the silent mode (manner mode) is active.

Alarm On: Appears when you set the alarm. Stopwatch: Appears when you set the

stopwatch.

Lock: Appears when you set the phone lock. Battery Strength: Shows the level of your

battery. The more bars you see, the more

ower you have left.

PHONE FEATUR ES

H/W Features

Feature Description

Dimension

Main LCD

Camera

Flash Light

Speaker Vibrator Antenna

Phone

Memory

Data Cable

50 x 92 x 9.2 mm

1.66" 262K TFT LCD(160x128)

1.3 Mega Pixel CMOS

Yes

Single Loud Speaker

Built-in Vibrator

Internal

60MB

SIM

Yes

IrDA

USB Connection and PC Link

Manager

microSD (T-Flash)

(Optional)

※Use only genuine microSD

(T-Flash) cards approved & specified

by the SD Card Association and

Card

SanDisk:

http://www.sdcard.org

S/W Features

Feature Description

GSM / GPRS

Message WAP

Java DRM Text Input

Camera

Video

GSM900, DCS1800, PCS1900

GSM Phase 2 & 2+ Class 8 GPRS

MMS / EMS / SMS

WAP 2.0 (Obigo Browser)

CLDC1.1 / MIDP2.0 / JSR120, JSR135, JTWI

DRM 1.0

T9 Intelligent Text Input, Multitap

1.3 Mega Pixel Camera

MPEG4 Encoder / Decoder

Wallpaper

Sound

Games

Phonebook

Tools

Pictures and user definable JPG, GIF, BMP

Audio Player

MP3, MID, WAV, AMR, iMelod y Sound Recorder (AMR, WAV)

Fun Games

300 Entries in Phonebook

Calendar, To-Do, Alarm, World Clock, Calculator, Units Converter, Currency Converter, Health Tools, Stopwatch

Getting Started

YOUR FIRST CALL

Please refer to the following diagram that de scribes the main steps to make a first call.

(Phone is switched off and battery should be removed)

CHARGE THE BATTER Y

SWITCH THE PHONE ON/OFF

ENTER YOUR PIN(ACCESS CODES)

DIAL THE PHONE NUMBER REQUIRED

WHEN FINISHED, END THE CALL

INSERT A SIM CARD

INST ALLING TH E SIM CA RD

When you subscribe to a cellular ne twork, you will need a plug-in SIM card loaded with your subscription details (PIN, and optional services available).

1. If necessary, switch off the phone by holding down the End/Power key until the Power off messa ge appears.

2. Remove the battery by following the steps below: ① Slide down the battery cover on the back of the

phone.

② Lift the battery, as shown below.

3. Put the SIM card into the phone. Ensure that the SIM

card is inserted properly.

4. Place the battery pack inside the phone. Slide in the

battery cover to the phone.

HARGING TH E BATTERY

Your phone package comes with a battery, and a travel charger. You can also use USB data cable to charge your phone, however, the charging time may be different from travel charger. Use only approved batteries and chargers for your safety.

Note: It is highly recommended to fully charge the battery prior to using your phone for the firs t time

1. After putting the battery in the phone properly, insert the charging plug into the charging port at the “left side” of the phone.

2. Connect the travel charger to a standard AC outlet.

3. When charging is complete, disconnect the travel

charger from the power outlet and the phone by pulling out the charging plug.

Note: When the battery is discharged completely, and not used for a while, the phone will not display the charging icon for about 30 minutes while charging. After 30 minutes of charging, the phone will display the charging icon.

SWITCHING THE PHONE ON/OFF

1. Hold down the power on/off key for more than one second to swit ch on.

2. If the phone asks for a PIN, key-in the PIN. The phone searches for your network and when detected, will display the idle screen. The external display shows the signal strength, battery strength and current time and date.

3. When you wish to switch off the phone, hold down the power on/off key for more than two seconds.

ACCESS CODES

There are access codes for your SIM card. These codes help you to protect the phone against unauthorized use. When requested for any of the code explained below, keyin the appropriate code (displayed as asterisks) and press the OK key.

The Personal Identification Number or PIN (4-8digits) protects your SIM card against unauthorized use. The PIN comes with the SIM card; see the SIM card instruction provided with your card.

If you enter an incorrect PIN three times in succession, the code will be disabled and cannot be used until you re-enable it by entering the PUK.

PUK

The 8-digit PUK (Personal Unblocking Key) is required to change a disabled PIN. The PUK ma y be supplied with the SIM card . If not, or in cas e you have lost it, please contact your service provider. To re-enable your PIN, proceed as follows.

1. Key-in the PUK and press the OK key.

2. Enter a new PIN of your choice and press the OK

key.

3. When the Confirm New PIN message is displayed,

key-in the same code again and press the OK key.

If you enter an incorrect PUK ten times in su ccession, the SIM card becomes invalid. Please contact your service provider for a new card.

Pin Password

The 4 ~ 8 digits of password is required when you use the Call barring function. You can obtain the password from your service provider when you subscribe to this function.

General Functions

MAKING A CALL

To make a call on your phone, check the phone if the screen is idle and the phone indicates network signal. Then key-in the area code and phone number using the numeric keys and press the Send Key.

MAKING AN INTERNAT IONAL CALL

Press the * key twice to display “+” character. Input the country code, area code (without the leading zero), and the phone number. Then press the Send Key. The ‘+’ informs the network that it is an international call.

SEARC H NUMBER

1. [Name] in Idle Screen :

When you make a call, press the [Name] soft key (right) from the idle screen. You can search the phonebook entries from “All location, SIM card, and Phone.” You can choose a phonebook name by pressing the up & down navigation keys. It will display a phone number under the name. Also enter the name you want to search for, it will display the name from the list. Press the Send key to make a call. If you want to view the details of the phonebook entry, select the [Option] soft key and select “View.” Press the Send key to make a call. If there is no phone nu mber in your phonebook, it will display [Empty].

2. Search in Phonebook menu:

You can store the names and phone numbers in the SIM card and phone memory in the [Phonebook]. If you want to find a number by phonebook name, press the [Menu] soft key (left), and select “Phonebook”.

MAKING A CALL WITH SPEED DIAL

To use Speed Dial feature, press and hold the speed dial number key, the phone will dial to the associated phone number. (See 1.7 Speed Dial, for detail).

MAKING A CALL FROM MESSAGE

You can make a call from message by pressing the [Ok] soft key (left) and [Option] soft key (left) and select “Use Number” and press the Send Key when the number you want to call back is highlighted, or select “Dial” menu in the “Use Number” list.

REDIALING THE LAST NUMBER

The phone stores the last dialed and received numbers. To recall any of these numbers, press the Send Key to display a list of the last dialed numbers.

EMERGENCY CALL

Ensure that the phone is switched on and in service. Enter the emergency number (Official Emergency Number or second official emergency number) and press th e Send Key. Provide your location. Do not end the call until given permission to do so. End the call by pressing the End key.

Note : When “Enter Lock Code” or “Enter PIN” messages are prompted on the displa y during poweron, some network may not allow emergency call. However, some network may request to insert a SIM card and enter Official Emergency Numb er .

ENTERING A “P A USE OR WAIT”

You may enter a pause (“P”) character into a dial string by pressing the left special function key * three times. Press the left special function key * four times to enter a wait (“W”) character into a dial string.

ENDING A CALL

When you have finished your call , press the End key for a short time.

SD Card

Warning: It is highly recommended to use only the

genuine microSD cards approved and specified by the “SD Card Association.” SanDisk. Using other products that are NOT indicated by SD Card Association the microSD card slot of your phone.

INST ALLING T HE MICROSD CARD

Lift up the battery pack, and open the SD Card slot guard and place the microSD card in the slot as shown below.

http://www.sdcard.org or

or SanDisk may cause damage to

Note: It is recommended that microSD card has about 100KB free space for Audio File play list. If the microSD card is full, the phone may not able to play a new music file. * In case the Storage Mode is selected WITHOUT inserting the microSD memory card, “No memory card” warning will appear.

Note: The USB data cable from your package is used for both data transmission and power c harging cable, however, the charging level will differ from the travel charger.

UNINSTALLING THE MICROSD CARD

Slide the protector up and push the card to slide out. After uninstalling the card, close the protector.

In-Call Options

Your phone provides a number of call control functions that is allowed to use during calling.

- Putting a Call on Hold/Un-hold

- Making a Second Call

- Making an International Second Call

- Answering a Second Incoming Call

- Storing a Number

- Mute a Call

- Voice Recording a Call

- Speaker Phone Call (Optional)

- Swappi ng Calls

ONFERENCE CALL

You can make calls while there are active held calls on conversation by using [Conference Call] menu in [Call Menu]. [Conference Call] menu appears only when you accept the second call. The cur rent active call is placed on hold and the held call is reactivated. If you want to quit conference call and do not want to hang up any call, you can choose [Split Call] Menu in [Call Menu]. [Split Call] menu appears only when you are on a conf erence call.

Note: Some networks do not allow the user to change

this setting.

SENDING MESSAGE

You can send messages by using the [SMS] Menu in [Messages] even during you are calling.

INTER-WORKING PHONEBOOK

You can use [Phonebook] menu and sub menus even while you are calling.

Text Input T ips

TEXT INPUT OPTIONS:

While you are in text editing mode, you will be in several modes. When you see [Option] and [Clear] in the soft key, press left soft key for option: you can save the entry or change the Text Input Method. To erase a character, press the right soft key next to the character you want to erase. You can move among the characters you typed-in by pressing the 4 way navigation keys. There can be more than two options depending on what contents you are editing.

TEXT EDITING MODE

While you are in T9 editing mode, press the alphanumeric key once for one character. You will see T9 suggested words, i.e. press 6 and 4 key to type in “OK.” Press up or down navigation key, to navigate through word list. Press the [Select] soft key (left) to select the word you want to write. If there is no such word in the word list, the left soft key will change from [Select] to [Add]. Press the [Add] soft key (left) to edit and select ‘Done’ to save a word to the word list. The next time you enter the word sequence, you can use the saved word.

YOU CAN DE FINE THE DE FA UL T INPUT MET HOD OF YOUR PHONE

AND CHANGE INPUT MET HODS TIME TO TIME

To define your preferred input me thod, go to “Phone Setup” sub menu in “Settings” menu. Then select “Preferred Input Method.” z You can change the text input method with # key; the

input methods will swap when you press the # key.

z Press and hold the * key to select Symbols. z Press the * key to toggle select cases of abc, Abc,

and ABC.

Using Phonebook

You can store phone numbers and its corresponding names in the memory of your SIM card. In addition, you can store up to 300 entries and categorize in 5 groups. The SIM card and phone memories, although physically separate, are used as if they were a single entity, called phonebook.

STORING A PHONE NUMBER W ITH A NAME AND AN IMA G E

As soon as you start to enter a number, [Save] appears above the soft key (left) to allow you to store numbers in the phonebook.

1. Key-in the number to be stored. You can input the number up to 40 digits.

2. Select the storage from “To SIM” or “To Phone.” You can also check how many you have saved and total entries you can store in the storage.

3. Select a category to edit. To select the category, scroll to the category and press the [Edit] soft key (left). The following categories are available:

To SI M

a. Name b. Number c. Caller Group

To Phone

a. Name

b. Number c. Home Number d. Company Name e. Email Address f. Office Number g. Fax Number h. Associate Picture i. Associate Sound j. Caller Group

STORING A PHONE NUMBER USING THE PHONEBOOK MENU

1. Press the [Menu] soft key (left), and select the [Phonebook] menu.

2. Scroll to [Add New Entry] by pressing up or down the navigation key and press the [OK] soft key (left).

3. Select the storage from “To SIM” or “To Phone.” You can also check how many you saved in the storage and total entries you can store. 4. Select a category to edit. To select the category, scroll to the category and press the [Edit] soft key (left).Ten categories are available (see “Storing a Phone Number with a Name and an Image” for selecting category, edit and save the entries).

Messages

You can write and read messages in this menu. Message functions are available depending on network services that your service provider supports.

SMS

The SMS (Short Message Service) function is a network service and your network may or may not support the service. You can send messages in Fax, Page, Email and Text format. To send text messages by phone, you must obtain the SMS center number from your service provider, and enter it on the SC Address option in Profile Settings menu. When the indicates that you have received a new message.

Note: The SMS service may not be available on all networks. Some network allows it only within its own network.

icon appears on the status indica tors area, it

Write Message

With this menu, you can write a message as following.

1) Select [Wri te Message] menu in the [SM S] menu.

2) Write a message.

3) After you complete the message, press the [Optio n] soft key (left) and then select “Done.” Choose one of following options.

- Send Only: Sends the message to the recipient

phone number. It will not save the message.

- Save and Send: Saves the message, and send it to the required recipient.

- Save Only: Saves the message so that you can send it later.

- Send to Many: Send the message to multiple recipients. Select Edit List to add up to 10 recipien t(s).

- Send by Group: Sends the message to the Caller Group. Select a Caller Group from the list.

4) You can input the number directly or get from the

phonebook by pressing the [Search] soft key (left).

5) The phone will display the Message sending Success or Fail message on the screen for all recipi ents.

Note: If you receive a call while you are writing a message, the message will be backed-up and after the call finishes, the phone will display [write message] mode. You can finish the message without losing the data.

Inbox

With this menu, you can view the new text messages or the read messages. It will display the sender’s phone number or name (if stored in the Phonebook) on the list. If you choose the [Ok] soft key, you can view the message contents.

Outbox

With this menu, you can view the sent or unsent

messages you have saved. Send, Edit, Delete, Delete All and Use Number options are available.

Drafts

You can view and edit the saved messages in the Drafts.

Tem p late

You can edit and delete message templates in this menu. You can store your frequently used messages up to 10 messages. For example, “Call Me Now,” “How are you,” and so forth. You can use the Template by selecting [Use Template] option, when you write a message.

Message Settings

You can setup default Message Information. Profile Settings, Common Settings, Memory Status

MMS

The MMS (Multimedia Messaging Service), also called Photo Message, allows end-users to send and receive messages containing multimedia content (i ncluding images, video, sound and text) between mobile to mobile, and mobile to Email.

Write Message

You can write a message and insert Image, Sound, and Attachment.

1) Select [Write Message] menu in the [MMS] menu.

2) Compose a message. You can edit To, CC, BCC, Subject, and Content.

3) You can input the number directly or get from the phonebook by pressing the [Search] soft key.

4) After you complete the message, press the [Option] soft key (left) and then select “Done.” Choose one of following options.

- Send Only: Sends the message. It will not save the

message.

- Save and Send: Saves the message, and send it to

required recipient(s).

- Save to Drafts: Saves the message to Draf ts. You

may send it later .

- Send Options: Validity Period, Delivery Report, Read

Report, Priority

- Exit: Exits the Write Message, the phone will ask if

you want to save the message.

5) The phone will display the Message sending Success or Fail message on the screen for all recipien ts.

Inbox

Same description as for SMS.

Outbox

Same description as for SMS.

Drafts

Same description as for SMS.

Templates

You can edit the MMS templates and write a message in this menu. You can use the Template by selecting [Use Template] option, when you write a message.

Message Settings

Within the MMS sub-menu, you can define default values on common parameters for mobile-originated messages. By setting default values for MMS messages, you can experience a more comfortable se rvice. You can set up the MMS related parameters for sending and retrieving the MMS messages.

OICE MAIL

Your phone is capable of dialing with voicemail server number (if provided by your network). If you receive any voicemail, your phone displays New Message in the idle screen. Select the Voice Mail from the list and press [Option] soft key (left). You can Edit the Voice Mail server number. By selecting the Connect to Voice, your phone will dial to the configured number that has been stored in Voice Mail list. You can then listen to the voicemail.

Note: Voice mail is a network feature. Please contact your service provider for more information .

ROADCAST MESSAGE

This network service allows you to receive the broadcast

messages on various topics such as weather, traffic, local district code, local hospitals, taxis or pharmac y in your area. For more information about broadcast message topics, please contact your service provider.

The phone will display the Broadcas t Messages immediately when received, on the following condition :

1) When the phone is in the idle mode

2) When the Receive Mode (2.4.1) option is set to On

3) When the message channel is currently active in the

Note: This service may not be available on all networks. For more information about the available subjects, please contact your network service provider.

channel list.

Call History

You can identify all call records that you have dialed, received or missed. It will display the number and name (if available), together with the date and time at which the call was made or received.

ISSED CALLS

This menu lets you view the last missed calls.

IALED CALLS

This menu lets you view the last dialed calls.

In the dialed calls list, you can view the details of the record by pressing the [Ok] soft key (lef t). In the view screen, you can make a call to the number by pressing the Send Key.

ECEIVED CALLS

This menu lets you see the last received calls. In the list of received calls, you can view the de tails of the record by pressing the [Ok] soft key (lef t). In the view screen, you can make a call to the number by pressing the Send Key.

ELETE CALL LOG

This menu lets you delete all call data of missed call, dialed call, received call, and all call log.

ALL TIME

This menu lets you view the timers for calls made and received. Last Call Time, Total Sent, Total Received, Reset All Time Note: The actual time invoiced for calls by your service provider may vary, depending on network features, rounding-off for billing purposes and so forth.

ALL COST

You can view the cost of the last call, or of all calls. It will show costs, only if your network operator supports this service.

 Last Call Cost: Allows you to check the cost of the

last call.

 Total Cost: Allows you to check the cost of all calls.  Reset Cost: Allows you to reset the call cost.  Max Cost: Enter PIN2 and input a limitation of the

Max Cost.

 Price Per Unit:: Enter PIN2 and input a limitation of

the price per unit.

Note: Not all SIM cards support this feature. The number of items in these lists depends on the contents of your SIM card.

SMS

CO UNTER

You can view the numbers of sent and received SMS. GPRS

COUNTER

You can view how many GPRS message has been sent and received, and reset the counter.

Settings

You can change settings for your phone using this menu. There are Phone Setup, Call Setup, Network Setup, IrDA, Security Setup and Restore Factory Settings sub menu.

HONE SETUP

With this menu, you can setup settings regarding display and operations of the phone:

Sound

You can set up the Sound setting features.

- Tone Setup

(Incoming Call, Alarm, Power On, Power Off, Message

Tone, Keypad Tone.)

- Volume

- Alert Type

- Intelligent Call Alert

- Ring Type

- Extra Tone

Time and Date

You can set time and date for your phone.

1) Set Home Cit y

This menu allows you to set a city as your home city.

2) Set Time/Date

This menu allows you to set the current time and date displayed in the idle screen.

3) Set Format

This menu allows you to set Time Format and Date

Format.

4) Day Light Saving time

5) Auto Update of Date and Time

Language

This menu allows you to set the display language.

Preferred Input Methods

This menu allows you to define your preferred input method. Once you set the preferred input method, next time you edit in text input mode, it will reflect the setting until you change to another.

Display Settings

This menu allows you to customize desired phone display items as below.

1) Wallpaper

2) Screen Saver

3) Power On Display

4) Power Off Display

5) Main Menu Style

6) Greeting Text

7) Contrast

8) LCD Backlight

9) Show Date and Time

10) Show Owner Number

11) Show Operator Number

Dedicated Key

This menu allows you to set the dedicated function for the 4-way navigation key in the idle mode. Select from the menu lists, and press [Ok] key to change the dedicated menu.

Default Dedicated Keys:

 Down: Audio Player  Left : Messages  Right: Tone Setup

Flight Mode

Flight Mode enables you to use certain functions of your phone without disrupting sensitive radio equipment when flying or in a hospital, for example. Please note, you will not be able to make calls or send

messages/emails while Flight Mode is enabled. You can set Flight Mode Normal Mode, Flight Mode, or Query When Power On (this will ask if you want to put your phone in Flight Mode when you power on your phone.) Note: To cancel out the Flight Mode, press [Menu] and select Settings> Phone Setup> Flight Mode to Off.

ALL SETUP

The following Call Setup features are network services. Please contact your network service provider to check availability and subscribe to the feature.

Caller ID

This network service informs your Caller ID to the recipient when you call out.

Call Waiting

This network service informs when someone is trying to reach you during another call. You can specify the call waiting option for voice calls only.

Call Divert

This network service reroutes incomi ng calls to the number that you specify.

: you may wish to divert your business calls to a

Example colleague while you are busy. Call diverting can be set up in the following ways.

 Divert All Voice Calls: diverts all voice calls.  Divert If Unreachable: di verts calls, if you are not in

a coverage area of your servi ce provider.

 Divert If No Answer: diverts calls, if you do not

answer the phone.

 Divert If Busy: diverts calls, if you are already

making another call.

 Divert All Data Calls: diverts all data calls.  Cancel All Divert: cancels all call div erting options.

Note: The phone sends your settings to the network and the network will acknowledge the settings. You can deactivate all call diverting se ttings by selecting the

Cancel All.

Call Barring

This network service allows you to restrict your call for Outgoing Calls, Incoming Calls. You can also Cancel All call barring settings. You will be able to make and receive calls normally. You can set and change the call barring password obtained from your service provider using th is option. You must enter the current password before you can specify a new one.

Note: The phone sends your settings to the network and the network returns the acknowledgement. You can deactivate all call barring settings by selecting the Cancel All.

Call Time Reminder

You can set the call time reminder. Options are Off,

Single, and Periodic.

Call Time Display

If you want, you can set the phone to display the call time.

Auto Redial

This option allows you to set redial automatically when the call receiver is busy. If you set [Auto Redial] on, it will redial 10 times to make a call.

Answer Mode

You can select the way to answer an incoming call. You may press “Any Key” except End key or only “Send Key” to answer the call.

ETWORK SETUP

Network Setup helps you in Network Selection (Automatic/Manual), selection of Preferred Network, and GPRS connection

Network Selection

The Network Selection feature enables you to select automatically or manually the network used when roaming outside of your home network.

Note: You can select a network other than your home network only if it has a valid roaming agreement with your home network.

Options are as following:

1) Automatic: You will be connected to the first available network when roaming

2) Manual: The phone scans for the available

network, and you can select the network manually.

Preferred Networ ks

You can set your preferred networks from PLMN list. You can Add From List, Create New, Change Priority and Delete

GPRS Connection

Press [Change] soft key (left) to change the setting for the GPRS connection.

IrDA

You may use the IrDA port of your phone to send or receive files with other phone or PC equipped with IrDA port.

Activation Menu

Open / Close : allows you to open or close the IrDA port. After selecting the IrDA to Open, you may send files from Phonebook, My vCard, Camera, Video, or from a File Manager.

Storage

You can choose where to save the files, either to phone or Memory Card.

ECURITY SETUP

There are six types of security setting categories, and you can optimize security mode by choosing sub menus in “Security Setup” in “Settings” menu. These security settings will help you to keep privacy and to prevent other people from using the phone without your

permission.

PIN Lock

When the PIN Lock feature is on, the phone only works when you enter PIN code for the SIM card. If you turn on the phone with the SIM card, the phone will ask for the password. Once the correct password is entered, the phone will work with the SIM card.

Phone Lock

When the Phone Lock feature is on, user must enter the password each time you turn on the phone. Ma king a call or operating the phone is not available without the password.

Auto Keypad Lock

To prevent unwanted accidental key presses , you can use this auto keypad lock function. You may not make a call or operate the phone until you press the unlock code. However, answering a call, receiving messages are available without entering the unlocking ke y sequence. To change the Keypad Lock setting,

1) Press and hold the * key or

2) Press the menu key and select 4. Settings / 4.4 Security Setup / 4.4.3 Auto Keypad Lock.

To unlock the Keypad Lock time setting,

1) Press the [unlock] soft key (left) and * key in sequence , each time you need to release the keypad lock.

Fixed Dial

When the Fixed Dial mode is enabled, the person using this phone can call to the phone numbers stored in the Fixed Dial List only. To make a call to the number not starting the numbers stored in Fixed Dial List, you must enter the PIN2 to disable Fixed Dial mode. If the SIM card does not have PIN2, this feature is not suppo rted. In the Fixed Dial Mode, you can use several useful functions as following.

1) View and Edit: you can see and edit FDN entry after input PIN2.

2) Add : you can add FDN entry after input PIN2.

3) Delete: you can delete FDN entry after input PIN2.

4) SMS: you can send SMS to the phone numbers starting with the numbers stored in FDN.

5) Sh ort Type: you can choose short type among Number / Name / Sequence.

Barred Dial

When the Barred Dial mode is enabled, the person using the phone cannot call numbers in the barred dial list. To call a barred number, you must enter the PIN2 to disable the barred dial mode. If the SIM card does not have PIN2, it will not support the Barred Dial fea ture.

Change Password

To change the password, input the current password, and then enter the new password.

Note: The initial passwo rd is “0000.” After you change your password, you will need to inpu t the password. If you forgot your password, contact the service center.

ESTORE FACTORY SETTINGS

This feature would reset the phone to the same settings as those configured at the factory. In this case, it does not delete the downloaded objects and phonebook records. You will need to input password to restore factory settings. The initial password is 0000.

Multimedia

The Multimedia menu provides you with several multimedia functions.

- Camera

- Image Viewer

- Video Recorder

- Video Player

- Audio Player

- Sound Recorder

- Melody Composer

Note: Camera options

Key Setting

Effect Settings

White Balance

(Auto, Daylight, Tungsten, Fluorescent, Cloud, Incandescence) Flash Light (On, Off) (turns on and off the camera

flash) Delay Timer (5,10, 15)

Continuous Shot (3, 5, Tile Shot)

Night Mode

Image Quality (normal, low, high, fine)

Image Size (1280x1024, 640x480, 320x240,

160x120, 176x220) Switch Camera and Video mode.

Go to Image Viewer

Show or Hide Option icon

Note: Melody Composer keys

1: Do, 2: Re, 3: Mi, 4: Fa, 5: Sol, 6: La, 7: Ti 8: Vibration – allows the phone vibrates. 9: Light – allows the LED lit. 0: Rest – indicates the rest place.

: toggles options, such as notes

and rest

# : changes the accidentals. Press 1~7 and then press

the sharp key; the musical scale will be switched with between Sharp ( # ) / Flat (♭), if applicable.

Navigation Up, Down Keys: changes an octave, and

toggles options when applicable.

Fun

The Fun provides you with Java interface and Games. You can use your phone as your entertainment center.

AVA

Using this menu you can enjoy the embedded Java games and downloaded Java games or Java Applications from WAP. Follow the instruction of the application or game. Loading time will vary from applications to applications. There are embedded Java games for your mobile phone. (Depending on Software version) Press [Option] soft key (left) and select ‘Launch’ to execute

the java game or application.

Java Options:

1) Launch: allows you to launch the selected game or application.

2) Settings: allows you to change the setting for Java.

- Network Access: allows you to set if you wish to

access the network. Select from Allow, Prompt Always, and Never.

- Auto Invocation: allows you to set if you wish to invoke

automatically. Select from Allow, Prompt Always, and Never.

- Messaging: allows you to set if you wish to use

messaging. Select from Allow, Prompt Always, and Never.

- Recording: allows you to set if you wish to use

recording. Select from Allow, Prompt Always, and Never.

3) Information: displays Java Midlet inf ormation of the selected java game or application, such as name, size, version, vendor, and jad or jar website of a Midlet.

AME

Using this menu you can enjoy the embedd ed games

Tool s

Tools menu helps you to utilize your phone as Calendar, To-Do List, Alarm, Calculator, World Clock, Unit Converter,

Health and Stopwatch.

ALENDAR

The calendar helps you to keep track of me mos, calls that you need to make, anniversaries, and To-Do’s.

O DO LIST

You can view all saved tasks. It displays a task or tasks saved in the calendar. The To Do List shows the notes of the tasks from th e oldest task to the latest tas k.

LARM

This menu allows you to set the alarm to ring at a specific time. You can save up to three alarms. To stop the alarm when it rings, press the [Stop] soft key (left) to stop the alarm or press the [Snooze] soft key (right) to snooze the alarm so that it will remind you again in four minutes.

ORLD CLOCK

This feature allows you to check the current time based on Greenwich Mean Time (GMT) for major cities around the world To set the time zone of your location, select the city corresponding to your time zone by pressi ng the left and right navigation keys. The phone will display the local date and time.

ALCULATOR

Using this feature, you can use the phone as a calculator. The calculator performs the basic arithmetic functions

and memory functions; Addition, Subtraction, Multiplication and Division; Add to Memory, Subtract to Memory, Memory Clear and Memory Read.

NIT CONVERTER

U You can convert from one type of unit to another. To convert a value:

1) Select the weight or length options.

2) Press the left or right navigation keys and select the type of conversion to be performed. (Example: Kg ↔ Pound)

3) Using the up and down navigation keys, place the cursor on the desired unit

4) Input the value to be converted, and then press [Ok] to get the result.

You can enter a decimal point (.) using the # key.

URRENCY CONVERTER

To convert currency:

1) Input a currency rate.

2) Press the [Ok] soft key (left).

3) Press the left or right navigation keys to choose how you want the currency to be calculated. ( xxx:1 or 1: xxx)

4) Press down the navigation key and input the local currency value.

5) Press the [Ok] soft key (left) to get the result.

6) If you want to convert other local amount, press the up navigation key and select the

currency convert type (xxx:1, or 1: xxx), and repeat steps 4) and 5). If you want to convert with other currency rate, press the [Back] soft key.

EALTH

With the Health menu, you can check your Body Mass Index.

BMI

BMI is an index for your health, keeping in the Normal range is recommended for your health. Low BMI and high BMI both are critical for the health.

Biorhythm

You can check your biorhythm with your birthday.

TOPWATCH

This is a tool to measure timing; Split Stopwatch, Lap Stopwatch and nWay Stopwatch. You can use the stopwatch functions for various sports ; for example, running, swimming races, or car races.

Typical Stopwatc h

There are Split Timing and Lap Timing stopwatch functions in this typical stopwatch menu.

Split Timing

Split Timing is useful for measuring each player’s record from start. The timing will be recorded

Thin Normal Fat Female ~ 18 18 ~ 23 23 ~ Male ~ 20 20 ~ 25 25 ~

earliest to latest.

Lap Timing

You can use the Lap Timing function to measure each lap record.

View R ecord

When you save the timing records from the Split Timing and the Lap Timing, it will be saved and listed in this menu.

nWay Stopwatch

You can use 4-way navigation keys for measuring times for each direction. When you press a navigation key, the direction stopwatch will start timing, and other direction stopwatch will pause the timing. When you press the paused direction’s navigation key, the stopwatch will resume timing. Press and hold the [Resume] soft key to clear all record.

Services

This menu allows you to use se rvices including SIM card additional services, WAP and Data Service.

STK

If you use a SIM card that provides additional services, the STK menu displays. For details of SIM Card Tool Kit, please refer to your SIM card instructions. If you have any questions, please call After Sales support center.

WAP

You can connect to WAP site by this phone, and use the services provided by the sites. The WAP browser works as Internet browser of PC. And the services are provided by the connected sites.

Homepage

When you choose [Homepage] menu, WAP browser opens the main page of home site that you had activated among the sites in [Profile].

Bookmarks

You can make bookmark data in your phone. And you can connect to the site directly.

Options:

 Goto : Connect to the bookmarked WAP page  Edit : Edit the name and URL of the selected entry  Delete : Delete the selected entry  Delete All : Delete all entries in the bookma rks.  Add Bookmark

Recent Pages

When you choose [Recent Pages] menu, WAP browser opens the latest WAP page.

Enter Address

If you know the URL of the site, you can go to the site directly by inputting the URL.

WAP Push

Your phone receives WAP service messages and saves them in the WAP Push. You can read the message in

the Inbox.

Settings

This option allows you to set the WAP settings. There are several profiles of sites in this phone. You can activate one of them as a home site and change or set each profile. Options:

- Edit Profile : Shows the name of selected site and you can edit the profile(s).

- Browser Options: Time out, Show Images

- WAP Push Se tting: On/Off

- Clear Cache: clears the most recent site fi les that you have downloaded in the temporary memory.

- Clear Cookies: deletes cookies in the m emory.

- Clear Recent Page List: clears recent page list in the memory.

- Clear Address: deletes all addresses, which you entered in 8.2.4 Enter Address.

- Trusted Certificates: saves and lists the Trusted Certificated from the WAP sites. You can view and delete the certificates.

ATA ACCOUNT

This menu allows you to change the settings for the GSM and GPRS network services. For further details, contact your service provider.

GSM

This setting allows you to change the settings for the GSM

network as following:

- Account Name

- Number

- User Name

- Password

- Line Type

- Speed

- DNS

GPRS

This setting allows you to change the settings for the GPRS network as following.

- Account Name: Edi t the account name.

- APN: Enter the access point name used for the address of the GPRS network gateway.

- User Name: Enter the User Name required to connect to GPRS network.

- Password: Enter the password required to connect to GPRS network

- Auth. Type: Select the authorization type from Normal and Secure.

File Manager

This menu allows you to navigate the stored files in the phone or memory card.

1) You can view the remaining memory and total memory of the phone and the microSD Card.

2) You can open and navigate the directories an d files in

the storage.

3) You can view, play, and setup files in the storage disks.

1) View / Play: allows you to view or play the file.

2) Edit : allows you to edit image files.

3) Forward: allows you to forward the file to use in Wallpaper, Screen Saver, Tone Setup, Phonebook, and to send via MMS, EMS, and IrDA.

4) Detail: displays information of the file, date and size.

5) Rename: allows you to edit the file name.

6) Copy: allows you to copy the file to the other folder or other storage.

7) Move: allows you the move the file to the selected folder or storage. The file will be removed from the original folder and paste to the selected folde r.

8) Delete: allows you to delete the selected file .

9) Delete All Files: allows you to delete all files in the selected folder.

10) Sort: allows you to sort the files by name, by type, by time, and by size.

Note: After selecting Copy or Move option, press the left or right navigation keys to access to the upper or lower folder.

SIM AT Service

SIM Card provides several value-added services. These functions will only display and work on the menu of the phone when your SIM card is supported. If your SIM Card does not support such services, the phone will not display those menus.

The content and the terms of the function lists will depend on your network service provider. Please contact your network service provide r (a network operator or the service provider) in regards wi th availability of any services related to the SIM card, application information and the costs.

Note: Please be aware that charges may be applied to your bill due to activated SMS or Call when you perform those services. The text of SIM AT me nus may be different from your phone language setting because the text directly comes fro m your SIM card

Using Batteries

PRECA UTIO NS WHEN USING BATTERIES

 Never use any charger or battery that is damaged in any

way.

 Use the battery only for intended pu rpose.  If you use the phone near the network’s base station, it

uses less power; talk and standby times are greatly affected by the signal strength on the cellular network and the parameters set by the network ope rator.

 Battery charging time depends on the remaining battery

charge and the type of battery and charger u sed. The battery can be charged and discharged hundreds of times, but it will gradually wear out. When the operation time (talk time and standby time) is noticeably shorter than normal, it is time to buy a new battery.

 If left unused, a fully charged battery will discharge itself

over time. When charging after complete discharge, the phone will not display anything for about 30 minu tes.

 Use only approved chargers. When a charger is not in

use, disconnect it from the power source. Do not leave the battery connected to a charger for more than a week, since overcharging may shorten the battery life .

 Extreme temperatures will affect the charging capacity of

your battery: it may require cooling or warming first.

 Do not leave the battery in hot or cold places, such as in

a car in summer or winter conditions, as it will reduce the capacity and lifetime of the battery. Always try to keep the

battery at room temperature. A phone with a hot or cold battery may not work temporarily, even when the battery is fully charged. Li-ion batteries are particularly affected by temperatures below 0℃ (32℉).

 Do not short-circuit the battery. Accidental short-circuiting

can occur when a metallic object (coin, clip or pen) causes a direct connection between the + and – terminals of the battery (metal strips on the battery), for example, when you carry a spare battery in a pocket or bag.

 Short-circuiting the terminals may damage the battery o r

the object causing the short-circuit.

 Dispose the used batteries in accordance with local

regulations. Always recycle. Do not disp ose of batteries in a fire.

Menu Map

Phonebook

Quick Search Search Entry Add New Entry

To S IM To Phone

Copy All

From SIM From Phone

Delete

From SIM From Phone One By One

Caller Group

Friends Family VIP Business Others

Messages

SMS

Write Message Inbox Outbox Drafts Tem p la t e Message Settings

Speed Dial

Enable Speed Dial Set Number

Special Number

Owner Number Service Dial N umber SOS Number

Settings

Memory Status Preferred Storage Fields My vCard Human Voice Prompt View Method

Voice Mail MMS

Write Message Inbox Outbox Drafts Tem p la t es Message Settings

Broadcast Message

Receive Mode

Read Message Languages

Call History

Missed Calls Dialed Calls Received Calls Delete Call Log

Missed Calls Dialed Calls Received Calls Delete All

Call Time

Last Call Time Tot al S en t Total Received Tot al Tim e Reset All Time

Settings

Phone Setup

Sound

Tone Setup Volu me Alert Type Intelligent Call Alert Ring Type Extra Tone

Time and Date

Set Home City Set Time / Date Set Format Auto Update of Date & Time

Language Preferred Input Methods Display Settings

Wallpaper Screen Saver

Channel Settings

Call Cost

Last Call Cost Tot al C os t Reset Cost Max Cost Price per Unit

SMS Counter

Sent Received

GPRS Counter

Last Sent Last Received All Sent All Received Reset Counter

Power On Display Power Off Display Main Menu Style Themes Greeting Text Contrast LCD Backlight Show Date and Time Show Owner Number Show Operator Name

Dedicated Key Flight Mode

Call Setup

Caller ID Call Waiting Call Divert Call Barring Call Time Reminder

Call Time Display Auto Redial Answer Mode IP Number

Network Setup

Network Selection Preferred Net works GPRS Connection

Security Setup

PIN Lock

Multimedia

Camera Video Recorder Audio Player Image Viewer

Fun

Java

Launch Setting Information

Java Setting

Java Audio Java Vibration Java Network Free Data Space Heap Size

Tools

Calendar To Do Li st Alarm World Clock Calculator

Phone Lock Auto Keypad Lock Fixed Dial Barred Dial Change Password

Sound Effect Restore Factory Settings

Video Player Sound Recorder Melody Compose

Games

Start Game Game Level Best Grades Game Help

Game Setting

BGM Sound Effect Game Vibration

Unit Converter Currency Converter Health Sto pwa tc h

Services

(depends on SIM)

STK WAP

Homepage Bookmarks Recent Pages Enter Address WAP Push Settings

File Manager

Data Account

GSM GPRS

Memo

Safety Information

1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS .POTE NTIALLY EXPLOSIVE ATMOSPHERES

Turn your phone OFF when in any area with a potentially explosive atmosphere and obey all signs and instructions. Sparks in such areas could cauls e an explosion or fire resulting in bodily injury or even death.

INTERFERENCE TO MEDICAL DIVICES

Certain electronic equipment may be shielded against RF signal from you wireless phone. (pacemakers, Hearing Aids, and so on) Turn your phone OFF in health c are facilities when any regulations posted in these areas instruct you to do so. RF signals may affect improperly installed or inadequately shielded electronic system in motor vehicles.

.EXPOSURE TO RF ENERGY

Use only the supplied or an approved replacement antenna. Do not touch the antenna unnecessarily when the phone is in use. Do not move the antenna close to, or couching any exposed part of the body when making a call.

SAFETY INFORMATION FOR RF EXPOSURE

Body worn operation

This device was tested for typical body-worn operations with the back of the phone kept 15 mm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 15 mm. separation distance between the user’s body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

SAR INFORMATION

THIS MODEL PHONE MEETS THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES.

Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 1.25 W/Kg described in this user guide, is 0.222 W/Kg models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID:

RV2EZ700.

Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements.

. (Body-worn measurements differ among phone

and when worn on the body , as

. * In the

U.S.A.

U.S.FEDERAL COMMUNICATIONS COMMISSION

RADIO FREQUENCY INTERFERENCE STATEMENT

INFORMATION TO THE USER

NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful Interference in a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if Not installed and used in accordance with the instructions, may cause harmful Interference to radio communications. However, there is no guarantee that interference will not occur in a particular Installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: *- Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.　 *- Connect the equipment into an outlet of a circuit different from that to which the receiver is connected. *- Consult the dealer or an experienced radio/TV technician for assistance.

Changes or modification not expressly approved by the party responsible for Compliance could void the user’s authority to operate the equipment. Connecting of peripherals requires the use of grounded shielded signal cables.

FCC Compliance Information

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) This device must accept any interference received. Including interference that may cause undesired operation.

Ezze Mobile Tech EZ700 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
